W53HTP910LDigital Photo Printer

Operation Manual Digital Photo Printer P910L Handling of this Manual Handling of this ManualHandling of this Manual Handling of this Manual 1. All rights reserved. No part of this operation manual covered by the copyright herein maybe reproduced or copied in any form or by any means, including translation, without the written permission of HiTi Digital, Inc. 2. The specifications in this operation manual are subject to change without prior notice. 3. In case of having any difficulties or finding the fault in this manual, your information to HiTi Digital will be highly appreciated. Introduction IntroductionIntroduction Introduction This manual describes detailed instructions for handling of and basic operation of Digital Photo Printer P910L. We will describe this product as “the printer” in the manual. Read this manual thoroughly to understand how to install and operate the printer before using it. ● Keep this manual near the printer and operators can refer to this manual periodically. ● In case, lost or damaged this manual, contact your dealers. ● In the case of transfer, do not forget to put this manual together with the printer. Notice CONTENTS PREFACE Chapter 1. Important Safety Instruction Chapter 1. Important Safety InstructionChapter 1. Important Safety Instruction Chapter 1. Important Safety Instruction ・・・・・・・・・・・・・・・・・ 121 Environments ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 121 Handling Instruction ・・・・・・・・・・・・・・・・・・・・・・・・・・ 122 Handling Instruction for Consumable and Printed Output ・・・・・・ 123 Chapter 2. Installing and Set Up Chapter 2. Installing and Set UpChapter 2. Installing and Set Up Chapter 2. Installing and Set Up ・・・・・・・・・・・・・・・・・・・・・ 221 Unpacking and Checking the Accessories ・・・・・・・・・・・・・・・・ 221 Parts Name and Function ・・・・・・・・・・・・・・・・・・・・・・・・ 222 Printer Status Lamps Name and Printer Status ・・・・・・・・・・・・ 223 Fixing Anti2tip Plate ・・・・・・・・・・・・・・・・・・・・・・・・・ ・ 223 Connecting Power Cable ・・・・・・・・・・・・・・・・・・・・・・・・・ 224 Connecting USB Cable ・・・・・・・・・・・・・・・・・・・・・・・・・ 224 Connecting Personal Computer ・・・・・・・・・・・・・・・・・・・・・ 224 Setting Ink Ribbon ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 225 Loading Paper ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 226 Installing Dust Box ・・・・・・・・・・・・・・・・・・・・・・・・・・ 227 Transporting the Printer ・・・・・・・・・・・・・・・・・・・・・・・・ 227 Chapter 3. Routine Maintenance Chapter 3. Routine MaintenanceChapter 3. Routine Maintenance Chapter 3. Routine Maintenance ・・・・・・・・・・・・・・・・・・・・・ 321 Cleaning of Thermal Head, Platen ・・・・・・・・・・・・・・・・・・・ 321 Cleaning of Outer Cover ・・・・・・・・・・・・・・・・・・・・・・・・・ 322 Cleaning of Filter ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 322 Chapter 4. Error Handling Chapter 4. Error HandlingChapter 4. Error Handling Chapter 4. Error Handling ・・・・・・・・・・・・・・・・・・・・・・・・ 421 Printer Status Lamps are displayed in red ・・・・・・・・・・・・・・・・ 421 Failure Symptoms ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 421 Paper Jam ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 422 Power Supply Interrupted during Printing ・・・・・・・・・・・・・・・ 422 When the Ribbon is snapped ・・・・・・・・・・・・・・・・・・・・・・・ 422 Chapter 5. Chapter 5. Chapter 5. Chapter 5. In order to more comfortably In order to more comfortablyIn order to more comfortably In order to more comfortably use use use use ・・・・・・・・・・・・・・・・ 521 Paper Pre2Cut function can be turned off through the printer driver・・・ 521 For longer Printer usage ・・・・・・・・・・・・・・・・・・・・・・・・・ 521 For the customers in the U.S.A. ・・・・・・・・・・・・・・・・・・・・・・ 522 For the customers in Canada ・・・・・・・・・・・・・・・・・・・・・・・ 522 For the customers in Europe ・・・・・・・・・・・・・・・・・・・・・・・ 522 Specification SpecificationSpecification Specification ・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・ 621 After AfterAfter After2 22 2sales Service sales Servicesales Service sales Service ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 621 Chapter 1. Important Safety Instruction 121 This manual provides detailed instructions for the safety use of the printer. Read this manual before operating the printer to ensure to have proper use. ◆In this manual, there are notes that require special attention. ◆For your safety operation, Safety notices are separated as follows; ◆ It is difficult to forecast all the danger in setting and use of the printer. Therefore, warnings in this Operation Manual, in the other documents on the printer cannot cover all the cases. In case of performing the operation or maintenance which are not described in this manual, all the concern for the safety have to be taken care of at the customer side. ◆ Operations and the notification for the maintenance described in this manual and other documents are for the proper use of the printer. In case of using the printer for the other purpose, all the concern for the safety has to be taken care of at the customer side. ◆Do not perform the operation which are prohibited in this manual and other documents. ◆The contents that cannot be printed due to a failure while using the use of this printer are not guaranteed. Environments To use the printer safety, please pay attention to the followings: Attention: Explanation about the cause of the trouble and the environmental condition. Caution: Inappropriate handling can cause the wound for the users and/or cause the physical damage. Warning: Inappropriate handling can cause the death or serious wound. Attention: Do not place the printer under the low temperature such as ski resort, skating rink or open2air with direct sunlight. Warning: Do not block the openings of the printer. In case, the opening blocked, the heat will remain inside and it can cause the fire. Caution: Do not place the printer on rickety place and/or inclined place. Printer may fall down or tumble and it can cause injury. Caution: Do not place the printer under humid or dusty place. It can cause a fire, electric shock or printer problem. Do not place the printer with dust, sand and high humidity such as bathing place, bathroom, hot spring, on the street. Warning: Do not put vase, flowerpot, and cup with water inside or metric items. In case the water spilt or metric items fall into the printer, it can cause the fire and electr…

Text truncated - open the document above for the full version.

Chapter 3. Routine Maintenance 321 Cleaning of Thermal Head, Platen By using thermal transfer technology, daily maintenance is not really necessary if the printer is being use properly. However, in order to keep the best print quality, it is recommended to do the cleaning of Thermal Head and Platen once in a month. 1. Using gauze, clean the heat element (glass bar) of the thermal head with isopropyl alcohol or ethyl alcohol. 2. Using gauze dipped with isopropyl alcohol or ethyl alcohol, clean the edge of the peeling roller. 3. Using gauze dipped with isopropyl alcohol or ethyl alcohol, clean the rubber section of the platen roller Caution: Make sure that the power is turned off before starting cleaning. Thermal Head reaches high temperature just after printing. Do not touch directly by hand. Make sure that the thermal head has been sufficiently cooled down before starting cleaning. When fingerprint stick to the heat element, it can damage the Thermal Head. Do not touch directly by hand. Be careful not to be hurt by the projections of the printer. Attention: Printing should be performed after the alcohol dried up completely (approx. 5 minutes) Chapter 3. Routine Maintenance 322 Cleaning of Outer Cover Wipe the printer outer cabinet with a soft cloth. If the stains are not removed, wet the cloth and apply weakened neutral Detergent to it. Cleaning of Filter Caution: Do not use volatile solvents or spray insecticide on the printer outer cabinet. Otherwise, discoloration or crack may result. Warning: Continuous use under the abnormal condition such as high temperature, smoke and strange smell can cause the fire and electric shock. Turn off the power and make sure to remove the power cable, then contact the dealers or service center. Warning: In case, the foreign substance get into the printer, turn off the power of printer, remove the power cable and contact the dealers or service center. Continuous use of the printer under such condition can cause the fire and electric shock. If the dust collects on the openings, clean it with vacuum cleaner Chapter 4. Error Handling 421 Printer Status lamps are displayed in red When the error happens, the details of the error can be confirmed with the printer status lamps. Printer Status Lamps and Paper Setting Lamp display ●:on、○:off、＊:flashing ／ : Indicates that irrespective lit LED Display MEDIA ERROR PAPERSET Status Corrective Action ○ ＊ ／ The drawer unit is opened. Close the drawer unit. ○ ● ＊ Paper jam occurred. Remove the paper. If paper jam occurs frequently, consult with the service center. ○ ● ／ Trouble of printer control board. The printer mechanical section is faulty. If it occurs frequently, consult with the service center. ＊ ● ／ The ink ribbon set is not supported. Ink ribbon or printer abnormality is assumed. Consult with the Service Department. ● ● ○ Paper is not set. Out of paper. Set paper. Replace paper. ● ● ● The ink ribbon is not loaded. Ribbon Empty. Set the ink ribbon. Replace the ink ribbon. Failure Symptoms When detecting a failure symptom, check the printer using the following table. Symptom Action Power is not turned on.
Check if the power cable is connected to the plug socket or the printer. The personal computer does not recognize the printer.
Check if the USB cable is connected to the personal computer or printer. The printer does not become ready.
Check if the drawer unit is closed.
Check if paper is jammed in the printer.
When the paper setting lamp is blinking, remove the edge of the paper until the paper setting lamp goes off. The drawer unit does not open.
Check if the printer is installed in a flat location.
Check if any object is placed in front of the front cover. A straight stripe area is not printed.
The thermal head may be dirty. Clean the thermal head as described in Chapter 3, "Routine Maintenance".
If the blank area remains after cleaning the thermal head, the head may have been disconnected. Consult with the Service Department. Dotted areas are not printed.
The cleaning roller may be dirty. Clean the thermal head as described in Chapter 3, "Routine Maintenance". Chapter 4. Error Handling 422 Paper Jam 1. Open the drawer unit. 2. Cut off the folded section or printed section with scissors. When the paper is folded inside of the printer, pull it out slowly. 3. Open the open guide unit. 4. Pull out the paper until the paper setting lamp goes off. Power Supply Interrupted during Printing In case, power supply interrupted during the printing, Thermal Head will be kept pushing to Platen. Leaving this situation for a long time, shape of Platen can be warped. In order to avoid this situation, please follow the instruction below. 1. Turn off the power of the printer. 2. Turn on the power for 3 or more seconds after turning off the power. 3. Paper Jam is displayed on the printer status lamps, open the front cover and take the necessary action according to the instruction provided in 422, "Paper Jam". When the Ribbon is snapped 1. Remove the ink ribbon. 2. Stick the broken part of the ribbon with a tape. 3. Turn the ribbon on the rewinding side and rewind the taped section completely. Attention: ・If the paper is used without cutting off the folded section or printed section, paper jam occurs again or the ink ribbon may snap during printing. Always cut off the creased section or printed section of the paper. ・Cut off the paper straight and at right angles to the roll paper direction. ・If paper jam occurs frequently, a defect in the mechanical section is assumed. Consult with the service center. PAPERSET lamp Attention: If the paper is can not pulled out to the Ribbon side, pull out it to the Roll paper side following the instruction in Step 3 and Step 4. If the paper is pulled out to the Ribbon side by force, the printer may break down. Chapter 5. In order to more comfortably use 521 Paper Pre2Cut function can be turned off through the printer driver. For longer Printer usage Caution: Dust on the surface…

Text truncated - open the document above for the full version.

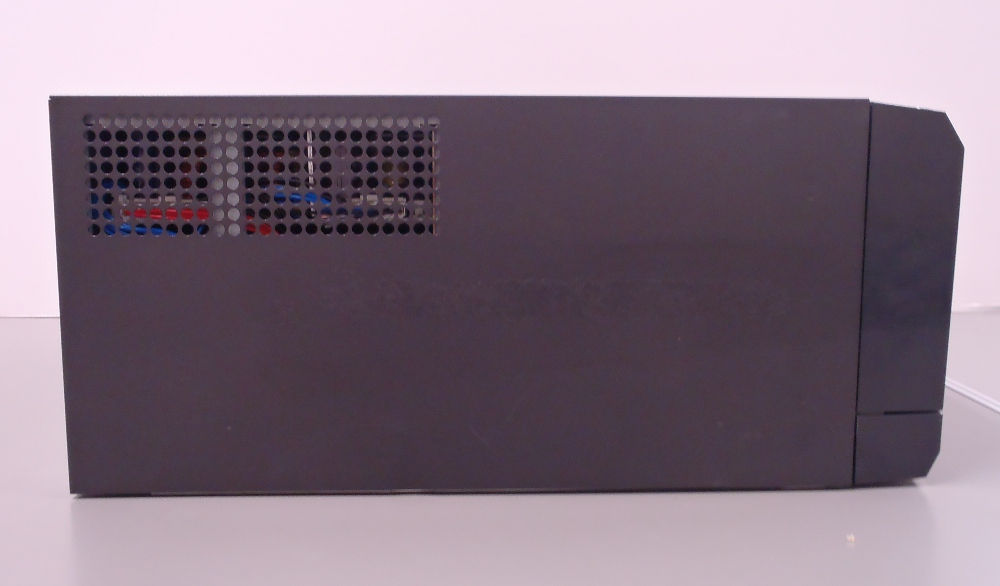

P910L Product Photo (external )

P910L Rear side

P910L Product Photo (inside 1 of 4) Antenna Board(Front side) Antenna Board (Rear side) Antenna Board Main Control Board P910L Product Photo (inside 2 of 4) Rear side Main Control Board RFID LSI CN13 P910L Product Photo (inside 3 of 4) Left side Antenna Board P910L Product Photo (inside 4 of 4) IC_Tag (Front side) IC_Tag (Rear side) IC Tag is installed in the Ink Ribbon, and this IC Tag is used for Test.

Test report No. : 10054365H-C-R1 Page : 2 of 22 Issued date : September 18, 2013 Revised date : September 25, 2013 FCC ID : W53HTP910L UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10054365H-C Revision Test report No. Date Page revised Contents - (Original) 10054365H-C September 18, 2013 - - 1 10054365H-C-R1 September 25, 2013 P.16 Addition: Note sentence Test report No. : 10054365H-C-R1 Page : 3 of 22 Issued date : September 18, 2013 Revised date : September 25, 2013 FCC ID : W53HTP910L UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ..................................................................................... 4 SECTION 3: Test specification, procedures & results ...................................................................... 5 SECTION 4: Operation of E.U.T. during testing .............................................................................. 8 SECTION 5: Conducted emission ..................................................................................................... 10 SECTION 6: Radiated emission (Fundamental, Spurious Emission and Spectrum Mask ) ....... 11 SECTION 7: Other test ...................................................................................................................... 12 APPENDIX 1: Data of EMI test ........................................................................................................ 13 Conducted emission ..............................................................................................................................................................13 Fundamental emission and Spectrum Mask .......................................................................................................................14 Spurious emission .................................................................................................................................................................15 20dB Bandwidth ...................................................................................................................................................................17 99% Occupied Bandwidth ...................................................................................................................................................18 Frequency Tolerance ............................................................................................................................................................19 APPENDIX 2: Test instruments ........................................................................................................ 20 APPENDIX 3: Photographs of test setup ......................................................................................... 21 Conducted emission ..............................................................................................................................................................21 Radiated emission .................................................................................................................................................................22 Test report No. : 10054365H-C-R1 Page : 4 of 22 Issued date : September 18, 2013 Revised date : September 25, 2013 FCC ID : W53HTP910L UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : HiTi Digital, Inc. Address : 9F., No.225, Sec. 3, Beixin Rd,. Xindian Dist. New Taipe City 231, Taiwan Telephone Number : 886-2-29126268 Facsimile Number : 886-2-29126117 Contact Person : KuanChih Huang SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Digital Photo Printer Model No. : P910L Serial No. : Refer to Section 4, Clause 4.2 Rating : AC 100-240V Receipt Date of Sample : Janaury 19, 2013 Country of Mass-production : Malaysia Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab *Tests were performed with CHC-S6245-5 (SINFONIA TECHNOLOGY CO.,LTD.) which has the same Radio and EMC specification as P910L (HiTi Digital, Inc.). See section 2.2 Variant model details. 2.2 Product description Feature of EUT: Clock frequency(ies) in the system : 480MHz (Max) Radio Specification Radio Type : Transceiver Frequency of Operation : 13.56MHz Modulation : ASK Power Supply (radio part input) : DC 3.3V Antenna type : Pattern Antenna Variant model The EUT has variant model as follows: EUT Variant model Applicant SINFONIA TECHNOLOGY CO.,LTD. HiTi Digital, Inc. Model No. CHC-S6245-5 P910L Difference between EUT and Variant model is an enclosure color. Test report No. : 10054365H-C-R1 Page : 5 of 22 Issued date : September 18, 2013 Revised date : September 25, 2013 FCC ID : W53HTP910L UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2013, final revised on June 11, 2013 and effective July 11, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.225 : Operation within the band 13.110-14.010MHz * The revision on June 11, 2013 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst margin ResultsRemarks Conducted emission ANSI C63.4:2003 7. AC powerline con…
