W66-8553RVIDEO DOORBELL

PRO TV DEVELOPMENT INC.
VIDEO DOORBELL - FCC ID W66-8553R - PRO TV DEVELOPMENT INC.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Sep 08, 2011
Application Purpose
Original Equipment
Date of Application
Sep 08, 2011
Equipment Note
VIDEO DOORBELL
Frequency Range
2406.37500000 - 2467.12500000
Company
PRO TV DEVELOPMENT INC.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Block Diagram

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Double side sponge tape

Attestation Statements

Pro Tv Development Inc. 11F-1, No.15, Sec.4, CHUNG HSIAO E RD., TAIPEI, TAIWAN September 8, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC Application for FCC ID: W66-8553R To Whom it may Concern: This letter is to ascertain that Pro Tv Development Inc. Product has been the units used for conducting FCC compliance testing,the DoC part will be tested by FCC recognized test lab. Best regards Sincerely, Pro Tv Development Inc. NIANZU TANG(President)

Block Diagram

BRIGHTNESS CONTROL SK1 SK2 Freq:2400.00~2483.50MHz Galn:0dB FILTER L605、C616 L C RX SWITCH U201 AS179-92 AMPLIFY U202 ST12LP OSC Y1 18MHz DEMODULATE UR2 A7121BD LOW NOISE AMP Q201 BFG425 TFT LCD DISPLAY MCU UU1 SN93330B POWER CIRCUITY ANT VOLUME CONTROL SK3 SK4 AL-VDP33-RX03 BLOCK DIAGRAM CODE CONTROL SK5(MENU) AUDIO AMP QK1 S8050 MIC1 MENIU/VIEW CONTROL SK5、SK1、SK2 TALK CONTROL SK6、SK6A OSC XP1 12MHz DOORBELL SOUND M1 KA-VDP01 AUDIO AMP UA1 GPY0030 SPEAKER BLOCK DIAGRAM

Cover Letter(s)

深圳市华标电子科技有限公司 Bontek Compliance Testing Laboratory Ltd DATE: September 8, 2011 Dear TCB Section of Timco Engineering, Inc., Thank you for cooperation. I would like to submit FCC application of Pro Tv Development Inc. . FCC ID:W66-8553R by your TCB Approval today. Best Regards, Bontek Compliance Testing Laboratory Ltd. Tony Wu/General Manager

Cover Letter(s)

PRO TV DEVELOPMENT INC. FCC ID: W66-8553R POWER OF ATTORNEY September 8, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Bontek Compliance Testing Laboratory Ltd.(Tony Wu) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Bontek Compliance Testing Laboratory Ltd. (Tony Wu) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act.We, Pro Tv Development Inc. are not subject to a denial of federalbenefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuantto that section. Sincerely, PRO TV DEVELOPMENT INC. NIANZU TANG (President)

External Photos

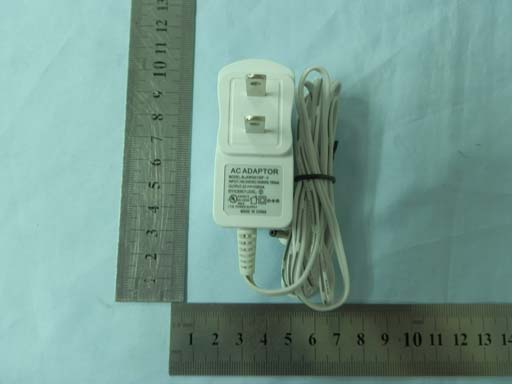

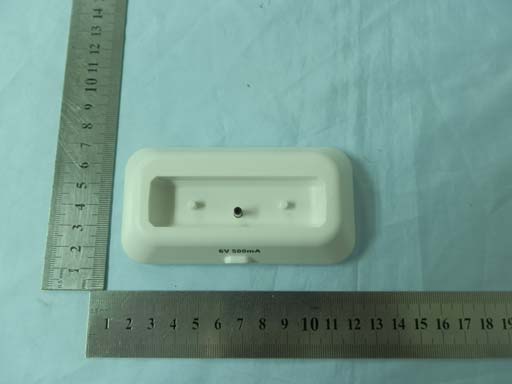

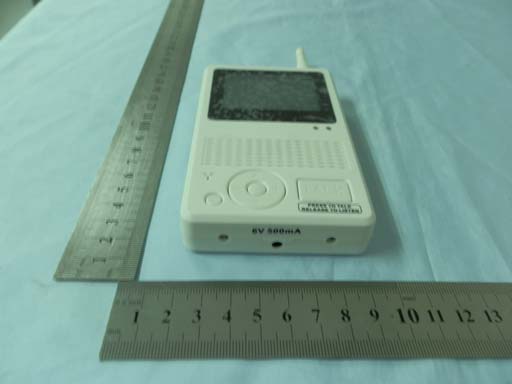

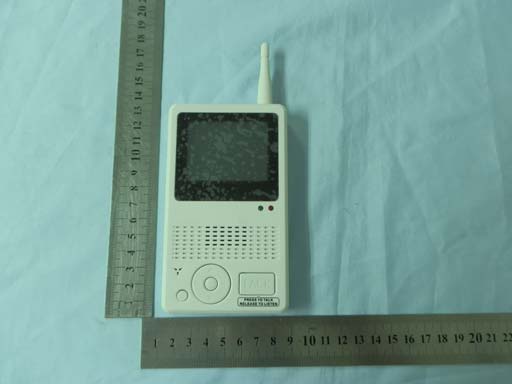

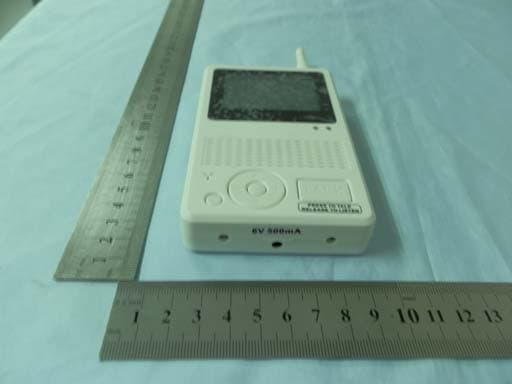

External Photographs EUT - Combination View EUT - Front View of receiver EUT - Rear View of receiver EUT - Side View of receiver EUT - Base View of receiver EUT - Adapter View

ID Label/Location Info

FCC ID Label Sample for FCC ID:W66-8553R FCC ID:W66-8553R Model: 8553 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ID Label/Location Info

FCC ID Location FCC ID Location

Internal Photos

Internal Photographs EUT – Uncover View of receiver EUT – Uncover View of base EUT – PCB View of receiver EUT – PCB View of receiver EUT – PCB View of receiver EUT – PCB View of base

Operational Description

Circuit description W66-8553R W66-8553R样也包含发射与接收两个过程。一旦天线收到信号,要经过滤波及低噪放大处 理,之后被(A7121BD,UR2)解调成主控(SN93330,UU1)可识别的数字信号。主控会 分离出相应的声音、图像信号,并驱动相应的器件(声音功放GPY0030-UA1,TFT- LCD),而且主控还配有亮度,音量,对码,录制/查看, 对话按键。POWER是“OK”的 总开关。 主控收到信号后,会发送回应答信号,再经调制,放大,滤波这个过程后,从天线(ANT) 处发送回给信号源,以保证信号会保持发送信号。 W66-8553R also has two procedures – transmitting and receiving. Once antenna got signal, this signal should be filtered (LC) and low noise amplified (BFG425), then demodulated into the signal that MCU (SN93330) can recognized. MCU will split out sound, video data, and send then to corresponding devices (sound amplifying GPY0030-UA1, TFT-LCDB). TFT-LCD brightness, VOLUME,CODE,REC/VIEW, TALK can be adjusted by MCU. OFF mean the power button for the whole “OK”. MCU will return with acknowledge signal to transmitter once received signal is recognized. And it will go through demodulating(UR2), amplifying(U202) and filtering(LC).Only on this way, transmitter will emit signal continuously.
