W77BCNWIRELESS LOCATION BEACON

PACKAGE CONTENTS A. Blackline Beacon B. Blackline Beacon Bracket (attached) C. 2 – #6 x 1” screws D. 2 – Drywall anchors HARDWARE DETAILS Modification: 05 21, 2013 SETUP IN THE LONER PORTAL Information must be entered into the Loner Safety application to enable a Beacon to report its location. 1. Log in to your Loner Portal account. From the Menu, navigate to the Beacon activation page. You will be prompted to enter the Beacon Unit ID and Activation Code found on the prod- uct label on the back of the Beacon. Once the Beacon has been activated the installation of the Beacons can commence. ™IMPORTANT: Take care to note the Unit ID and the location of each Beacon that you install. 0203 USING THE BEACON The Blackline Beacon is shipped with batteries installed and powered off. 1. Press the Power/Status button to turn the Blackline Beacon on. The status light will turn On. The Blackline Beacon is now ready to use. A green status light indicates normal operation. A flashing red status light indicates low battery. Solid red indicates a fault. The status light sleeps 2 minutes after the last button. Press to con- serve energy while in operation. At any time, pressing the power/status button will wake up the status light and it will remain on until going to sleep again. To power Off the Blackline Beacon: 1. Press and hold the power the Power/Status button until the green status light turns Off. 01 SUGGESTED MOUNTING The Blackline beacon transmits in a radius of ~40 feet, but the range is dependent upon obstructions in the environment and mounting position. Where multiple Blackline Beacons are re- quired, position them close enough to ensure adequate coverage throughout the desired area. Beacons should be mounted as high in a room as practical, with minimal obstructions to interfere with the wireless signal. The Beacon mounting bracket allows for mounting flush on a wall or in a corner. ™Obstructions that are made of metal or concrete will inter- fere with the propagation of the wireless signal more than wooden structures. The beacon is shipped in the highest Transmit Power Setting and can be adjusted to reduce the transmit range of the Beacon for installations where more granular locations are required. See the Transmit Power Settings section for information on adjusting the transmit power. Power/Status button Status light Product label Mounting Bracket release Mounting holes LONER BEACON SYSTEM „The Blackline Beacon transmits a low energy message to compatible Loner devices. „The Loner device reports the Blackline Beacon information back to the Employee Safety Monitoring System to indicate the user’s location. „Blackline Beacon has a transmission radius of about 40 feet but the range is dependent upon obstructions in the environ- ment and mounting position. Blackline Beacon Prerequisites „Account set-up in the loner.blacklinegps.com system. „Beacon Compatible Loner IS/SMD/IS Arctic safety monitoring device activated in a Loner account. „Blackline beacon location information for the installed bea- cons added to your Loner account. User Guide ASSIGNING LOCATIONS Assigning Beacon locations in the Loner Portal Once the Beacon has been installed, 1. Log into your Loner Portal account. 2. Navigate to Menu > Beacon Set-up page. 3. Add the following information, for each activated Beacon: Name This should be a friendly name that identifies the location (e.g. main floor entrance). Site Address This should be the address of the nearest entrance to the site where the Beacon is installed. Longitude and Latitude This should represent the actual location of the installed Beacon as closely as possible. The pin on the map can be dragged to automatically calculate the Longitude and Latitude. CHANGING BATTERIES Changing Batteries The Blackline Beacon’s 2 C Cell batteries expected life is 5 years. 1. Remove the Beacon from the mounting bracket. 2. Remove the 4 screws on the back of the Beacon to remove the back half of the enclosure to access the batteries as shown below. Battery orientation is indicated beneath the batteries on the inside of the front half of the enclosure. 3. Install new batteries and reassemble the Beacon. TRANSMIT POWER SETTINGS Changing the transmit power settings The Blackline Beacon is shipped in the highest transmit power setting. Transmission power affects the range of the Beacon’s signal. To change the transmission power setting 1. Press and hold the button on the Blackline Beacon. The Status Light will turn On and then turn Off. As you continue to hold the button, the light will begin to blink in sets of flashes that indicate power levels. 2. Release the button on the set of flashes to program your desired power level. The status light will repeat the selected power setting 3 times before returning to normal operating mode. ™The set with the fewest flashes indicates the lowest power level and the set with the most flashes indicates the highest power level. The sets will cycle from lowest to highest as you continue to hold the button. Information in this document is subject to change without notice. This document is provided “as is” and Blackline GPS Inc. (“Blackline GPS” or “Blackline”) and its affiliated companies and partners assume no responsibility for any typographical, technical or other inaccura¬cies in this document. Blackline GPS reserves the right to periodically change information that is contained in this document. However, Blackline GPS makes no commitment to provide any such changes, updates, enhancements or other additions to this document to you in a timely manner or at all. 040503 Declaration of Conformity Blackline GPS hereby declares that this product incorporating Radio and Telecommunications Terminal Equipment functionality is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the original Declaration of Conformity is available at: http://www.blacklinegps.com/ce FCC Compliance This equipment has been tested …

Text truncated - open the document above for the full version.

Island Compliance Services Inc. Blackline GPS Inc. Model: 101283 Page | 1 of 1 Island Compliance Services Inc. External Photographs Model: 101283

Model: 101283 FCC ID: W77BCN #2 indicates label placement

A B C D 1 3 4 5 6 7 8 A B C D 1 2 3 4 5 6 7 8 2 DO NOT SCALE DRAWINGSIZE: ASCALE: 1:1 UNLESS OTHERWISE STATED: All dimensions are in millimeters. Drawing No / File Name: Beacon Label THIRD ANGLE: CAN3-B78.1-M83 CAN/CSA-B78.2-M91 DRAWING STANDARDS: Beacon_label_r1.ai PROPRIETARY AND CONFIDENTIAL: The information contained in this drawing is the sole property of Blackline GPS Inc. Any reproduction in part or as a whole without the written permission of Blackline GPS Inc. is prohibited. 1 Place ± 0.30 2 Place ± 0.15 Angels ± 0.5 TOLERANCES ON DECIMALS: Item No: 15-May-2013 Barry Moore DWN: ECO NoDESCRIPTIONDWNCHKDCHKD DATEREV SHEET: 1 of 1 Rev: 1 200% 100% 1st Release Beacon label artwork.May 15, 2013Rev 1 90 mm 24 mm Notes:

Island Compliance Services Inc. Blackline GPS Inc. Model: 101283 Page | 1 of 2 Island Compliance Services Inc. Internal Photographs model 101283 Transmitter Antenna Island Compliance Services Inc. Blackline GPS Inc. Model: 101283 Page | 2 of 2 Island Compliance Services Inc.

Island Compliance Services Inc. Blackline GPS Inc. Report Number: 0291A Model: 101283 Page | 1 of 2 Island Compliance Services Inc. RF Exposure Evaluation Report Prepared for: Blackline GPS Inc. Suite 101, 1215 – 13 th Street SE Calgary Alberta T2G 3J4 Canada Equipment Under Test (EUT): Model: 101283 FCC ID: W77BCN IC Certification number: 8225A-BCN FCC Rule Part(s): Part 15.249 Industry Canada Rule Part(s) RSS-210 Tested by: Island Compliance Services Inc. 6454 Fitzgerald Road Courtenay, BC V9J 1N7 Authorized By Andrew Eadie (Manager) Date: 28 th May 2013 FCC OATS registration number: 386117 Industry Canada OATS registration number: 9578B-1 Island Compliance Services Inc. Blackline GPS Inc. Report Number: 0291A Model: 101283 Page | 2 of 2 Island Compliance Services Inc. 1.1 RF EXPOSURE EVALUATION FCC 1.1310 states the criteria listed in the table below shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Section 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Section 2.1093. Further information on evaluating compliance with these limits can be found in the FCC's OST/OET Bulletin Number 65, “Evaluating Compliance with FCC-Specified Guidelines for Human Exposure to Radiofrequency Radiation”. Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (s) (A) Limits for Occupational/Control Exposures 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 - - F/1500 6 1500-100,000 - - 1 30 TABLE 1 - POWER DENSITY LIMITS 1.2 EUT OPERATING CONDITION Maximum antenna gain = 2.0 dBi. 1.3 RF EXPOSURE EVALUATION DISTANCE CALCULATION Frequency (MHz) Max Antenna Gain (dBi) Max EIRP (W) Power Density Limit (mW/cm 2 ) R (cm) 2402 2.0 0.0085 1 0.82 2440 2.0 0.0227 1 1.34 2480 2.0 0.0022 1 0.41 TABLE 2 - DISTANCE CALCULATIONS where: S = Allowable Power density Limit (mW/cm 2 ) EIRP = Equivalent (or effective) isotropically radiated power (mW) R = Distance to the center of radiation of the antenna (cm) As shown above, the minimum distance where the MPE limit is reached is 1.34 cm from the EUT with 2.0 dBi antenna.
=
 4. .

Island Compliance Services Inc. Blackline GPS Inc. Report Number: 0291A Model: 101283 Page | 1 of 21 Island Compliance Services Inc. MEASUREMENT AND TEST REPORT VERSION 1.00 Report Prepared for: Blackline GPS Inc. Suite 101, 1215 – 13 th Street SE Calgary Alberta T2G 3J4 Canada Equipment Under Test (EUT): Model: 101283 FCC ID: W77BCN IC Certification number: 8225A-BCN FCC Rule Part(s): Part 15.249 Industry Canada Rule Part(s) RSS-210 Tested by: Island Compliance Services Inc. 6454 Fitzgerald Road Courtenay, BC V9J 1N7 Prepared By Authorized By A. Horel (Technical Writer) A. Eadie (Sr. EMC Eng.) Note: This test report has been prepared for the Applicant and device described herein. It may not be duplicated or used in part without prior written consent from Island Compliance Services Inc. FCC OATS registration number: 386117 Industry Canada OATS registration number: 9578B-1 Island Compliance Services Inc. Blackline GPS Inc. Report Number: 0291A Model: 101283 Page | 2 of 21 Island Compliance Services Inc. Revision History Version Date Author Comment 1.0 05/28/2013 A. Horel Original Release Island Compliance Services Inc. Blackline GPS Inc. Report Number: 0291A Model: 101283 Page | 3 of 21 Island Compliance Services Inc. 1.1 CONTENTS 1.1 Contents ................................................................................................................................................ 3 2 Summary of Test Results ............................................................................................................................... 4 2.1 Environmental Conditions ...................................................................................................................... 4 2.2 Standard Test Conditions and Engineering Practices ............................................................................... 5 3 General Equipment Specifications ................................................................................................................. 6 3.1 Auxiliary Equipment ............................................................................................................................... 6 3.2 Engineering Changes to Production Unit ................................................................................................ 6 4 Antenna Requirements.................................................................................................................................. 7 5 Power Line Conducted Emissions ................................................................................................................... 8 5.1 Test Method .......................................................................................................................................... 8 5.2 Limits as per 15.207 ............................................................................................................................... 8 5.3 Results ................................................................................................................................................... 8 6 Radiated Emissions ........................................................................................................................................ 9 6.1 Test Procedure ...................................................................................................................................... 9 6.1.1 Summary of 15.205 Limits ............................................................................................................. 9 6.2 Results Data......................................................................................................................................... 10 6.3 Plot...................................................................................................................................................... 10 6.4 Notes................................................................................................................................................... 10 7 Field Strength of Fundamental and Harmonics............................................................................................. 11 7.1 Limit - FCC Part 15 Subpart C Paragraph 15.249(a) ............................................................................... 11 7.2 Limit – Frequencies in restricted band 15.209 Limit .............................................................................. 11 7.3 Fundamental Data ............................................................................................................................... 11 7.4 Duty Cycle Correction Factor ................................................................................................................ 11 7.5 Harmonics Data (Low Ch) ..................................................................................................................... 12 7.6 Harmonics Data (Mid Ch) ..................................................................................................................... 12 7.7 Harmonics Data (High Ch) .................................................................................................................... 12 8 Occupied Bandwidth ................................................................................................................................... 13 8.1 Test Method ........................................................................................................................................ 13 8.2 Data .................................................................................................................................................... 13 8.3 Plots .................................................................................................................................................... 13 9 Radiated Emissions Band Edge..................................................................................................................... 17 9.1 Limits.....................…

Text truncated - open the document above for the full version.

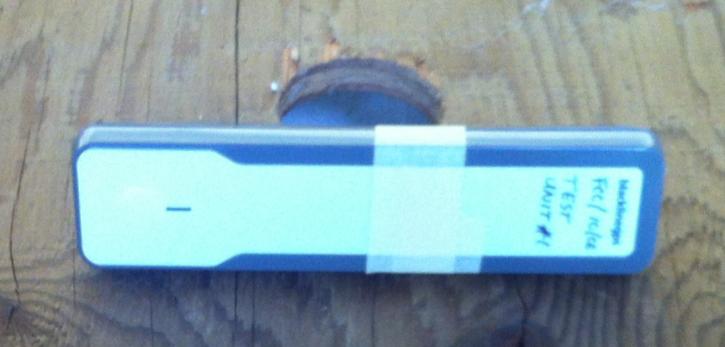

Island Compliance Services Inc. Blackline GPS Inc. Model: 101283 Page | 1 of 1 Island Compliance Services Inc. Test Set up Photographs Model: 101283
