W77BLF2GPS Key Fob Vehicle Security and Recovery

Quick Start Guide GPS vehicle security, recovery and location awareness 1 Welcome! Thank you for purchasing the ESCORT® Entourage CIS™ vehicle security, recovery & GPS locator system powered by Blackline GPS™ Corp. Once installed, please follow these steps to get started: Step 1: Visit: www.Blacklinegps.com/start Step 2: Create a Blackline GPS Network account, or Log in to your existing Blackline GPS Network account Step 3: Activate your Entourage CIS system within your account Your Entourage CIS will be ready to use within eight hours of activation. Step 4: While waiting for activation, please configure security alert and notification settings within your account Please note: Your MyPass™ wireless key fob is activated within your account after your Entourage CIS system is active. Activation instructions are provided within your account. About MyPass: The MyPass key fob automates the arming and disarming of the Entourage CIS security feature. Please keep it with you on your keychain. 2 Need help? For helpful resources, please visit: www.Blacklinegps.com/support Helpful information is also available within your Blackline GPS Network account, located on the Help page. If you have any questions or comments, please contact Blackline GPS Customer Care: www.Blacklinegps.com/contact 3 Legal Notices © Copyright 2009 Blackline GPS Corp. All rights reserved. Information in this document is subject to change without notice. Blackline GPS reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Blackline GPS Web site (www.blacklinegps.com) for current updates and information concerning the use and operation of this and other Blackline GPS products. The Blackline GPS families of related marks, images and symbols, including Entourage CIS, MyPass, and Blackline GPS are the exclusive properties and trademarks of Blackline GPS Inc. ESCORT and the ESCORT logo are trademarks and/or registered trademarks of Escort, Inc., in the U.S., Canada, and/or other countries and used under license. All other brands, product names, company names, trademarks and service marks are the properties of their respective owners. This document is provided “as is,” and Blackline GPS Inc. (“Blackline GPS or Blackline”) and its affiliated companies and partners assume no responsibility for any typographical, technical or other inaccuracies in this document. Blackline GPS reserves the right to periodically change information that is contained in this document. However, Blackline GPS makes no commitment to provide any such changes, updates, enhancements or other additions to this document to you in a timely manner, or at all. FCC Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. FCC RF Exposure statement This device is only authorized for use in Mobile applications. At least20cm (8 inches) of separation between the antenna and the user’s bodymust be maintained at all times. This Class B digital apparatus complies with Canadian ICES-003. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for further assistance DOC-0050-AA, May 2009

US point of Contact US Point of Contact: Craig Swanson, Chief Marketing Officer BlackLine GPS 118 Corporate Park Drive – Suite 119 Henderson, Nevada 89074 USA 702-357-8513 [email protected] Page 1

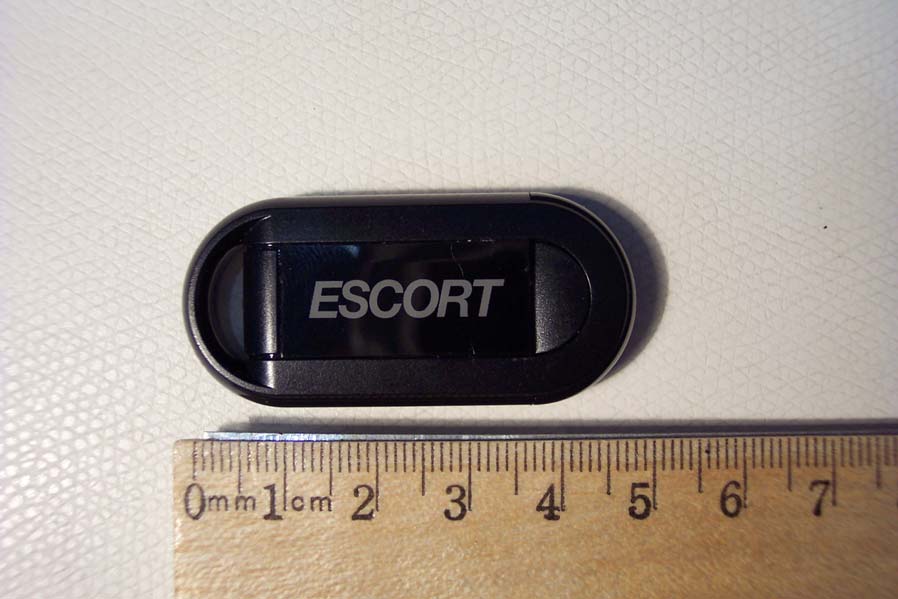

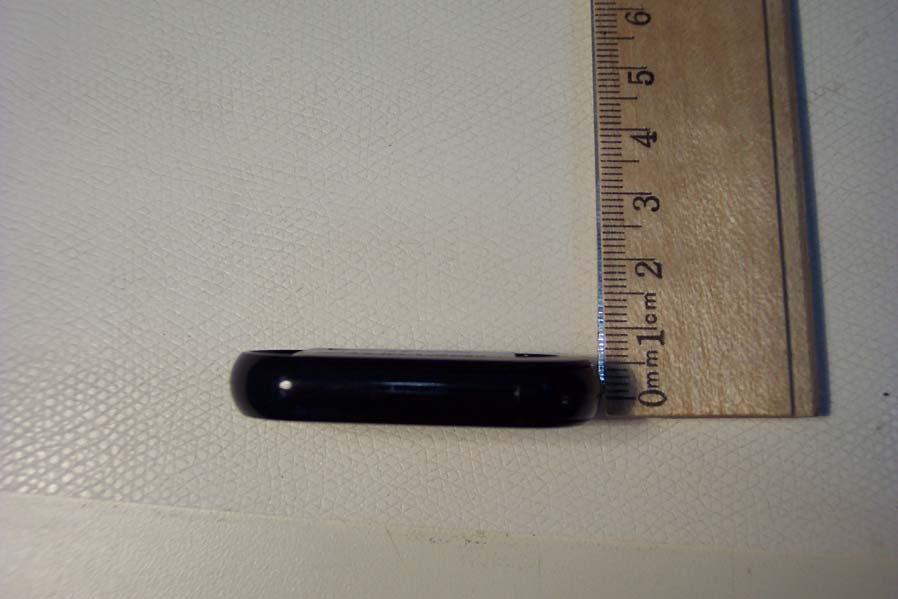

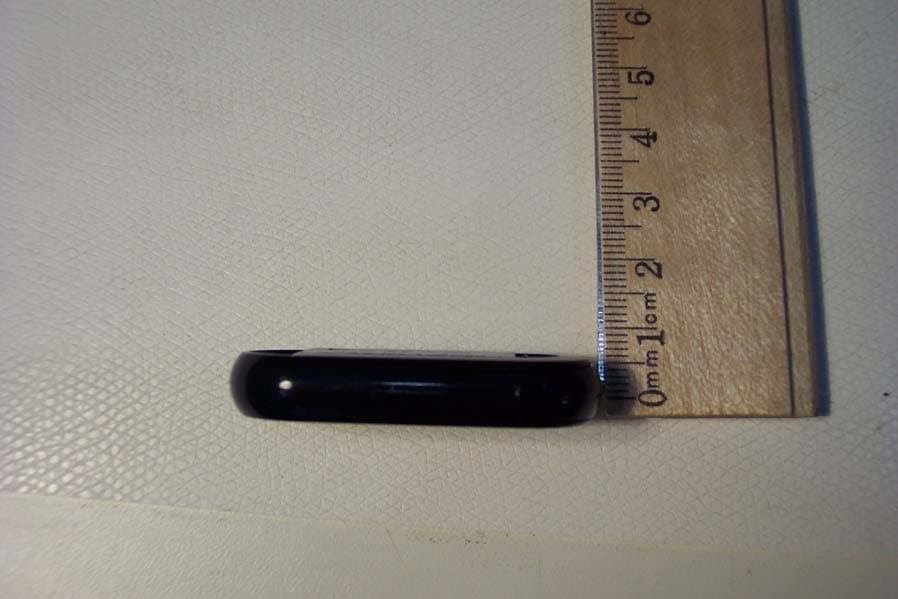

CG-1450-RA-1-1 BlackLine GPS Ltd. FCC/IC Exhibit Key FOB FCC ID: W77BLF2 IC: 8255A-BLF2 External Photographs Front view Rear view Date: January 13, 2010 Revision #: 0 CG-1450-RA-1-1 BlackLine GPS Ltd. FCC/IC Exhibit Key FOB FCC ID: W77BLF2 IC: 8255A-BLF2 Side View Date: January 13, 2010 Revision #: 0

CHKD DWN ECO # REV CHKD DATE DESCRIPTION - BM 6-May-10 A-01 FIRST ISSUED ALL DIMENSIONS ARE IN MM TOLERANCES ON DECIMALS 1 PLACE 0.30 2 PLACES 0.15 ANGLES 0.5 A B C D 1 3 4 5 6 7 8 A B C D 1 2 3 4 5 6 7 8 2 BlackLine GPS Inc. SHEET 1 of 1 DO NOT SCALE DRAWING SIZE: A SCALE: 1:1 CAN/CSA-B78.2-M91 6-May-20 10 XX-XXX-XX The information contained in this drawing is the sole property of BlackLine GPS Inc. Any reproduction in part or as a whole without the written permission of BlackLine GPS Inc. is prohibited. PROPRIETARY AND CONFIDENTIAL ITEM NO.: NAME UNLESS OTHERWISE STATED: A-01 REV Drawing Number / File Name THIRD ANGLE CAN3-B78.1-M83 DRAWING STANDARDS Barry Moore Key Fob Version 2 serial number label Art Rev A-01.ai DWN: CHKD: Key Fob Version 2 serial number label Art Notes: 1. All dimensions are in milimetrees, conversion factor: 25.4mm = 1.0" 12345 678 FCC ID: W77BLF2 IC: 8255A-BLF2 12345 678 F CC ID : W77B L F 2 I C : 8 25 5A-B LF 2 16 mm9.7 mm diameter 100% 200% 200% Label position

CG-1450-RA-1-1 BlackLine GPS Ltd. FCC/IC Exhibit Key FOB FCC ID: W77BLF2 IC: 8255A-BLF2 Internal Photographs Front view Rear view Date: January 13, 2010 Revision #: 0

Certification Test Report CFR 47 FCC Part 15, Subpart C Section 15.249 Industry Canada RSS 210, Issue 7 BlackLine GPS Gen 2 KEY FOB FCC ID: W77BLF2 IC: 8255A-BLF2 Project Code CG-1450 (Report CG-1450-RA-1-1) Revision: 1 (This report supersedes CG-1084-RA-1-0) January 12, 2010 Prepared for: Blackline GPS Author: Deniz Demirci Senior Wireless / EMC Technologist Approved by: Nick Kobrosly Director of Canadian Operations Confidentiality Statement: This report and the information contained herein represent the results of testing articles/products identified and selected by the client. The tests were performed to specifications and/or procedures approved by the client. National Technical Systems (“NTS”) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article or similar products for a particular purpose. This document shall not be reproduced except in full without written approval from National Technical Systems (“NTS”) and the customer. CG-1450-RA-1-1 KEY FOB Compliance Test Report BlackLine GPS FCC ID: W77BLF2 IC: 8255A-BLF2 ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 2 of 24 January 12, 2010 Report Summary Test Facility: National Technical Systems, Canada Product Integrity Laboratory 5151-47 th Street, N.E. Calgary Alberta T3J 3R2 Accreditation Numbers: 0214.22 Electrical 0214.23 Mechanical Accredited by A2LA The American Association for Laboratory Accreditation CLIENTS SERVED: All interested parties FIELDS OF TESTING: Electrical/Electronic, Mechanical/Physical ACCREDITATION DATE:: May 14, 2009 VALID TO: February 28, 2010 Applicant: BlackLine GPS Suite 101, 1215 13th Street SE Calgary, AB T2G 3J4 Canada Customer Representative: Name: Barry Moore Title: VP of product development Phone #: 403-809-8966 Email Address: [email protected] EUT Description EUT Description Manufacturer Model Revision Serial Number 2.4 GHz Wireless transceiver BlackLine GPS Gen 2 KEY FOB N/A N/A CG-1450-RA-1-1 KEY FOB Compliance Test Report BlackLine GPS FCC ID: W77BLF2 IC: 8255A-BLF2 ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 3 of 24 January 12, 2010 Test Summary Deviations* from: Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure Pass / Fail Applicable FCC Rule Parts Applicable Industry Canada Rule Parts A 20 dB Bandwidth No No No Pass FCC Subpart C 15.215 (c) NA B Occupied Bandwidth (99% emission bandwidth) No No No N/A N/A RSS-Gen Issue 2 4.6.1 C Duty Cycle Correction Factor No No No N/A FCC Subpart C 15.35 (c) RSS-Gen Issue 2 4.5 D Field Strength of Fundamental No No No Pass FCC Subpart C 15.249 (a) RSS 210 Issue 7 A2.9 (a) E Radiated Spurious Emissions Band Edge No No No Pass FCC Subpart C 15.249, 15.205 RSS 210 Issue 7 A8.5 F Radiated Spurious Emissions No No No Pass FCC Subpart C 15.249, 15.205 RSS 210 Issue 7 2.7 (Rx), A8.5 (Tx) Test Result: The product presented for testing complied with test requirements as shown above. Prepared By: _______________________ Deniz Demirci Senior Wireless/EMC Technologist Reviewed By: ______________________ Glen Moore Wireless/EMC Manager Approved By: ______________________ Alex Mathews Quality Management Representative CG-1450-RA-1-1 KEY FOB Compliance Test Report BlackLine GPS FCC ID: W77BLF2 IC: 8255A-BLF2 ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 4 of 24 January 12, 2010 Table of Contents REPORT SUMMARY........................................................................................................................................................2 TEST SUMMARY..............................................................................................................................................................3 REGISTER OF REVISIONS.............................................................................................................................................5 1.0 INTRODUCTION................................................................................................................................................6 1.1 PURPOSE.................................................................................................................................................................................... 6 2.0 EUT DESCRIPTION...........................................................................................................................................6 2.1 CON…

Text truncated - open the document above for the full version.

CG-1450-RA-1-1 BlackLine GPS Inc. FCC/IC Exhibit Key FOB FCC ID: W77BLF2 IC: 8255A-BLF2 Test Setup Photographs Radiated Emissions 1 GHz to 26 GHz Radiated Emissions 30 MHz to 1 GHz Date: January 13, 2010 Revision #: 0
