W8D-F2FM Transmitter

F2 User Manual IPOD FM transmitter has a digital FM transmitter function. So you can enjoy high-quality digital audio music in the car. Its shape is beautiful. Especially the unique blue glare screen allows you refreshing. It is versatile, and easy to use. Technical parameters: 1. Blue LCD display built-hyun 2. For Iphone and all iPod models 3. Receiver Sensitivity: <-80dB (Per 1%) 4. Signal to Noise Ratio: (SNR> 68DB) 5. Frequency range: Full frequencies 88.1-107.9MHz 0.2Mhz/step 6. A car cigarette lighter power supply (9-15V), while working for the iPhone / ipod charger 7. Effective distance: ≥ 5m 8. Ambient temperature 14-122F.0-95% 9. Interface: USB Interface to charge the Iphone/iPod Usage: Open the car radio, tune to no radio frequency * FM transmitter connected with the iPhone / iPod * Press "Power" key to start * Adjust the volume and frequency of FM radio (no radio emission points) * Press "Up" or "Down" key to adjust the transmission frequency, so the same with the FM radio frequency * Pressing the memory button can store your 10 of your favorite radio station, according to the down turn key to switch FCC ID Label: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Dec.16, 2010 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Colombia, Maryland 21046 FCC ID: W8D-F2 Subject: Attestation Letter about USB Port Gentlemen: USB port cannot be used for data exchange between PC and the EUT and there is no intention to use this port for data exchange in future. The USB port is used only to charge the Iphone or Ipod as an output port. Sincerely, Signature________ ___________ FCC grantee contact person information. Name/Title: Andy Guo (General Manager) Company Name: Shenzhen Onuoda Electronics Technology Co., Ltd TEL: +86-0755-29703420

Dec.08, 2010 Federal Communication Commission Authorization and Evaluation Division FCC ID: W8D-F2 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature________ ___________ FCC grantee contact person information. Name/Title: Andy Guo (General Manager) Company Name: Shenzhen Onuoda Electronics Technology Co., Ltd TEL: +86-0755-29703420

External Photos Internal Photos

PHOTOGRAPHS OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT

FCC ID Label Location

FCC ID Label FCC ID: W8D‐F2

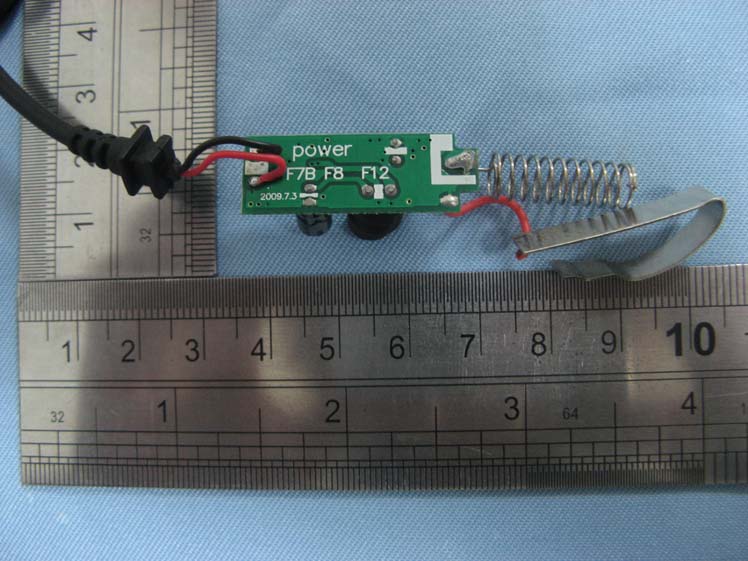

VIEW OF PCB-1 VIEW OF PCB-2 Antenna

External Photos Internal Photos

Type No. Material Code ERP code component specification location Q uantit y Unit 1 F2-8027PCB-SMT1 300010000235 The mainboard SMT Detailed see F2-8027PCB - SMT1material list 1 PCS F2-8027PCB-01 129901020044 The mainboard PCB OND - F2 - A double-sidedfiberglass board guandu gold 1 PCS RC-0R0-110-J-01 110123000001 SMD resistor 0R 1/10W ±5% 0603 R18 C19 2 PCS RC-0R0-104-J-01 110123000001 SMD resistor 0R 1/4W ±5% 1206 R1 R14 2 PCS RC-75K-110-F-01 110123750201 SMD resistor 75K 1/10W ±1% 0603 R2 R3 2 PCS RC-49K9-110-F-01 110123499201 SMD resistor 49.9K 1/10W ±1% 0603 R4 R5 2 PCS RC-1R-110-J-01 110123100001 SMD resistor 1R 1/10W ±5% 0603 R6 R7 R17 3 PCS RC-100R-110-J-01 110123101001 SMD resistor 100R 1/10W ±5% 0603 R12 1 PCS RC-220R-110-J-01 110123221001 SMD resistor 220R 1/10W ±5% 0603 R13 1 PCS RC-820R-110-J-01 110123821001 SMD resistor 820R 1/10W±5% 0603 R15 1 PCS RC-4K7-110-J-01 110123472001 SMD resistor 4.7K 1/10W ±5% 0603 R16 1 PCS CC-22UF-500-J-01 110235226002 Patch capacitance 22UF/50V 0805 C1 E1 E2 E3 4 PCS CC-22UF-500-Z-01 110233334001 Patch capacitance 22UF/50V 1206 C3 1 PCS CC-104P-500-J-01 110233104001 Patch capacitance 104P/50V 0603 C2 C4 C12 C15 4 PCS CC-106P-500-J-01 110233106001 Patch capacitance 106P/50V 0603 C8 C9 2 PCS CC-105P-500-J-01 110233105001 Patch capacitance 105P/50V 0603 C6 C7 C17 3 PCS CC-20P-500-J-01 110233210001 Patch capacitance 20P/50V 0603 C10 C11 2 PCS CC-102P-500-J-01 110233102001 Patch capacitance 102P/50V 0603 C13 C14 2 PCS LC-120NH-0805-01 110370124001 Wire wound inductance 120NH 0805 High frequency L5 1 PCS LC-10UH-0603-01 110323106001 L aminated patch inductanc e 10uH 0603 The low-frequency L1 L2 L3 3 PCS LC-30NH-0603-01 110323303001 L aminated patch inductanc e 30NH 0603 High frequency R11 1 PCS DC-ZD3V9-1206-01 110502010002 Patch regulator tube 3.9V(Avr diode） 1206 D2 1 PCS TRC-8050-SOT23-01 110602010001 Patch triode 8050 SOT-23 Q2 1 PCS SMT placemen t 制表： 唐永华、俞金华 确认： 审核: 批准： page 1 of 2 Type No. Material Code ERP code component specification location Q uantit y Unit IC-1621-01 110705000001 IC 1621 binding U5 1 PCS IC-24C02-01 110704200004 IC 24C02 SOP-8 U3 1 PCS IC-QN8027-01 110704200011 IC QN8027 SSOP10 U2 1 PCS IC-F2-02 110704200064 IC F2 microcontroller SOP-14 88.1-107.9MHZ U4 1 PCS 2 LCD-F2A-01 110800180001 display 1.8mm*18P LCD1 1 PCS 3 CP-100u-100-01 110204107001 u gin electrolytic capacit o 100UF/10V 4*7mm E4 1 PCS 4 L03-3.5-210-black 130014000005 Audio line Three HPVV/OD3.5 black 1 PCS CONA-3.5-3P-02 111621030007 Audio head Section 3 (nickel plating) 1 PCS LO3-D3.0-210mm-black 130037000003 Three HPVV Every core nine copper wire,outside be PVC 1条 5 SW-ZC-6663-01 111504010003 Plugin light touch switch ZC - 6663 and hing specification S1 S2 S3 3 PCS 6 BGB-F2-01 112100000019 Back plate 1.5 * * 37mm 15 white-hairedblue ribbon line D1 1 PCS 7 CONB-USB-4P-01 111603010002 USB seat Pin pitch 2.0 mm * 4ps evenmouth USB1 1 PCS 8 XTAL-12M-01 110912000002 crystals With insulation slab 12Mcylindrical 3 * 8mm Y1 1 PCS 9 CONB-DC-3P-01 111602010001 DC seat Inner diameter: 3.7 MM I pins JK1 1 PCS 10 WJ-F2-01 151401000003 Anode battery slice Silvery white 1 PCS 11 WJ-F2-02 151402000003 Positive battery slice Silvery white 1 PCS 12 WJ-F2-03 151403000004 negative chain body battery sl i Silvery white 1 PCS 13 SC-PA2.3*8 151106000002 screw PA2.3 * 8mm black 3 PCS 14 GZP-F2-01 151701000002 Pot seed slice Triangular shape 5 * 1 400g S4 S5 S6 3 PCS e lectroni c 1 DYC1-POWPCB-ASY04 300010000234 Car charger board See DYC1 - POWPCB - ASY03material list 1 PCS Plugins/ after welding SMT placemen t 制表： 唐永华、俞金华 确认： 审核: 批准： page 2 of 2 Type No. Material Code ERP code component specification location Q uantit y Unit 2 SJ-DYC1-01 170003100801 Car charger on shell black 1 PCS 3 SJ-DYC1-02 170003900301 Car charger next shell 1 PCS 4 SJ-DYC1-03 170005000602 Plastic cap screw Inner diameter: 7.4 mm 1 PCS 5 WJC-F8-01 150702000005 Hardware circle T = 0.5 mm diameter 10mmdiameter: 15.1 mm: high: 3.8 mm 1 PCS 6 TP-DYC1-01 151201000001 Cigarette lighter shrapnel See drawing 1 PCS 7 ZDT-F8-01 150302000002 The bullet Flat-roofed diameter: 5.4 mmhigh: 9mm even mouth 1 PCS 8 FU-250V/2A-0520 111101200001 Insurance tube 5*20mm 2A 1 PCS IC-XL1513-01 110704200039 IC XL1513 SOP-8 UA 1 PCS 2 CP-100uF-100-01 110204227004 Plug-in electrolytic capacitors 220UF/10V 4*7mm 1 PCS 3 CP-47uF-350-01 110204476002 Plug-in electrolytic capacitors 47UF/35V 6*7mm 1 PCS 4 LP-33U-GZ-01 110308336001 Work fonts inductance 33UH 6*8mm Belt insulated casing 1 PCS 5 TH-DYC1-01 150503000010 Cigarette lighter spring 0.5*6.8*20MM (side lead according to th e drawing) 1 PCS 6 C1-DC3.5-700-black 130009000009 Car charger line 2 core/OD3.0 1 PCS CONA-3.5-2P-01 111640020005 DC head 2P 1 PCS L02-D3.0-685MM-blac k 130039000008 Two HPVV Outside was: PVC every HPVV 20copper wire 1 PCS 7 TP-DYC1-01 151201000001 Cigarette lighter shrapnel See drawing 1 PCS 8 L01-D1.2-32.5MM-red 130013000007 Anode connections 1 HPVV/OD1.2 1 PCS hardware Plugins/ after weldingplastic 制表： 唐永华、俞金华 确认： 审核: 批准： page 3 of 2

FCC Test Report Report No.: AGC11991012SZ01F1 FCC ID : W8D-F2 PRODUCT DESIGNATION : FM transmitter BRAND NAME : N/A TEST MODEL : F2 CLIENT : Shenzhen Onuoda Electronics Technology Co., Ltd DATE OF ISSUE : Dec.09, 2010 STANDARD(S) : FCC Part 15 Rules Attestation of Global Compliance Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC11991012SZ01F1 Page 1 of 30 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE······························································································ 3 2. GENERAL INFORMATION ········································································································ 4 2.1.PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ············································· 4 2.2. TEST STANDARDS·············································································································4 2.3. RELATED SUBMITTAL(S)/GRANT(S)····················································································· 4 2.4. TEST METHODOLOGY ······································································································· 4 2.5. TEST FACILITY ·················································································································· 5 2.6. EUT EXERCISE SOFTWARE ······························································································· 5 2.7. ACCESSORIES EQUIPMENT LIST AND DETAILS···································································· 5 2.8. EUT PORT&CABLE LIST AND DETAILS ················································································· 5 3. SUMMARY OF TEST RESULTS·································································································· 6 4.§15.203 - ANTENNA REQUIREMENT ··························································································· 7 4.1. STANDARD APPLICABLE ···································································································· 7 4.2. TEST RESULT ··················································································································· 7 5.§15.209, §15.239 (b)(c)- RADIATED EMISSION ············································································· 8 5.1. MEASUREMENT UNCERTAINTY ·························································································· 8 5.2. STANDARD APPLICABLE ···································································································· 8 5.3. TEST EQUIPMENT LIST AND DETAILS·················································································· 8 5.4. TEST PROCEDURE············································································································8 5.5. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ························································· 9 5.6. LIMITS AND TEST RESULTS/PLOTS ····················································································11 6. §15.239(a) EMISSION BANDWIDTH TESTING ············································································ 19 6.1. STANDARD APPLICABLE ·································································································· 19 6.2. TEST EQUIPMENT LIST AND DETAILS················································································ 19 Report No.: AGC11991012SZ01F1 Page 2 of 30 6.3. TEST PROCEDURE·········································································································· 19 6.4. SUMMARY OF TEST RESULTS/PLOTS ··············································································· 19 7.§15.249(b) OUT OF BAND EMISSIONS ······················································································ 22 7.1. STANDARD APPLICABLE ·································································································· 22 7.2. TEST EQUIPMENT LIST AND DETAILS················································································ 22 7.3. TEST PROCEDURE·········································································································· 22 7.4. SUMMARY OF TEST RESULTS/PLOTS ··············································································· 22 APPENDIX 1····························································································································· 25 PHOTOGRAPHS OF TEST SETUP······························································································· 25 APPENDIX 2····························································································································· 26 PHOTOGRAPHS OF EUT ··········································································································· 26 Report No.: AGC11991012SZ01F1 Page 3 of 30 1. VERIFICATION OF COMPLIANCE Applicant: Shenzhen Onuoda Electronics Technology Co.,Ltd Applicant Address: 3F D Building jingfu industry zone Airway(west) Gushu village xixiang town Bao`an district Shenzhen city Guangdong China Manufacturer: Shenzhen Onuoda Electronics Technology Co.,Ltd Manufacturer Address: 3F D Building jingfu industry zone Airway(west) Gushu village xixiang town Bao`an district Shenzhen city Guangdong Chin Product Description: FM transmitter Brand Name: N/A Model Name: F2 FCC ID: W8D-F2 Report Number: AGC11991012SZ01F1 Date of Test: Dec.06 ~ Dec.09, 2010 WE HEREBY CERTIFY THAT: The above equipment was tested by Attestation of Global Compliance Co., Ltd. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, the measurement procedure according to ANSI C63.4:2003. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate …

Text truncated - open the document above for the full version.

PHOTOGRAPHS OF TEST SETUP Radiated Emission Test Setup (Below 30MHz) Radiated Emission Test Setup (30MHz-1000MHz)
