W8D-F3DFM Transmitter

Featruse: .FCC approved .Hi-Fi FM stereo transmitter allows you to fully enjoy your music .suiltable for all iphone,all ipod and MP3 players .Full frequency range design effectively avoid interruption .Powerded by car cigarette lighter .Memory for latest usecl frequeney .Charging for ipod Specitification: .Frequency respons:100Hz~15000Hz .Separation:>=30dB .Operating current:20+/-3mA .Transmission range: 88.1~107.9MHz(interval 0.1MHz) Compatible with: .Perfectly fits ipod Nano II Nano 4G video,Mini.photo etc. .Compatible with ipod. Preparation for usage: .Insel the cigatette power adapter the car’s cigarette lighter then use the ipod jack or 3.5 stereo cable connect with your devire .Press “down”or “up” button to adjust the frequency you wish to use .Turn on the cars FM radio hand and adjust to the frequency as set on the FM transmitter Use means: .Using with ipod .Connect the FM transmitter to ipod.the FM frequency will be shown on the screen of ipod .Press “up”or “down”key to adjust frequency at interval of 0.1MHz.Keep pressing “up”or “down” for a second to adjust frequency quickly at interval of 1MHz .Without controlling the FM transmitter for 3 seconds, it will resume the music menu on the screen of ipod .The FM transmitter will automatically save the latest used frequency .When the FM transmitter is connected to ipod, you can plug the ipod travel charger or car charge into the socket of the transmitter for charging ipod . Using with other devires .Please choice 3.5 stereo cable to connect your device and FM transmitter for audio “All trademarks shown are for reference only, ipod iphone Iphone3g iphone3GS Nano Touch Classic Shuffle is a trademark of Apple, Inc(NASDAQ:AAPL) (LSE:ACP) registered in the U.S. and other countries, this product is not designed, manufactured sponsored or endorsed by Apple,Inc.(MASDAQ:AAPL) (LSE:ACP).They are the property of their respective owners” changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC ID:W8D-F3D This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Certification Technology Service Co., Ltd 3F, Bldg27,Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, ShenZhen, Guang dong, P.R. China. 1) How does this device operate? Plug into IPod & similar device and powered from Car Cigarette lighter.. 2) Provide information on the device and its antenna. The transmitter’s antenna is same cable as Power line from Car Cigarette, this is permanently attached antenna and meets the requirements of the section. 3) How is it installed? The EUT will direct plug into IPod unique connector. And power by 12Vdc Car Power. 4) What test procedure was used? Operating condition is according to ANSI C63.4-2003 5) If tested in a car, how was it configured/tested? N/A 6) Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. EUT was adjusted to work at the selected channels: 88.1 MHz, 98.1 MHz, and 107.9 MHz. The EUT will not allow operation below 88.1 MHz and will not allow operation above 107.9 MHz. 7) Was the bandwidth properly tested with maximum audio input? Emissions from the intentional radiator shall be confined within a band 200 kHz wide centered on the operation frequency. The 200 kHz band shall lie wholly within the frequency range of 88 – 108 MHz. Setup the EUT and simulators as shown in the report. Enable RF signal and confirm EUT active. Modulate output capacity of EUT up to specifications. 8) Provide the test report. Test Report Submitted. (Mark Zhu) General Manager Date: May 5, 2010

MASTER IC CPU DECODE LCD Driver LCD Panel IR Receiver Switch controller FM Amplifier Demodulator Memory R. IN L. IN DC12V-24VPower supply IPOD Charge DC5VPower supply DC5V Power supply XTAL 7.6M 88.1-108mhz

Shenzhen Onuoda Electronics Technology Co. Ltd ______________________________________________________ SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 Shenzhen Onuoda Electronics Technology Co. Ltd ______________________________________________________ SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 ( May 5, 2010) To : SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Shenzhen Onuoda Electronics Technology Co. Ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description, model name) FCC ID: W8D-F3D Product name: FM Transmitter Model: F3D We affirm that between SIEMIC and Shenzhen Onuoda Electronics Technology Co.,Ltd , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Andy Guo/ General Manager Title: General Manager Telephone: +86-0755-29703420 Email: [email protected] Date: May 5, 2010

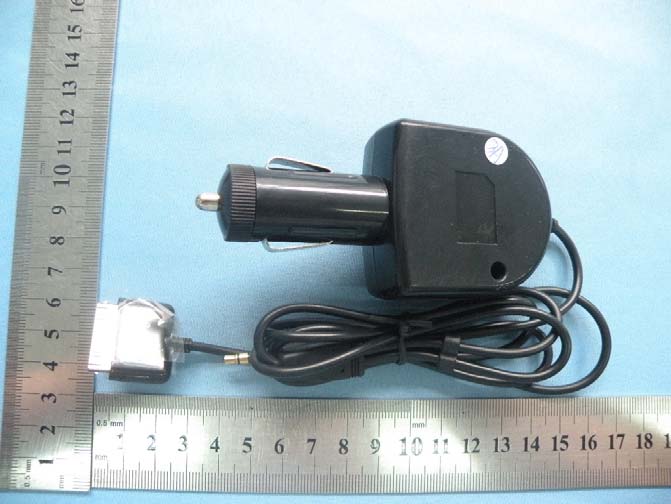

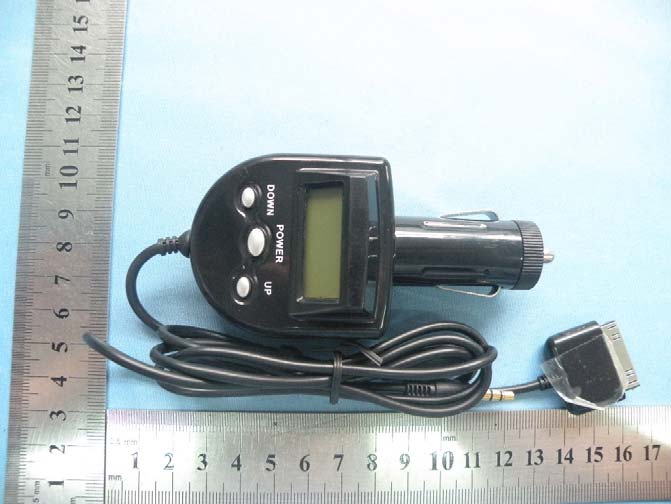

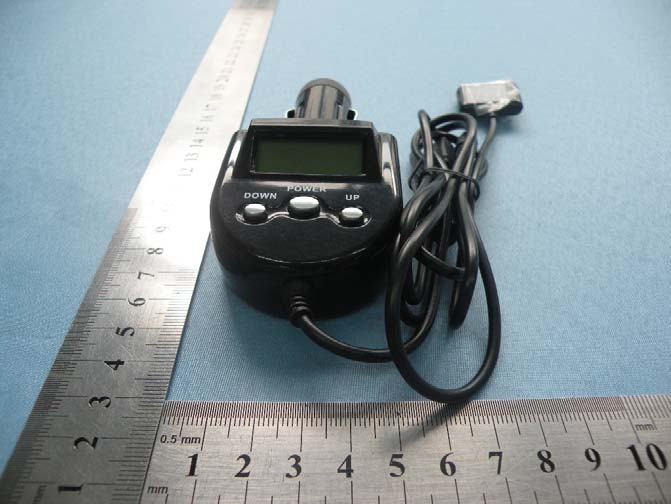

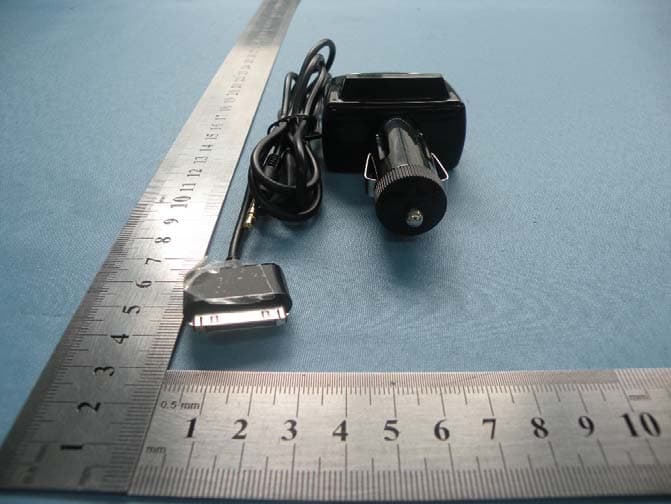

To p Vi e w Bottom View Front View Left View Rear View Right View

FCC ID:W8D-F3D

Label Location

To p Vi e w Bottom View ANTENNA

Operation description: 1.Singlechip control frequency of the electric circuit 1. set suitable parameters, to conserve by 24C02 2. voice frequency signal output by transmitting circuit 3. MCU control the display driver then drive the LCD 4. car cigar lighter supply the power, through voltage stabilizer have 5v steady voltage.

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:Sheet of File: 工 .awn By: 1234 5678 U2 1234567 89 1011121314 U3 S1 R14 R15 R23 R13 R12 R16 R10 R24 R5R4 R7 C10 C6 C7 S2 S3 Y1, 7.6MHz C1C2 1 A 2 K D3 C12 C11 R3 R11 1 1 3 3 2 2 IR1 R17 12345678 910111213141516 U1 E1C19 C18 R21 R20 R25 Q1 L4 1 2 3 4 USBVCC GND VCC +5 ipod GND ipod L IN ipod R IN 1 2 3 45 6 7 8 U5 L7 E2C17E3 DC12V VCC D2 C15 C14 C9 +3.3V FMVCC FMVCC ANT1 D1 +5 +3.3V +5+5 L1 L2 C3 C4 R6 C16 C5 +3.3V CS 1 RD 2 WR 3 DATA 4 GND 5 OSCO 6 OSCI 7 VLCD 8 VDD 9 IRQ 10 BZ 11 BZ 12 COM0 16 COM1 15 COM2 14 COM3 13 SEG 17 SEG 18 SEG 19 SEG 20 SEG 21 SEG 22 SEG 23 SEG 24 SEG 25 SEG 26 SEG 27 SEG 28 SEG 29 SEG 30 SEG 31 SEG 32 SEG 33 SEG 34 SEG 35 SEG 36 SEG 37 SEG 38 SEG 39 SEG 40 SEG 41 SEG 42 SEG 43 SEG 44 SEG 45 SEG 46 SEG 47 SEG 48 U4 +3.3V E6 E4 L6 L5 R18 E5 VCC 深圳市欧诺达电子有限公司 发射器原理图 3.3V ipod IR 123456789 1011121314 LCD1 Q2 +5 L3 Q3 F3D

Shenzhen Certification Technology Service Co., Ltd 3F, Bldg27,Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, ShenZhen, Guang dong, P.R. China. FCC ID: W8D-F3D Page 1 of 24 TEST REPORT FCC ID: W8D-F3D Applicant : Shenzhen Onuoda Electronics Technology Co. Ltd Address : 3F D building Jingfu industry zone Airway(West) Gushu village Xixiang town Bao’an district Shenzhen city Guangdong China Equipment under Test (EUT): Name : FM Transmitter Model : F3D Standards : FCC Part15.239 Report No. : STE100504309 Date of Test : May 4-5, 2010 Date of Issue : May 6, 2010 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.:STE100504309 FCC ID: W8D-F3D Page 2 of 24 TABLE OF CONTENT Description Page 1 General Information----------------------------------------------------------------------------------- 3 1.1 Description of Device (EUT) --------------------------------------------------------------- 3 1.2 Description of Test Facility----------------------------------------------------------------- 4 2 Test Equipment List ---------------------------------------------------------------------------------- 4 3 Summary of Measurement ------------------------------------------------------------------------- 5 4 Radiated Emission Test ----------------------------------------------------------------------------- 6 4.1 Radiated Emission Limits(15.209&239)------------------------------------------------- 6 4.2 Test Setup for Emission measurement ------------------------------------------------- 7 4.3 Test Procedure---------------------------------------------------------------------------------- 8 4.4 Test Condition----------------------------------------------------------------------------------- 9 4.5 Test Results ------------------------------------------------------------------------------------- 10 5 Bandwidth Test --------------------------------------------------------------------------------------- 15 5.1 Limit for Bandwidth-------------------------------------------------------------------------- 15 5.2 Method of measurement-------------------------------------------------------------------- 15 5.3 Test Setup --------------------------------------------------------------------------------------- 15 5.4 Test Results ------------------------------------------------------------------------------------ 15 6 Band Edge Test --------------------------------------------------------------------------------------- 17 6.1 Test Limit---------------------------------------------------------------------------------------- 17 6.2 Test Procedure -------------------------------------------------------------------------------- 17 6.3 Test Results ------------------------------------------------------------------------------------ 17 7 Antenna Requirement ------------------------------------------------------------------------------ 19 7.1 Standard requirement----------------------------------------------------------------------- 19 7.2 Result -------------------------------------------------------------------------------------------- 19 8 Photographs of Test Setup ----------------------------------------------------------------------- 20 9 Photographs of EUT --------------------------------------------------------------------------------- 21 Report No.:STE100504309 FCC ID: W8D-F3D Page 3 of 24 1 General Information 1.1 Description of Device (EUT) Trade Name : N/A EUT : FM Transmitter Model No. : F3D Type of Antenna : Integral Antenna Operation Frequency : 88.1-107.9MHZ(All turning channels is manually verified Which will be only between 88MHZ~108MHZ) Modulation type FM Power Supply : DC12V Rated RF output Power 51.26 dBuV(PK detector) Applicant : Shenzhen Onuoda Electronics Technology Co. Ltd Address : 3F D building Jingfu industry zone Airway(West) Gushu village Xixiang town Bao’an district Shenzhen city Guangdong China Manufacturer : Shenzhen Onuoda Electronics Technology Co. Ltd Address : 3F D building Jingfu industry zone Airway(West) Gushu village Xixiang town Bao’an district Shenzhen city Guangdong China Report No.:STE100504309 FCC ID: W8D-F3D Page 4 of 24 1.2 Description of Test Facility Shenzhen Certification Technology Service Co.,Ltd. 3F, Bldg.27, Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, Shenzhen 518055, Guangdong, P.R. China FCC Registered No.:305283 2 Test Equipment List Equipment Manufacture Model No. Serial No. Last cal. Cal Interval 3m Semi-Anechoic ETS-LINDGREN N/A SEL0017 16/06/20091Year Spectrum analyzer Agilent E4443A MY46185649 06/06/20091Year Receiver R&S ESCI 100492 04/06/20091Year Receiver R&S ESCI 101202 07/01/20101Year Bilog Antenna Sunol JB3 A121206 04/06/20091Year Horn Antenna EMCO 3115 640201028-0 6 04/06/20091Year ETS Horn Antenna ETS 3160 SEL0076 12/08/20091Year Active Loop Antenna Beijing Daze ZN30900A SEL0097 15/06/20091Year Cable Resenberger N/A No.1 04/06/20091Year Cable SCHWARZBECK N/A No.2 04/06/20091Year Cable SCHWARZBECK N/A No.3 04/06/20091Year Pre-amplifier R&S AFS42-00101 800-25-S-42 SEL0081 18/06/20091Year Pre-amplifier R&S AFS33-18002650 -30-8P-44 SEL0080 18/06/20091Year Report No.:STE100504309 FCC ID: W8D-F3D Page 5 of 24 3 Summary of Measurement Test Item Test RequirementStandard Paragraph Result Antenna Req…
