W9V-DS735-GPLTE CPE

Green Packet Berhad, Taiwan 2F, NO.23, LANE 583 RUEIGUANG RD, NEIHU DISTRICT, Taipei City,Taiwan UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: W9V-DS735-GP (1) DFS Device: Master Client with Radar detection capability N/A Client without radar detection capability, (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5180-5240 Yes No Yes No Yes No Yes No 5190-5230 Yes No Yes No Yes No Yes No 5210-5210 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No 5755-5795 Yes No Yes No Yes No Yes No 5775-5775 Yes No Yes No Yes No Yes No (3) Country code selection ability Yes No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Frank Hsu / VP Company: Green Packet Berhad, Taiwan Address: 2F, NO.23, LANE 583 RUEIGUANG RD, NEIHU DISTRICT, Taipei City,Taiwan Phone: +886 2 2627 1355 Fax: +886 2 2627 2553 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-03-26> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name W9V-DS735-GP DS-735 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: Frank Hsu / VP Company: Green Packet Berhad, Taiwan Address: 2F, NO.23, LANE 583 RUEIGUANG RD, NEIHU DISTRICT, Taipei City,Taiwan Phone: +886 2 2627 1355 Fax: +886 2 2627 2553 E-Mail: [email protected]

Green Packet Berhad, Taiwan 2F, NO.23, LANE 583 RUEIGUANG RD, NEIHU DISTRICT, Taipei City,Taiwan Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/03/26 To whom it may concern: We, Green Packet Berhad, Taiwan the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: W9V-DS735-GP including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: Frank Hsu / VP Company: Green Packet Berhad, Taiwan Address: 2F, NO.23, LANE 583 RUEIGUANG RD, NEIHU DISTRICT, Taipei City,Taiwan Phone: +886 2 2627 1355 Fax: +886 2 2627 2553 E-Mail: [email protected]

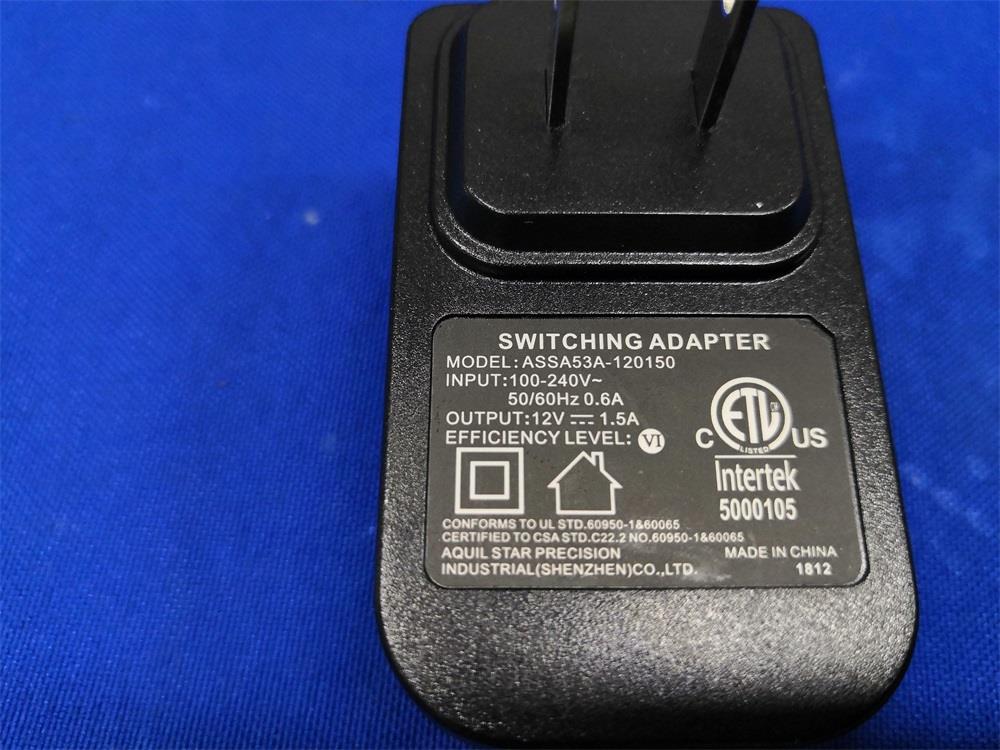

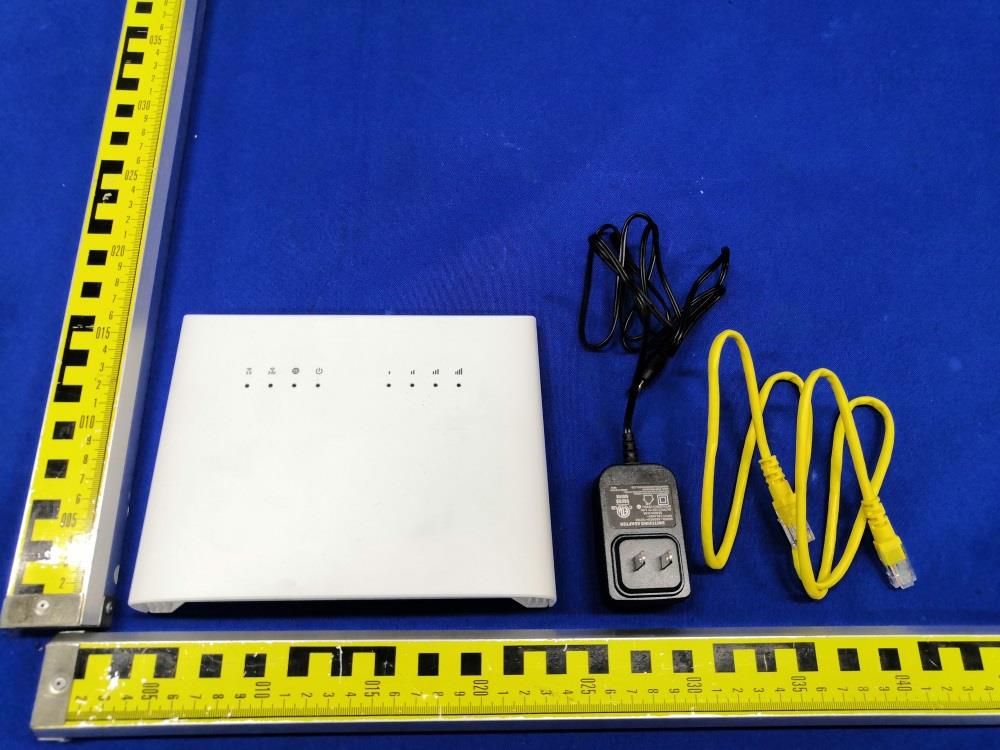

Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10

LABELANDLOCATION (Size:L5.0cmx4.0cm) LabelLocation Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothe followingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation.

Fig. 1 Fig. 2 2.4GWLAN Antenna 5GWLAN Antenna LTE Band 4/66 main Antenna LTE Band 2 main Antenna LTE diversity Antenna Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20191217003-1-4 W9V-DS735-GP Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Moon Tan Approved by ( position+printed name+signature) . : Manager Simon Hu Date of issue .................................... : Mar.05, 2020 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ........................................... : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Green Packet Berhad, Taiwan Address ............................................ : 2F, NO.23, LANE 583 RUEIGUANG RD, NEIHU DISTRICT, Taipei City,Taiwan Test specification ........................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : LTE CPE Trade Mark ....................................... : N/A Manufacturer .................................... : Green Packet Berhad, Taiwan Model/Type reference ...................... : DS-735 Listed Models .................................. : N/A Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 12V/1.5A to Adapter Result ............................................... : PASS Report No.: GTS20191217003-1-4 Page 2 of 15 T E S T R E P O R T Test Report No. : GTS20191217003-1-4 Mar.05, 2020 ______________________________________________________________________________________________ Date of issue Equipment under Test : LTE CPE Model /Type : DS-735 Listed Models : N/A Applicant : Green Packet Berhad, Taiwan Address : 2F, NO.23, LANE 583 RUEIGUANG RD, NEIHU DISTRICT, Taipei City,Taiwan Manufacturer : Green Packet Berhad, Taiwan Address : 2F, NO.23, LANE 583 RUEIGUANG RD, NEIHU DISTRICT, Taipei City,Taiwan Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20191217003-1-4 Page 3 of 15 Contents 1. SUMMARY ............................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT .............................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT ................................................................................................................................. 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 7 3.5 ANTENNA INFORMATION ................................................................................................................................................... 7 4. CONDUCTED POWER RESULTS ............................................................................................................................... 7 5. MANUFACTURING TOLERANCE ............................................................................................................................ 10 6. MEASUREM…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.407 Report Reference No. .....................: FCC ID. ........................................... : GTS20191217003-1-2 W9V-DS735-GP Compiled by ( position+printed name+signature) ..: File administrators Peter Xiao Supervised by ( position+printed name+signature) ..: Test Engineer Moon Tan Approved by ( position+printed name+signature) ..: Manager Simon Hu Date of issue .....................................: Mar.05, 2020 Representative Laboratory Name : Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong ............................: Green Packet Berhad, Taiwan Address .............................................: 2F, NO.23, LANE 583 RUEIGUANG RD, NEIHU DISTRICT, Taipei City, Taiwan Test specification .......................... : Standard ...........................................: FCC Part 15.407: UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES TRF Originator ..................................: Shenzhen Global Test Service Co.,Ltd. Master TRF .......................................: Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : LTE CPE Trade Mark .......................................: N/A Manufacturer .....................................: Green Packet Berhad, Taiwan Model/Type reference .......................: DS-735 Listed Models ...................................: N/A Operation Frequency ........................: From 5180MHz to 5240MHz/ 5745MHz to 5825MHz Hardware Version ............................: N/A Software Version ..............................: N/A Rating................................................: DC 12V/1.5A to Adapter Result ................................................: PASS Report No.: GTS20191217003-1-2 Page 2 of 94 T E S T R E P O R T Test Report No. : GTS20191217003-1-2 Mar.05, 2020 ____________________________________________________________________________________ Date of issue Equipment under Test : LTE CPE Model /Type : DS-735 Listed Models : N/A Applicant : Green Packet Berhad, Taiwan Address : 2F, NO.23, LANE 583 RUEIGUANG RD, NEIHU DISTRICT, Taipei City,Taiwan Manufacturer : Green Packet Berhad, Taiwan Address : 2F, NO.23, LANE 583 RUEIGUANG RD, NEIHU DISTRICT, Taipei City,Taiwan Test Result : PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20191217003-1-2 Page 3 of 94 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 6 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 6 2.8. Special Accessories ............................................................................................................................... 6 2.9. Modifications .......................................................................................................................................... 6 3. TEST ENVIRONMENT ..................................................................................................................................... 7 3.1. Address of the test laboratory ................................................................................................................ 7 3.2. Test Facility ............................................................................................................................................ 7 3.3. Environmental conditions ....................................................................................................................... 7 3.4. Test Description ..................................................................................................................................... 8 3.5. Statement of the measurement uncertainty ........................................................................................... 9 3.6. Equipments Used during the Test ............................................…

Text truncated - open the document above for the full version.

Report No.: GTS20191217003-1-2 Page 46 of 94 802.11ac40 802.11ac80 CH 38 CH 42 CH 46 Report No.: GTS20191217003-1-2 Page 47 of 94 5725-5850MHz: 802.11a 802.11n HT20 CH 149 CH 149 CH 157 CH 157 CH 165 CH 165 Report No.: GTS20191217003-1-2 Page 48 of 94 802.11ac20 802.11n HT40 CH 149 CH 151 CH 157 CH 159 CH 165 Report No.: GTS20191217003-1-2 Page 49 of 94 802.11ac40 802.11ac80 CH 151 CH 155 CH 159 Report No.: GTS20191217003-1-2 Page 50 of 94 4.6. 6dB Bandwidth TEST CONFIGURATION EUT SPECTRUM ANALYZER TEST PROCEDURE According to KDB789033 D02 General UNII Test Procedures New Rules v01 for one of the following procedures may be used for section 15.407(e) specifies the minimum 6 dB emission bandwidth of at least 500 KHz for the band 5.715-5.85 GHz. The following procedure shall be used for measuring this bandwidth: a. Set RBW = 100 kHz. b. c. Detector = Peak. d. Trace mode = max hold. e. Sweep = auto couple. f. Allow the trace to stabilize g. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Note: The automatic bandwidth measurement capability of a spectrum analyzer or EMI receiver may be employed if it implements the functionality described above. LIMIT For Section 15.407(e) specifies the minimum 6 dB emission bandwidth of at least 500 KHz for the band 5.715- 5.85 GHz TEST RESULTS Report No.: GTS20191217003-1-2 Page 51 of 94 Antenna 0: Type Channel 99%Bandwidth (MHz) 6dB Bandwidth (MHz) Limit (KHz) Result 802.11a 149 16.661 16.560 Pass 157 16.751 16.560 165 16.753 16.560 802.11nHT20 149 17.753 17.720 Pass 157 17.783 17.720 165 17.684 17.720 802.11ac20 149 17.727 17.720 Pass 157 17.676 17.720 165 17.720 17.720 802.11n40 151 36.192 36.480 Pass 159 35.977 36.560 802.11ac40 151 36.148 36.480 Pass 159 35.935 36.560 802.11ac80 155 75.388 74.880 Pass Antenna 1: Type Channel 99%Bandwidth (MHz) 6dB Bandwidth (MHz) Limit (KHz) Result 802.11a 149 16.807 16.560 Pass 157 16.723 16.560 165 16.693 16.560 802.11nHT20 149 17.713 17.760 Pass 157 17.701 17.720 165 17.727 17.720 802.11ac20 149 17.730 17.720 Pass 157 17.699 17.720 165 17.756 17.760 802.11n40 151 36.057 36.480 Pass 159 36.005 36.560 802.11ac40 151 36.181 36.480 Pass 159 36.012 36.560 802.11ac80 155 75.728 74.880 Pass Report No.: GTS20191217003-1-2 Page 52 of 94 Antenna 0: 99%Bandwidth 802.11a 802.11n HT20 CH149 CH149 CH157 CH157 CH165 CH165 Report No.: GTS20191217003-1-2 Page 53 of 94 99%Bandwidth 802.11ac20 802.11n HT40 CH149 CH151 CH157 CH159 CH165 Report No.: GTS20191217003-1-2 Page 54 of 94 99%Bandwidth 802.11ac40 802.11ac80 CH151 CH155 CH159 Report No.: GTS20191217003-1-2 Page 55 of 94 6dB Bandwidth 802.11a 802.11n HT20 CH149 CH149 CH157 CH157 CH165 CH165 Report No.: GTS20191217003-1-2 Page 56 of 94 6dB Bandwidth 802.11ac20 802.11n HT40 CH149 CH151 CH157 CH159 CH165 Report No.: GTS20191217003-1-2 Page 57 of 94 6dB Bandwidth 802.11ac40 802.11ac80 CH151 CH155 CH159 Report No.: GTS20191217003-1-2 Page 58 of 94 Antenna 1: 99%Bandwidth 802.11a 802.11n HT20 CH149 CH149 CH157 CH157 CH165 CH165 Report No.: GTS20191217003-1-2 Page 59 of 94 99%Bandwidth 802.11ac20 802.11n HT40 CH149 CH151 CH157 CH159 CH165 Report No.: GTS20191217003-1-2 Page 60 of 94 99%Bandwidth 802.11ac40 802.11ac80 CH151 CH155 CH159 Report No.: GTS20191217003-1-2 Page 61 of 94 6dB Bandwidth 802.11a 802.11n HT20 CH149 CH149 CH157 CH157 CH165 CH165 Report No.: GTS20191217003-1-2 Page 62 of 94 6dB Bandwidth 802.11ac20 802.11n HT40 CH149 CH151 CH157 CH159 CH165 Report No.: GTS20191217003-1-2 Page 63 of 94 6dB Bandwidth 802.11ac40 802.11ac80 CH151 CH155 CH159 Report No.: GTS20191217003-1-2 Page 64 of 94 4.7. 26dBc Bandwidth TEST CONFIGURATION EUT SPECTRUM ANALYZER TEST PROCEDURE According to KDB789033 D02 General UNII Test Procedures New Rules v01 for one of the following procedures may be used for Emission Bandwidth (EBW) measurement: a. Set RBW = 300 kHz (approximately 1% of the emission bandwidth). b. Set the video bandwidth (VBW) = 1000 KHz (VBW > RBW) c. Detector = Peak. d. Trace mode = max hold. e. Sweep = auto couple. f. Allow the trace to stabilize g. Measure the maximum width of the emission that is 26 dB down from the maximum of the emission. Compare this with the RBW setting of the analyzer. Readjust RBW and repeat measurement as needed until the RBW/EBW ratio is approximately 1%. Note: The automatic bandwidth measurement capability of a spectrum analyzer or EMI receiver may be employed if it implements the functionality described above. LIMIT No Limits for 26dBc Bandwith TEST RESULTS Report No.: GTS20191217003-1-2 Page 65 of 94 Antenna 0: Type Channel 99%Bandwidth (MHz) 26dB Bandwidth (MHz) Limit (KHz) Result 802.11a 36 16.483 19.760 - Pass 40 16.483 19.520 48 16.487 19.720 802.11nHT20 36 17.609 19.880 - Pass 40 17.606 20.040 48 17.610 19.800 802.11ac20 36 17.615 20.040 - Pass 40 17.619 20.080 48 17.609 19.800 802.11n40 38 36.361 40.240 - Pass 46 36.376 40.160 802.11ac40 38 36.344 39.920 - Pass 46 36.396 40.400 802.11ac80 155 74.609 80.640 - Pass Antenna 1: Type Channel 99%Bandwidth (MHz) 26dB Bandwidth (MHz) Limit (KHz) Result 802.11a 36 16.496 19.800 - Pass 40 16.496 19.680 48 16.489 19.320 802.11nHT20 36 17.618 20.200 - Pass 40 17.614 20.120 48 17.628 20.120 802.11ac20 36 17.624 20.120 - Pass 40 17.614 19.840 48 17.616 20.040 802.11n40 38 36.332 40.480 - Pass 46 36.377 40.400 802.11ac40 38 36.364 40.160 - Pass 46 36.387 40.000 802.11ac80 155 74.675 81.440 - Pass

Report No.: GTS20191217003-1-2 Page 66 of 94 Antenna 0: 99%Bandwidth 802.11a 802.11n HT20 CH36 CH36 CH40 CH40 CH48 CH48 Report No.: GTS20191217003-1-2 Page 67 of 94 99%Bandwidth 802.11ac20 802.11n HT40 CH36 CH38 CH40 CH46 CH48 Report No.: GTS20191217003-1-2 Page 68 of 94 99%Bandwidth 802.11ac40 802.11ac80 CH38 CH42 CH46 Report No.: GTS20191217003-1-2 Page 69 of 94 26dB Bandwidth 802.11a 802.11n HT20 CH36 CH36 CH40 CH40 CH48 CH48 Report No.: GTS20191217003-1-2 Page 70 of 94 26dB Bandwidth 802.11ac20 802.11n HT40 CH36 CH38 CH40 CH46 CH48 Report No.: GTS20191217003-1-2 Page 71 of 94 26dB Bandwidth 802.11ac40 802.11ac80 CH38 CH42 CH46 Report No.: GTS20191217003-1-2 Page 72 of 94 Antenna 1: 99%Bandwidth 802.11a 802.11n HT20 CH36 CH36 CH40 CH40 CH48 CH48 Report No.: GTS20191217003-1-2 Page 73 of 94 99%Bandwidth 802.11ac20 802.11n HT40 CH36 CH38 CH40 CH46 CH48 Report No.: GTS20191217003-1-2 Page 74 of 94 99%Bandwidth 802.11ac40 802.11ac80 CH38 CH42 CH46 Report No.: GTS20191217003-1-2 Page 75 of 94 26dB Bandwidth 802.11a 802.11n HT20 CH36 CH36 CH40 CH40 CH48 CH48 Report No.: GTS20191217003-1-2 Page 76 of 94 26dB Bandwidth 802.11ac20 802.11n HT40 CH36 CH38 CH40 CH46 CH48 Report No.: GTS20191217003-1-2 Page 77 of 94 26dB Bandwidth 802.11ac40 802.11ac80 CH38 CH42 CH46 Report No.: GTS20191217003-1-2 Page 78 of 94 4.8. Band Edge Compliance TEST CONFIGURATION LIMIT 20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequency (MHz) Distance (Meters) Radiated Radiated 0.009-0.49 3 20log(2400/F(KHz))+40log(300/3) 2400/F(KHz) 0.49-1.705 3 20log(24000/F(KHz))+ 40log(30/3) 24000/F(KHz) 1.705-30 3 20log(30)+ 40log(30/3) 30 30-88 3 40.0 100 88-216 3 43.5 150 216-960 3 46.0 200 Above 960 3 54.0 500 According to §15.407 (b): Except as shown in paragraph (b)(7) of this section, the maximum emissions outside of the frequency bands of operation shall be attenuated in accordance with the following limits Frequency (MHz) EIRP Limit (dBm) Equivalent Field Strength at 3m (dBμV/m) 5150-5250 -27 68.2 5250-5350 -27 68.2 5470-5725 -27 68.2 5725-5850 -27 (beyond 10MHz of the bandedge) 68.2 -17 (within 10 MHz of band edge) 78.2 TEST PROCEDURE 1. The EUT was placed on a turn table which is 1.5m above 1GHz. 2. Maximum procedure was performed by raising the receiving antenna from 1m to 4m and rotating the turn table from 0 to 360 to acquire the highest emissions from EUT. 3. And also, each emission was to be maximized by changing the polarization of receiving antenna both horizontal and vertical. 4. Repeat above procedures until all frequency measurements have been completed.. 5. The distance between test antenna and EUT as following table states: Test Frequency range Test Antenna Type Test Distance 1GHz-18GHz Double Ridged Horn Antenna 3 Report No.: GTS20191217003-1-2 Page 79 of 94 6. Setting test receiver/spectrum as following table states: Test Frequency range Test Receiver/Spectrum Setting Detector 1GHz-18GHz Peak Value: RBW=1MHz/VBW=3MHz, Sweep time=Auto Average Value: RBW=1MHz/VBW=10Hz, Sweep time=Auto Peak Field Strength Calculation The field strength is calculated by adding the Antenna Factor and Cable Factor and subtracting the Amplifier Gain and Duty Cycle Correction Factor(if any) from the measured reading. The basic equation with a sample calculation is as follows: FS = RA + AF + CL - AG Where FS = Field Strength CL = Cable Attenuation Factor (Cable Loss) RA = Reading Amplitude AG = Amplifier Gain AF = Antenna Factor TEST RESULTS Remark:For radiated bandedge We measured at both mode, recorded worst case at MIMO 802.11 ac20 mode; Report No.: GTS20191217003-1-2 Page 80 of 94 For Radiated Bandedge Measurement 802.11 ac20/ Channel 36 :5180 MHz Freq (MHz) Read Level (dBμV) Antenna Factor (dB/m) PRM Factor (dB) Cable Loss (dB) Result Level (dBμV/m) Limit Line (dBμV/m) Margin (dB) Detector Polarization 4500.0 35.24 35.58 29.04 8.28 50.06 68.20 -18.14 Peak Horizontal 4500.0 30.19 35.58 29.04 8.28 45.01 54.00 -8.99 AV Horizontal 5150.0 39.14 35.58 29.04 8.28 53.96 68.20 -14.24 Peak Horizontal 5150.0 30.48 35.58 29.04 8.28 45.30 54.00 -8.70 AV Horizontal 802.11 ac20/ Channel 48 :5240 MHz Freq (MHz) Read Level (dBμV) Antenna Factor (dB/m) PRM Factor (dB) Cable Loss (dB) Result Level (dBμV/m) Limit Line (dBμV/m) Margin (dB) Detector Polarization 5350.0 35.28 35.42 29.06 8.39 50.03 68.20 -18.17 Peak Horizontal 5350.0 30.32 35.42 29.06 8.39 45.07 54.00 -8.93 AV Horizontal 5460.0 39.01 35.42 29.06 8.39 53.76 68.20 -14.44 Peak Horizontal 5460.0 30.68 35.42 29.06 8.39 45.43 54.00 -8.57 AV Horizontal 802.11 ac20/ Channel 149 :5745 MHz Freq (MHz) Read Level (dBμV) Antenna Factor (dB/m) PRM Factor (dB) Cable Loss (dB) Result Level (dBμV/m) Limit Line (dBμV/m) Margin (dB) Detector Polarization 5650.0 35.19 35.29 29.13 8.65 50.00 68.20 -18.20 Peak Horizontal 5700.0 30.29 35.29 29.13 8.65 45.10 68.20 -23.10 Peak Horizontal 5720.0 39.20 35.29 29.13 8.65 54.01 68.20 -14.19 Peak Horizontal 5725.0 30.51 35.29 29.13 8.65 45.32 68.20 -22.88 Peak Horizontal 802.11 ac20/ Channel 165 :5825 MHz Freq (MHz) Read Level (dBμV) Antenna Factor (dB/m) PRM Factor (dB) Cable Loss (dB) Result Level (dBμV/m) Limit Line (dBμV/m) Margin (dB) Detector Polarization 5850.0 35.15 35.29 29.18 8.80 50.06 68.20 -18.14 Peak Horizontal 5855.0 30.23 35.29 29.18 8.80 45.14 68.20 -23.06 Peak Horizontal 5875.0 39.20 35.29 29.18 8.80 54.11 68.20 -14.09 Peak Horizontal 5925.0 30.55 35.29 29.18 8.80 45.46 68.20 -22.74 Peak Horizontal REMARKS: 1. Result Level = Read Level + Antenna Factor + Cable loss - PRM Factor. 2. The other emission levels were very low against the limit. 3. The average measurement was not performed when the peak measured data under the limit of average detection. 4. Detector AV is setting spectrum/receiver. RBW=1MHz/VBW=10Hz/Sweep time=Auto/Detector=Peak;

Report No.: GTS20191217003-1-2 Page 81 of 94 For Conducted Band edge Measurement The test results have included the antenna gain Antenna 0: 5150-5250MHz: 802.11a 5180 MHz 5240 MHz 802.11n HT20 5180 MHz 5240 MHz Report No.: GTS20191217003-1-2 Page 82 of 94 802.11ac20 5180 MHz 5240 MHz 802.11n HT40 5190 MHz 5230 MHz Report No.: GTS20191217003-1-2 Page 83 of 94 802.11ac40 5190 MHz 5230 MHz 802.11ac80 5210 MHz 5210 MHz Report No.: GTS20191217003-1-2 Page 84 of 94 5725-5850MHz: 802.11a 5745 MHz 5825 MHz 802.11n HT20 5745 MHz 5825 MHz Report No.: GTS20191217003-1-2 Page 85 of 94 802.11ac20 5745 MHz 5825 MHz 802.11n HT40 5755 MHz 5795 MHz Report No.: GTS20191217003-1-2 Page 86 of 94 802.11ac40 5755 MHz 5795 MHz 802.11ac80 5775 MHz 5775 MHz Report No.: GTS20191217003-1-2 Page 87 of 94 Antenna 1: 5150-5250MHz: 802.11a 5180 MHz 5240 MHz 802.11n HT20 5180 MHz 5240 MHz Report No.: GTS20191217003-1-2 Page 88 of 94 802.11ac20 5180 MHz 5240 MHz 802.11n HT40 5190 MHz 5230 MHz Report No.: GTS2019…
