WA2ST300Vehicle Tracker

ST300 User Manual Suntech International Ltd. ST300 User Manual 2 1. Introduction This document describes features, protocols and detail operation of ST300. If there is another operation description document for special buyer to customize or model and the contents of the document is different with this, customizing document should be applied for special buyer. 2. Overview Device consists of GPRS, GPS and event parts. The main purpose of device reports getting GPS position and other informs of vehicle to server periodically. Device can control or check connected lines and support additional functions. 2-1. Operation Mode The device has 3 operation modes, driving, parking and emergency. ** Driving : Driving status when ignition is on. ** Parking : Parking status that starts if ignition is off during more than T1. ** Emergency : Once panic button is On or any other status as per designed. The device sends emergency reports until A1 times or receiving server acknowledge. 2-2. Report AVL reports GPS and some information at predefined interval, depending on the current modes. Also, AVL sends some alerts, for example, movement at the parking condition, changing of connected input line and so on. Device distinguishes all reports with 6 types, Status report, emergency, event, alert, alive and command response. Device can store reports when reporting route (For example, GPRS condition) is not successful. Storage capacity is up to 2,000 status reports, 50 emergency reports, 50 alert reports (include event reports) and 1500 bytes as command response. In case of status reports, oldest report is erased and new report is buffered when the buffer is full and new status report enters (FIFO). When reporting condition is recovered, device starts sending all buffered reports. Also, this capacity can increase if it is needed. Each type of reports has priority, and priority is as below. Emergency  Command Response  Alert  Status Report  Alive (Lowest) ST300 User Manual 3 Emergency is the first to be sent after recovering GPRS condition. 2-3. Setting Parameter Parameters of device can be changed by GPRS or SMS, and some control can be realized also in the same way. Detail protocols are described in Chapter 4. 2-4. Features Key features are described here; - Power Down Device can process two steps of power-down, Sleep and Deep Sleep, for reducing power consumption when the vehicle is parked. - LED Indicator LED indicates GPRS and GPS states. It’s helpful to check error cause. - Events Device has 2 output lines, 3 input lines and ignition line. - Update Firmware by Over The Air (FOTA) When Firmware of device has some error or has to be changed for a new service to be implemented, device can update internal ROM file by over the air (FOTA), remotely via GPRS. Customers do not need to visit every vehicle to download the new firmware. Method of FOTA describes at “SunTech_OTA_UA_Protocol” document in detail. - Parking Lock Device can check whether the vehicle moves off the preset parking boundary or starts driving without ignition on. In the case that it notes the unauthorized moving or driving, it sends emergency report immediately. - Over speed Device can check speed of vehicle and send alert of over-speed to server. - GPS Antenna Checking Device can alert when GPS antenna is disconnected. ST300 User Manual 4 It’s applicable only for models that have external antenna. - Main Power Checking The device can recognize the main power and inform to server when main power line is disconnected or main power drops below preset value. It’s applicable only for battery model. - Battery Error Alert Device can alert about battery error related on charging. It’s applicable only for battery model. 3. Protocol Construction All command and reports are string and follows below format. Every filed is distinguished by semi colon. All report string from device is ended by ‘＼r’ (0x0D). Command message format (from server to device) HDR DEV_ID VER Field 1 Field 2...Field n Field Definitions Remark HDR String “SA200” + Command type DEV_ID 6 char. Device ID of AVL VER “02” Protocol Version. This is fixed with “02”. Field 1 ~ n String Contents Device ID is unique number of each device that consists of 6digits. If the command has invalid value or DEV_ID of the command that is sent by GPRS or SMS is not matched with DEV_ID of the unit. Report message format (from device to server) HDR DEV_ID SW_VER Field 1 Field 2...Field n Field Definitions Remark HDR String “SA200” + Report type ST300 User Manual 5 DEV_ID 6 char. Device ID of AVL VER “001” Software version that the device has. Field 1 ~ n String Contents 4. Commands When the device is received a command, it responds with response string and changes some parameters or acts related operation. 4-1. Network Parameters Setting HDR DEV_ID VER AUTH APN USER_IDUSER_PWD SEVER_IP SEVER_PORT B_SEVER_IP B_SEVER_IP SMS_NOPIN_NO ● Definition : Set network parameters and PIN number. Field Definitions Unit Remark HDR “SA200NTW” Command type DEV_ID 6 char. Device ID VER “02” Protocol Version AUTH ‘0’ /‘1’/’A’ GPRS authentication 0 : PAP(‘NO’ in Synctrack) 1 : CHAP(‘YES’ in Synctrack) A : Automatic GPRS set. In this case, parameters in APN, USER_ID and USER_PWD field should be empty. APN String Access Point Name USER_ID String ID for GPRS Access USER_PWD String Password for GPRS Access SEVER_IP String Server IP Address SEVER_PORT String Server Port B_SEVER_IP String Backup Server IP Address B_SEVER_PORT String Backup Server Port SMS_NO String Phone number what the device sends SMS report to. This can be used for backup in the area that if GPRS condition is not good. Or, it can be used main report method when IP and Port are empty. ST300 User Manual 6 For no use, it should be empty. PIN_NO String PIN Number to release PIN lock if it is enabled <example> [command] SA200NTW;850000;02;0;internet;;;111.111.111.111;8600;;;; [response] SA200NTW;Res;850000;010;0;internet;;; 111.111.111.111;8600;;;; SA200NTW;Res;85…

Text truncated - open the document above for the full version.

Suntech International Ltd. Address: B-1506, Great-valley, 32, 9-Gil, Digital-Ro, Geumcheon-Gu, Seoul, KOREA Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID : WA2ST300 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematic Diagram 3. Operational description 4. Part list 5. Tune up info The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------------------- 13 / MAY / 2015 Jai Chang Yang President / CEO

Suntech International Ltd. Date: 13 / MAY / 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. HCT America LLC 44364 S. Grimmer Blvd. Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby au thorize HCT CO, LTD. and her eafter referred to as HCT, to act on our behalf in all manners relating to application for equipment a uthorization, including signing of all documents relating to these matters. Any and all acts carried o ut by HCT on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing HCT as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising m atter that contains any reference thereto and return any certification docume nts as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified st andards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a m isleading ma nner; h)ensure t hat any reference to our product certification in communication medi a such as docum ents, brochures or advertising, complies with the requirements of th e Certification Division ; i)kee p a record of all complaints made known to the us relating to the pro duct’s com pliance with requirements of the relevant standard and to make these record s avai lable to the Certification Division wh en requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certific ation; k)do cument the acti ons taken. Th is authorization is valid until further written notice from the applicant. Sincerely Yours, 20 / MAY / 2015 Jai Chang Yang President / CEO (Suntech International Ltd.) REMARK: 1. This authorization letter will be sent along with your application when filing with th e Certi fication Division. 2. Please follow the format and type it on company letterhead and send original to us . 3. Authorized signature must be in agreement with grantee code contact in FCC databa se.

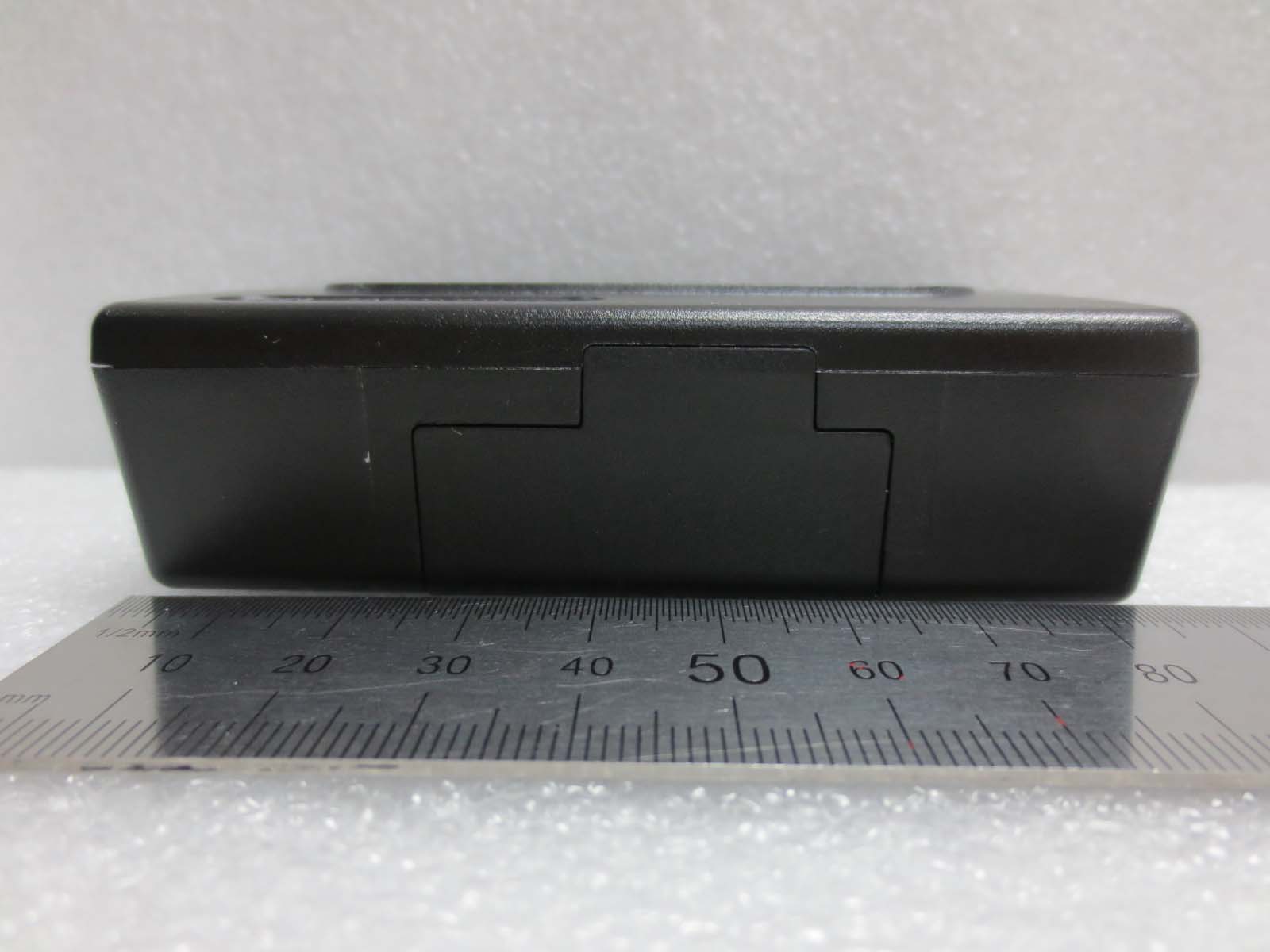

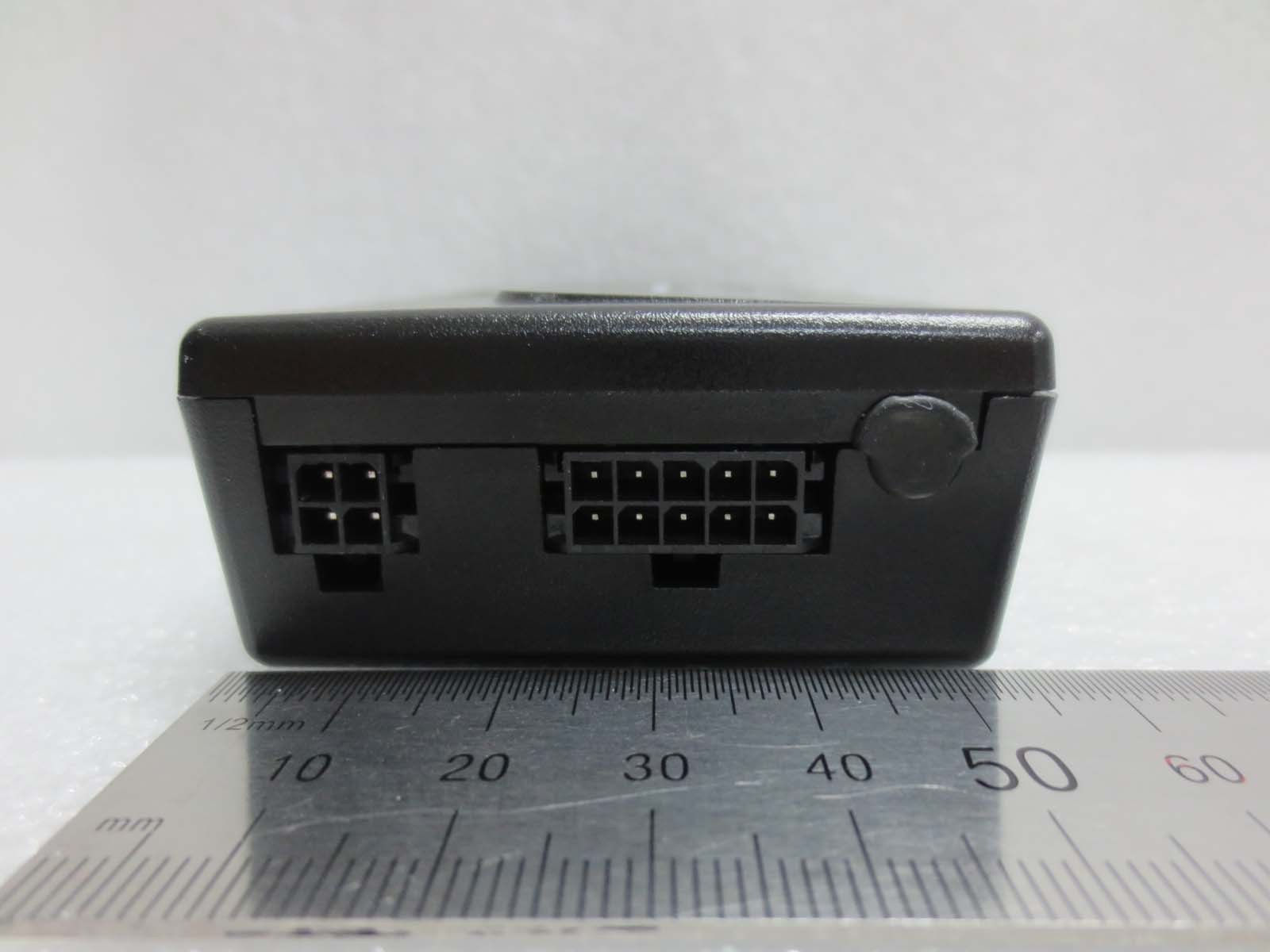

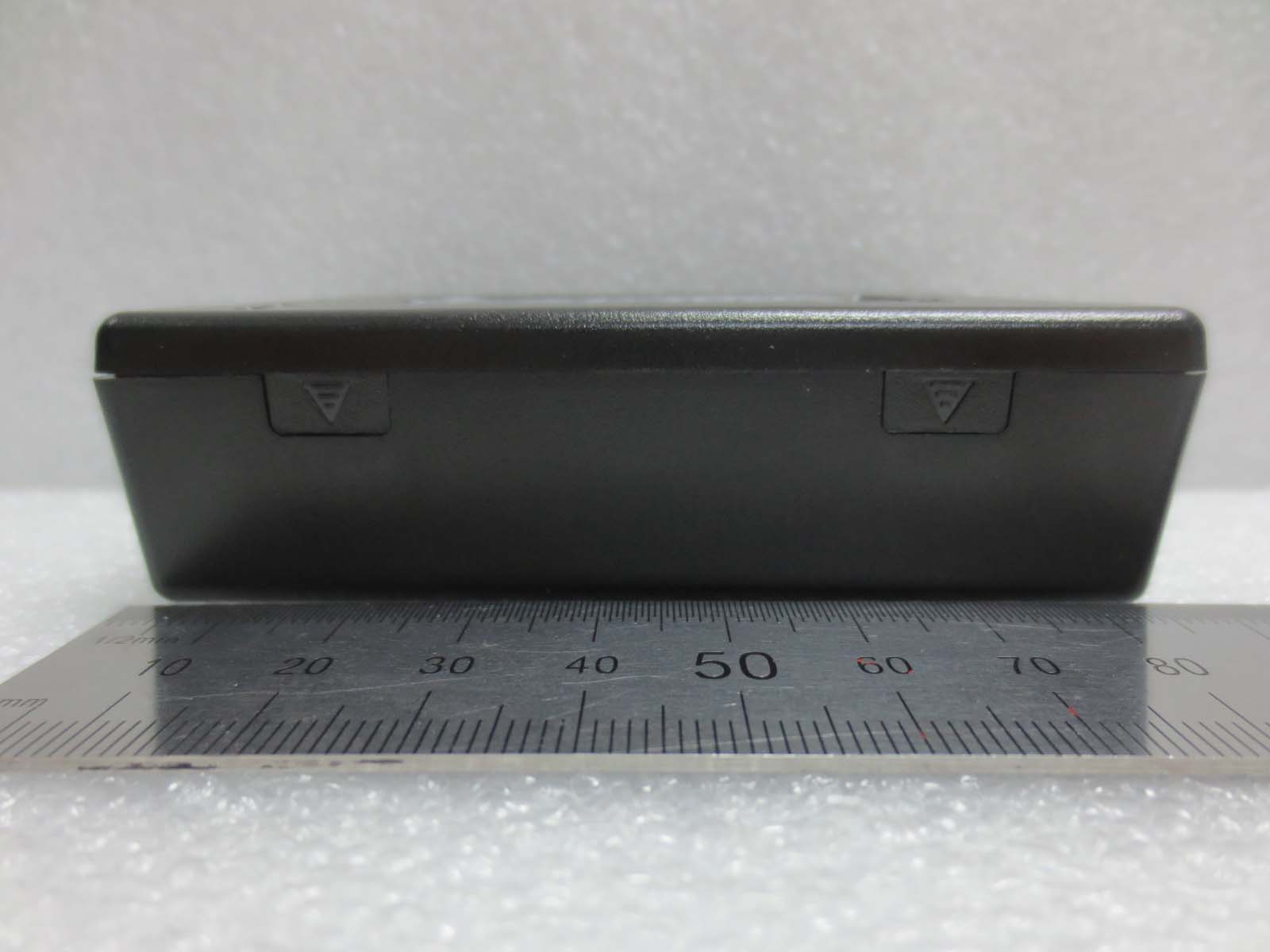

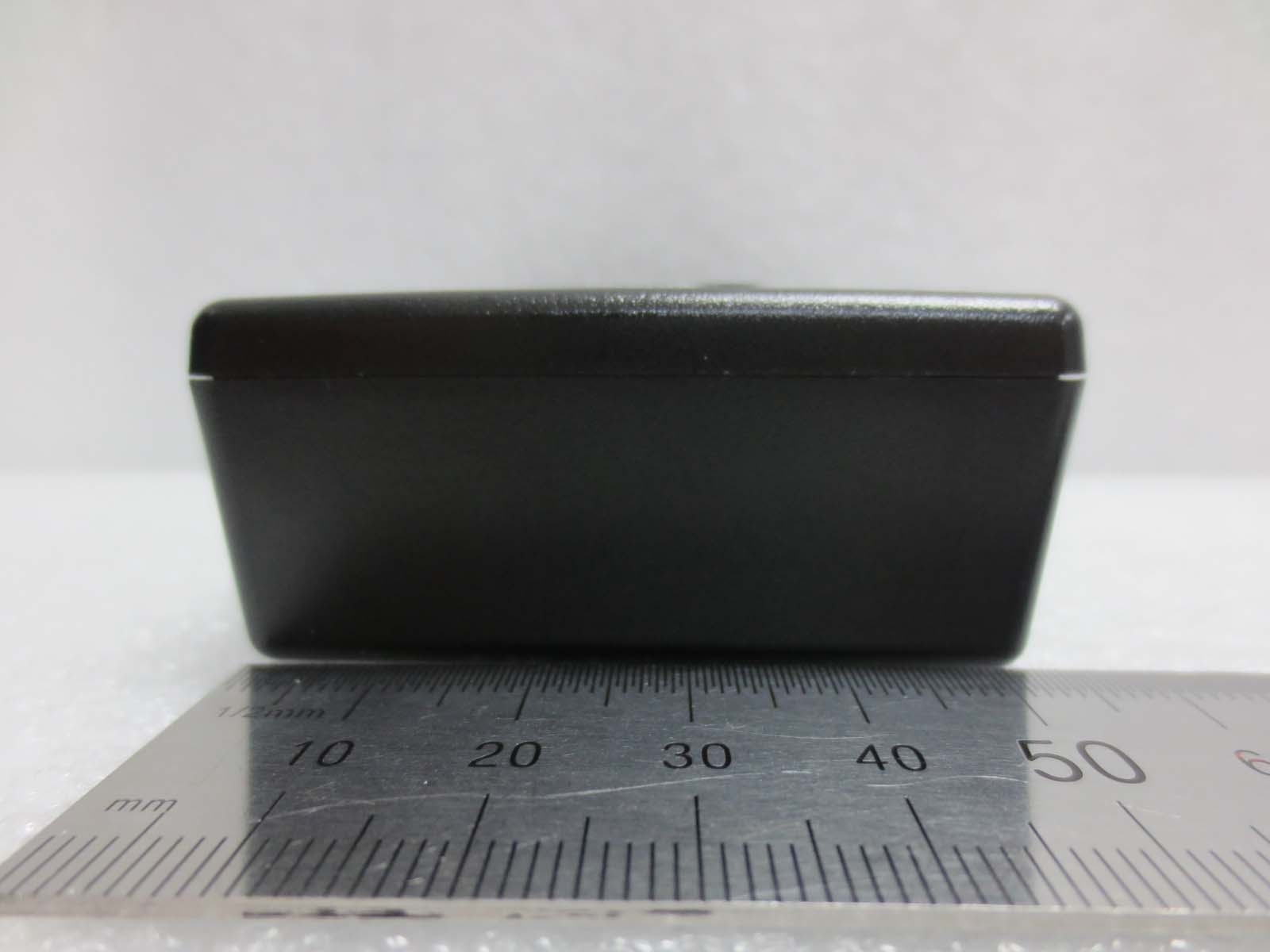

FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

5mm 18mm

FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 14 INTERNAL PHOTOGRAPHS FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 14 ■ Main Antenna INTERNAL PHOTO Main Antenna FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 14 ■ INTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 14 ■ INTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 14 ■ INTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 14 ■ INTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 14 ■ INTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 14 ■ INTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 14 ■ INTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 14 ■ INTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 14 ■ INTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 14 ■ INTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 14 ■ INTERNAL PHOTO FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １４ of 14 ■ INTERNAL PHOTO

FCC ID: WA2ST300 HCT CO., LTD 1 of 2 RF Exposure Statement 1.LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f² ) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction P rediction of MPE limit at a given distance S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 2 of 2 3. RESULTS 3-1. GSM 850 BAND Max Average output Power at antenna input terminal (dBm) 32.800 Max Average output Power at antenna input terminal (mW) 1905.461 Prediction distance (cm) 20.000 Prediction frequency (MHz) 824.200 Antenna Gain(Peak) (dBi) -1.500 Antenna Gain(numeric) 0.7 Power density at prediction frequency (mW/cm²) 0.26837 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.549 3-2. GSM 1900 BAND Max Average output Power at antenna input terminal (dBm) 30.500 Max Average output Power at antenna input terminal (mW) 1122.018 Prediction distance (cm) 20.0000 Prediction frequency (MHz) 1850.2000 Antenna Gain(Peak) (dBi) -1.20000 Antenna Gain(numeric) 0.75858 Power density at prediction frequency (mW/cm²) 0.169329 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000

Report No.: HCT-R-1506-F021 Model: ST300 Page 2 of 43 F-01P-02-014 (Rev.00) FCC ID:WA2ST300 HCT Co.,LTD. Version TEST REPORT NO. DATE DESCRIPTION HCT-R-1506-F021 June 11, 2015 - First Approval Report Report No.: HCT-R-1506-F021 Model: ST300 Page 3 of 43 F-01P-02-014 (Rev.00) FCC ID:WA2ST300 HCT Co.,LTD. Table of Contents 1. GENERAL INFORMATION ........................................................................................................................... 4 2. INTRODUCTION ........................................................................................................................................... 5 2.1. EUT DESCRIPTION ............................................................................................................................ 5 2.2. MEASURING INSTRUMENT CALIBRATION .................................................................................... 5 2.3. TEST FACILITY .................................................................................................................................. 5 3. DESCRIPTION OF TESTS ........................................................................................................................... 6 3.1 CONDUCTED OUTPUT POWER ........................................................................................................ 6 3.1 ERP/EIRP RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ..................................... 8 3.2 PEAK- TO- AVERAGE RATIO ............................................................................................................ 9 3.3 OCCUPIED BANDWIDTH. ................................................................................................................. 11 3.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL. ......................................... 12 3.5 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................... 13 4. LIST OF TEST EQUIPMENT ...................................................................................................................... 14 5. SUMMARY OF TEST RESULTS ................................................................................................................ 15 6. SAMPLE CALCULATION ........................................................................................................................... 16 7. TEST DATA ................................................................................................................................................. 17 7.1 CONDUCTED OUTPUT POWER ...................................................................................................... 17 7.1 EFFECTIVE RADIATED POWER ..................................................................................................... 18 7.2 EQUIVALENT ISOTROPIC RADIATED POWER ............................................................................. 19 7.3 RADIATED SPURIOUS EMISSIONS ................................................................................................ 20 7.3.1 RADIATED SPURIOUS EMISSIONS (GSM850) ..................................................................................... 20 7.3.2 RADIATED SPURIOUS EMISSIONS (GSM1900) ................................................................................... 21 7.4 PEAK-TO-AVERAGE RATIO ............................................................................................................ 22 7.5 OCCUPIED BANDWIDTH ................................................................................................................. 22 7.6 CONDUCTED SPURIOUS EMISSIONS ........................................................................................... 23 7.6.1 BAND EDGE ............................................................................................................................................ 23 7.7 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................... 24 7.7.1 FREQUENCY STABILITY (GSM850) ...................................................................................................... 24 7.7.2 FREQUENCY STABILITY (GSM1900) .................................................................................................... 25 8. TEST PLOTS ............................................................................................................................................... 26 Report No.: HCT-R-1506-F021 Model: ST300 Page 4 of 43 F-01P-02-014 (Rev.00) FCC ID:WA2ST300 HCT Co.,LTD. MEASUREMENT REPORT 1. GENERAL INFORMATION Applicant Name: Suntech International Ltd. Address: B-1506, Greatvally, 32, 9gil, Digital-ro, Geumcheon-gu, Seoul, Korea FCC ID: WA2ST300 Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §22, §24, §2 EUT Type: Vehicle Tracker FCC Model(s): ST300 Tx Frequency: 824.20 - 848.80 MHz (GSM850) 1 850.20 - 1 909.80 MHz (GSM1900) Rx Frequency: 869.20 - 893.80 MHz (GSM850) 1 930.20 - 1 989.80 MHz (GSM1900) Max. RF Output Power: 0.663 W GSM850 (28.22 dBm) / 1.234 W GSM1900 (30.91 dBm) Emission Designator(s): 243 KGXW (GSM850) 245 KGXW (GSM1900) Date(s) of Tests: May 20, 2015 ~ June 10, 2015 Antenna Specification Manufacturer: DONGNAM Co., Ltd. Antenna type: Internal Antenna Peak Gain: GSM850 : -1.5 dBi GSM1900 : -1.2 dBi Report No.: HCT-R-1506-F021 Model: ST300 Page 5 of 43 F-01P-02-014 (Rev.00) FCC ID:WA2ST300 HCT Co.,LTD. 2. INTRODUCTION 2.1. EUT DESCRIPTION The Suntech International Ltd. ST300 Vehicle Tracker consists of GPRS Class10, GSM850 and GSM1900. 2.2. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. 2.3. TEST FACILITY The Fully-anechoic chamber and conducted measurement facility used to collect the radiated data are located at the 7…

Text truncated - open the document above for the full version.

FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 14 TEST SETUP PHOTOGRAPHS FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 14 ■ Test Setup Photo FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 14 ■ Test Setup Photo FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 14 ■ Test Setup Photo FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 14 ■ Test Setup Photo FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 14 ■ Test Setup Photo FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 14 ■ Test Setup Photo FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 14 ■ Test Setup Photo FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 14 ■ Test Setup Photo FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 14 ■ Test Setup Photo FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 14 ■ Test Setup Photo FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 14 ■ Test Setup Photo FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 14 ■ Test Setup Photo FCC ID: WA2ST300 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １４ of 14 ■ Test Setup Photo
