WA2ST4910Vehicle Asset Tracker

ST4910 Product Description 1 ST4910 USER MANUAL 4G Asset Tracking Device Suntech International Ltd. ST4910 Product Description 2 Asset Tracker with longer battery lifetime The ST4910 is a multi-purpose tracking device useful for varied applications such as trailer or container management, vehicle/motorcycle tracking or any kind of valuable asset tracking. The ST4910 supports 4G networks and has a water resistant (IP67/IP65 compliant) rugged, hard-case. Designed to minimize power consumption efficiently, the device incorporates a large battery suitable for longer-term usage. Key Features  Network: LTE Cat. M1/NB-IoT  Extremely Low Power Consumption  Low Battery Alert  Built-in 3-axis accelerometer, Temperature, humidity, Light and motion detector and Barometric pressure sensors(Optional)  Maintenance Server Supported (Optional)  Firmware upgradeable remotely (OTA)  Waterproof compliant: IP67 (with humidity sensor), IP65 (without humidity sensor) ST4910 Product Description 3 GENERAL SPECIFICATION Network Frequency LTE Cat M1/ NB-IoT 4G : B2, B4, B5, B12, B13 Power Power Class 3 (23 dBm) for LTE category M1 Battery Battery: 3.6V, 57Ah Primary Battery Motion Detection Built-in 3-axis Acceleration sensor Power Consumption Active mode : 40~60mA Sleep mode : less than 3.5mA Deep sleep mode : less than 15uA Dust and water Resistant IP67 (with humidity sensor), IP65 (without humidity sensor) Temperature Range -10°C ~ +60°C AT Command GSM 07.07 , 07.05 LED Indicator 4G, POWER Packet Switched data rate LTE Category M1 Up to 375 kb/s UL Up to 375 kb/s DL PC Sync Track USB cable Dimension 125(W) × 90(L) ×50(T) mm Weight 197g Approval FCC, IC, PTCRB GPS RECEIVER SPECIFICATION Receiver Type GPS & Glonass GPS L1 band(1575.42MHz), Glonass L1 band (1601.71MHz) SBAS : WAAS, EGNOS, MASA, Update Rate 1Hz ST4910 Product Description 4 Accuracy 1) Position 2.5m CEP SBAS 2.0m CEP Acquisition 2) Cold starts <35s Aided start <1s Hot start <1s Sensitivity 3) Tracking -167dBm Reacquisition -161dBm Acquisition -149dBm Antenna type Patch Antenna *1) All SV @ –130 dBm *2) It depends on aiding data connection speed and latency *3) The 3 figures were measured with a good active antenna. AVAILABLE OPERATION / FEATURES Configuration either by SMS or PC Parameter Change either by SMS or GPRS Command /Control either by SMS or GPRS Reporting either by GPRS or SMS (as a back up) Transmission Protocol TCP/UDP GPRS Connection either always connected or upon needed Basic Data reported NMEA location, Speed, Course, GPS signal status, Message No, Accumulated moving distance Data Storage up to 2,000 locations, in case of transmission failure or cost issue Reports Possible to make a cyclic location report at an adjustable intervalonly when command comes Report Back up possible (dual IP reporting or Backup SMS reporting) Power down Deep sleep on no network (less than 15uA): Firmware Upgrade by OTA (Over The Air ) or pc tool. ST4910 Product Description 5 INSTALLATION, CONFIGURATION AND PROTOCOL Most important point is to install the unit horizontally in order to have the top cover to see the sky For the details of product handlings / installations, please refer to the attached pictures. Note 1 : Do not take out SIM card when the power line is connected. Before taking out SIM card, disconnect power line first. Note 2 : Configuration or Parameter setting should be done before installation. Configuration : Refer to separate document and software tool for configuration. Protocol : Refer to separate document for the standard protocol Caution: FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. FCC and IC RF Radiation Exposure Statement: This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. RF du FCC et IC d'exposition aux radiations: Cet équipement est conforme à l'exposition de FCC et IC rayonnements RF limites é-tablies pour un environnement non contrôlé. L’antenne pour ce transmetteur ne doit pas être même endroit avec d’autres émetteur sauf conformément à FCC et IC procédures de produits Multi-émetteur. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. ST4910 Product Description 6 This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Suntech International Ltd. A-1706, 1705 Greatvalley, 32, Digital-ro 9-gil, Geumcheon-gu, Seoul, Republic of Korea FCC Agent Authorization letter February 18, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: I, the undersigned, hereby authorize Lab Manager Hyunchae, You (or Jungmin, Yang) of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Hyunchae, You (or Jungmin, Yang) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Suntech International Ltd. A-1706, 1705 Greatvalley, 32, Digital-ro 9-gil, Geumcheon-gu, Seoul, Republic of Korea e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely yours, Name/Title : Yo han, Kim / Manager Company Name : Suntech International Ltd.

FCC Confidentiality Request Letter February 18, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE : Request of Confidentiality for FCC ID : WA2ST4910 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, The Suntech International hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give The Suntech International temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual FCC Confidentiality Request Letter The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely yours, Name/Title : Yo-han, Kim / Manager Company Name : Suntech International Ltd.

Label Information_FCC <Bottom View of EUT> Model : ST4910 Product : Vehicle Asset Tracker FCC ID : WA2ST4910 Contains FCC ID : XMR201707BG96 IC : 21484-ST4910 Label 1Label 2 <Label 1><Label 2>

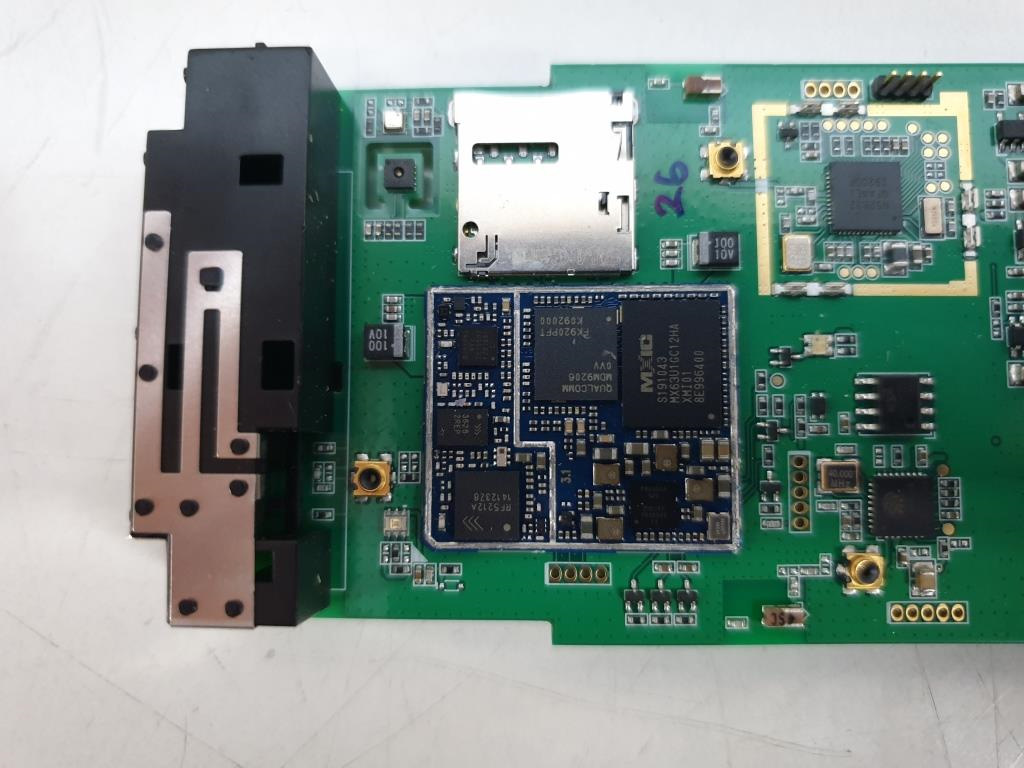

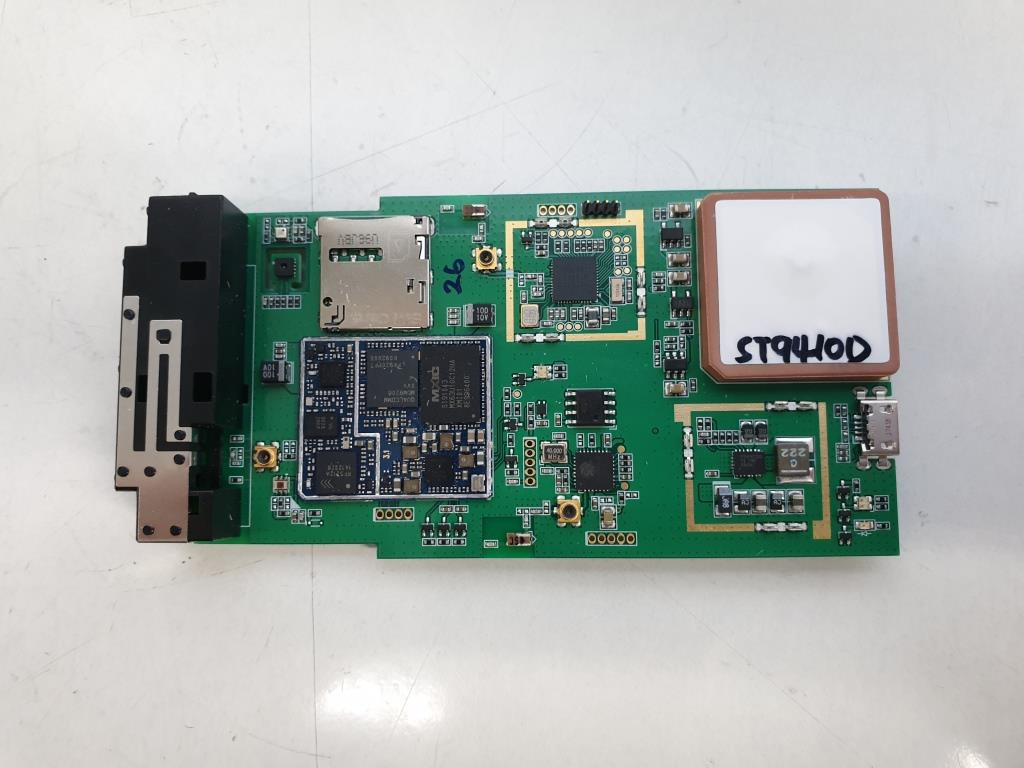

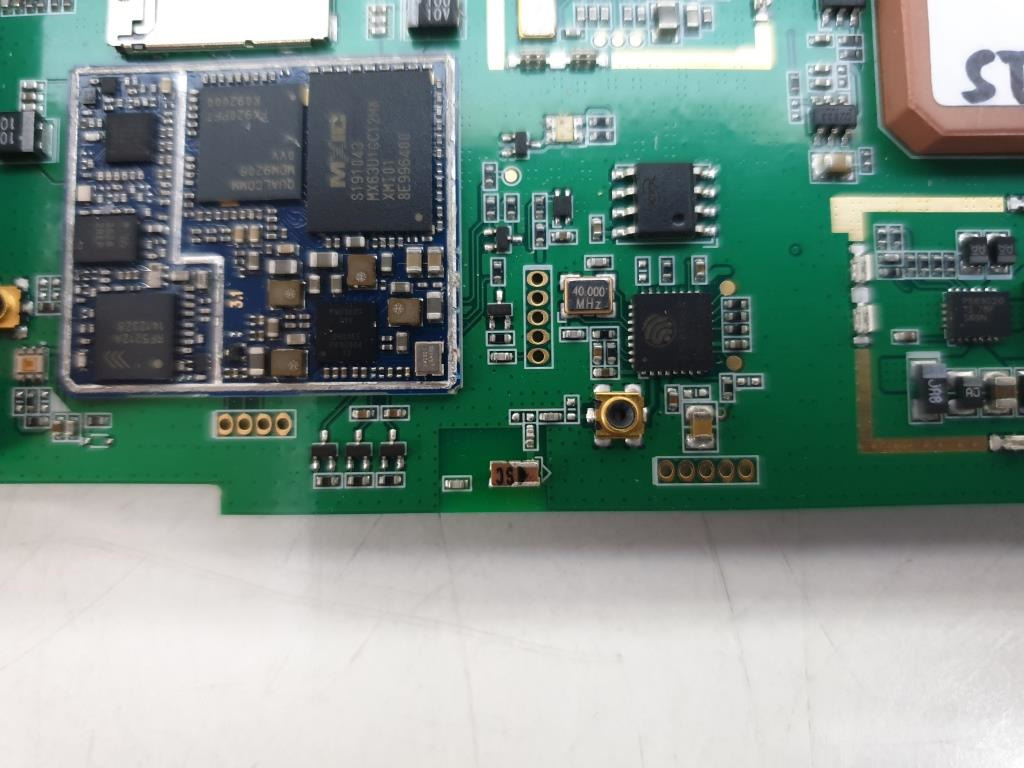

Internal photos of EUT Internal view of EUT Top view of Main PCB with shield Bottom view of Main PCB with shield Top view of Main PCB without shield Bottom view of Main PCB without shield View of Antenna & Module WIFI Antenna WIFI Module BLE Antenna BLE Module View of Antenna & Module GPS Antenna LTE Antenna LTE Module

Report Number: F690501-RF-RTL000282 Page: 2 of 78 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of Contents 1. General Information -------------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ---------- 9 3. 6 ㏈ Bandwidth & 99 % Bandwidth ----------------------------------------------------------------- 56 4. Maximum Peak Conducted Output Power --------------------------------------------------------- 68 5. Power Spectral Density --------------------------------------------------------------------------------- 71 6. Antenna Requirement ----------------------------------------------------------------------------------- 78 Report Number: F690501-RF-RTL000282 Page: 3 of 78 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : Suntech International Ltd. Address : A-1705, 1706, Greatvalley, 32, Digital-ro 9-gil, Geumcheon-gu, Seoul, Republic of Korea, 08512 Contact Person : Kim, Yo-han Phone No. : +82 10 4148 3458 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product Vehicle Asset Tracker Model Name ST4910 Power Supply DC 3.6 V Frequency Range 2 412 ㎒ ~ 2 462 ㎒ (11b/g/n_HT20) Modulation Technique DSSS, OFDM Number of Channels 11 channels (11b/g/n_HT20) Antenna Type Chip Antenna Antenna Gain 1.99 ㏈i Report Number: F690501-RF-RTL000282 Page: 4 of 78 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMR40 100272 Jun. 07, 2019 Annual Jun. 07, 2020 Signal Generator R&S SMBV100A 255834 Jun. 10, 2019 Annual Jun. 10, 2020 Spectrum Analyzer R&S FSV30 103453 Nov. 06, 2019 Annual Nov. 06, 2020 Spectrum Analyzer Agilent N9020A MY53421758 Sep. 11, 2019 Annual Sep. 11, 2020 Attenuator AEROFLEX / INMET 40AH2W-10 40G-3 Jun. 20, 2019 Annual Jun. 20, 2020 High Pass Filter Wainwright Instrument GmbH WHK3.0/18G-10SS 344 May 21, 2019 Annual May 21, 2020 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS15 Jun. 05, 2019 Annual Jun. 05, 2020 Low Pass Filter Mini-Circuits NLP-1200+ V 8979400903-2 Feb. 19, 2019 Annual Feb. 19, 2020 Power Sensor R&S NRP-Z81 100748 Jun. 05, 2019 Annual Jun. 05, 2020 DC Power Supply R&S HMP2020 022802108 Nov. 06, 2019 Annual Nov. 06, 2020 Preamplifier H.P. 8447F 2944A03909 Aug. 07, 2019 Annual Aug. 07, 2020 Signal Conditioning Unit R&S SCU-18 10117 Jun. 12, 2019 Annual Jun. 12, 2020 Preamplifier MITEQ Inc. JS44-18004000-35-8P1546891 May 13, 2019 Annual May 13, 2020 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 396 Mar. 21, 2019 Biennial Mar. 21, 2021 Horn Antenna R&S HF906 100326 Feb. 14, 2018 Biennial Feb. 14, 2020 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170 BBHA9170431 Sep. 10, 2018 Biennial Sep. 10, 2020 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/383 30516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Test Receiver R&S ESW44 101767 Nov. 01, 2019 Annual Nov. 01, 2020 Coaxial Cable SUCOFLEX 104 (3 m) MY3258414 Jul. 20, 2019 Semi- annual Jan. 20, 2020 Coaxial Cable SUCOFLEX 104 (10 m) MY3145814 Jul. 20, 2019 Semi- annual Jan. 20, 2020 Coaxial Cable Rosenberger LA1-C006-1500 131014 01/20 Aug. 23, 2019 Semi- annual Feb. 23, 2020 Report Number: F690501-RF-RTL000282 Page: 5 of 78 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test…

Text truncated - open the document above for the full version.

Report Number: F690501-RF-RTL000282 Page: 56 of 78 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 3. 6 ㏈ Bandwidth & 99 % Bandwidth 3.1. Test Setup EUT Attenuator Spectrum Analyzer 3.2. Limit 3.2.1. FCC According to §15.247(a)(2), systems using digital modulation techniques may operate in the 902-928 ㎒, 2 400-2 483.5 ㎒, and 5 725-5 850 ㎒ bands. The minimum 6 ㏈ bandwidth shall be at least 500 ㎑. 3.2.2. IC According to RSS-247 Issue 2, 5.2(a), the minimum 6 ㏈ bandwidth shall be 500 ㎑. 3.3. Test Procedure 3.3.1. 6 ㏈ Bandwidth The test follows section 11.8 DTS bandwidth of ANSI C63.10-2013. Tests performed using section 11.8.1 Option 1. - Option 1: 1. Set RBW to = 100 ㎑. 2. Set the VBW ≥ 3 x RBW. 3. Detector = peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 ㏈ relative to the maximum level measured in the fundamental emission. Report Number: F690501-RF-RTL000282 Page: 57 of 78 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 3.3.2. 99 % Bandwidth The following conditions shall be observed for measuring the occupied bandwidth and x ㏈ bandwidth: ● The transmitter shall be operated at its maximum carrier power measured under normal test conditions. ● The span of the spectrum analyzer shall be set large enough to capture all products of the modulation process, including the emission skirts, around the carrier frequency, but small enough to avoid having other emissions (e.g. on adjacent channels) within the span. ● The detector of the spectrum analyzer shall be set to “Sample”. However, a peak, or peak hold, may be used in place of the sampling detector since this usually produces a wider bandwidth than the actual bandwidth (worst-case measurement). Use of a peak hold (or “Max Hold”) may be necessary to determine the occupied / x ㏈ bandwidth if the device is not transmitting continuously. ● The resolution bandwidth (RBW) shall be in the range of 1 % to 5 % of the actual occupied / x ㏈ bandwidth and the video bandwidth (VBW) shall not be smaller than three times the RBW value. Video averaging is not permitted. Note: It may be necessary to repeat the measurement a few times until the RBW and VBW are in compliance with the above requirement. For the 99 % emission bandwidth, the trace data points are recovered and directly summed in linear power level terms. The recovered amplitude data points, beginning at the lowest frequency, are placed in a running sum until 0.5 % of the total is reached, and that frequency recorded. The process is repeated for the highest frequency data points (starting at the highest frequency, at the right side of the span, and going down in frequency). This frequency is then recorded. The difference between the two recorded frequencies is the occupied bandwidth (or the 99 % emission bandwidth). Report Number: F690501-RF-RTL000282 Page: 58 of 78 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 3.4. Test Results Ambient temperature : (23 ± 1) °C Relative humidity : 47 % R.H. Operation Mode Data Rate (Mbps) Channel Frequency (㎒) 6 ㏈ Bandwidth (㎒) 99 % Bandwidth (㎒) DSSS (802.11b) 11 Low 2 412 8.152 11.269 Middle 2 437 8.112 11.269 High 2 462 8.312 11.309 OFDM (802.11g) 9 Low 2 412 16.384 16.623 Middle 2 437 16.344 16.623 High 2 462 16.384 16.623 OFDM (802.11n_HT20) MCS2 Low 2 412 16.464 17.542 Middle 2 437 16.983 17.542 High 2 462 16.703 17.542 Report Number: F690501-RF-RTL000282 Page: 59 of 78 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) - Test plots 6 ㏈ Bandwidth DSSS: 802.11b Low Channel Middle Channel Report Number: F690501-RF-RTL000282 Page: 60 of 78 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be …

Text truncated - open the document above for the full version.

Report Number:F690501-RF-RTL000283 Page:2of39 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of contents 1. General Information --------------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ----------8 3. 6㏈Bandwidth & 99 % Bandwidth -----------------------------------------------------------------26 4. Maximum Peak Conducted Output Power ---------------------------------------------------------32 5. Power Spectral Density ---------------------------------------------------------------------------------35 6. Antenna Requirement -----------------------------------------------------------------------------------39 Report Number:F690501-RF-RTL000283 Page:3of39 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.:+82 31 688 0901 Fax No.:+82 31 688 0921 1.2. Details of Applicant Applicant:Suntech International Ltd. Address:A-1705, 1706, Greatvalley, 32, Digital-ro 9-gil, Geumcheon-gu, Seoul, Republic of Korea, 08512 Contact Person:Kim, Yo-han Phone No.:+82 10 4148 3458 1.3. Details of Manufacturer Company:Same as applicant Address:Same as applicant 1.4. Description of EUT Kind of Product Vehicle Asset Tracker Model Name ST4910 Power Supply DC 3.6 V Frequency Range 2 402㎒~ 2 480㎒(Bluetooth Low Energy) Modulation Technique GFSK Number of Channels 40 channels (Bluetooth Low Energy) Antenna Type Chip Antenna Antenna Gain 1.99㏈i Report Number:F690501-RF-RTL000283 Page:4of39 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal. Date Cal. Interval Cal. Due Signal GeneratorR&SSMR40100272Jun. 07, 2019AnnualJun. 07, 2020 Signal GeneratorR&SSMBV100A255834Jun. 10, 2019AnnualJun. 10, 2020 Spectrum AnalyzerR&SFSV30103453Nov. 06, 2019AnnualNov. 06, 2020 Spectrum AnalyzerAgilentN9020A MY53421758 Sep. 11, 2019AnnualSep. 11, 2020 AttenuatorAEROFLEX / INMET40AH2W-1040G-3 Jun. 20, 2019AnnualJun. 20, 2020 High Pass Filter Wainwright Instrument GmbH WHK3.0/18G-10SS344May 21, 2019AnnualMay 21, 2020 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS15Jun. 05, 2019AnnualJun. 05, 2020 Low Pass FilterMini-CircuitsNLP-1200+V 8979400903-2Feb. 19, 2019AnnualFeb. 19, 2020 Power SensorR&SNRP-Z81100748Jun. 05, 2019AnnualJun. 05, 2020 DC Power SupplyR&SHMP2020022802108Nov. 06, 2019AnnualNov. 06, 2020 PreamplifierH.P.8447F2944A03909Aug. 07, 2019AnnualAug. 07, 2020 Signal Conditioning Unit R&SSCU-1810117Jun. 12, 2019AnnualJun. 12, 2020 PreamplifierMITEQ Inc.JS44-18004000-35-8P1546891May 13, 2019AnnualMay 13, 2020 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Aug. 22 2019BiennialAug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163396Mar. 21, 2019BiennialMar. 21, 2021 Horn AntennaR&SHF906100326Feb. 14, 2018BiennialFeb. 14, 2020 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170BBHA9170431Sep. 10, 2018BiennialSep. 10, 2020 Turn TableInnco systems GmbHDS 1200 SN/AN.C.R.N/AN.C.R. ControllerInnco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R.N/AN.C.R. Antenna MastInnco systems GmbHMA4640-XP-ET MA4640/536/383 30516/L N.C.R.N/AN.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Test ReceiverR&SESW44101767Nov. 01, 2019AnnualNov. 01, 2020 Coaxial CableSUCOFLEX104 (3 m)MY3258414Jul. 20, 2019 Semi- annual Jan. 20, 2020 Coaxial CableSUCOFLEX104 (10 m)MY3145814Jul. 20, 2019 Semi- annual Jan. 20, 2020 Coaxial CableRosenbergerLA1-C006-1500131014 01/20Aug. 23, 2019 Semi- annual Feb. 23, 2020 Report Number:F690501-RF-RTL000283 Page:5of39 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT…

Text truncated - open the document above for the full version.

Report Number:F690501-RF-RTL000284 Page:2of6 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------4 Report Number:F690501-RF-RTL000284 Page:3of6 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply …

Text truncated - open the document above for the full version.
