WAZSKE45A02Smart Keyless System (Hand Unit)

FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC/IC This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Le présent appareil est conforme aux la Partie 15 des règles de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. 【 Confidential 】 1.Smart Keyless functions The Smart Keyless functions (Keyless entry system) enables the following operations while the Hand Unit is being carried. ・When the operator pushes the Start Button, the system is activated and the engine start propriety (permission / prohibition) is determined. ・The engine start is permitted if the operator is only within operational range while the Hand Unit is being carried. ・The operational range for the engine start permission is up to 80 cm (2.6 feet) from the center of the Start Button in the control panel. 1) Engine start permission (1) In the case of permission The buzzer sounds 3 times, and LED on the control panel turn on. (2) In the case of permission The buzzer sounds 4 times, and LED on the control panel turn off after flashing. 2) The System stop The System will run out when pushing the Start Button in the engine stop state. The buzzer sounds 1 time, and LED on the control panel turned off. (3) Emergency engine stop The engine is stopped by pushing the Start Button (1 second or more) at the engine operating state. The buzzer continues to sounding, and LED on the control panel turned off. The buzzer is stopped by pushing the Start Button again. 2. Remote system off function 1) In the engine stop state, the Remote function can be turned off the system by pushing the button on the Hand Unit. Then, (when the button on the Hand Unit is pushed), the buzzer sounds 1 time, and LED on the control panel turned off. The operating range is up to 80 cm (2.6 feet) from the center of the Start Button in the control panel. 2) With the system off state, the engine can not be started. 3. Child Lock mode of the Hand Unit 1) When you continue pushing the button on the Hand Unit (1 second or more), it will be the Child Lock mode. When it comes to tte Child Lock mode, LED of the Hand Unit is turned on 0.5 seconds. In the Child Lock mode, the function of the 1 and 2 above can not operate. 2) To cancel the Child Lock mode, you must push the button of the Hand Unit (1 second or more) again. When the Child Lock mode is released, LED of the Hand Unit is turned on 0.1 seconds. User's Mmanual_SKE45A-01&-02

~~ J いt-\ À~^ 仏 w 私

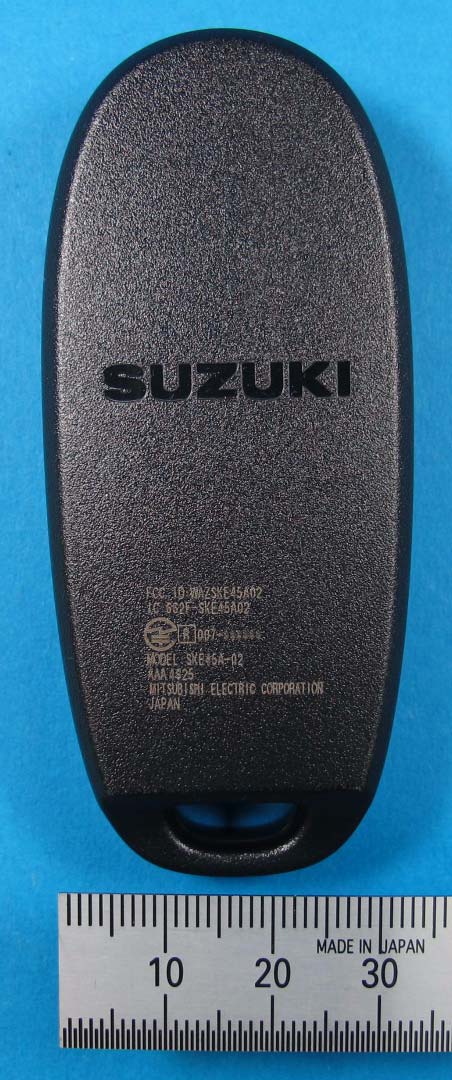

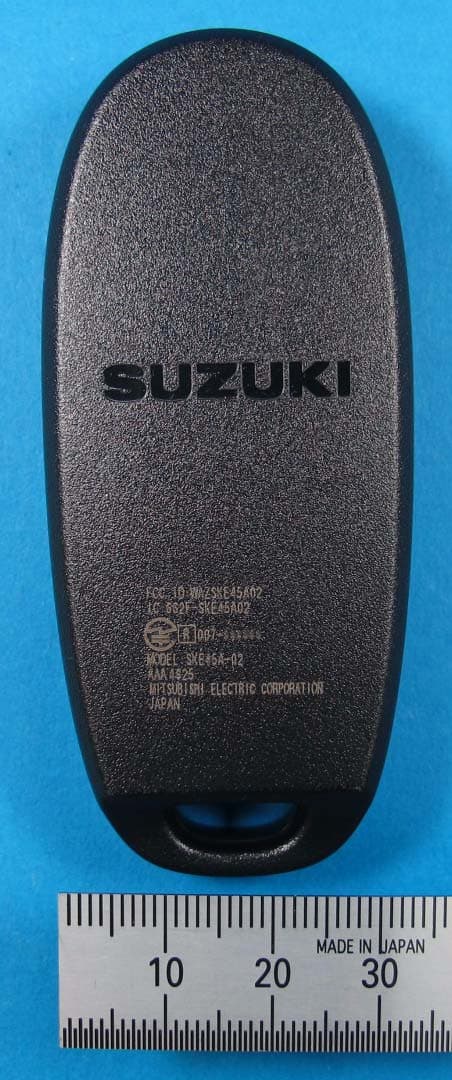

【 Confidential 】 Model ： SKE45A-02 LEFT RIGHT BACK FACE TOP BOTTOM Smart Keyless System (Hand Unit) PHOTO_6 Hand Unit(Transmitter)_SKE45A02

【 Confidential 】 Model ： SKE45A-02 ＊ The device is smaller than the size of palm and will be installed in the outboard system, therefore the compliances statements will be provided in the user's manual of the outboard system. Label display * Smart Keyless System Label (Hand Unit) Label ※ Laser marking Label Hand Unit(Transmiitter)_SKE45A02''

【 Confidential 】 Model ： SKE45A-02 FACE BACK Smart Keyless System (Hand Unit) PCB Pattern antenna PHOTO PCB ASSY Hand Unit(Transmitter)_SKE45A02

Test report No. : 10443993H-B Page : 2 of 17 Issued date : October 17, 2014 FCC ID : WAZSKE45A02 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10443993H-B Revision Test report No. Date Page revised Contents - (Original) 10443993H-B October 17, 2014 - - Test report No. : 10443993H-B Page : 3 of 17 Issued date : October 17, 2014 FCC ID : WAZSKE45A02 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 4 SECTION 2: Equipment under test (E.U.T.) ···································································· 4 SECTION 3: Test specification, procedures & results························································· 5 SECTION 4: Operation of E.U.T. during testing ······························································· 8 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 9 SECTION 6: Automatically deactivate ········································································· 10 SECTION 7: -20dB and 99% Occupied Bandwidth ························································· 10 APPENDIX 1: Data of EMI test ·················································································· 11 Automatically deactivate................................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 12 -20dB and 99% Occupied Bandwidth ............................................................................................... 13 Duty Cycle ........................................................................................................................................ 14 APPENDIX 2: Test Instruments ·················································································· 15 APPENDIX 3: Photographs of test setup ······································································· 16 Radiated emission ............................................................................................................................. 16 Worst case position ........................................................................................................................... 17 Test report No. : 10443993H-B Page : 4 of 17 Issued date : October 17, 2014 FCC ID : WAZSKE45A02 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Mitsubishi Electric Corporation Himeji works Address : 840 Chiyoda-machi Himeji Hyogo, 670-8677, Japan Telephone Number : +81-79-298-7363 Facsimile Number : +81-79-298-9929 Contact Person : Shinichi Furuta SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Smart Keyless System (Hand Unit) Model No. : SKE45A-02 Serial No. : Refer to Clause 4.2 Rating : DC 3.0V (CR2025) Receipt Date of Sample : September 24, 2014 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: SKE45A-02 (referred to as the EUT in this report) is the Smart Keyless System (Hand Unit). The clock frequency of EUT is 615.2 kHz (2MHz) (CPU) and 9.84375 MHz (RF IC). Radio Specification RF Part Equipment Type : Transmitter Type of modulation : FSK Frequency of operation : 315MHz Other clock frequency : 9.84375MHz Antenna Type : PCB Pattern Method of Frequency Generation : Crystal Operating voltage (inner) : DC +3.0V LF Part * Type of Receiver : Receiver Frequency of operation : 125kHz Other clock frequency : 615.2kHz Intermediate frequency : - Antenna Type : Inductive Method of Frequency Generation : Crystal Operating voltage (inner) : DC +3.0V * EUT also has this function. Please refer to No. 10443993H-D (FCC15B). Test report No. : 10443993H-B Page : 5 of 17 Issued date : October 17, 2014 FCC ID : WAZSKE45A02 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2014, final revised on August 15, 2014 and effective October 14, 2014 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz * The revision on August 15, 2014 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A *1) - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Automatically Deactivate FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) 2.8dB 315.00MHz Horizontal PK with Duty factor Complied Radiated IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 1.0dB 2205.000MHz Horizontal PK with Duty factor Complied Radiated IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 7.2.5 -20dB Bandwidth FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) N/A Complied Radiated IC: - IC: Reference data N…

Text truncated - open the document above for the full version.

Test report No. : 10443993H-B Page : 16 of 17 Issued date : October 17, 2014 FCC ID : WAZSKE45A02 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 10443993H-B Page : 17 of 17 Issued date : October 17, 2014 FCC ID : WAZSKE45A02 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position (Below 1GHz Horizontal: X-axis / Vertical: Y-axis) (Above 1GHz Horizontal: Z-axis / Vertical: Y-axis) X-axis Y-axis Z-axis End of Report
