WAZSKEA7D06Smart Keyless System Smart Unit

【 Confidential 】 SKEA7D-06 Brand : YAMAHA 1.Smart Keyless functions The Smart Keyless functions (Keyless entry system) enables the following operations while the Hand Unit is being carried. ・When the operator pushes the Start Button, the system is activated and the engine start propriety (permission / prohibition) is determined. ・The engine start is permitted if the operator is only within operational range while the Hand Unit is being carried. ・The operational range for the engine start permission is up to 80 cm (2.6 feet) from the center of the Start Button in the control panel. 1) Engine start permission (1) In the case of permission LED on the control panel turns on for about two seconds. (2) In the case of permission LED on the control panel turn off after flashing. 2) The System stop The System will run out when pushing the Start Button. LED on the control panel turned off. 2. Remote answer-back function 1) In the engine stop state, the Remote function can blink the hazard lamp by pushing a button on the Hand Unit. 3. Child Lock mode of the Hand Unit 1) When you continue pushing the button on the Hand Unit (1 second or more), it will be the Child Lock mode. When it comes to tte Child Lock mode, LED of the Hand Unit is turned on 0.5 seconds. In the Child Lock mode, the function of the 1 and 2 above can not operate. 2) To cancel the Child Lock mode, you must push the button of the Hand Unit (1 second or more) again. When the Child Lock mode is released, LED of the Hand Unit is turned on 0.1 seconds. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC/ISED This device complies with part 15 of FCC Rules and Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme à la partie 15 des règles de la FCC et aux normes des CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines as this equipment has very low levels of RF energy. User's Mmanual_SKEA7D-06 & -02.xlsx

August 21, 2023

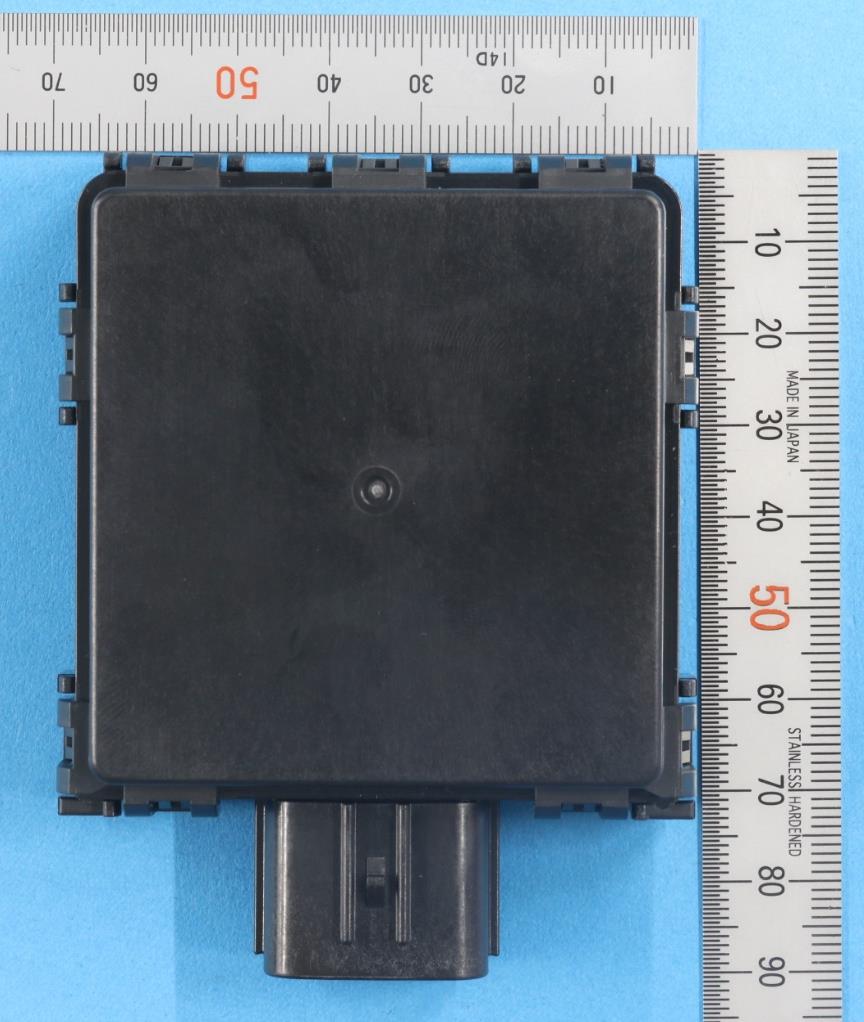

【 Confidential 】 Model ：SKEA7D-06 BOTTOM TOP LEFTBACKFACERIGHT Smart Keyless System (Smart Unit) PHOTO_6 Smart Unit_SKEA7D-06.xlsx

【 Confidential 】 Model：SKEA7D-06 Label display ＊There is no sufficient space and this product will be installed in the motorcycle, therefore labelling requirement will be described in the users manual. ＊The material of the label is PP (polypropylene) and is attached with an adhesive, so it is not easily peeled off. SmartKeyless System Label (Smart Unit) Label MADE IN THAILAND FCCID：WAZSKEA7D06 MODEL：SKEA7D-06 IC：662F-SKEA7D06 XXXXXXXXXXXXX S/N:000001 X-XXXXX 1.5mm Label Smart Unit_SKEA7D-06.xlsx

【 Confidential 】 Model：SKEA7D-06 (LF Antenna) TOP LEFTFACERIGHT BOTTOM BACK Smart Keyless System (Smart Unit LF Antenna) PHOTO_6 Smart Unit LF Antenna_SKEA7D-06.xlsx

【 Confidential 】 Model ：SKEA7D-06 FACE BACK Smart Keyless System (Smart Unit) PHOTO PCB ASSY Smart Unit_SKEA7D-06.xlsx

①2mm ②9mm ③54mm ④9mm ⑤12mm ⑥4mm Address: 840, Chiyoda-machi, Himeji, Hyogo 670-8677, Japan https://www.mitsubishielectric.com/ Rx Antenna Position

Test Report No. 14854068H-B Page 1 of 17 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 EMI TEST REPORT Test Report No. 14854068H-B Customer Mitsubishi Electric Corporation Himeji works Description of EUT Smart Keyless System Smart Unit Model Number of EUT SKEA7D-06 FCC ID WAZSKEA7D06 Test Regulation FCC Part 15 Subpart B Test Result Complied Issue Date July 31, 2023 Remarks- Representative test engineer Approved by Hiroyuki Furutaka Engineer Tsubasa Ta kayama Leader CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Repo rt Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 22.0 Test Report No. 14854068H-B Page 2 of 17 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 ANNOUNCEMENT REVISION HISTORY Original Test Report No. 14854068H-B Revision Test Report No. Date Page Revised Contents - (Original) 14854068H-B July 31, 2023 - This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. The results in this report apply only to the sample tested. (Laboratory was not involved in sampling. ) This sample tested is in compliance with the limits of the above regulation. The test results in this test report are traceable to the national or international standards. This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2L A accreditation b ody. This test report covers EMC technical requirements. It does not cover administrative issues such as Manual or non-EMC test related Requirements. (if applicable) The all test items in this test report are conducted by UL Japan, Inc. Ise EMC Lab. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accr edited. The information provided from the customer for this report is identified in SECTION 1. For test report(s) referred in this report, the latest version (including any revisions) is always referred. Test Report No. 14854068H-B Page 3 of 17 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation GPS Global Positioning System AAN Asymmetric Artificial Network Hori. Horizontal AC Alternating Current ICES Interference-Causing Equipment Standard AM Amplitude Modulation I/O Input/Output AMN Artificial Mains Network IEC International Electrotechnical Commission Amp, AMP Amplifier IEEE Institute of Electrical and Electronics Engineers ANSI American National Standards Institute IF Intermediate Frequency Ant, ANT Antenna ILAC International Laboratory Accreditation Conference AP Access Point ISED Innovation, Science and Economic Development Canada ASK Amplitude Shift Keying ISN Impedance Stabilization Network Atten., ATT Attenuator ISO International Organization for Standardization AV Average JAB Japan Accreditation Board BPSK Binary Phase-Shift Keying LAN Local Area Network BR Bluetooth Basic Rate LCL Longitudinal Conversion Loss BT Bluetooth LIMS Laboratory Information Management System BT LE Bluetooth Low Energy LISN Line Impedance Stabilization Network BW BandWidth MRA Mutual Recognition Arrangement C.F Correction Factor N/A Not Applicable Cal Int Calibration Interval NIST National Institute of Standards and Technology CAV CISPR AV NS No signal detect. CCK Complementary Code Keying NSA Normalized Site Attenuation CDN Coupling Decoupling Network OBW Occupied BandWidth Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectriques PER Packet Error Rate Corr. Correction PK Peak CPE Customer premise equipment P LT long-term flicker severity CW Continuous Wave POHC(A) Partial Odd Harmonic Current DBPSK Differential BPSK Pol., Pola. Polarization DC Direct Current PR-ASK Phase Reversal ASK DET Detector P ST short-term flicker severity D-factor Distance factor QAM Quadrature Amplitude Modulation Dmax maximum absolute voltage change during an observation period QP Quasi-Peak DQPSK Differential QPSK QPSK Quadrature Phase Shift Keying DSSS Direct Sequence Spread Spectrum r.m.s., RMS Root Mean Square DUT Device Under Test RBW Resolution BandWidth EDR Enhanced Data Rate RE Radio Equipment e.i.r.p., EIRP Equivalent Isotropically Radiated Power REV Reverse EM clamp Electromagnetic clamp RF Radio Frequency EMC ElectroMagnetic Compatibility RFID Radio Frequency Identifier EMI ElectroMagnetic Interference RNSS Radio Navigation Satellite Service EMS ElectroMagnetic Susceptibility RSS Radio Standards Specifications EN European Norm Rx Receiving e.r.p., ERP Effective Radiated Power SINAD Ratio of (Signal + Noise + Distortion) to (Noise + Distortion) ETSI European Telecommunications Standards Institute S/N Signal to Noise ratio EU European Union SA, S/A Spectrum Analyzer EUT Equipment Under Test SG Signal Generator Fac. Factor SVSWR Site-Voltage Standing Wave Ratio FCC Federal Communications Commission THC(A) Total Harmonic Current FHSS Frequency Hopping Spread Spectrum THD(%) Total Harmonic Distortion FM Frequency Modulation TR, T/R Test Receiver Freq. Frequency Tx Transmitting FSK Frequency Shift Keying VBW Video BandWidth Fund Fundamental Vert. Vertical FWD Forward WLAN Wireless LAN GFSK Gaussian Frequency-Shift Keying xDSL Generic term for all types of DSL technology GNSS Global Navigation Satellite System (DSL: Digital Subscriber Line) Test Report No. 14854068H-B Page 4 of 17 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 CONTENTS PAGE SECTION 1: Customer information ......................................................................................... 5 SECTION 2: Equ…

Text truncated - open the document above for the full version.

Test Report No. 14854068H-B Page 15 of 17 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 APPENDIX 3: Photographs of test setup Radiated Emission (Below 1 GHz) Photo 1 Photo 2 Test Report No. 14854068H-B Page 16 of 17 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Radiated Emission (Above 1 GHz) Photo 1 Photo 2 Test Report No. 14854068H-B Page 17 of 17 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Worst Case Position (Horizontal: X-axis / Vertical: X-axis) X-axis Y-axis Z-axis End of Report
