WCO-SG101Intelligent Diaper Sensor for Gateway

User Manual for Omago Intelligent Diaper Sensor(SG -101/SD -101 ) Thank you for purchasing Omago Intelligent Diaper Sensor. Please read this User Manual detail before starting to use Omago Intelligent Diaper Sensor and following the instruction. Package contents 1) Omago Intelligent Diaper Sensor 2) Strap 3) User Manual Omago Intelligent Diaper Sensor Strap User manual Product introduction Getting Started Please charge Omago Intelligent Diaper sensor battery fully before starting to use. Installation 1. Put Intelligent Diaper Sensor (SG -101) on flat surface for sleep posture calibration and press sensor button for 3~5 seconds for connection to Gateway. If connection successfully. If not, please repeat above process. Please be noted, must put the sensor on a flat surface for calibration accuracy. If not calibrating accurately, it may affect sleep posture accuracy. The sleep posture detection function is for assisting to parents and for information only. Parents still has to look after the baby all the time. 2. Pressing the Dock link button, the button led will flash blue. Tak e one Intelligent Diaper Sensor (SD -101) and press the connection button for 3-5 seconds for pairing. The Dock link button led will become constant blue if pairing successfully. If not, please repeat the link process. 3. If the sensor (SG -101) is out of the Gateway connection, the sensor led will blink red. When it comes back to the distance range of the Gateway, it will re-connect to the Gateway automatically. 4. If the sensor (SD -101) is out of the Dock connection, the sensor led will blink red. When it comes back to the distance range of the Dock connection, it will re-connect to the Dock automatically. Sensor led indication Situation Sensor led Turn off sensor Red light flash one time Sensor pairing red light flashing Sensor out of connection range red light flashing FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 0.5 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 0.5 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices).

RF_160, Issue 04 (On manufacturer’s company letter heading) Declaration of Authorization We Name: Microtips Technology Inc. Address: 12F, No.31, Lane 169, Kang-Ning St., Hsi-Chih District, City: New Taipei City 221, Country: Taiwan, R.O.C Declare that: Name Representative of agent: Rita Lin (1) Agent Company name: Worldwide Testing Services (Taiwan) Co., Ltd Address: 6F., No. 58, Lane 188, Ruey Kuang Road, Neihu, City: Taipei 114 Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Intelligent Diaper Sensor for Gateway Type designation: SG-101 Trademark: Omago Validity/ expiry date on our behalf. Date: 2020/02/03 City: New Taipei City Name: Thomas CHOU (2) Function: Product Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Microtips Technology Inc. Address: 12F, No.31, Lane 169, Kang-Ning St., Hsi-Chih District, City: New Taipei City 221, Country: Taiwan, R.O.C To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: WCO-SG101 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 2020-02-03 Name and signature of applicant: Thomas CHOU Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

承 認 書 SPECIFICATION FOR APPROVAL 客戶名稱 CUSTOMER ： 客戶料號 CUSTOMER’S P/N ： 料號 PART NUMBER ： WAN3216F245W36 規格 DESCRIPTION ： Chip Antenna 3216 M-Ant 2.45G Type 36 版本 VERSION ： V2.0 日期 ISSUE DATE ： 2016/08/04 客 戶 承 認 CUSTOMER APPROVED 工 程 部 R&D CENTER 承 認 APPROVAL 確 認 CHECKED 製 作 DRAWN Ray Thor Rocky 富廷科技股份有限公司 Hong Kong RIMON TECHNOLOGY CO., LTD. RIMON TECHNOLOGY CO., LTD. 香港九龍旺角彌敦道582-592號信和中心804室 114台北市內湖區內湖路2段352號4樓之6 RM804, Sino Centre., 582-592 Nathan Rd., Kln, Hong Kong 4F-6, No.352, Sec. 2, Neihu Rd., Neihu District,Taipei 114, Taiwan 電話: +886-2-2796-2568 傳真: +886-2-2796-6433 E-mail : [email protected] 3216 Chip antenna For Bluetooth / WLAN Applications RIMON TECHNOLOGY CO., LTD. 2/11 Dimension (mm) L 3.23 ± 0.20 W 1.66 ± 0.20 T 1.23 ± 0.20 P/N:WAN3216F245W36 Part Number Information WAN 3216 F 245 W 36 A B C D E F A Product Series Antenna B Dimension L x W 3.2X1.6mm (+‐0.2mm) C Material High K material D Working Frequency 2.4 ~ 2.5GHz E Feeding mode Function Antenna F Antenna type Type=36 1. Electrical Specification Specification Part Number WAN3216F245W36 Central Frequency 2450 MHz Bandwidth 100 (Min.) MHz Return Loss ‐6.5 (Max) dB Peak Gain 2.71 dBi Impedance 50 Ohm Operating Temperature ‐40～+85 °C Maximum Power 4 W Resistance to Soldering Heats 10 ( @ 260°C) sec. Polarization Linear Azimuth Beamwidth Omni‐directional Termination Cu / Sn (Leadless) Remark : Bandwidth & Peak Gain was measured under evaluation board of next page RIMON TECHNOLOGY CO., LTD. 3/11 2. Recommended PCB Pattern Evaluation Board Dimension Suggested Matching Circuit RIMON TECHNOLOGY CO., LTD. 4/11 Layout Dimensions in Clearance area (Size=5.2*5.0mm) RIMON TECHNOLOGY CO., LTD. 5/11 50 ohm transmission Line Matching Circuit FootPrint (Unit : mm) 3. Measurement Results Return Loss RIMON TECHNOLOGY CO., LTD. 6/11 Radiation Pattern Y RIMON TECHNOLOGY CO., LTD. 7/11 X Z Efficiency Peak Gain Directivity 2400MHz 55.21 % 1.45 dBi 5.32 dBi 2450MHz 66.45 % 2.71 dBi 5.21 dBi 2500MHz 57.53 % 1.98 dBi 5.29 dBi Chamber Coordinate System 4. Reliability and Test Condictions ITEM REQUIREMENTS TEST CONDITION Solderability 1. Wetting shall exceed 90% coverage 2. No visible mechanical damage Pre‐heating temperature:150°C/60sec. Solder temperature:230±5°C Duration:4±1sec. Solder:Sn‐Ag3.0‐Cu0.5 Flux for lead free: rosin Solder heat Resistance 1. No visible mechanical damage 2. Central Freq. change :within ± 6% 10±0.5 sec. 60sec TEMP (°C) 150°C 260°C Pre‐heating temperature:150°C/60sec. Solder temperature:260±5°C Duration:10±0.5sec. Solder:Sn‐Ag3.0‐Cu0.5 Flux for lead free: rosin Component Adhesion (Push test) 1. No visible mechanical damage The device should be reflow soldered(230±5°C for 10sec.) to a tinned copper substrate A dynometer force gauge should be applied the side of the component. The device must with-ST-F 0.5 Kg without failure of the termination attached to component. Component Adhesion (Pull test) 1. No visible mechanical damage Insert 10cm wire into the remaining open eye bend ,the ends of even wire lengths upward and wind together. Terminal shall not be remarkably damaged. Thermal shock 1. No visible mechanical damage 2. Central Freq. change :within ±6% Phase Temperature(°C) Time(min) 1 +85±5°C 30±3 2 Room Temperature Within 3sec 3 -40±2°C 30±3 4 Room Temperature Within 3sec +85°C=>30±3min -40°C=>30±3min Test cycle:10 cycles The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to High Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature: 85±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to Low Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature:-40±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Humidity 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature: 40±2°C Humidity: 90% to 95% RH Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. 4±1 sec. 60sec TEMP (°C) 150°C 230°C RIMON TECHNOLOGY CO., LTD. 8/11 5.Soldering and Mounting Mildly activated rosin fluxes are preferred. The minimum amount of solder can lead to damage from the stresses caused by the difference in coefficients of expansion between solder, chip and substrate. The terminations are suitable for all wave and re-flow soldering systems. If hand soldering cannot be avoided, the preferred technique is the utilization of hot air soldering tools. Recommended temperature profiles for re-flow soldering in Figure 1. Products attachment with a soldering iron is discouraged due to the inherent process control limitations. In the event that a soldering iron must be employed the following precautions are recommended. ‧Preheat circuit and products to 150°C ‧Never contact the ceramic with the iron tip ‧Use a 20 watt soldering iron with tip diameter of 1.0mm ‧280°C tip temperature (max) ‧1.0mm tip diameter (max) ‧Limit soldering time to 3 sec. RIMON TECHNOLOGY CO., LTD. 9/11 6.Packaging Information Tape Specification: P2 F E P0 D 0 P B0 W A0 K0 T W Ao Bo Ko P F E D D1 Po P2 t 8.0 ±0.30 1.80 ±0.05 3.51 ±0.10 1.59 ±0.10 4.00 ±0.05 3.50 ±0.05 1.75 ±0.10 1.50 ±0.10 0.00 ±0.10 4.00 ±0.10 2.00 ±0.05 0.25 ±0.05 Reel Specification: (7’’, Φ180 mm) Tape Width(mm) A(mm) B(mm)C(mm) D(mm)Chip/Reel(pcs) 8 9.0±0.5 60±2 13.5±0.5178±23000 RIMON TECHNOLOGY CO., LTD. 10/11 RIMON TECHNOLOGY CO., LTD. 11/11 7.Storage and Transportation Information Storage Conditions To maintain the solderability of terminal electrodes: 1. Temperature and humidity conditions: -10~ 40°C and 30~70% RH. 2. Recommended products should be used within 6 months from the time of delivery. 3. The packaging material should be kept where no chlorine or sulfur exists in the air. Transpo…

Text truncated - open the document above for the full version.

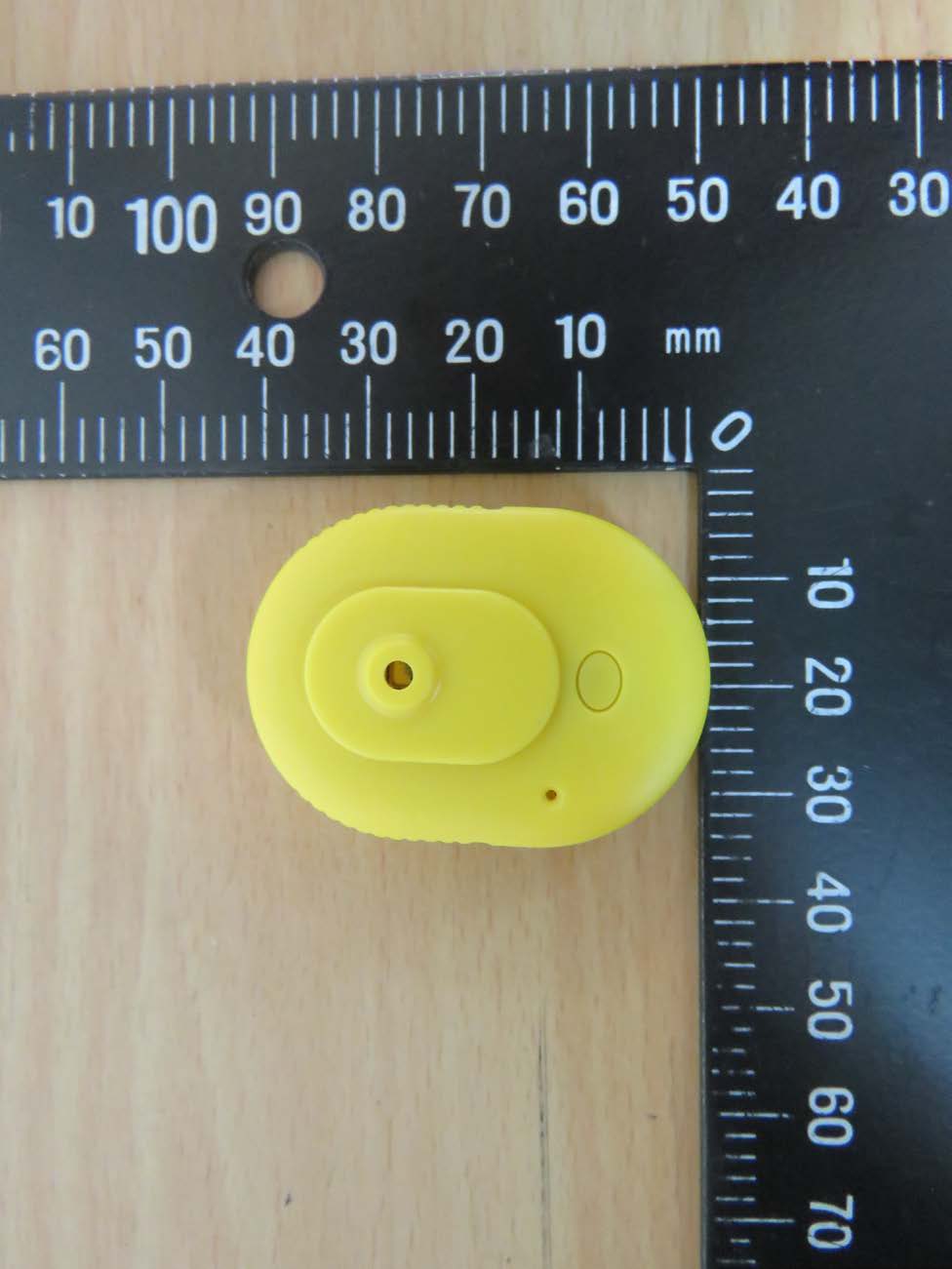

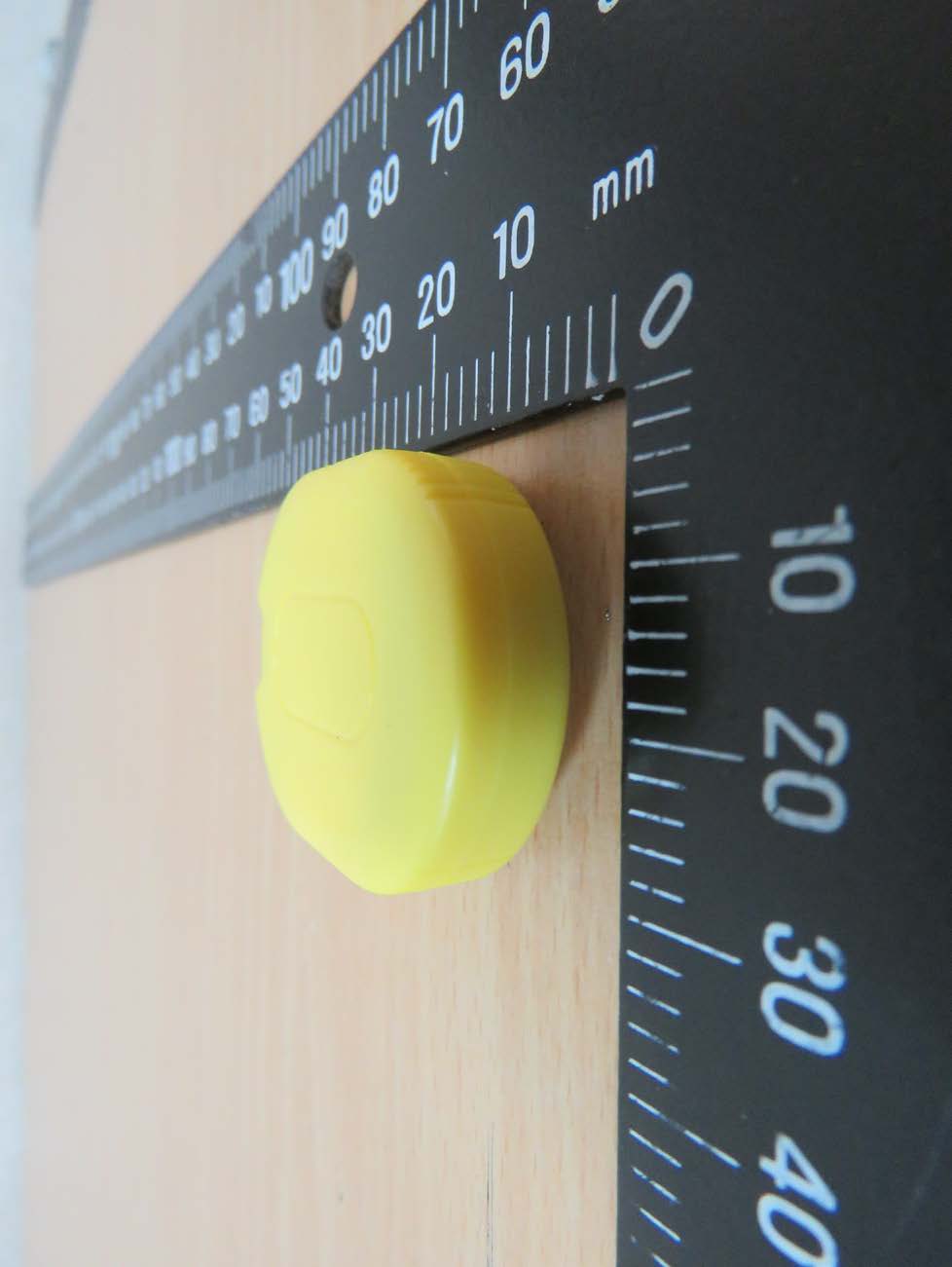

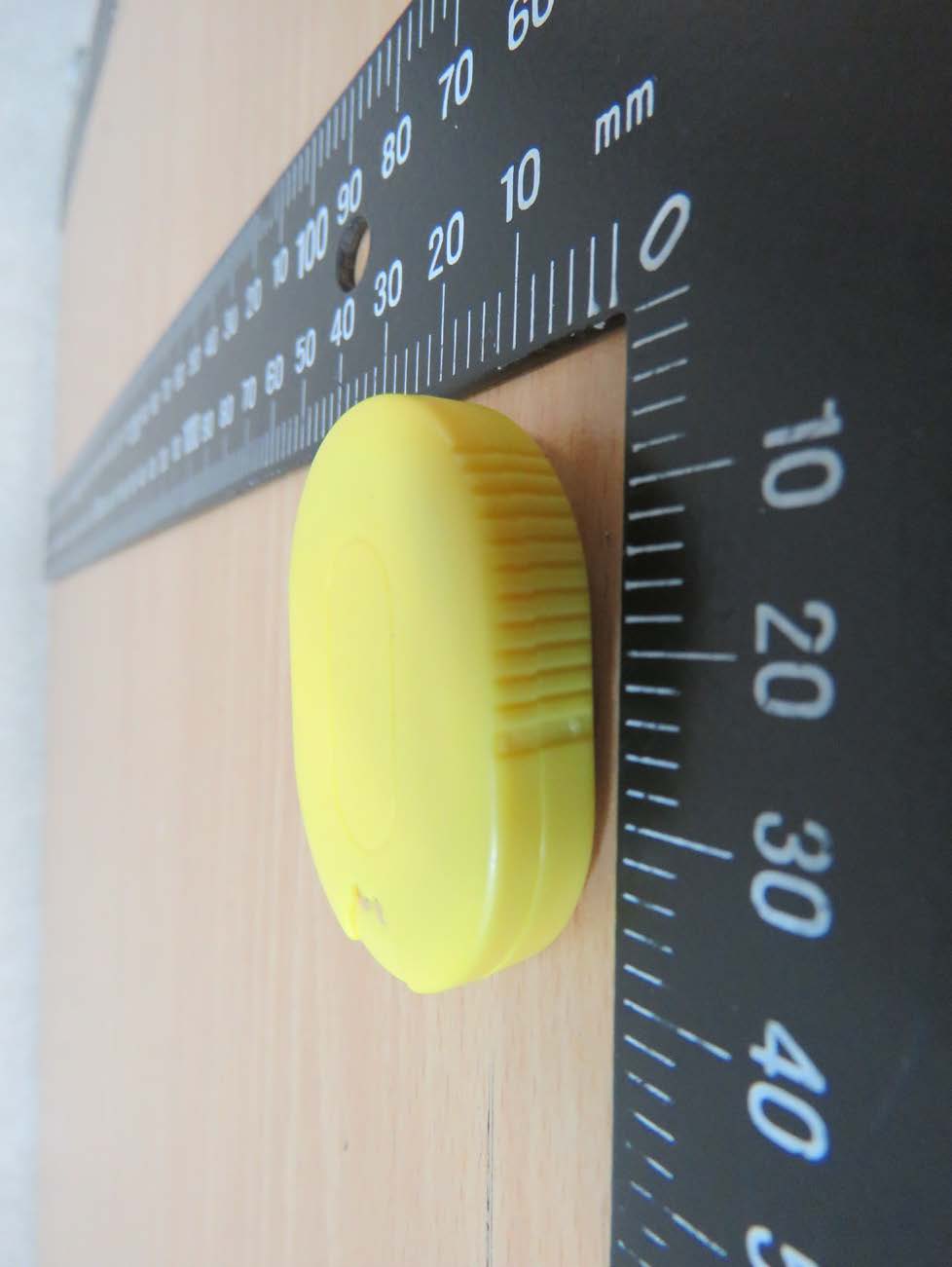

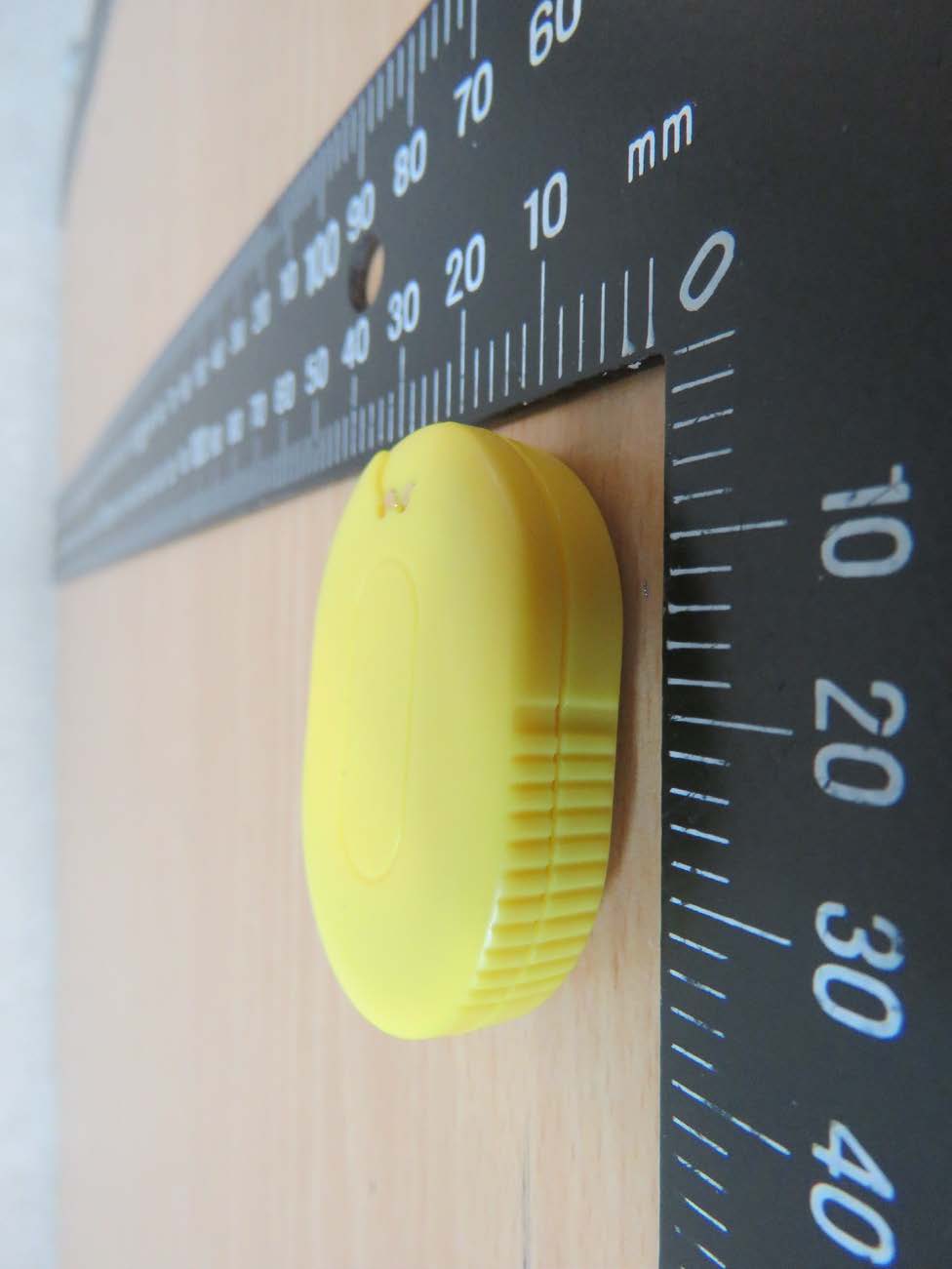

Registration number: W6M21912-19558-C-1 FCC ID: WCO-SG101 External Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 1 of 11 Registration number: W6M21912-19558-C-1 FCC ID: WCO-SG101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 11 Registration number: W6M21912-19558-C-1 FCC ID: WCO-SG101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 11 Registration number: W6M21912-19558-C-1 FCC ID: WCO-SG101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 11 Registration number: W6M21912-19558-C-1 FCC ID: WCO-SG101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 11 Registration number: W6M21912-19558-C-1 FCC ID: WCO-SG101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 11

Registration number: W6M21912-19558-C-1 FCC ID: WCO-SG101 Internal Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 11 Registration number: W6M21912-19558-C-1 FCC ID: WCO-SG101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 11 Registration number: W6M21912-19558-C-1 FCC ID: WCO-SG101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 11

Registration number: W6M21912-19558-C-1 FCC ID: WCO-SG101 3.2 Equivalent Isotropic Radiated Power (EIRP) FCC Rule: 15.247(b)(3) BT4.0 EIRP = max. conducted output power + antenna gain EIRP =3.78 dBm + (2.71 dBi [antenna gain claimed by manufacturer]) = 6.49 dBm = 4.4566 mW BT5.0 EIRP = max. conducted output power + antenna gain EIRP =3.91 dBm + (2.71 dBi [antenna gain claimed by manufacturer]) = 6.62 dBm = 4.5920 mW 3.3 Exemption Limits for Routine Evaluation according to FCC KDB Publication RESULT: Test standard : FCC KDB Publication 447498 D01 General RF Exposure Guidance v06 According to 447498 D01 General RF Exposure Guidance v06: SAR evaluation, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 3.3.1 Exemption Limits for Routine Evaluation – SAR Evaluation SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Table . Table: SAR evaluation — Exemption limits for routine evaluation based on frequency and separation Distance MHz 5 10 15 20 25 mm 2480 9.95 18.92 28.87 37.84 47.79 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2480 56.74 66.69 76.63 85.61 95.56 SAR Test Exclusion Threshold (mW) Worldwide Testing Services(Taiwan) Co., Ltd. Page 17 of 35 Registration number: W6M21912-19558-C-1 FCC ID: WCO-SG101 Established separation distance is 5 mm. Output power level shall be the higher of the maximum conducted or equivalent isotropically radiated power (e.i.r.p.) source-based, time-averaged output power. Operating frequency band (BLE): 2402-2480 MHz Max. output power level at 5 mm separation distance at 2480 MHz according to table is: 9.95 mW The product is exempt from SAR Evaluation/Testing because the output power of 4.5920 mW is below the exemption limit of 9.95 mW. Worldwide Testing Services(Taiwan) Co., Ltd. Page 18 of 35

of Applicant: Microtips Technology Inc. Address: 12F, No.31, Lane 169, Kang-Ning St., Hsi-Chih District, New Taipei City 221, Taiwan, R.O.C Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1477, TW0020, TW1072 Industry Canada filed test laboratory Reg. No. 20037 A2LA Accredited No.: 2732.01 Report No.: W6M21912-19558-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E- mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Intelligent Diaper Sensor for Gateway Model No.: SG-101 FCC ID: WCO-SG101 Registration number: W6M21912-19558-C-1 FCC ID: WCO-SG101 TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................................................... 2 1.1 NOTES ...................................................................................................................................................................... 2 1.2 TESTING LABORATORY ............................................................................................................................................. 3 1.2.1 Location .............................................................................................................................................................. 3 1.2.2 Details of accreditation status ............................................................................................................................ 3 1.3 DETAILS OF APPROVAL HOLDER ............................................................................................................................... 3 1.4 APPLICATION DETAILS .............................................................................................................................................. 4 1.5 GENERAL INFORMATION OF TEST ITEM ..................................................................................................................... 4 1.6 TEST STANDARDS ..................................................................................................................................................... 5 2 TECHNICAL TEST ........................................................................................................................................................ 6 2.1 SUMMARY OF TEST RESULTS ..................................................................................................................................... 6 2.2 TEST ENVIRONMENT ................................................................................................................................................. 6 2.3 TEST EQUIPMENT LIST .............................................................................................................................................. 7 2.4 GENERAL TEST PROCEDURE ................................................................................................................................... 10 3 TEST RESULTS (ENCLOSURE) ............................................................................................................................... 12 3.1 PEAK OUTPUT POWER (TRANSMITTER) ................................................................................................................... 13 3.2 EQUIVALENT ISOTROPIC RADIATED POWER (EIRP) ............................................................................................... 17 3.3 EXEMPTION LIMITS FOR ROUTINE EVALUATION ACCORDING TO FCC KDB PUBLICATION .................................... 17 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS ................................................................................ 19 3.5 SPURIOUS EMISSIONS (TX) ...................................................................................................................................... 20 3.6 RADIATED EMISSION ON THE BAND EDGE ............................................................................................................... 22 3.7 MINIMUM 6 DB BANDWIDTH .................................................................................................................................. 25 3.8 PEAK POWER SPECTRAL DENSITY .......................................................................................................................... 29 3.9 RADIATED EMISSION FROM RECEIVER PART .......................................................................................................... 33 3.10 POWER LINE CONDUCTED EMISSION ...................................................................................................................... 34 APPENDIX.............................................................................................................35 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 35 Registration number: W6M21912-19558-C-1 FCC ID: WCO-SG101 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Ta…
