WD31516Retractable Bluetooth Headset

UA-06XB Beeper Bluetooth ® Headset User Manual 2 Contents Product Specifications ............ 3 Components ............ 3 “Beeper” Overview ............ 4 Retractable Mechanism ............ 5 Ringer and Anti-Lost Function ............ 6 Wearing Style ............ 7-10 Charging Your Headset ............ 11 Getting Started ............ 12 Pairing Your Headset with a Bluetooth ® wireless technology enabled phone ............ 12 Pairing Your Headset with Two Bluetooth ® wireless technology enabled phone (Multi-point) ............ 13 Reconnecting Your Headset ............ 14 Using Your Headset ............ 15-17 Troubleshooting ............ 18-19 Safety Precautions ............ 20 Maintenance ............ 21 3 Product Specifications Bluetooth ® Specification: v2.1+EDR Bluetooth ® Profiles Supported: Headset and Handsfree Operating Distance: 10 meters Operating Temperature: 0-50 degree celsius Charging Time: Around 1.5 - 2 hours Talk Time*: Up to 7 hours Standby Time*: Up to 240 hours Battery Type and Capacity: Rechargeable Li-Polymer 100mAh Dimension: 56.5(L) x 26(W) x 16(H) mm Weight: 23g *May be varied by mobile phone settings and operator Components Inside the package, you should find: 1x Retractable Headset 1x USB Cable 1x Saver Charger 1x User Manual 2x Inear Cushion (L and S size each) 1x Neck Strap 4 Beeper Overview 1 2 3 4 5 6 7 8 9 1. Rewind Button 2. Status Indicator 3. Multi-function Button (MFB) 4. Volume Button 5. Microphone 6. Speaker 7. Clip 8. Micro USB Charging Socket 9. Neck Strap hole 5 Retractable Mechanism The earpiece length can be extended by gently pulling the cord. The length can be retracted (shortened) by pressing the rewinding button. 6 Ringer and Anti-Lost Function Beeper has a built-in buzzer, which supports A. Ringer B. Anti-Lost Beeper will have “Beep” sound when Beeper has an out of range alert, you have an incoming call, to prevent reminds you that your mobile phone missing any important call. is staying far away from you. Call ! ! 7 Wearing Style Beeper is designed, A. to clip on your clothing, or 8 Wearing Style (cont’d) B. fasten by a neck strap to wear comfortably and securely around your neck Step 1. Step 2. 9 Wearing Style (cont’d) B. Done 10 Wearing Style (cont’d) B. To release the strap, just hold the strap by two hands and pull outwardly. (See the picture) • Use the provided neck strap only. Lower background noise requires you to put the microphone near your mouth. 11 Charging Your Headset Before using your Beeper (“Headset”) for the first time, please insert the charger into the power source and connect the other end to micro USB charging socket of headset to charge the battery fully. StatusStatus IndicatorAudio 1. ChargingRed light ON 2. Fully chargedOFF 3. Low batteryRed light for every 5 seconds A short beep every 20 seconds 4. Out of batteryOFF • Use only the supplied charger for charging • To extend the battery life, re-charging the battery every 6 months. • Charging indication will be delayed in a few seconds if the headset has not been used for a long period of time. 12 Getting Started Turning Your Headset On and Off: A. Turning on Press and hold the MFB until the status indicator flashes blue. B. Turning off Press and hold the MFB until the status indicator flashes red. Pairing Your Headset with a Bluetooth ® wireless technology enabled phone 1. Turn on the Bluetooth ® function in the mobile phone. 2. Place the headset and the phone where they are visible, within arm’s length from each other. 3. Ensure the headset is OFF. 4. To activate the headset’s pairing mode, press and hold the MFB until the status indicator flashes blue and red alternately. 5. Search the headset, select “UA-06XB” and enter the passcode “0000”. If your mobile phone supports Bluetooth v2.1 “Simple Pairing” function, no code is required. 6. When the pairing is complete, the headset’s status indicator will flash blue. 13 Pairing Your Headset with Two Blue- tooth ® wireless technology enabled phone (Multi-point) Beeper supports a Multi-point function to allow simultaneous pairing of the headset with two mobile phones. 1. Pair the headset with the first phone (follow the step in “Pairing Your Headset with a Bluetooth mobile phone”). 2. Turn off the headset and the first paired phone is then disconnected auto- matically. 3. Pair the headset with the second phone (follow the step in “Pairing Your Headset with a Bluetooth mobile phone”). 4. Activate the Bluetooth connection with the headset and the first paired phone on the phone’s menu. • For some phones, you may need to manual press “connect” to connect the headset. • If the pairing cannot be completed within two minutes, the headset will auto- matically go to standby mode and then turn off after five minutes. Repeat steps to pair both devices again. 14 Reconnecting Your Headset 1. If the headset has powered off, it will be reconnected to the phone auto- matically after switching on the headset, if not, press MFB once to reconnect. 2. If the phone has powered off and headset is then disconnected you need to press MFB once to reconnect when phone turns on again. Otherwise, the headset will switch off. 15 Using Your Headset FunctionButtonAudio (Headset) Audio (Speaker) Status Indicator Incoming Call3 Beep for every 2 seconds Ringtone Answer a CallPress MFB once to accept. Answer a Second Call 1. Press MFB once to terminate the first call 2. Press MFB once to shift to second call Call RejectPress the MFB twice • Reject a second call directly on the other connected phone during the call. End a CallPress the MFB once Adjust Volume Press the Volume +/- once to increase/ decrease by 1 level (Total 8 levels) 16 Using Your Headset (cont’d) FunctionButtonAudio (Headset) Audio (Speaker) Status Indicator Voice DialingPress the MFB onceA short Beep • When you hear a short beep, say the voice tag, and you must have the voice tag record on your mobile phone. • Voice redialing is only allowed for those saved voice tag into the 1st connected …

Text truncated - open the document above for the full version.

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:10-Jun-2011Sheet of File:F:\ 项目 YY\Protel\BC6 QFN ROM.ddbDrawn By: SPEAKER EEPROM Charger 26MHz REGULATOR CONDENSER MIC CRYSTAL 6130 CPU ANT UA06 BLOCK Diagram Buzzervibrator RF Generated by Foxit PDF Creator © Foxit Software http://www.foxitsoftware.com For evaluation only.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 2.0 2011-6-20 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _______ Channel Enterprises(HK)Ltd._________hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name:Retractable Bluetooth Headset Model:UA-06XB FCC ID: WD31516 We affirm that between SIEMIC and __ Channel Enterprises(HK)Ltd._ _, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title: Mr.Ming Chan/Director Contact information / address

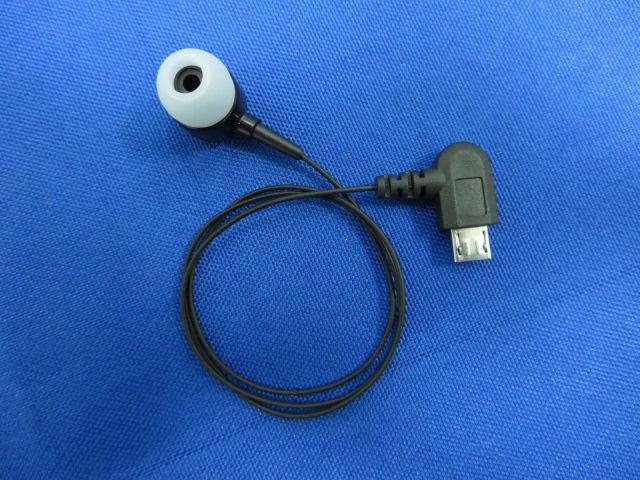

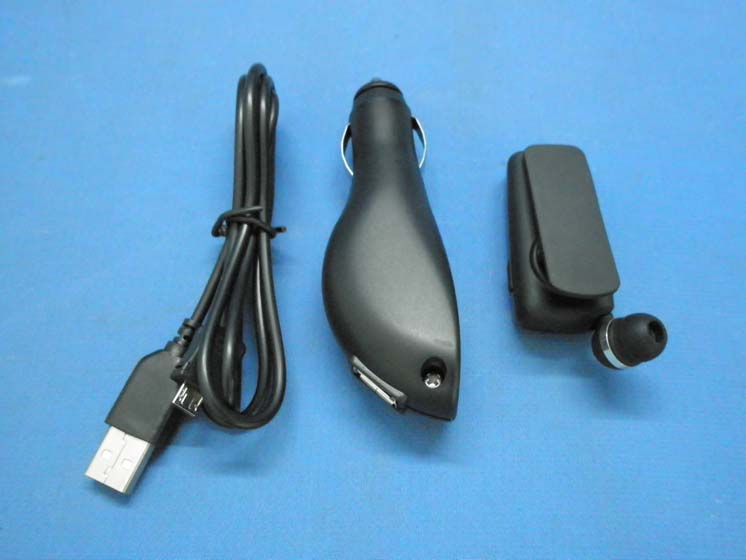

EUT EXTERIOR PHOTO

Size: 11.5 x 9.5mm FCC ID:WD31516

Proposed Label Location On EUT EUT Bottom View/Proposed FCC ID LABEL location

EUT INSIDE PHOTO

Work Priciple Applicant: Channel Enterprises(HK)Ltd. FCC ID:WD31516 The Retractable Bluetooth Headset includes RF IC BC6130 and its processing circuits. BC6130 QFN is a product from CSR’s Connectivity Centre. It is a low-cost fully featured ROM IC solution for mono headsets with extremely low power consumption. It contains a Bluetooth radio, baseband, DAC/ADC,AuriStream codec, linear regulators, switch-mode power supply and battery charger in a compact QFN package for low-cost designs. BC6130 QFN includes a configurable echo and noise reductio feature in hardware which reduces headset echo and wind noise allowing the headset user to be heard more clearly. BC6130 QFN can connect to 2 phones simultaneously. The Retractable Bluetooth have a USB,and it is using only connect a USB port for charing.

123456 A B C D 654321 D C B A C10 15P Y1 26M C25 18P C24 6P8 C12 15P R3 10K P1 TE C1 103 L1 8.2nH C8 100P A1 GIGAANT 3030A6250-01 L2 22nH C9 15P C17 1uF C15 4.7uF Unbalanced 1 GND 5 Balanced 4 Balanced 6 GND 7 DC 2 GND 8 NC 3 T1 DBF81F101-6 C14 0.01 C3 2.2uF L3 22uH SP1 SPEAKER R19 4.7K R18 4.7K R17 4.7K SCL 6 GND 4 SDA 5 VCC 8 WP 7 A0 1 A1 2 A2 3 U2 AT24C32 R14 NC MIC -42dB R15 2.2K C11 1uF R13 220K SW1 ON/OF C2 103 C5 2.2uF R1 2R2 C4 2.2uF C21 473 C22 473 BAT1 3.6V LED2 RED LED1 Blue R7 470 R8 470 R16 NC C16 1uF APPD TITLE DFTS REV V0 SHT 1 OF 1 DRAWING NO. UA03XB 2010/11/03 1.8V C23 0.047 C13 223 TP1 TP MOSI1 CSB1 MISO1 CLK1 TP5 1 2 R11 2R2 R10 10K C20 15P Q1 3904 L4 15nH TP2 3.6V L5 8.2nH MIC_A_P 1 MIC_A_N 2 SPKR_A_N 3 SPKR_A_P 4 AU_REF 5 VDD_RADIO 6 RF_P 7 RF_N 8 VDD_LO 9 PWR/HOLD 10 VREGIN_L 11 VDD_ANA 12 XTAL_IN 13 XTAL_OUT 14 LO_REF 15 AIO1 16 AIO0 17 UART_RX 18 UART_TX 19 VDD_PADS 20 PIO3 21 PIO2 22 PIO1 23 PIO0 24 TEST_EN 25 RST 26 PIO11 27 LED1 28 LED0 29 VDD_CORE 30 VREGOUT_H 31 VREGIN_H 32 VREGENABLE_H 33 VDD_SMP_CORE 34 LX 35 BAT_P 36 VDD_CHG 37 PCM_IN 38 PCM_CLK 39 PCM_SYNC 40 PCM_OUT 41 SPI_PCM 42 VDD_EEPROM 43 PIO8 44 PIO7 45 PIO6 46 MIC_BIAS 47 VDD_AUDIO 48 GND 49 U1 BC6 1.5V 1.5V 1.8V R2 2.2R C7 2.2uF C19 15P R12 4.7K R9 1K 1.8V 2.7V VOL-VOL+ 1.8V U5 BUZZER R6 4.7K/1K Q2 3904/8050 R16 47K Q4 PNP R20 180K 3.6V 12 34 56 78 U4 NE555 C27 104 R22 20K R23 12K C28 103 Q3 8050 R24 100R D3 DIODE R16 1R A -+ M1 MOTOR SERVO 1 2 3 4 5 u USB Generated by Foxit PDF Creator © Foxit Software http://www.foxitsoftware.com For evaluation only.

Note: This report shall not be reproduced except in full, without the written approval of Sintek Laboratory CO., Ltd. This document may be altered or revised by Sintek Laboratory Co., Ltd. personnel only, and shall be noted in the revision section of the document. Page 1 of23 FCC 47 CFR PART 15 SUBPART C TEST REPORT For CHANNEL ENTERPRISES(HK) LTD. Retractable Bluetooth Headset Model: UA-06XB Trade Name: i.Xchange Report No. : ST1106003F Prepared for CHANNEL ENTERPRISES(HK) LTD. Room 2006.20/F., Lucida Industrial Building, 43-47 Wang Lung Street, Tsuen Wan, N.T. HONG KONG Prepared by SINTEK LABORATORY CO., LTD. No. 7, XINSHIDAI INDUSTRIAL, GUANTIAN VILLAGE, SHIYAN TOWN, BAOAN DISTRICT, SHENZHEN, GUANGDONG, P.R.C. TEL: 86-755-27604866 FAX: 86-755-27608359 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION...................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS....................................................6 3.5 DESCRIPTION OF TEST MODES......................................................................................................6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES....................................................................................................................................8 5.2 EQUIPMENT...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT....................................................................................................9 6.2 SUPPORT EQUIPMENT ............................................................................................................9 7. FCC PART 15.249 REQUIREMENTS...................................................................................... 10 7.1 BAND EDGES MEASUREMENT ...........................................................................................10 7.2 RADIATED EMISSIONS................................................................................................................13 7.3 POWER LINE CONDUCTED EMISSIONS........................................................................................20 8. APPENDIX 1 PHOTOGRPHS OF TEST SETUP ................................................................... 23 Page 3 1. TEST RESULT CERTIFICATION Applicant: Channel Enterprises(HK) Ltd. Room 2006, 20/F., Lucida Industrial Building,43-47 Wang Lung Street, Tsuen Wan, N.T.Hong Kong Equipment Under Test: Retractable Bluetooth Headset Tra de Na me : i.Xchange Model: UA-06XB Date of Test: Jun 13-20, 2011 Report No. : ST01106003F FCC ID : WD31516 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by SINTEK LABORATORY CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Summary of Measurement Test Item Test Requirement Standard Paragraph Result Antenna Requirement FCC PART15 15.203 Compliance Conducted Emission FCC PART15 15.207 Not applicable Radiation Emission FCC PART15 15.209&15.249 Compliance Band edge Requirement FCC PART15 15.249 Compliance Page 4 2. EUT DESCRIPTION Product Retractable Bluetooth Headset Tr a de Name i.Xchange Model Number UA-06XB Model Discrepancy N/A Power Supply DC 5.0V Frequency Range 2402 ~ 2480.0 MHz Antenna Specification The EUT’S antenna is integrated on the main PCB Number of Channels 79 Channels Antenna Requirement Requirement(s): 47 CFR §15.203 An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. Antenna requirement must meet at least one of the following: a) Antenna must be permanently attached to the device. b) Antenna must use a unique type of connector to attach to the device. c) Device must be professionally installed. Installer shall be responsible for ensuring that the correct antenna is employed with the device. The EUT’S antenna is fixed on the main PCB / Gain: 0.21dBi Note: This submittal(s) (test report) is intended for FCC ID: WD31516filing to comply with Section 15.249 of the FCC Part 15, Subpart C Rules. Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and 15.249. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field…

Text truncated - open the document above for the full version.

TEST SETUP PHOTO
