WFZSCND503T1231PART 15 CLASS B COMPUTING PERIPHERAL

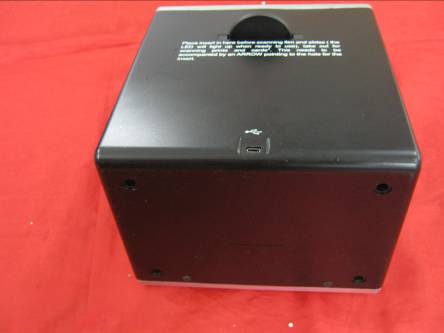

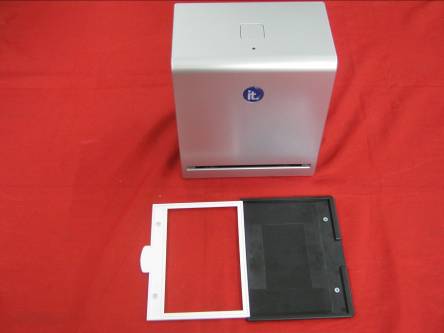

User Manual Combo Scanner -1- Note This Combo Scanner supports Windows XP, Vista and Windows7(32/64bits) via USB 2.0 only. Scanner We strongly suggest using a clean, dry, non-alcohol cotton swab to clean the glass surface on the back-light holder and the business card fixture periodically to produce a clear image. Make sure all negative films, slide films, cover trays and photos are free of dust and dirt before inserting into theas this may affect the image quality when scanning. When cleaning films, please use a professionally recommended purger from a photo store to avoid damaging old or precious films. I. Unpack the Combo Scanner Combo Scanner User Manual Backlight Holder Photo/Business Card Holder Quick Installation Guide Business card Fixture II. Driver Installation 1. Turn on the computer 2. Insert the installation CD into the CD-ROM drive and the installation CD menu will appear 3. Click the “Installation” button to begin. 4. After the installation completed, you can browse the video instructions and user manual from the CD. 5. Click ''Exit'' to quit the driver installation menu. To use the Combo Scanner, please complete the following installation in advance. -2- scanner Installation 6. Follow the on-screen instructions for installtion. (XP, Vista/Windows7) -3- -4- -5- -6- 7. After completing software installation, please connectto PC. The New Hardware Wizard will detect a new device. Combo Scanner -7- 8. Select “Yes” in XP or “Locate and install driver software (recommended)” in Vista/Windows7 OS. -8- Film and Photo Scanner Film and Photo Scanner -9- III. Using the Scanne Power status LED Copy button Photo/Business Card slot Film/Slide slot Slot for Backlight holder USB Port 9. After completing the installation, the film-scanner is ready to start with “ Image scan Tool” under program files. (WindowsXP/Vista/Windows7,) It is recommended (but not required) to restart your PC after installation or un-installaion. Installing film into the film holder Install slide Film into the holder entitled “Slides Only” 1. Open the slide holder as illustrated 2. Place slide in recessed slot in holder3. Close the film holder -10- Install Negative Film into the holder entitled “Negative Film Only”: 1. Open the film holder as illustrated 2. Install film into negative film slot 3. Close the film holder Note To avoid a mirror image, follow the serial numbers (from left to right) on top of film when installing negative film into holder. Figure 1 If the image is upside down [see fig.2], the image can be corrected by ”Rotate” function inafter capture [see fig.3].Image scan Tool Figure 2 Figure 3 -11- How to use Combo Scanner 1. Put Film into film holder 2.Insert the film/slide back light holder at the rear side of the unit. Combo Scanner -12- Scanning Film/Slide 3. Plug in your USB cable to your PC with another side on the unit. Combo Scanner -13- 4. Insert the film holder into the right side of theunitCombo Scanner 5. Click “Image Scan Tool” PC program to enter operation interface as below. The PC program will go into Film/Slide Mode automatically. Scanning Photo 1. Remove the film / slide holder as well as the back-light holder from the Combo Scanner unit if either one is attached. Remove film /slide holder by sliding the holder to the left hand side. Remove back-light holder by press down the handle and pull it out. 2.Open the photo holder as illustrated, Please the photo on the base of the photo holder and close the photo holder. -14- 4. Insert the photo holder into the photo slot of the Combo Scanner unit. 5. Click “Image Scan Tool” PC program to enter operation interface as below. The program will go into Picture Mode automatically. -15- -16- Scanning Business Card 1. Follow Step 1 from Scanning Photo to remove Film/Slide holder as well as back-light holder in the previous pages. 2.Close the photo holder and Place the business card on the base of the photo holder follows the engraved guide line on the holder. 3.Put the Business Card fixture on the top of Photo Holder. 4.Insert the entire photo holder with the business card fixture into the photo slot of theunit,and select "BizCard" mode from the "Image Scan Tool". Combo Scanner -17- 5. Press “Copy” button or press “Snap Shot” button in the PC program to capture the image 6. Process necessary modification by function buttons in right hand side -18- 7. Save captured images to PC 8. Get fimal images from PC for further review and edit -19- User interface introduction Film/Slide ModePicture Mode Thewill auto select operating mode (Film/Side Mode & Photo Mode) automatically by detecting if the backlight holder has been attached. If backlight holder is attached, it will go into Film/Slide Mode and vice versus. Image scan Tool When user selects a “Negative” source, the image in “Live View” window will be exactly like the processed result. -20- If device processes a slide, the “Live View” will show a color image and the FilmType will remain the same. This is the live view under black and white negative option. -21- User can convert images from traditional film to digital either by “Snap Shot” button inor the button on top of filmscanner. Then, the capture result will appear in the “Snap Shot” and “Final images to save” window. Image scan Tool All of the effects inwill be ready for instant preview in “Snap Shot” and “Final images to save” window. Image scan Tool -22- Apply the Mirror function by pressing the “Mirror” icon, that will flip the image and be shown in the “Snap Shot” window as well as the “Final images to Save”. Or apply the Rotate function by pressing “Rotate” button, the image will be rotated 90 degrees each time. Images can be continuously rotated a full 360 degrees or until desired. If the user wishes to delete a specific image from the capture pool, simply click the image under “Final image to save” again, then the selected image can be deleted by applying the “Delete” button. After modification, user can save images to the default location…
