FilmScan35 Professional -Patent pending- User Manual Version 1.01 April 2010 Index I. Unpack FilmScan35 Professional Scanner.............................2 II. Install film into the film holder.............................................3 III. Quick Start..........................................................................7 IV. Operation Guide................................................................12 V. Specification......................................................................37 -1- I. Unpack FilmScan35 Professional FilmScan35 Professional Negative/Slide Film Holder User Manual USB power core USB/Video cable Roll Film Holder Clean brush Note  We strongly suggest using a clean, dry, non-alcohol cotton swab to clean the glass surface periodically to produce a clear image during operation.  Clean dust from FilmScanner back light, to use the clean brush to wipe the dust.  Dust or dirt from the negative, slide films and cover trays may affect the scanned image quality, please make sure the materials are cleaned before inserting into the scanner.  Please find recommend, processional purger from photo store to clean the dust on films if any to avoid damaging the only one copy of old films. -2- II. Install film into the film holder ● Install the Slide into holder 1. Open the slide holder as illustrated 2. Put slide into positive slide slot 3. Close the film holder ● Install the Negative Film into holder 1. Open the film holder as illustrated -3- 2. Install film into negative film slot 3. Close the film holder ● Install the Roll Film into holder: 1. Take out the roll film holder from package 2. Insert roll film into film slot 3. Pull out the roll film in another side -4- Note  To avoid mirror image, follow the serial numbers (from left to right) on top of film when install negative film into holder  If the image is upside down [see fig.2], the image can be corrected by Flip function in hard key of device before capture, or enter playback edit menu after capture [see fig.3 and fig.4]. -5- Figure 1 Figure 2 ● Press hard key on top of device in live view Figure 3 ● Playback mode menu Figure 4 -6- <Up> then <Down> button to perform Flip (Flip hard key) Flip III. Quick Start -7- Right/+ button Film Slot OK button SD card Slot Left/- button Power button USB port TV out jack Power status LED 1. Put Film onto the film cartridge 2. Insert the film cartridge into FilmScan35 Professional -8- 3. Connect USB cable to FilmScan35 Professional 4. Turn on Device by power button -9- 5. Press OK button to capture the image 6. Follow the menu on display for scanning -10- 7. After finished the capture, take out the SD card which stored capture images 8. Or read picture from PC by MSDC mode -11- IV. Operation Guide Home: Main menu ● Capture: capture mode (default) ● Playback: playback mode ● Film Type: define the film type which loaded in cartridge ● USB mode: MSDC (Mass Storage Device Class) mode ● Setting: TV out and format option 1. Capture After welcome page, above menu will remains for 5 sec. User can press up/down button for desired menu. Or system will auto enter Capture mode if there is no action during this 5 second period. -12- Capture Playback Film Type USB mode Setting Capture 1.1 Capture: <Up>/<Down> (Hard Key) ● Press <Up> button to enter Mirror/Flip adjustment (see Chapter 1.2) ● Press <Down> button to enter Brightness/Color adjustment (see Chapter 1.3) -13- <Up> Right/Up <Down> Left/Down <Up> <Down> <OK> Go Next button 1.2 Capture: <Up>/<Down> - Mirror/Flip (Hard Key) ● Press <Up> button to change image left to right ● Press <Down> button to upside down image -14- <Up> Right/Up <Down> Left/Down <Up> <Down> <OK> Go Back to 1.1Capture button 1.3 Capture: <Up>/<Down> - Brightness/Color (Hard Key) ● Press <Up> button to enter Brightness adjustment (See Chapter 1.4) ● Press <Down> button to enter Color adjustment (See Chapter 1.5) -15- <Up> Right/Up <Down> Left/Down <Up> <Down> <OK> Go Back to 1.1Capture button 1.4 Capture: <Up>/<Down> - Brightness (Hard Key) ● Press <Up> button to increase Brightness with ranges of -3 to 3 ● Press <Down> button to decrease Brightness with ranges of -3 to 3 -16- <Up> Right/Up <Down> Left/Down <Up> <Down> <OK> Go Back to 1.1Capture button 1.5 Capture: <Up>/<Down> - Color Red (Hard Key) ● Press <Up> button to increase red color with ranges of -3 to 3 ● Press <Down> button to decrease red color with ranges of -3 to 3 -17- <Up> Right/Up <Down> Left/Down <Up> <Down> <OK> Go Next to Color Green button 1.6 Capture: <Up>/<Down> - Color Green (Hard Key) ● Press <Up> button to increase green color with ranges of -3 to 3 ● Press <Down> button to decrease green color with ranges of -3 to 3 -18- <Up> Right/Up <Down> Left/Down <Up> <Down> <OK> Go Next to Color Blue button 1.7 Capture: <Up>/<Down> - Color Blue (Hard Key) ● Press <Up> button to increase blue color with ranges of -3 to 3 ● Press <Down> button to decrease blue color with ranges of -3 to 3 -19- <Up> Right/Up <Down> Left/Down <Up> <Down> <OK> Go Back to 1.1Capture button 1.8 Capture mode Once enter capture mode, there will be a red indicator on left top corner to indicate it is in live view mode. When the film cartridge is inserted into the scanner slot, the image always shows the positive image according to previous defined Film Type (after power on. the Film Type is default to negative film). Reconfirm the film position through the display before press OK button. 1.9 Capture: Edit Menu ● Save: save captured image ● Rotate +90: continue rotate +90 degrees ● Rotate -90: continue rotate -90 degrees (this is for adjusting the user who took the portrait picture) ● Cancel: cancel any editing with this image ● Home: Back to main menu -20- Live view indicator (flashing at 0.5sec rate) Save Rotate +90 Cancel Rotate -90 Home Selected image 1.10 Live View -> Capture/Edit Menu Live View Capture/Edit Menu OK OK Once press OK button in live view, the edit menu will be appeared. When user press OK button again, …

Text truncated - open the document above for the full version.

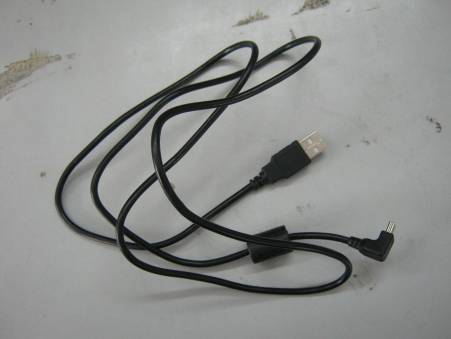

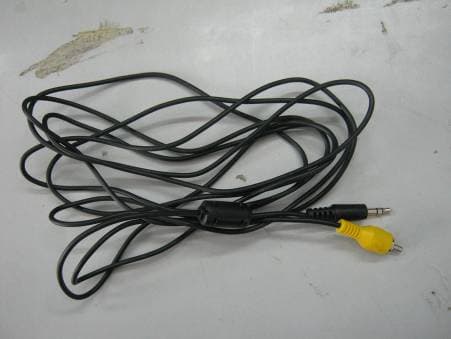

External Photographs of FCCID: WFZSCND902H1232 Page 1 of 3 Page 2 of 3 Page 3 of 3
