WGD-WRC-REMOGame Call Remote

Navajo Operations & Trouble Shooting Guide V1.0 1 The following is a guide to assist you with the operations & trouble shooting of your new Navajo MP3 electronic game caller. We appreciate you as our new customer & wish you the best of success! This document has been prepared to further inform you of all the in depth operations & trouble shooting of the unit! Good luck & happy hunting! NAVAJO REMOTE KEY OPERATIONS ON/OFF SWITCH/KEY: The ÒOnÓ & ÒOffÓ switch on the game caller is designed to manually turn your game caller to the on or off status! It is a 3-position switch for ÒOFFÓ, ÒON: INT SPKÓ & ÒONÓ. Switch to ÒON: INT SPKÓ will turn on the game caller and activate internal speakers. Switch to ÒONÓ will turn on the game caller and mute the internal speakers. External speaker port and lineout port are activated when the game caller is turned on. This switch will power your game callers on for initial start up. The green LED with be illuminated. This switch must be activated before you can control the game caller with the wireless remote supplied with your unit. The ÒOnÓ & ÒOffÓ key on the remote control is designed to remote turn the game caller to the on or standby status once you have activated the game caller. Press key on the remote once to turn unit off, press again to power game caller back on. When game caller is in a stand by mode, it is operating on minimum battery consumption. If ÒOnÓ& ÒOffÓ key doesnÕt appear to work on the remote, please check the battery and replace if showing low battery. Low battery level will also affect the operation of the keypad! Make sure that game caller is installed with full batteries before taking it to the field! If the ÒOnÓ & ÒOffÓ key on the remote appears not to work, check the battery icon on the LCD & replace battery. (See Battery Maintenance) OFF SWITCH: The ÒÓOnÓ & ÒOffÓ switch on the game caller is designed to manually turn the caller off! This must be done when you have completed the use of the game caller! You must switch to the ÒOFFÓ position so that the green LED is no longer illuminated! The ÒOffÓ key on the remote is the same key as ÒOnÓ key. This key is designed to remote the caller to a ÒStandby ModeÓ while in use! This key will not power off the game caller for non-use & storing. The battery will discharge if you fail to manually turn unit off on main ON/OFF switch! (See Battery Maintenance) PLAY KEY: The ÒPlayÓ key on the remote will start play mode of the pre-selected sound you have chosen from remote location. The game caller will play the selected sound. The ÒPlayÓ key on the remote can be activated by firmly pressing the key. Press Navajo Operations & Trouble Shooting Guide V1.0 2 & hold is not required. If the ÒPlayÓ key on the remote appears not to work, check the battery & replace. (See Battery Maintenance) PAUSE KEY: The ÒPauseÓ key on the remote will pause the play of the current sound selected from a remote location. The game caller will pause the sound. The ÒPauseÓ key on the remote can be activated by a firmly pressing the key. If the ÒPauseÓ key on the remote appears not to work, check the battery & replace. (See Battery Maintenance) Press PLAY will restart the paused sound. The volume of the unit will automatically resume at the same level as previous setting when this function is activated. If you wish to adjust the volume at this point simply press the volume up or volume down key to reset at desired setting. NEXT KEY: The Navajo comes loaded with new complete ORION sound library from the factory. The ÒNextÓ key on the remote allows the user to scan in an upward selection motion to arrive at the desired sound to play from a remote location that is seen on the LCD. To activate, firmly press and release for each scan to the next selection. Press & hold will scan the entire selection & may not stop at the sound you wish. Note: This will change as you change or add to the ORION library that came on the unit. (To Change Sounds; See Load & Downloads) If the ÒNextÓ on the remote appears not to work, check the battery & replace. (See Battery Maintenance) The game caller will need to be connected to the remote after you upload or delete any sounds into the systems hard drive so that the remote can recognize the new order of play list selections (See Downloads & Uploads) PREVIOUS KEY: The ÒPreviousÓ key on the remote allows the user to scan in a downward motion to arrive at the desired sound to play from a remote location that is seen on the LCD. To activate, firmly press and release for each step to next selection. Press & hold will scan the entire selection & may not stop at the sound you wish. For best results rename and reload sounds in your special grouping. If the ÒPreviousÓ key on the remote appears not work check the battery & replace. (See Battery Maintenance) The game caller will need to be connected to the remote after you upload or delete any sounds into the systems hard drive so that the remote can recognize the new order of play list selections (See Downloads & Uploads) Navajo Operations & Trouble Shooting Guide V1.0 3 NEXT 10 KEY: The ÒNext 10Ó key on the remote control recalls ten (10) sounds at once thus allowing you to instantly scan through your entire library of sounds very quickly to select your next10 sounds in the order they were loaded. PREVIOUS 10 KEY: The ÒPrevious 10Ó key on the remote control recalls ten (10) sounds at once thus allowing you to instantly scan through your entire library of sounds very quickly to select your previous10 sounds in the order they were loaded. VOLUME UP KEY: The ÒVolume UpÓ key on the remote control adjusts the volume upward from the current setting to the desired level. Press to increase volume step by step or press & hold to increase quickly. The game caller will adjust the volume accordingly. The LCD bar volume bar will display the current level of sound on the remote. VOLUME DOWN KEY: The ÒVolume DownÓ key on the remote control adjusts the volume downward from t…

Text truncated - open the document above for the full version.

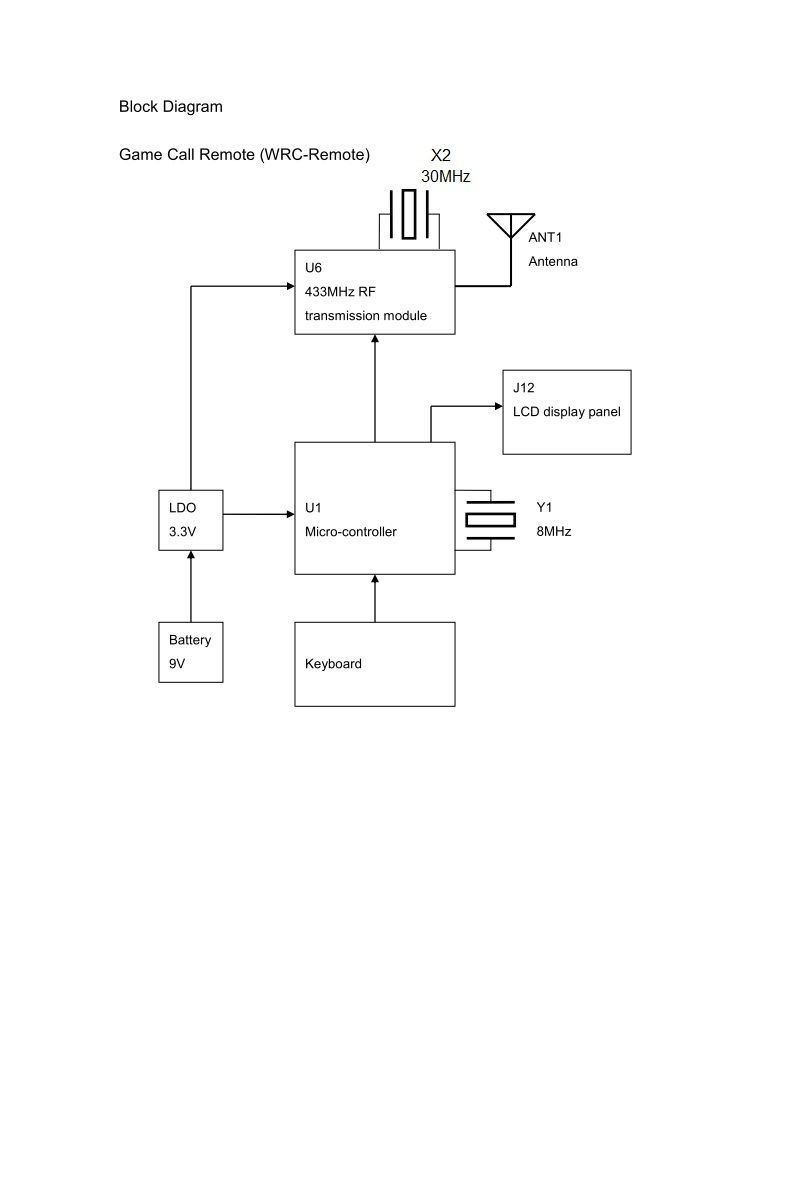

Block Diagram Game Call Remote (WRC-Remote) RF TX module (U6)

3385 Roy Orr Blvd. Grand Prairie, TX 75050 Phone: (469) 586-0422 Fax: (469) 586-0463 Date : Aug 13, 2012 PHOENIX TESTLAB GmbH Königswinkel 10 D-32825 Blomberg Dear Sirs, Re. : Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. Mr. KC Lee as agent for GSM LLC., 3385 ROY ORR BLVD., GRAND PRAIRIE, TEXAS, UNITED STATES, 75050., to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of GSM LLC. Product name : Game Call Remote Model : WRC-Remote This authorization will expire one year from the date of this letter. EUGENE CHENG Vice President International Sourcing GSM LLC 3385 Roy Orr Blvd. Grand Prairie, TX 75050

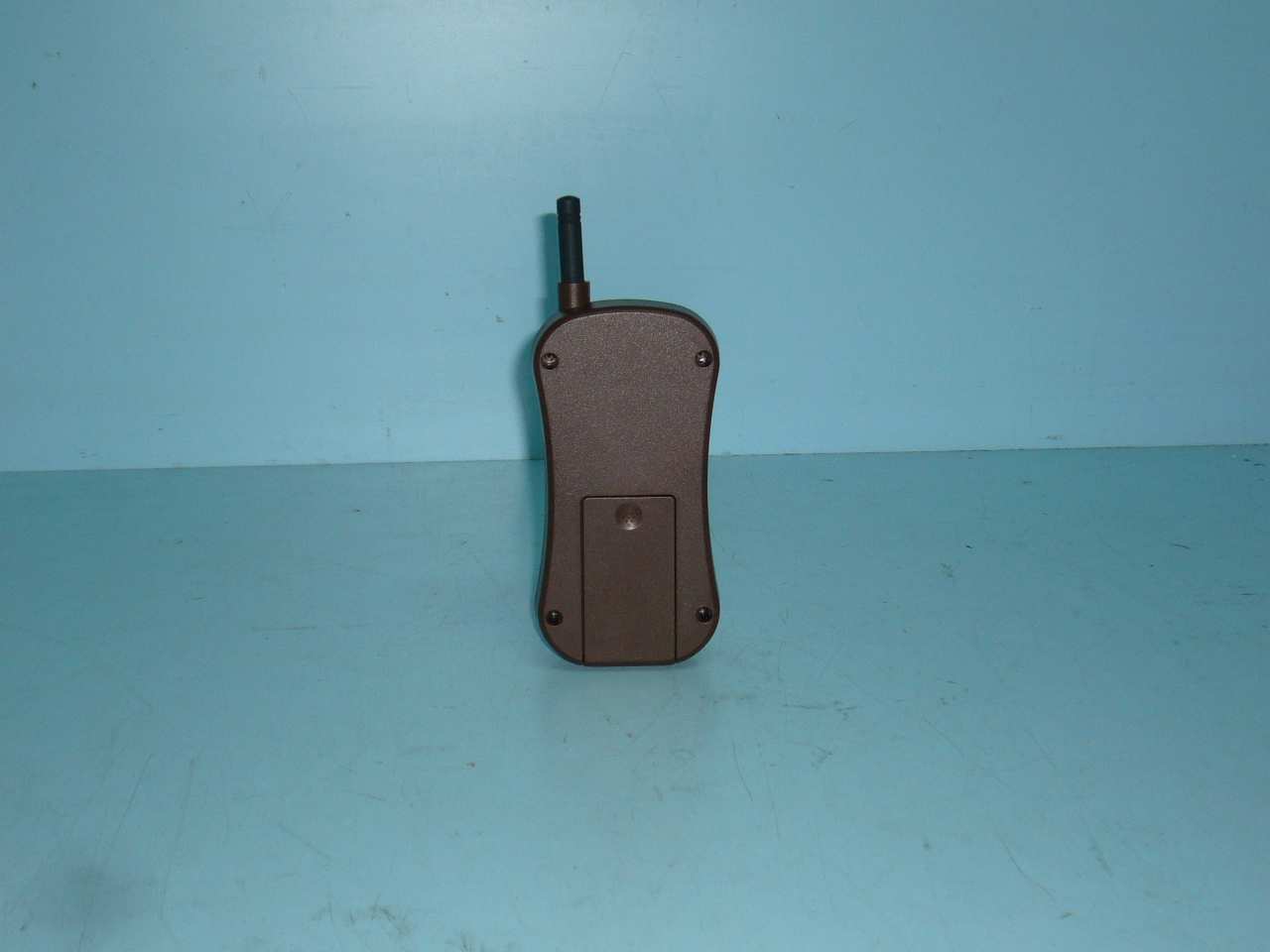

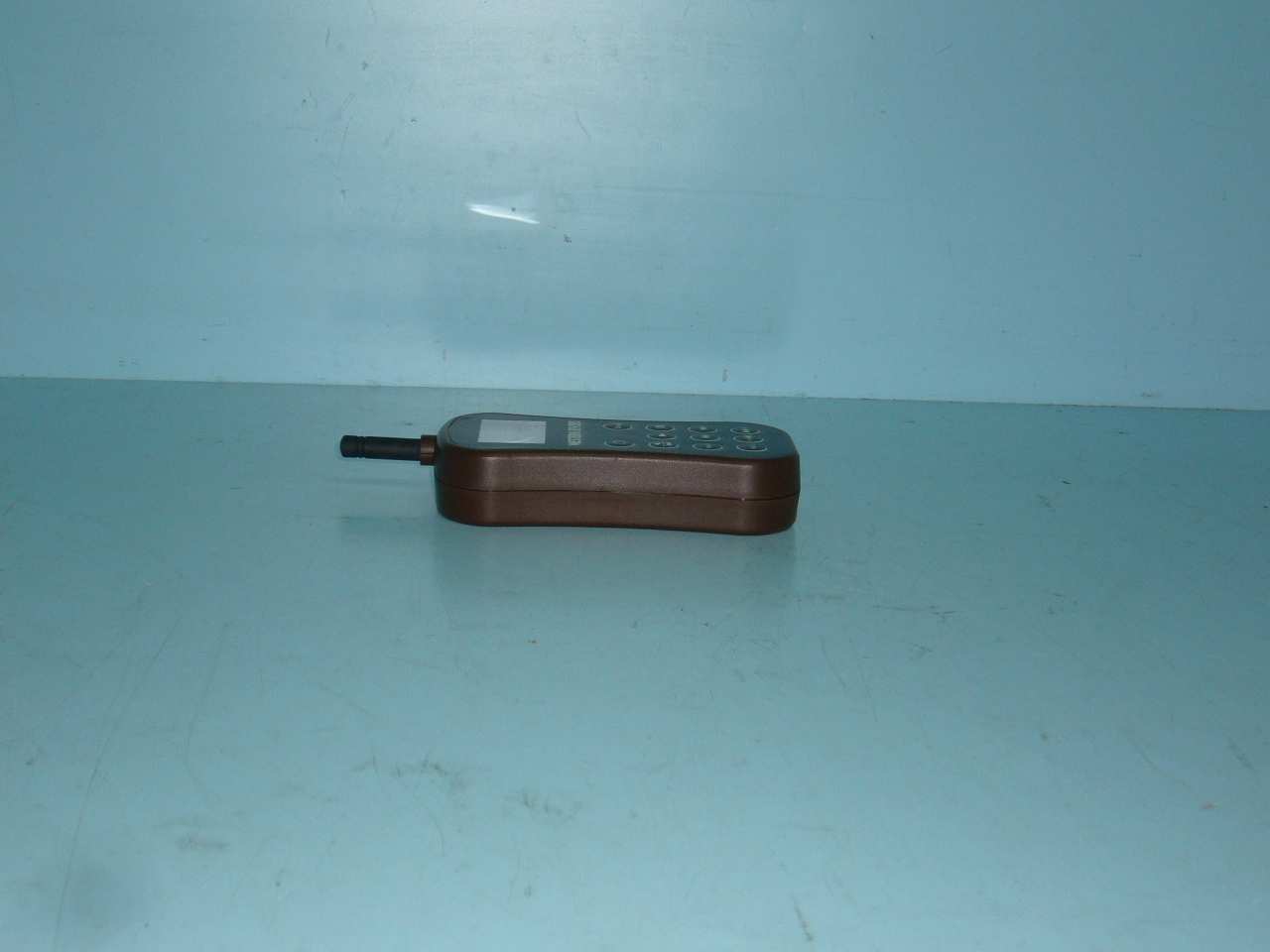

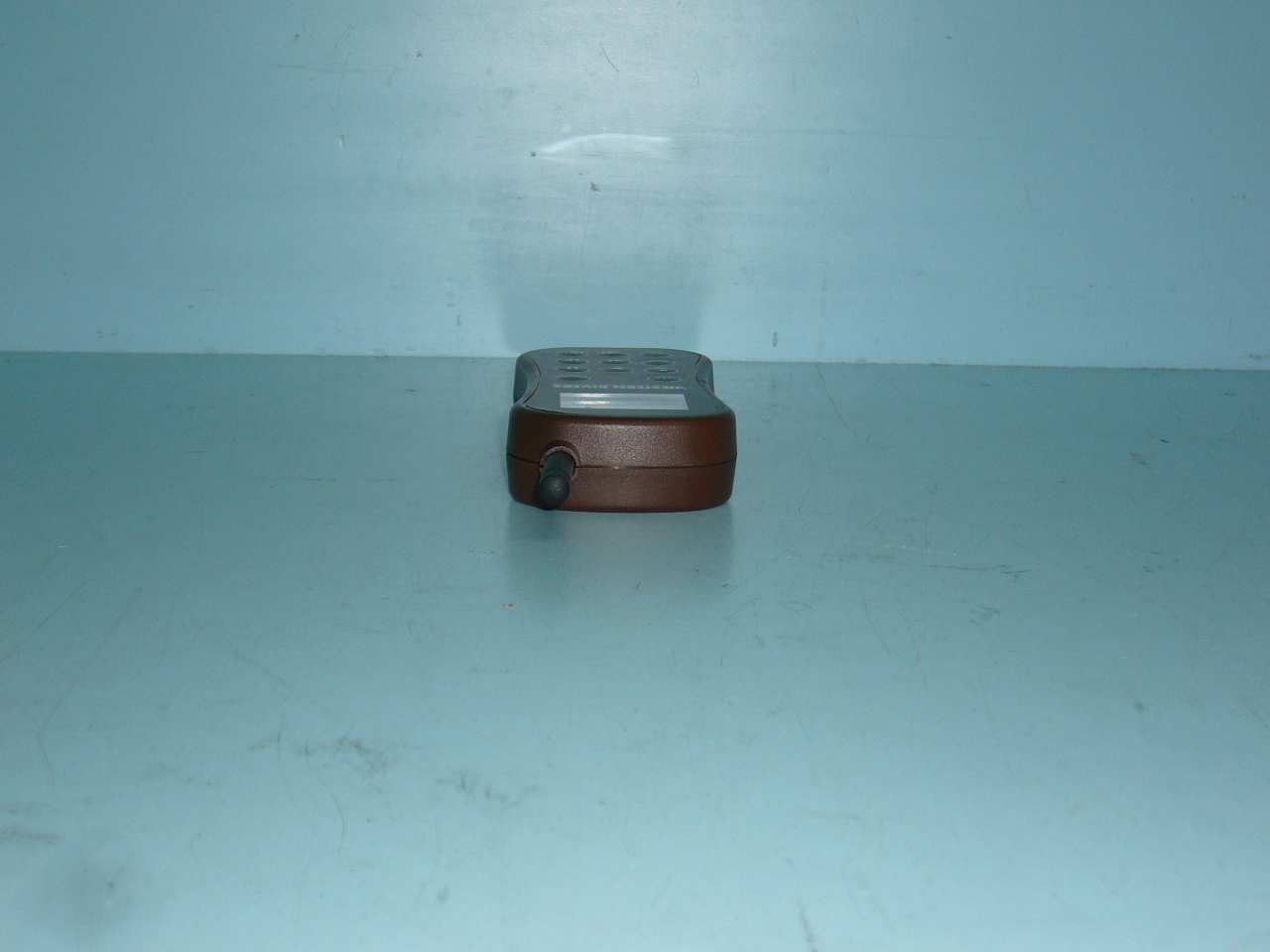

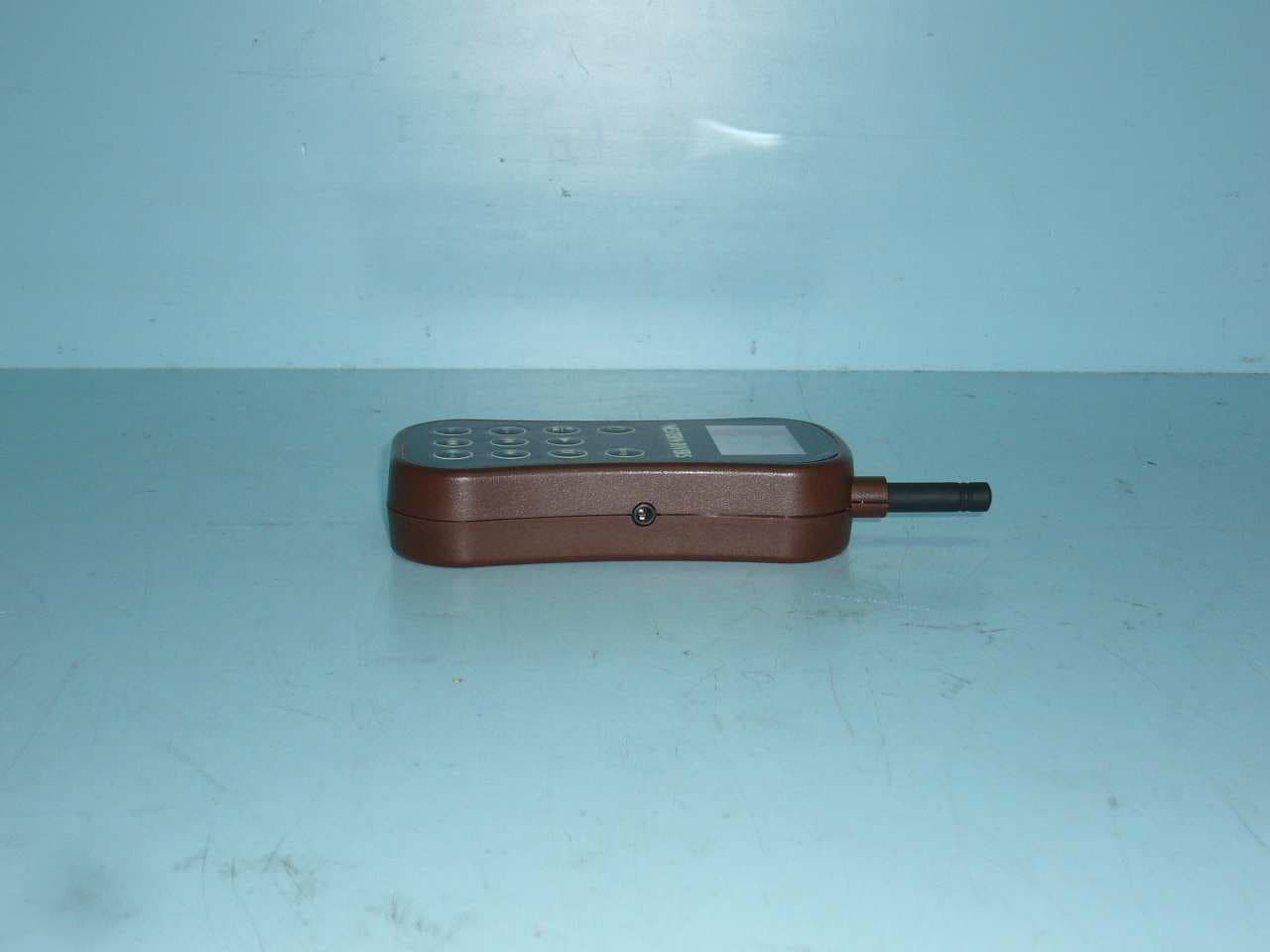

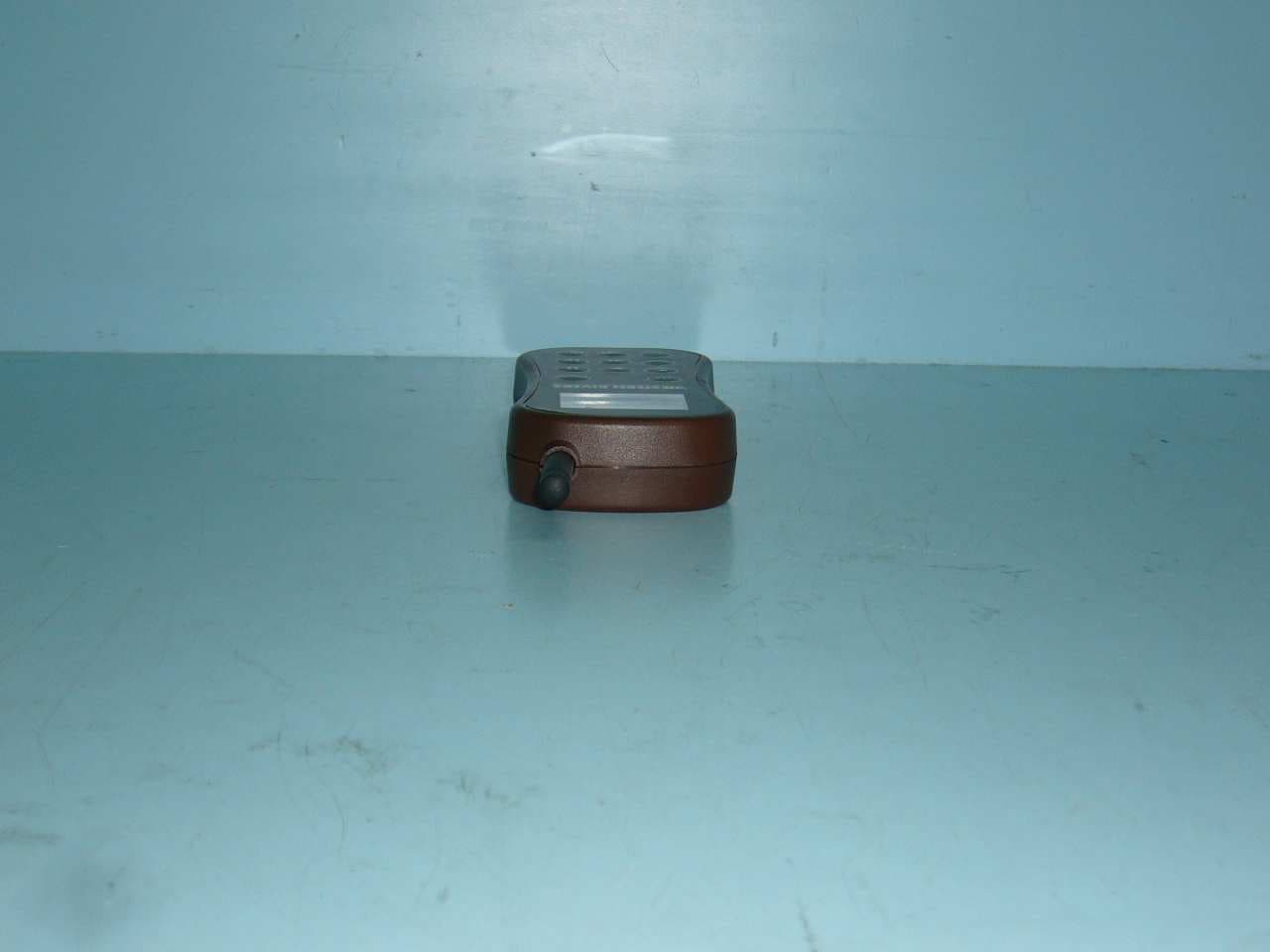

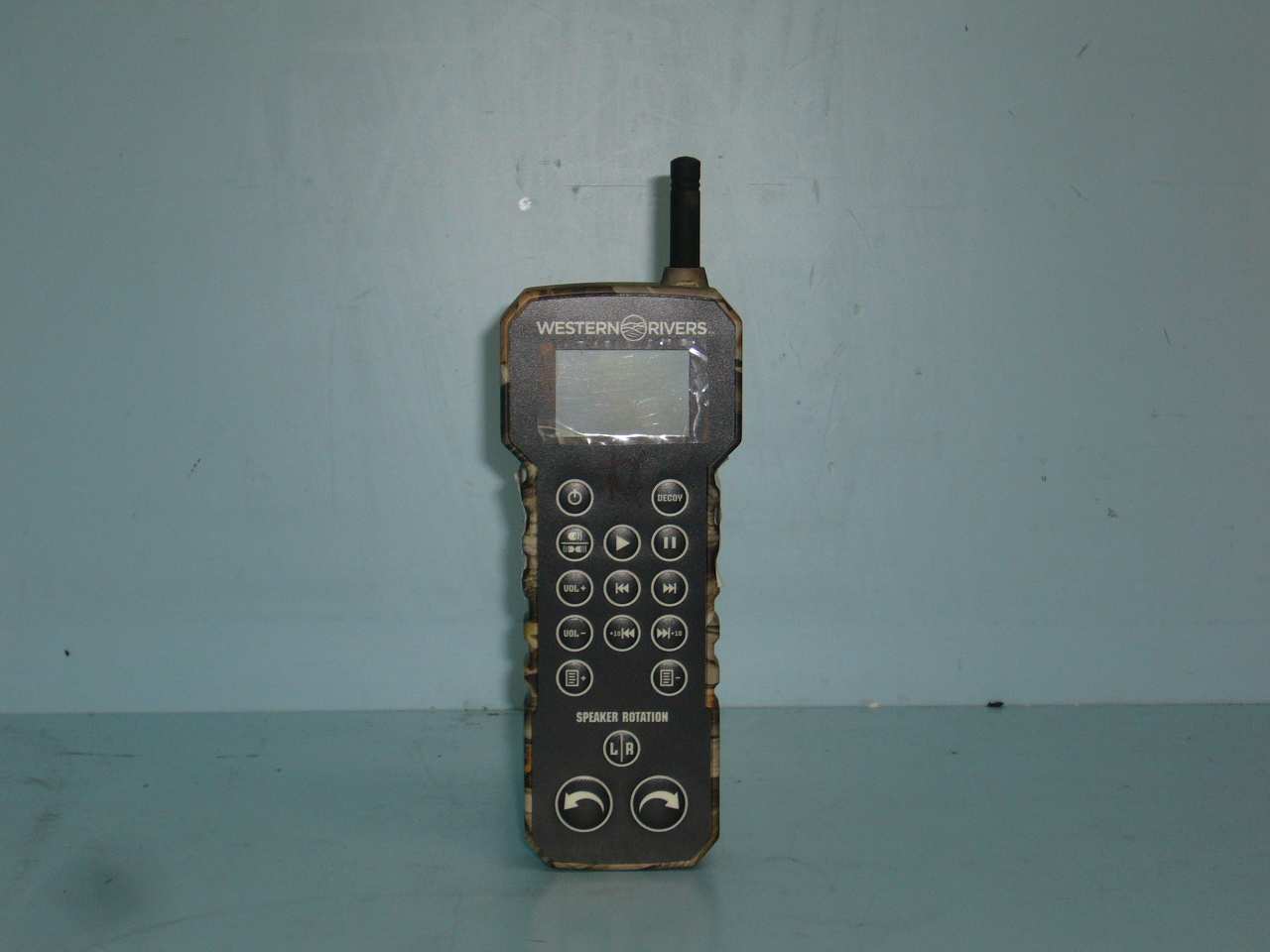

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT

Circuit Description Game Call Remote (WRC-Remote) (A) TX Board PCB
U6 is a RF transmission module at 433MHz frequency band.
ANT1 is an antenna of length ~45.8mm.
U1 is a micro-controller.
Y1 is a crystal at 8MHz. It supplies clock to the micro-controller U1.
J12 is a LCD display panel. (B) Keyboard
There is one ON/OFF key and 10 function keys. Operation: The remote obtains power from a 9V alkaline battery. It utilizes a micro-controller U1, a RF transmission module U6 and an antenna ANT1 to transmit operation commands to the game caller in the 433MHz band. The U1 detects key entry and sends encoded data in serial form to U6. The U6 modulates the data in 433MHz FSK format and delivers it to the antenna ANT1. There is a LCD display panel J12 to indicate the operating status of the remote.

Project: Game Call Remote (WRC-Remote) Date: Aug 9, 2012 QTY.Ref. LocationDescription / Value <A> TX Board 1U6IC(SMD) RF Transmitter Module 433MHz 1U1IC(SMD)TQFP-32 Microcontroller 1U3IC(SMD)SOIC-8 EEPROM memory 128Kbit 1U5IC(SMD)SOT-223 LDO 3.3V 1Y1CRYSTAL(SMD) 8.000MHz 30PPM 1D2DIODE(SMD)SOT-23 dual schottky diode common cathode 1D8DIODE(SMD) SOD-123 Schottky Diode 0.5A 40V 3Q2 Q3 Q6TRAN(SMD)SOT-23 NPN transistor 1Q1TRAN(SMD)SOT-23 PNP transistor 1L1FERRITE(SMD)0603 Ferrite bead 0.4A <60R at 100MHz> 1L2RES(SMD)0R 0805 1/8W +/-5% 6R1 R2 R5 R81 R101 R113RES(SMD)0R 0603 1/10W +/-5% 1R12RES(SMD)22R 0603 1/10W +/-5% 1R71RES(SMD)33R 0603 1/10W +/-5% 3R50 R53 R77RES(SMD)470R 0603 1/10W +/-5% 2R104 R107RES(SMD)1K 0603 1/10W +/-5% 4R24 R10 R25 R33RES(SMD)4.7K 0603 1/10W +/-5% 4R54 R58 R80 R102RES(SMD)10K 0603 1/10W +/-5% 2R34 R40RES(SMD)10K 0603 1/10W +/-1% 10 R7 R8 R9 R49 R55 R56 R64 R65 R66 R69 RES(SMD)47K 0603 1/10W +/-5% 2R46 R68RES(SMD)100K 0603 1/10W +/-5% 1R52RES(SMD)470K 0603 1/10W +/-5% 1R16RES(SMD)2.2M 0603 1/10W +/-5% 1R15RES(SMD)4.7M 0603 1/10W +/-5% 1R6RES(SMD)10M 0603 1/10W +/-5% 12 C3 C4 C5 C6 C7 C11 C13 C14 C22 C23 C27 C104 CAP(SMD)0603 0.1uF Y5V 50V +/-20% 3C20 C24 C33CAP(SMD)0805 10uF Y5V 10V +80-20% 1C26CAP(SMD)0603 1uF Y5V 16V +80-20% 5C105 C106 C107 C108 C109CAP(SMD)0805 1uF Y5V 16V +80-20% 3C112 C113 C116CAP(SMD)0805 2.2uF X5R 16V +/-10% 5C1 C2 C15 C16 C115CAP(SMD)0603 22pF NPO 50V +/-5% 2C8 C17E-Cap(SMD)22uF Electrolytic Cap 16V +/-20% 1J3JACK(LEADED) 3.5mm STEREO JACK 1 J11 CONNECTOR(LEADED) 2.0mm PIN HEADER SINGLE ROW STRAIGHT H=2.0mm 1J12LCD MODULE TRANSFLECTIVE + Green Backlight 1J4WIRE RED/BLACK UL1007 AWG26 1ANT1ANTENNA 433Mhz screw mounting 1PCB 2LAYER FR4 IMMERSION GOLD (Remote Gen2 V1.0) <B> Key Board 2R47 R48RES(SMD)2.2K 0603 1/10W +/-1% 2R39 R45RES(SMD)5.6K 0603 1/10W +/-1% 2R38 R44RES(SMD)10K 0603 1/10W +/-1% 2R37 R43RES(SMD)27K 0603 1/10W +/-1% 2R35 R41RES(SMD)68K 0603 1/10W +/-1% 2C12 C13CAP(SMD)0603 22pF NPO 50V +/-5% 1 J1 CONNECTOR(SMD)2.0mm FEMALE HEADER SINGLE ROW H=4.3mm 1Remote Keyboard membrane with dome switch 1PCB 2LAYER FR4 IMMERSION GOLD REV3.0

Project: Game Call Remote (WRC-Remote) RF Module (U6) BOM Date: Aug 16, 2012 QTY.Ref. LocationDescription / Value 1 R1 RES(SMD)0.22R 0402 1/16W +/-5% 1 C21 CAP(SMD)0402 33pF NPO 50V +/-5% 1 C5 CAP(SMD)0402 3.3pF NPO 50V +/-0.25pF 1 C6 CAP(SMD)0402 3.6pF NPO 50V +/-0.25pF 2 C7,C8 CAP(SMD)0402 6.8pF NPO 50V +/-0.5pF 2 C2.C18 CAP(SMD)0402 100pF NPO 50V +/-5% 2 C3.C20 CAP(SMD)0402 100nF X7R 50V +/-20% 2 C1.C19 CAP(SMD)0402 1uF X5R 16V +80%/-20% 1 C9 CAP(SMD)0402 220pF X7R 50V +/-10% 1 L5 INDUCTOR(SMD)0402 15nH 1/16W +/-5% 1 L4 INDUCTOR(SMD)0402 56nH 1/16W +/-5% 2 L1,L2 INDUCTOR(SMD)0402 100nH 1/16W +/-5% 1 X2 CRYSTAL(SMD) 30MHz 10PPM 1 U1 IC(SMD) RF Transmitter IC 433MHz 1PCB 2LAYER FR4 GOLD PLATED

Game Call Remote Tx V1.0 (SCH).sch-1 - Fri Aug 03 16:40:45 2012 Game Call Remote (WRC-Remote) Aug 1, 2012Aug 1, 2012 V1.0 TX Board SHEET: OF QQ Pei TONY TSANG APPROVED: ECO NO: LTR ABCD 6 5 4 3 2 1 DATE: DCBA REVISION RECORD SCALE: DRAWING NO: TITLE:COMPANY: RELEASED: DATED: DATED: QUALITY CONTROL:CHECKED: DATED: DATED: DRAWN: CODE: SIZE: REV: 3 1 SUGA ELECTRONICS LTD. A2 Revision History <CONFIDENTIAL> *** MCU *** Revision Changes V1.0 DateAug 1, 2012 First release. ISP Port 1 PD3 2 PD4 3 GND 4 VCC 5 GND 6 VCC 7 PB6 8 PB7 24 PC1 23 PC0 22 ADC7 21 GND 20 AREF 19 ADC6 18 AVCC 17 PB5 25 PC2 26 PC3 27 PC4 28 PC5 29 PC6 30 PD0 31 PD1 32 PD2 16 PB4 15 PB3 14 PB2 13 PB1 12 PB0 11 PD7 10 PD6 9 PD5 U1 ATMEGA168-20AU R2 0 Y1 8MHz R5 0 R6 10M C122p C2 22p C30.1u C40.1u C50.1u R14 OPEN C60.1u R15 4.7M R16 2.2M 1 A0 2 A1 3 A2 4 VSS 8 VCC 7 WP 6 SCL 5 SDA U3 24LC128 R24 4.7K R25 4.7K C7 0.1u R4947K C140.1u R52 470k R53 470 R50 470 C1522p C16 22p R77 470 R34 10K (1%) R40 10K (1%) TP11 TP12 TP13 TD1 TP16 C20 CAP_0805 10u 12345 J11 HEA_1X5_2.0MM 1234 J3 CON_JACK_TSH-3724 D3 DIO_TVS_0603 OPEN D4 DIO_TVS_0603 OPEN D5 DIO_TVS_0603 OPEN 135 6 42 J1 HEA_2X3_2.54MM OPEN MISO_D4 SCK_D5 MOSI_D3 3.3V I2C_DETECT LCD_CS 3.3V LCD_A0 BATT_DET SW2AREFSW1 A3.3V SCK_D5MISO_D4 MOSI_D3 LCD_D2LCD_D1LCD_D0PWR_ONRF_DATABL_EN LCD_WRLCD_RDSDASCLMCU_RST-LCD_D6LCD_D7 ON_OFF A3.3V AREF A3.3V 9V BATT_DET 3.3V 3.3V 3.3V 3.3V MCU_RST- SCLSDA 3.3V I2C_DETECT SCLSDA SDASCL A3.3V SW2SW1 KEY_ON1KEY_ON2 MCU_RST- 3.3V GND Game Call Remote Tx V1.0 (SCH).sch-2 - Fri Aug 03 16:40:45 2012 SHEET: OF Game Call Remote (WRC-Remote) APPROVED: ECO NO: LTR ABCD 6 5 4 3 2 1 DATE: DCBA REVISION RECORD SCALE: DRAWING NO: TITLE:COMPANY: RELEASED: DATED: DATED: QUALITY CONTROL:CHECKED: DATED: DATED: DRAWN: CODE: SIZE: REV: 3 2 SUGA ELECTRONICS LTD. TONY TSANG QQ Pei V1.0 A2 Aug 1, 2012Aug 1, 2012 TX Board *** LCD *** (+ve)(-ve) (Backlight LED plates) R101 0 C1040.1u C105 CAP_0805 1u L101 IND_0805 OPEN C106 CAP_0805 1u C107 CAP_0805 1u C108 CAP_0805 1u C109 CAP_0805 1u C111 CAP_0805 OPENC112 CAP_0805 2.2uC113 CAP_0805 2.2u C114 OPEN C11522p R104 1k R107 1k C116 CAP_0805 2.2u R113 0 R102 10k R18 OPEN R1 0 R3 OPEN R80 10k R4 OPEN C12 CAP_0805 OPEN TP1 1 J6P CON_BACKLIGHT_1_PLATE 1 J6N CON_BACKLIGHT_1_PLATE TD2TD3TD4TD8TD9 TD10TD11TD12TD13 1 CS1 2 RES 3 A0 4 WR 5 RD 6 D0 7 D1 8 D2 9 D3 10 D4 11 D5 12 D6 13 D7 14 VSS 15 VOUT 16 CAP3P 17 CAP1N 18 CAP1P 19 CAP2P 20 CAP2N 21 V4 22 V3 23 V2 24 V1 25 V0 26 C86 27 P/S 28 VDD 29 S 30 S J13 OPEN TD5TD6 1 CS1 2 RES 3 A0 4 WR 5 RD 6 D0 7 D1 8 D2 9 D3 10 D4 11 D5 12 D6 13 D7 14 VSS 15 VOUT 16 CAP3P 17 CAP1N 18 CAP1P 19 CAP2P 20 CAP2N 21 V4 22 V3 23 V2 24 V1 25 V0 26 C86 27 P/S 28 VDD J12 CON_LCD_WTG12864_FLIP VBL- VBL+ LCD_P_S LCD_P_S LCDVDD LCD_C86 LCD_C86 LCD_VOUT LCD_VOUT LCD_CAP3P LCD_CAP1N LCD_CAP1PLCD_CAP2P LCD_CAP2N LCD_CAP2PLCD_CAP2NLCD_CAP1PLCD_CAP3PLCD_CAP1N LCD_V4LCD_V3LCD_V2LCD_V1LCD_V0 LCD_V4LCD_V3LCD_V2LCD_V1LCD_V0 LCD_CS LCD_A0 LCD_RST- LCD_WR LCD#RD LCD_D0LCD_D1LCD_D2 MOSI_D3MISO_D4 SCK_D5 LCD_D6LCD_D7 LCDVDD LCDVDD 3.3V LCD_CS LCDVDD MCU_RST- LCD_RST-LCD#RD LCD_RD LCDVDD LCD_D0LCD_D1LCD_D2LCD_D6LCD_D7 LCD_A0 LCD_CS LCD_WR LCD_RST- LCD_P_S LCD_C86 LCD_VOUT LCD_CAP3P LCD_CAP1N LCD_CAP1PLCD_CAP2P LCD_CAP2N LCD_V4LCD_V3LCD_V2LCD_V1LCD_V0 LCD_CS LCD_A0 LCD_RST- LCD_WR LCD#RD LCD_D0LCD_D1LCD_D2 MOSI_D3MISO_D4 SCK_D5 LCD_D6LCD_D7 LCDVDD Game Call Remote Tx V1.0 (SCH).sch-3 - Fri Aug 03 16:40:46 2012 SHEET: OF TX Board Game Call Remote (WRC-Remote) Aug 1, 2012Aug 1, 2012 A2 V1.0 QQ Pei TONY TSANG SUGA ELECTRONICS LTD. 3 3 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED:QUALITY CONTROL: DATED: DATED: RELEASED: COMPANY:TITLE: DRAWING NO: SCALE: REVISION RECORD ABCD DATE: 1 2 3 4 5 6 DCBA LTR ECO NO: APPROVED: *** POWER, RF *** max 150mA (50 ohm) ANT1 C110.1u R46 100K R54 10k R55 47K Q1 3906 Q2 3904 R58 10k 1 OUT 2 GND 3 IN U5 LDO_SOT223_OGI C22 0.1u C230.1u R56 47K R64 47K 12 3 D2 DIO_BAT54C R65 47k Q3 3904 R66 47k C261u R68 100K + 12 J4 CON_BATTERY_PLATE_TX L2 IND_0805 0 C30 CAP_0805 OPEN R81 0 Q6 3904 R33 4.7k R69 47k C31OPEN R71 33 TP3 TP5 TP6 TP7 TP8 TP9 TP10 D6 DIO_TVS_0603 OPEN D7 DIO_TVS_0603 OPEN 1 J2 HOLE4.8MM_NP 1 J5 HOLE4.8MM_NP 1 J8 HOLE2.0MM_NP 1 J9 HOLE2.0MM_NP 1 J10 HOLE2.0MM_NP C17 CAP_E_DIA5 22u 16V D8 0.5A SOD-123 MBR0540 40V C130.1u C2410u C3310u F.B. L1 60R@100MHz 1 ANT 2 GND 3 NC 4 NC 5 VCC 6 GPIO_0 7 GPIO_1 8 GPIO_2 9 GND 10 SDO 11 SDI 12 SCK 13 SEL- 14 IRQ- 15 SHDN 16 GND U6 SMD-16 RFM43B R7 47k R8 47k R9 47k R10 4.7k C270.1u R11 OPEN R12 22 C8 CAP_E_DIA5 22u16V (P) G S D Q4AO3403OPEN VGS=12V, VDS=30V R13 OPEN Q53906OPEN R17 OPEN 3.3V 9V PWR_HOLD 3.3V 9V 3.3V ON_OFF PWR_ON PWR_HOLD 9V A3.3V BL_EN VBL- VBL+ 3.3V VIN KEY_ON1KEY_ON2 VBAT 3.3V VRF VRF LCD_D2LCD_D1 LCD_D0 RF_DATA LCD_D6 VRF LCD_A0 RF_SHDN RF_SHDN 3.3V LCD_RD Game Call Remote KBD V3.0 (SCH).sch-1 - Fri Aug 03 16:40:30 2012 Game Call Remote (WRC-Remote) V3.0 Key Board Aug 1, 2012Aug 1, 2012 SHEET: OF QQ Pei TONY TSANG APPROVED: ECO NO: LTR ABCD 6 5 4 3 2 1 DATE: DCBA REVISION RECORD SCALE: DRAWING NO: TITLE:COMPANY: RELEASED: DATED: DATED: QUALITY CONTROL:CHECKED: DATED: DATED: DRAWN: CODE: SIZE: REV: 1 1 SUGA ELECTRONICS LTD. A2 Revision History <CONFIDENTIAL> *** KBD *** Revision Changes V1.0 DateAug 1, 2012 First release. 1 2345 S1 DECOY R35 68K 1% 1 2345 S2 PAUSE R37 27K 1% 1 2345 S3 NEXT R38 10K 1% 1 2345 S4 NEXT10 R39 5.6K 1% 1 2345 S5 PLAY R472.2K 1% 1 2345 S6 PREV R4168K 1% 1 2345 S7 PREV10 R43 27K 1% 1 2345 S8 SPK1/2 R44 10K 1% 1 2345 S9 VOL+ R45 5.6K 1% 1 2345 S10 VOL- R48 2.2K 1% C122pC130.1u 12345 J1 HEA_1X5_2.0MM_FEMALE 1 2345 S11 ON/OFF SW1 SW2 SW2SW1KEY_ON1KEY_ON2 KEY_ON1KEY_ON2

STC Test Report Date : 2012-08-15 Page 1 of 24 No. : HM167701 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (SUE002): GSM LLC. 3385 ROY ORR BLVD., GRAND PRAIRIE, TEXAS, UNITED STATES, 75050. Manufacturer: GSM LLC. 3385 ROY ORR BLVD., GRAND PRAIRIE, TEXAS, UNITED STATES, 75050. Description of Sample(s): Submitted sample(s) said to be Product: Game Call Remote Brand Name: Maestro Game Call Model Number: WRC-Remote FCC ID: WGD-WRC-REMO Date Sample(s) Received: 2012-06-26 Date Tested: 2012-07-12 to 2012-08-10 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2011 and ANSI C63.4:2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2012-08-15 Page 2 of 24 No. : HM167701 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 24 Content Page 2-3 of 24 1.0 General Details 1.1 Test Laboratory Page 4 of 24 1.2 Applicant Details Page 4 of 24 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 24 Description of EUT operation 1.4 Date of Order Page 5 of 24 1.5 Submitted Sample(s) Page 5 of 24 1.6 Test Duration Page 5 of 24 1.7 Country of Origin Page 5 of 24 2.0 Technical Details 2.1 Investigations Requested Page 6 of 24 2.2 Test Standards and Results Summary Page 6 of 24 3.0 Test Results 3.1 Emission Page 7-11 of 24 3.2 Bandwidth Measurement Page 12-13 of 24 STC Test Report Date : 2012-08-15 Page 3 of 24 No. : HM167701 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 14 of 24 Appendix B Duty Cycle Correction During 100 msec Page 15-21 of 24 Appendix C Manual Operation Page 22 of 24 Appendix D Photographs Page 23-24 of 24 STC Test Report Date : 2012-08-15 Page 4 of 24 No. : HM167701 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant GSM LLC. 3385 ROY ORR BLVD., GRAND PRAIRIE, TEXAS, UNITED STATES, 75050. Manufacturer GSM LLC. 3385 ROY ORR BLVD., GRAND PRAIRIE, TEXAS, UNITED STATES, 75050. STC Test Report Date : 2012-08-15 Page 5 of 24 No. : HM167701 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Submitted sample(s) said to be Product: Game Call Remote Manufacturer: GSM LLC. 3385 ROY ORR BLVD., GRAND PRAIRIE, TEXAS, UNITED STATES, 75050. Brand Name: Maestro Game Call Model Number: WRC-Remote Rating: 9Vd.c. (“6F22” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a GSM LLC., Game Call Remote. The EUT is a remote control, which is used to control the Rx to start / pause audio-play function, and also control the sound volume level of the Rx. The 3.5mm port is used for communicating to the receiver to Sync the media file name between the Tx and Rx, The 3.5mm jack cable is provided with the same packet of receiver (and the test is done in the receiver model.). 1.4 Date of Order 2012-06-26 1.5 Submitted Sample(s): 2 Sample(s) 1.6 Test Duration 2012-07-12 to 2012-08-10 1.7 Country of Origin China STC Test Report Date : 2012-08-15 Page 6 of 24 No. : HM167701 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced …

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
