WGO602-1356-07RFID and bar code reader

IER 602 N0F8SEA1 FCC NOTICE FOR IER 602 RF MODULE NOTICE (U.S.A. only) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : 1. this device may not cause harmful interference, 2. this device must accept any interference received, including interference that may cause undesired operation. In accordance with FCC requirements, changes or modifications not expressly approved by IER could void the user’s authority to operate this product. NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instuctions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. NOTE : This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment . The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm (7.9 inches).  The certification labels are located on the bottom of the reader :

IER 602 Reader N0F102A - Rev. 1 Jan. 20, 2011 User Guide N0F102A IER 602 Reader User Guide Page 2 N0F102A - Rev. 1 Jan. 20, 2011 This document is the property of IER and may not be reproduced or communicated without prior written authorization IER SIEGE - HEADQUARTERS IER S.A.S. 3, rue Salomon de Rothschild 92156 SURESNES CEDEX France Tel. +33 (0)1 41 38 60 00 Fax +33 (0)1 41 38 62 75 IER DANS LE MONDE - IER WORLDWIDE CHINA IER Shanghai Kuen Yang Plaza #1101 798 Zhao Jia Bang Road SHANGHAI 200030 P.R.C. Phone: +86 (21) 6473 6792 Fax: +86 (21) 6473 6806 UNITED ARAB EMIRATES IER Dubai PO Box 37585 DUBAI Phone: +971 4 347 67 20 Fax: +971 4 347 67 03 GERMANY IER GmbH Wilhelm-Heinichen-Ring 4 29227 Celle Phone: +49 (0) 5141/980 89 14 Fax: +49 (0) 5141/980 89 20 UNITED KINGDOM IER Ltd Unit 4 & 5, Lakeside Industrial Estate Colnbrook-by-Pass Colnbrook, Berkshire, SL3 0EE Phone: +44 (0)175356 1400 Fax: +44 (0)175356 1410 SINGAPORE IER PTE Ltd 120 Lower Delta Road #14-13/16 Cendex Centre SINGAPORE 169208 Phone: +65 6276 6966 Fax: +65 6271 5563 UNITED STATES IER Inc. Dallas 2015 Midway Road Suite 118 CARROLLTON, TX 75006 Phone: +1 (972) 991 2292 Fax: +1 (972) 991 1044 Toll free: 1-800 624 8538 IER Inc. Belton 815 Kirkley Blvd BELTON, TX 76513 Phone: +1 (254) 933 5000 Fax: +1 (254) 933 5050 SPAIN IER Impresoras Especializadas, S.L. C/ Torre de Don Miguel, 23 E-28031 – MADRID Phone: +34 91 535 89 75 Fax: +34 91 535 89 76 IER 602 Reader User Guide Page 3 N0F102A - Rev. 1 Jan. 20, 2011 This document is the property of IER and may not be reproduced or communicated without prior written authorization NOTICE THIS PRODUCT COMES WITH A LITHIUM BATTERY. BATTERY REPLACEMENT MUST IMPERATIVELY BE PERFORMED BY QUALIFIED MAINTENANCE PERSONNEL. MOREOVER, ONLY IER APPROVED MODELS MAY BE USED DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS. The United States Federal Communications Commission (in 47 CFR 15.105) has specified that the following notice be brought to the attention of users of this product. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. In accordance with FCC requirements, changes or modifications not expressly approved by IER could void the user's authority to operate this product. Use of a shielded cable is required to comply within Class B limits of Part 15 of FCC Rules. NORWAY: This product is also designed for IT power distribution system with phase-to-phase voltage 230V. NORWAY – SWEDEN – FINLAND: Apparaten skall anslutas till jordat uttag när den ansluts till ett nätverk. IER 602 Reader User Guide Page 4 N0F102A - Rev. 1 Jan. 20, 2011 This document is the property of IER and may not be reproduced or communicated without prior written authorization THIS PRODUCT MUST EXCLUSIVELY BE CONNECTED TO AN ELECTRICAL CIRCUIT CONFORMING WITH THE VOLTAGE CHARACTERISTICS SPECIFIED BY THE NF EN 50160 STANDARD. In compliance with the European Directive 2002/96/CE relative to the management of Waste Electrical and Electronic Equipment (WEEE) implemented as of August 13, 2005, this product may not be disposed of with regular household waste. All products concerned by this directive are marked with the above symbol. The end owner of this product is responsible for either: Transferring the product to an authorized treatment facility where the product components, recognized to present a hazard to the environment and/or public health, will be recycled and recovered properly, or Consulting with the manufacturer for appropriate product waste management according to the terms of the manufacturer. IER 602 Reader User Guide Page 5 N0F102A - Rev. 1 Jan. 20, 2011 This document is the property of IER and may not be reproduced or communicated without prior written authorization CONTENTS 1 General ............................................................................................................. 6 1.1. General Description .................................................................................. 6 1.2. User Interface ............................................................................................ 7 1.3. Dimensions and Weight ............................................................................ 8 1.4. Optional Thermal Printer ........................................................................... 9 2 Reader Connections ....................................................................................... 10 2.1. Connecting the Reader ........................................................................... 11 3 Operation ........................................................................................................ 12 3.1. Operating Conditions and Power Requirements .................................... 12 3.1.1. Environment ..................................................................................... 12 3.…

Text truncated - open the document above for the full version.

GYL Technologies 21 rue de la Fuye Parc d’Activité de Lanserre 49610 JUIGNE SUR LOIRE Tel : 02 41 57 57 40 – Fax : 02 41 45 25 77 September 2, 2011 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: WGO602-1356-07 Product Name: IER 602A Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: • Block diagram • Schematics • operational description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. For IER SAS 3 rue Salomon de Rothschild 92150 SURESNES France By Olivier ROY, technical manager of Gyl Technologies as authorized agent of IER Tel.: (33)241575740

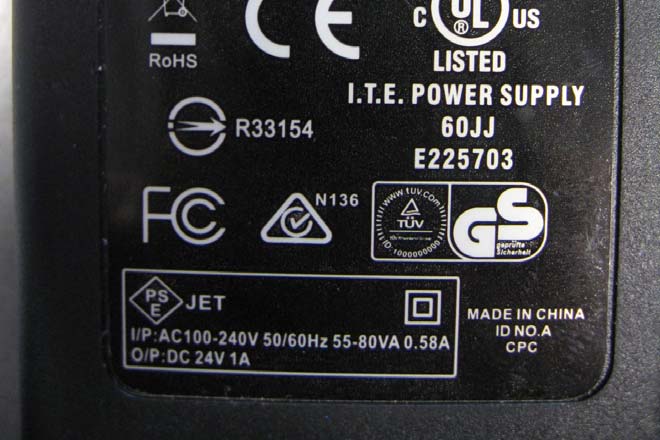

EQUIPMENT FCC ID : WGO602-1356-07 Exhibit 3 EXTERNAL PHOTOS Page : 1/3 Written by : O. ORY 2 September 2011 Test report # : 060151-CC-2-a 1.2 PRODUCT PICTURES: Front left view Rear right view EQUIPMENT FCC ID : WGO602-1356-07 Exhibit 3 EXTERNAL PHOTOS Page : 2/3 Written by : O. ORY 2 September 2011 Test report # : 060151-CC-2-a Connector view below view For label, see Exhibit 1 EQUIPMENT FCC ID : WGO602-1356-07 Exhibit 3 EXTERNAL PHOTOS Page : 3/3 Written by : O. ORY 2 September 2011 Test report # : 060151-CC-2-a Power adaptor

EQUIPMENT FCC ID : WGO602-1356-07 Exhibit 1 LABEL Page : 1/2 Written by : O. ROY 2 September 2011 Test report # : 060151-CC-2-a 1 RODUCT LABELLING 1.1 FCC ID LABEL EQUIPMENT FCC ID : WGO602-1356-07 Exhibit 1 LABEL Page : 2/2 Written by : O. ROY 2 September 2011 Test report # : 060151-CC-2-a 1.2 FCC ID LOCATION Visible from outside (under the equipment). Labels

EQUIPMENT FCC ID : WGO602-1356-07 Exhibit 9 INTERNAL PHOTOS Page : 1/7 Written by : O. ROY 2 September 2011 Test report # 060151-CC-2-a 1.2 DETAILS: 1.2.1 GENERAL INSIDE VUE EQUIPMENT FCC ID : WGO602-1356-07 Exhibit 9 INTERNAL PHOTOS Page : 2/7 Written by : O. ROY 2 September 2011 Test report # 060151-CC-2-a 1.2.2 RFID MODULE Antenna position: Antenna EQUIPMENT FCC ID : WGO602-1356-07 Exhibit 9 INTERNAL PHOTOS Page : 3/7 Written by : O. ROY 2 September 2011 Test report # 060151-CC-2-a EQUIPMENT FCC ID : WGO602-1356-07 Exhibit 9 INTERNAL PHOTOS Page : 4/7 Written by : O. ROY 2 September 2011 Test report # 060151-CC-2-a 1.2.3 APPLICATION BOARD EQUIPMENT FCC ID : WGO602-1356-07 Exhibit 9 INTERNAL PHOTOS Page : 5/7 Written by : O. ROY 2 September 2011 Test report # 060151-CC-2-a 1.2.4 BAR CODE MANAGING BOARD RFID Board EQUIPMENT FCC ID : WGO602-1356-07 Exhibit 9 INTERNAL PHOTOS Page : 6/7 Written by : O. ROY 2 September 2011 Test report # 060151-CC-2-a 1.2.5 GRAPHICAL DISPLAY BOARD EQUIPMENT FCC ID : WGO602-1356-07 Exhibit 9 INTERNAL PHOTOS Page : 7/7 Written by : O. ROY 2 September 2011 Test report # 060151-CC-2-a With the display

The reproduction of this document is authorised only if integral. Any partial reproduction must be authorised by GYL Technologies. This document results of test applied on one sample. It doesn’t prejudge of conformity of all products to the tested sample. GYL technologies Parc d’activités de Lanserre 21 rue de la Fuye 49610 JUIGNE SUR LOIRE FRANCE Tel. : +33 (0) 2.41.57.57.40 Fax : +33 (0) 2.41.45.25.77 TEST REPORT According to FCC, CFR 47 Part 15 IER 602 Reader FCC ID : WGO602-1356-07 N°060151-CC-2-a FCC CERTIFICATION TEST REPORT EQUIPMENT FCC ID : WGO602-1356-07 The 18 pages of this report are not sharable 2 Identification : 060151-CC-2-a FCC registration # 90469 Summary 1 REFERENCE AND RECORD OF REVISIONS OF THE TEST REPORT: ....................................................................... 4 2 INTERPRETATION AND REMARKS: ................................................................................................................................... 4 2.1 RESULTS: 4 3 GENERAL INFORMATION:..................................................................................................................................................... 5 3.1 APPLICANT: 5 3.2 TEST DATE: 5 3.3 TEST SITE: 5 4 INTRODUCTION:....................................................................................................................................................................... 6 5 MEASUREMENT EQUIPMENT LIST: .................................................................................................................................... 6 CONFIGURATION OF TESTED SYSTEM:................................................................................................................................... 7 5.1 List of cables: 7 5.2 Auxiliary equipment: 8 6 EXERCISING TEST CONDITIONS: ....................................................................................................................................... 9 7 CONFORMANCE STATEMENT: ............................................................................................................................................ 9 7.1 STANDARDS REFERENCED FOR THIS REPORT: 9 7.2 JUSTIFICATION: 9 8 TEST ACCORDING TO CFR 47 PART 15 AND PART 18 .............................................................................................10 8.1 CONDUCTED EMISSIONS MEASUREMENTS: 10 8.1.1 RESULTS:................................................................................................................................................................... 10 8.1.2 INTERPRETATION AND REMARKS: ...................................................................................................................... 12 8.2 INTENTIONAL RADIATOR OPERATION FCC PART 15.225: 13 8.2.1 Field strength for the emitter ...................................................................................................................................... 13 8.2.2 20 dB BW ................................................................................................................................................................... 13 8.2.3 Field strength around the emitter (15.225) .................................................................................................................. 14 8.3 SPURIOUS EMISSIONS (15.225 and 15.209) 15 8.3.1 Measurement from 9 kHz to 150 kHz ......................................................................................................................... 15 8.3.2 Measurement from 150 kHz to 30 MHz...................................................................................................................... 15 8.4 Exposition of public to radio frequency energy 18 8.5 Antenna requirements 18 8.6 Measurement of frequency stability 18 FCC CERTIFICATION TEST REPORT EQUIPMENT FCC ID : WGO602-1356-07 The 18 pages of this report are not sharable 3 Identification : 060151-CC-2-a FCC registration # 90469 OTHER ASSOCIATED FILES: 060151b Exhibit 1 ID label FCC ID WGO602-1356-07 060151b Exhibit 3 External Photographs FCC ID WGO602-1356-07 060151b Exhibit 4 RFID Bloc diagram FCC ID WGO602-1356-07 060151b Exhibit 5a schematics d33317b_1_graphical display card 060151b Exhibit 5b schematics d33342a_2_memory_extend 060151b Exhibit 5c schematics d93030b_application_board 060151b Exhibit 5d schematics D33355A1_Bar code managing card 060151b Exhibit 7 Test set up photos FCC ID WGO602-1356-07 060151b Exhibit 8 User's Manual N0F8SEA1_RF FCC ID WGO602-1356-07 060151b Exhibit 8a User's Guide IER602 FCC ID WGO602-1356-07 060151b Exhibit 9 Internal Photographs FCC ID WGO602-1356-07 060151b Exhibit 12 Operational description FCC ID WGO602-1356-07 060151b Exhibit 13 cover letter FCC ID WGO602-1356-07 FCC CERTIFICATION TEST REPORT EQUIPMENT FCC ID : WGO602-1356-07 The 18 pages of this report are not sharable 4 Identification : 060151-CC-2-a FCC registration # 90469 1 Reference and record of revisions of the test report: Test report number : Revision : Number of pages Modification reasons : 060151-CC-2-a a 18 Creation, June 30, 2011 Redactor : O. ROY Date of writing : August 26,2011 Technical control: O. ROY Quality Control: D.DAUZON 2 Interpretation and remarks: 2.1 RESULTS: This equipment complies with the rules of the FCC part 15.225 and related sections for RFID function. This equipment complies with the rules of the FCC section 15.107, 15.109 class B and related sections concerning its non intentional radiator functions (ITE). This equipment complies with the rules of the FCC part 18 concerning the metal detection function. FCC CERTIFICATION TEST REPORT EQUIPMENT FCC ID : WGO602-1356-07 The 18 pages of this report are not sharable 5 Identification : 060151-CC-2-a FCC registration # 90469 3 GENERAL INFORMATION: 3.1 APPLICANT: IER SAS 3 Rue Salomon de Rothschild 92150 SURESNES France 3.2 TEST DATE: June 6, 2011 to June30, 2011 3.3 TEST SITE: GYL Technologies Parc d’activités de Lanserre 49610 Juigné sur Loire – France FCC registration Nu…

Text truncated - open the document above for the full version.

EQUIPMENT FCC ID : WGO602-1356-07 Exhibit 7 TEST SET UP PHOTOS Page : 1/2 Written by : O. ROY 2 September 2011 Test report # : 060151-CC-2-a RADIATED FIELD TEST SET UP Antenna in front of the equipment with turntable at 0° EQUIPMENT FCC ID : WGO602-1356-07 Exhibit 7 TEST SET UP PHOTOS Page : 2/2 Written by : O. ROY 2 September 2011 Test report # : 060151-CC-2-a CONDUCTED TEST SET UP
