WH2-2611DPAGING TRANSCEIVER

MMC-2611D User Manual Contents Contents .............................................................................................. 2 1. Summary ......................................................................................... 3 2. Appearance ...................................................................................... 3 3. Parameter ........................................................................................ 4 4. Main Functions ............................................................................... 5 5. Software setup ................................................................................. 6 5.1 Function Introduction ........................................................ 7 5.2 Edit Function ................................................................... 13 5.2.1 Pager Registration ................................................. 13 5.2.2 Palm Registration .............................................. 14 5.2.3 Call Button Registration ....................................... 15 5.2.4 Manual Send Data................................................. 16 5.2.3 Data Download ..................................................... 17 6. Usage ............................................................................................. 18 7. Troubleshoots ................................................................................ 20 8. FCC Important Note ..................................................................... 21 FCC Part 15.19 Warning Statement .......................................... 21 FCC Part 15.21 Warning Statement .......................................... 21 FCC Part 15.105(b) Warning Statement ................................... 22 1. Summary MMC-2611D works with all MMCall call buttons. It sends alphanumeric message to pager MMC-NC-8E. The functions are: wireless alphanumeric message paging, wireless deletion, duty repage, dispatch, urge dishes, monitoring function, USB data download and program update etc. It is suitable for restaurants, hotels, banks, bars etc. 2. Appearance 3. Parameter 3.1. Parameter Category Parameter Dimension 200mm * 173mm *37mm Power supply 12V/ 1.5A Outside Indicator Power supply,RX,TX Configurable transmitting frequencies 462.750MHZ, 462.775MHZ, 462.800MHZ, 462.825MHZ, 462.850MHZ, 462.875MHZ, 462.900MHZ, 462.925MHZ Receiving frequency 433.500MHZ Paging No. in cache 40 Repage No. in cache 20 Transmitting power 100mW Sensibility -106dB Antenna Outside BNC Socket Capacity Call button——200 Pager ——20 Palm transmitter——9 Message length 48 digits or letters Signaling standard POCSAG，numeric, english and chinese message supported Temperature -30°C— +65°C Table 3.1 Paging host parameter list 4. Main Functions Main functions are as following： 1. Wireless receiving function. The host can receive the signals from call button and palm transmitter with feature code, and transmit the message to corresponding pager. 2. The pager has to be MMC-NC-8E, which can display numeric and english message. 3. Text preprogrammed function. The paging unit, such as, table, room, bed etc. and the paging category such as call, bill, water can be preprogrammed to the host and related with corresponding call button. When the button is pressed, the pager will display a complete message, such as Table No.5 calls for service. 4. Repage function. Repage times and interval can be setup between the waiter and his directors. If repaging is not finished yet while you cancel it, the message already sent will be automatically deleted. 5. Palm transmitter can be used for dispatching or urging dishes function. 6. Software sending message function. With computer software, the preprogrammed message can be edited to page the programmed pager for interior staff management. 7. Monitoring function. Connected directly with the computer through USB interface, it can monitor the messages from call buttons and palm transmitters for evaluating staff’ working efficiency. If the installation position of the host can not be connected with the computer, the monitor box can be used for the monitoring function. 8. USB data download and upload , program update function available. 5. Software setup Before using the paging host, please first setup the host parameter, pager, call button and palm transmitter. Use the CA software to edit and download the information. The software communication with the paging host is USB mode. Notes: While using, USB can not power on the host, so please connect it with power supply. Otherwise the transmitting and receiving function can not be used. 5.1 Function Introduction The software interface as picture 5.1 shows, mainly includes pager list, palm transmitter list, call button list and manual send data. In the setup column, there are file, system setup, read data, download data. Picture 5.1 TA Software Interface 1、File As picture 5.2 shows, it’s mainly the database operation, including New file, Open, Save as, Delete and Exit. Notes: There should be a database while using the software. For the first time use, it’s necessary to setup a new database, you can choose TA or CA database. The two kinds of database are not compatible with each other. Picture 5.2 File 2. System Setup System setup including initialization, host parameter, program update, call type registration and pager check time. Picture 5.3 System Setup （1）Initialization It will initialize all the host parameters. （2）Host Parameter Host parameter as picture 5.4, room No. Switch is temporarily invalid, the monitor function needs to work with monitoring software, it can be setup as transmitting data, USB passback, net page passback(customization required), among which transmitting data monitor needs to setup pager receiver No., other modes do not need to setup the No. Repage setup, it can setup the pager and its director repage times and interval. Transmission mode, there are two modes: inner transmission mode and 485 output, this is valid only for CA. For …

Text truncated - open the document above for the full version.

··········------ May 10, 2020 Federal Communications Commission Authorization and Evaluation Division, 7 435 Oakland Mills Road Columbia, MD 21046 USA Re: FCC ID: WH2-2611D Gentleman: This equipment meets the requirements of the FCC Rules, Part · 90.2030) · (7) and 90.35(8)(3), as applicable. Pro gramming of this product's transmit frequencies can be performed ONLY by the manufacturer, authorized service and maintenance personnel. The operator cannot program transmit frequencies using the equipment's ex ternal operating .controls. Sincerely, 8 {?IA)L; W0tttj• (Name of Applicant)

SHENZHEN CONSTANT ELECTRONICS CO., LTD. May 10, 2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: WH2-2611D Pursuant t o Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as o utlined below: Exhibit Type File Name Part List, Circuit Desc. 261 lD Parts L ist.pdf, 2611D Circuit Description Schematics Diagram(s) 261 lD Schematics.pdf Block diagram, Tune Up Procedure 2611D Diagram.pdf, 2611D Tune Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Baoli Wang/ General Manager Shenzhen Constant Electronics Co., Ltd.

SHENZHEN CONSTANT ELECTRONICS CO., LTD. May 15, 2020 Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 Subject: Application for certification of FCC ID: WH2-2611D To Whom It May Concern: We, the undersigned, hereby authorize Sharon Hoffman at Timco Engineering, Inc. on our behalf, to apply for certification on our equipment referenced above. Any and all acts carried out by Timco Engineering, Inc., on our behalf, shall have the same effect as acts of o ur own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, the application, are not subject to denial of federal benefits pursuant t o Section 5301 of the anti-Drug Act o f 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Baoli Wang/ General Manager Shenzhen Constant Electronics Co., Ltd.

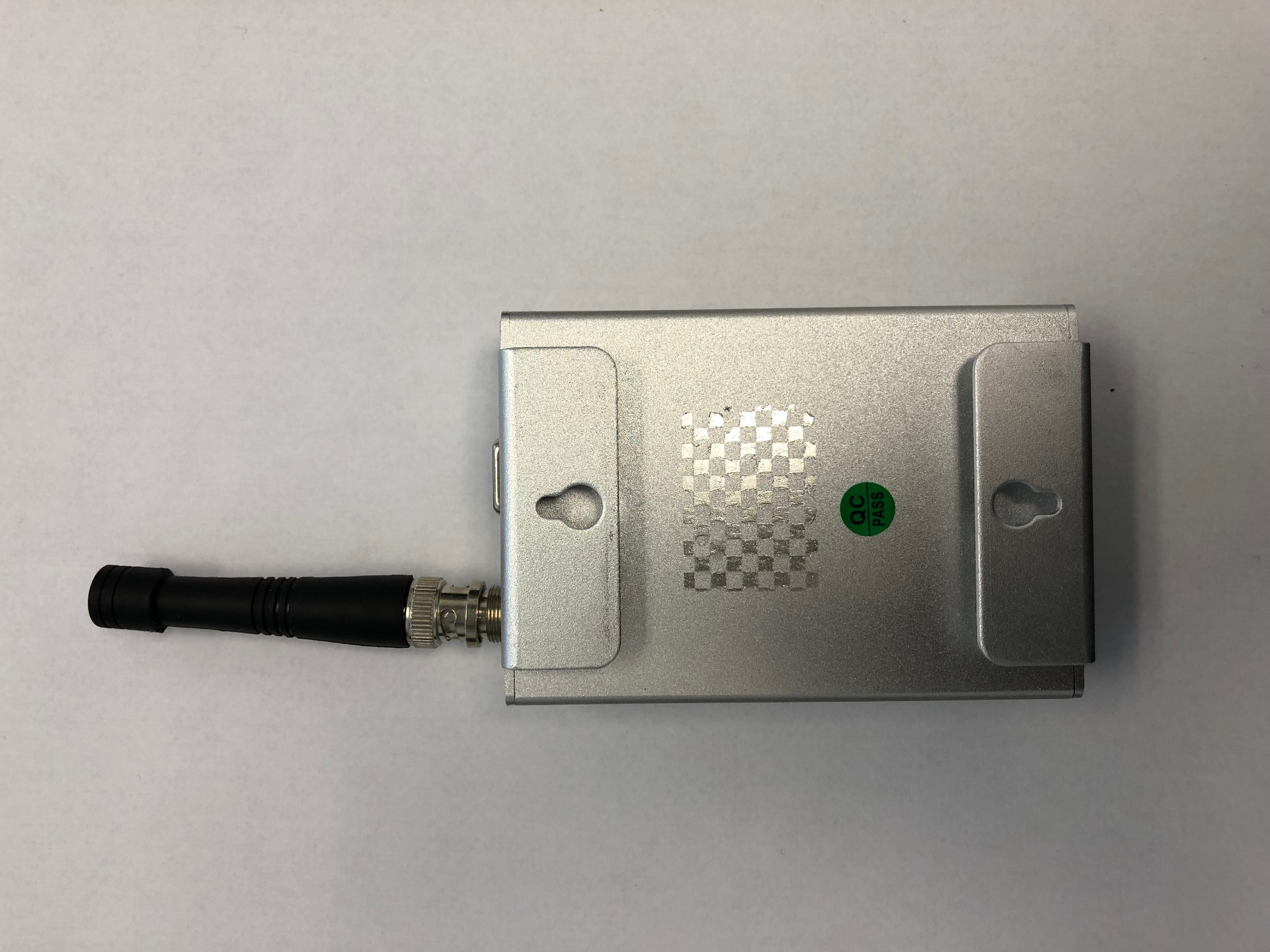

APPLICANT: SHENZHEN CONSTANT ELECTRONICS CO., LTD. FCC ID: WH2-2611D EXTERNAL PHOTOS

APPLICANT: SHENZHEN CONSTANT ELECTRONICS CO., LTD. FCC ID: WH2-2611D INTERNAL PHOTOS

849 NW STATE ROAD 45 PHONE: 888.472.2424 OR 352.472.5500 NEWBERRY, FL 32669 USA EMAIL: [email protected] WEB: HTTP://WWW.TIMCOENGR.COM An IIA Company RF Exposure Evaluation Report APPLICANT SHENZHEN CONSTANT ELECTRONICS CO., LTD ADDRESS F5, NO. 2 BLDG., EAST BRIGHT INDUSTRY REGION NO. 83 DABAO ROAD BAO'AN 33 DISTRICT SHENZHEN, GUANGDONG CHINA FCC ID WH2-2611D MODEL NUMBER MMC-2611D PRODUCT DESCRIPTION PAGING TRANSCEIVER DATE SAMPLE RECEIVED 09/18/2019 FINAL TEST DATE 4/14 /2020 PREPARED BY Franklin Rose TEST RESULTS PASS FAIL Report Number Report Version Description Issue Date 2508AUT19 MPETestReport_ Rev1 Initial Issue 4/14/2020 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. TABLE OF CONTENTS GENERAL REMARKS ........................................................................................................ 2 GENERAL INFORMATION ................................................................................................ 3 ANTENNA INFORMATION ............................................................................................... 3 MPE DISTANCE ............................................................................................................... 4 MPE CALCULATION ......................................................................................................... 5 Applicant: SHENZHEN CONSTANT ELECTRONICS CO., LTD FCC ID: WH2-2611D Report: 2508AUT19 MPE_TestReport_Rev1 Page 2 of 5 GENERAL REMARKS Summary The device under test does: Fulfill the general approval requirements as identified in this test report and was selected by the customer. Not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made at: Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Designation #: US1070 Prepared by: Name and Title Franklin Rose, Project Manager / EMC Testing Technician Date 4/14/2020 Applicant: SHENZHEN CONSTANT ELECTRONICS CO., LTD FCC ID: WH2-2611D Report: 2508AUT19 MPE_TestReport_Rev1 Page 3 of 5 GENERAL INFORMATION EUT Description PAGING TRANSCEIVER Model Number 2611D EUT Power Source ☐110–120Vac, 50– 60Hz ☒ DC Power (12 VDC) ☐ Battery Operated Test Item ☐ Engineering Prototype ☒ Pre-Production ☐ Production Type of Equipment ☒ Fixed ☐ Mobile ☐ Portable Antenna Connector External, BNC Type Test Conditions The temperature was 26ºC Relative humidity of 50%. Modification to the EUT No Modification to EUT. Applicable Standards FCC CFR 47 Part 2.1091 Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Designation #: US1070 ANTENNA INFORMATION Antenna is Provided Type Max Gain (dBi) YES Whip/monopole 0.0 RF POWER OUTPUT Frequency (MHz) Output Power (dBm) Output Power (W) 462.75 27.44 0.56 Applicant: SHENZHEN CONSTANT ELECTRONICS CO., LTD FCC ID: WH2-2611D Report: 2508AUT19 MPE_TestReport_Rev1 Page 4 of 5 MPE DISTANCE Separation Distance (cm) Pow e r De nsity (mW/cm 2 ) Separation Distance (cm) Pow e r De nsity (mW/cm 2 ) 0.119 mW/cm2 Controlled Occupational RF Exposure/MPE Guideline 20 cm 0.119 mW/cm2 Uncontrolled Public RF Exposure/MPE Guideline 20 cm Applicant: SHENZHEN CONSTANT ELECTRONICS CO., LTD FCC ID: WH2-2611D Report: 2508AUT19 MPE_TestReport_Rev1 Page 5 of 5 MPE CALCULATION ParameterValueUnit EUT Form Factor Lowest Frequency462.750 MHz Highest Frequency462.925 MHz Maximum Power0.500 Tune Up Tolerance0.100 Duty Cycle100% % Antenna Gain0.000 Coax Loss0.000 EIRP0.600W EUT Parameters RF Exposure Field Strength Limits Separation Distance Calculation Method Uncontrolled Sep. Distance @ 0.309 mW/cm2 Controlled Sep. Distance @ 1.543 mW/cm2 EUT Power Density at 20 cm Calculation Method EUT Pow er Density @ 20 cm Occupational Persons may be exposed up to: Worst-Case RF Field Strength Limit for Controlled Use (Controlled Environment) Mandatory distance from radiating element: 0.119 mW/cm2 1.543 mW/cm2 Distance from Radiating Element (cm) = SQRT (P(mW) / 4π S(mW/cm 2 )) 12.44 cm 5.56 cm Power Density (mW/cm 2 ) = P(mW) / 4π R(cm) 2 Calculations Public Persons may be exposed up to: Worst-Case RF Field Strength Limit for the General Public (Uncontrolled Environment) 0.309 mW/cm2

849 NW STATE ROAD 45 PHONE: 888.472.2424 OR 352.472.5500 NEWBERRY, FL 32669 USA EMAIL: [email protected] WEB: HTTP://WWW.TIMCOENGR.COM An IIA Company FCC CFR 47 Part 90 Test Report APPLICANT SHENZHEN CONSTANT ELECTRONICS CO., LTD ADDRESS F5, NO. 2 BLDG., EAST BRIGHT INDUSTRY REGION NO. 83 DABAO ROAD BAO'AN 33 DISTRICT SHENZHEN, GUANGDONG CHINA FCC ID WH2-2611D MODEL NUMBER MMC-2611D PRODUCT DESCRIPTION PAGING TRANSCEIVER DATE SAMPLE RECEIVED 09/18/2019 FINAL TEST DATE 4/14/2020 TESTED BY Franklin Rose APPROVED BY Tim Royer TEST RESULTS PASS FAIL Report Number Report Version Description Issue Date 25080AUT19 PT90_TestReport_ Rev1 Initial Issue 4/14/2020 25080AUT19 PT90_TestReport_ Rev2 Corrected Emission Mask 08/06/2020 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. This test report and the data contained here-in relates only to the sample tested. TABLE OF CONTENTS GENERAL REMARKS ........................................................................................................ 2 GENERAL INFORMATION ................................................................................................ 3 RESULTS SUMMARY ........................................................................................................ 4 RF POWER OUTPUT ........................................................................................................ 5 PART 2.1033 (C)(8) DC INPUT INTO FINAL AMPLIFIER ................................................................... 6 OCCUPIED BANDWIDTH ................................................................................................. 7 TEST DATA: 9K99F1D ....................................................................................................... 8 EMISSION MASKS .......................................................................................................... 9 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) ................................. 11 SPURIOUS EMISSIONS - NARROWBAND FM ...................................................................... 12 FIELD STRENGTH OF SPURIOUS EMISSIONS ................................................................ 14 FREQUENCY STABILITY ................................................................................................ 16 STATEMENT OF MEASUREMENT UNCERTAINTY ............................................................. 19 EMC EQUIPMENT LIST .................................................................................................. 20 Applicant: SHENZHEN CONSTANT ELECTRONICS CO., LTD. FCC ID: WH2-2611D Report: 25080AUT19 PT90_Rev2 Page 2 of 20 GENERAL REMARKS Summary The device under test does: Fulfill the general approval requirements as identified in this test report and was selected by the customer. Not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made at: Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Designation #: US1070 Tested by: Name and Title Tim Royer, Project Manager/Testing Engineer Date 4/14/2020 Reviewed and Approved by: Name and Title Franklin Rose, Project Manager / EMC Testing Technician Date 4/14/2020 Applicant: SHENZHEN CONSTANT ELECTRONICS CO., LTD. FCC ID: WH2-2611D Report: 25080AUT19 PT90_Rev2 Page 3 of 20 GENERAL INFORMATION EUT Description PAGE TRANSCEIVER FCC ID WH2-2611D Model Number MMC-2611D Operating Frequency 462.750, 462.775, 462.800, 462.825, 462.850, 462.875, 462.900, 462.925 Test Frequencies 462.750 MHz Type of Emission 10K5F1D (Narrowband Digital FM) Modulation FM EUT Power Source 110–120Vac/50– 60Hz DC Power (12 V) Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Connector BNC Test Conditions The temperature was 26ºC Relative humidity of 50%. Modification to the EUT No Modification to EUT. Test Exercise The EUT was placed in continuous transmit and was operated in “Test Mode” for digital emissions tests. Applicable Standards ANSI/TIA 603-E:2016, ANSI C63.26 (2015), FCC CFR 47 Part 2, Part 90 Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Designation #: US1070 Applicant: SHENZHEN CONSTANT ELECTRONICS CO., LTD. FCC ID: WH2-2611D Report: 25080AUT19 PT90_Rev2 Page 4 of 20 RESULTS SUMMARY Rule Part No. Test Item Results 2.1046(a), 90.205(g),(h),(i) RF Power Output PASS 2.1033(c)(4), 90.209(b)(5) Modulation Characteristics N/A 2.1047(a) Audio Frequency Response and Low Filter N/A 2.1047(b) Modulation Limiting N/A 2.1049 (c) Occupied Bandwidth PASS 90.210(d)(1), (2) Emission Masks PASS 2.1051(a), 90.210(d)(3) Spurious Emissions at Antenna Terminals PASS 2.1053(a), 90.210(d)(3) Field Strength of Spurious Emissions PASS 2.1055(a)(2), 90.213 Frequency Stability PASS 90.214 Transient Frequency Response N/A Applicant: SHENZHEN CONSTANT ELECTRONICS CO., LTD. FCC ID: WH2-2611D Report: 25080AUT19 PT90_Rev2 Page 5 of 20 RF POWER OUTPUT FCC Rule Parts: FCC Part 2.1046(a), 90.205 (h) Applicant: SHENZHEN CONSTANT ELECTRONICS CO., LTD. FCC ID: WH2-2611D Report: 25080AUT19 PT90_Rev2 Page 6 of 20 RF POWER OUTPUT Method of Measurement: TIA-603-E, 2.2.1 Test Data: Power Measurement Table Frequency (MHz) dBm Watt 462.75 27.440.555 Peak Power Output Part 2.1033 (c)(8) DC Input into Final Amplifier INPUT POWER: (12 V) (2 A) = 24 Watts Result: Meets Requirements Applicant: SHENZHEN CONSTANT ELECTRONICS CO., LTD. FCC ID: WH2-2611D Report: 25080AUT19 PT90_Rev2 Page 7 of 20 OCCUPIED BANDWIDTH FCC Ru…
