WH7U6300GSM/WCDMA HSPA Module

Document Name: U6300 User Manual Page ２ of 31 Contents Contents .......................................................................................................................................................................... ２ 1．Introduction ................................................................................................................................................................. 3 1.1 Overview .................................................................................. 3 1.2 Application scenario ........................................................................ 3 2. U6300 interfaces .......................................................................................................................................................... 4 2.1 U6300 interface summary ................................................................... 4 2.1.1 Test points ............................................................................................................................................................... 4 2.1.2 Mini PCIe Interface ................................................................................................................................................ 5 2.1.3 RF interface ............................................................................................................................................................ 8 2.2 U6300 interface application .................................................................. 9 2.2.1 RF antenna interface ............................................................................................................................................. 9 2.2.2 Power supply and earth ...................................................................................................................................... 10 2.2.3 USB interface ........................................................................................................................................................ 10 2.2.4 USIM interface ...................................................................................................................................................... 12 2.2.5 Audio interface* .................................................................................................................................................... 14 2.2.6 PCM interface and IIC interface* ....................................................................................................................... 16 2.2.7 UART interface* .................................................................................................................................................... 17 2.2.8 LED control ........................................................................................................................................................... 18 2.2.9 Others* ................................................................................................................................................................... 19 3. U6300 key features ................................................................................................................................................... 20 3.1 Internet access ........................................................................... 20 3.2 SMS ..................................................................................... 21 3.3 GPS ..................................................................................... 22 3.4 Phonebook ............................................................................... 22 3.5 AUDIO PCM data path selection ............................................................. 22 4. Application Illustration ............................................................................................................................................... 23 4.1 Dial-up procedure ......................................................................... 23 4.2 SMS ..................................................................................... 23 4.2.1 Message Format .................................................................................................................................................. 23 4.2.2 Set Message Storage Location .......................................................................................................................... 23 4.2.3 PDU Format .......................................................................................................................................................... 24 4.2.4 TEXT Format ........................................................................................................................................................ 26 4.2.5 SMS Service Center Address Setting ............................................................................................................... 27 4.3 PHONE BOOK ............................................................................ 28 4.3.1 Set Phone Book Storage Location .................................................................................................................... 28 4.3.2 Read Phonebook entries .................................................................................................................................... 28 4.3.3 Write phonebook entry ........................................................................................................................................ 29 4.3.4 Find phonebook entries ....................................................................................................................................... 29 4.4 AUDIO ................................................................................... 29 4.4.1 AUDIO PCM data path selection ....................................................................................................................... 29 4.4.2 Originate Call ....................…

Text truncated - open the document above for the full version.

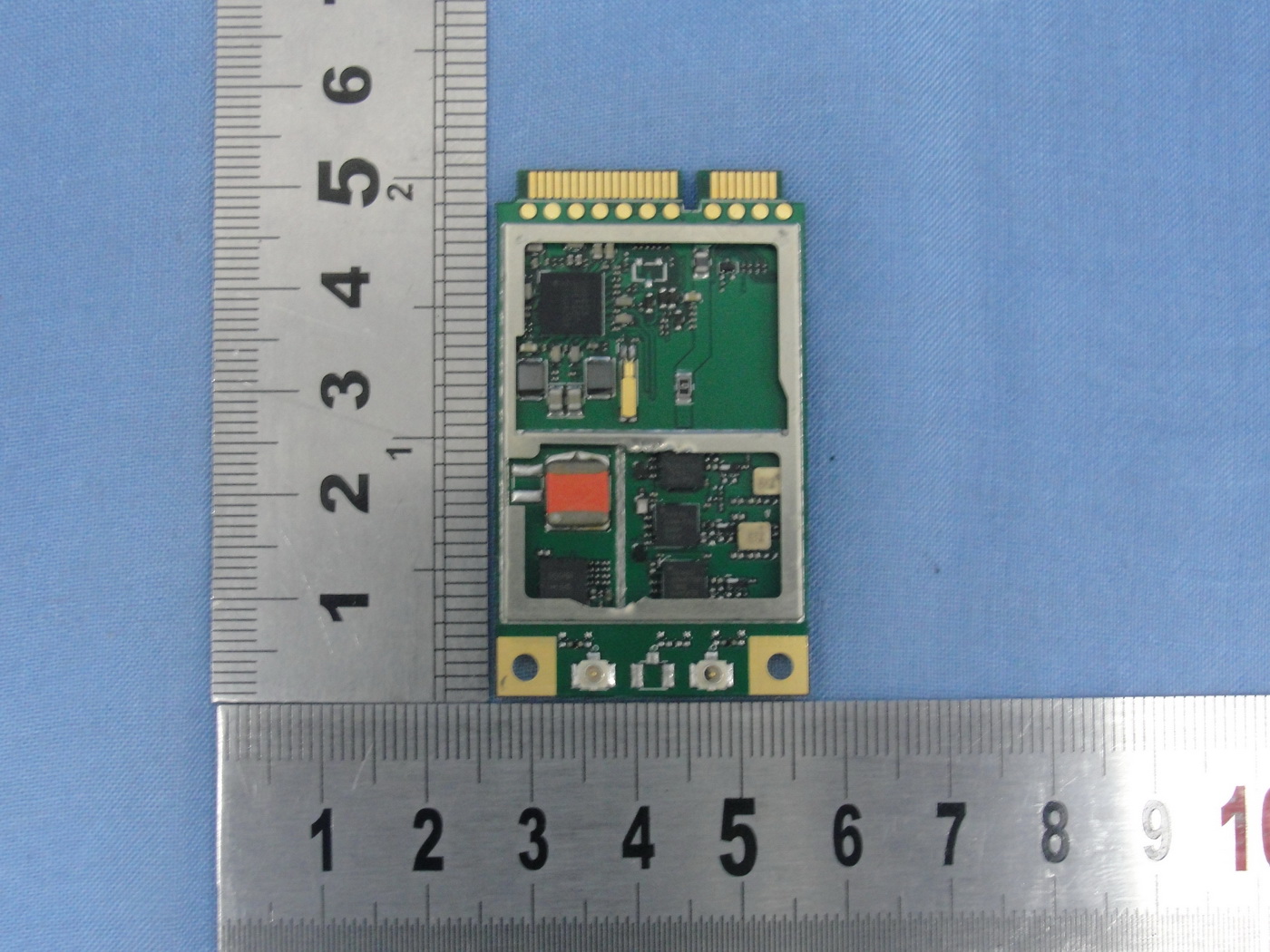

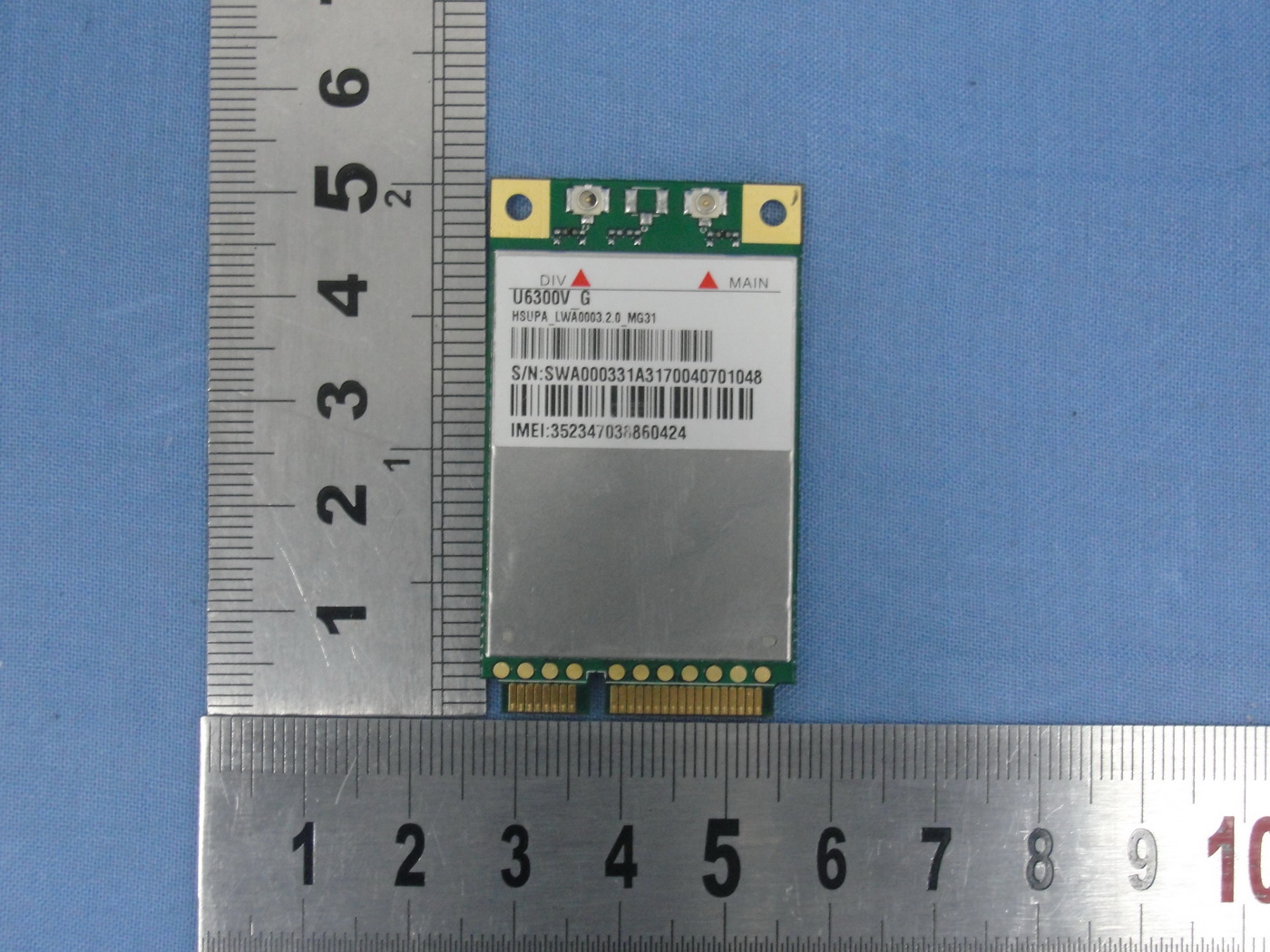

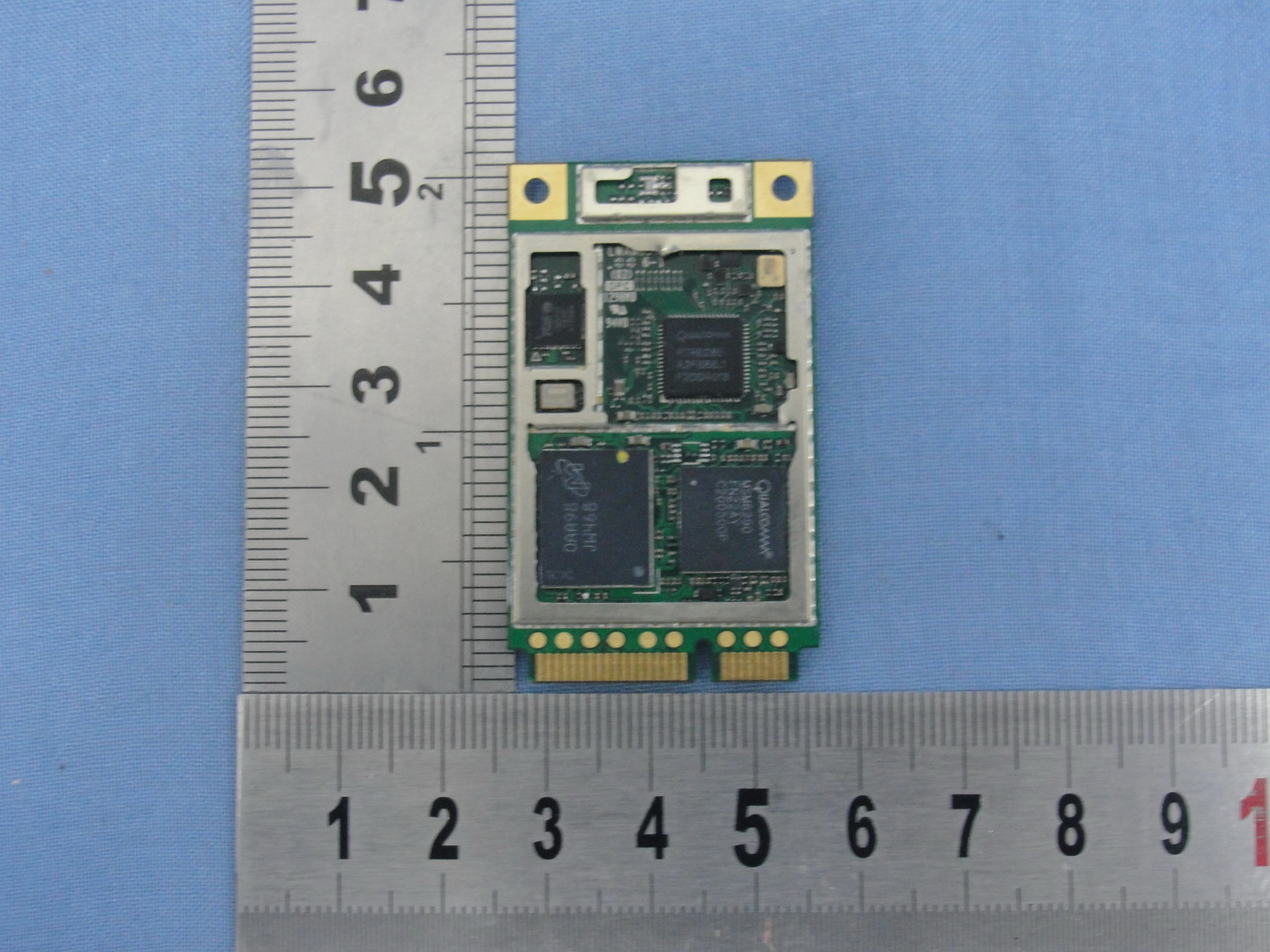

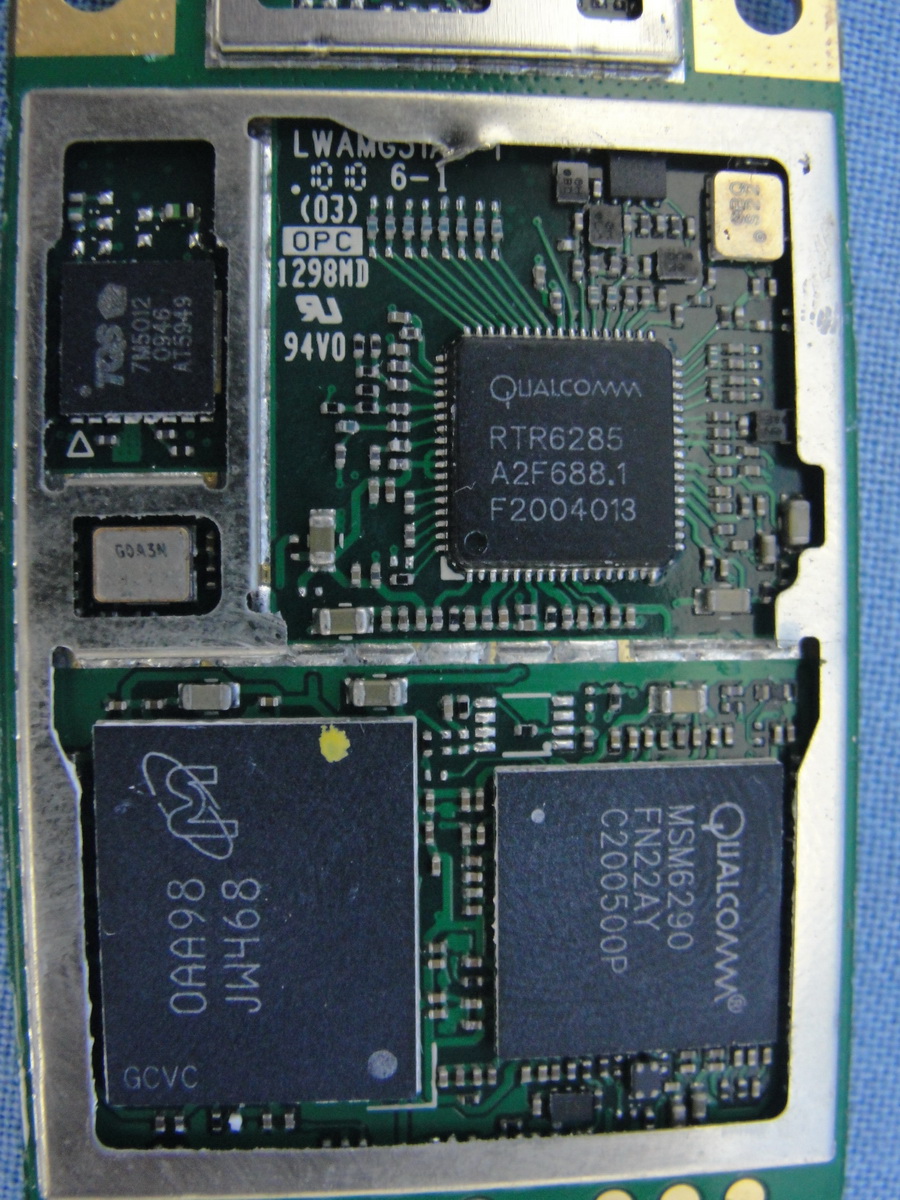

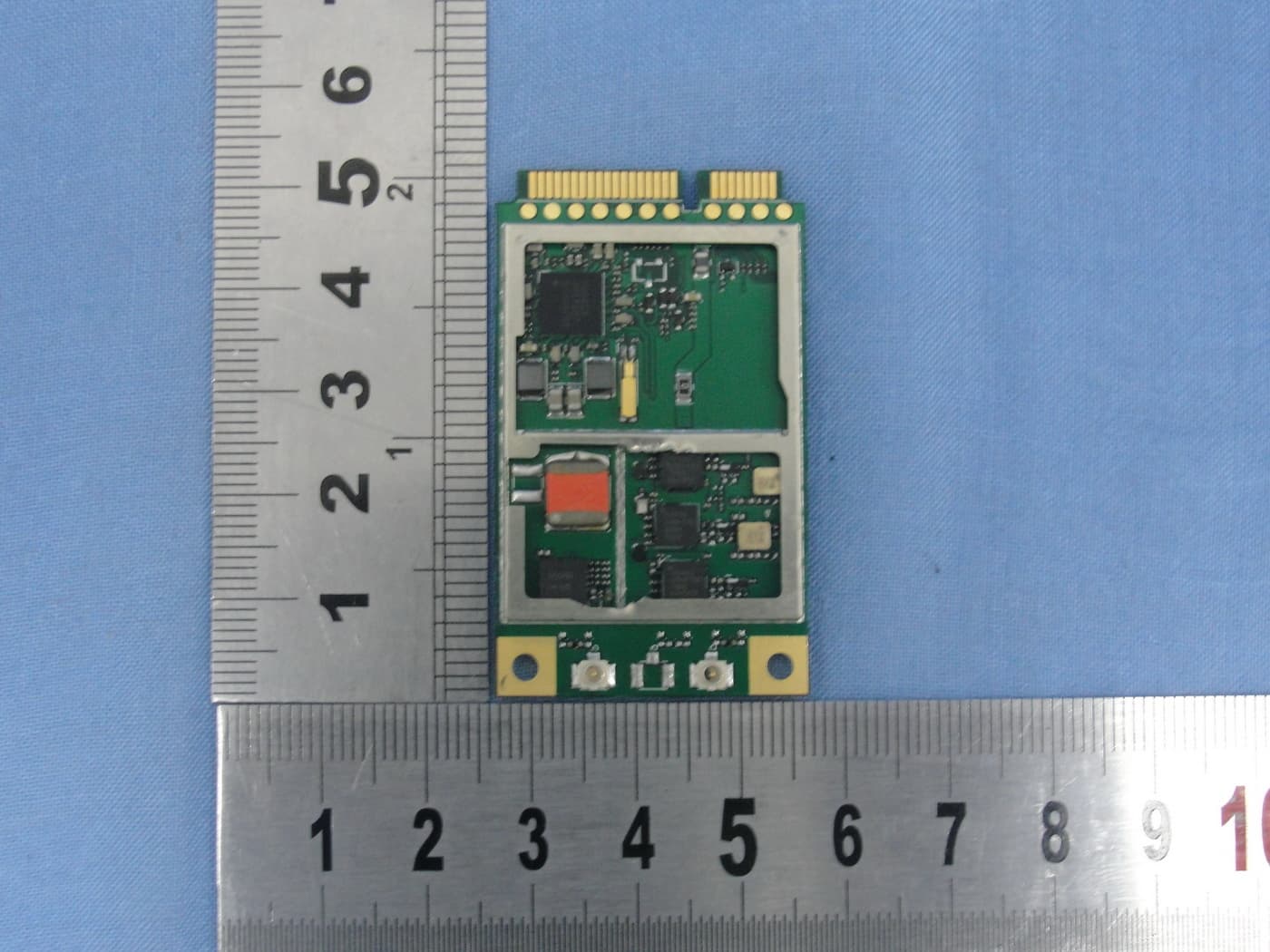

Photographs of EUT Report No.: EP161505 Brand Name: LONGCHEER / Model Name: U6300 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 9 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 05, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WH7U6300 1. Photograph of Accessory Photographs of EUT Report No.: EP161505 Brand Name: LONGCHEER / Model Name: U6300 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 9 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 05, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WH7U6300 Photographs of EUT Report No.: EP161505 Brand Name: LONGCHEER / Model Name: U6300 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 9 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 05, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WH7U6300 Photographs of EUT Report No.: EP161505 Brand Name: LONGCHEER / Model Name: U6300 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 9 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 05, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WH7U6300 Photographs of EUT Report No.: EP161505 Brand Name: LONGCHEER / Model Name: U6300 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 9 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 05, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WH7U6300 Photographs of EUT Report No.: EP161505 Brand Name: LONGCHEER / Model Name: U6300 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 9 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 05, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WH7U6300 Photographs of EUT Report No.: EP161505 Brand Name: LONGCHEER / Model Name: U6300 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 9 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 05, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WH7U6300 Photographs of EUT Report No.: EP161505 Brand Name: LONGCHEER / Model Name: U6300 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 9 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 05, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WH7U6300 Photographs of EUT Report No.: EP161505 Brand Name: LONGCHEER / Model Name: U6300 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 9 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 05, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WH7U6300 WWAN Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 9 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WH7U6300 RF Exposure Evaluation Report Report No. : FA161505 RF Exposure Evaluation Report APPLICANT : Longcheer Technology(Shanghai)Co., Ltd. EQUIPMENT : GSM/WCDMA HSPA MODULE BRAND NAME : LONGCHEER MODEL NAME : U6300 FCC ID : WH7U6300 FILING TYPE : Certification STANDARD : OET Bulletin 65 Supplement C (Edition 01-01) We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with FCC OET Bulletin 65 Supplement C (Edition 01-01), and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 9 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WH7U6300 RF Exposure Evaluation Report Report No. : FA161505 Table of Contents REVISION HISTORY .......................................................................................................................................... 3 1. RF EXPOSURE INTRODUCTION ............................................................................................................... 4 2. ADMINISTRATION DATA ........................................................................................................................... 6 2.1 Testing Laboratory ............................................................................................................................. 6 2.2 Applicant ............................................................................................................................................ 6 2.3 Manufacturer ...................................................................................................................................... 6 3. GENERAL INFORMATION ......................................................................................................................... 7 3.1 Description of Device Under Test (DUT) ........................................................................................... 7 4. RF EXPOSURE EVALUATION ................................................................................................................... 8 4.1 Radio Frequency Radiation Exposure Evaluation ............................................................................. 8 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 9 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WH7U6300 RF Exposure Evaluation Report Report No. : FA161505 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA161505 Rev. 01 Initial issue of report Jul. 05, 2011 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 9 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WH7U6300 RF Exposure Evaluation Report Report No. : FA161505 1. RF Exposure Introduction Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows:  Fixed installation: Fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters.  Mobile Devices: A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091.  Portable Devices: A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 9 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : WH7U6300 RF Exposure Evaluation Report Report No. : FA161505 The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows:  Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks.  General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 73 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 05, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WH7U6300 FCC RF Test Report Report No. : FG161505 FCC RF Test Report APPLICANT : Longcheer Technology(Shanghai)Co., Ltd. EQUIPMENT : GSM/WCDMA HSPA MODULE BRAND NAME : LONGCHEER MODEL NAME : U6300 FCC ID : WH7U6300 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter (PCB) Tx/Rx FREQUENCY RANGE : GSM850 : 824.2 ~ 848.8 MHz / 869.2 ~ 893.8 MHz GSM1900 : 1850.2 ~ 1909.8 MHz / 1930.2 ~ 1989.8 MHz WCDMA Band V : 826.4 ~ 846.6 MHz / 871.4 ~ 891.6 MHz WCDMA Band II : 1852.4 ~ 1907.6 MHz / 1932.4 ~ 1987.6 MHz MAX. ERP/EIRP POWER : GSM850 (GSM) : 0.62 W GSM850 (EDGE 8) : 0.31 W GSM1900 (GSM) : 0.60 W GSM1900 (EDGE 8) : 0.34 W WCDMA Band V (RMC 12.2Kbps) : 0.09 W WCDMA Band II (RMC 12.2Kbps) : 0.15 W EMISSION DESIGNATOR : GMSK : 248KGXW 8PSK : 244KG7W QPSK : 4M18F9W The product was received on Jun. 20, 2011 and completely tested on Jun. 25, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 73 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 05, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WH7U6300 FCC RF Test Report Report No. : FG161505 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 6 1.4 Testing Site ....................................................................................................................................... 7 1.5 Applied Standards ............................................................................................................................. 7 1.6 Ancillary Equipment List .................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Test Mode.......................................................................................................................................... 8 2.2 Connection Diagram of Test System .............................................................................................. 10 3 TEST RESULT ........................................................................................................................................... 11 3.1 Conducted Output Power Measurement ......................................................................................... 11 3.2 Effective Radiated Power and Effective Isotropic Radiated Power Measurement ......................... 13 3.3 Occupied Bandwidth Measurement ................................................................................................ 19 3.4 Band Edge Measurement ................................................................................................................ 26 3.5 Conducted Emission Measurement ................................................................................................ 34 3.6 Field Strength of Spurious Radiation Measurement ....................................................................... 51 3.7 Frequency Stability Measurement ................................................................................................... 65 4 LIST OF MEASURING EQUIPMENTS ..................................................................................................... 72 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 73 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 73 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 05, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WH7U6300 FCC RF Test Report Report No. : FG161505 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FG161505 Rev. 01 Initial issue of report Jul. 05, 2011 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 73 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 05, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WH7U6300 FCC RF Test Report Report No. : FG161505 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 §2.1046 N/A Conducted Output Power N/A PASS - 3.2 §22.913(a)(2) RSS-132(4.4) SRSP-503(5.1.3) Effective Radiated Power < 7 Watts PASS - 3.2 §24.232(c) RSS-133 (6.4) SRSP-510(5.1.2) Equivalent Isotropic Radiated Power < 2 Watts PASS - 3.3 §2.1049 §22.917(a) §24.238(a) N/A Occupied BandwidthN/A PASS - 3…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : B1 of B1 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 05, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WH7U6300 FCC RF Test Report Report No. : FG161505 Appendix B. Setup Photographs <Radiated Emission>
