WHBBMWHUSHead-Up Screen

BMW Head‐Up Screen Operating Instructions Table of Contents Please read before use General information Safety instructions Cleaning / care Product description Display screen Installation / Putting into operation Connecting a smartphone to the Head‐Up Screen Settings Technical data Scope of delivery Disposal of electronic devices Imprint Service FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: WHBBMWHUS WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RF EXPOSURE WARNING! This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co‐located or operating in conjunction with any other antenna or transmitter. End‐users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Please read before use General information Dear customer, By purchasing the BMW Head‐Up Screen you have acquired a product that supports driving safety and comfort by indicating important vehicle and navigation information within your visible range. The screen is installed on the instrument panel and positioned at the same height as the steering wheel. All information is therefore available within the driver’s direct field of vision. Drivers no longer need to take their eyes off the road and have all relevant information on display at all times. Vehicle data such as speed, cruise control, frost warning, sea level, power, torque and a fuel reminder from a remaining range of 50 km are displayed. The “Garmin HUD“ app for your iOS or Android smartphone, which is included in the scope of delivery, provides fully functional navigation with turn‐by ‐turn (arrow display) instructions and corresponding additional information such as the calculated time of arrival, speed limits and current traffic information (congestions). BMW recommends that you only use parts and accessory products that have been tested and approved by BMW in terms of their safety, function and suitability. If you have any questions while using your BMW Head‐Up Screen, contact your local BMW centre. Read these operating instructions carefully before using your BMW Head‐Up Screen. Safety instructions and important information For your own safety, please read the safety instructions carefully to avoid causing injury to yourself and/or other road users. Applicable safety regulations always take precedence here. Using the smartphone Please do not operate your smartphone while driving. To avoid being distracted during the journey, please connect the Head‐Up Screen to the smartphone before starting the engine or departure. This also applies when entering your destination. For safety reasons, your smartphone does not have an Internet connection while connected to the Head‐Up Screen. Only the live navigation services (traffic news, etc.) are connected to the Internet. Please note that additional roaming charges may be incurred when travelling abroad if you have activated the data roaming function in your smartphone. To access the Internet services of your smartphone with other applications, please switch off the Head‐Up Screen via the vehicle ignition, fold down the display or terminate the WLAN connection in your smartphone with the Head‐Up Screen. Operating temperature If the Head‐Up Screen should exceed the permissible operating temperature, your Head‐Up Screen will only be activated when the ignition is switched on and when the permitted interior temperature has been reached. This may possibly take several minutes. Display brightness The brightness of the Head‐Up Screen automatically adapts to the brightness of the instrument panel lighting of your vehicle. It can, however, still be manually adapted via the instrument panel light control in the vehicle or via the settings in the “Head‐Up Screen app”. Note: Changes of the brightness of the Head‐Up Screen via the instrument panel light control only work when parking lights or low beam headlights are switched on. For information regarding the regulation of the instrument panel lighting, please refer to the instructions in your BMW vehicle manual. Please make sure that the display is not too bright when driving in the dark, so that your vision is not impaired. Cleaning / care We recommend that you use a soft, dry cloth for cleaning the Head‐Up Screen. A suitable microfiber cloth is included in the scope of delivery. Please do not use any other cleaning agents, as they may cause damage to the product. In case of heavier soiling, it is advisable to moisten the cloth with a little water. Product description ❷ 1. Recess for opening the screen 2. Reset button The Head‐Up Screen can be restored to factory settings using a paperclip. Subsequently you have to login again using the factory WLAN access data. 3. NFC contact point (Near Field Communication is an international transmission standard for the contact‐free exchange of data via radio technology over short distances of only a few centimetres) You can automatically start the Head‐Up Screen app here on NFC‐compatible smartphones. Screen display ⓭ ⓯ ⓬ ⓰ ⓱ 1. Torque (Nm) 2. Power (kW) 3. Cruise control including set speed 4. Fuel reminder, lights up for 30 seconds from a range of 50 km or 31 mi 5. Black‐ice warning, lights up for 30 seconds at temperatures below 3°C or 37°F 6. Height above sea level (only in conjunction with Navigation Professional SA 609) 7. Warning of hazardous areas (the respective country‐specific regulations must be observed) 8. Spe…

Text truncated - open the document above for the full version.

Confidential Letter Applicant: Mobile Appliance, Inc. Date：2014.12.24 Federal Communications Commission Authorization and Evaluation Division FCC ID: WHBBMWHUS Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. Sincerely, Lee, Myoung-Chul / Director Mobile Appliance, Inc.

POWER of ATTORNEY Date: November 13, 2014 To: BWS TECH, Inc. Applicant Address: #701 Kranz Techno, Sangdaewon-1Dong, Jungwon-Gu, Seongnam-City, Gyeonggi-Do, KOREA Company: Mobile Appliance, Inc. Name of representative: Myoung-Chul Lee We, the undersigned, hereby authorize BWS TECH., Inc. to act on our behalf of all matters concerning to all processes for FCC’s approval plus FCC ID WHBBMWHUS. Any and all acts implemented by BWS TECH., Inc. instead of us shall have the same effects. Lee, Myoung-Chul /, Director

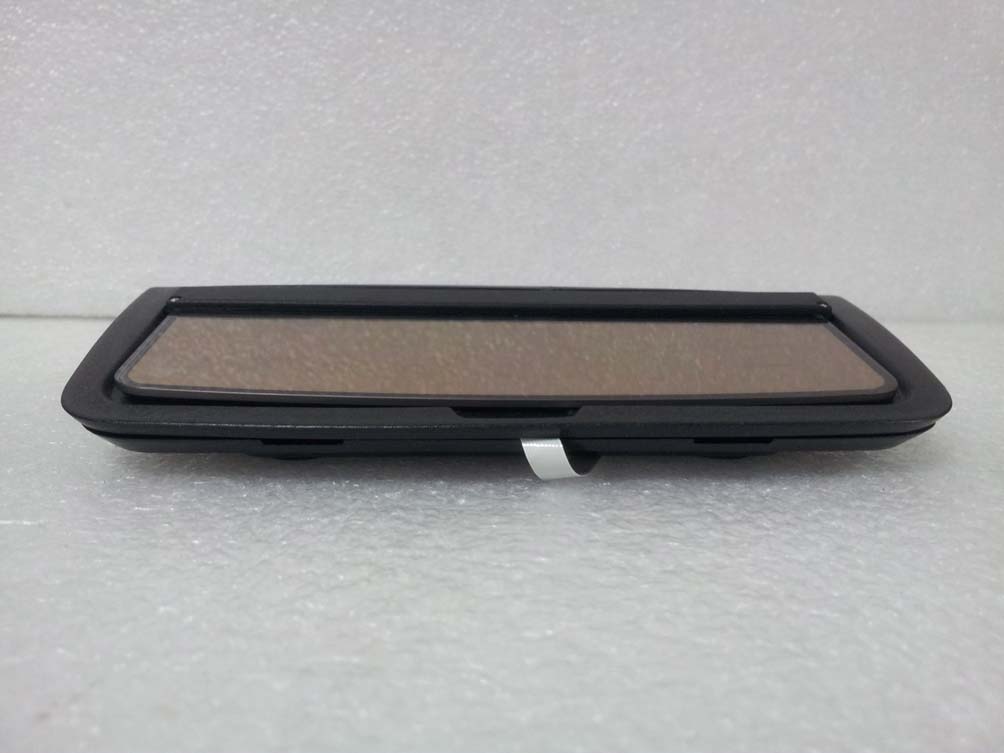

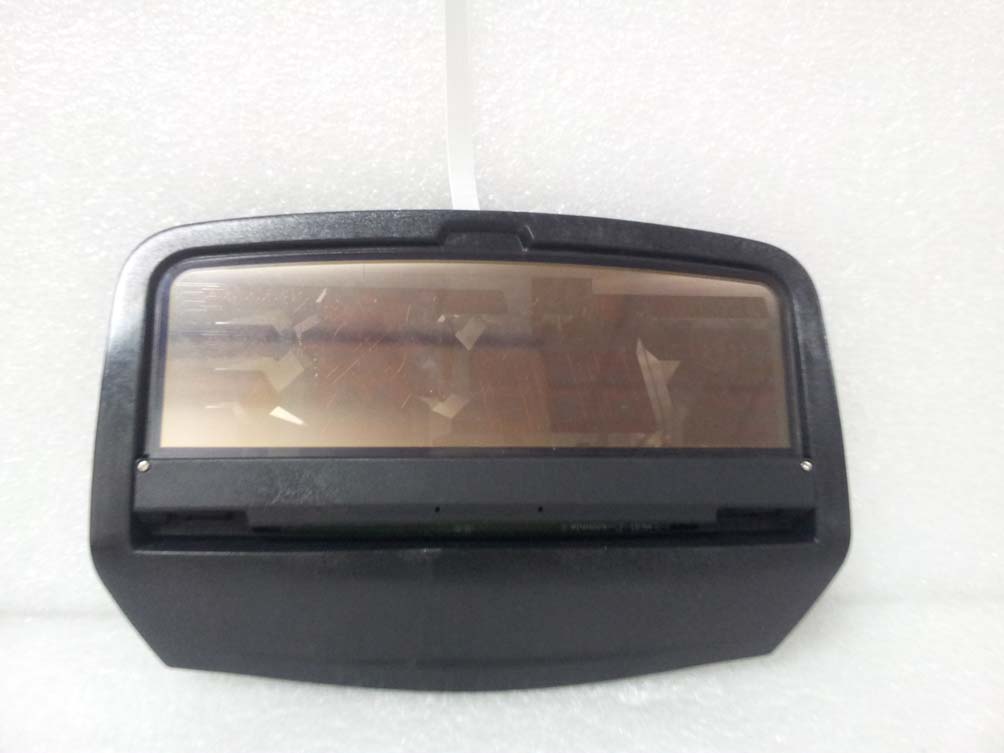

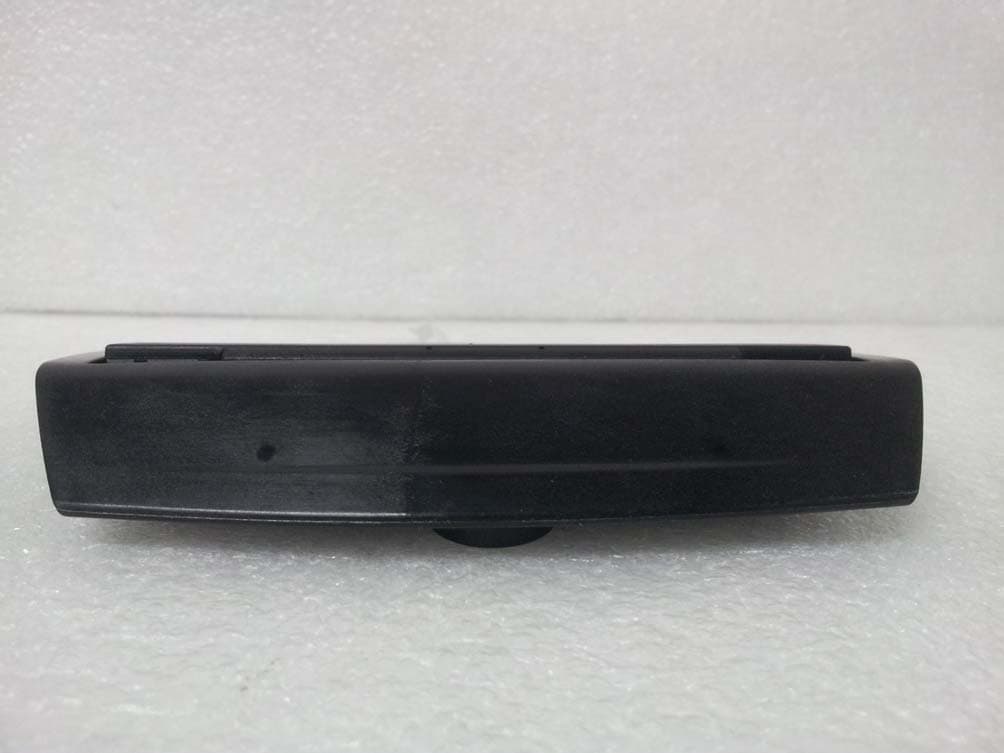

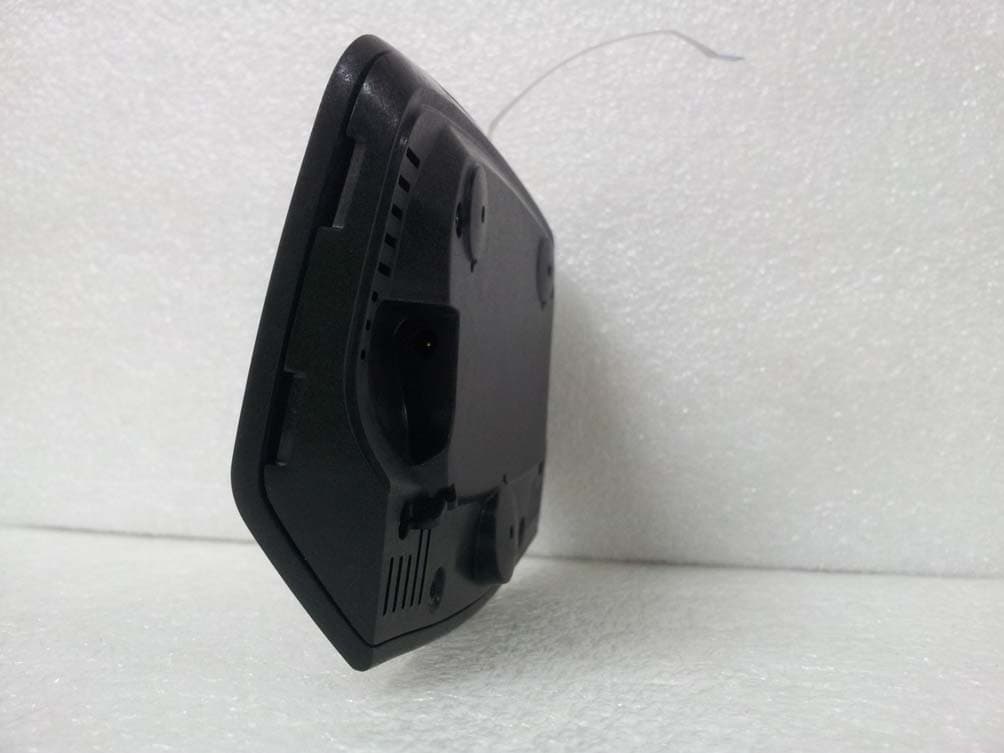

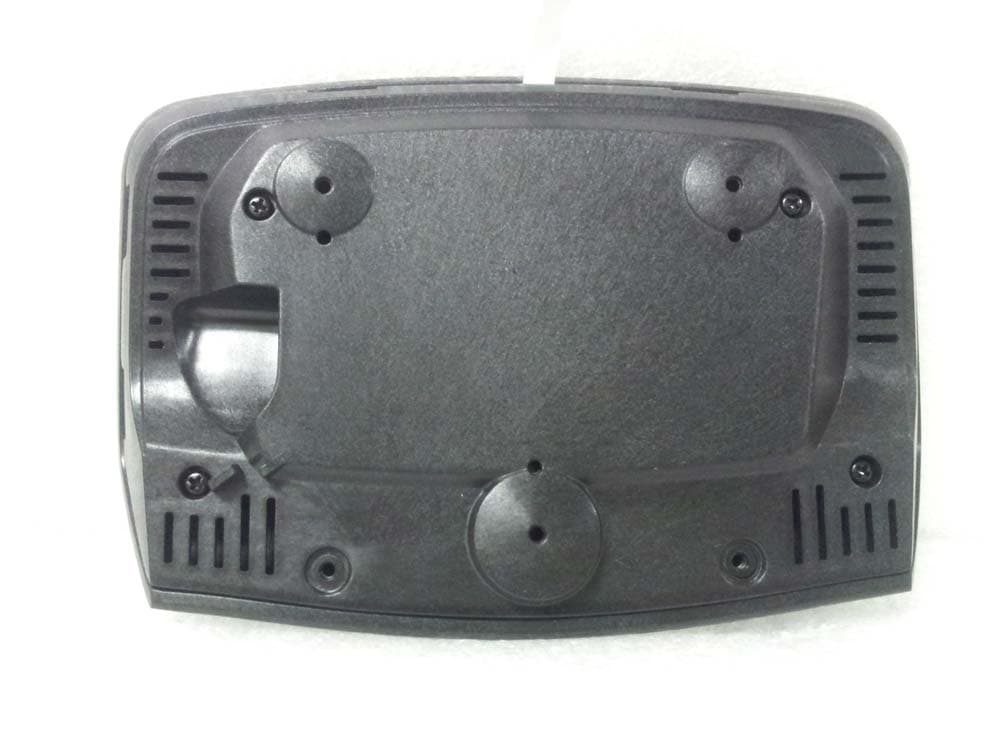

Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 1 to 10 BWS TECH Inc. Issue Date : November 13, 2014 Appendix 3. External Photographs of EUT Front Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 2 to 10 BWS TECH Inc. Issue Date : November 13, 2014 Rear Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 3 to 10 BWS TECH Inc. Issue Date : November 13, 2014 Right Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 4 to 10 BWS TECH Inc. Issue Date : November 13, 2014 Left Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 5 to 10 BWS TECH Inc. Issue Date : November 13, 2014 Top Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 6 to 10 BWS TECH Inc. Issue Date : November 13, 2014 Botton Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 7 to 10 BWS TECH Inc. Issue Date : November 13, 2014 Inverter-Front Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 8 to 10 BWS TECH Inc. Issue Date : November 13, 2014 Inverter-Rear Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 9 to 10 BWS TECH Inc. Issue Date : November 13, 2014 Inverter-Right Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 10 to 10 BWS TECH Inc. Issue Date : November 13, 2014 Inverter-Left

Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 2. FCC ID Label and location Page Number : Page 1 to 1 BWS TECH Inc. Issue Date : November 13, 2014 Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information and location Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. Mobile Appliance, Inc. Head-Up Screen Model: BMW Head-Up Screen FCC ID: WHBBMWHUS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location The label shown above shall be permanently affixed at a conspicuous location(cabinet out side) on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) FCC ID LABEL & Caution

Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 4. Internal Photos of EUT Page Number : Page 1 to 2 BWS TECH Inc. Issue Date : November 13, 2014 Appendix 4. Internal Photographs of EUT Main Board-Front Main Board-Rear Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 4. Internal Photos of EUT Page Number : Page 2 to 2 BWS TECH Inc. Issue Date : November 13, 2014 Inverter Board-Front Inverter Board-Rear

3. Operational Description CAN Module 1. Power Circuit 1-1. Car ACC power is inputted through the JP1. (Car ACC power is about 9V~14.8V) 1-2. The input voltage converted into DC 5V through the U1 Linear Regulator. This voltage supplies “VCC”. The “VCC” voltage supplies MICOM, CAN Transceiver and LIN Transceiver. 2. LIN/CAN Transceiver Part 2-1. U3 is high speed CAN Transceiver that provides an interface between the CAN protocol of U2 and the physical two-wire CAN bus of the user’s car. 2-2. U4 is the interface between the LIN master/slave protocol controller of U2 and the physical bus of HUD Head Up Screen 1. Power Circuit 1-1. “VIN” source of CAN Module inputted through the J1. (Car ACC power is about 9V~14.8V) The input Voltage supplies “UBAT_14V” and “UBAT_TOLED”. 1-2. The “UBAT_14V” converted into DC 5V through the P_U1 DC/DC down converter. This voltage supplies “VSYS”. The “VSYS” is converted into DC 3.3V again by way of the U11 DC/DC down converter and U4 Low drop output regulator. This voltage is “VDDIO3V3” and “VDD3V3_MCU” The “VDDIO3V3” converted into U11 supplies Wifi module, Serial flash and TOLED VDD. The “VDD3V3_MCU” converted into U4 supplies MICOM. 1-3. The “UBAT_TOLED” is converted into 15V through the L5 DC/DC up converter. The” VCC_TOLED_15V” converted into L5 supplies TOLED VCC. 2. Wifi Transmission/Reception Part 2-1. This transmits and receives RF signals of 2.412~2.462 G Hz through an ANT1 chip antenna by using the U6 2.4GHz Wifi Module. 2-2. The wireless front end uses OFDM modulation.

Application Bluetooth Zigbee WLAN (IEEE 802.11 b/g) ISM 2.4GHz Wireless Devices Features Helical Structure Size (9.0*3.0*1.2mm 3 ) Easy Optimizing with external lumped matching components SMT Available under Pb-free Condition RoHSCompliant DATASHEET DocumentDatasheet TypeMultilayer Chip Antenna Application2.4GHz Part No.ALA931C5 Revision6.1 Notes The contents of this datasheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order. AMOTECH AMOTECH Co., Ltd. Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 2 Rev. NoDateTitleContentsPage 6’10.01.19FormatChangeddocument format 6.1‘12.05.04 ChangedOperating Temperature 3 Table of Content Revision History 1.Specifications3 1.1 Electrical Specifications3 1.2 Mechanical Specifications3 1.3 Appearance and Material3 2. PCB Design for Test4 2.1 Evaluation BoardDimension4 2.2 PCB Design Guide4 3. Measurement Result5 3.1 Typical Measurement Result (VSWR/RL,Smithchart)5 3.2 Typical Measurement Result(Gain, Radiation Pattern)6 4. Reliability7 5. Soldering Reflow Profile7 6. Packaging8 6.1 Carrier Tape Dimension8 6.2 PackagingQuantity8 6.3 Packaging Label8 Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 3 NoItemSpec.Remark 1Frequency Range [GHz]2.4 ~2.485 2VSWRMax 2.5:1 3Peak Gain [dBi]typ. 3.5 4TotalAvg. Gain [dBi]typ. -0.22 5Efficiency [%]typ. 95 6PolarizationLinear 7Impedance [Ω]Nominal 50 The results are measured on the 10x43mm 2 evaluation board(EVB). See Page 6. for more detail gain parameter NoItemSpec.Remark 1Dimensions (LxWxH)9.0x3.0x1.2 mm 3 2Unit Weighttyp. 97 mg 3Operating Temperature-40 ~ +85 °C 1.1 Electrical Specifications 1.2 Mechanical Specifications NoItemFunctionMaterial ①External ElectrodeSoldering, Input PortAg/Ni/Sn ② Direction indexIndication of Ceramic ③Ceramic Body -Ceramic ④Model No. index-Ceramic ⑤External ElectrodeSolderingAg/Ni/Sn 1.3 Appearance & Material 1. Specifications Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 4 2.1 Evaluation Board Dimension 2.2 PCB Design Guide 2. PCB Design for Test NoPin Assignment ①Feeding ②N.C Matching Component [unit : mm] Evaluation board size ~ 10x43 Fill Cut Area (GND Clearance) ~ 10x13 [PCB Solder Land] 50 Ohm Feeding Line ① ② Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 5 3.1 Typical Measurement Result (VSWR/RL, Smithchart) 3. Measurement Result The results are measured on the 10x43mm 2 evaluation board(EVB). NoMatching Value ①N.C ②2.7 nH ③ 1.2 nH ③① ② Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 6 [Azimuth plane @2.45GHz ] [Elevation1 plane @2.45GHz ] [Elevation2 plane @2.45GHz ] [3D Radiation Pattern] 3.2 Typical Measurement Result (Gain, Radiation Pattern) x y z -y Azimuth E1 E2 Peak Gain (dBi) Avg. Gain (dBi) Total Avg. Gain (dBi) Efficiency (%) Azimuth 2.81.0 -0.2295 Elevation 1 3.5-0.7 Elevation 2 1.7-1.6 Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 7 NoItemTest ConditionTest Requirements 1 Adhesive Strength of Termination 1.Applied force on SMT chip till detached point from PCB. 1. No mechanical damage by applied force 2. Strength (F) > 7 kgf 2 Thermal Shock (Cycle) 1. Step 1 : -40 ±3°C, 30 min Step 2 : +125 ±3°C, 30 min 2. Number of cycle : 30 1. No visual damage 2. Within electric spec (VSWR) 3 High Temperature Resistance 1. Temperature : +125 ±5°C 2. Time : 1000 ±24 hrs 1. No visual damage 2. Within electric spec (VSWR) 4 Low Temperature Resistance 1. Temperature : -40 ±5°C 2. Time : 1000 ±24 hrs 1. No visual damage 2. Within electric spec (VSWR) 5Humidity 1. Humidity : 85 % RH Temperature : +85 ±3°C 2. Time : 1000 ±24 hrs 1. No visual damage 2. Within electric spec (VSWR) F SMD PAD PCB 4. Reliability 5. Soldering Reflow Profile Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 8 ItemSpec.ItemSpec.ItemSpec. A03.30±0.10P04.00±0.10E1.75±0.10 B09.30±0.10P18.00±0.10F7.50±0.10 K01.30±0.10P22.00±0.10W16.00±0.30 D01.55±0.05--t0.30±0.05 ItemQuantityDimension Reel1,000eaΦ7” * 12mm Inner Box3,000ea (3 reel)185 * 185 * 68 (mm 3 ) Outer Box115,000ea (5 Inner Box)375 * 200 * 205 (mm 3 ) Outer Box230,000ea (10 Inner Box)390 * 375 * 205 (mm 3 ) 6.1 Carrier Tape Dimension 6.2 Packaging Quantity 6.3 Packaging Label 6. Packaging AMOTECH Co., Ltd. 5BL-1Lot, 617, Namchon-Dong, Namdong-Gu, Incheon, Korea Multilayer Chip Antenna P/N : ALA931C5 Lot No : Quantity : 1,000 pcs Date : 2010/01/19

Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen RF Exposure Report Issue Date : November 13, 2014 Appendix 11. RF Exposure Requirement 1.Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 - - F/1500 6 1500-100,000 - - 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/ 2 cm Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/ 2 cm . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 2.Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 20°Cand 57％ RH. Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen RF Exposure Report Issue Date : November 13, 2014 3.Test Result of RF Exposure Evaluation Operating mode Frequency RF Output Power(dBm) 802.11b 2412 4.6 802.11b 2437 3.7 802.11b 2462 3.0 802.11g 2412 4.8 802.11g 2437 3.8 802.11g 2462 3.2 802.11n(20MHz) 2412 4.5 802.11n(20MHz) 2437 3.7 802.11n(20MHz) 2462 3.0 Maximum RF Power=4.8dBm+3.5dBi=8.3dBm=6.76mW 6.76/(4*3.14*400)=0.00135 Frequency Band(MHz)Maximum RF Power(mW) Power Density at R = 20cm(mW/ 2 cm) 2412-2462 6.76 0.00135 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/ 2 cm.

FCC ID: WHBBMWHUS Mobile Appliance, Inc. Head-Up Screen / BMW Head-Up Screen Report No: BWS-14-RF-0001 FCC Test Report Page Number : 1 of 62 BWS TECH Inc. Data of Issue : December 12, 2014 CERTIFICATE OF COMPLIANCE FCC PART 15C Certification Applicant Name: Date of Testing Mobile Appliance, Inc. October 17, 2014 to December 12, 2014 Test Site/Location #23, 480 Beongil Gokhyeon-ro, Mohyeon-Myeon, Cheoin-Gu, Yongin-City, Gyeonggi-Do 449-853, Korea Address: #701 Kranz Techno, Sangdaewon-1Dong, Jungwon-Gu, Seongnam- City, Gyeonggi-Do, KOREA Test Report No.: BWS-14-RF-0001 BWS FRN: 0009936881 FCC ID: APPLICANT: WHBBMWHUS Mobile Appliance, Inc. Model(s): BMW Head-Up Screen EUT Type: Head-Up Screen Frequency Range: 2412-2462 MHz Modulation Type DSSS(802.11b), OFDM(802.11g/n) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): FCC Part 15 Subpart C Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated. And the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. BWS TECH Inc. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1998,21 U.S C.862 (Date) 12/12/2014 Tested by Cheol-Ho, Lee (Date)12/12/2014 Reviewed by Bang-Hyeon, Nam FCC ID: WHBBMWHUS Mobile Appliance, Inc. Head-Up Screen / BMW Head-Up Screen Report No: BWS-14-RF-0001 FCC Test Report Page Number : 2 of 62 BWS TECH Inc. Data of Issue : December 12, 2014 TABLE OF CONTENTS 1. General Information 2. Description of Test Facility 3. Product Information 4. Summary of Test Results 5. Test Data 5.1 Radiated Band Edges and Spurious Emission 5.2 6dB Bandwidth 5.3 Maximum Peak Conducted Output Power 5.4 Conducted Band Edges and Spurious Emission 5.5 Power Spectral Density 5.6 Antenna Application Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Operational Description Appendix 8. User Manual Appendix 9. Antenna Specification Appendix 10. Part List Appendix 11. PCB Layout FCC ID: WHBBMWHUS Mobile Appliance, Inc. Head-Up Screen / BMW Head-Up Screen Report No: BWS-14-RF-0001 FCC Test Report Page Number : 3 of 62 BWS TECH Inc. Data of Issue : December 12, 2014 FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information Applicant Manufacturer  EUT Type : Head-Up Screen  Model Name : BMW Head-Up Screen  FCC ID : WHBBMWHUS  S/N : Prototype  Freq. Range : 2412-2462 MHz  Number of Channels : 11 Channel  Modulation Method : DSSS(802.11b), OFDM(802.11g/n)  FCC Rule Part(s) : Part 15 Subpart C  Test Procedure : ANSI C63.4-2009 KDB 558074 D01 DTS Meas Guidance v03r02  Dates of Tests :October 17, 2014 to December 09, 2014  Place of Tests : BWS TECH Inc.(FCC Registration Number : 287786) #23, 480 Beongil Gokhyeon-ro, Mohyeon-Myeon, Cheoin-Gu, Yongin-City, Gyeonggi-Do 449-853, Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017  Test Report No. : BWS-14-RF-0001 Company Name : Mobile Appliance, Inc. Company Address : #701 Kranz Techno, Sangdaewon-1Dong, Jungwon-Gu, Seongnam- City, Gyeonggi-Do, KOREA Phone/Fax : Tel No. : +82-31-777-8071 Fax No. : +82-31-777-8076 Company Name : Mobile Appliance, Inc. Company Address : #701 Kranz Techno, Sangdaewon-1Dong, Jungwon-Gu, Seongnam- City, Gyeonggi-Do, KOREA Phone/Fax : Tel No. : +82-31-777-8071 Fax No. : +82-31-777-8076 FCC ID: WHBBMWHUS Mobile Appliance, Inc. Head-Up Screen / BMW Head-Up Screen Report No: BWS-14-RF-0001 FCC Test Report Page Number : 4 of 62 BWS TECH Inc. Data of Issue : December 12, 2014 2. Description of Test Facility Site Description Test Lab. : Accredited by Industry Canada, February 27, 2012 The Certificate Registration Number is 4963A-2. Accredited by FCC, September 03, 2013 The Certificate Registration Number is 287786. Accredited by TUV SUD, January 24, 2014 The Certificate Registration Number is CARAT 14 01 87242 001 Accredited by VCCI, July 10, 2012 The Certificate Registration Number is C-4326 Accredited by NRRA(EMC,RF, SAR), November 27, 2014 The Certificate Registration Number is KR0017 Accredited by KOLAS(KS Q ISO/IEC 17025), October 7, 2014 The Certificate Registration Number is KT174 Accredited by IEC(IECEE CB-SCHEME), March 25, 2014 The Certificate Registration Number is TL508 Name of Firm : BWS TECH Inc. Site Location : #23, 480 Beongil Gokhyeon-ro, Mohyeon-Myeon, Cheoin-Gu, Yongin-City, Gyeonggi-Do 449-853, Korea FCC ID: WHBBMWHUS Mobile Appliance, Inc. Head-Up Screen / BMW Head-Up Screen Report No: BWS-14-RF-0001 FCC Test Report Page Number : 5 of 62 BWS TECH Inc. Data of Issue : December 12, 2014 3. Product Information 3.1 Equipment Description The Equipment Under Test (EUT) is RF transmitter by the Mobile Appliance Inc. Model : BMW Head-Up Screen. (FCC ID : WHBBMWHUS). 3.2 General Specification The system specifications are subject to change without notice. For detailed system specifications, refer to the product catalog. Frequency Range 2412-2462 MHz Number of Channels 11 Channel Modulation Method DSSS(802.11b) OFDM(802.11g/n) Transparent OLED Display Screen Dimensions 125 mm x 42 mm Luminance Approximately 800 cd / m² (max 1,100 cd / m².) Transparency About 55% (65% max.) Operating temperature -25 ° C ~ + 70 ° C Humidity up to 90% FCC ID: WHBBMWHUS Mobile Appliance, Inc. Head-Up Screen / BMW Head-Up Screen Report No: BWS-14-RF-0001 FCC Test Report Page Number : 6 of 62 BWS TECH Inc. Data of Issue : December 12, 2014 4. Summary of Test Results TEST Description Standard…

Text truncated - open the document above for the full version.

Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 1. Test Setup Photos Page Number : Page 1 to 3 BWS TECH Inc. Issue Date : November 13, 2014 Appendix 1. Test Setup Photos Radiated Test(0.009-30MHz) Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 1. Test Setup Photos Page Number : Page 2 to 3 BWS TECH Inc. Issue Date : November 13, 2014 Radiated Test(30-1000MHz) Mobile Appliance, Inc. Head-Up Screen BMW Head-Up Screen Report No: BWS-14-RF-0001 Appendix 1. Test Setup Photos Page Number : Page 3 to 3 BWS TECH Inc. Issue Date : November 13, 2014 Radiated Test(Above 1GHz)
