WHBUTR2UTR2.0

Audi Universal Traffic Recorder 2 Englisch Français Español Русский Deutsch Audi Universal Traffic Recorder Kurzanleitung Audi Universal Traffic Recorder Quick Start Guide Guide de démarrage rapide pour le Audi Universal Traffic Recorder Guía rápida del Audi Universal Traffic Recorder Универсальный автомобильный видеорегистратор Audi UTR Краткое руководств 日本語 한국어 퀵가이드 ショートガイド 中文 简要说明 3 Inhaltsverzeichnis Bitte als Erstes lesen! Allgemeine Produktinformationen Sicherheitshinweise Inbetriebnahme Betrieb Koppelung mit dem Smartphone Zeiteinstellung Betriebsmodi Fahrmodus Parkmodus Ereignisaufnahmen Speichernutzung Manuelles Ein- und Ausschalten AUDI UTR Heckkamera Speicherplatzbedarf Lieferumfang Impressum Service 4 4 4 5 5 5 5 6 6 6 6 6 6 7 8 9 9 9 9 4 Bitte als Erstes lesen! Allgemeine Produktinformationen Bei der Installation des Universal Traffic Recorders (AUDI UTR) ist darauf zu achten, dass nur die im Lieferumfang enthaltene Originalteile genutzt werden. Die Installation selbst sollte von einem AUDI Partner vorgenommen werden, um das ordnungsgemäße Anbringen des Systems zu gewährleisten. Ferner muss die Installation gem. der verfügbaren AUDI Original Einbauanleitung durchgeführt werden. Lesen Sie das Handbuch vor der initialen Inbetriebnahme Ihres AUDI UTR aufmerksam durch. Sicherheitshinweise Um einer Ablenkung des Fahrers vorzubeugen ist darauf zu achten, das Smartphone, den AUDI UTR, als auch die zugehörige App nicht während der Fahrt zu bedienen. Vergewissern sie sich vor Fahrtantritt, dass alle Insassen der Audioaufnahme des UTR einwilligen und ob sie mit der Nutzung des AUDI UTR die gesetzlichen Bestimmungen in dem jeweiligen Land einhalten. Bitte informieren Sie sich vorab, ob in Ihrem Land die Nutzung des UTR erlaubt ist und welche Einschränkungen es ggf. hinsichtlich der Nutzung der gewonnen Bild- bzw. Videodaten gibt. Gesetzliche Bestimmungen sind immer einzuhalten. Die AUDI AG hat weder Zugriff auf die gewonnen Daten des AUDI UTR, noch auf die App und die auf dem Kundensmartphone gesicherten Daten. Ferner werden die Daten auch nicht im Kundenfahrzeug gespeichert. Die Verbindung zwischen dem Kundensmartphone und dem AUDI UTR ist mit WPA/WPA2 verschlüsselt und kann jederzeit vom Kunden geändert werden. Zur Bestimmung der Position und Geschwindigkeit werden GPS Daten durch den AUDI UTR aufgezeichnet. Die Aufgenommenen Daten werden nach einer bestimmten Zeit wieder gelöscht - siehe Handbuch: Speicherplatzbedarf. Bitte beachten und befolgen Sie zu Ihrer Sicherheit auch alle weiteren Sicherheitshinweise. 5 Betrieb Mit Einschalten der Zündung aktiviert der UTR automatisch den „Fahrmodus“ und zeichnet die Fahrt auf der uSD-Karte auf. Mit Abschalten der Zündung schaltet der UTR automatisch in den „Parkmodus“, in dem mittels Radar und Erschütterungssensor das Fahrzeug überwacht wird Inbetriebnahme Schieben Sie die Speicherkarte (uSD) in das Gerät. Diese darf nur in ausgeschaltetem Zustand eingeschoben und entfernt werden, sonst werden die Daten beschädigt und es kann zu Fehlfunktionen kommen. Koppelung mit dem Smartphone Grundsätzlich kann der UTR mit Ihren Grundeinstellungen auch ohne Verbindung mit einem Smartphone betrieben werden. Akustische Hinweise halten Sie über den Betriebszustand Ihres UTR auf dem Laufenden. Um den UTR mit Ihrem Smartphone (iOS oder Android) zu nutzen, laden Sie sich bitte zuerst die kostenlose „AUDI UTR“ App aus dem jeweiligen App Store. iTunes (iOS) oder Google Play Store (Android). Um Ihr Smartphone nun mit dem UTR zu koppeln, aktivieren Sie bitte die WLAN-Funktion auf Ihrem Telefon und verbinden sich mit dem Hotspot (SSID) AUDI UTR. Das Standardpasswort hierzu lautet: 1234567890. Ändern Sie bitte gleich das Standardpasswort über die AUDI UTR App >Systemeinstellungen>Wifi>. Nach der Änderung Ihres Passwortes, müssen Sie sich mit dem neuen Passwort an dem WLAN-Hotspot (SSID) „AUDI UTR“ anmelden. In der Smartphone App finden Sie unter dem Punkt „Software“ das ausführliche Handbuch mit Erklärung der einzelnen Funktionen. Zeiteinstellung Der UTR stellt Zeit und Datum automatisch über die GPS-Zeit (UTC) ein. Die Anpassung an Ihre Zeitzone, bzw. Sommer- und Winterzeit erfolgt über einen Abgleich mit der Uhrzeit Ihres Smartphone. Ihr Gerät ist nun betriebsbereit! 6 Betriebsmodi Fahrmodus Wird automatisch gestartet, sobald die Zündung eingeschaltet wird. Es wird nun fortwährend ein Video aufgezeichnet und in ca. Ein- Minuten-Sequenzen auf die Speicherkarte geschrieben. Speichernutzung Manuelles Ein- und Ausschalten Die Speicherkarte wird vom System für jeden Betriebsmodus in unterschiedliche Bereiche geteilt (Fahren, Parken, Event). In jedem Speicherbereich wird die jeweils älteste Aufzeichnung durch die neueste überschrieben. Sichern Sie daher die Daten sofort, wenn etwas passiert ist. Sie können sich die Daten über die UTR App auf Ihr Smartphone herunterladen oder entnehmen Sie die SD-Karte (nach dem Ausschalten des Gerätes) um ein Überschreiben der Dateien zu verhindern. Wenn Sie die SD-Karte am PC bearbeiten und anschließend wieder mit der Kamera benutzen, wird die SD- Karte formatiert. D.h. alle vorhandenen Videos werden gelöscht! Ein kurzer Druck auf die EIN/AUS-Taste schaltet das System ein. Zum Ausschalten bitte lange drücken (mindestens 3 Sek.). Parkmodus Der Parkmodus wird aktiviert, sobald Sie die Zündung abschalten. Bei einer Erschütterung des Fahrzeugs oder einer Bewegung vor den Radarsensoren wird jeweils eine ca. 20 Sekunden-Sequenz aufgezeichnet. Ereignisaufnahmen Bei Erschütterungen des Fahrzeugs oberhalb des für den G-Sensor eingestellten Wertes werden separate Videodateien in dem Ordner „Event“ auf der Speicherkarte angelegt. Sie erkennen das Starten der Ereignisaufnahme an dem doppelten Piepton. Sie können die Empfindlichkeit des G-Sensors in 5 Stufen einstellen. 7 AUDI UTR Kamera Linse GPS Radar Sicherheits-LED blinkt im Parkmodus (abschaltbar) Knopf zum Abnehmen der Kamera (nach vorne herausschieben) Power Taste: •Kamera EIN / AUS -Einsch…

Text truncated - open the document above for the full version.

23 July 2020 DECLARATION OF PRODUCT SIMILARITY To Whom It May Concern We, Mobile Appliance. Inc., as manufacturer of following products, hereby declare that following products have identical RF module inside. The only differences among each device are described in the below table. Product Name: Basic Model: Variant Models: UTR 2.0 (Universal Traffic Recorder) UTR 2.0 Porsche Dashcam, Universal Traffic Recorder 2 Differences: Sincerely, 23 July 2020 ______________________ Jinoh Choi Manager Mobile Appliance., Inc. Mobile Appliance., Inc. 1701~1706, 401, Simin-daero, Dongan-gu, Anyang-si, Gyeonggi-do, Republic of Korea

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Mobile Appliance, Inc. Address 1701~1706, 401, Simin-daero, Dongan-gu, Anyang-si, Gyeonggi-do, Republic of Korea Grantee Code WBH FCC ID WBHUTR2 Authorized Contact Name Jin oh, Choi Contact Email [email protected] Contact Phone +82 10 9031 6152 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 27-July-2020 Print Name: Jin oh, Choi Title: Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Mobile Appliance, Inc. 1701~1706, 401, Simin-daero, Dongan-gu, Anyang-si, Gyeonggi-do, Republic of Korea FCC Agent Authorization letter 27 July 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: I, the undersigned, hereby authorize Lab Manager Hyunchae, You of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Hyunchae, You of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Mobile Appliance, Inc. 1701~1706, 401, Simin-daero, Dongan-gu, Anyang-si, Gyeonggi-do, Republic of Korea e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely yours, Name/Title : Jin oh, Choi / Manager Company Name : Mobile Appliance, Inc.

Mobile Appliance, Inc. 1701~1706, 401, Simin-daero, Dongan-gu, Anyang-si, Gyeonggi-do, Republic of Korea FCC Confidentiality Request Letter 27 July 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE : Request of Confidentiality for FCC ID : WHBUTR2 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, The Mobile Appliance, Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give The Suntech International temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual 4 Tune-up procedure The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely yours, Name/Title : Jin oh, Choi / Manager Company Name : Mobile Appliance, Inc. Mobile Appliance, Inc. 1701~1706, 401, Simin-daero, Dongan-gu, Anyang-si, Gyeonggi-do, Republic of Korea

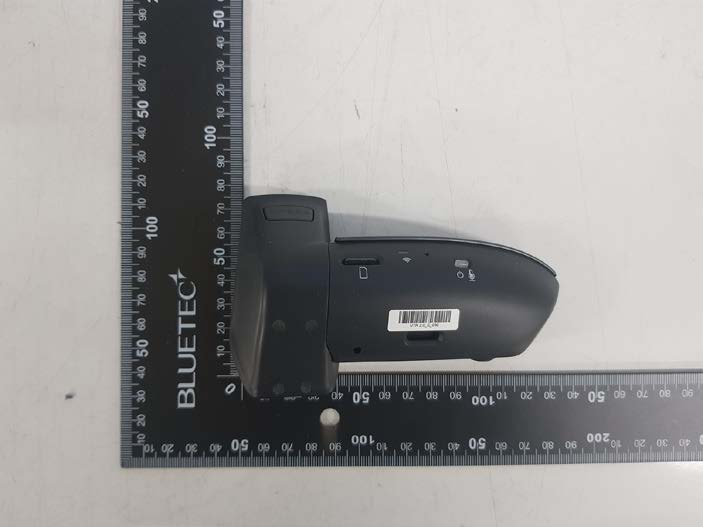

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

Label Information Front

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB Bottom view of Sub PCB Top view of 24 GHz PCB Bottom view of 24 GHz PCB View of Antenna & Module Bluetooth Low Energy Antenna WLAN Antenna Bluetooth Low Energy WLAN combo module 24㎓ Antenna

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001013 Page: 2 of 7 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 5 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001013 Page: 3 of 7 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : Mobile Appliance, Inc. Address : 401, Simin-daero, Dongan-gu, #1701-1706, Daerung Techno Town 15, Gwangyang-dong, Anyang-si, Gyeonggi-do, Korea, 14057 Contact Person : Choi, Jin-oh Phone No. : +82 31 421 8071 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product UTR 2.0 Model Name UTR 2.0 Power Supply DC 12 V Variant Model Name(s) Porsche Dashcam, Universal Traffic Recorder 2 Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth Low Energy) 2 412 ㎒ ~ 2 462 ㎒ (11b/g/n_HT20) 5 755 ㎒ (Band 3: 11n_HT40) 5 775 ㎒ (Band 3: 11ac_VHT80) 24.22 ㎓ (24 ㎓ Radar) Modulation Technique DSSS, OFDM, GFSK, FMCW Number of Channels 40 channels (Bluetooth Low Energy) 11 channels (11b/g/n_HT20) 1 channel (Band 3: 11 n_HT40) 1 channel (Band 3: 11ac_VHT80) 1 channel (24 ㎓ Radar) Antenna Type Chip antenna Patch antenna Antenna Gain 2 400 ㎒ ~ 2 483.5 ㎒: 1.99 ㏈i (Bluetooth Low Energy) 2 400 ㎒ ~ 2 483.5 ㎒: 2.24 ㏈i (WLAN 2.4G) 5 725 ㎒ ~ 5 850 ㎒: 1.52 ㏈i (WLAN 5G) 24 ㎓: 7 ㏈i (24 ㎓ Radar) H/W Version V1.0 S/W Version V1.0 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001013 Page: 4 of 7 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.5. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL001013 2020.07.24 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001013 Page: 5 of 7 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1 500 - - f/300 6 1 500-100 000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1 500 - - f/1500 30 1 500-100 000 - - 1.0 30 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001013 Page: 6 of 7 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Bluetooth Low Energy - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 2 400 ~ 2 483.5 -4 1.99 0.000 125 1 WLAN (2.4G) - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 2 400 ~ 2 483.5 15 2.24 0.010 537 1 WLAN (5G) - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 5 725 ~ 5 850 1 1.52 0.000 355 1 24 ㎓ Radar - Maximum tune up tolerance Frequency (㎓) Radiated Filed Strength (㏈㎶/m) Convert Field Strength to E.I.R.P. (㏈m) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 24.22 102.11 6.88 0.000 970 1 Note; - According to KDB 412172, E.I.R.P. = (Filed Strength (V/m) x d (m)) 2 / 30, d = measurement distance in meters (m) - The power density Pd (5th column) at a distance of 20 ㎝ calculated from the friis transmission formula is far below the limit of 1 ㎽/㎠. - This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - This equipment should be installed and operated with minimum 20 ㎝ between the radiator and your body. - The antenna gain of this transmitter is less than 6㏈ i and must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC. - According to KDB 447498 D01 RF Exposure Guidance 4.1. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001011 Page: 2 of 33 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) IN DEX Table of contents Page 1. General Information ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3 2. Transmitter Radiated Spurious Emissions ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 10 3. 26 ㏈ Bandwidth & 99 % Bandwidth ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 21 4. 6 ㏈ Bandwidth ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 25 5. Maximum Conducted Output Power ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 27 6. Peak Power Spectral Density ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 30 7. Antenna Requirement ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 33 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001011 Page: 3 of 33 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : Mobile Appliance, Inc. Address : 401, Simin-daero, Dongan-gu, #1701-1706, Daerung Techno Town 15, Gwangyang-dong, Anyang-si, Gyeonggi-do, Korea, 14057 Contact Person : Choi, Jin-oh Phone No. : +82 31 421 8071 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product UTR 2.0 Model Name UTR 2.0 Variant Model Name(s) Porsche Dashcam, Universal Traffic Recorder 2 Serial Number Conducted Sample : ASF200700002 Radiated Sample : ASF200700003 Power Supply DC 12 V Frequency Range 5 755 ㎒ (Band 3: 11n_HT40) 5 775 ㎒ (Band 3: 11ac_VHT80) Modulation Technique OFDM Number of Channels 1 channel (Band 3: 11 n_HT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type Chip antenna Antenna Gain 1.52 ㏈i H/W Version V1.0 S/W Version V1.0 1.5. Declaration by the Manufacturer - The EUT supports only one data rate for each mode below. Mode Data Rate (Mbps) 11n_HT40 MCS7 11ac_VHT80 MCS7 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001011 Page: 4 of 33 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.6. Automatically Discontinue Transmission 1.6.1. Limit of Automatically Discontinue Transmission The device shall automatically discontinue transmission in case of either absence of information to transmit or operating failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization to describe how this requirement is met. 1.6.2. Test Result of Automatically Discontinue Transmission While the EUT is not transmitting any information, the EUT can automatically discontinue transmission and become standby mode for power saving. The EUT can detect the controlling signal of ACK message transmitting form remote device and verify whether it shall resend or discontinue transmission. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001011 Page: 5 of 33 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.7. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMBV100A 255834 Jun. 03, 2020 Annual Jun. 03, 2021 Signal Generator R&S SMR40 100272 Jun. 18, 2020 Annual Jun. 18, 2021 Spectrum Analyzer R&S FSV30 100768 Mar. 04, 2020 Annual Mar. 04, 2021 Spectrum Analyzer Agilent N9030A US51350132 Nov. 15, 2019 Annual Nov. 15, 2020 Spectrum Analyzer Agilent N9030A US51350132 Nov. 15, 2019 Annual Nov. 15, 2020 Power Meter Anritsu ML2495A 1223004 Jun. 01, 2020 Annual Jun. 01, 2021 Power Sensor Anritsu MA2411B 1207272 Jun. 01, 2020 Annual Jun. 01, 2021 Attenuator AEROFLEX / INMET 40AH2W-10 40G-3 Jun. 16, 2020 Annual Jun. 16, 2021 Low Pass Filter Mini-Circuits NLP-1200+ V 9500401023-3 Jun. 01, 2020 Annual Jun. 01, 2021 High Pass Filter Wainwright Instrument GmbH WHKX6.0/18G-10SS 51 Jun. 18, 2020 Annual Jun. 18, 2021 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS 15 Jun. 05, 2020 Annual Jun. 05, 2021 DC Power Supply Agilent U8002A MY50060028 Mar. 03, 2020 Annual Mar. 03, 2021 Preamplifier H . P. 8447F 2944A03909 Aug. 07, 2019 Annual Aug. 07, 2020 Signal Conditioning Unit R&S SCU-18 10117 Jun. 10, 2020 Annual Jun. 10, 2021 Preamplifier MITEQ Inc. JS44-18004000-35-8P 1546891 May 08, 2020 Annual May 08, 2021 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 396 Mar. 21, 2019 Biennial Mar. 21, 2021 Horn Antenna R&S HF906 100326 Feb. 14, 2020 Annual Feb. 14, 2021 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170 BBHA9170431 Sep. 10, 2018 Biennial Sep. 10, 2020 Test Receiver R&S ESU26 100109 Feb. 18, 2020 Annual Feb. 18, 2021 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Z-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓)
