WHTD816TH2.4G Digital Wireless Camera

Installation and Operation Manual (D804TH)(D816TH) 1 Installation environment Keep away from heat sources and high-temperature places Avoid direct sunlight Keep away from humid places Avoid violent vibration Be installed in ventilated environment Packing list Product Overview The basic functions of these models can be summarized as: Moving objects in the camera's field of vision, are automatically (or manually) set to record or take photos of the images and stored in SD card. It can be widely used in homes, offices, small supermarkets, etc. I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l ( D 8 0 4 T H ) ( D 8 1 6 T H ) VIDEO OUT DC IN AUDIO OUT 1 AUDIO OUT 2 2 Button Functions of monitor NO Description Function PowerON/OFF MENU DCinput DC12Vinput Jack SD CARD OK Direction key Insert SD card to store files or player the file . Confirm key Audio -OUT Audio output Jack ON / OFF Menu features adjustment Enter to main menu setting Recording Take Photo Quad Exit 1 2 3 4 5 9 10 11 12 13 Press the button will take a photo. 8 6 Switch the camera Switching the input channel Exit to menuprevious OKOK POWERMOTION DETECT D IG IT A L M O T IO N D E T E C T V ID E O S Y S T E M 1 2 3 789 10 11 12 13 14 S D C A R D P O W E R O F F O N 15 16 S D 65 Video -OUT Video output Jack 4 Antenna Rotation for better quality Power indicator LED Motion detect indicator LED After Turn On ,The LED Will Light Moving objects in the camera's field of vision, The LED Will Light 15 16 14 Press the button start to recording ,press again then stop the recording. Under the playback mode, press the button to enter into delete dialog Switching display mode, under the quad mode, press the button switching the input channel, That the icon is displayed bcurrent channel.lue background for 7 VIDEO OUT DC IN AUDIO OUT 1 AUDIO OUT 2 4 3 Connection Camera 4Camera 3Camera 2Camera 1 NO Description Function Rain cover Camera Image Sensor Infrared LED Photosensitive diode Antenna DC In Camera Bracket Base Match Code Button Indicator LED Microphone 1 2 3 4 5 6 7 8 9 10 11 Waterproof Transmit picture to Receive Infrared Light enables working in the dark Control infrared light Adjust its Angle According Picture Clarity Adjust Angle of Camera Power Jack Connecting Role Click it Automatic adjustment of coding After Turn On ,The LED Will Light Monitor Around Voice 1 2 3 4 5 6 8 7 9 10 11 Camera angle adjust screw Button Functions of camera Operation 1. Recording Recording manually If it is not recording, press tton, then it begins recording. The recorded time is also displayed. Press tton again, then recording stops. bu bu Motion detection record If motion detection recording turn on, when system detects the motion in the motion detection area, it begins to record about 15 seconds.. 2.Take photo Photograph manually Press button, then it will take a photo. Motion detection photograph If motion detection photograph turn on, when system detects the motion in the motion detection area, it will take a photo. NOTICE 3. Adjustment the sound Under the monitor status ,press or tton adjust it.bu In quad mode, Manual take photo is only on the current channel . That the icon is displayed bcurrent channel.lue background for 12 34 In quad mode, Manual video recording is only on the current channel . That the icon is displayed bcurrent channel. In quad mode, can not listen to the sound. lue background for NOTICE 12 34 6 5 4.1.3Date and Time Setting 1. Press the or button to select options 2. Press the or button to adjust it. 3. Press the button to confirm. 4. Press the button to setup return. 4.1.5 Language Setting 1.Press the or button to select language Press the button to confirm the select. 3.Press the button to setup return. 2. Date and Time 15:52 2011 07 28 Language English French Deutsch Italiano Espanol 4.1.6 System Information Press the button to setup return. System Information System ID: EB9F13B6 Firmware: V1.1.0 Total Size: 121M Space Size: 17M 4.2 Memory Card 4. System setting Press the button will pip up system setting menu. Settings Memory Card Camera Monitor 2011-07-28 Thu 11:30 4.1.1 Brightness Setting Setting Brightness Motion detection Date and Time N/P Standard Language System Information Press the or button to select submenu. Press the button to confirm the select. BrightnessMonitor Detection Never Low Medium High 1.Press the button to adjust it. 2.Press the button to confirm the set. 3.Press the button to setup return. 4.1.2.1 Monitor Detection Sensitivity Setting 1.Press the or or button to select Motion Detection > Motion Detection item 2.Press the or button to select Press the button to confirm the select. 4.Press the button to setup return. Never/Low/Medium/High. 3. 4.1.2.3 Monitor Detection Alert Setting Monitor Detection Alert Monitor Detection Actions Video Recording Take Pictures 4.1.2.2 Monitor Detection Action Setting 1.Press the or or button to select Motion Detection > action item 2.Press the or button to select take picture/video recording . Press the button to confirm the select 4.Press the button to setup return. 3. On Off 1.Press the or or button to select Motion Detection > alert item 2.Press the or button to select on/off Press the button to confirm the select. 4.Press the button to setup return. 3. 4.1 Setting Press the button to select icon, then press the button will pip up the menu. OK OK OK OK OK OK OK OK OK Press the button to select icon, then press the button will pip up the menu. OK OK OK 4.1.4 N/P Standard N/P Standard 1.Press the or button to select opitions Press the button to confirm the select. 3.Press the button to setup return. 2. OK NTSC PAL Memory Card Folder SD Unmount SD Format Press the or button to select submenu. Press the button to confirm the select. 4.2.1 Folder 4.2.2 SD Unmount OK 4.2.3 SD Format Folder 09-14-09-1.mp4 09-44-16-2.mp4 09-14-46-1.mp4 09-40-26-2.mp4 4.2.1.1 Player the movies file 1.Press the or or button to select Folder >movies 2.Press the or button to select file 3.Pr…

Text truncated - open the document above for the full version.

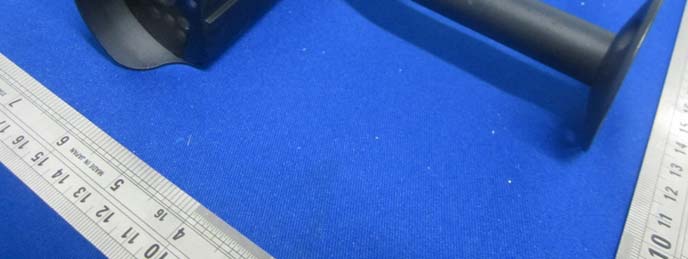

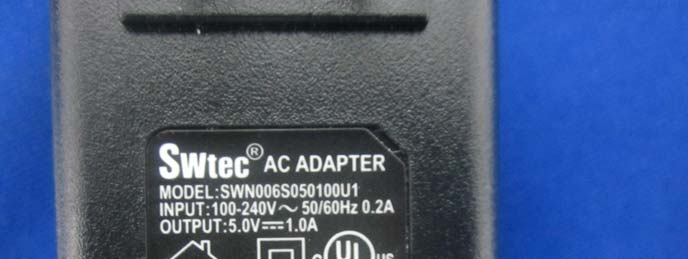

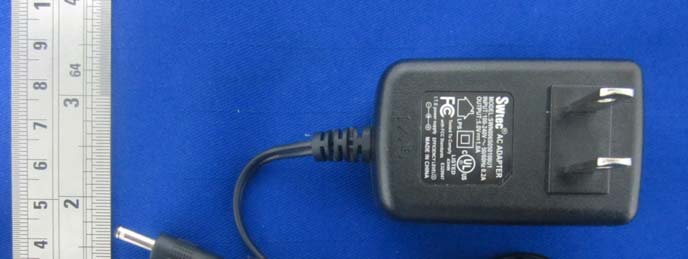

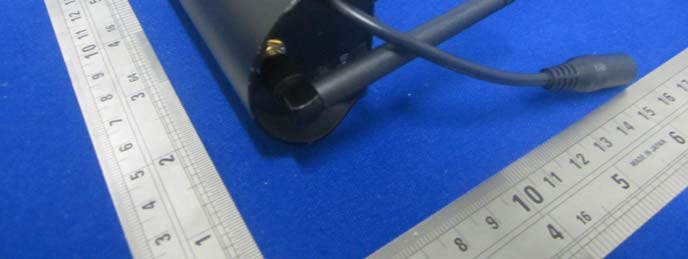

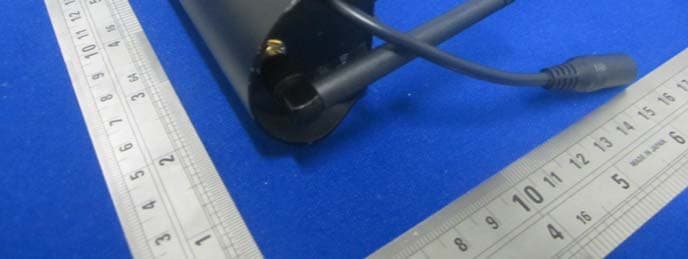

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Top View EUT – Bottom View EUT –Right Side View EUT –Left Side View EUT –Antenna Port View EUT – Base Cover Off View EUT –Adapter View EUT –Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT –Antenna Off View EUT –Antenna View EUT –Uncover View EUT –Cover Off View EUT – LED Board Top View EUT – LED Board Bottom View EUT – Camera Board Top View EUT –Camera Board Bottom View EUT – Main Board Top With Shielding View EUT – Main Board Top Without Shielding View EUT – Main Board Bottom View

Circuit Description D816TH 1. The power part： The power is 5V made up of Switching power supply。 2. The voltage conversion part: The voltage conversion by a DC-DC IC and LDO, its function is to supply 1.2V and 3.3V voltage for system. 3. The sensor part： Image is the A7121 sensor chip produced。 4. The audio part： Audio after LM4990 amplification processing, to the main chip。 5. The Core part： The core functions by main chip HPC3129 and SDRAM M12L64164L composition。 6. RF part： RF by A7121 chips。A7121 is a monolithic CMOS integrated circuit for wirelessapplications in 2.4GHz ISM band。 D804TH 1. The power part： The power is 12V made up of Switching power supply。 2. The voltage conversion part: The voltage conversion by a DC-DC IC and LDO, its function is to supply 1.2V ,3.3V and 5V voltage for system. 3. The audio part： Audio after LM4990 amplification processing, to speaker。 4. The Core part： The core functions by main chip HPC3129 and SDRAM M12L64164L composition。 5. RF part： RF by A7121 chips。A7121 is a monolithic CMOS integrated circuit for wirelessapplications in 2.4GHz ISM band。 M371TH 1. The power part： The power is 12V made up of Switching power supply。 2. The voltage conversion part: The voltage conversion by a DC-DC IC and LDO, its function is to supply 1.2V ，3.3V and 5V voltage for system. 3. The display part： Image processing by T118EL through 7 inches of liquid crystal display screen. 4. The audio part： Audio after LM4990 amplification processing, to speaker。 5. The Core part： The core functions by main chip HPC3129 and SDRAM M12L64164L composition。 6. RF part： RF by A7121 chips。A7121 is a monolithic CMOS integrated circuit for wirelessapplications in 2.4GHz ISM band。

Hopping Information 1. Scope of frequency used in this product is limited between 2414.250 MHz and 2461.500 MHz, which is divided into 15 channels with an interval of 3.375 MHz every two channels and hopping 50 time per second. 2. Below is the corresponding table of channels No. and channels’ frequencies. 3. While RX and TX work at normal Status should hopping CH Frequency (MHz) CH1 2414.250 CH2 2417.625 CH3 2421.000 CH4 2424.375 CH5 2427.750 CH6 2431.125 CH7 2434.500 CH8 2437.875 CH9 2441.250 CH10 2444.625 CH11 2448.000 CH12 2451.375 CH13 2454.750 CH14 2458.125 CH15 2461.500

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R1DG121205002-00A FCC Part 15.247 Page 8 of 35 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm)(mW) 2437.875 2 1.58 16.3643.25 20.00 0.01364 1.0 Result: The device meet FCC MPE at 20cm distance

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). FCC PART 15.247 TEST REPORT For ANPOSI PRODUCTS LTD. 2/F, EAST OF ZONGHE LOU, No.28 YITIAN GARDEN, FUQIANG ROAD, SHENZHEN, CHINA FCC ID: WHTD816TH Report Type: Original Report Product Type: 2.4G Digital wireless camera Test En gineer: Ares Liu Re port Number: R1DG121205002-00A Re port Date: 2013-03-05 Reviewed B y: Ivan Cao RF Leade r Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R1DG121205002-00A FCC Part 15.247 Page 2 of 35 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) .............................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 FCC §15.203 - ANTENNA REQUIREMENT ............................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 9 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 MEASUREMENT UNCERTAINTY .................................................................................................................................. 10 EUT SETUP ................................................................................................................................................................ 10 EMI TEST RECEIVER SETUP ....................................................................................................................................... 11 TEST PROCEDURE ...................................................................................................................................................... 11 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 12 TEST RESULTS SUMMARY .......................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 15 APPLICABLE STANDARD ............................................................................................................................................ 15 MEASUREMENT UNCERTAINTY .................................................................................................................................. 15 EUT SETUP ................................................................................................................................................................ 15 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 16 TEST PROCEDURE .......................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emission--Front View Conducted Emission –Side View Radiated Emission - Front View (Below 1G) Radiated Emission - Rear View (Below 1G) Radiated Emission - Front View (Above 1GHz) Radiated Emission - Rear View (Above 1GHz)
