WHTD970TH2.4 GHz Digital Wireless Camera

This equipment should be installed and operated with minimum conjunction with any This transmitter must not be co-located or operating in limits set forth for an This equipment complies with FCC radiation exposure interference that may cause undesired (2) this device must accept any interference received, including (1) This device may not cause harmful interference, and Operation is subject to the following two conditions: This device complies with part 15 of the FCC Rules. a Installation and Operation Manual Please read this user manual carefully before use this product. (D970TH) Presentation components To usually clean camera window with a gentle cloth, so that make the picture more clear . It should be far away the places where mount a stove high temperature or humidity, to avoid the unit's mal function It should be far away strong mgnetic fields, like TV, speaker, to avoid monitor's quality unable to clear the unit with wet cloth, oil, corrosive liquids. Don't hit unit with overpower Notice:Notice: Specification 40M CMOS DC12V 1.5A 500100mA 20 Item Value Operating Frequency Unobstructed Effective Range 150m(Min.) Operating Temperature Storage Temperature Operating Humidity 85%RH -10~ +50/ +14~+122 -20~ +60/+14~+140 Night vision distance Imaging Sensor Type View Angle Power Supply (for camera) Consumption Current 2414.250~2461.500MHz NO Description Function Rain cover Infrared LED Photosensitive diode Camera Image Sensor Antenna Match Code Button indicator LED Microphone DC IN Camera Bracket Base 1 2 3 4 5 6 7 8 9 10 Waterproof Infrared Light enables working in the dark Control infrared light Transmit picture to Receive Adjust its Angle According Picture Clarity Click it Automatic adjustment of coding After Turn On ,The LED Will Light Monitor Around Voice Power Cable Adjust Angle of Camera 6 1 2 3 4 5 10 7 8 9 Any Changes or modifications not expressly approved by the party responsible for FCC Statement compliance could void the user’s authority to operate the equipment. operation. FCC Radiation Exposure Statement: uncontrolled environment. other antenna or transmitter. Note: This equipment has been tested and found to comply with the limits for a Class B digital Note: This equipment has been tested and found to comply with the limits for a Class B digital Note: This equipment has been tested and found to comply with the limits for a Class B digital Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. protection against harmful interference in a residential installation. This equipment generates on reception, which can be determined by turning —Connect the equipment into an outlet on a circuit di fferent from that to which the receiver is distance 20cm between the radiator& your body.

ANPOSI PRODUCTS LTD. ADD: 2/F, EAST OF ZONGHE LOU, No.28 YITIAN GARDEN, FUQIANG ROAD, SHENZHEN, CHINA Tel：86-755-82026098 Fax: 86-755-82026028 FCC Authorization Date: 2014-06-16 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, ANPOSI PRODUCTS LTD., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Icy Zhang Manager

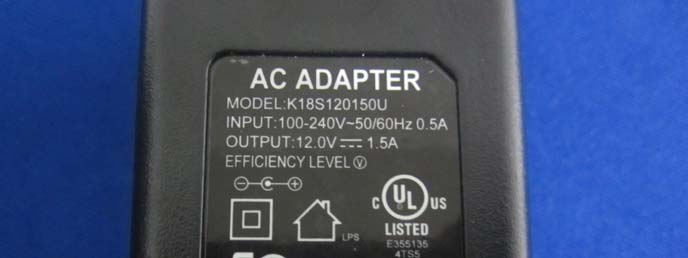

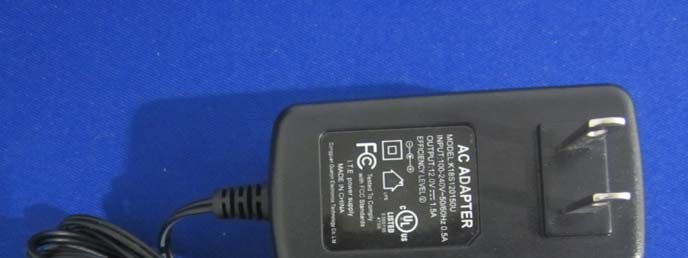

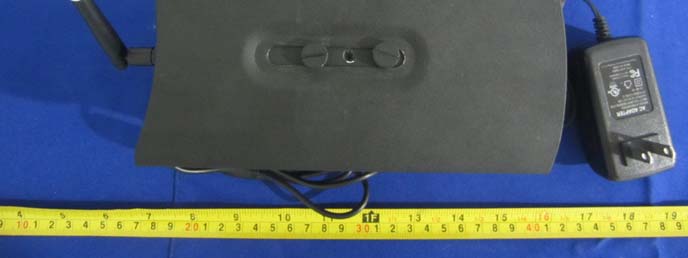

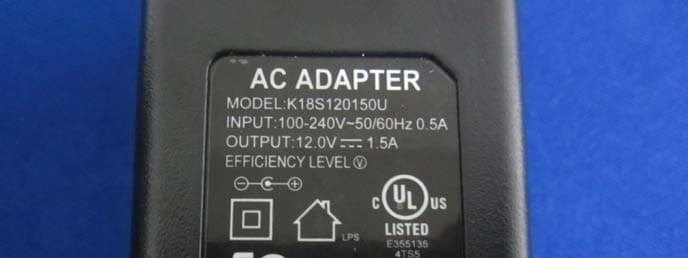

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Top View EUT – Bottom View EUT –Right Side View EUT –Left Side View EUT – Front Side View EUT – Rear Side View EUT – Antenna View EUT – Antenna Port View EUT –Adapter View EUT –Adapter Label View

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Rain Cover Off View EUT – Uncover View EUT – Sub Board Off View EUT – Sub Board Top View EUT – Sub Board Bottom View EUT – Main Board Top View EUT – Main Board Top Shielding Off View EUT – Main Board Bottom View EUT – RF Module View EUT – Camera Board Off View EUT – Camera Board Top View EUT –Camera Board Bottom View

Circuit Description D970TH 1. The power part： The power is 12V made up of Switching power supply。 2. The voltage conversion part: The voltage conversion by a DC-DC IC and LDO, its function is to supply 1.2V and 3.3V voltage for system. 3. The sensor part： Image is the A7121 sensor chip produced。 4. The audio part： Audio after LM4990 amplification processing, to the main chip。 5. The Core part： The core functions by main chip HPC3129 and SDRAM HY57V641620FTP composition。 6. RF part： RF by A7121 chips。A7121 is a monolithic CMOS integrated circuit for wireless applications in 2.4GHz ISM band。

Hopping Information 1. Scope of frequency used in this product is limited between 2414.250 MHz and 2461.500 MHz, which is divided into 15 channels with an interval of 3.375 MHz every two channels and hopping 50 time per second. 2. Below is the corresponding table of channels No. and channels’ frequencies. 3. While RX and TX work at normal Status should hopping CH Frequency (MHz) CH1 2414.250 CH2 2417.625 CH3 2421.000 CH4 2424.375 CH5 2427.750 CH6 2431.125 CH7 2434.500 CH8 2437.875 CH9 2441.250 CH10 2444.625 CH11 2448.000 CH12 2451.375 CH13 2454.750 CH14 2458.125 CH15 2461.500

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R2DG140523003-00A FCC Part 15.247 Page 8 of 36 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm)(mW) 2414.250 2.0 1.58 16.4043.6520 0.0137 1.0 Result: The device meet FCC MPE at 20cm distance.
