FCC ID : WI3-M7XX Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 802.11b Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2412 9.20 8.32 2.58 3.0 2437 9.14 8.20 2.56 3.0 2462 9.26 8.43 2.65 3.0 802.11g Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2412 8.23 6.65 2.07 3.0 2437 8.12 6.49 2.03 3.0 2462 8.46 7.01 2.20 3.0 802.11n20 Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2412 8.26 6.70 2.08 3.0 2437 7.92 6.19 1.93 3.0 2462 7.63 5.79 1.82 3.0 802.11n40 Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2422 6.88 4.88 1.52 3.0 2437 6.82 4.81 1.50 3.0 2452 6.83 4.82 1.51 3.0 Threshold at which no SAR required is ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A

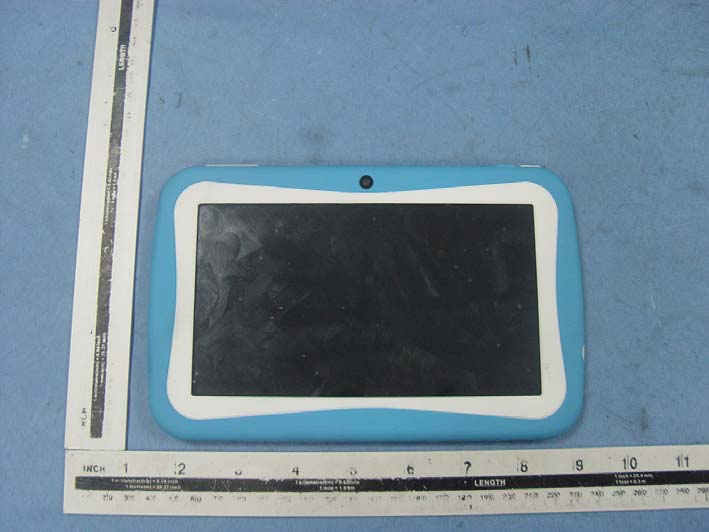

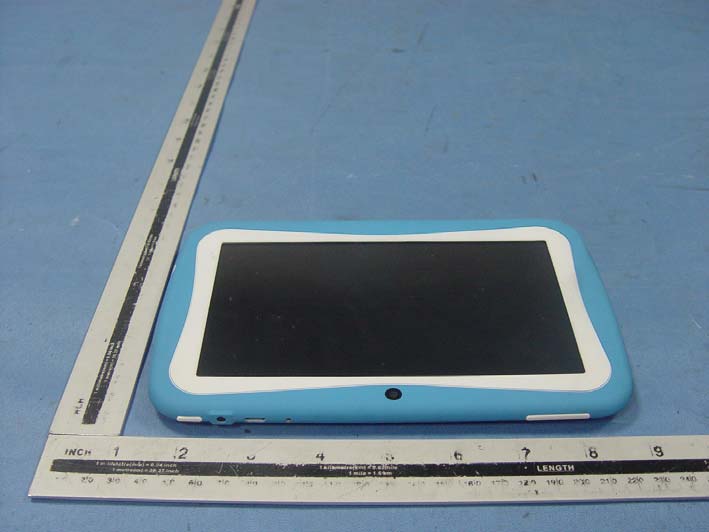

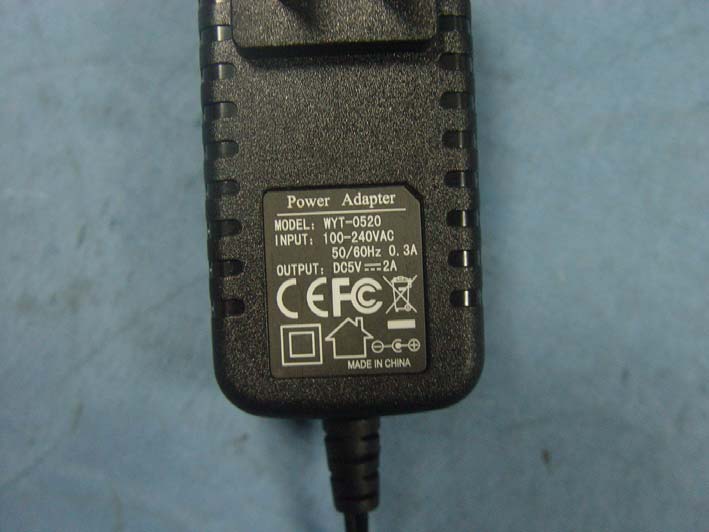

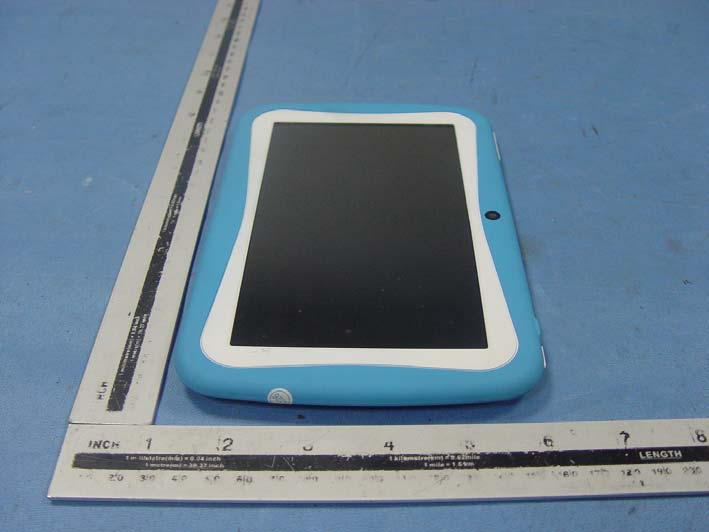

Report No.: ATE20141876 Page 1 of 111 FCC ID: WI3-M7XX ACCURATE TECHNOLOGY CO., LTD APPLICATION CERTIFICATION FCC Part 15C On Behalf of Shenzhen Sungworld Electronics Co., LTD. MID Model No.: M7XX FCC ID: WI3-M7XX Prepared for : Shenzhen Sungworld Electronics Co., LTD Address : 4#, North District, Shangxue Industrial Park Bantian, Long Gang District, Shenzhen, China Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report No. : ATE20141876 Date of Test : Sep 26, 2014-Oct 22, 2014 Date of Report : Oct 22, 2014 Report No.: ATE20141876 Page 2 of 111 FCC ID: WI3-M7XX ACCURATE TECHNOLOGY CO., LTD TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 5 1.1. Description of Device (EUT)....................................................................................................................5 1.2. Carrier Frequency of Channels .................................................................................................................6 1.3. Accessory and Auxiliary Equipment ........................................................................................................6 1.4. Description of Test Facility ......................................................................................................................6 1.5. Measurement Uncertainty.........................................................................................................................7 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 8 3. OPERATION OF EUT DURING TESTING ................................................................................. 9 3.1. Operating Mode ........................................................................................................................................9 3.2. Configuration and peripherals ..................................................................................................................9 4. TEST PROCEDURES AND RESULTS ....................................................................................... 10 5. POWER LINE CONDUCTED MEASUREMENT ..................................................................... 11 5.1. Block Diagram of Test Setup..................................................................................................................11 5.2. Power Line Conducted Emission Measurement Limits..........................................................................11 5.3. Configuration of EUT on Measurement .................................................................................................11 5.4. Operating Condition of EUT ..................................................................................................................11 5.5. Test Procedure ........................................................................................................................................12 5.6. Power Line Conducted Emission Measurement Results ........................................................................13 6. 6DB&20DB BANDWIDTH MEASUREMENT ........................................................................... 16 6.1. Block Diagram of Test Setup..................................................................................................................16 6.2. The Requirement For Section 15.247(a)(2) ............................................................................................16 6.3. EUT Configuration on Measurement .....................................................................................................16 6.4. Operating Condition of EUT ..................................................................................................................16 6.5. Test Procedure ........................................................................................................................................16 6.6. Test Result ..............................................................................................................................................17 7. MAXIMUM CONDUCTED (AVERAGE) OUTPUT POWER ................................................. 30 7.1. Block Diagram of Test Setup..................................................................................................................30 7.2. The Requirement For Section 15.247(b)(3)............................................................................................30 7.3. EUT Configuration on Measurement .....................................................................................................30 7.4. Operating Condition of EUT ..................................................................................................................30 7.5. Test Procedure ........................................................................................................................................30 7.6. Test Result ..............................................................................................................................................31 8. POWER SPECTRAL DENSITY MEASUREMENT.................................................................. 38 8.1. Block Diagram of Test Setup..................................................................................................................38 8.2. The Requirement For Section 15.247(e).................................................................................................38 8.3. EUT Configuration on Measurement .....................................................................................................38 8.4. Operating Condition of EUT ..................................................................................…

Text truncated - open the document above for the full version.

Report No.: ATE20141876 Page 66 of 111 FCC ID: WI3-M7XX ACCURATE TECHNOLOGY CO., LTD Note: Average measurement with peak detection at No.2&4 Report No.: ATE20141876 Page 67 of 111 FCC ID: WI3-M7XX ACCURATE TECHNOLOGY CO., LTD Note: Average measurement with peak detection at No.2&4 Report No.: ATE20141876 Page 68 of 111 FCC ID: WI3-M7XX ACCURATE TECHNOLOGY CO., LTD Note: Average measurement with peak detection at No.2&4 Report No.: ATE20141876 Page 69 of 111 FCC ID: WI3-M7XX ACCURATE TECHNOLOGY CO., LTD 10. RADIATED SPURIOUS EMISSION TEST 10.1.Block Diagram of Test Setup 10.1.1.Block diagram of connection between the EUT and peripherals 10.1.2.Semi-Anechoic Chamber Test Setup Diagram 10.2.The Limit For Section 15.247(d) Section 15.247(d): In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the ANTENNA ELEVATION VARIES FROM 1 TO 4 METERS 3 METERS EUT 0.8 METER GROUND PLANE Cable Figure 1 Setup: Transmitting mode EUT Report No.: ATE20141876 Page 70 of 111 FCC ID: WI3-M7XX ACCURATE TECHNOLOGY CO., LTD transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in Section 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the radiated emission limits specified in Section 15.209(a). 10.3.Restricted bands of operation 10.3.1.FCC Part 15.205 Restricted bands of operation (a) Except as shown in paragraph (d) of this section, Only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.090-0.110 1 0.495-0.505 2.1735-2.1905 4.125-4.128 4.17725-4.17775 4.20725-4.20775 6.215-6.218 6.26775-6.26825 6.31175-6.31225 8.291-8.294 8.362-8.366 8.37625-8.38675 8.41425-8.41475 12.29-12.293 12.51975-12.52025 12.57675-12.57725 13.36-13.41 16.42-16.423 16.69475-16.69525 16.80425-16.80475 25.5-25.67 37.5-38.25 73-74.6 74.8-75.2 108-121.94 123-138 149.9-150.05 156.52475-156.52525 156.7-156.9 162.0125-167.17 167.72-173.2 240-285 322-335.4 399.9-410 608-614 960-1240 1300-1427 1435-1626.5 1645.5-1646.5 1660-1710 1718.8-1722.2 2200-2300 2310-2390 2483.5-2500 2690-2900 3260-3267 3332-3339 3345.8-3358 3600-4400 4.5-5.15 5.35-5.46 7.25-7.75 8.025-8.5 9.0-9.2 9.3-9.5 10.6-12.7 13.25-13.4 14.47-14.5 15.35-16.2 17.7-21.4 22.01-23.12 23.6-24.0 31.2-31.8 36.43-36.5 ( 2 ) 1 Until February 1, 1999, this restricted band shall be 0.490-0.510 2 Above 38.6 (b) Except as provided in paragraphs (d) and (e), the field strength of emission appearing within these frequency bands shall not exceed the limits shown in Section 15.209. At frequencies equal to or less than 1000MHz, Compliance with the limits in Section 15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector. Above 1000MHz, compliance with the emission limits in Section15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in Section 15.35 apply to these measurements. 10.4.Configuration of EUT on Measurement The equipment are installed on Radiated Emission Measurement to meet the commission requirements and operating regulations in a manner which tends to maximize its emission characteristics in normal application. Report No.: ATE20141876 Page 71 of 111 FCC ID: WI3-M7XX ACCURATE TECHNOLOGY CO., LTD 10.5.Operating Condition of EUT 10.5.1.Setup the EUT and simulator as shown as Section 10.1. 10.5.2.Turn on the power of all equipment. 10.5.3.Let the EUT work in TX modes measure it. The transmit frequency are 2412-2462 and 2422-2452MHz. We select 2412MHz, 2437MHz, 2462MHz and 2422MHz, 2437MHz, 2452MHz TX frequency to transmit. 10.6.Test Procedure The EUT and its simulators are placed on a turntable, which is 0.8 meter high above ground. The turntable can rotate 360 degrees to determine the position of the maximum emission level. EUT is set 3.0 meters away from the receiving antenna, which is mounted on an antenna tower. The antenna can be moved up and down between 1.0 meter and 4 meters to find out the maximum emission level. Broadband antenna (calibrated bilog antenna) is used as receiving antenna. Both horizontal and vertical polarizations of the antenna are set on measurement. In order to find the maximum emission levels, all of the interface cables must be manipulated according to ANSI C63.4: 2009 on radiated emission measurement. The EUT was tested in 3 orthogonal planes. The worst-case data rate for this channel to be 1Mbps for 802.11b mode and 6Mbps for 802.11g mode and 150Mbps for 802.11n mode, based on previous with 802.11 WLAN product design architectures. The frequency range from 30MHz to 25000MHz is checked. Result = Reading + Corrected Factor Where Corrected Factor = Antenna Factor + Cable Loss – Amplifier Gain During the radiated emission test, the spectrum analyzer was set with the following configurations: 1. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 120kHz for Quasi-peak at frequency below 1GHz. 2. The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video bandwidth is 3MHz for peak measurement with peak detector at frequency above 1GHz. 3. The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video bandwidth is 10Hz for Average measurement with peak detection at frequency above 1GHz. 4. All modes of operation were…

Text truncated - open the document above for the full version.

Photo of Conducted Emission Measurement Photo of Radiation Emission Measurement Below 1G Above 1G
