WI3-VX-E7002MID

Table of Contents Basic Introduction................................................................................................. 1 Outlook description ......................................................................................... 1 Basic specification........................................................................................... 1 Quick Start............................................................................................................ 2 Boot and Shutdown ......................................................................................... 2 Connect with PC ............................................................................................. 3 Interface Introduction ........................................................................................... 4 Bottom bar of the Interface.............................................................................. 4 The HOME Screen menu ................................................................................ 4 Desktop ........................................................................................................... 5 Basic Operation.................................................................................................... 6 Wireless Connection: ...................................................................................... 6 Sound Settings................................................................................................ 7 Display settings ............................................................................................... 8 Date and time settings: ................................................................................... 9 Applications install and uninstall.................................................................... 10 Browser ..........................................................................................................11 Video player: ................................................................................................. 12 Music player: ................................................................................................. 12 Photo Browser............................................................................................... 13 Camera ......................................................................................................... 13 Sound Recorder ............................................................................................ 15 Google Play Store ......................................................................................... 16 Frequently Asked Questions .............................................................................. 16 Important Safety Precautions ............................................................................. 17 System:Android4.1 Processor: Boxchip A13 Edition:V01 DA50 1 Basic Introduction Outlook description Basic specification z CPU: Boxchip A13 Cortex A8-1.0Ghz z LCD Screen: 7 " 800 *480 LED backlight z Camera: Front 0.3M/Rear 0.3M pixel camera. z Operating System: Google Android 4.1 z Network Connection: Built-in 802.11b/g/n wireless Wi-Fi z Audio format: MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV z Video format: max 2160p full HD video (AV I,3 G P, M P 4 , M P G, R M , R M V B , M O V, F LV, W M V, M K V ) z TOUCH PANNEL: Multi-touch Capacitive screen z Language: support multiple languages 2 z Ports: micro USB*1 , Earphone * 1, TF card slot * 1,DC IN*1,MIC*1 z Buttons: Power/Vol+/Vol- Quick Start Boot and Shutdown Boot: Press and hold the power button, the system will enter the boot process. System has been started, entering the Android system: System into the main interface. 3 Shutdown: Press the power button, pop-up Power off ,Click OK, you can safely shut down. Connect with PC By Micro USB (OTG) interface of the device, You can connect with PC by Micro USB cable attached with the device. USB Data transferring is available. You can operate the files through the PC. When your device is connected successfully, to pull up the notification area of the status bar, can see the following icon. Then click to enter the next. 4 Click , Then the device can transmission data with PC. Note: The device also supports the FAT32 format for external devices, for example U disk, Micro SD card to Transfer data. Interface Introduction Bottom bar of the Interface A. Back, Home, Recent run the application, Menu virtual buttons. B. Connect USB, can realize the tablet and PC file transfer. C. USB debugging connected. Select to disable USB debugging. D. Time display: Display the time of the current system, which has been set. E. WIFI signal status icon: If connected to the WIFI wireless network, the icon will be displayed. F. Battery status icon: Displaying the current battery level and the charging status. The HOME Screen menu Press the menu icon on the device, it will display a home screen menu as following: 5 Wallpaper: Users can replace the wallpaper with you wishes. Manage apps: It can quickly open a list of all applications. System Settings: Fast access to system settings, user can choose “Wireless & networks”, “Display”, “Date & time” etc, for personalized settings. Desktop When sliding around with your finger to switch the main screen, the desktop fixed on the main screen, will not move. User could drag the application icon placed on the desktop area in the main screen. 6 Basic Operation Click the "Settings" icon in the main applications area, you can open the system settings interface, as shown below: Select the appropriate operation of the relevant items, such as: wireless and network, Display, date and time settings, about Device, etc Wireless Connection: Click the main menu "Settings" icon, go to "Settings" screen, click on "Wireless and networks" into the "Wireless and networks settings" interface. Turn on Wi-Fi switch, the Wi-Fi module built-in the device will search AP lists automatic , click the searched AP can …

Text truncated - open the document above for the full version.

Shenzhen Sungworld Electronics Co., LTD To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: WI3-VX-E7002 To Whom It May Concern: This letter is to ascertain that Shenzhen Sungworld Electronics Co., LTD. （Product：MID Model name: M7XX, VX-E7002）has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Client’s signature Client’s name / title : Ada Zhou/ Product Manager Contact address: 4#, No rth District, Shangxue Industrial Park Bantian, Long Gang District , Shenzhen, China Contact telephone: 86-755-89580111 Email: [email protected]

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Shenzhen Sungworld Electronics Co., LTD Nov 14,2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Shenzhen Sungworld Electronics Co., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product name: MID Model No.: M7 XX, VX-E7002 FCC ID: WI3-VX-E7002 We affirm that between SIEMIC and Shenzhen Sungworld Electronics Co., LTD , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Ada Zhou/ Product Manager Contact address: 4#, North District, Shangxue Industrial Park Bantian, Long Gang District, Shenzhen, China Contact telephone: 86-755-89580111 Email: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] FCC Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Shenzhen Sungworld Electronics Co., LTD FCC Confidentiality Request Letter Nov 14,2013 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: WI3-VX-E7002 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Ada Zhou/ Product Manager Contact address: 4#, North District, Shangxue Industrial Park Bantian, Long Gang District, Shenzhen, China Contact telephone: 86-755-89580111 Email: [email protected]

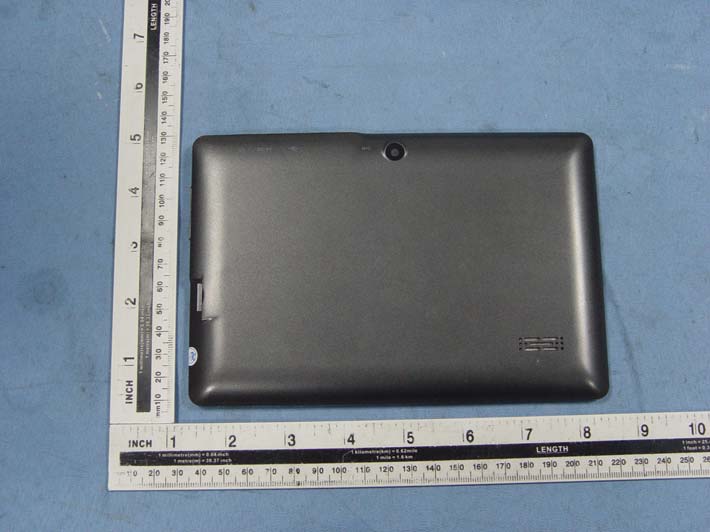

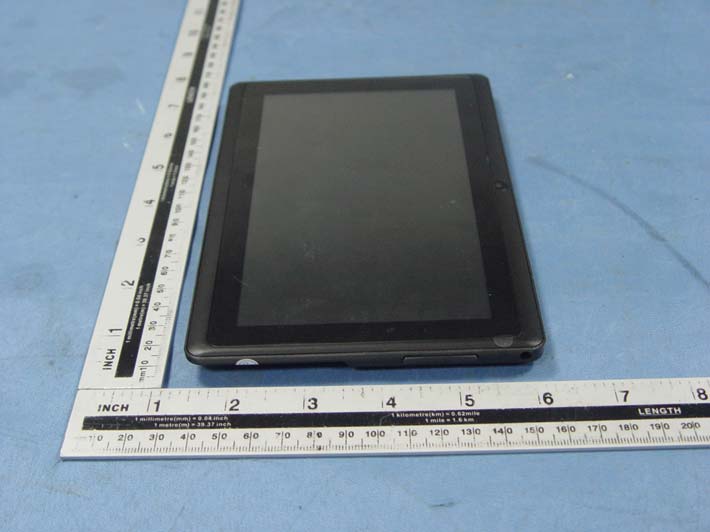

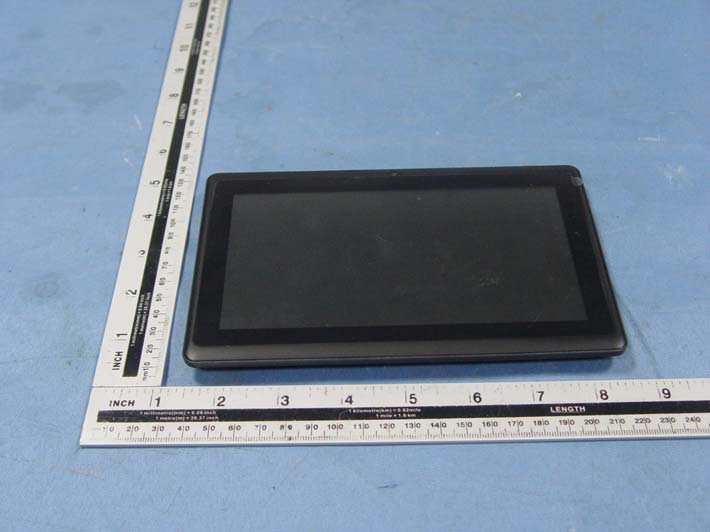

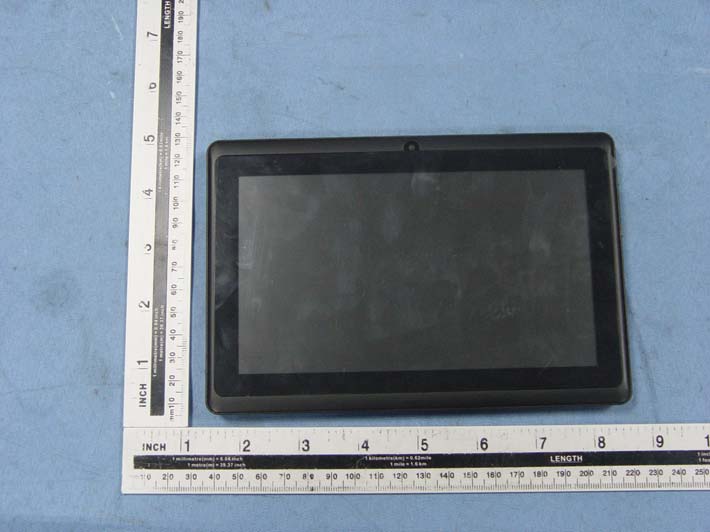

External Photos

Label and label location

Internal Photos Antenna

FCC ID : WI3-VX-E7002 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 802.11b Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2412 9.43 8.77 2.72 3.0 2437 8.22 6.64 2.07 3.0 2462 7.42 5.52 1.73 3.0 802.11g Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2412 7.16 5.20 1.62 3.0 2437 7.13 5.16 1.61 3.0 2462 7.75 5.96 1.22 3.0 802.11n20 Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2412 7.08 5.11 1.59 3.0 2437 6.48 4.45 1.39 3.0 2462 6.45 4.42 1.39 3.0 802.11n40 Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2422 7.21 5.26 1.64 3.0 2437 6.78 4.76 1.49 3.0 2452 6.51 4.48 1.40 3.0 Threshold at which no SAR required is ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A

Report No.: ATE20132325 Page 1 of 128 FCC ID: WI3-VX-E7002 ACCURATE TECHNOLOGY CO., LTD APPLICATION CERTIFICATION FCC Part 15C On Behalf of Shenzhen Sungworld Electronics Co., LTD MID Model No.: M7XX, VX-E7002 FCC ID: WI3-VX-E7002 Prepared for : Shenzhen Sungworld Electronics Co., LTD Address : 4#, North District, Shangxue Industrial Park Bantian, Long Gang District, Shenzhen, China Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report No. : ATE20132325 Date of Test : Oct 30- Nov 13, 2013 Date of Report : Nov 13, 2013 Report No.: ATE20132325 Page 2 of 128 FCC ID: WI3-VX-E7002 ACCURATE TECHNOLOGY CO., LTD TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 5 1.1. Description of Device (EUT)....................................................................................................................5 1.2. Carrier Frequency of Channels .................................................................................................................6 1.3. Accessory and Auxiliary Equipment\ .......................................................................................................6 1.4. Description of Test Facility ......................................................................................................................6 1.5. Measurement Uncertainty.........................................................................................................................7 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 8 3. OPERATION OF EUT DURING TESTING ................................................................................. 9 3.1. Operating Mode ........................................................................................................................................9 3.2. Configuration and peripherals ..................................................................................................................9 4. TEST PROCEDURES AND RESULTS ....................................................................................... 10 5. POWER LINE CONDUCTED MEASUREMENT ..................................................................... 11 5.1. Block Diagram of Test Setup.............................................................................................................11 5.2. Power Line Conducted Emission Measurement Limits..................................................................11 5.3. Configuration of EUT on Measurement............................................................................................11 5.4. Operating Condition of EUT...............................................................................................................11 5.5. Test Procedure.....................................................................................................................................12 5.6. Power Line Conducted Emission Measurement Results...............................................................13 6. 6DB BANDWIDTH MEASUREMENT ........................................................................................ 16 6.1. Block Diagram of Test Setup..................................................................................................................16 6.2. The Requirement For Section 15.247(a)(2) ............................................................................................16 6.3. EUT Configuration on Measurement .....................................................................................................16 6.4. Operating Condition of EUT ..................................................................................................................16 6.5. Test Procedure ........................................................................................................................................16 6.6. Test Result ..............................................................................................................................................17 7. MAXIMUM PEAK OUTPUT POWER ....................................................................................... 24 7.1. Block Diagram of Test Setup..................................................................................................................24 7.2. The Requirement For Section 15.247(b)(3)............................................................................................24 7.3. EUT Configuration on Measurement .....................................................................................................24 7.4. Operating Condition of EUT ..................................................................................................................24 7.5. Test Procedure ........................................................................................................................................24 7.6. Test Result ..............................................................................................................................................25 8. POWER SPECTRAL DENSITY MEASUREMENT.................................................................. 32 8.1. Block Diagram of Test Setup..................................................................................................................32 8.2. The Requirement For Section 15.247(e).................................................................................................32 8.3. EUT Configuration on Measurement .....................................................................................................32 8.4. Operating Condition of EUT ........................................................................…

Text truncated - open the document above for the full version.
