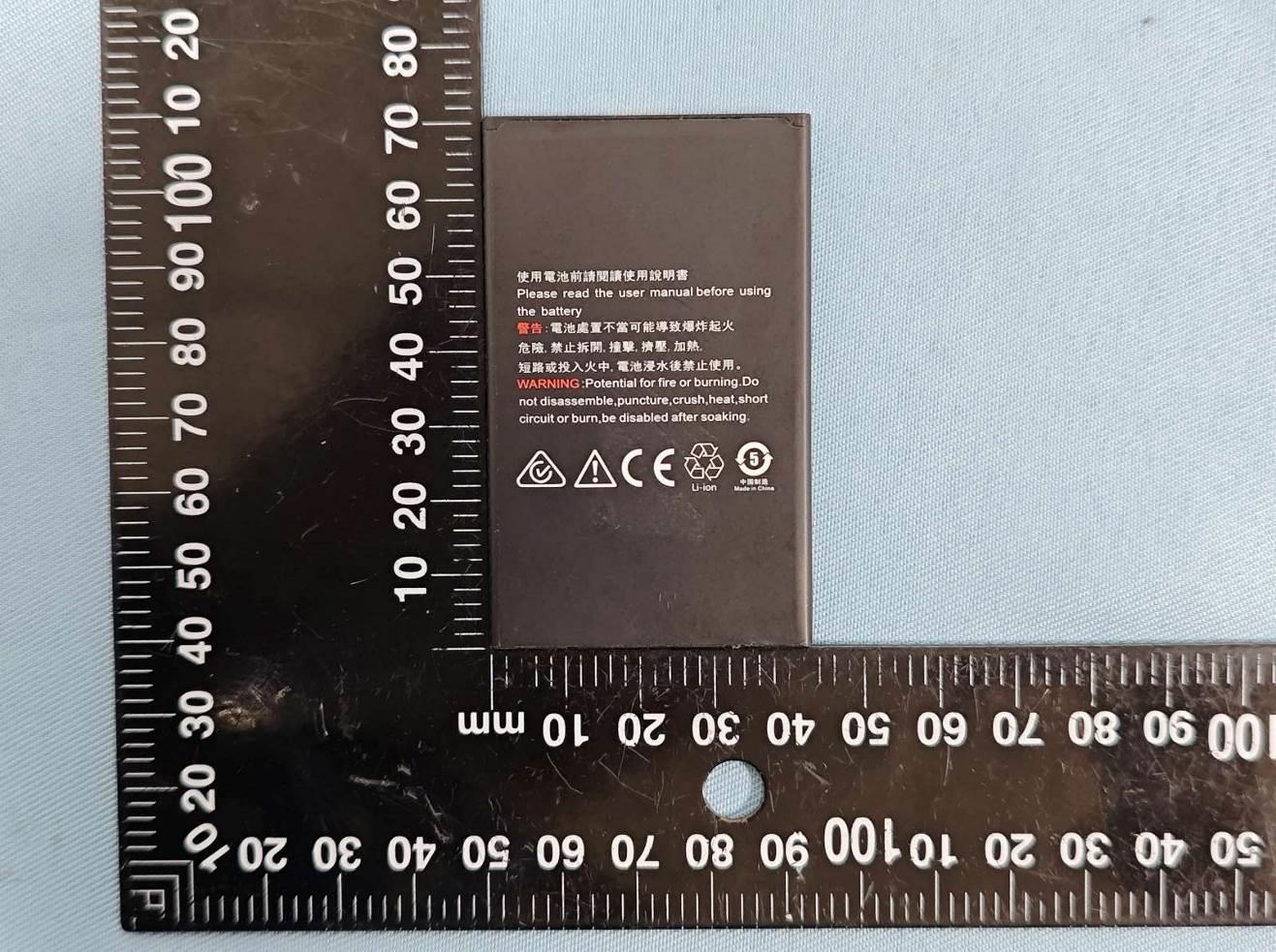

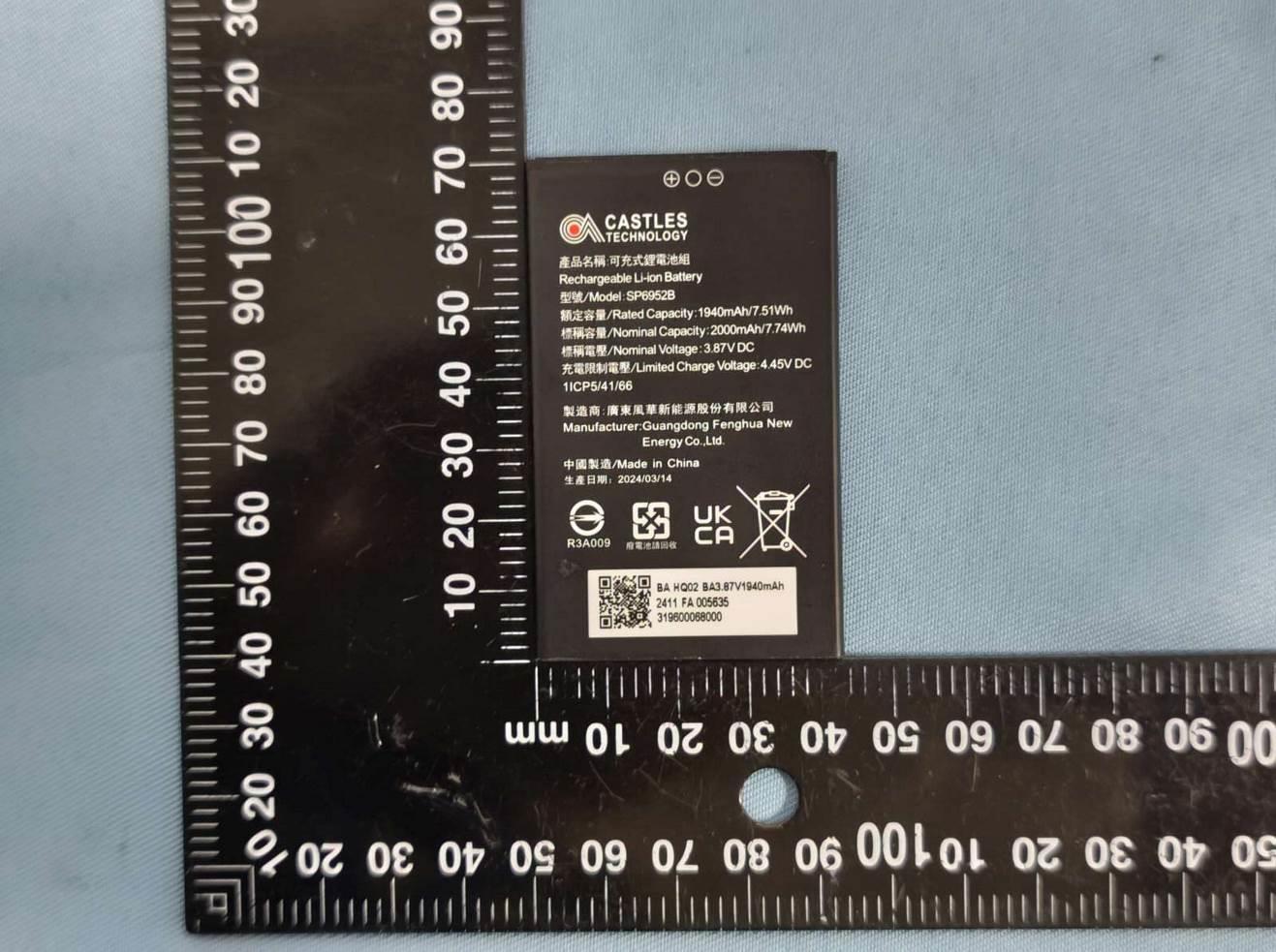

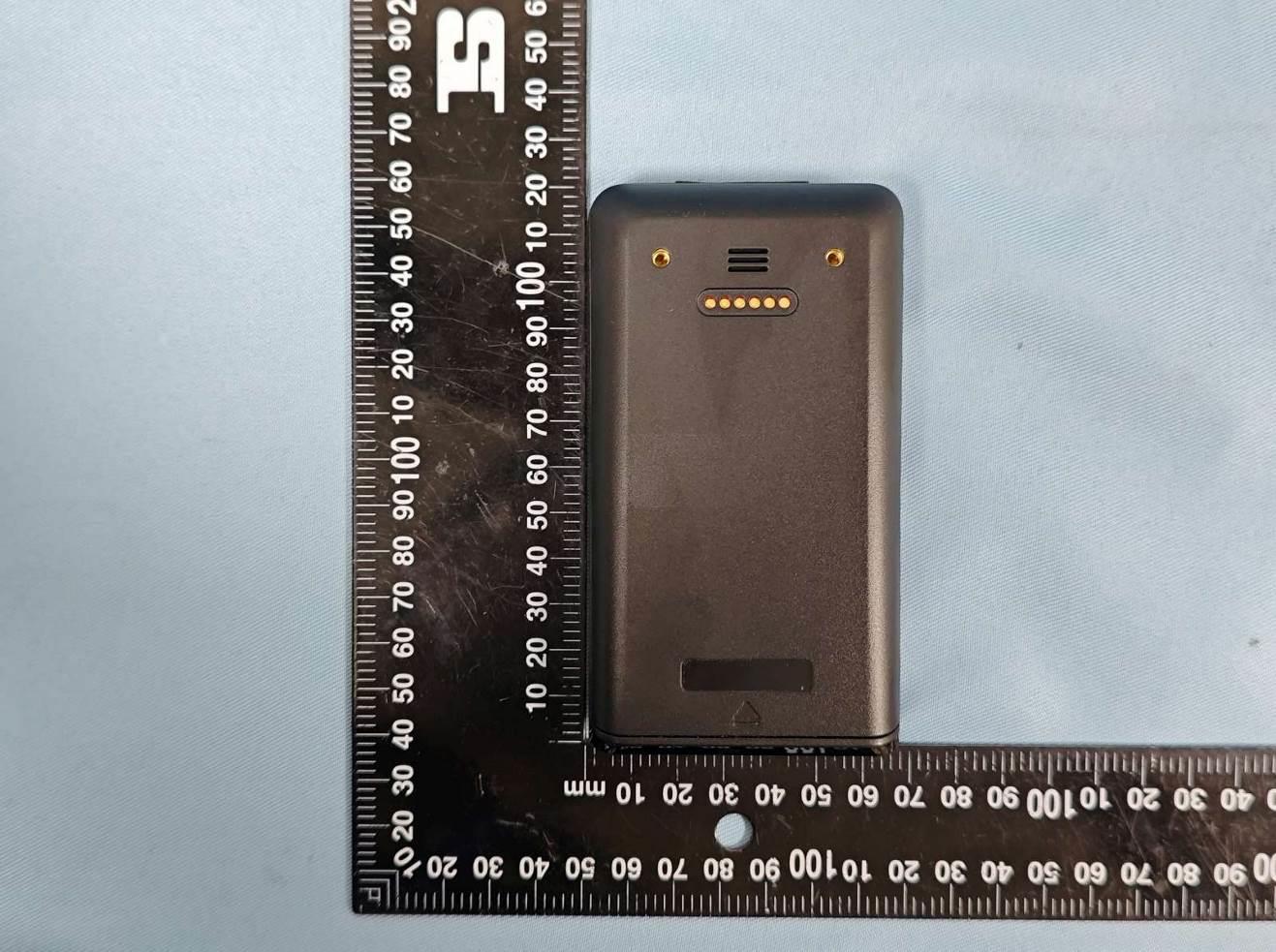

SATURN1000 POS Terminal Book 2 User Manual S1MINI2 Confidential Version 1.0 Aug. 2024 CRT-S1-27-02-V1.0-CE-FCC-IC-UL-CB CASTLES TECHNOLOGY Castles Technology Co., Ltd. 6F, No. 207-5, Sec. 3, Beixin Rd., Xindian District, New Taipei City 23143, Taiwan R.O.C. http://www.castech.com.tw Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 2 WARNING Information in this document is subject to change without prior notice. No part of this publication may be reproduced, transmitted, stored in a retrieval system, nor translated into any human or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of Castles Technology Co., Ltd. All trademarks mentioned are proprietary to their respective owners. Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 3 Revision History Version Date Descriptions Author 1.0 2024.08.26 Initial creation. Yao Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 4 Contents 1. Introduction .................................................................................................................. 5 2. Hardware Setup ............................................................................................................ 6 2.1. Parts of the Terminal ........................................................................................... 6 2.2. Insert Battery ....................................................................................................... 8 2.3. Insert SAM Card .................................................................................................. 9 2.4. Insert GSM Micro SIM Card ............................................................................... 10 3. Appendix .................................................................................................................... 11 3.1. FCC ................................................................................................................... 11 3.2. IC ................................................................................................................... 1312 3.3. UL / IEC 62368-1 ............................................................................................... 13 Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 5 1. Introduction This document provides a guideline for operating and configuring Castles SATURN1000 terminal. The scope of this document includes setting up the terminal, basic operation, application lifecycle, and some advanced features. Regulatory instruction of usage ● Before using the terminal, please check the does it has been disassembled, modified, or happened the abnormal situation. If yes, please do not continue to use. ● Please stay away from strong electromagnetic waves. (Example) Microwave ovens, magnets, shoplifting prevention devices, high-voltage wires, automatic doors, communication antennas, etc. ● Condensation can occur when moving from a cold place to a warm place. If condensation occurs, do not use the unit until the connected water droplets evaporate. ● Static electricity may occur in some places (such as where you are using a carpet). ● Please do not leave it in the sun for a long time. ● Please operate the unit carefully as it is a precision instrument. Do not apply impact, drop or heavy objects on top of the unit. ● Do not attach dust, oil, etc. to a part of the power terminal. Also, please do not scratch. Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 6 2. Hardware Setup 2.1. Parts of the Terminal Front 1. Camera 2. Contactless Card Landing Zone 3. LCD Display 4. Smart Card Reader 1 2 3 4 Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 7 Rear 5. Speaker 6. Anti-Theft Lock 7. Charger Pins 8. Back Cover 9. Serial Number Label 10. SAM Card Slot 11. Product Label 12. GSM Micro SIM Card Slot Right side Bottom side Upper side 13. Power Button 14. Smart Card Reader 15. USB Type-C 10 5 6 7 14 13 Rechargeable Battery 11 15 9 12 8 Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 8 2.2. Insert Battery Step 1: Push the back cover upward to remove it. Step 2: Insert the battery into the compartment. Make sure the cut corners on the upper side of battery are match the compartment design. Battery with the specification information is facing outside. Step 3: Reverse the operation of step 1 to install the back cover. Note: Please make sure the battery is installed before power on the terminal. Step 2 Step 1 Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 9 2.3. Insert SAM Card Step 1: Remove the back cover. Step 2: Insert SAM card into the slot. Gold contact is facing down and the cut corner is on left side. Step 3: Reverse the operation of step 1 to install the back cover. SAM Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 10 2.4. Insert GSM Micro SIM Card Step 1: Remove the back cover. Step 2: Insert GSM Micro SIM card into the slot. Gold contact is facing down and the cut corner is on right bottom side. Step 3: Reverse the operation of step 1 to install the battery cover. SIM Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 11 3. Appendix 3.1. FCC Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in ac…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2025/4/1 01_LTE Band 12_10M_QPSK_1RB_0Offset_Back_10mm_Ch23095 Communication System: UID 0, LTE-FDD (0); Frequency: 707.5 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 707.5 MHz; σ = 0.885 S/m; ε = 41.296; ρ = 1000 r 3 kg/m Ambient Temperature：23.4 °C; Liquid Temperature：22.9 °C DASY5 Configuration: - Probe: ES3DV3 - SN3282; ConvF(6.03, 6.01, 6.06); Calibrated: 2025/1/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2024/12/6 - Phantom: SAM Twin Phantom; Type: SAM Twin; Serial: TP-1754 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Area Scan (71x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.703 W/kg Zoom Scan (6x8x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 25.53 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.839 W/kg SAR(1 g) = 0.516 W/kg; SAR(10 g) = 0.372 W/kg Smallest distance from peaks to all points 3 dB below = 14.4 mm Ratio of SAR at M2 to SAR at M1 = 62.3% Maximum value of SAR (measured) = 0.594 W/kg 0 dB = 0.703 W/kg = -1.53 dBW/kg Appendix BReport No. : FA531202 Page: 1/32 Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2025/4/2 02_GSM850_GPRS (4 Tx slots)_Back_10mm_Ch251 Communication System: UID 0, GSM850 (0); Frequency: 848.8 MHz;Duty Cycle: 1:2.08 Medium: HSL_835 Medium parameters used: f = 849 MHz; σ = 0.915 S/m; ε = 41.074; ρ = 1000 r 3 kg/m Ambient Temperature：23.3 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3282; ConvF(5.95, 5.94, 5.99); Calibrated: 2025/1/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2024/12/6 - Phantom: SAM Twin Phantom; Type: SAM Twin; Serial: TP-1754 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Area Scan (71x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.20 W/kg Zoom Scan (6x8x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 34.24 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 1.43 W/kg SAR(1 g) = 0.924 W/kg; SAR(10 g) = 0.696 W/kg Smallest distance from peaks to all points 3 dB below = 11.6 mm Ratio of SAR at M2 to SAR at M1 = 69% Maximum value of SAR (measured) = 1.05 W/kg Zoom Scan (6x8x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 34.24 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 1.17 W/kg SAR(1 g) = 0.922 W/kg; SAR(10 g) = 0.691 W/kg Smallest distance from peaks to all points 3 dB below = 37.9 mm Ratio of SAR at M2 to SAR at M1 = 78% Maximum value of SAR (measured) = 1.02 W/kg 0 dB = 1.20 W/kg = 0.79 dBW/kg Appendix BReport No. : FA531202 Page: 2/32 Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2025/4/2 03_WCDMA V_RMC 12.2Kbps_Back_10mm_Ch4182 Communication System: UID 0, WCDMA (0); Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 836.4 MHz; σ = 0.903 S/m; ε = 41.226; ρ = 1000 r 3 kg/m Ambient Temperature：23.3 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3282; ConvF(5.95, 5.94, 5.99); Calibrated: 2025/1/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2024/12/6 - Phantom: SAM Twin Phantom; Type: SAM Twin; Serial: TP-1754 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Area Scan (71x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.604 W/kg Zoom Scan (6x9x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.32 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.790 W/kg SAR(1 g) = 0.477 W/kg; SAR(10 g) = 0.354 W/kg Smallest distance from peaks to all points 3 dB below = 13.2 mm Ratio of SAR at M2 to SAR at M1 = 61.2% Maximum value of SAR (measured) = 0.565 W/kg 0 dB = 0.604 W/kg = -2.19 dBW/kg Appendix BReport No. : FA531202 Page: 3/32 Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2025/4/2 04_LTE Band 26_15M_QPSK_1RB_0Offset_Back_10mm_Ch26865 Communication System: UID 0, LTE-FDD (0); Frequency: 831.5 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 831.5 MHz; σ = 0.898 S/m; ε = 41.284; ρ = 1000 r 3 kg/m Ambient Temperature：23.3 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3282; ConvF(5.95, 5.94, 5.99); Calibrated: 2025/1/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2024/12/6 - Phantom: SAM Twin Phantom; Type: SAM Twin; Serial: TP-1754 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Area Scan (71x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.499 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.31 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.555 W/kg SAR(1 g) = 0.453 W/kg; SAR(10 g) = 0.341 W/kg Smallest distance from peaks to all points 3 dB below: Larger than measurement grid (> 16 mm) Ratio of SAR at M2 to SAR at M1 = 80.2% Maximum value of SAR (measured) = 0.498 W/kg 0 dB = 0.499 W/kg = -3.02 dBW/kg Appendix BReport No. : FA531202 Page: 4/32 Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2025/4/3 05_WCDMA IV_RMC 12.2Kbps_Back_10mm_Ch1513 Communication System: UID 0, WCDMA (0); Frequency: 1752.6 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1752.6 MHz; σ = 1.41 S/m; ε = 40.662; ρ = 1000 r 3 kg/m Ambient Temperature：23.3 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3282; ConvF(5.28, 5.27, 5.32); Calibrated: 2025/1/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2024/12/6 - Phantom: SAM Twin Phantom; Type: SAM Twin; Serial: TP-1754 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version…

Text truncated - open the document above for the full version.

Sporton International Inc. (Kunshan) TEL : +86-512-57900158 FCC ID : WIYS1MINI2001 Page D1 of D4 FCC SAR Test Report Report No. :FA531202 Apendix D. SAR Test Setup Photos Body-worn Exposure Condition Front, Test Separation 10 mm Back, Test Separation 10 mm Sporton International Inc. (Kunshan) TEL : +86-512-57900158 FCC ID : WIYS1MINI2001 Page D2 of D4 FCC SAR Test Report Report No. :FA531202 Product specific 10g SAR Front, Test Separation 0 mm Back, Test Separation 0 mm Left Side, Test Separation 0 mm Right Side, Test Separation 0 mm Top Side, Test Separation 0 mm Bottom Side, Test Separation 0 mm Sporton International Inc. (Kunshan) TEL : +86-512-57900158 FCC ID : WIYS1MINI2001 Page D3 of D4 FCC SAR Test Report Report No. :FA531202 <Sensor off> Back, Test Separation 23 mm Sporton International Inc. (Kunshan) TEL : +86-512-57900158 FCC ID : WIYS1MINI2001 Page D4 of D4 FCC SAR Test Report Report No. :FA531202 Antenna Location Antenna Support Band Antenna 0 GSM: 850/1900<TX/RX> UMTS: B2/4/5<TX/RX> LTE: B2/4/5/7/12/17/25/26/38/41/66<TX/RX> Antenna 1 WLAN 2.4GHz<TX/RX> WLAN 5GHz<TX/RX> Bluetooth<TX/RX> NFC Antenna NFC<TX/RX> Antenna 1 Right Side Left Side Back View NFC Antenna 134mm Antenna 0 Bottom Side Top Side 1 2 0 mm 65mm

Sporton International Inc.(Kunshan) Page Number : E1 of E2 TEL : +86-512-57900158 FCC ID: WIYS1MINI2001 FCC RF Test Report Report No. : FR531202A Appendix E. Setup Photographs <AC Conducted Emission> Remote View Rear View Sporton International Inc.(Kunshan) Page Number : E2 of E2 TEL : +86-512-57900158 FCC ID: WIYS1MINI2001 FCC RF Test Report Report No. : FR531202A <Radiated Emission> Y Plane LF HF

BT / WIFI / GNSS Ant WWAN Diversity Ant WWAN Main Ant NFC Ant BT / WIFI / GNSS Ant NFC Ant

Sporton International Inc. (Kunshan) Page Number : 1 of 26 TEL : +86-512-57900158 Report Issued Date : May 15, 2025 FCC ID: WIYS1MINI2001 Report Version : Rev. 01 Report Template No.: BU5-FR15CBT Version 2.0 FCC RF Test Report Report No. : FR531202A FCC RF Test Report APPLICANT : CASTLES TECHNOLOGY CO., LTD. EQUIPMENT : POS Terminal BRAND NAME : MODEL NAME : S1MINI2 FCC ID : WIYS1MINI2001 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DSS) Spread Spectrum Transmitter TEST DATE(S) : Mar. 23, 2025 ~ Apr. 15, 2025 We, Sporton International Inc. (Kunshan), would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International Inc. (Kunshan), the test report shall not be reproduced except in full. Approved by: Jason Jia Sporton International Inc. (Kunshan) No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International Inc. (Kunshan) Page Number : 2 of 26 TEL : +86-512-57900158 Report Issued Date : May 15, 2025 FCC ID: WIYS1MINI2001 Report Version : Rev. 01 Report Template No.: BU5-FR15CBT Version 2.0 FCC RF Test Report Report No. : FR531202A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ........................................................................................ 5 1.4 Product Specification of Equipment Under Test ................................................................................ 5 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Testing Location ................................................................................................................................ 6 1.7 Test Software ..................................................................................................................................... 6 1.8 Applicable Standards ......................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Carrier Frequency Channel ............................................................................................................... 7 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ................................................................................................. 9 2.4 Support Unit used in test configuration and system ........................................................................ 10 2.5 EUT Operation Test Setup .............................................................................................................. 10 2.6 Measurement Results Explanation Example ................................................................................... 10 3 TEST RESULT .......................................................................................................................................... 11 3.1 Number of Channel Measurement .................................................................................................. 11 3.2 Hopping Channel Separation Measurement ................................................................................... 12 3.3 Dwell Time Measurement ................................................................................................................ 13 3.4 20dB and 99% Bandwidth Measurement ........................................................................................ 14 3.5 Output Power Measurement ............................................................................................................ 15 3.6 Conducted Band Edges Measurement............................................................................................ 16 3.7 Conducted Spurious Emission Measurement ................................................................................. 17 3.8 Radiated Band Edges and Spurious Emission Measurement ........................................................ 18 3.9 AC Conducted Emission Measurement........................................................................................... 22 3.10 Antenna Requirements .................................................................................................................... 24 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 25 5 MEASUREMENT UNCERTAINTY ............................................................................................................ 26 APPENDIX A. CONDUCTED TEST RESULTS APPENDIX B. AC CONDUCTED EMISSION TEST RESULT APPENDIX C. RADIATED SPURIOUS EMISSION APPENDIX D. DUTY CYCLE PLOTS APPENDIX E. SETUP PHOTOGRAPHS Sporton International Inc. (Kunshan) Page Number : 3 of 26 TEL : +8…

Text truncated - open the document above for the full version.

保密等级：保密 QD0020 T1.0 Antenna Product Specification Entry Name S1MINI2 Frequency Channel BT/WIFI Supplier Name KunShan Innowave Communication Technology Co., Ltd. 1. Type of Antenna：MONOPOLE Antenna attachment type：Fixed/Internal mounted Test chamber: ETS Testing software：Emquest Test instrument and calibration date： E5071C：20230801-20250801 CMW270：20230801-20250801 N9010A：20230801-20250801 Engineer's signature： Internal Antenna Product Specification Page: 2/5 Rev:1.0 2. Antenna Area WCN ANTENNA （Monople antenna） Internal Antenna Product Specification Page: 3/5 Rev:1.0 3. Efficiency and Gain WCN - Efficiency and Gain Freq（MHz) Peak Gain(dBi) Average Gain(dB) 2400~2483.5MHz -0.5 -2.7 5150~5250MHz -0.8 -6.9 5250~5350MHz -0.3 -7.5 5470~5725MHz 1.2 -6.0 5725~5850MHz 1.1 -5.7 4. 3D Directional Pattern WCN 2400MHZ 2480MHZ Internal Antenna Product Specification Page: 4/5 Rev:1.0 2500MHZ 5150MHZ 5350MHZ 5850MHZ Internal Antenna Product Specification Page: 5/5 Rev:1.0 s Product Name SP6952B NFC Antenna Model SP6952B Type Loop Manufac ture HAITONG Weight 2.25g Specifi cation 101.5*62.2*0.7(mm)

Sporton International Inc. (Kunshan) Page : 1 of 52 TEL : +86-512-57900158 Issued Date : May 15, 2025 FCC ID : WIYS1MINI2001 Report Template No. : 200414 FCC SAR Test Report Report No. : FA531202 FCC SAR Test Report APPLICANT : CASTLES TECHNOLOGY CO., LTD. EQUIPMENT : POS Terminal BRAND NAME : MODEL NAME : S1MINI2 FCC ID : WIYS1MINI2001 STANDARD : FCC 47 CFR Part 2 (2.1093) We, Sporton International Inc. (Kunshan), would like to declare that the tested sample has been evaluated in accordance with the test procedures given in 47 CFR Part 2.1093 and FCC KDB and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International Inc. (Kunshan), the test report shall not be reproduced except in full. Approved by: Si Zhang Sporton International Inc. (Kunshan) No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International Inc. (Kunshan) Page : 2 of 52 TEL : +86-512-57900158 Issued Date : May 15, 2025 FCC ID : WIYS1MINI2001 Report Template No. : 200414 FCC SAR Test Report Report No. : FA531202 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Applied .......................................................................................................................................................... 6 4. Equipment Under Test (EUT) Information ................................................................................................................... 7 4.1 General Information ............................................................................................................................................... 7 4.2 General LTE SAR Test and Reporting Considerations ........................................................................................... 8 5. Proximity Sensor Triggering Test ...............................................................................................................................11 6. RF Exposure Limits......................................................................................................................................................12 6.1 Uncontrolled Environment .....................................................................................................................................12 6.2 Controlled Environment .........................................................................................................................................12 7. Specific Absorption Rate (SAR) ..................................................................................................................................13 7.1 Introduction ...........................................................................................................................................................13 7.2 SAR Definition .......................................................................................................................................................13 8. System Description and Setup ...................................................................................................................................14 8.1 E-Field Probe ........................................................................................................................................................15 8.2 Data Acquisition Electronics (DAE) .......................................................................................................................15 8.3 Phantom ................................................................................................................................................................16 8.4 Device Holder........................................................................................................................................................17 9. Measurement Procedures ...........................................................................................................................................18 9.1 Spatial Peak SAR Evaluation ................................................................................................................................18 9.2 Power Reference Measurement............................................................................................................................19 9.3 Area Scan .............................................................................................................................................................19 9.4 Zoom Scan ............................................................................................................................................................20 9.5 Volume Scan Procedures ......................................................................................................................................20 9.6 Power Drift Monitoring ...........................................................................................................................................20 10. Test Equipment List ...................................................................................................................................................21 11. System Verification ....................................................................................................................................................22 11.1 Tissue Simulating Liquids ....................................................................................................................................22 11.2 Tissue Verification ....................................…

Text truncated - open the document above for the full version.

<GSM> 128189251128189251 824.2836.4848.8824.2836.4848.8 32.8332.8732.7533.5023.8323.8723.7524.50 32.0732.1131.9933.0026.0726.1125.9927.000.12 30.0830.1330.1131.0025.8225.8725.8526.740.05 29.0429.0929.0530.0026.0426.0926.0527.000.05 26.9326.9927.2328.0017.9317.9918.2319.000.30 25.9225.9726.2627.0019.9219.9720.2621.000.34 23.8823.9424.2525.0019.6219.6819.9920.740.37 22.6122.7322.7324.0019.6119.7319.7321.000.12 512661810512661810 1850.218801909.81850.218801909.8 29.6229.5029.6030.5020.6220.5020.6021.50 28.8228.7628.8029.5022.8222.7622.8023.500.06 27.1327.0327.0828.0022.8722.7722.8223.740.10 26.0826.1026.0127.0023.0823.1023.0124.000.09 26.2426.2126.3127.0017.2417.2117.3118.000.10 25.2725.1625.3526.0019.2719.1619.3520.000.19 23.3423.2023.3324.0019.0818.9419.0719.740.14 22.3022.2022.3223.0019.3019.2019.3220.000.12 <WCDMA>3.50 926294009538131214131513413241824233 966298009938153716381738435744074458 1852.418801907.61712.41732.61752.6826.4836.4846.6 3GPP Rel 99RMC 12.2Kbps22.6822.8122.7424.0022.6822.7322.6524.0022.6622.7622.6824.00 3GPP Rel 6HSDPA Subtest-121.7021.8121.7823.0021.7521.7521.7623.0021.7221.8221.7623.00 3GPP Rel 6HSDPA Subtest-221.6821.6621.6323.0021.7121.6921.7123.0021.6221.7121.7123.00 3GPP Rel 6HSDPA Subtest-321.2321.2921.2222.5021.1921.3421.2522.5021.2021.3321.2522.50 3GPP Rel 6HSDPA Subtest-421.0921.1721.1222.5021.1821.2421.2122.5021.1221.2121.2022.50 3GPP Rel 6HSUPA Subtest-121.5121.6821.6323.0021.5721.7021.5923.0021.5821.6321.6523.00 3GPP Rel 6HSUPA Subtest-219.6319.7419.7621.0019.6319.7819.7521.0019.6619.7219.6521.00 3GPP Rel 6HSUPA Subtest-320.7820.7920.8522.0020.7320.8220.7422.0020.8020.8820.7922.00 3GPP Rel 6HSUPA Subtest-419.6419.6319.6521.0019.5919.6719.6621.0019.6419.7119.6621.00 3GPP Rel 6HSUPA Subtest-521.6521.7321.6623.0021.6121.7021.6323.0021.6221.7521.6723.00 3GPP Rel 7HSPA+ (16QAM) Subtest-119.2019.2719.2120.5019.2019.2319.1420.5019.2019.2419.1320.50 TX Channel GSM850Burst Average Power (dBm) Tune-up Limit (dBm) Frame-Average Power (dBm) Tune-up Limit (dBm) Ch Delta > 0.5 Frequency (MHz) GPRS 2 Tx slots 0.13GPRS 1 Tx slot GPRS 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot EDGE 2 Tx slots EDGE 3 Tx slots EDGE 4 Tx slots GSM1900Burst Average Power (dBm) Tune-up Limit (dBm) Frame-Average Power (dBm) Tune-up Limit (dBm) Ch Delta > 0.5 GPRS 2 Tx slots GPRS 3 Tx slots TX Channel Frequency (MHz) 0.14GPRS 1 Tx slot EDGE 2 Tx slots EDGE 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot EDGE 4 Tx slots Frequency (MHz) BandWCDMA II Tune-up Limit (dBm) WCDMA IV Tune-up Limit (dBm) WCDMA V Tune-up Limit (dBm) TX Channel Rx Channel Full Power Mode GSM850 Ant0 Default GSM1900 Ant0 Default WCDMA II Ant0 DefaultWCDMA IV Ant0 DefaultWCDMA V Ant0 Default Appendix EReport No. : FA531202 Page:1/14 BW [MHz] Modulati on RB Size RB Offset Power Low Ch. / Freq. Power Middle Ch. / Freq. Power High Ch. / Freq. BW [MHz] Modulati on RB Size RB Offset Power Low Ch. / Freq. Power Middle Ch. / Freq. Power High Ch. / Freq. BW [MHz] Modulati on RB Size RB Offset Power Low Ch. / Freq. Power Middle Ch. / Freq. Power High Ch. / Freq. 187001890019100200502017520300204502052520600 18601880190017201732.51745829836.5844 20QPSK1022.0322.052…
