WJ9-RRU4ETGU6UHF RFID Reader

User manualEnglish RRU4 RFID UHF READER This manual applies to the following types: Type:Order no. RFID-UHF reader RRU4-RS4-E652010093 RFID-UHF reader RRU4-ETG-E652010094 RFID-UHF reader RRU4-RS4-U652010096 RFID-UHF reader RRU4-ETG-U652010097 2 Foreword and general information The reproduction or distribution of this document or extracts from it in whatever form and by whatever means (electronic or mechanical) for whatever purpose is permitted only with the prior written permission of Kathrein. Kathrein accepts no liability for omissions or inaccuracies in this document or in relation to the provision or use of the information contained in this document. Kathrein reserves the right to change the products described in this document and does not accept any liability in relation to the application or usage of the products described in this manual. This document and the information contained in it are proprietary information of Kathrein and should be treated as confi dential. Kathrein provides this document to its customers in connection with contacts of sale for the products described therein. If the person in possession of this document, being a legal or natural person, is not a contractual sales partner of Kathrein, or Kathrein has not intended him by other means as the recipient of the document and the information contained therein, the person in possession is hereby informed that the use of this document is unlawful and a violation of the rights of Kathrein. Copyright notice The information in this manual was correct at the time of editorial deadline. We reserve the right however to make changes at any time and without prior notice. This document was prepared for specialist personal who install, confi gure and place in operation the reader. Scope The information contained in this manual is intended for the support of the development process and as development guidance for the customer. In addition this manual offers supporting information about the standards to be applied at the place of installation and the relevant safety standards for installation and confi guration of the Kathrein reader. General information This manual contains information on the installation, confi guration, operation and maintenance of the reader. In addition it gives detailed technical data in order better to familiarise the user with the features of the reader. In order to ensure a long working life and fault-free operation, this manual should therefore be read carefully and all the instructions and information contained in it should be complied with. Warranty Switching on the AC or DC power supply prior to connecting the LAN cable is considered incorrect installation. Any functional defect arising as a result is excluded from the warranty/guarantee. Before installing or servicing the reader, the person concerned must have read the manual and understood its contents. Kathrein accepts no liability if the customer fails to implement the precautions listed here. In such cases, any claims under the warranty/guarantee are void. Disposal instruction Electronic equipment is not classed as household waste and must be disposed of properly in accordance with Directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 January 2003 on used electrical and electronic equipment. At the end of its service life, take this device for disposal at a designated public collection point. Used batteries are special waste! Do not put used batteries into your domestic waste; instead take them to a collection point for used batteries! 3 List of Contents Foreword and general information 2 List of Contents 3 1. Safety instructions/information 6 2. Introduction 9 2.1. The reader 9 2.2. Further reference material 9 2.3. Scope of supply 9 2.4. Accessories 9 3. Installation 11 3.1. Selecting the installation site 11 3.2. Installing the reader 11 4. Connections and displays 12 4.1. Power supply 12 4.2. Ethernet port 13 4.3. RS422/485 connection 13 4.4. RS232 connection 13 4.5. UART transmission (RS232, RS422, RS485 or similar) 14 4.5.1. Bit transmission layer (physical layer) 14 4.5.2. Data link layer 14 4.5.2.1. Structure of a frame 14 4.5.2.2. Start code and synchronisation 14 4.5.2.3. Status byte 14 4.5.2.4. Frame number 15 4.5.2.5. User data 15 4.5.2.6. Checksum 15 4.5.3. Network layer 15 4.5.4. Transport layer, session layer, presentation layer 15 4.5.5. Application layer 15 4.6. Ethernet transmission 16 4.6.1. Frame structure 16 4.6.2. Port 16 4.6.3. Example 16 4.7. Digital inputs and outputs 17 4.8. Antenna Connection 20 4.9. LED 20 4.10. Buzzer 20 5. Software 21 5.1. System requirements 21 4 List of Contents 5.2. Installation 21 5.3. Operation 25 5.3.1. General information 25 5.3.2. User interface for ReaderStart v2 26 5.3.3. Menu bar 27 5.3.3.1. File 27 5.3.3.2. Options 28 5.3.3.3. Info 30 6. Operating the reader 32 6.1. Communication 32 6.1.1. COM header 32 6.1.2. USB header 32 6.1.3. Ethernet header 33 6.1.4. I/O card configuration 33 6.1.4.1. RS232 34 6.1.4.2. GPIO 35 6.1.4.3. RS485 37 6.1.4.4. Ethernet 38 6.2. Basic read functions 39 6.2.1. Synchronous mode 40 6.2.2. Asynchronous mode 40 6.3. GPIO functions 41 6.4. Expert settings 42 6.4.1. Expert settings 1 42 6.4.1.1. Transmission power 43 6.4.1.2. Antenna multiplex configuration 45 6.4.1.3. RF settings 45 6.4.1.4. Selection parameters 45 6.4.2. Expert settings 2 46 6.5. Application 47 6.6. Basic write function 49 6.6.1. Synchronous writing 49 6.6.2. Asynchronous writing 50 6.7. Test Gen2 functions 50 6.7.1. Read all EPCs 51 6.7.2. Write EPC 51 6.7.3. Change password 51 6.7.4. Read/write data 52 6.7.5. Block 52 6.7.6. Deactivation 53 7. Reader configuration 54 7.1. Introduction 54 7.1.1. Structure of the configuration IDs 54 7.1.2. The parameter sets 54 7.2. Description of the configuration parameters of the RRU4 reader system 55 7.2.1. The “Global” configuration group 55 7.2.1.1. “DefaultParamset” 55 7.2.2. The configuration group “RFInterface” 55 5 7.2.2.1. “RFPowe…

Text truncated - open the document above for the full version.

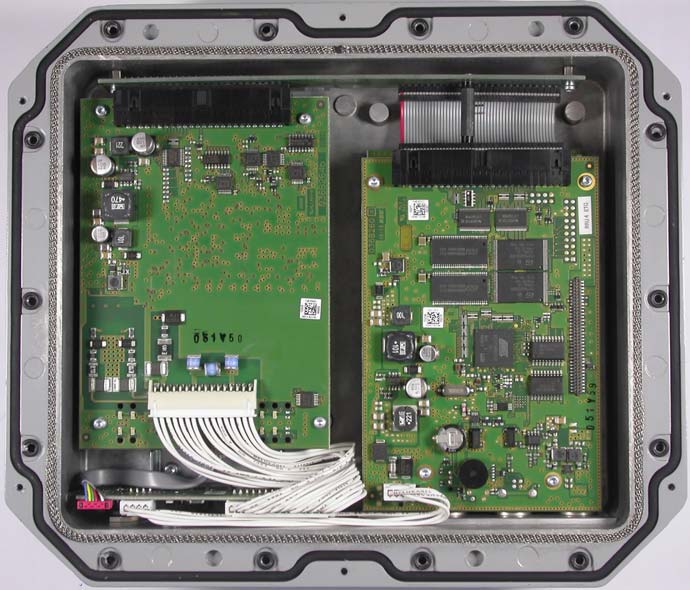

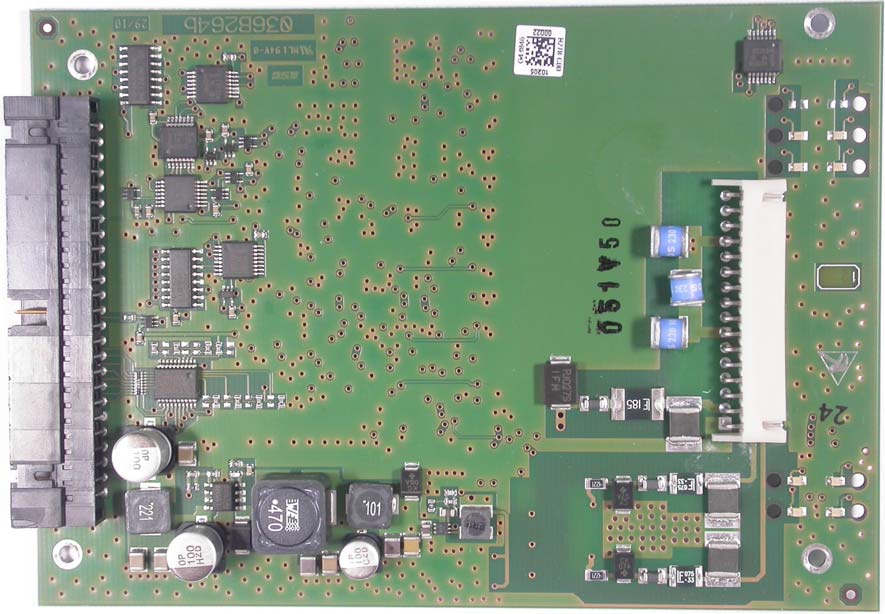

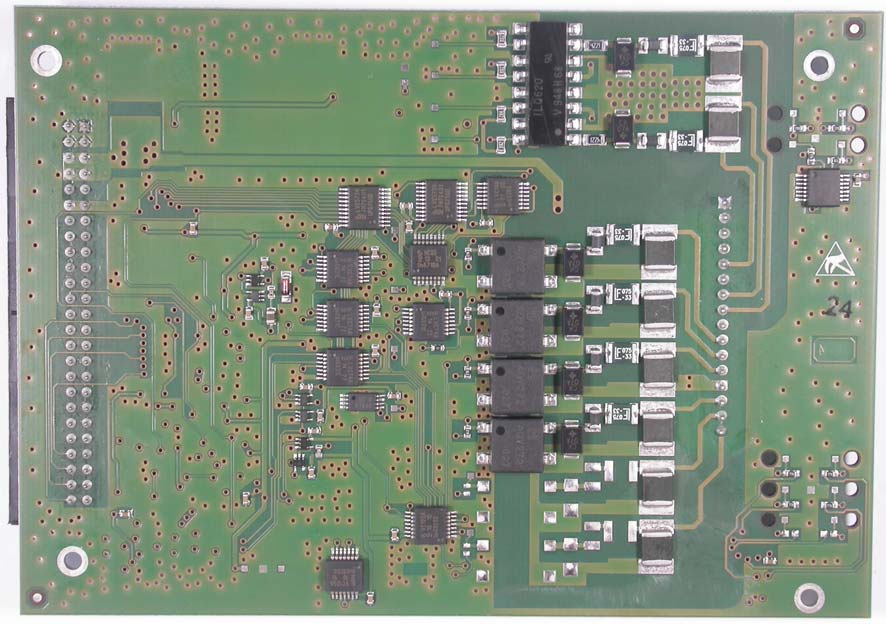

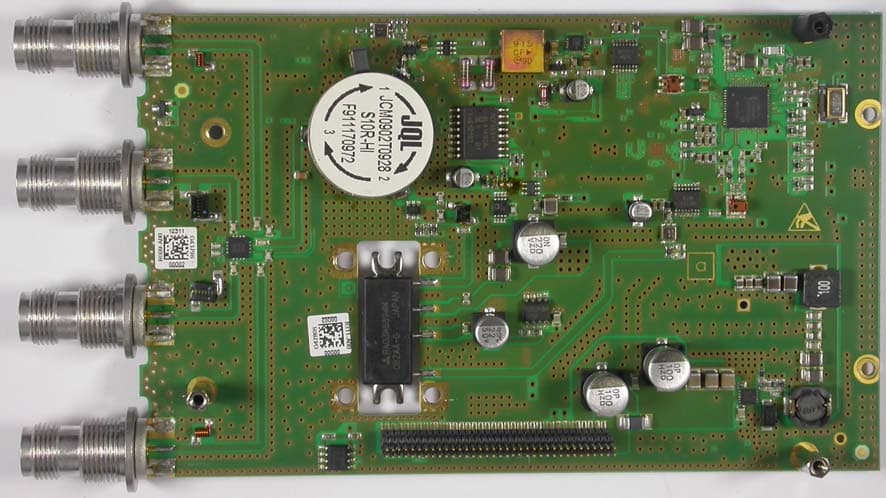

ATTACHMENT A to File No.: T34968-00 mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 Internal Views: ATTACHMENT A to File No.: T34968-00 mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 ATTACHMENT A to File No.: T34968-00 mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 ATTACHMENT A to File No.: T34968-00 mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 ATTACHMENT A to File No.: T34968-00 mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 ATTACHMENT A to File No.: T34968-00 mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240

Internet: http://www.kathrein.de KATHREIN-Werke KG . Anton-Kathrein-Straße 1 – 3 . P.O. Box 10 04 44 . 83004 Rosenheim . Germany . Phone +49 8031 184-0 . Fax +49 8031 184-494 page 1 of 2 520 10092 936.3836 Subject to change Features: •Minimal dimensions •Extremely high selectivity •Extremely high resistance to interference (multi-reader applications) •Suitable for use in industrial environments •Optimised for near fi eld applications •High IP 67 protection class •Suitable for outdoor use Type No.520 10092 Frequency range865-928 MHz Antenna gain-30 dBi EIFF* ) 15 dB VSWR< 1.2:1 Impedance50 Ω Range of near fi eld tags ** ) 3 cm Selectivity of near fi eld tags ** ) 3 cm Range of far fi eld tags ** ) 8 cm Selectivity of far fi eld tags ** ) 10 cm Max. input power *** ) 1 W ConnectionTNC socket Protection classIP 67 Weight110 g Dimensions (W x H x D)90 x 63 x 31 mm Packing dimensions (ca.)250 x 165 x 50 mm *) The Effective Isotropic Field Factor (EIFF) shows the fi eld isolation from far fi eld to near fi eld standardised to an isotropic radiator. The values were determined with 3 cm spacing **) dependant upon transmission power and tag type ***) compliant to FCC Material:Tough, weather-resistant polymer blend Colour: RAL7045 Installation:Four through-holes Ø 4.2 mm for M4 screws Temperature range: Storage temperature: Ambient temperature: -40° C - +85° C -20° C - +55° C 76 30 90 63 79,5 Mechanical view and dimensions (in mm): UHF RFID Ultra Low Range- Antenne (ULORA) 865-928 Internet: http://www.kathrein.de KATHREIN-Werke KG . Anton-Kathrein-Straße 1 – 3 . P.O. Box 10 04 44 . 83004 Rosenheim . Germany . Phone +49 8031 184-0 . Fax +49 8031 184-494 page 2 of 2 520 10092 936.3836 Subject to change Description:The Ultra Low Range Antenna (ULORA) and Low Range Antenna (LORA) feature a high fi eld con- centration in the near fi eld with simultaneously extremely minimised antenna gain in the far fi eld. With these properties the antennas achieve outstanding reading and writing results with ranges up to 10 cm with a typical selectivity of 5 cm. The special design of these antennas guarantees interference-free operation im multi-reader environments. The ULORA was especially developed to read dipolar tags (far fi eld tags) at very limited distanc- es. In addition this antenna can address looped tags (near fi eld tags) up to 3 cm. The LORA version was developed in order to increase the range for near fi eld tags, with which ranges up to 7 cm can be achieved. The range of applications of the antennas according to tag type is dis- played in the tag association table. Example Applications • Pharmaceutical industry (e.g. individual tag capture on liquid-fi lled vessels and blister packs) • Access controls • Automation industry ULORA (Ultra Low Range) is suitable for: - near fi eld tags - hybrid tags - far fi eld tags Looped tags (near fi eld tags) Hybrid tags Dipolar tags (far fi eld tags) LORA (Low Range) is suitable for: - near fi eld tags Tag type: 52010084 (ETSI) or 52010085 (FCC) UHF RFID Ultra Low Range- Antenne (ULORA) 865-928 Internet: http://www.kathrein.de KATHREIN-Werke KG . Anton-Kathrein-Straße 1 – 3 . P.O. Box 10 04 44 . 83004 Rosenheim . Germany . Phone +49 8031 184-0 . Fax +49 8031 184-494 Seite 1 von 2 520 10092 936.3836 Änderungen vorbehalten Merkmale: •Minimale Abmessungen •Extrem hohe Selektivität •Extrem hohe Robustheit gegen Störeinfl üsse (Multi- Reader-Applikationen) •Für den Einsatz in Industrieumgebungen geeignet •Optimiert für Nahfeldanwendungen •Hohe Schutzklasse IP 67 •Für Outdoor-Einsatz geeignet Typ Nr.520 10092 Frequenzbereich865-928 MHz Antennen-Gewinn-30 dBi EIFF* ) 15 dB VSWR< 1,2:1 Impedanz50 Ω Reichweite Nahfeld-Tags ** ) 3 cm Selektivität Nahfeld-Tags ** ) 3 cm Reichweite Fernfeld-Tags ** ) 8 cm Selektivität Fernfeld-Tags ** ) 10 cm Max. Eingangsleistung *** ) 1 W AnschlussTNC Buchse SchutzklasseIP 67 Gewicht110 g Abmessungen (B x H x T)90 x 63 x 31 mm Verpackungsabmessungen (ca.)250 x 165 x 50 mm *) Effective Isotropic Field Factor (EIFF) zeigt die Feldisolation von Fernfeld zu Nahfeld normiert auf einen isotropen Kugelstrahler. Die Werte sind bei 3 cm Abstand ermittelt **) Abhängig von der Sendeleistung und dem Tag-Typ ***) FCC konform Material:Robustes und witterungsbeständiges Polymer-Blend Farbe: RAL7045 Montage:Vier Durchgangsbohrungen Ø 4,2 mm für M4-Schrauben Temperatur- bereich: Lagertemperatur: Umgebungstemperatur: -40° C - +85° C -20° C - +55° C 76 30 90 63 79,5 Mechanische Ansicht und Abmessungen (in mm): UHF RFID Ultra Low Range- Antenne (ULORA) 865-928 Internet: http://www.kathrein.de KATHREIN-Werke KG . Anton-Kathrein-Straße 1 – 3 . P.O. Box 10 04 44 . 83004 Rosenheim . Germany . Phone +49 8031 184-0 . Fax +49 8031 184-494 Seite 2 von 2 520 10092 936.3836 Änderungen vorbehalten Beschreibung:Die Ultra Low Range-Antenne (ULORA) und die Low Range-Antennen (LORA) verfügen über eine hohe Feldkonzentration im Nahbereich bei gleichzeitig extrem reduziertem Antennengewinn im Fernfeld. Die Antennen erzielen durch diese Eigenschaften hervorragende Schreib-/Leseergebnisse bei Reichweiten bis zu 10 cm mit einer typischen Selektivität von 5 cm. Die spezielle Auslegung die- ser Antennen gewährleistet den störungsfreien Betrieb in Multi-Reader-Umgebungen. Die ULORA wurde speziell dafür entwickelt, dipolartige Tags (Fernfeld-Tags) in einer sehr be- grenzten Entfernung zu lesen. Außerdem kann diese Antenne auch schleifenförmige Tags (Nah- feld-Tags) bis auf 3 cm ansprechen. Um die Reichweite für Nahfeld-Tags zu vergrößern, wurde die Variante LORA entwickelt, mit der Reichweiten bis zu 7 cm erreicht werden. Der Einsatzbe- reich der Antennen nach Tag-Arten ist in der Tabelle Tag-Zuordnung dargestellt. Beispiel- Applikationen • Pharmaindustrie (z. B. Einzelerfassung von Tags auf fl üssigkeitsgefüllten Gefäßen und Blister- packungen) • Zutrittskontrollen • Automatisierungsindustrie ULORA (Ultra Low Range) eignet sich für: - Nahfeld-Tags - Hybrid-Tags - Fernfeld-Tags Schleife…

Text truncated - open the document above for the full version.

FCC ID: WJ9-RRU4ETGU6 mikes-testingpartners gmbh File No. T34968-00-00HU, page 1 of 49 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 EMI − T E S T R E P O R T - FCC Part 15.247 - Test Report No. : T34968-00-00HU 23. May 2011 ______________________________________________________________________________________________ Date of issue Type / Model Name : RRU4-ETG-U6 Product Description : UHF RFID-Reader Applicant : Kathrein Sachsen GmbH Address : Lindenstraße 3, Gewerbegebiet D-09241 Mühlau Manufacturer : Kathrein Sachsen GmbH Address : Lindenstraße 3, Gewerbegebiet D-09241 Mühlau Licence holder : Kathrein Sachsen GmbH Address : Lindenstraße 3, Gewerbegebiet D-09241 Mühlau Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: WJ9-RRU4ETGU6 mikes-testingpartners gmbh File No. T34968-00-00HU, page 2 of 49 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 Photo documentation of the EUT – Detailed photos see Attachment A 5 3.2 Test setup 5 3.3 Power supply system utilised 5 3.4 Short description of the EUT 5 4 TEST ENVIRONMENT 7 4.1 Address of the test laboratory 7 4.2 Environmental conditions 7 4.3 Statement of the measurement uncertainty 7 4.4 Measurement Protocol for FCC, VCCI and AUSTEL 8 4.5 Determination of worst case measurement conditions 8 5 TEST CONDITIONS AND RESULTS 9 5.1 Conducted emissions 9 5.2 20 dB bandwidth 15 5.3 Maximum peak conducted output power 20 5.4 Spurious RF conducted emissions 22 5.5 Spurious radiated emissions in restricted bands 28 5.6 Hopping sequence 33 5.7 Equal hopping frequency use 34 5.8 Receiver input bandwidth 34 5.9 Dwell time 35 5.10 Channel separation 38 5.11 Quantity of hopping channels 41 5.12 Antenna application - Detailed photos see Attachment A 44 5.13 Receiver conducted disturbances 45 5.14 Receiver spurious emissions conducted 46 5.15 Maximum permissible exposure (MPE) – See Attachment B 47 6 USED TEST EQUIPMENT AND ACCESSORIES 48 FCC ID: WJ9-RRU4ETGU6 mikes-testingpartners gmbh File No. T34968-00-00HU, page 3 of 49 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2010) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart B - Unintentional Radiators (October, 2010) Part 15, Subpart B, Section 15.107 AC Line conducted emissions, Class B Part 15, Subpart B, Section 15.109 Radiated emissions, general requirements, Class B FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2010) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.247 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz and 5725 - 5850 MHz FCC Rules and Regulations Part 1, Subpart I - Procedures Implementing the National Environmental Policy Act of 1969 Part 1, Subpart I, Section 1.1310 Radiofrequency radiation exposure limits Part 1, Subpart 2, Section 2.1093 Radiofrequency radiation exposure evaluation: portable device OET Bulletin 65, 65A, 65B, 65C Edition 97-01, August 1997 – Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1:1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: WJ9-RRU4ETGU6 mikes-testingpartners gmbh File No. T34968-00-00HU, page 4 of 49 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 2 SUMMARY GENERAL REMARKS: The frequency range was scanned from 9 kHz to 10 GHz. All emissions not reported in this test report were more than 10 dB below the specified limit. The EuT is a frequency hopping system using 52 channels in the frequency band from 902 to 928 MHz. Following antennas are provided with the EuT: • 520 10087 antenna: circular, 30° vertical, 70° horizontal (7.5 dBi) • 520 10073 antenna: circular, 68° vertical, 70° horizontal (5.2 dBi) • 520 10085 antenna: (-15 dBi) • 520 10092 antenna: (-30 dBi) The EuT is declared as Class B digital device. The device has a maximum of four external antenna ports for connection of the transmission/reception antennas for communication with RFID tags. It is not possible to activate a second antenna port at the same time. Different reader configurations are possible. For detailed information please refer to the user manual. It is not possible to set the EuT only in receiving mode. FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 10. February 2011 Testing concluded on : 19. April 2011 Checked by: Tested by: Thomas Weise Dipl.-Ing.(FH) Laboratory Manager Markus Huber FCC ID: WJ9-RRU4ETGU6 mikes…

Text truncated - open the document above for the full version.
