WKA-MCAP-131FM Transmitter

IT-0801B Manual Features ● Portable FM transmitter，3*AAA Battery，beautiful appearance ； ●A kind of radio audio transmitter, we can enjoy the music from FM transmitter； ● 3.5 Audio Jack, external sound through FM stereophonic transmit； ● Four channels is suit for different frequency requirement and avoid strong signal from local broadcasting station. Electronic Parameters ● Working voltage: DC 4.5V ● Output frequency：88.1/88.3/88.5/88.7MHz ● The sound channel is separated degree: 42dB ● Frequency Response：25～15000Hz ● THD：≤0.1%（F=75KHz，f=1KHz） ● S/N：≥60dB（1KHz 100%） ● Audio IN: 3.5 Audio Jack ● Working temperature: -15°C-50°C Operation instructions 1. Put 3PCS AAA batteries inside the battery holder correctly 2. Slide the Power switch to the “ON” position ; 3. Set the FM frequency (4 position: 88.1MHz/88.3/88.5/88.7MHz) by the frequency setting slide switch ; 4. Insert the Audio jack into your audio device ; 5. Turn on your radio (or other FM receiver) , and set to the same frequency ; 6. Then the music is coming and start to enjoy; 7. Please slide the power switch to “OFF” position after using ; FCC Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Principle for FM transmitter LDO Audio Jack MCU controller FM transmitter (QN8027) Audio in Slid Switch OSC 24MHz Power In Battery 3*AAA 88.1/88.3/88.5/88.7M H z ANT

1) How does this device operate? Plug into audio player & similar device and powered from DC 4.5V. 2) Provide information on the device and its antenna. The transmitter’s antenna is same cable as Power line from PCB Trace; this is permanently attached antenna and meets the requirements of the section. 3) How is it installed? The EUT will direct plug into audio connector. And power by DC 4.5V. 4) What test procedure was used? Operating condition is according to ANSI C63.4-2009 5) If tested in a car, how was it configured/tested? N/A 6) Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. EUT was adjusted to work at the selected channels: 88.1 MHz, 88.3 MHz and 88.7 MHz. The EUT will not allow operation below 88.1 MHz and will not allow operation above 107.9 MHz. 7) Was the bandwidth properly tested with maximum audio input? Emissions from the intentional radiator shall be confined within a band 200 kHz wide centered on the operation frequency. The 200 kHz band shall lie wholly within the frequency range of 88.1 – 87.9MHz. Setup the EUT and simulators as shown in the report. Enable RF signal and confirm EUT active. Modulate output capacity of EUT up to specifications. 8) Provide the test report. Test Report Submitted.

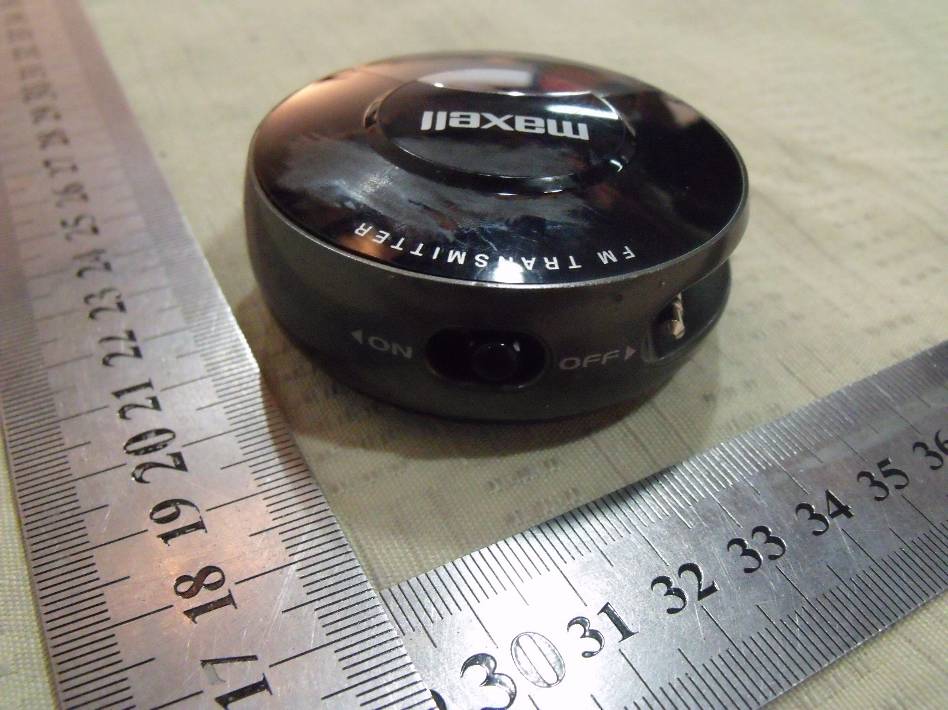

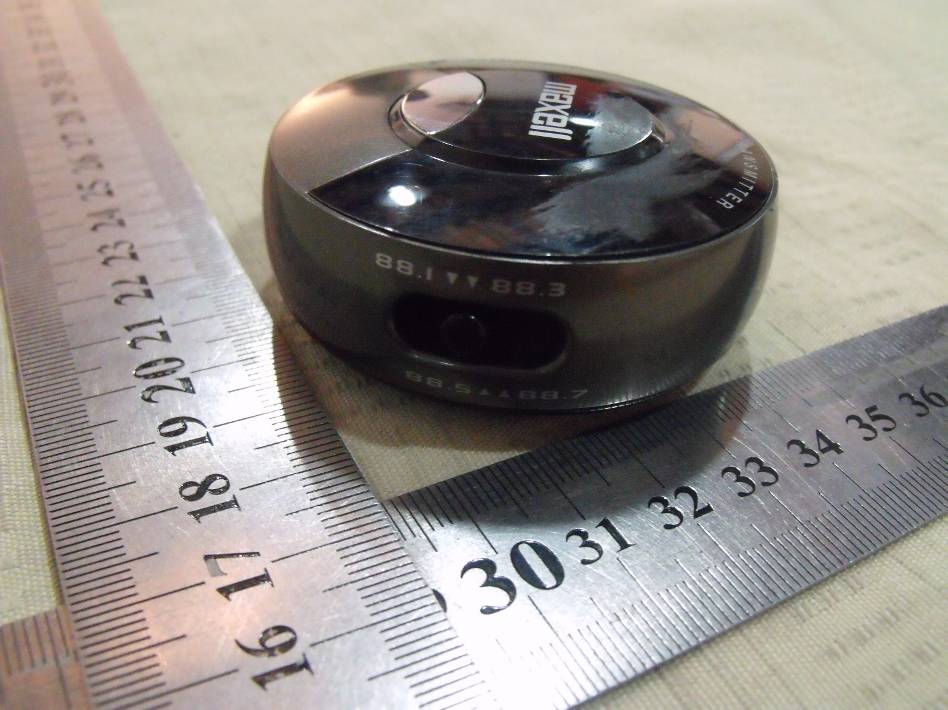

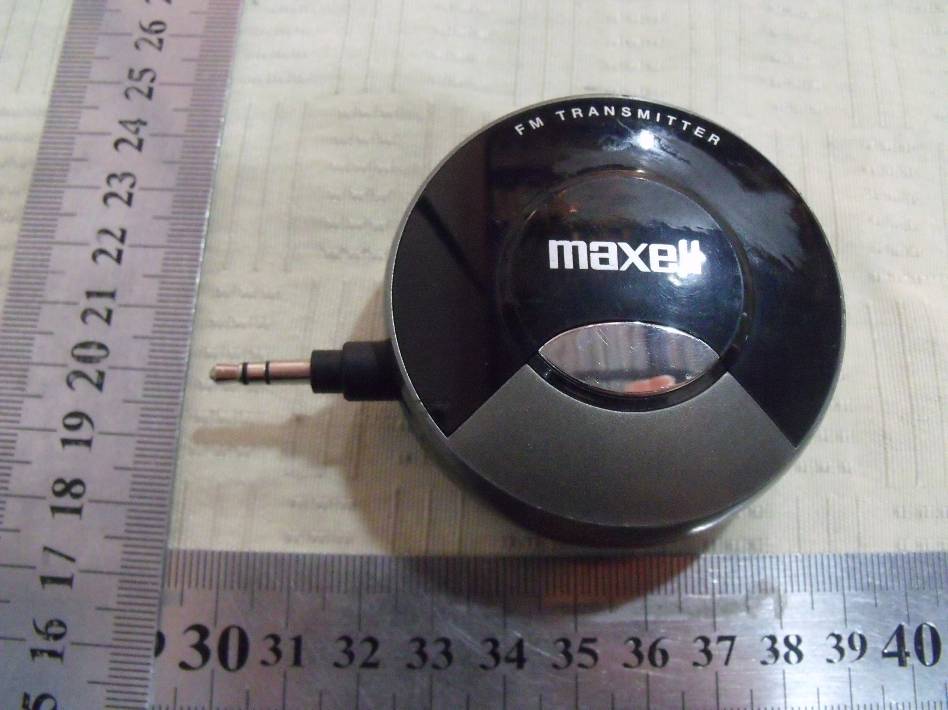

External of EUT External of EUT External of EUT External of EUT External of EUT

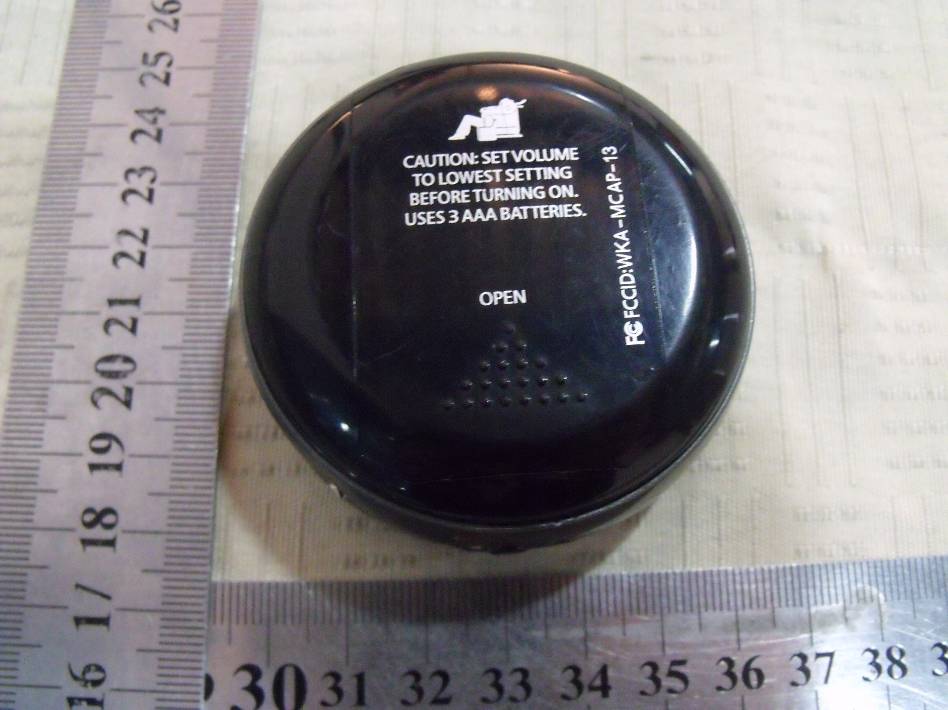

FCC ID Label FCC ID: WKA-MCAP-131 Model Number: FMT-1 Made in China

FCC ID Label Location Proposed Label Location on EUT

Page 1 of 2 Internal of EUT Internal of EUT Page 2 of 2 Internal of EUT

Operation Description 3*AAA batteries supply for EUT, and then through LDO regular voltage to 3.3V for circuit；Audio signal is produced from FM Transmitter chip by intern al IC dimensional sound of modulate circuit, phase-locked loop and a high fre quency oscillating circuit. 1.4 positions solid switch to set FM frequency 2. Range of FM frequency:88.1MHz/88.3/88.5/88.7MHz 3. MCU control PLL to set the frequency 4.24MHz crystal 5. Power supply: DC 4.5V (3*AAA batteries) 6. Antenna is printing antenna

11 22 33 44 D D C C B B A A Title Number Revision Size A4 Date: 2010-11-5 Sheet of File: F:\ 新建文件夹 \..\IT-0801B.sch Drawn By: 圆形 FM 发射器（ 4 个频点） Note: SW=0 关机 ； SW=1 工作。 IT-0801B A 1/1 BT13*AAA C10.1uF VDD OUT 2 GND 1 IN 3 U1 RT9161 C20.1uF 3.3V S1 R1100R D1LED 3 1 24 5 SW1 SS-14H03 R210K R310K R410K R510K 3.3V F1F2F3F4 Note ： F1 = 88.1MHz ； F2 = 88.3MHz ； F3 = 88.5MHz ； F4 = 88.7MHz ； P65/OSCI 5 VDD 4 P66 3 P67 2 P50 1 P64/OSCO 6 P63/RST 7 P62/TCC 8 P61 9 P60/INT 10 VSS 11 P53 12 P52 13 P53 14 U2 SN8P2501B R1310K 3.3V C80.1uF SDASCLF1F2 F3F4 123 JP1Line_IN L1 FB(10uH) L2 FB(10uH) L3 FB(10uH) L_INR_IN C90.1uF B 1 C 3 E 2 Q1R25 L4390nH E1 C5 10uF 3.3V ANT C30.1uF R747K* C6 1000pF C418P L6NC Y1 24MHz L_IN R_IN C13 2.2uF C14 2.2uF C1210uF C1520pF C1620pF C71000pF X2 1 X1/XCLK 2 VCC 3 GND 4 RFO 5 SCL 6 SDA 7 VIO 8 ARI 9 ALI 10 U3 QN8027(MSOP-10) 3.3V C100.1uF L7 150nH C11 0.01uF VIO R124.7K R104.7K 3.3V SCLSDA R94.7K VIO R8100R ANT C17 10uF C18 10uF

SHENZHEN EMTEK CO., LTD. REPORT NO: ES101103020F FCC ID: WKA-MCAP-131 DATE: 11/11/2010 Page 1 of 21 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF FM Transmitter MODEL No.: P-13, FMT-1 FCC ID: WKA-MCAP-131 REPORT NO: ES101103020F ISSUE DATE: November 11, 2010 Prepared for Maxell Corporation of America 22-08 Route 208 Fair Lawn, NJ 07410 Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 SHENZHEN EMTEK CO., LTD. REPORT NO: ES101103020F FCC ID: WKA-MCAP-131 DATE: 11/11/2010 Page 2 of 21 VERIFICATION OF COMPLIANCE Applicant: Maxell Corporation of America 22-08 Route 208 Fair Lawn, NJ 07410 Product Description: FM Transmitter Brand Name: N/A Model Number: P-13, FMT-1 (Note: Both the modes are the same, except their model number is different. We take FMT-1 for test.) Serial Number: N/A File Number: ES101103020F Date of Test: November 3, 2010 to November 11, 2010 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.239. The test results of this report relate only to the tested sample identified in this report. Date of Test : November 3, 2010 to November 11, 2010 Prepared by : (Engineer) Reviewer : (Quality Manager) Approved & Authorized Signer : (Manager) SHENZHEN EMTEK CO., LTD. REPORT NO: ES101103020F FCC ID: WKA-MCAP-131 DATE: 11/11/2010 Page 3 of 21 Table of Contents 1. GENERAL INFORMATION ........................................................................................................... 4 1.1 PRODUCT DESCRIPTION........................................................................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 4 1.3 TEST METHODOLOGY.............................................................................................................................. 4 1.4 SPECIAL ACCESSORIES............................................................................................................................ 4 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 4 1.6 TEST FACILITY........................................................................................................................................ 5 2. SYSTEM TEST CONFIGURATION .................................................................................... 6 2.1 EUT CONFIGURATION............................................................................................................................. 6 2.2 EUT EXERCISE........................................................................................................................................ 6 2.3 TEST PROCEDURE.................................................................................................................................... 6 2.4 LIMITATION............................................................................................................................................. 7 2.5 CONFIGURATION OF TESTED SYSTEM..................................................................................................... 8 3. SUMMARY OF TEST RESULTS ......................................................................................... 9 4. DESCRIPTION OF TEST MODES ...................................................................................... 9 5. RADIATED EMISSION TEST ............................................................................................ 10 5.1 MEASUREMENT PROCEDURE................................................................................................................. 10 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 11 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 11 5.4 MEASUREMENT RESULT........................................................................................................................ 12 5.5 RADIATION MEASUREMENT PHOTOS..................................................................................................... 18 6. OCCUPIED BANDWIDTH.................................................................................................. 19 6.1 MEASUREMENT PROCEDURE................................................................................................................. 19 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 19 6.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 19 6.4 MEASUREMENT RESULTS:..................................................................................................................... 19 7. ANTENNA APPLICATION ........................................................................................................... 21 7.1 ANTENNA REQUIREMENT......................................................................................................................... 21 SHENZHEN EMTEK CO., LTD. REPORT NO: ES101103020F FCC ID: WKA-MCAP-131 DATE: 11/11/2010 Page 4 of 21 1. GENERAL INFORMATION 1.1 Product Description The Maxell Corporation of America Model: FMT-1 (referred to as the EUT in this report). The EUT is a FM Transmitter; The actual tuning Contr…

Text truncated - open the document above for the full version.

Page 1 of 1 RADIATED EMISSION TEST
