WL9ETB4SP2.4GHz Radio Control system

Remote control helicopter Remote control helicopter ANGEL ANGEL Operating manual R ★SPARE PARTS LIST 15 ★SAFETY INSTRUCTIONS FOR LI-POLY BATTERIES 06 ★CHARGE MODE AND WARNING 05 ★TIPS FOR SAFETY 03 ★CAUTION 03 ★SPECIFICATIONS 02 ★INSTALLATION 11 ★NORMAL FLIGHT 10 08 ★ ADJUST THE SPEED OF THE ROTOR BLADES BY THE PCB BOARD ★MAIN ROTOR BLADE ADJUSTMENT 09 ★THE POSSIBLE PROBLEMS AND SOLUTIONS 14 ★PARTS LIST 07 ★FUNCTIONS FOR CONTROL SET 08 ★PARTS REPLACING 13 CATALOG ★GROUND EFFECT 09 www.art-tech.com 1 ★中文说明部分 17-31 ★SWASHPLATE ADJUSTMENT 09 ★OPERATION MANUAL METHOD STARTING PROCEDURE 07 ※This picture only for reference. Thank you for purchasing our latest product--Angle 300 electric R/C helicopter. This helicopter is a typical coaxial dual rotor helicopter and it’s our latest product. The frame is made of the high-strength plastic and configured with scale flashers for night flight. This helicopter is super stable, easy to control and it has a great maneuverability and accuracy. Moreover, this product has a vivid flying gesture and it is crash- resistant. The flying time of each charge is more than 10min and it is an optimal model for the beginners. For the safety operation of this helicopter, please make sure to read this manual carefully and follow all of the safety notes strictly. ☆ Rotor diameter : 350mm Length: 430mm Height: 190mm Weight: 260g CONFIGURATION: 4 channel 2.4GHz radio system 180 class brushed motor Li-Poly battery: 7.4V 1000mAh 2 pcs 8g servo 4 pcs blades SPECIFICATIONS: 100% ★★☆☆☆ ★★★ ★ ☆ ★★☆ ☆ ★☆☆☆☆ PRODUCT CHARACTER Accomplishment Difficulty of assembly Difficulty of maintain Difficulty of control Anti-shatter ※Specifications may change without notice, please refer to the real one for configuration. 2009.06 Opti mal hel icop ter for th e begi nn er Flying condition: indoor without wind Coaxial counter-rotating structure Easy control and stable flight 4 channel 2.4GHz radio system Balance charger Flying time: 10 mins ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ WARNING: This product is for the ones that are above 14 years old. Children should be supervised prior to starting or flying this helicopter. Don’t touch the propellers after the product turned on. ★ www.art-tech.com 2 CAUTION NOTE TIPS FOR SAFETY R/C modeling is a hobby with high technology and should not be considered as a toy. There is risk involved during the operation of this product and the user should take all precautions seriously or serious body injury may occur, it is only suitbale for the person above 14 years old. Improper disassembly, improper adjustments or setup may lead to unsatisfactory or unsafe operation. If you have any questions regarding the use, maintenance, or safe operation of this model, please contact your local retailer. As with any R/C product there are risks involved when flying this model. A beginner should seek the help of a skilled R/C pilot to ensure that the model is airworthy and capable of safe operation. Any damage, neglect, or unfamiliar use of this product can cause unexpected accidents or injury. Please make sure the flying is safe and we are not responsible for any accident. 1. Locate an appropriate place to fly your helicopter: R/C helicopters are capable of flying at high speeds, thus posing a certain degree of potential danger to both the flyer and bystanders, so it is important to choose a right site for flying. First, the space of flying site should be big enough (at least 4*4*4m). Second, the flying site should be open enough, and clear of obstacles. Do not fly your helicopter during the strong counter-flow weather to avoid the unnecessary damage. This RC helicopter, angel 300, have the best performance in terms of control capability and scalability without wind. it may not fly properly outside due to the fluency of airflow so that it is not recommenced to fly outdoor. www.art-tech.com 3 Without wind TIPS FOR SAFETY The help of an experienced pilot will ensure that you will have a well trimmed, correctly functioning helicopter for the first flight. It is strongly advised that you first practice on the simulator prior t o m a k i n g a f l i g h t w i t h y o u r n e w h e l i c o p t e r. 2. Obtain the assistance of an experienced pilot. 3. Always be away from the running parts 4. Keep your helicopter away from humidity. 5. Operate your helicopter gently During the operation of your helicopter the rotor will be spinning at a high rate of speed. Don’t touch any running parts and please keep a proper distance with them. Be conscious of your actions and be careful to keep your hands, face, eyes, and loose clothing away from the blades and gears to avoid being hurt or any damage to the model. Your new Angle 300 helicopter is a hi-tech electronic device, so try to keep the model away from the humidity condition which may result in the operation errors or some other unrespectable faults to the model. Never subject your model to severe weather, such as raining, thunder. The helicopter will give a prompt response to the controlling action,so try to operate the helicopter gently. Try to avoid the excessive operation as this may lead to the helicopter to be out o f control. Novice Novice Expert www.art-tech.com 4 CHARGE MODE AND WARNING Specifications: Input voltage: DC 10V~15V Output voltage: DC 7.4V&11.1V (To 2 or 3 cell Li-poly battery) Charge current: 0.3A~1.0A (Can be continuously adjusted) Indicator state: Green: Charge complete or no battery Red: Charging Flash: Drip current charging Separated battery detection: The voltage of any battery reaches 4.2V, the charge of it will cease automatically. Li-Po battery(balance changer) ATI-0910 Li-poly battery balance charger using instruction 12V DC Power supplier Using method: 1. Connect the cigarette with charger per above image 2. Then plug cigarette into its socket in car (Adapter should be connected if charge at home: connect the adapter to home power socket, then plug the adapter’s DC end to charger). The LED will turn green indicating…

Text truncated - open the document above for the full version.

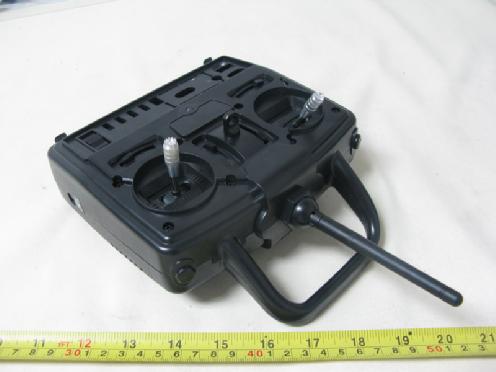

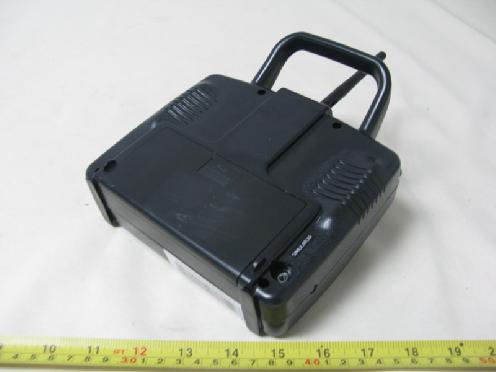

Neutron Engineering Inc. Project No.: 0908C112 Page 2 of 6 0908C112 0908C112 Neutron Engineering Inc. Project No.: 0908C112 Page 2 of 6 0908C112 0908C112

Neutron Engineering Inc. Project No.: 0908C112 Page 3 of 6 0908C112 0908C112 Neutron Engineering Inc. Project No.: 0908C112 Page 3 of 6 0908C112 0908C112 Neutron Engineering Inc. Project No.: 0908C112 Page 4 of 6 0908C112 0908C112 Neutron Engineering Inc. Project No.: 0908C112 Page 4 of 6 0908C112 0908C112 Neutron Engineering Inc. Project No.: 0908C112 Page 5 of 6 0908C112 0908C112 Neutron Engineering Inc. Project No.: 0908C112 Page 5 of 6 0908C112 0908C112 Neutron Engineering Inc. Project No.: 0908C112 Page 6 of 6 0908C112

Neutron Engineering Inc. Report No.: NEI-FCCP-1-0908C112 Page 2 of 53 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-0908C112 Page 3 of 53 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.5 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 13 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 14 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 17 4.2.3 TEST PROCEDURE 18 4.2.4 DEVIATION FROM TEST STANDARD 18 4.2.5 TEST SETUP 19 4.2.6 EUT OPERATING CONDITIONS 19 4.2.7 TEST RESULTS (BETWEEN30 – 1000 MHZ) 20 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 22 4.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 34 5 . BANDWIDTH TEST 38 5.1 APPLIED PROCEDURES / LIMIT 38 5.1.1 MEASUREMENT INSTRUMENTS LIST 38 5.1.2 TEST PROCEDURE 38 5.1.3 DEVIATION FROM STANDARD 38 5.1.4 TEST SETUP 39 5.1.5 EUT OPERATION CONDITIONS 39 Neutron Engineering Inc. Report No.: NEI-FCCP-1-0908C112 Page 4 of 53 Table of Contents Page 5.1.6 TEST RESULTS 40 6 . PEAK OUTPUT POWER TEST 42 6.1 APPLIED PROCEDURES / LIMIT 42 6.1.1 MEASUREMENT INSTRUMENTS LIST 42 6.1.2 TEST PROCEDURE 42 6.1.3 DEVIATION FROM STANDARD 42 6.1.4 TEST SETUP 42 6.1.5 EUT OPERATION CONDITIONS 42 6.1.6 TEST RESULTS 43 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 44 7.1 APPLIED PROCEDURES / LIMIT 44 7.1.1 MEASUREMENT INSTRUMENTS LIST 44 7.1.2 TEST PROCEDURE 44 7.1.3 DEVIATION FROM STANDARD 44 7.1.4 TEST SETUP 44 7.1.5 EUT OPERATION CONDITIONS 45 7.1.6 TEST RESULTS 46 8 . POWER SPECTRAL DENSITY TEST 48 8.1 APPLIED PROCEDURES / LIMIT 48 8.1.1 MEASUREMENT INSTRUMENTS LIST 48 8.1.2 TEST PROCEDURE 48 8.1.3 DEVIATION FROM STANDARD 48 8.1.4 TEST SETUP 48 8.1.5 EUT OPERATION CONDITIONS 48 8.1.6 TEST RESULTS 49 9 . RF EXPOSURE TEST 51 9.1 APPLIED PROCEDURES / LIMIT 51 9.1.1 MPE CALCULATION METHOD 51 9.1.2 DEVIATION FROM STANDARD 51 9.1.3 EUT OPERATION CONDITIONS 51 9.1.4 TEST RESULTS 52 10 . EUT TEST PHOTO 53 Neutron Engineering Inc. Report No.: NEI-FCCP-1-0908C112 Page 5 of 53 1. CERTIFICATION E q u i p m e n t : 2.4GHz Radio Control system Brand Name : ART-TECH; E-FLY Model Name : ETB4SP-2.4GHz A p p l i c a n t : ShenZhen ART-TECH R/C Hobby Co., Ltd. F a c t o r y : ShenZhen ART-TECH R/C Hobby Co., Ltd. A d d r e s s : 3/F,No.1 Wanyelong Industrial Park,Liyuan Industrial Area, Tangtou Village, Shiyan Town, Baoan District, Shenzhen City, China Date of Test : Aug. 19, 2009 ~ Sep. 23, 2009 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANCI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-0908C112) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-0908C112 Page 6 of 53 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission - Note(2) 15.247 (c) Antenna conducted Spurious EmissionPASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.203 Antenna Requirement PASS 1.1307 1.1310 2.1091 2.1093 RF Exposure Compliance PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) The EUT use new battery Neutron Engineering Inc. Report No.: NEI-FCCP-1-0908C112 Page 7 of 53 2.1 TEST FACILITY The test facilities used to collect the test data in this report is C01/OS02 at the location of No.132-1, Lane 329, Sec. 2, Palian Road, Shijr City, Taipei, Taiwan. Neutron's test firm number is 95335 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended unce…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-0908C112 Page 53 of 53 10. EUT TEST PHOTO Radiated Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-0908C112 Page 53 of 53 10. EUT TEST PHOTO Radiated Measurement Photos
