WN7AMC-43-00Digital Media Player

Instruction Components + Features / Functions SD Card Slot Motion Sensor SW1- SW5 2 speakers DC IN Slot USB Slot Power switch Led for Power consumption indicator Volume Controls Brightness Play Mode (Loop 1, Loop All, Loop None) Operations: z Once batteries are inserted and then slide the power sw itch to “on” position, a loading screen appears on the screen (it’s a jpeg format, content depends on different cli ent), approximately 2.5 seconds after the switch has been moved to the On position, AV0 automatically pl ay, once the file is finished playing the unit goes immediately into standby mode for 30 seconds, then it go es into sleep mode until a chapter button is pressed or the motion sensor is being active. z Once batteries are inserted and then slide the power sw itch to “on” position, a loading screen appears on the screen (it’s a jpeg format, content depends on different cli ent), approximately 2.5 seconds after the switch has been moved to the On position, the unit goes immediately into standby mode for 30 seconds if there is no motion sensor connected. then it goes into sleep mode until a chapter button is pressed or the motion sensor is being active. z Motion Sensor – Plays 0.AVI file only, it doesn’t work during the playback and standby. z The function of AV0 override via any chapter button. z At any point in time while a video is playing, you may pause the playback for 30 seconds by simply pressing the current button once. To continue play back you can press the current button once. If the current button is not pressed again, the video will resume playback automatically in 30 seconds z During the sleep mode, once a chapter button is pressed or the motion sensor is being active, the file plays. Once the file is finished playing the unit goes immediat ely into standby mode for 30 seconds, then it goes into sleep mode. z SW1 – SW5 switches Play 1.avi – 5 .avi. IF the il luminated type is connected, the ports will flash 1 – 5 sequentially *SEE FLASHING FLOWCHART ON PAGE 4* z The unit should be powered by 8D batteries and ideally match 12 volts. z The unit include a battery level icon/indicator per the sample z The unit include a counter option that counts how many time a chapter button has been pressed FCC Warning: This device complies with Part 15 of the FCC Rules. O peration is subject to the fo llowing two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Button Flash Sequence Sample - Spin Master 1 2 3 4 User presses “button 2”, the flashing stops and the “button 2” stays on for approximately 2 seconds Turn on the unit, the led buttons will flash 1 – 5 sequentially with 2 second off and 1 second on At the end of playback, the sequential flashing resumes. 1234 5 1234 5 1234 5 After 2 seconds, the sequential flashing resumes for the duration of the video playback (except for the playback button which remains off FCC information to the user This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

55 44 33 22 11 D D C C B B A A Title: Size: Document Number: Rev: Date: Sheet: of Drawer:Allen Tse ಇጊೇჾ໩צԨᆐࢳޏပຫ٤ഓ 2011-2-15 ഄഔ˖⏅ഇᏖᅱᅝ 45 ऎढЄᮄᅝଚࡵ໻ॺ 905-906 ⬉䆱˖ 0755-27575865 ˈ 27575869 ˈ 27575823 Ӵⳳ˖ 0755-27576286 <Doc> V1.0 15INCH PLAY BOX CIRCUIT A3 1 3 Title: Size: Document Number: Rev: Date: Sheet: of Drawer:Allen Tse ಇጊೇჾ໩צԨᆐࢳޏပຫ٤ഓ 2011-2-15 ഄഔ˖⏅ഇᏖᅱᅝ 45 ऎढЄᮄᅝଚࡵ໻ॺ 905-906 ⬉䆱˖ 0755-27575865 ˈ 27575869 ˈ 27575823 Ӵⳳ˖ 0755-27576286 <Doc> V1.0 15INCH PLAY BOX CIRCUIT A3 1 3 Title: Size: Document Number: Rev: Date: Sheet: of Drawer:Allen Tse ಇጊೇჾ໩צԨᆐࢳޏပຫ٤ഓ 2011-2-15 ഄഔ˖⏅ഇᏖᅱᅝ 45 ऎढЄᮄᅝଚࡵ໻ॺ 905-906 ⬉䆱˖ 0755-27575865 ˈ 27575869 ˈ 27575823 Ӵⳳ˖ 0755-27576286 <Doc> V1.0 15INCH PLAY BOX CIRCUIT A3 1 3 &DUG6'00&79RXW&9%6 ˖ '&˖9ˈP$ˈ )/$6+0/&9'5$0''50 9 Main Chip DDR DRAM SD/MMC Card Nand Flash 24M Crystal PMU USB Device LCDKey SP P-LED /'2˖9ˈP$ˈ0LFURSKRQH ˖ 86%'HYLFH.H\3OD\3DXVH3RZHU+RPH6HWWLQJ9RO9RO8S'RZ Q/HIW5LJKW+ROGVZLWFK 3RZHU'&,1ˈ9ˈ$˗%$7ˈ9ˈP$݊ᅗ+HDGSKRQH0,&)0,557& '&˖9ˈP$ˈ&RUH'&˖9ˈP$ˈ''5/'2˖9ˈP$ˈ$QDORJ6:˖9ˈP$ˈ/&' Remote IR MOTION UnRegistered

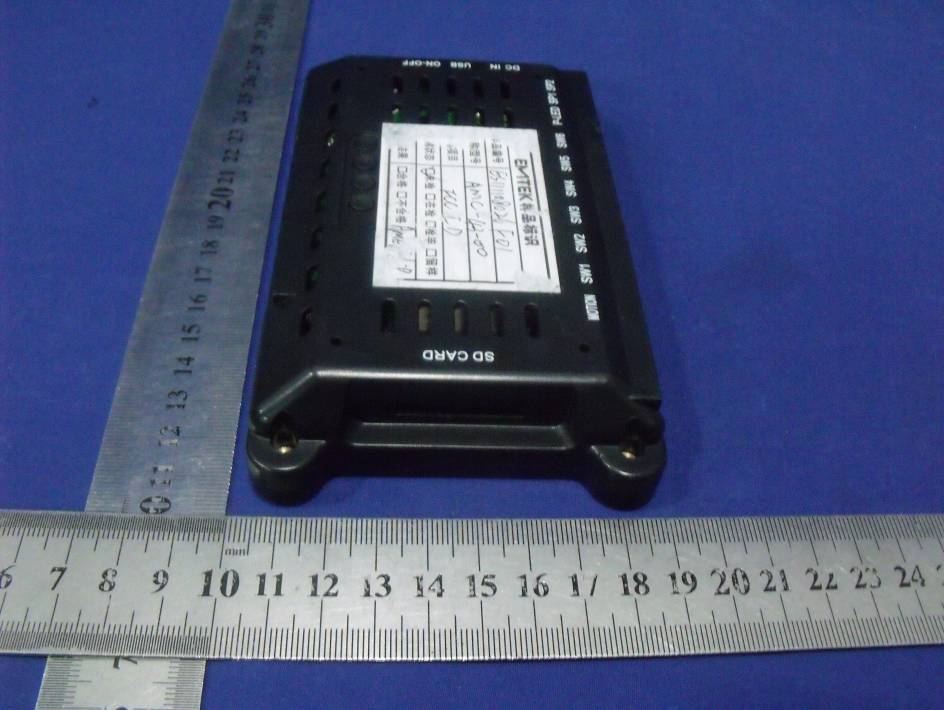

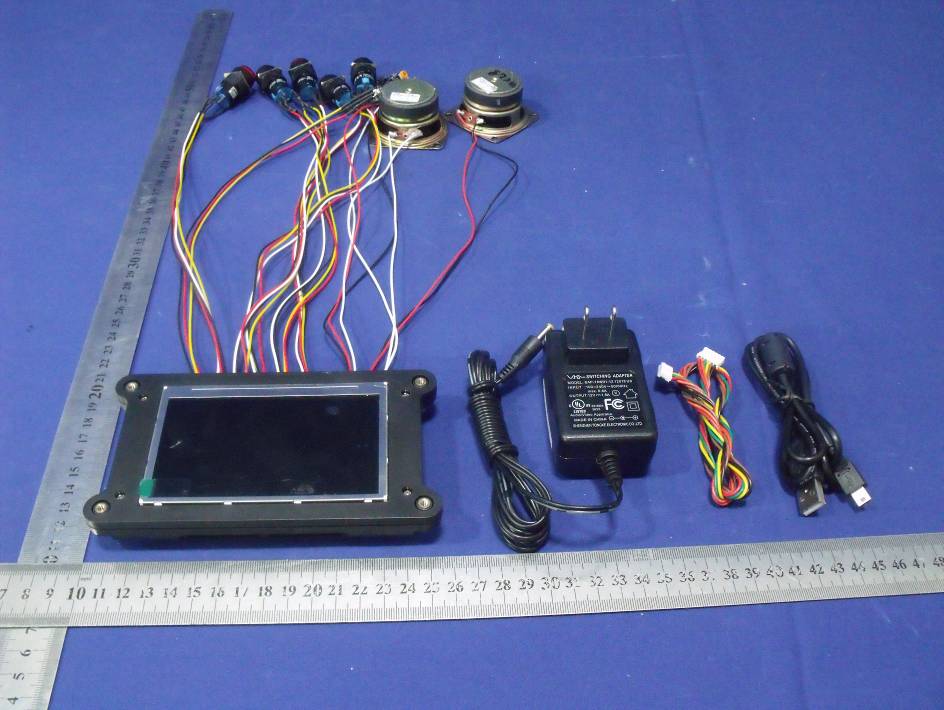

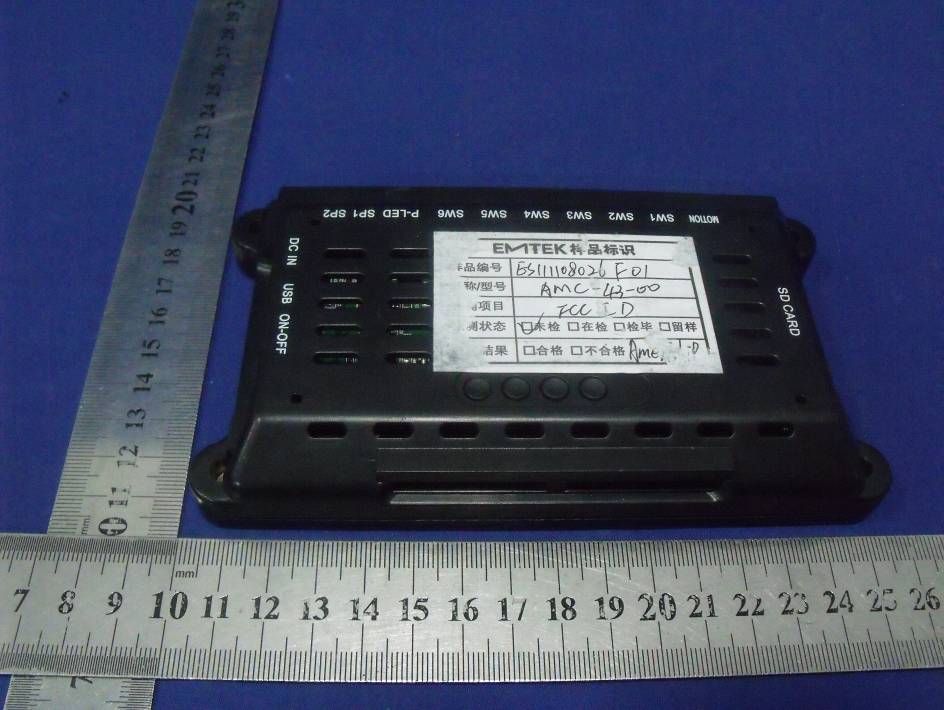

External of EUT

Label Location Proposed Label Location on EUT

FCC ID Label FCC ID: WN7AMC-43-00 Model Number: AMC-43-00 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

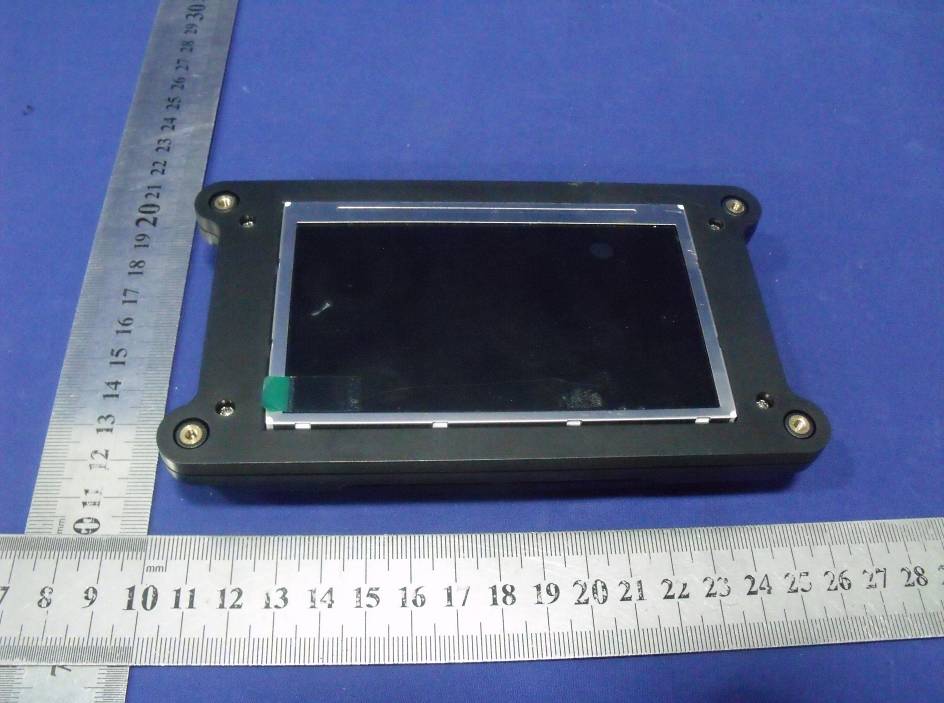

Internal of EUT

3.2.1 USB USB2.0 OTG Compatibility MS 32GB Compatibility SD 32GB Compatibility Card MMC 32GB Compatibility CVBS S-VIDEO Video YPBPR 480P/576P/720P/1080i Compatibility 48Khz Samplerate AUDIO SNR>95DB 3.2.2 Multimedia funcition 3.2.2.1 Video codec Compatibility 3.2.2.2 Audio Codec Compatibility Decoder profile Max bitrate/samplerate MP3 all 320kbps/48khz WMA all 320kbps/48khz AAC LC/HE 320kbps/48khz Real Audio all 320kbps/48khz AC3 all 192kpbs/48khz APE all 48khz Decoder Profile Max resolution Real Video G2/R8/R9/R10 1360x768@10Mb ps@30fps MPEG4 ASP/SP (xivd/divx3,div x4,divx5,divx6) 1024x768@10Mb ps@30fps MPEG2 ASP/SP 1024x768@10Mb ps@30fps MPEG1 All 1024x768@10Mb ps@30fps H.263 all 1024x768@10Mb ps@30fps ＢＰ 1024*768@2Mbp s@24fps ＭＰ 1024*768@2Mbp s@24fps H.264 HP 960*540@2Mbps s@24fps UnRegistered FLAC all 48khz OGG all 500kbps/48khz DTS all 192kbps/48khz AMR All 48khz 3.2.2.3 Image Codec Compatibility Decoder profile resolution JPEG Baseline/progressive unlimited BMP all 1024*768 GIF 87A/89A 1024*768 PNG All 1024*768 3.2.2.4 Text Codec Compatibility Decoder profile ANSI TEXT UTF8/Unicode 3.2.2.5 Video &Audio File Container Compatibility Real Video Rm/rmvb/RMF AVI Avi MP4 Mp4,M4V,MOV,3GP MKV MKV VOB Vob,mpg,mpeg PMP PMP,PSP. Video FLV Flv, MP3 Mp3/mp1/mp2 WMA wma WAV wav Real audio Ra FLAC flac APE ape OGG ogg Audio AAC aac,m4a, JPG Jpeg/jpg BMP Bmp GIF gif Image PNG PND UnRegistered
