WN7AMC000-08GSM Controller

User Manual of GSM Controller 1. Identification of the Parts 1. Antenna for GSM matched 800/90/1800/1900MHz band. 2. Red/Green LED to indicate battery charging status. 3. Micro USB port for data transmission and battery charge 4. Connect to micro USB receptacle. 5. on/off Slide tongue switch for power on and off 6. Provide supply power for VIP module. 7. Reservation I/O for function expansion. 8. GSM Module with M35, MCU and SIM card 9. Microphone for voice input on call function 10. Input port for VIP model audio output 11. Speaker for GSM phone call 12. “Phone call” button for phone call; Green LED to indicate GSM call ready; ed LED to indicate GSM call not ready 2. Introduction This GSM Controller is a standard 850/900/1800/1900MHz Quad band GSM modem US market. It’s convenient and speedily to contact the service center by the “Phone call” button. 3. How to call 6. To VIP module 1. Antenna 8. GSM Module 11. To Speaker 9. To Microphone 3. To Battery 5. on/ off Slide switch 2. To Red/Green LED 4. To Micro USB 10. To VIP module 7. Reservation I/O 12. Phone call button & Red LED &Grenn LED 3.1 Press the “Phone call” button, it begin to establish network 3.2 When green LED is on then GSM function is ready and network is established 3.3 Waiting the service center answer the phone, you can communicate with them 3.4 Press the “Phone call” button again the call is hung up 4. General Specification Operating Temperature: ‐20°C ~ 50°C USB input voltage: 5 +/‐ 5% Battery: Rechargeable Li Polymer battery >850mAH (support standalone operation around 2 hours for phone call) 5. Environment Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

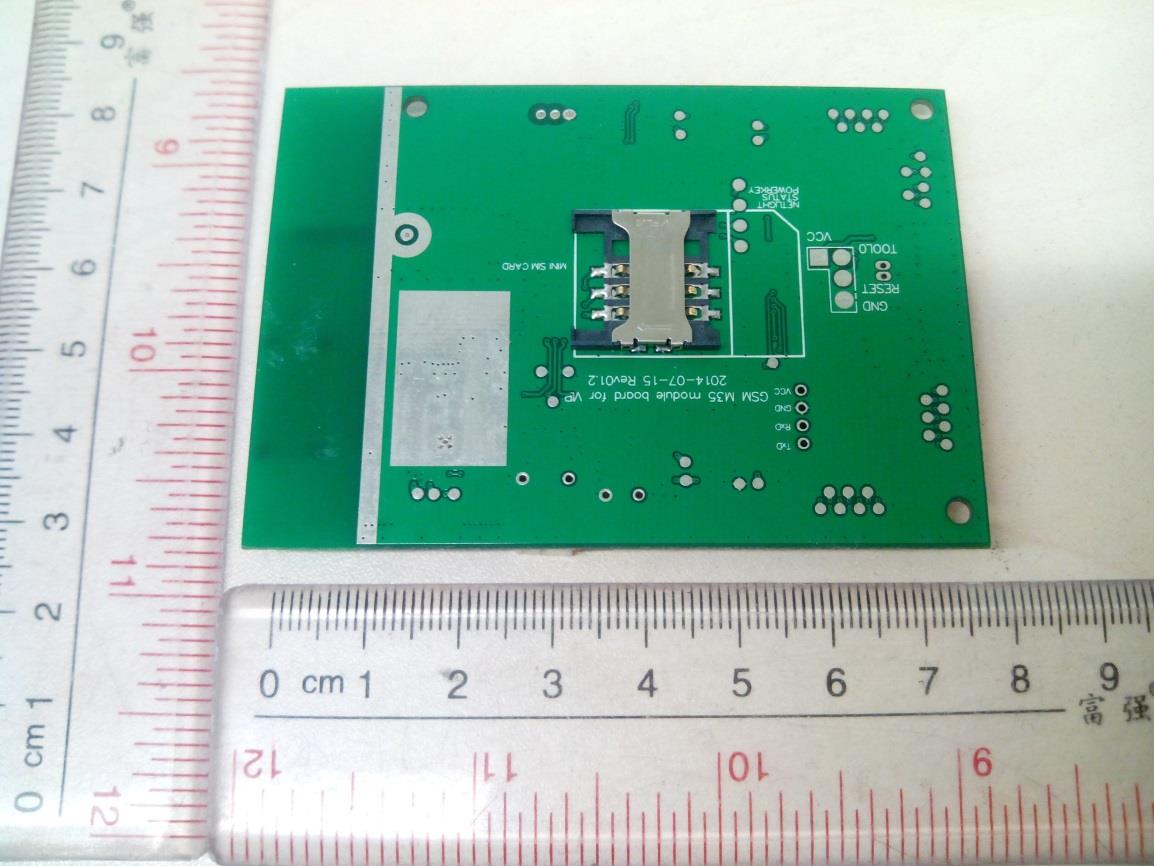

A Test Lab Techno Corp. External Photos A Test Lab Techno Corp.

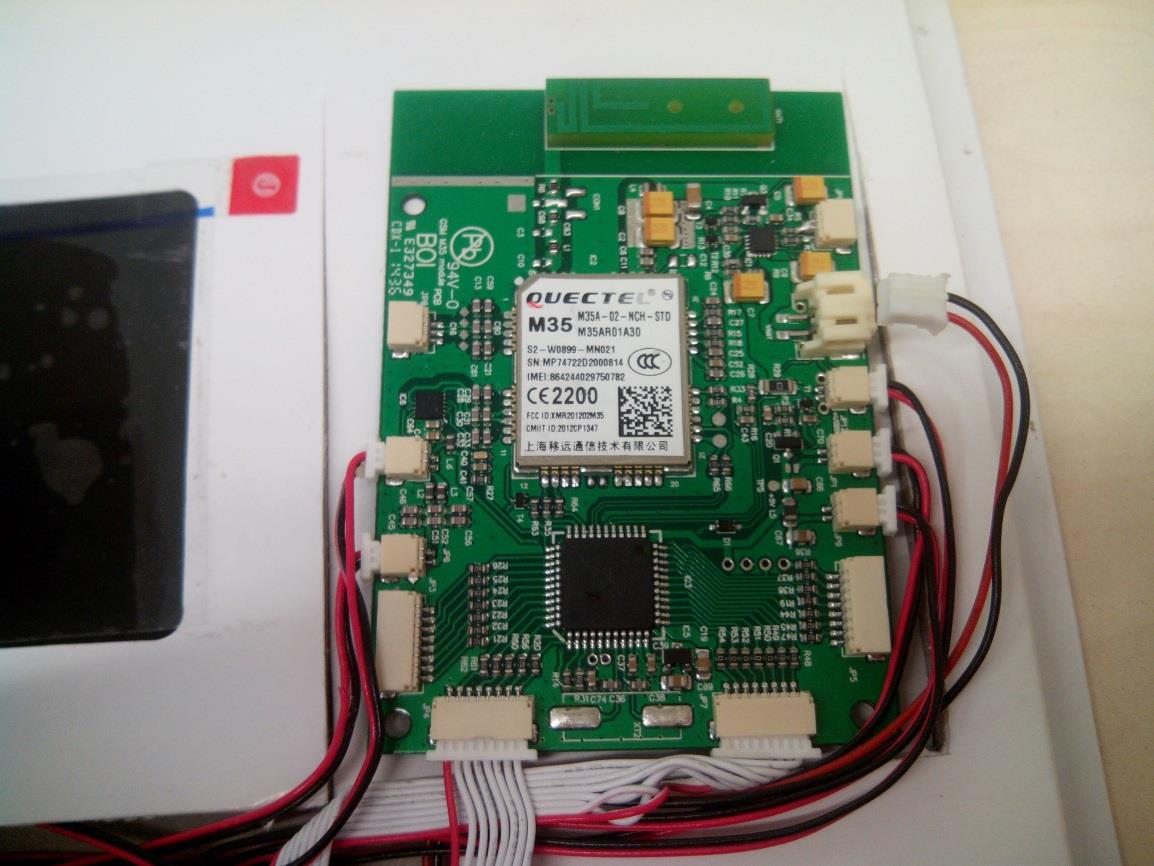

A Test Lab Techno Corp. Internal Photos GSM Antenna A Test Lab Techno Corp.

Page 1 1. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation 푆= PG 4휋푅 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna. Page 2 2. RF Output Power Band CH Frequency (MHz) Average Conducted power (dBm) GSM 850 128 824.2 32.24 190 836.6 32.16 251 848.8 32.45 PCS 1900 512 1850.2 28.67 661 1909.8 28.73 810 1909.8 29.81 3. Test Result Band Frequency (MHz) Limit (mw/cm2) Distance[R]( cm) Power [P] (dBm) ANT Gain (dB) Numeric Gain [G] (dBi) Duty Cycle [P] x [G] with Duty cycle [TP] (mW) Power Density [S] (mw/cm2) GSM 850 824.2 0.549 20 33 -1.8 0.661 12.5% 166.5 0.033 836.6 0.558 20 33 -1.8 0.661 12.5% 166.5 0.033 848.8 0.566 20 33 -1.8 0.661 12.5% 166.5 0.033 PCS 1900 1850.2 1.000 20 30 -1.6 0.692 12.5% 86.5 0.017 1909.8 1.000 20 30 -1.6 0.692 12.5% 86.5 0.017 1909.8 1.000 20 30 -1.6 0.692 12.5% 86.5 0.017 Note: 1.The Power [P] is max tune-up power (upper limit). 2.The Numeric Gain calculated by 10^(ant. Gain(dBi) /10).

Page 1 of 69 A Test Lab Techno Corp. Report Number：1411FR13 FCC RF Test Report Product Name: GSM Controller Model Number: AMC000-008 Report No: 1411FR13 FCC ID：WN7AMC000-08 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Page 2 of 69 A Test Lab Techno Corp. Report Number：1411FR13 Laboratory Accreditation and Relationship to Customer The testing report were performed by the Shenzhen Academy of Metrology and quality Inspection EMC Laboratory (Guangdong EMC compliance testing center), in their facilities located at Bldg. of Metrology & Quality Inspection, Longzhu Road, Nanshan District, Shenzhen, Guangdong, China. At the time of testing, Laboratory is accredited by the following organizations: China National Accreditation Service for Conformity Assessment (CNAS) accredits the Laboratory for conformance to FCC standards, EMC international standards and EN standards. The Registration Number is CNAS L0579. The Laboratory is listed in the United States of American Federal Communications Commission (FCC), and the registration number are 446246 806614 994606(semi anechoic chamber). The Laboratory is listed in Voluntary Control Council for Interference by Information Technology Equipment (VCCI), and the registration number are R-1974(open area test site), R-1966(semi anechoic chamber), C- 2117(mains ports conducted interference measurement) and T-180(telecommunication ports conducted interference measurement). The Laboratory is registered to perform emission tests with Industry Canada (IC), and the registration number is 11177A-1, 11177A-2. TUV Rhineland accredits the Laboratory for conformance to IEC and EN standards, the registration number is E2024086Z02. Page 3 of 69 A Test Lab Techno Corp. Report Number：1411FR13 Applicant: Americhip Inc. Address: 19032 South Vermont Avenue LA CA90248 USA Date of Receipt Sample: 2014-12-02 Start Date of Test: 2014-12-17 End Date of Test: 2014-12-31 Issue Date: 2015-01-05 Test Result: Pass Approved By ： Reviewed By ： (Manager) (Murphy Wang) (Testing Engineer) (Fly Lu) Page 4 of 69 A Test Lab Techno Corp. Report Number：1411FR13 Revision History Rev. Issue Date Revisions Revised By 00 05 Jan, 2015 Initial Issue Page 5 of 69 A Test Lab Techno Corp. Report Number：1411FR13 CONTENT 1 General Information ................................................................................................................................................... 6 2 Test Summary ........................................................................................................................................................... 7 2.1 Cellular Band (824-849MHz paired with 869-894MHz) .............................................................................................. 7 2.2 PCS Band (1850-1915MHz paired with 1930-1995MHz) ........................................................................................... 7 3 Description of the Equipment under Test (EUT) ........................................................................................................ 8 3.1 General Description ................................................................................................................................................... 8 3.2 EUT Identity ............................................................................................................................................................... 8 3.3 Technical Specification .............................................................................................................................................. 8 4 General Test Conditions/Configurations .................................................................................................................... 9 4.1 Test Modes ............................................................................................................................................................... 9 4.2 Test Environment ....................................................................................................................................................... 9 4.3 Test Frequency ......................................................................................................................................................... 9 4.4 Main Test Instruments................................................................................................................................................ 9 4.5 Measurement Uncertainty ........................................................................................................................................ 10 5 Test Result ............................................................................................................................................................... 11 5.1 OUTPUT POWER .................................................................................................................................................... 11 5.2 Radiated Spurious Emission ..................................................................................................................................... 16 5.3 Occupied Bandwidth and Emission Bandwidth ........................................................................................................ 20 5.4 BAND EDGE COMPLIANCE ................................................................................................................................... 25 5.5 Spur…

Text truncated - open the document above for the full version.

A Test Lab Techno Corp. Setup Photograph Radiated Emissions Below 1 GHz and Above 1 GHz
