WNN-XTS7In-Wall Touchscreen

BT: XST7 device BT name XTS7, after searching for a new device, initiate pairing with smart devices or headphones. After successful pairing, you can use BT function to transfer files and pictures This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. Cet équipement doit être installé et utiliséavec une distance minimale de 20cm entre leradiateur & votre corps.

Russound/FMP, Inc. Add: 200 International Drive, Suite 155, Portsmouth, NH 03801,USA Tel: 603-659-5170(404) Fax: 603-659-5388 Email: [email protected] Date: 2022-08-24 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Russound/FMP, Inc., hereby authorize China Certification ICT Co., Ltd (Dongguan) to act as a laboratory for testing and test report generation for the following project(s): (Product description: In-Wall Touchscreen, model name: XTS7, FCC ID: WNN-XTS7) declare that the device does not support channel 12-13 in 2.4 GHz band and any non-US channels Sincerely Yours, Client’s signature Printed name : Colin Clark Title: VP of Products

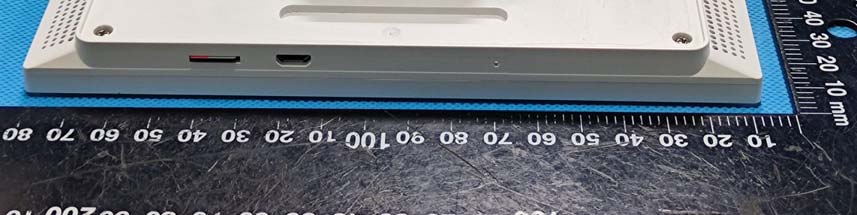

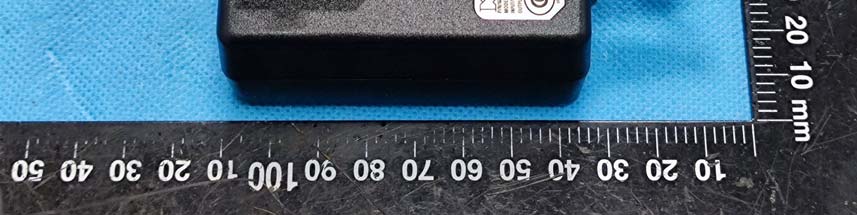

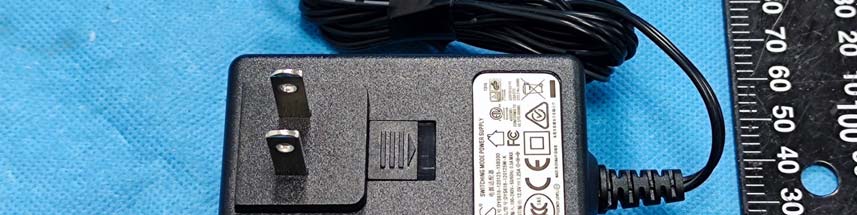

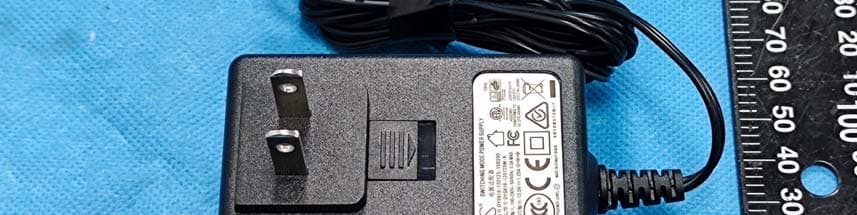

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

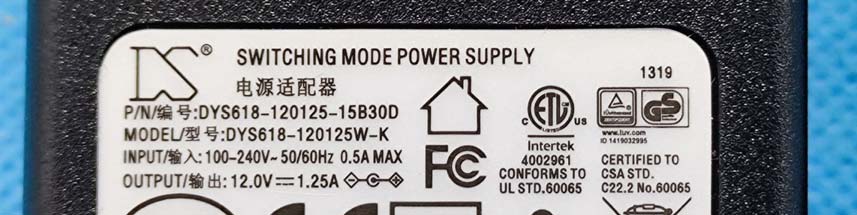

IC : 7950A-XTS7 IC : 7950A-XTS7 HVIN: XTS7 LAN/PoE 12V DC/1A Power over Ethernet (802.3af compliant) or 12V DC/1A Designed by Russound/FMP, Inc. Manufactured in China www.russound.com RoHs 1 0 Russound XTS7 Wall-Mounted Touchscreen Product Lable Color: Black/White Adhesive: Permanent LAN/PoE 12V DC 1A XTS7 Power over Ethernet (802.3af compliant) Designed in the USA by Russound/FMP, Inc. | Manufactured in China www.Russound.com PLEASE CHOOSE EITHER 12V DC or LAN/PoE TO SUPPLY POWER DO NOT USE BOTH Wall-Mounted Touchscreen HVIN: XTS7 FCC ID:WNN-XTS7 IC : 7950A-XTS7

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna

China Certification ICT Co., Ltd (Dongguan) Report No.: CR22070060-00B Page 70 of 71 5. RF EXPOSURE EVALUATION 5.1 MPE-Based Exemption 5.1.1 Applicable Standard According to §1.1307(b)(3)(i) (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . 5.1.2 Measurement Result Operation Modes Frequency (MHz) λ/2π (mm) Distance (mm) Exemption ERP Maximum Conducted Power including Tune-up Tolerance (dBm) Antenna Gain (dBi) ERP (dBm) MPE- Based Exemption (mW)(dBm) WLAN 2.4G 2412-2462 19.80 200 768 28.85 12 3.56 13.41 Compliant BLE 2402-2480 19.89 200 768 28.85 3 3.56 4.41 Compliant Bluetooth 2402-2480 19.89 200 768 28.85 5 3.56 6.41 Compliant Note: The WLAN and Bluetooth/BLE can`t transmit simultaneously. Result: The device compliant the MPE-Based Exemption at 20cm distances.

Confiden ti al Informa ti on Version 1.00 Sample Acceptance Letter Sample Approval Sheet Project Name: MS001 Sample Name: WIFI/BT antenna Sample Specification Sample SPEC: FPC material, welded coaxial line (L49.00mm, fourth generation terminal head) Customer Code Customer PN. Sample Transfer Date: 2022.06.17 Name Name: Sample Approval Shenzhen Haotiancheng Wireless Technology Co., LTD Version Ver: V1.0 Date Date: 2022.6.17 Supplier Name: Shenzhen Haotiancheng Wireless Technology Co., LTD Supplier Address: 5E, Building L, Baicai Science Park, Lane 2, Liuxian First Road, Baoan District, Shenzhen 0755-23013857 E-mail: [email protected] Confiden ti al Informa ti on Version 1.00 1. Summary of admitted that book... .4 2. Look... . 4 3. Electrical... . 4 3.1. The antenna band... .4 3.2. Matching circuit... .4 3.3. The impedance requirement... .5 3.4. WIFI/BT passive standing wave figure...5 3.5. Apple figure... .5 3.6. A passive antenna gain efficiency...7 3.7. The antenna test data... .7 3.8. The environment treatment... .8 4. Appearance structure... .8 4.1. The antenna material... .8 4.2. Structural drawings... .9 5. Raw material list (BOM)... 10 6. Production flow chart... . 10 7. Reliability test report... . 11 8. The antenna and accessory material GP test report... 11 9. The packing way... . 12 Confiden ti al Informa ti on Version 1.00 1 Acknowled ge book overview The admission describes the condition of the built-in antenna of Moss MS001, its frequency band /WIFI/BT, manufactured by Shenzhen Haotiancheng Wireless Technology Co., LTD. Appear ance of 2. 3. The electric a l 3.1. Antenna frequency band WIFI/B T Transmit band (MHz) 2400 ~ 2500 Receiver frequency band (MHz) 2400 ~ 2500 Confiden ti al Informa ti on Version 1.00 3.3 Impe da nc e requires 50 Ohm 3.4 WIFI/B T passiv e stand in g wave dia gra m 3.5 Apple Chart: 11b Confiden ti al Informa ti on Version 1.00 11g 11n Page 6 / total of 12 Confiden ti al Informa ti on Version 1.00 3.6 Antenna Passive gain efficiency: 3.7 Ante n n a test data : Confiden ti al Informa ti on Version 1.00 3.8 Environmenta l Handling 4 Appearance Structure 4.1 A nte n na Mate ria l Antenna material: FPC antenna, black ink, gold-plated exposed copper area. Substrate + double-sided adhesive + release paper Coaxial line: coaxial line center distance 49.00mm, line diameter 0.81mm, Teflon material;With four terminals, the other end of the wire stripping dipped tin welding to the FPC antenna. Confidential Information Version 1.00 第 9 页 / 共计 12 页 4.2结构图纸

TEST REPORT Applicant: Russound/FMP, Inc. Address: 200 International Drive, Suite 155, Portsmouth, NH 03801,USA FCC ID: WNN-XTS7 IC: 7950A-XTS7 HVIN: XTS7 Product Name: In-Wall Touchscreen Standard(s): 47 CFR Part 15, Subpart C(15.247) RSS-247 Issue 2, February 2017 RSS-Gen, Issue 5, February 2021 Amendment 2 ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR22070060-00B Date Of Issue: 2022-08-25 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR22070060-00B Page 2 of 71 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR22070060-00B Page 3 of 71 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 1. GENERAL INFORMATION .................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 5 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 6 1.2.2 Support Equipment List and Details .............................................................................................................. 6 1.2.3 Support Cable List and Details ...................................................................................................................... 6 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 7 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 13 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Test Procedure ............................................................................................................................................. 15 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 16 3.3 20 DB BANDWIDTH ............................................................................................................................. 1 7 3.3.1 Applicable Standard ..................................................................................................................................... 17 3.3.2 EUT Setup...........................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View-Adapter Conducted Emissions Side View- Adapter Conducted Emissions Front View-PoE Conducted Emissions Side View- PoE Radiated Emission Below 1GHz View- Adapter Radiated Emission Below 1GHz View- POE Radiated Emission Above 1GHz View
