WNU-PTP1APLEXTALK PROJECT

2 PTP 1 User’s Guide ©2008 Shinano Kenshi Co.,Ltd. 3 IMPORTANT FCC NOTICE Declaration of Conformity Model Number: PTP1 Trade Name: Responsible party: Shinano Kenshi Co., Ltd. Address: 6-15-26 Chuo, Ueda-shi, Nagano-ken 386-0012 JAPAN This device complies with Part 15 of the FCC Rules; Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: _ Reorient or relocate the receiving antenna. _ increase the separation between the equipment and receiver. _ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. _ Consult the dealer or an experienced radio / TV technician for help. 4 CAUTION: Any changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la norme NMB- 003 du Canada. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The laser beam emitted from the optical pickup is invisible. Accordingly: ・ Do not open the optical pickup housing. 5 TABLE OF CONTENTS 1. About this guide. ......................................................................... 9 2. Legal and copyright information. ............................................. 11 2.1. Copyright information about this guide. ................................. 11 2.2. Licenses and trademarks. ..................................................... 11 2.3. Restrictions on copying or recording with the PLEXTALK PTP1. ............................................................................................ 11 3. Introduction to DAISY. .............................................................. 13 3.1. What is DAISY? .................................................................... 13 3.2. Main features of DAISY. ....................................................... 13 3.3. Types of DAISY book. ........................................................... 14 3.4. DAISY navigation features. ................................................... 14 5. Overview of the PTP1. ............................................................... 18 5.1. Concept of the PTP1. ............................................................ 18 5.2. Features of the PTP1. ........................................................... 18 6. Getting started. .......................................................................... 19 6.1. Terminology and conventions used in this guide. ................. 19 6.2 What you get in the box. ......................................................... 19 6.3. Description of the unit. .......................................................... 21 6.4. Insert the battery. .................................................................. 24 6.5. Connecting the PLEXTALK to the mains for charging. ......... 25 6.6. Turning PLEXTALK on and off. ............................................. 25 6.7. Key lock - key function. ........................................................ 26 6.8. Inserting and ejecting SD card .............................................. 26 6.9. The User's Guide (DAISY) CD. ............................................. 27 7. Maintenance and battery care. ................................................. 27 7.1. Unit care. .............................................................................. 28 7.2. Battery care. ......................................................................... 28 Chapter 3: Basic Operation and Play ................ 错误！未定义书签。 Chapter 3-2 Play DAISY Library ...................... 错误！未定义书签。 8. Quick start information. ............................................................ 29 8.3. Recording a DAISY title. ....................................................... 33 8.4. Editing a DAISY recording. ................................................... 35 12.2. Getting page information. ........................ 错误！未定义书签。 9. Introduction to the menu system. ............................................ 36 9.1. Overview of the menu and its operation. ............................... 36 9.2. Accessing and navigating the menu. .................................... 37 9.3. Getting help when in the menu system. ................................ 38 10. Setting up your PLEXTALK. ................................................... 39 6 10.1. Setting the date and time. ................................................... 39 10.2. Selecting the 12 or 24 hour mode for the internal clock. ..... 错 误！未定义书签。 10.3. Selecting a preferred waiting sound. ................................... 40 11. Playing features common to all formats. ............................... 42 11.1. R…

Text truncated - open the document above for the full version.

Date: Nov. 1, 2011 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Shinano Kenshi Co., Ltd., the undersigned, hereby authorizes Mr.Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Shinano Kenshi Co., Ltd.. solely in matters relating to the application for an FCC equipment authorization for FCC ID # WNU-PTP1A including the signing of documents in connection with this Application. Necessary acts carried out by Shinano Kenshi Co., Ltd. on our behalf of the Shinano Kenshi Co., Ltd. in connection with the Application shall have the same effect as acts of the Shinano Kenshi Co., Ltd. The Shinano Kenshi Co., Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely,

Date: Oct. 11, 2011 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Shinano Kenshi Co., Ltd. FCC ID: WNU-PTP1A FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Shinano Kenshi Co., Ltd. requests that the following documents regarding this submission for FCC ID: WNU-PTP1A be kept confidential: Exhibit Type File Name Block Diagram CONF APPENDIX WNU-PTP1A _Block Diagram.pdf Schematics CONF APPENDIX WNU-PTP1A _Schematics.pdf Operational Description CONF APPENDIX WNU-PTP1A _Operational Description.pdf Part list CONF APPENDIX WNU-PTP1 A_BOM.pdf Those documents contain detailed system and equipment description and related information about the product which Shinano Kenshi Co., Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Shinano Kenshi Co., Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely,

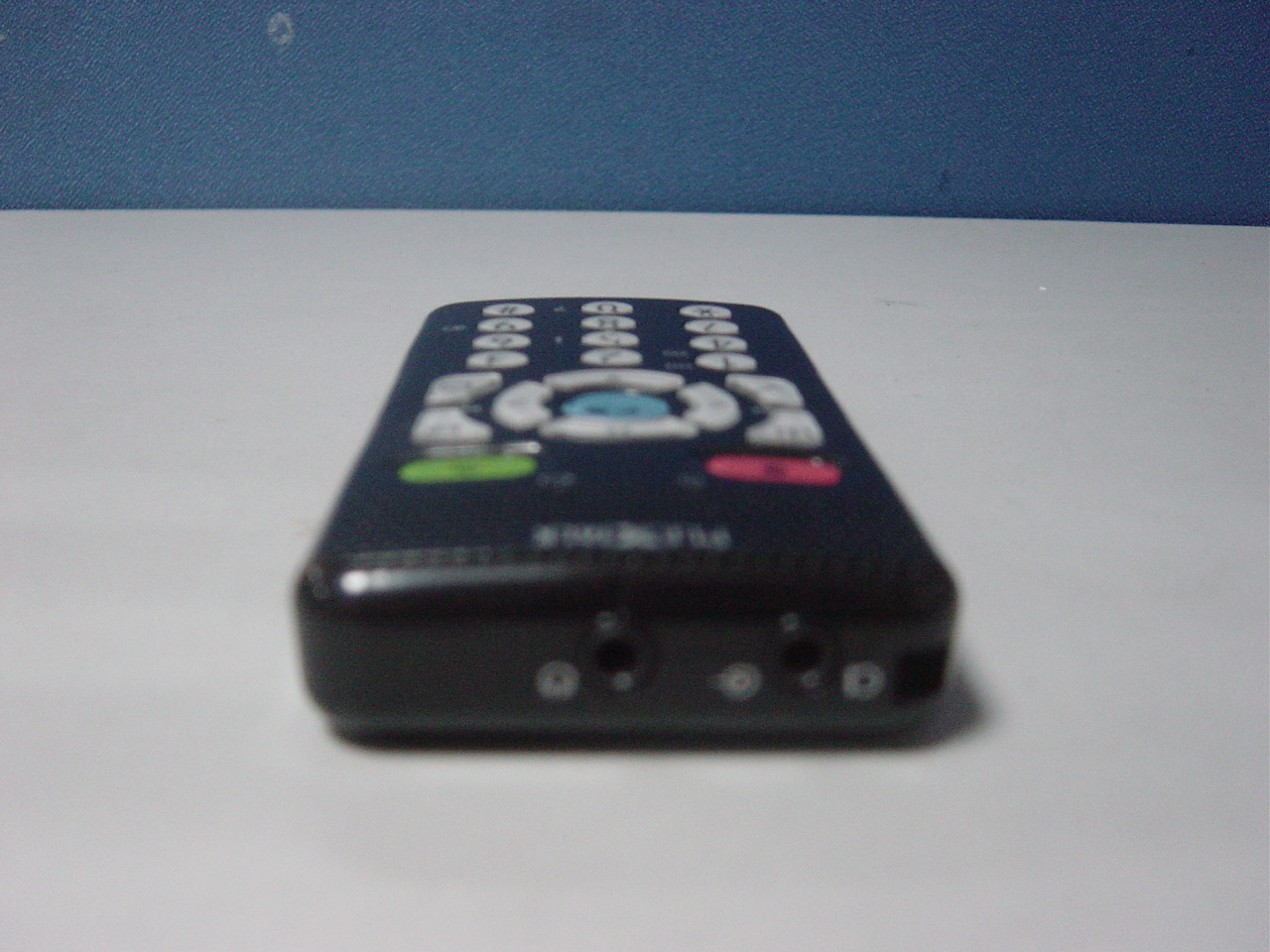

External Photos 1. Front View of EUT 2. Back view of EUT 3. Side View of EUT

FCC ID: WNU-PTP1A Label Label Location

Date: Nov. 1, 2011 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: WNU-PTP1A Dear Sirs: Shinano Kenshi Co., Ltd. requests acceptance of the labeling proposal described below for cell phone bearing FCC identifier WNU-PTP1A. The subject cell phone are compact handheld models as shown in figure 1, authorized under 47CFR Part 15C for WIFI services. Figure 1. Because the majority of the Plextalk Pocket housing is composed of display, speaker, operating controls and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, Shinano Kenshi Co., Ltd. proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Shinano Kenshi Co., Ltd. will add the FCC identifier " WNU-PTP1A " to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter. Yours Sincerely,

Internal Photos

FCC ID: WNU-PTP1A Page 1 of 2 Prediction of MPE limit at given distance Product Description: Plextalk Pocket Type: PTP1， PTP1/LINK 1. Introduction Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 2. Limits for Maximum Permissible Exposure According to FCC Part 1.1307, systems operating under the provisions of this section shall be operated in a manner the ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidelines. According to FCC Part 1.1310 RF exposure is calculated. Limits for General Population/ Uncontrolled Exposure Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength(E)(V/m) Magnetic Field Strength (H)(A/m) Power Density (S)(mW/cm 2 ) 0.3-1.34 614 1.63 (100)* 1.34-30 824/f 2.19/f (180/f2)* 30-300 27.5 0.073 0.2 300-1500 f/1500 1500-100,000 1.0 FCC ID: WNU-PTP1A Page 2 of 2 3. Test result Maximum peak output power at antenna input terminal(dBm): 0.0176 Maximum peak output power at antenna input terminal(mW): 1 Prediction distance(cm): 20 Predication frequency(MHz): 2442 Antenna Gain (typical) (dBi): 3 Power density at predication frequency at 20 cm(mW/cm 2 ): 0.0006 MPE limit for RF exposure at prediction frequency(mW/cm 2 ): 1 4. Conclusion The predicted power density level at 20cm is 0.0006mw/cm 2 which is below the uncontrolled exposure limit of 1.0mw/cm2. It is determined as mobile equipment and complied with the MPE limit.

Report No.: SZ10100003W04 Page 2 of 45 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 4 1.1 EUT Description ......................................................................................................................... 4 1.2 Test Standards and Results ........................................................................................................ 5 1.3 Facilities and Accreditations ...................................................................................................... 6 1.3.1 Facilities .................................................................................................................................... 6 1.3.2 Test Environment Conditions .................................................................................................... 6 2. 47 CFR PART 15C REQUIREMENTS .................................................................................... 7 2.1 Peak Output Power .................................................................................................................... 7 2.1.1 Requirement .............................................................................................................................. 7 2.1.2 Test Description ........................................................................................................................ 7 2.1.3 Test Result ................................................................................................................................. 8 2.2 Bandwidth ................................................................................................................................... 9 2.2.1 Definition .................................................................................................................................. 9 2.2.2 Test Description ........................................................................................................................ 9 2.3 Conducted Spurious Emissions ............................................................................................... 14 2.3.1 Requirement ............................................................................................................................ 14 2.3.2 Test Description ...................................................................................................................... 14 2.3.3 Test Result ............................................................................................................................... 14 2.4 Power spectral density (PSD) .................................................................................................. 18 2.4.1 Requirement ............................................................................................................................ 18 2.4.2 Test Description ...................................................................................................................... 18 2.4.3 Test Result ............................................................................................................................... 18 2.5 Band Edge ................................................................................................................................. 23 2.5.1 Requirement ............................................................................................................................ 23 2.5.2 Test Description ...................................................................................................................... 23 2.5.3 Test Result ............................................................................................................................... 24 2.6 Conducted Emission ................................................................................................................. 29 2.6.1 Requirement ............................................................................................................................ 29 2.6.2 Test Description ...................................................................................................................... 29 Report No.: SZ10100003W04 Page 3 of 45 2.6.3 Test Result ............................................................................................................................... 30 2.7 Radiated Emission .................................................................................................................... 32 2.7.1 Requirement ............................................................................................................................ 32 2.7.2 Test Description ...................................................................................................................... 32 2.7.3 Test Result ............................................................................................................................... 34 Change History Issue Date Reason for change 1.0 Oct 26, 2011 First edition Report No.: SZ10100003W04 Page 4 of 45 1. GENERAL INFORMATION 1.1 EUT Description EUT Type ............................. : Plextalk Pocket Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : PTP1 (TLA 0609), PTP1/LINK (TLA0709) Software Version .................. : Applicant .............................. : Manufacturer ........................ : V1.00.0078 Shinano Kenshi Co., Ltd. 1078, Kami-Maruko, Ueda-Shi, Nagano-Ken, 386-0498, Japan GROUP SENSE (International) Ltd 6th Floor, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong Frequency Range .................. : 802.11b/g-20MHz: 2.412GHz - 2.462GHz Modulation Type................... : DSSS,OFDM Note 1: The EUT is Plextalk Pocket Support Wi-Fi Module, with 802.11b/g interface. The Wi-Fi Module was tested in this report. Note 2: The EUT have two sample which is the model name …

Text truncated - open the document above for the full version.

Test Setup Photos 1. CE 2RE 3. RSE 4. CSE
