WODGKRC161170-4GSM/GPRS 850 Transmitter

Radio Frequency Electromagnetic Fields SAFETY INFORMATION Copyright © Copyright Ericsson AB 2006, 2008. All rights reserved. Disclaimer No part of this document may be reproduced in any form without the written permission of the copyright owner. The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Ericsson shall have no liability for any error or damage of any kind resulting from the use of this document. 124 46-EN/LZT 720 0399 Uen E 2008-09-29 Contents Contents 1Introduction1 1.1Target Group1 2RF Exposure Limits3 2.1RF Exposure Calculations4 2.2Determining Compliance Distances5 2.3Example Compliance Boundary Determination7 3General Public Safety Recommendations9 4References11 124 46-EN/LZT 720 0399 Uen E 2008-09-29 Radio Frequency Electromagnetic Fields 124 46-EN/LZT 720 0399 Uen E 2008-09-29 Introduction 1Introduction All RBSs are Radio Frequency (RF) transmitters. Very high RF exposure levels can be harmful. To protect people against such harmful effects, RF exposure limits with wide safety margins are specified by national and international health authorities. This document explains how to estimate RF exposure levels and compliance distances (minimum separations between antennas and people) for RBS radio configurations and antennas for which such data is not already specified by Ericsson. Note that for typical configurations and recommended antennas, Ericsson provides information and specifies compliance distances as part of the Product Data or Technical Product Description for each specific RBS product. Because it is possible for RF exposure levels to exceed the recommended exposure limits in the areas defined by compliance distances, it is important that RBS antennas are installed so that the general public does not have access to such areas. For configurations and antennas other than those specified by Ericsson, it is necessary to estimate RF exposure levels and specify the requirements for an RBS antenna site. The methods presented here are used to estimate RF exposure levels and the dimensions of the areas from which the general public must be excluded. The methods are also applicable for determining compliance distances for occupational exposure. These and other calculation and measurement methods are described in standards such as EN 50383 and EN 50400, IEEE C95.3 and CEPT ECC/REC/(02)04. 1.1Target Group This document is intended for engineering personnel who create site installation documentation for RBSs used in the following mobile phone systems: • GSM • WCDMA • LTE 1 124 46-EN/LZT 720 0399 Uen E 2008-09-29 Radio Frequency Electromagnetic Fields 2124 46-EN/LZT 720 0399 Uen E 2008-09-29 RF Exposure Limits 2RF Exposure Limits Various national and international RF regulations, safety standards, and recommendations exist that are relevant to RBS RF exposure. The limits defined in these standards are similar and are often based on international guidelines set by the International Commission on Non-Ionizing Radiation Protection (ICNIRP), which is recognized by the World Health Organization (WHO). The guidelines have been incorporated in EU Council recommendation 1999/519/EC. The ICNIRP has developed basic restrictions for both occupational and general public exposure to electromagnetic fields that must not be exceeded in any near-field or far-field exposure situation. These restrictions are based directly on established health effects. The Specific Absorption Rate (SAR) is used to specify the basic restrictions in the frequency range 10 MHz to 10 GHz. The SAR is a measure of the rate of RF energy absorption by the body, expressed in units of watts per kilogram of tissue (W/kg). The restrictions are provided to prevent established adverse health effects related to whole-body heat stress and excessive localized tissue heating. Whole-body SAR is averaged over the whole body while localized SAR is defined as the maximum local SAR averaged over any 10 g of tissue. The restrictions, which are summarized in Table 1 on page 3 below, incorporate a safety factor of about 10 for occupational exposure and about 50 for general public exposure. Table 1 ICNIRP Basic Restrictions for Occupational and General Public Exposure Whole-Body SAR (W/kg)Localized SAR 10g (W/kg) (1) Occupational Exposure General Public Exposure Occupational Exposure General Public Exposure 0.40.08102 (1) The limits provided on localized SAR are for head and trunk tissue. Localized SAR limits for limbs are twice as high. Reference levels are provided for the purpose of comparison with exposure quantities in air. In the frequency range 10 MHz to 10 GHz the reference levels are expressed as electric field strength (V/m), magnetic field strength (A/m), and power density (W/m²). The ICNIRP power density reference levels for occupational and general public exposure are summarized in Table 2 on page 4 and Table 3 on page 4 respectively. 3 124 46-EN/LZT 720 0399 Uen E 2008-09-29 Radio Frequency Electromagnetic Fields Table 2 ICNIRP Reference Levels for Occupational Exposure Occupational Reference Levels Expressed as Power Density 10 – 400 MHz400 – 2000 MHz2000 – 10 000 MHz 10 W/m 2 f/40 W/m 2 (1) 50 W/m 2 (1) f = frequency in MHz Table 3 ICNIRP Reference Levels for General Public Exposure General Public Reference Levels Expressed as Power Density 10 – 400 MHz400 – 2000 MHz2000 – 10 000 MHz 2 W/m 2 f/200 W/m 2 (1) 10 W/m 2 (1) f = frequency in MHz The reference levels, which vary according to frequency, have been chosen to prevent the SAR restrictions from being exceeded. This means that additional safety margins have been introduced. The reference levels apply primarily to whole-body far-field exposure situations, whereas they are very conservative for partial-body near-field exposure situations. Compliance with the reference levels will ensure compliance with the basic restriction. If the measured value exceeds the reference level, it does not ne…

Text truncated - open the document above for the full version.

Ericsson Internal DESCRIPTION1 ( 46 ) / XSNSIXI198/1551-LZA 701 0001 Uen CBC/XRX/M (Kai Lian)2011-05-05C Prepared (also subject responsible if other)No. ApprovedCheckedDateRevReference RBS Product Description RBS 2111 Second Generation Copyright © Ericsson AB 2008, 2009, 2011. All rights reserved. No part of this document may be reproduced in any form without the written permission of the copyright owner. Disclaimer The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Ericsson shall have no liability for any error or damage of any kind resulting from the use of this document. Trademarks ContentsPage 1Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 2Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 2.1Main Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 2.2Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 2.3Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 3Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3.1Dimensions of MU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3.2Dimensions of RRU-N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 4Space Requirements for MU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 4.1Space Requirements for Wall-Mounting of MU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 4.2Space Requirements for Pole-Mounting of MU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4.3Space Requirements for Rack-Mounting of MU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 5Space Requirements for RRU-N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 5.1Space Requirements for Wall-Mounting of RRU-N . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 5.2Space Requirements for Pole-Mounting of RRU-N . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 6Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 6.1Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 A4 XSEIF R5 Ericsson Internal DESCRIPTION2 ( 46 ) / XSNSIXI198/1551-LZA 701 0001 Uen CBC/XRX/M (Kai Lian)2011-05-05C Prepared (also subject responsible if other)No. ApprovedCheckedDateRevReference 6.2Mast Vibrations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 6.3Heat Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 6.4Acoustic Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 6.5Radio Frequency Electromagnetic Exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 6.6Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 7Hardware Units RBS 2111 Second Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 7.1Hardware Units MU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 7.2Hardware Units RRU-N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 7.3Optical Fiber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 8MU Connection Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 8.1Grounding Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 8.2–48 V DC Power Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 8.3Transmission Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 8.4External Alarm Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 8.5ESB Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 8.6OMT Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 8.7Replaceable Flash Card for MU-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 8.8Operator Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 8.9Optical Fiber Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 …

Text truncated - open the document above for the full version.

Ericsson Internal INSTALLATION INSTR.1 ( 37 ) / XKUEMHU50/1531-LZA 701 0001 Uen CBC/ XRX ( Jan-Erik Thillberg)2009-03-09C Prepared (also subject responsible if other)No. ApprovedCheckedDateRevReference Installation Instruction RBS 2111 Second Generation, RRU-N Copyright © Copyright Ericsson AB 2008–2009. All Rights Reserved Disclaimer No part of this document may be reproduced in any form without the written permission of the copyright owner. The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Ericsson shall have no liability for any error or damage of any kind resulting from the use of this document. Trademarks ContentsPage 1Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 2Tools and Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 2.1Tools for Installation of RRU-N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 2.2Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 3Installation RRU-N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 3.1Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 3.2Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 4Optional Installation External Splitter/Highway Function . . . . . . . . . . . . . . . . 28 5Optional Installation Power Supply Unit-AC Kits . . . . . . . . . . . . . . . . . . . . . . . . . . 30 6Optional Installation External Hybrid Combining Unit . . . . . . . . . . . . . . . . . . . . 33 6.1Mounting EHCU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 6.2Connecting Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 7Performing Concluding Routines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 7.1Updating the Site Installation Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 7.2Performing Final Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 A4 XSEIF R5 Ericsson Internal INSTALLATION INSTR.2 ( 37 ) / XKUEMHU50/1531-LZA 701 0001 Uen CBC/ XRX ( Jan-Erik Thillberg)2009-03-09C Prepared (also subject responsible if other)No. ApprovedCheckedDateRevReference 8Verifying the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Ericsson Internal INSTALLATION INSTR.3 ( 37 ) / XKUEMHU50/1531-LZA 701 0001 Uen CBC/ XRX ( Jan-Erik Thillberg)2009-03-09C Prepared (also subject responsible if other)No. ApprovedCheckedDateRevReference 1Introduction This chapter describes the installation of the RRU-N Second Generation, and the connection of the RRU-N to other existing site products. The RRU-N Second Generation consists of the following RRUs: •RRUN8-22 •RRUN9P-22 •RRUN9E-22 •RRUN18-22 •RRUN19-22 2Tools and Documentation This chapter contains lists of all tools and instruments recommended for the complete installation of the RRU-N. 2.1Tools for Installation of RRU-N The tools required for the installation of RRU-N are shown in the table below. Table 1Tools Required Product NameDescriptionProduct Number Tool set, Installation Tools Personal toolsLTT 601 156/1 Tool setCrimping tool for grounding LTT 601 86 230 V ACLTT 601 146/1Hammer drill or Cordless hammer drill Cordless 230 V ACLTT 601 147/1 Torque wrenchfor N connectorsLSS 103 25/1 Ericsson Internal INSTALLATION INSTR.4 ( 37 ) / XKUEMHU50/1531-LZA 701 0001 Uen CBC/ XRX ( Jan-Erik Thillberg)2009-03-09C Prepared (also subject responsible if other)No. ApprovedCheckedDateRevReference Product NameDescriptionProduct Number Torque Set, 0.5–4 Nm for bits LTT 601 145/1 Torque Set, 5–25 NmLTT 601 140/1 Torque Set, 20–100 NmLTT 601 141/1 Open-ended torque head (U-key), 16 mm LSB 107 12/6 Other tools needed Open-ended torque head (U-key), 16 mm LSB 107 12/5 2.2Documentation The following documentation is referenced in this document. Ensure that the following documents are read and understood: •Personal Health and Safety Information, 124 46–2885 •System Safety Information, 124 46–2886 Ensure that the following documents are available: •Site Installation Documentation, specific for the site •Site Installation Material & Tools Catalogue, EN/LZT 751 0014 •Verifying RBS Installations at Site, 4/1532–LZA 701 0001 •RBS Product Description, 198/1551-LZA 701 0001 •Verifying Antenna Systems, 1/1532-LZA 701 0001 •Installing Hardware for TG Synchronization, 42/1531-LZA 701 0001 •Installation Instruction, RBS 2111 Second Generation, MU-12, 51/1531-LZA 701 0001 •Grounding Guidelines for RBS Sites, EN/LZT 735 0018 3Installation RRU-N Introduction This chapter describes how to install the RRU-N. Ericsson Internal INSTALLATION INSTR.5 ( 37 ) / XKUEMHU50/1531-LZA 701 0001 Uen CBC/ XRX ( Jan-Erik Thillberg)2009-03-09C Prepared (also subject responsible if other)No. ApprovedCheckedDateRevReference Target Group The target group for this instruction is personnel involved in the installation of an RRU-N. 3.1Prerequisites This section describes the prerequisites for installation. Preconditions Before starting site work, ensure the following conditions have been fulfilled: •Site access permission received. •Ordered RRU-N, equipment, specified tools and other necessary faciliti…

Text truncated - open the document above for the full version.

Ericsson Internal INSTRUCTIONS1 ( 14 ) / XSNBRKI4/1532-LZA 701 0001 Uen EAB/ FJG/RSP ( Louise Cederlund)2008-05-14G Prepared (also subject responsible if other)No. ApprovedCheckedDateRevReference Verifying RBS Installations at Site Copyright © Copyright Ericsson AB 2006–2008. All rights reserved. Disclaimer No part of this document may be reproduced in any form without the written permission of the copyright owner. The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Ericsson shall have no liability for any error or damage of any kind resulting from the use of this document. ContentsPage 1Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 1.1Revision Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 2Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 2.1Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 2.2Tools and Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 3Visually Inspecting Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 4Switching On the RBS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 5Reading Fault Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 6Testing External Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 7Testing Battery Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 8Performing Concluding Routines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 8.1Saving the IDB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 8.2Completing the Test Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 8.3Filling in a Trouble Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 8.4Filling in a Blue Tag Repair Delivery Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 8.5Filling in the Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 A4 XSEIF R5 Ericsson Internal INSTRUCTIONS2 ( 14 ) / XSNBRKI4/1532-LZA 701 0001 Uen EAB/ FJG/RSP ( Louise Cederlund)2008-05-14G Prepared (also subject responsible if other)No. ApprovedCheckedDateRevReference 1Introduction This document describes the tests that must be performed to verify the installation of the RBS cabinet. The RBS cabinet has already been tested at the factory. The following units are involved when testing the site installation: •RBS main power switch, located outside the cabinet •Distribution power switches on the Internal Distribution Module (IDM) •Operation and Maintenance Terminal (OMT) interface and controls on the Distribution Switch Unit (DXU) For information about the required test equipment, tools and documents, see Section 2 on page 4 . Preconditions Before starting the tests, ensure the following: •A completed test record for Antenna System Tests is available in the Site Installation Documentation •A test record for Site Installation Tests at site is available •Documents Personal Health and Safety Information and System Safety Information have been read •In specific markets where the RBS is supplied without software, the software must be loaded from the OMT according to the instructions given in the document RBS SW Update, using the alternative “New IDB created, using the OMT, is to be used” or “The IDB on flash card is kept”. Ericsson Internal INSTRUCTIONS3 ( 14 ) / XSNBRKI4/1532-LZA 701 0001 Uen EAB/ FJG/RSP ( Louise Cederlund)2008-05-14G Prepared (also subject responsible if other)No. ApprovedCheckedDateRevReference Work Process for Site Installation Verification This section describes the order in which to perform the tests. When the exit criteria are fulfilled, the tester should enter the results in the test record, see (Page 11) and return to the work process for the next step. Note:For instructions on setting the Installation Database (IDB) parameters, see document Setting IDB Parameters*. P015743C Testing Battery Back-up Switching On the RBS Visually Inspecting Equipment Figure 1Work Process The work order can be altered, or tests can be removed owing to local circumstances, but if this is the case, then an investigation of the consequences must be carried out. If the work order is changed or tests are removed then the department responsible for this document must be notified and agree to the changes, or responsibility is automatically transferred to the person making the decision. Ericsson Internal INSTRUCTIONS4 ( 14 ) / XSNBRKI4/1532-LZA 701 0001 Uen EAB/ FJG/RSP ( Louise Cederlund)2008-05-14G Prepared (also subject responsible if other)No. ApprovedCheckedDateRevReference 1.1Revision Information Other than editorial changes, this document has been revised as follows: •Information on loading software added to section Preconditions and section Switching On the RBS 2Prerequisites 2.1Documentation Ensure that the following documents, referred to in this document, are read and understood: •Personal Health and Safety Information, 124 46-2885 •Sys…

Text truncated - open the document above for the full version.

2011-7-18 Jeffrey Zhou Unit manager, ENV&PA, RBS I&V

Open EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EYUEHPA Approved Checked Date Rev Reference CBC/XRV/E [Jeffrey Zhou] 2011-07-06 A WODGKRC161170-4 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch BABT Balfour House Churchfield Road Walton-on-Thames Surrey KT12 2TD May 13, 2011 Subject: Request for Confidentiality To Whom It May Concern: We, Ericsson (China) Communications Company Ltd., hereby request that the Exhibits/Items listed below be withheld from public inspection in accordance with Sections 0.457 and 0.459 of the Commission’s Rules. This due to the following reasons: DS-CDMA Base Stations (BS) are designed strictly based on the technical specifications of the international project 3GPP (the 3 rd Generation Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent BS/Radio Unit (RU) compared to the previous BS/RU, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC records have in-depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. As our BS are generally installed in restricted places, public access is not possible all thought some types of our BS under certain circumstances can be installed in an unrestricted place, but the doors on all of our BS’s are key-locked and can be opened only by authorized personnel. It is therefore individual modules within our BS that should not be revealed to the public. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limited to, internal photos of the BS and the RU, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase out BS and accept the conditions and therefore are provided with unique information access tools. Exhibit 4 Block Diagrams Exhibit 5 Schematics Exhibit 9 Internal Photo Exhibit 10 Component Exhibit 12 Technical Circuit Description If additional information is needed, please contact me on the below listed number. Sincerely, Regards Jeffrey Zhou Unit Manager, ENV&PA, RBS I&V Ericsson (China) Communications Company Ltd. Ericsson Tower, No.5 Lize East Street, Chaoyang District Beijing 100102, P.R.China Telephone: +861084767395 E-mail [email protected]

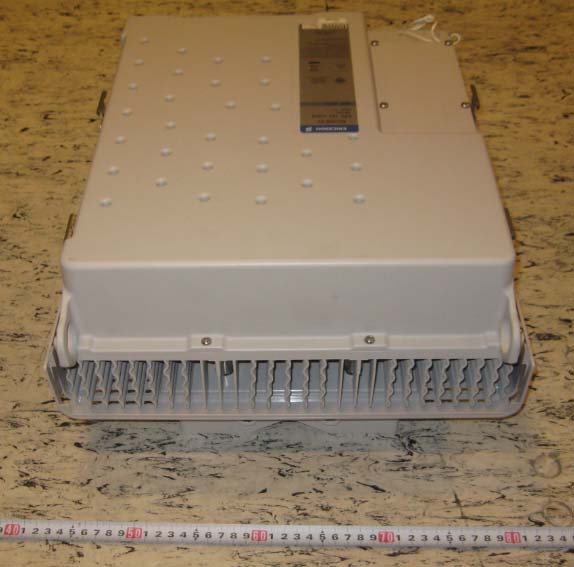

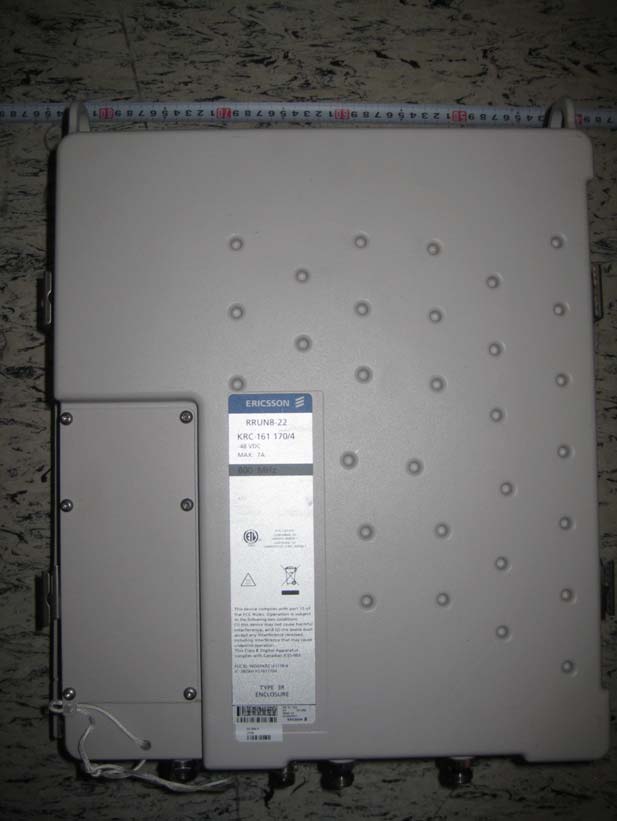

KRC 161 170/4 R1F Date 2011-07-07 Page 1 of 2 RRUN8-22 External photos Front View Back view Left side Right side Top view Bottom view RRUN8-22 External photos Date 2011-07-07 Page 2 of 2 Front view without solar shield

KRC 161 170/4 R1F Date 2011-07-07 Page 1 of 2 FCC ID FCC ID label and placement KRC 161 170/4 R1F Date 2011-07-07 Page 2 of 2

KRC 161 170/4 R1F Date 2011-07-07 Page 1 of 3 RRUN8-22 Internal photos RRUN8-22 Internal photos Date 2011-07-07 Page 2 of 3 FU 800 KRF 901 64/1 R1A RRUN8-22 Internal photos Date 2011-07-07 Page 3 of 3 TRB8-22 PBA ROA 1282853/1 R2B Component side TRB8-22 PBA ROA 1282853/1 R2B Rear side

Document 75913963 Report 01 Issue 2 June 2011 Report On FCC and Industry Canada Testing of the Ericsson (China) Communications Company Ltd. RRUN8-22 / KRC 161 170/4 COMMERCIAL-IN-CONFIDENCE FCC ID: WODGKRC161170-4 IC ID: 287AH-FG1611704 TÜV SÜD Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk COMMERCIAL-IN-CONFIDENCE Document 75913963 Report 01 Issue 2 Page 1 of 68 COMMERCIAL-IN-CONFIDENCE REPORT ON FCC and Industry Canada Testing of the Ericsson (China) Communications Company Ltd. RRUN8-22 / KRC 161 170/4 Document 75913963 Report 01 Issue 2 June 2011 PREPARED FOR Ericsson (China) Communications Company Ltd. Ericsson Tower No.5 Lize East Street Chaoyang District Beijing China PREPARED BY Q Li Test Engineer APPROVED BY M Jenkins Authorised Signatory DATED 27 June 2011 This report has been up-issued to Issue 2 to correct typographical errors on page 11. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate compliance with FCC CFR 47: Part 22 and Industry Canada RSS-132. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); X Zhang Q Li COMMERCIAL-IN-CONFIDENCE Document 75913963 Report 01 Issue 2 Page 2 of 68 COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................... 3 1.1 Introduction ................................................................................................................................... 4 1.2 Brief Summary of Results ............................................................................................................. 5 1.3 Declaration of Build Status ............…
