WOI-089260831578IG300BT C1/C2 Area image Barcode Scanner

Champtek IG300BT C1/C2 Area image Barcode Scanner User’s Manual Table of contents 1. Introduction............................................................ 1 1.1 Safety & caution............................................ 1 1.2 FCC warning................................................. 2 1.3 Labeling........................ ! 2. General Description............................................... 3 2.1 Product Description...................................... 3 2.2 Illustration..................................................... 3 3. Installation.............................................................. 4 3.1 Unpacking................................................... 4 3.2 Mounting...................................................... 4 3.3 Set up Bluetooth Communication............. 6 4. Configuring............................................................ 9 4.1 Preface......................................................... 9 4.2 Changing Scanner Settings with Programming Codes.................................. 9 4.3 Changing Scanner Settings with Utility Tool............................................................ 10 4.4 Factory Default Settings.......................... 10 5. Operating Settings................................................ 11 5.1 Scanning Triggering................................. 11 5.2 Time Out.................................................... 13 5.3 Good Read Mode...................................... 14 5.4 Buzzer Beep Tone..................................... 14 6. Imager Settings..................................................... 15 6.1 Imager Mode.............................................. 15 6.2 Firmware Version...................................... 16 6.2.1 Engine Firmware Version........................ 16 6.2.2Scanner Decoder Firmware Version ..... 16 6.2.3Cradle Decoder Firmware Version ....... 16 6.2.4Scanner Bluetooth MAC Address.......... 16 6.2.5Cradle Bluetooth MAC Address ............ 16 7. Programming Codes........................................... 17 7.1 Factory Default .......................................... 17 7.2 Bluetooth Setup for IG300BT series....... 18 7.3 Bluetooth Cradle Setup............................ 20 7.4 Decoding Selection.................................. 27 7.5 Australian Post Settings.......................... 34 7.6 Aztec Settings........................................... 34 7.7 BPO Settings............................................. 35 7.8 Canada Post Settings............................... 35 7.9 Codabar Settings...................................... 35 7.10 Codablock Settings.................................. 37 7.11 Code 11 Settings....................................... 38 7.12 Code 39 Settings....................................... 38 7.13 Code 93 / Code 93i Settings..................... 40 7.14 Code 128 / GSI-128 Settings.................... 41 7.15 DataMatrix Settings.................................. 43 7.16 Dutch Post Settings.................................. 43 7.17 EAN /UPC Parameters Settings............... 44 7.18 GS1 Composite Settings.......................... 47 7.19 GS1 DataBar Settings............................... 49 7.20 Infomail Settings....................................... 49 7.21 Interleaved 2 of 5 Parameters.................. 50 7.22 Japan Post Settings................................. 51 7.23 Matrix 2 of 5 Settings................................ 51 7.24 MaxiCode Settings.................................... 52 7.25 MicroPDF417 Settings.............................. 53 7.26 MSI code parameters Settings................ 53 7.27 PDF417 Settings....................................... 54 7.28 Planet settings.......................................... 56 7.29 Plessey Code Parameters........................ 57 7.30 Postnet Settings....................................... 57 7.31 QR Code Settings..................................... 58 7.32 Standard 2 of 5 Settings........................... 58 7.33 Sweden Post Settings.............................. 59 7.34 Telepen Settings....................................... 59 7.35 TLC 39 Settings......................................... 60 7.36 Miscellaneous Parameters....................... 61 7.37 Preambles and Postambles..................... 61 Appendixes............................................................... 63 A. Decimal Value Table................................. 63 B. ASCII Table................................................ 64 C. Readable Symbologies............................ 65 D. Technical Specifications.......................... 66 E. Scan Map................................................... 70 F. Test Symbologies..................................... 71 1 1. Introduction Thank you for purchasing this brand-new designed 2D imager hand held barcode scanner. This is a cutting-edge gun-type Area Imaging barcode scanner which is designed specifically for government administration, custom control, shipping industry and etc. That adds on more user friendly functions and has replaceable cable that makes it more easily to be operated by the customers. This high performance gun-type scanner provides the customer with the most cost effective solution in the market. It is perfectly suitable and definitely the best choice for you. 1.1 Safety & caution 1) Please read the following safety statement carefully. 2) Please preserve this user manual for reference sometime. 3) Before cleaning the device, the users must cut off all AC power. Do not use liquid or spray type of detersive to clean the device. Please use dampish cotton cloth to clean the device. 4) The outlet must set nearby the device for connecting power easily. 5) Keep the device dry to avoid short circuit. 6) During installation you must fix the equipment at solid table to avoid damage caused by falling. 7) Before inserting power please ensure the voltage is healthy to the equipment. 8) For safety please tie wire well and don’t put anything on the wire. 9) If you d…

Text truncated - open the document above for the full version.

Champtek lncorporated Champtek lncorporated 5/F, No.2, Alley 2, Shih-Wei Lane, Chung-Cheng Rd., Hsin-Tien City, Taipei 231,Taiwan Date: April. 11, 2010 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: WOI-089260831578, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Signature____________________ Name/Title: Jay Chen / Product Engineer Company Name: Champtek lncorporated Address: TEL: FAX: Email: [email protected]

Bluetooth Declaration Per FCC 15.247 Requirements 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification V 2.0+EDR (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviors: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviors for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = 0.3797s (in a 30s period) This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for all Bluetooth devices. There for all Bluetooth devices comply with the FCC dwell time requirement in data mode. This was checked during the Bluetooth Qualification tests. The Dwell time in hybrid mode is measured and stated in the test report. 8 Channel Separation in hybrid mode The nominal channel spacing of the Bluetooth system is 1Mhz independent of the operating mode. The maximum “initial carrier frequency tolerance” which is allowed for Bluetooth is fcenter = 75 kHz. This was checked during the Bluetooth Qualification tests (Test Ca…

Text truncated - open the document above for the full version.

Champtek lncorporated April. 11, 2010 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. James Lee Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Champtek / FCC ID: WOI-089260831578 Product Name: IG300BT C1/C2 Area image Barcode Scanner Signature___________________ Name/Title: Jay Chen / Product Engineer Company Name: Champtek lncorporated Address: TEL: FAX: Emai

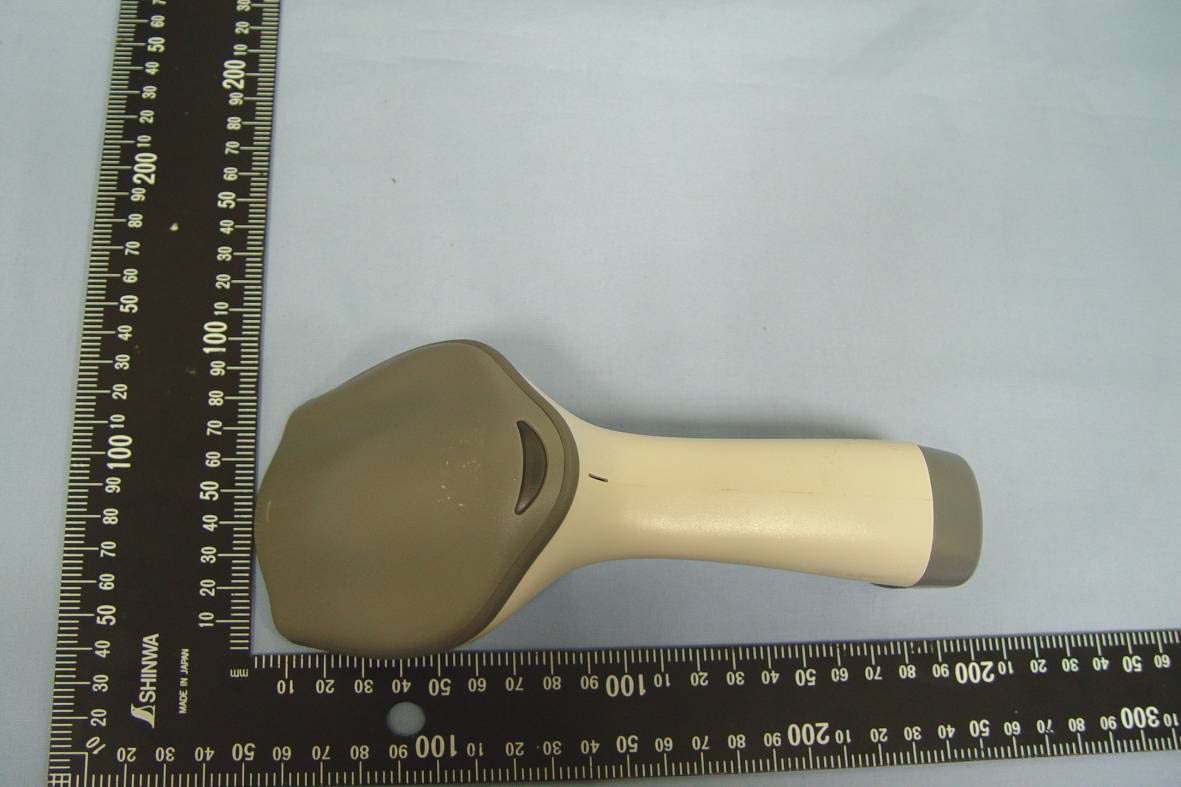

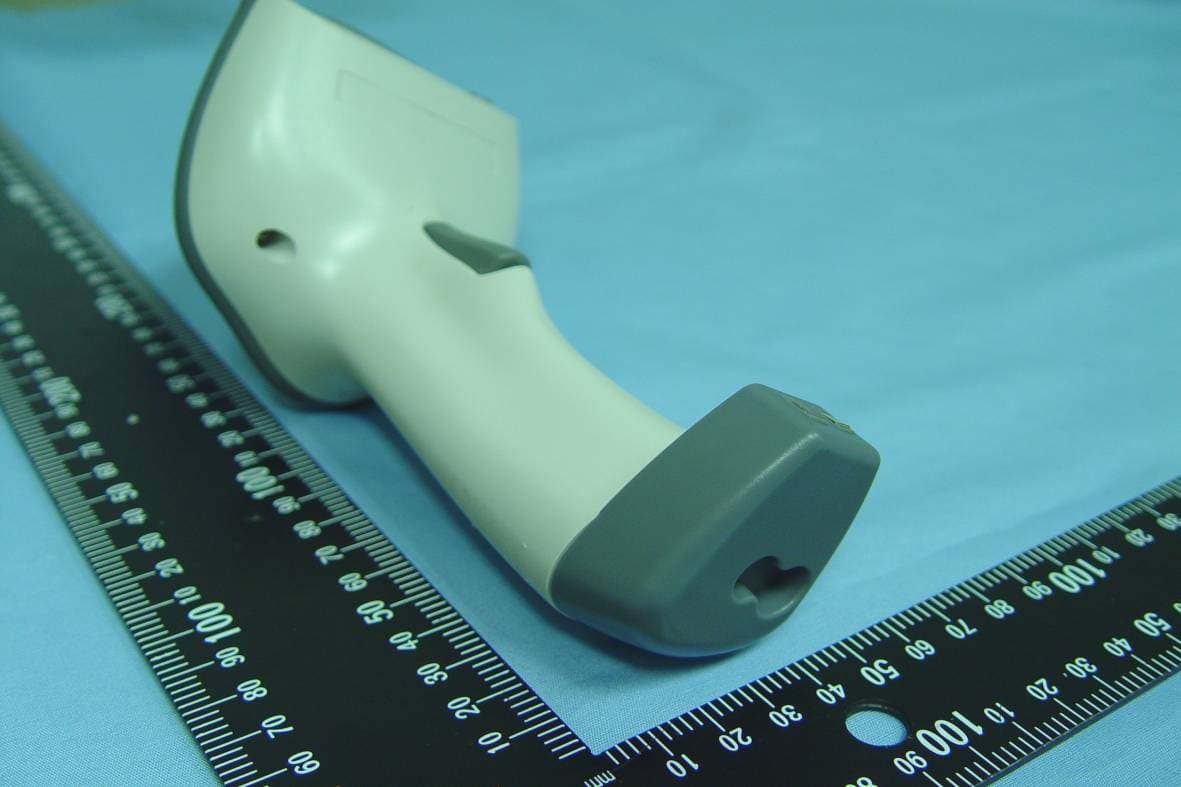

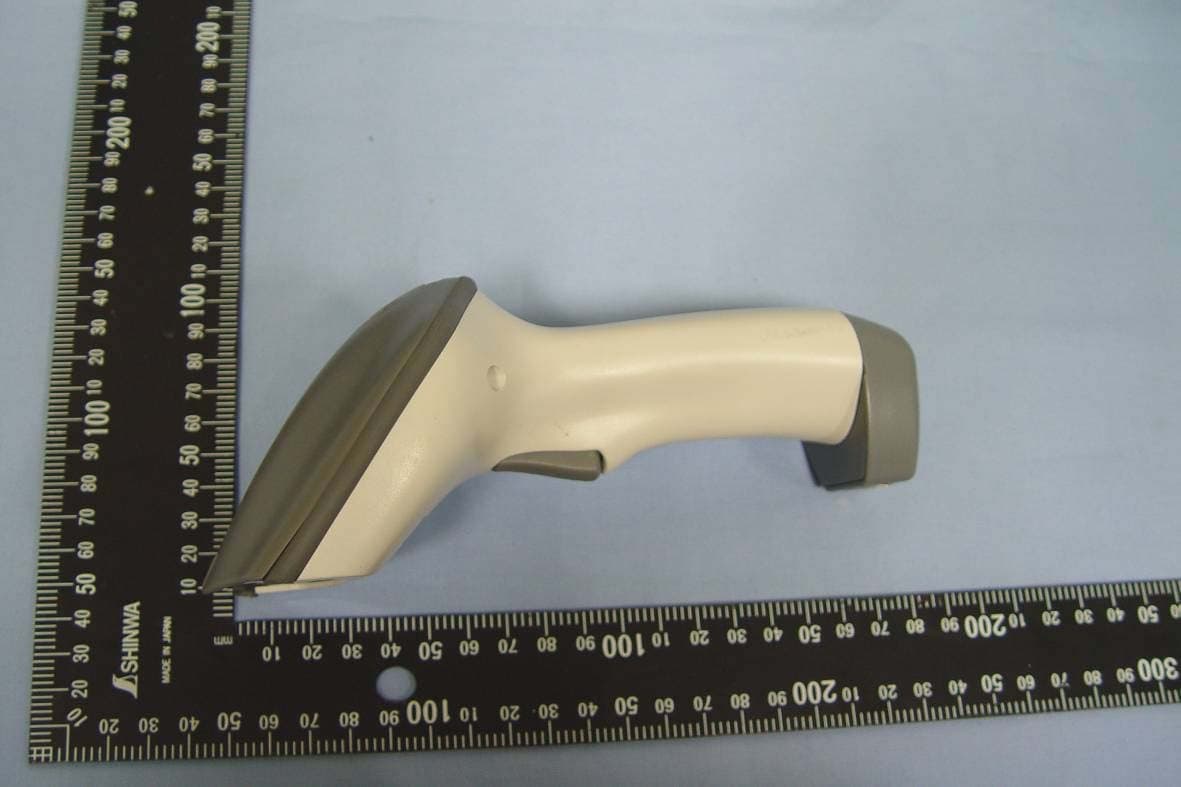

Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 1 Total Page: 15 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 3 Rev. 00

SCANTECH ID Model: IG300BT S/N:VA09500004 a Champtek company IG300BT C1/C2 Area image Barcode Scanner

Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 4 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 7 Rev. 00 PCB Antenna Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T100422003 Date of Issue: April 27, 2010 A1 - 15 Rev. 00

Compliance Certification Services Inc. Report No.: T100422003-RP1 FCC ID: WOI-089260831578 Date of Issue: April 27, 2010 Page 1 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For IG300BT C1/C2 Area image Barcode Scanner Model: IG300BT Trade Name: Champtek Issued to Champtek lncorporated 5/F, No.2, Alley 2, Shih-Wei Lane, Chung-Cheng Rd., Hsin-Tien City, Taipei 231,Taiwan Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100422003-RP1 FCC ID: WOI-089260831578 Date of Issue: April 27, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION ........................................................................................................................4 3. TEST METHODOLOGY .................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................7 4. INSTRUMENT CALIBRATION.....................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................8 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................8 4.3 MEASUREMENT UNCERTAINTY ............................................................................................8 5. FACILITIES AND ACCREDITATIONS .....................................................................................10 5.1 FACILITIES ....................................................................................................................................10 5.2 EQUIPMENT...................................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................11 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................12 6.1 SETUP CONFIGURATION OF EUT....................................................................................................12 6.2 SUPPORT EQUIPMENT ............................................................................................................12 7. FCC PART 15.247 REQUIREMENTS..........................................................................................13 7.1 20 DB BANDWIDTH..................................................................................................................13 7.2 PEAK POWER.................................................................................................................................18 7.3 A VERAGE POWER.........................................................................................................................20 7.4 BAND EDGES MEASUREMENT .............................................................................................21 7.5 FREQUENCY SEPARATION ....................................................................................................30 7.6 NUMBER OF HOPPING FREQUENCY....................................................................................34 7.7 TIME OF OCCUPANCY (DWELL TIME) ................................................................................37 7.8 SPURIO US EMISSIONS .............................................................................................................50 7.9 POWERLINE CONDUCTED EMISSIONS............................................................................................66 APPENDIX I RADIO FREQUENCY EXPOSURE ............................................................................69 APPENDIX II PHOTOGRAPHS OF TEST SETUP ..........................................................................70 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100422003-RP1 FCC ID: WOI-089260831578 Date of Issue: April 27, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Champtek lncorporated 5/F, No.2, Alley 2, Shih-Wei Lane, Chung-Cheng Rd., Hsin-Tien City, Taipei 231,Taiwan Equipment Under Test: IG300BT C1/C2 Area image Barcode Scanner Trade Name: Champtek Model: IG300BT Date of Test: December 19, 2009 ~ January 28, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T10…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100422003-RP1 FCC ID: WOI-089260831578 Date of Issue: April 27, 2010 Page 70 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTO Compliance Certification Services Inc. Report No.: T100422003-RP1 FCC ID: WOI-089260831578 Date of Issue: April 27, 2010 Page 71 Rev. 00 RADIATED EMISSION SETUP PHOTOS Compliance Certification Services Inc. Report No.: T100422003-RP1 FCC ID: WOI-089260831578 Date of Issue: April 27, 2010 Page 72 Rev. 00 Powerline Conducted Emissions Setup Photos
