WPEPSASII-03Transceiver base station device

AutoSense™ II Inbound Standalone Installation Manual Cargo Monitoring Solutions 2 Table of Contents Page 3 Page 3 Page 4 Page 4 Equipment AutoSense Standalone Cellular Connectivity System Verification Regulatory Approvals Technical Support Page 5 Page 6 3 Inventory List: (Equipment may vary) •AutoSense Standalone •6ft. Low Voltage Extension Cord •Rubber Reader Antenna •2 Cellular Paddle Antennas •100-240VAC Power Supply Installation Hardware: •Cable Ties •Cable Tie Mounts •Mounting Screws •Cable Clamps •Test Logger Equipment AutoSense Standalone Installation 1.Attach the 2 cellular paddle antennas and the single rubber reader antenna. 2.Mount on wall at least 6 ft. up and in front of dock doors using one of these methods: a.Mounting screws b. Cable ties and cable tie mounts 3.Plug power supply into a non-switched power outlet 4.Take picture of AutoSense Standalone and send it to [email protected] Kit Equipment 4 Cellular Connectivity 1.Angle antennas away from the wall 2.After power is applied, verify the LEDs to right of the ethernet port are lit correctly a. Left LED is a solid GREEN indicating system is operational b. Middle LED is solid GREEN indicating connection to cellular carrier c. Right LED is GREEN or AMBER indicating cellular strength System Verification Stand at the farthest receiving area/dock door from the AutoSense Standalone. With the Test Logger, press and hold the gold power button in the right-hand corner of the board until the LED starts flashing GREEN. LED will flash AMBER when the test logger has been read. Test will verify that the system is working properly. No further action is required. Power Button Green Light Green or Orange Light Red Light - No cell connection 5 PakSense, Inc. Model: PSASII-03; FCC ID WPEPSASII-03; IC: 8031A-PSASII03 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if no t installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This equipment complies with FCC RF Exposure requirements and should be installed and operated with a minimum distance of 20 cm between the radiator and any part of the human body. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est co nforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux c onditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with the ICES RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and any part of the human body. Cet équipement est conforme aux limites d’exposition aux radiations ICES définies pour un environnement non contrôlé . Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et une partie de votre corps. Regulatory Approvals 6 Technical Support Technical Support is available 24 hours a day, 7 days a week. We’re with you every step of the way. Toll Free: +1-877-998-7299 Emerson.com/Cargo [email protected] ASIS.UM.Rev1.0220 Emerson is a trademark of Emerson Electric Co. or one of its affiliated companies. ©20 20 Emerson Electric Co. All rights reserved.

3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 www.ustech-lab.com Request for Confidentiality Date: December 10, 2019 Subject: Confidentiality Request for: FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics PakSense, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Sincerely, By: __________________________ ___Sandi McEnery__- Agent (Signature/Title) (Print name)

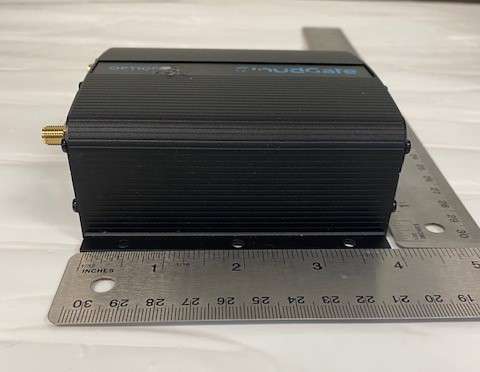

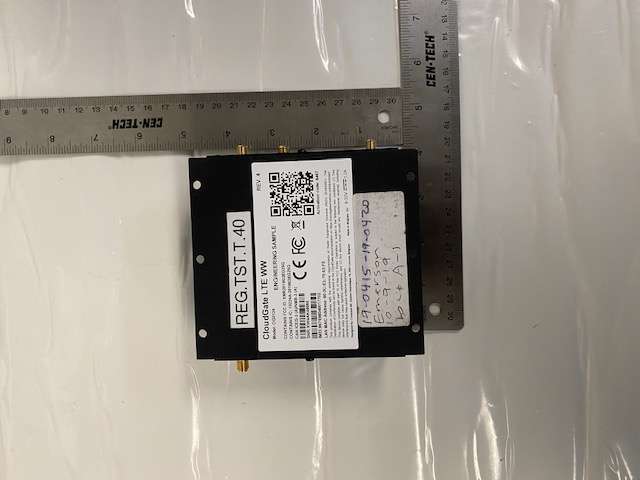

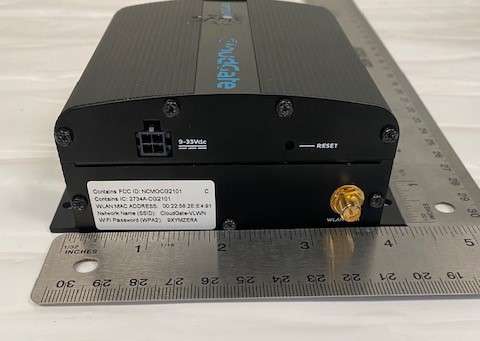

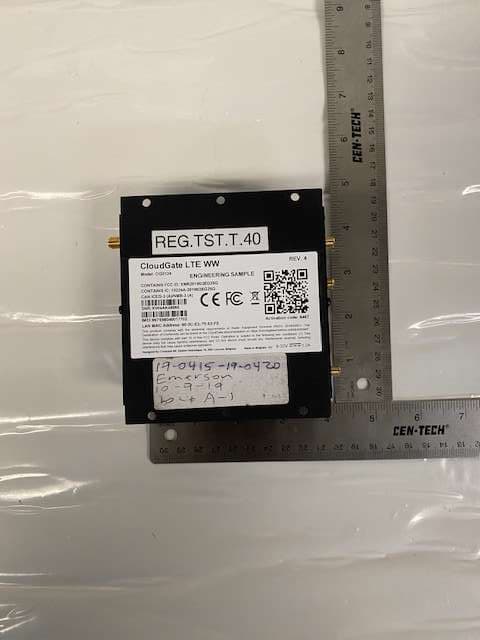

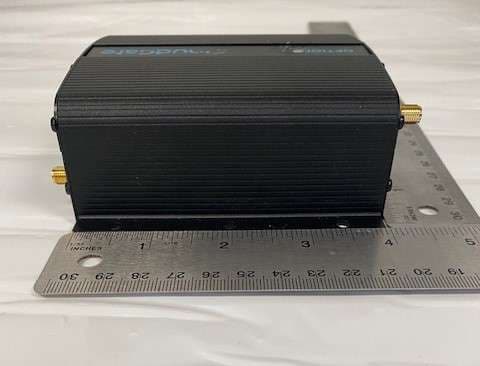

US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 1 of 7 EXTERNAL PHOTOGRAPHS Figure 1. Top of EUT US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 2 of 7 Figure 2. Bottom of EUT US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 3 of 7 Figure 3. Side 1 of EUT US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 4 of 7 Figure 4. Side 2 of EUT US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 5 of 7 Figure 5. Front of EUT Note: 900 MHz radio section outlined in RED. US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 6 of 7 Figure 6. Back of EUT US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 7 of 7 Figure 7. Antenna MFG: Nearson Type: Omni Directional Dipole antenna Gain: 2.0 dBi Connector: Reverse sex SMA connector

US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 1 of 4 LABEL EXIBIT Label 1 – Location, Back of EUT – See Photo Location of Label 1 Contains FCC ID: NCMOCG2012 Contains IC: 2734A-CG2101 WLAN MAC ADDRESS: Network Name (SSID): WiFi Password (WPA2): US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 2 of 4 Label 2 - Location, Bottom of EUT – See Photo Label 3 - Location, Bottom of EUT – See Photo REV. # Contains FCC ID: XMR201903EG25G Contains IC: 10224A-201903EG25G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) the device may not cause harmful interference and (2) the device must accept any interference received, including interference that may cause undesired operation. US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 3 of 4 Location of Labels 2 and 3 REV. # Contains FCC ID: XMR201903EG25G Contains IC: 10224A-201903EG25G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) the device may not cause harmful interference and (2) the device must accept any interference received, including interference that may cause undesired operation. US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 4 of 4

US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 1 of 7 INTERNAL PHOTOGRAPHS Figure 1. Top of Main Circuit Card -Cellular module approved under the following: FCC ID: XMR201903EG25G and IC: 10224A-201903EG25G -Large arrow pointing to GPS radio antenna port US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 2 of 7 Figure 2. Bottom of Main Circuit Card w/ Daughter Cards Exposed -PakSense, Inc. radio board identified above within RED dashed lines. -WiFi radio board identified above within Blue dashed lines. WiFi board is a pre-certified module, bearing FCC ID: NCMOCG2101 and IC: 2734A-CG2101 US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 3 of 7 Figure 3. Main Circuit Card w/ Daughter Cards Removed US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 4 of 7 Figure 4. PSASII-03 Radio Daughter Card (Component Side) Note: The trace antenna is disabled for this application. US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 5 of 7 Figure 5. PSASII-03 Radio Daughter Card (Bottom Side) US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 6 of 7 Figure 6. Top of WiFi Circuit Card US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 7 of 7 Figure 7. Bottom of WiFi Circuit Card

US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 1 of 2 Maximum Permissible Exposure to RF (MPE) CFR 15.247 (i), CFR 1.1310 (e) The maximum exposure level to the public from the RF power of the EUT shall not exceed a power density, S as per the respective limits in Table 1 below, at a distance, d, of 20 cm from the EUT. TABLE 1—LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Therefore, for: MPE for 902 MHz – 928 MHz Limit: (f/1500) mW/cm 2 = 915/1500 = 0.61mW/cm 2 Peak Power (dBm) = 3.0 dBm Peak Power (Watts) = 0.002 W Gain of Transmit Antenna = 2 dB i = 1.58, numeric d = Distance = 20 cm = 0.2 m S = (PG/ 4d 2 ) = EIRP/4A = 0.002*(1.32)/4*π*0.2*0.2 =0.00264/0.5030 = 0.00525 W/m 2 = (0.00525 W/m 2 ) (1m 2 /W) (0.1 mW/cm 2 ) = 0.000525 mW/cm 2 which is << less than S = 0.61mW/cm 2 US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 2 of 2 RSS-102 2.5.2 Exemption Limits for Routine Evaluation – RF Exposure Evaluation RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: • below 20 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1 W (adjusted for tune-up tolerance); • at or above 20 MHz and below 48 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 4.49/ƒ0.5W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 48 MHz and below 300 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 0.6 W (adjusted for tune- up tolerance); • at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10^-2 ƒ^0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 5 W (adjusted for tune-up tolerance). In this case the Emerson radio operates in the 902-928 MHz therefore the limit is equal to: 1.31 * 10 -2* (915)^0.6834= 1.38 W The EIRP for the EUT is equal to 3 dBm + 2 dBi = 5 dBm = 0.0032 W << 1.38 W

Report No.: SA121114C13 1 of 7 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA121114C13 MODEL NO.: CG2101 FCC ID: NCMOMOCG2101 RECEIVED: Nov. 14, 2012 TESTED: Dec. 12, 2012 ~ Jan. 07, 2013 ISSUED: Jan. 11, 2013 APPLICANT: Option nv ADDRESS: Gaston Geenslaan 14, 3001 Leuven, BELGIUM ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. Report No.: SA121114C13 2 of 7 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................ 4 2. RF EXPOSURE .............................................................................................................. 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................ 5 2.2 MPE CALCULATION FORMULA ................................................................................... 5 2.3 CLASSIFICATION .......................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................................. 6 Report No.: SA121114C13 3 of 7 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA121114C13 Original release Jan. 11, 2013 Report No.: SA121114C13 4 of 7 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: CloudGate 802.11abgn Wireless LAN Card MODEL NO.: CG2101 BRAND: Option APPLICANT: Option nv TESTED: Dec. 12, 2012 ~ Jan. 07, 2013 TEST SAMPLE: PRODUCTION UNIT STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: CG2101) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Jan. 11, 2013 Jemma Yang / Specialist APPROVED BY : , DATE :Jan. 11, 2013 Ken Liu / Manager Report No.: SA121114C13 5 of 7 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA121114C13 6 of 7 Report Format Version 5.0.0 2.4 Calculation result of maximum conducted power For CG2101 FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412~2462 22.45 6.01 20 0.1396 1 5180~5240 12.37 6.01 20 0.0137 1 5260~5320 12.43 6.01 20 0.0139 1 5500~5700 11.54 6.01 20 0.0113 1 5745~5825 18.25 6.01 20 0.0531 1 NOTE: Maximum antenna gain to comply with MPE limits is 6.01dBi Report No.: SA121114C13 7 of 7 Report Format Version 5.0.0 For Gobi3000 (FCC ID: J9CGOBI3000) MODE FREQUENCY BAND (MHz) MAXIMUM CONDUCTED POWER (dBm) DISTANCE (cm) POWER DENSITY (mW/cm2) LIMIT (mW/cm2) GPRS 2 UL 824 33.0 20 0.252 0.549 CDMA2000 824 25.0 20 0.158 0.549 UMTS 824 25.0 20 0.158 0.549 GPRS 2 UL 1850 30.0 20 0.111 1.000 CDMA2000 1850 25.00 20 0.141 1.000 UMTS 1850 25.00 20 0.141 1.000 WLAN 2400 29.00 20 0.500 1.000 WLAN 5150 29.00 20 0.500 1.000 WLAN 5250 29.00 20 0.500 1.000 WLAN 5500 29.00 20 0.500 1.000 WLAN 5800 29.00 20 0.500 1.000 WIMAX 2600 29.00 20 0.500 1.000 CONCULSION: Both of the two modules can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density CG2101 module: + Gobi3000 module: WLAN 2.4G + WLAN 2.4G = 0.1396 + 0.500 = 0.6396 WLAN 2.4G + WLAN 5G = 0.1396 + 0.500 = 0.6396 WLAN 2.4G + GPRS 2 UL = 0.1396 + 0.252 = 0.3916 WLAN 2…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HR/2019/1001602 Page: 1 of 7 Authorized Signature: Derek Yang Wireless Laboratory Manager Cover PRF Exposure Evaluation Report Application No.: HR/2019/10016 Applicant: Quectel Wireless Solutions Co., Ltd. Address of Applicant: 7th Floor, Hongye Building, No.1801 Hongmei Road, Xuhui District, Shanghai 200233, China Manufacturer: Quectel Wireless Solutions Co., Ltd. Address of Manufacturer: 7th Floor, Hongye Building, No.1801 Hongmei Road, Xuhui District, Shanghai 200233, China Factory: Quectel Wireless Solutions Co., Ltd. Address of Factory: 7th Floor, Hongye Building, No.1801 Hongmei Road, Xuhui District, Shanghai 200233, China EUT Description: LTE Module Model No.: EG25-G, EG25-G MINIPCIE Trade Mark: Quectel FCC ID: XMR201903EG25G Standards: 47 CFR Part 2 47 CFR Part 22 subpart H 47 CFR Part 24 subpart E 47 CFR Part 27 subpart C Date of Receipt: 2019/1/30 Date of Test: 2019/1/31 to 2019/2/28 Date of Issue: 2019/2/28 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HR/2019/1001602 Page: 2 of 7 1 Version Revision Record Version Chapter Date Modifier Remark 00 2019/2/28 Original Authorized for issue by: 2019/2/28 Mike Hu /Project Engineer 2019/2/28 David Chen /Reviewer Reamark: The difference between EG25-G and EG25-G MIMIPCIE: EG25-G and EG25-G MINIPCIE both are LTE modules(Category: Cat.4). They have the same frequency and use the same chipset and share the same software & hardware design. EG25-G MINIPCIE makes up of EG25-G module and PCIe carrier board.No any other internal changes in EG25-G module. We hereby state that two models are identical in interior structure and components, and just connector interface is different for the marketing requirement. According to the difference above, all the tests were performed on EG25-G, and the data of EG25-G MINIPCIE can refer to EG25-G. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HR/2019/1001602 Page: 3 of 7 Contents 1 VERSION ................................................................................................................................................................. 2 2 GENERAL INFORMATION .................................................................................................................................. 4 2.1 CLIENT INFORMATION ..................................................................................................................................... 4 2.2 TEST LOCATION .............................................................................................................................................. 4 2.3 TEST FACILITY ................................................................................................................................................. 4 2.4 GENERAL DESCRIPTION OF EUT .................................................................................................................... 5 2.5 TEST MODE ..................................................................................................................................................... 5 3 RF EXPOSURE EVALUATION ........................................................................................................................... 6 3.1 RF EXPOSURE COMPLIANCE REQUIREMENT ................................................................................................. 6 3.1.1 Limits .......................................................................................................................................................... 6 3.1.2 Test Procedure ......................................................................................................................................... 6 3.1.3 EUT RF Exposure Evaluation ................................................................................................................ 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HR/2019/1001602 Page: 4 of 7 2 General Information 2.1 Client Information Applicant: Quectel Wireless Solutions Co., Ltd. Address of Applicant: 7th Floor, Hongye Building, No.1801 Hongmei Road, Xuhui District, Shanghai 200233, China Manufacturer: Quectel Wireless Solutions Co., Ltd. Address of Manufacturer: 7th Floor, Hongye Building, No.1801 Hongmei Road, Xuhui District, Shanghai 200233, China Factory: Quectel Wireless Solutions Co., Ltd. Address of Factory: 7th Floor, Hongye Building, No.1801 Hongmei Road, Xuhui District, Shanghai 200233, China 2.2 Test Location Company: SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Address: No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China Post code: 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 E-mail: [email protected] 2.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L2929) CNAS has accredited SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch EMC Lab to ISO/IEC 17025:2005 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with Re…

Text truncated - open the document above for the full version.

Page 1 of 48 Application For Part 2, Subpart J, Paragraph 2.907 Equipment Authorization of Certification for an Intentional Radiator per Part 15, Subpart C, paragraphs 15.207, 15.209 and 15.247 And Innovation, Science, and Economic Development Canada Certification Per IC RSS-Gen General Requirements for Radio Apparatus And RSS-247 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and License-Exempt Local Area Network (LE-LAN) Devices For the PakSense, Inc. AutoSense II Model Number: PSASII-03 FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 UST Project: 19-0415 Issue Date: December 10, 2019 Total Pages:48 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com Page 2 of 48 I certify that I am authorized to sign for the Test Agency and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: US TECH (Agent Responsible For Test): By: Alan Ghasiani Name: Title: Compliance Engineer – President Date: December 10, 2019 This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of US Tech. The results contained in this report are subject to the adequacy and representative character of the sample provided. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the Federal Government. 3505 Francis Circle Alpharetta, GA 30004 PH : 770-740-0717 Fax : 770-740-1508 www.ustech-lab.com US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 3 of 48 MEASUREMENT TECHNICAL REPORT COMPANY NAME: PakSense, Inc. MODEL: PSASII-03 FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 DATE: December 10, 2019 This report concerns (check one): Original grant X Class II change Equipment type: 900 MHz Transmitter Module Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes_____ No X If yes, defer until:______N/A___________ date agrees to notify the Commission by N/A date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: US Tech 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: WPEPSASII-03 IC: 8031A-PSASII03 Test Report Number: 19-0415 Issue Date: December 10, 2019 Customer: PakSense, Inc. Model: PSASII-03 Page 4 of 48 Table of Contents ParagraphTitle Page 1 General Information ......................................................................................... 7 1.1 Purpose of this Report .................................................................................. 7 1.2 Characterization of Test Sample ................................................................... 7 1.3 Product Description ...................................................................................... 7 1.4 Configuration of Tested System .................................................................... 8 1.5 Test Facility ................................................................................................... 8 1.6 Related Submittal(s)/Grant(s) ....................................................................... 8 2 Tests and Measurements .......................................................................…

Text truncated - open the document above for the full version.
