WQCASEI1ASEDrive DI

PRODUCT DATASHEET Specifications are subject to change without notice. All trademarks and trade names are property of their respective owners. Copyright © 2012 Athena Smartcard Solutions Inc ASEDrive IIIe NFC DI Smart Card Reader Desktop Contact and Contactless Smart Card Reader Highlights ASEDrive DI NFC is Athena’s high perform- ance and cost effective Dual Interface reader combining Athena’s proven design and experience in both contact smart card readers and contactless s m a r t c a r d r e a d e r . The ASEDrive DI NFC reads virtually any con- tact smart card and 13.56 Mhz contactless cards The Athena ASEDrive DI NFC is designed for easy operation by the end user looking for a Dual Interface desktop smart card reader and is opti- mized for a wide variety of Smart card applica- tions where high speed is essential such as Na- tional ID CARDS and PKI operations. The Contactless interface supports fast contactless transmissions up to 848 Kbps in ISO 14443 A/B mode , with the Contact interface, based on Athena’s ASEDrive IIIe USB V3C Smart Card Reader that supports multiple smart card protocols under the PC/SC API, with a CCID Interface, utilizing the USB Full speed connection to increase reliability, communication speed and ease of operation. The ASEDrive DI NFC is a CCID based smart card reader making it a true Plug and Play device, making ideal for mass deployments where Web SSL, Digital Sig- nature, Windows logon, VPN, etc services are required. Contactless Interface  read/write mode supporting ISO/IEC 14443A/B MIFARE • read/write mode supporting MIFARE • read/write mode supporting JIS X 6319-4 (FeliCa1) • passive initiator mode according to ISO/IEC 18092 • read/write mode supporting ISO/IEC 15693 Contact Interface  Interface: USB 2.0/CCID  Acceptor: Friction  Insert/remove cycles: 100,000  Power source: USB  Cards supported: ISO 7816 T=0, T=1, CAC and EMV Technical Specification Asia 1-14-16, Motoyokoyama-cho Tokyo, 192-0063 Tel: +81 426 607 555 Fax: +81 426 607 106 North America 20380 Town Center Lane Suite 240 Cupertino, CA 95014 Tel: +1 866 359 2273 Fax: +1 408 608 1818 EMEA & International Alba Centre Livingston. EH54 7EG. UK. Tel: +44 131 208 1202 Fax: +44 131 777 8150 LATAM & Iberia CL. Padre Jesús Ordoñez 5 1-B, 28002, Madrid, Spain Tel: +34 915 644 651 Fax: +34 915 644 651 Poland & Central Europe ul. Kasprowicza 8a/4 31-523, Kraków, Poland Tel: +48 602 315 641 Fax: +48 123 414322 www. a th e n a-s c s. c om [email protected] General Dimensions 106.5mm x 70.03mm x 10mm Power Supply USB port, 5VDC 150mA Operating Temperatures -20ºC - +70ºC Operating Humidity 5-95% rH Operating Altitude 0—10K feet (Storage 0—50K feet) Operating System Support (32bit/64 bit) Windows XP, Vista, 7, 8, Server 2003/R2, 2008/R2,2012, Linux, Mac OS X Safety & Environmental Standard FCC Class B, VCCI, CE, ROHS, WEEE Warranty 1 Year Host Interface Host Interface CCID • USB 2.0 Full Speed • USB-IF Complaint Transmission Speed 12 Mbps (USB 2.0 Full Speed) Contact Interface Smart Card Support ISO 7816 T=0, T=1 Card-Reader Communication Up to 500Kbps Smart Card Acceptor ISO 8 contacts (friction), up to 200,000 insertions Card operating voltage 5V , 3V, 1.8V (ISO7816 Class A,B & C) Smart Card Reader Compliance PC/SC Compliant Card-Reader Communication Up to 500Kbps Smart Card Acceptor ISO 8 contacts (friction), up to 200,000 insertions Card operating voltage 5V , 3V, 1.8V (ISO7816 Class A,B & C) Smart Card Reader Compliance PC/SC Compliant Contactless Interface Protocols ISO 14443 A/B, Mifare 1k/4, ISO 15693, ISO 18092, FeliCa PC/SC Driver Support Windows XP, Vista, 7, 8, Server 2003/R2, 2008/R2,2012, Linux, Mac OS X (32bit/64 bit) Compliance and Certification CE, FCC, VCCi - in process Safety and Environment RoHS, FEEE—in process IMPORTANT FCC Part 15 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the in- structions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour- aged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICA- TIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

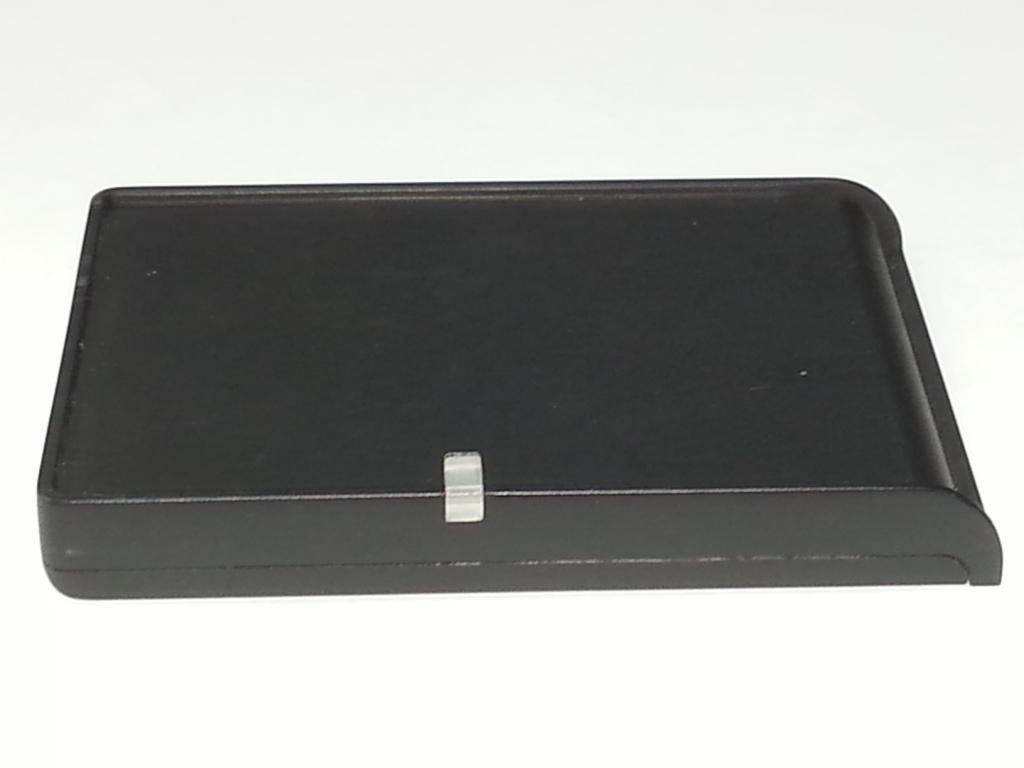

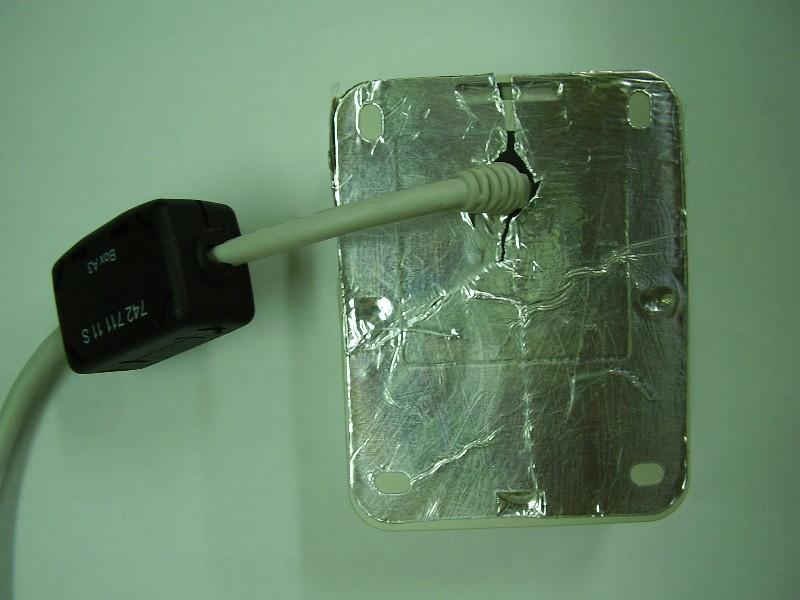

External photos ASEDrive DI Photo 1. EUT’s with cradle front view. Photo 2. EUT’s with cradle rear view. Photo 3. EUT’s rear view. Photo 4. EUT’s front view. Photo 5. EUT’s side view. Photo 6. EUT’s side view.

ID Label and Location Photo 1. FCC ID Label ASEDrive DI. Photo 2. Label Location ASEDrive DI.

Internal photos

Test Report No. 9312313555 Applicant: Athena Smartcard Ltd. Equipment Under Test: ASEDrive DI Model: ASE053 FCC ID: WQCASEDI1 From The Standards Institution Of Israel Industry Division Electronics & Telematics Laboratory EMC Branch ACLASS Accreditation Services Certificate Number: AT-1359 Test Report No.: 9312313555 Page 2 of 23 pages Title: ASEDrive DI Model: ASE053 FCC ID: WQCASEDI1 Applicant: Athena Smartcard Ltd. Address: 10 Aba Even St., Herzliya, Israel. Sample for test selected by: The customer The date of test: 20 November, 25 December 2013 and 21 January 2014 Description of Equipment Under Test (EUT): ASEDrive DI Model: ASE053 Serial number: NA Software version of radio unit 8.05 Hardware version of radio unit ASE053 rev.1.5 Reference Documents:  CFR 47 FCC: Rules and Regulations; Part 15. “Radio frequency devices”; Subpart B: “Unintentional radiators” (2009) Subpart C : “Intentional radiators” (2009), Section 15.209. “Radiated emission limits, general requirements”. “Radiated Emission Limits, Additional Provisions”; Section 15.225. "Operation within the band 13.110 – 14.010 MHz”. This Test Report contains 23 pages and may be used only in full. This Test Report applies only to the specimen tested and may not be applied to other specimens of the same product. Test Report No.: 9312313555 Page 3 of 23 pages Title: ASEDrive DI Model: ASE053 FCC ID: WQCASEDI1 1. Test summary Parameter FCC Part 15 Reference paragraph Verdict Test of field strength emission from intentional radiators Subpart C Section 15.225. Comply Radiated emission test. Subpart B Section 15.109 Subpart C Section 15.209 Comply Conducted emissions test Subpart C Section 15.207 Comply Frequency stability test Subpart C Section 15.225 Comply Electronics & Telematics Laboratory January 2014 Name: Eng. Yuri Rozenberg Name: Michael Feldman Position: Head of EMC Branch Position: Test Technician Measurement uncertainty. Were relevant, the following measurement uncertainty level have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expended uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test description Expanded uncertainty Radiated emissions in the open field test site at 3 m measuring distance: 30 MHz – 1.0 GHz 1.0 GHz – 18 GHz 2 Uc (E) =  4.32 dB 2 Uc (E) =  4.47 dB Test Report No.: 9312313555 Page 4 of 23 pages Title: ASEDrive DI Model: ASE053 FCC ID: WQCASEDI1 Table of Contents 1. Test summary 3 2. EUT Description and operation 5 2.1. General description: 5 2.2. Potential emission sources: 8 2.3. EUT setup and operation: 8 3. Measurements, examinations and derived results 8 3.1. Location of the Test Site: 8 3.2. Test condition: 8 3.3. Initial visual check and functional test: 8 3.4. Radiated emission test. 9 3.5. Test of field strength emission from intentional radiator. 10 3.6. AC main conducted emissions test 15 3.7. Test of radiated emissions from unintentional radiator 18 3.8. Frequency stability test according to section 15.225 19 4. Appendix 1. Test equipment used 20 5. Appendix 2: Antenna Factor and Cable Loss 21 Test Report No.: 9312313555 Page 5 of 23 pages Title: ASEDrive DI Model: ASE053 FCC ID: WQCASEDI1 2. EUT Description and operation 2.1. General description: * Note: the customer supplied all information in clause below. The EUT is Access control unit based on RFID reader communicates with RFID tag at 13.56 MHz frequency. It based on the RFID chip from NXP (CLRC663). Reader is powered from PC USB port. ASEDrive DI intended to be used with ISO/IEC 14443 Type B card. Transmitting frequency 13.56 MHz Type of modulation: ASK Antenna type: Integrated on PCB The EUT’s block diagrams are shown in Figures 1. The EUT external views are presented in Photos #1 and #2. Figure 1. EUT block diagram. Test Report No.: 9312313555 Page 6 of 23 pages Title: ASEDrive DI Model: ASE053 FCC ID: WQCASEDI1 Photo 1. EUT’s front view. Photo 2. EUT’s rear view. Test Report No.: 9312313555 Page 7 of 23 pages Title: ASEDrive DI Model: ASE053 FCC ID: WQCASEDI1 Photo 3. RE test setup on OATS. Photo 4. RE test setup on OATS. Test Report No.: 9312313555 Page 8 of 23 pages Title: ASEDrive DI Model: ASE053 FCC ID: WQCASEDI1 2.2. Potential emission sources: The potential emission sources are detailed in Table 1. Table 1. Potential emission sources Frequency Location 8.0 MHz Main CPU 27.12 MHz crystal RFID interface clock 2.3. EUT setup and operation: Measurements of transmitter were performed in continue transmition mode. 3. Measurements, examinations and derived results 3.1. Location of the Test Site: Preliminary radiated test was conducted at the EMC laboratory of the Standards Institution of Israel in Tel-Aviv. The final radiated emission test was conducted in an Open Area Test Site located at Kibbutz Native Halamed Hai in Emek HaEla, Israel. 3.2. Test condition: Temperature: 22C. Humidity: 46 %. Atmospheric pressure: 1010 mbar. 3.3. Changes of EUT during the test: During the RE tests ferrite mfr. "Wurth Electronik" p/n 742 711 11S was added on USB cable at distance 5cm from transmitter plastic cage. Test Report No.: 9312313555 Page 9 of 23 pages Title: ASEDrive DI Model: ASE053 FCC ID: WQCASEDI1 3.4. Radiated emission test. 3.4.1. General: Per FCC Part 15 subpart C Section 15.225, 15.209 and subpart B Section 15.109.  Initial scans were made using a peak detector but still using the appropriate ANSI IF bandwidth.  A tolerance limit was set 10 dB below the specification limit. Levels above the tolerance limit were retested using the Peak and Q. Peak detector. 3.4.2. Preliminary radiated emission tests: Preliminary investigation measurements were performed up to tenth harmonic of fundamental in a semi-anechoic chamber at distance 3 meter. The EUT was setup in its typical configuration and operated in its various modes. For each mode of operation the frequency spectrum was monitored. EUT configuration, cable configuration and mode…

Text truncated - open the document above for the full version.

Test set up photos RE test setup on OATS. RE test setup on OATS.
