WRMRFH5RFID read/write device with integrated antenna

O P E R A T I N G I N S T R U C T I O N S RFH5xx RFID read/write device (HF) Described product RFH505-1004301 RFH510-1004301 RFH515-1004301 Manufacturer SICK AG Erwin-Sick-Str. 1 79183 Waldkirch Germany Legal information This work is protected by copyright. Any rights derived from the copyright shall be reserved for SICK AG. Reproduction of this document or parts of this document is only permissible within the limits of the legal determination of Copyright Law. Any modi‐ fication, abridgment or translation of this document is prohibited without the express written permission of SICK AG. The trademarks stated in this document are the property of their respective owner. © SICK AG. All rights reserved. Original document This document is an original document of SICK AG. Conformities Due to the country-specific approvals for the device, the respective conformance information is type-dependent. For the specific device that you have, see the online type-specific data sheet at: • www.sick.com/RFH5xx The type designation of your device is either laser-engraved or printed on the device above the electrical connection. 2 OPERATING INSTRUCTIONS | RFH5xx8025309//2020-12-08 | SICK Subject to change without notice Contents 1About this document........................................................................5 1.1Information on the operating instructions..............................................5 1.2Scope.........................................................................................................5 1.3Explanation of symbols............................................................................6 1.4Further information...................................................................................6 1.5SICK service..............................................................................................7 2Safety information............................................................................8 2.1Intended use.............................................................................................8 2.2Improper use.............................................................................................9 2.3Limitation of liability.................................................................................9 2.4Modifications and conversions................................................................9 2.5Requirements for skilled persons and operating personnel..................10 2.6Operational safety and particular hazards..............................................10 2.7Repairs......................................................................................................11 3Product description...........................................................................12 3.1Product ID..................................................................................................12 3.2Product characteristics............................................................................15 4Transport and storage.......................................................................23 4.1Transport...................................................................................................23 4.2Unpacking..................................................................................................23 4.3Transport inspection.................................................................................23 4.4Storage......................................................................................................23 5Mounting.............................................................................................25 5.1Overview of mounting procedure.............................................................25 5.2Preparation for mounting.........................................................................25 5.3Mounting location.....................................................................................27 5.4Mounting the device.................................................................................27 6Electrical installation........................................................................31 6.1Safety.........................................................................................................31 6.2Wiring instructions....................................................................................32 6.3Pin assignments of electrical connections.............................................32 6.4Prerequisites.............................................................................................33 6.5Behavior of the device when switched on...............................................33 7Commissioning..................................................................................34 7.1Overview of the commissioning steps.....................................................34 8Operation............................................................................................36 8.1Operating options.....................................................................................36 8.2Optical status indicators..........................................................................36 CONTENTS 8025309//2020-12-08 | SICKOPERATING INSTRUCTIONS | RFH5xx 3 Subject to change without notice 8.3Operation via IO-Link................................................................................38 9Maintenance......................................................................................47 9.1Maintenance plan.....................................................................................47 9.2Cleaning.....................................................................................................47 10Troubleshooting.................................................................................48 10.1Overview of Potential Errors and Faults..................................................48 10.2SICK service................................................................................…

Text truncated - open the document above for the full version.

DistanceRFH505-1004301RFH510-1004301 B36 mm60 mm C18 mm30 mm D120 mm180 mm E10 mm10 mm Tightening torque of fixing nuts 25 nm70 nm RFH515 (C44) Figure 19: RFH515: distances required to prevent mutual interference with parallel mounting of several devices as well as from the environment DistanceRFH515-1004301 A40 mm B80 mm C40 mm D240 mm E10 mm 1) 1) The required overrun of the device with non-flush installation is greater than the distance from the visible breaking edge at the top of the device to the outer device contour, see "Mounting the device", page 27. 12.4Ambient data Table 13: Technical data for RFH5xx: ambient data RFH505-1004301RFH510-1004301RFH515-1004301 Electromagnetic com‐ patibility (EMC) EN 301489-3 V1.6.1 (2013) Vibration resistanceIEC 60068-2-6:2007-12 (10 Hz to 55 Hz / 1 min / 5 min) Shock resistanceIEC 60068-2-27:2008-02 (30 gn / 11 ms/half-sine) Ambient temperature • Operation: –25 °C ... +80 °C • Storage 1) : –25 °C ... +80 °C Permissible relative humidity 0% ... 95%, non-condensing 1) Storage conditions see "Storage", page 23. TECHNICAL DATA 12 8025309//2020-12-08 | SICKOPERATING INSTRUCTIONS | RFH5xx 55 Subject to change without notice 12.5Working range diagrams RFH505, RFH510, RFH515: see "Working range of the antenna", page 18. 12.6Dimensional drawing RFH505, RFH510, RFH515: dimensions see "Device view", page 15. 12 TECHNICAL DATA 56 OPERATING INSTRUCTIONS | RFH5xx8025309//2020-12-08 | SICK Subject to change without notice 13Accessories NOTE Accessories and where applicable mounting information can be found online at: • www.sick.com/RFH5xx ACCESSORIES 13 8025309//2020-12-08 | SICKOPERATING INSTRUCTIONS | RFH5xx 57 Subject to change without notice 14Annex 14.1EU declaration of conformity/Certificates The EU declaration of conformity and other certificates can be downloaded from the Internet at: • www.sick.com/RFH5xx 14.2Dimensional drawings (electronic) Current dimensional drawings in various electronic formats can be downloaded online: • www.sick.com/RFH5xx 14.3Abbreviations used General CECommunauté Européenne. European Community CoLa-ACommand Language ASCII (SICK-specific protocol) ES1Electrical Energy Source Class 1 (Class 1 electrical energy source) ESDElectro-Static-Discharge. Electrostatic discharge EMCElectromagnetic Compatibility FCCFederal Communications Commission I out Output current LEDLight Emitting Diode. Light-emitting diode LPSLimited Power Supply MACMedium Access Control MTBFMean Time Between Failures MTTFMean Time To Failure MTTRMean Time To Repair OOutput PDFPortable Document Format RFHRadio Frequency High frequency RFIDRadio Frequency Identification RSSIReceived Signal Strength Indication SOPAS ETSICK Open Portal for Application and Systems Engeneering Tool. SICK soft‐ ware for computer (Windows) for device configuration. SDDSOPAS Device Description (Device description file, driver for SICK SOPAS ET software) PLCProgrammable Logic Controller. TIDTag Identifier (Transponder Identification Number. Unique, unchangeable number from the IC manufacturer. UIDUnique Identification code V out Output voltage V S Supply voltage 14 ANNEX 58 OPERATING INSTRUCTIONS | RFH5xx8025309//2020-12-08 | SICK Subject to change without notice IO-Link COM 1 – 3SDCI communication mode (data transmission rate). COM 1 (4.8 kBit/s), COM 2 (38.4 kBit/s), COM 3 (230.4 kBit/s) IODDIO Device Description (device description device of an IO-Link device) ISDUIndexed Service Data Unit (service data object in IO-Link) SDCISingle-drop digital interface (official specification of IO-Link technology) ANNEX 14 8025309//2020-12-08 | SICKOPERATING INSTRUCTIONS | RFH5xx 59 Subject to change without notice Detailed addresse s and further locations at www.sick.c om Australia Phone +61 (3) 9457 0600 1800 33 48 02 – tollfree E-Mail [email protected] Austria Phone +43 (0) 2236 62288-0 E-Mail [email protected] t Belgium/Lux embourg Phone +32 (0) 2 466 55 66 E-Mail [email protected] Brazil Phone +55 11 3215-4900 E-Mail [email protected] Canada Phone +1 905.771.1444 E-Mail cs.c [email protected] Cz ec h Republic Phone +420 234 719 500 E-Mail [email protected] Chile Phone +56 (2) 2274 7430 E-Mail [email protected] China Phone +86 20 2882 3600 E-Mail info.c [email protected] Denmark Phone +45 45 82 64 00 E-Mail [email protected] Finland Phone +358-9-25 15 800 E-Mail [email protected] i France Phone +33 1 64 62 35 00 E-Mail [email protected] Germany Phone +49 (0) 2 11 53 010 E-Mail [email protected] Gr eece Phone +30 210 6825100 E-Mail [email protected] Hong Kong Phone +852 2153 6300 E-Mail [email protected] Hungary Phone +36 1 371 2680 E-Mail ertekesit [email protected] India Phone +91-22-6119 8900 E-Mail [email protected] Israel Phone +972 97110 11 E-Mail [email protected] Italy Phone +39 02 27 43 41 E-Mail [email protected] Japan Phone +81 3 5309 2112 E-Mail [email protected] Malaysia Phone +603-8080 7425 E-Mail [email protected] Mexico Phone +52 (472) 748 9451 E-Mail [email protected] Netherlands Phone +31 (0) 30 229 25 44 E-Mail [email protected] New Zealand Phone +64 9 415 0459 0800 222 278 – tollfree E-Mail [email protected] z Norway Phone +47 67 81 50 00 E-Mail [email protected] Poland Phone +48 22 539 41 00 E-Mail [email protected] Romania Phone +40 356-17 11 20 E-Mail [email protected] o Russia Phone +7 495 283 09 90 E-Mail [email protected] u Singapore Phone +65 6744 3732 E-Mail sales.g [email protected] Slovakia Phone +421 482 901 201 E-Mail [email protected] k Slovenia Phone +386 591 78849 E-Mail [email protected] South Afric a Phone +27 10 060 0550 E-Mail [email protected] South Kor ea Phone +82 2 786 6321/4 E-Mail [email protected] Spain Phone +34 93 480 31 00 E-Mail [email protected] s Sweden Phone +46 10 110 10 00 E-Mail [email protected] Swit zer land Phone +41 41 619 29 39 E-Mail [email protected] h Taiwan Phone +886-2-2375-6288 E-Mail [email protected] Thailand Phone +66 2 645 0009 E-Mail [email protected] Tur key Phone +90 (216) 528 50 00 E-Mail [email protected] United Arab Emirates Phone +971 (0) 4 88 65 878 E-Mail [email protected] United Kingdom Phone +44 (0)17278 …

Text truncated - open the document above for the full version.

Tech‐ nical Infor‐ ma tio n T E C H N I C A L I N F O R M A T I O N Regulatory Compliance Information The individual device types may only be operated in the countries/regions for which they have been approved, see the following information. 1 Australia [en]The RFH5xx RFID read/write device is used for the automatic, stationary identific ation of wireless-based ISO-/IEC-15693 compatible RFID data cards and their management. Observe the operating instructions! Approved device types RFH505-1004301 (Par t no . 6072840) RFH510-1004301 (Part no. 6072841) RFH515-1004301 (Part no. 6072842) Further device data: see Dev ice types, page 4 The device must have a minimum distance of 20 cm between the source of radia t ion and your body in order to limit the exposure of the human body to electromagnetic radiation. 2 Canada [en]The RFH5xx RFID read/write device is used for the automatic, stationary identific ation of wireless-based ISO-/IEC-15693 compatible RFID data cards and their management. Observe the operating instructions! Approved device types RFH505-1004301 (Par t no . 6072840) RFH510-1004301 (Part no. 6072841) RFH515-1004301 (Part no. 6072842) Further device data: see Dev ice types, page 4 This Class A digital apparatus complies with Canadian ICES-003. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innova‐ tion, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. This device complies with the limit values defined by IC for radio radiation in an uncontrolled en vironment. [fr]Les appareils de lecture/écriture RFID RFH5xx sont destinés à l’identification automat ique et fixe de supports de données RFID radio compatibles ISO-/ IEC-15693 et à leur gestion. Respecter la notice d'instructions ! Type d’appareil homologué RFH505-1004301 (Réf . 6072840) R FH510-1004301 (Réf. 6072841) RFH515-1004301 (Réf. 6072842) Autres données d’appareil : voir D e vice types, page 4 Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada . L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromet‐ tre le fonctionnement. Cet appareil est conforme aux valeurs limites définies par la CI pour le ra y onnement radioélectrique dans un environnement non contrôlé. 3 China [zh]无线射频识别读写器 RFH5xx 用于对基于无线电的 ISO-/IEC-15693 兼容 的无线射频识别数据卡，进行自动、固定式识别，并进行管理。请遵守操 作指南！ 许用的设备型号 RFH505-1004301 (订货号 6072840) RFH510-1004301 (订货号 6072841) RFH515-1004301 (订货号 6072842) 其他设备数据: 参见 Device types, 第 4页 根据 [2005] 第 423 号微功率（短距离）无线电设备技术要求，本设备为 微功率短距离设备（C 类），因此无需 SRRC 型式许可。 不得擅自更改发射频率、加大发射功率（包括额外加装射频功率放大 器），不得擅自外接天线或改用其它发射天线 使用时不得对各种合法的无 线电通信业务产生有害干扰；一旦发现有干扰现象时，应立即停止使用， 并采取措施消除干扰后方可继续使用 使用微功率无线电设备，必须忍受各 种无线电业务的干扰或工业、科学及医疗应用设备的辐射干扰 不得在飞机 和机场附近使用。 该设备的位置必须确保辐射源与人员身体之间保持 20 cm 的最小距离， 以限制人体暴露于电磁辐射的程度。 4 European Union All member states of the European Union, EEA-EFTA states (Liechtenstein, Ice‐ land , Norway), Switzerland, Turkey [en]The RFH5xx RFID read/write device is used for the automatic, stationary identification of wireless-based ISO-/IEC-15693 compatible RFID data cards and their management. Observe the operating instructions! Approved device types RFH505-1004301 (Part no. 6072840) RFH510-1004301 (Part no. 6072841) RFH515-1004301 (Part no. 6072842) Further device data: see Dev ice types, page 4 Hereby, SICK AG declares that the radio equipment type RFH505-1004301, RFH510-1004301 and RFH515-1004301 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.sick.com/RFH5xx When operating the device, the human exposure regulations in accordance wit h EN 50364 mus t be observed. The device must have a minimum distance of 20 cm between the source of radiation and your body in order to limit the exposure of the human body to electromagnetic radiation. [de]Die RFID Schreib-/Lesegeräte RFH5xx dienen zur automatischen, stationären Ident if ik ation von funkbasierten ISO-/IEC-15693-kompatiblen RFID-Datenträ‐ gern und zu deren Management. Betriebsanleitung beachten! Zugelassener Gerätetyp RFH505-1004301 ( Ar t .-Nr. 6072840) RFH510-1004301 (Art.-Nr. 6072841) RFH515-1004301 (Art.-Nr. 6072842) Weitere Gerätedaten: siehe De vice types, Seite 4 Hiermit erklärt die SICK AG, dass der Funkanlagentyp RFH505-1004301, RFH510-1004301 undRFH515-1004301 der Richtlinie 2014/53/EU ent‐ spricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internet-Adresse verfügbar: www.sick.com/RFH5xx Beim Betrieb des Gerätes müssen die Human-Exposure-Vorschriften nach EN 50364 beacht et werden. Das Gerät muss einen Mindestabstand von 20 cm zwischen der Strahlungs‐ quelle und Ihrem Körper haben, um die Exposition durch elektromagnetische Strahlung zum menschlichen Körper zu begrenzen. [bg]RFH5xx RFID устройствата за четене/запис се използват за автоматична, стационарна идентификация на радио-базирани ISO-/IEC-15693 съвме‐ стими носители на RFID данни и за тяхното управление. Вижте за справка инструкциите за експлоатация! Одобрен тип устройство RFH505-1004301 (Кат.No 6072840) RFH510-1004301 (Кат.No 6072841) RFH515-1004301 (Кат.No 6072842) Допълнителни данни за устройството: виж Dev ice types, страница 4 С настоящото SICK AG декларира, че радиосистемата тип RFH505-1004301, RFH510-1004301 и RFH515-1004301 отговаря на Директива 2014/53/ЕС. Пълният текст на декларацията за съответствие на ЕС е достъпен на следния интернет адре…

Text truncated - open the document above for the full version.

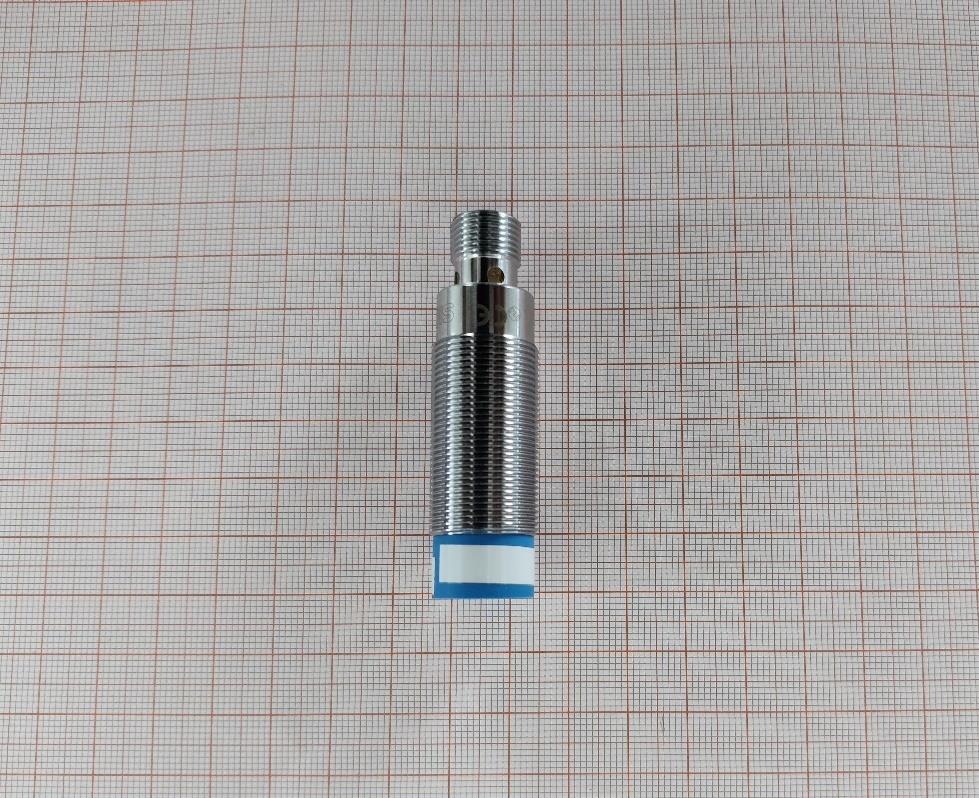

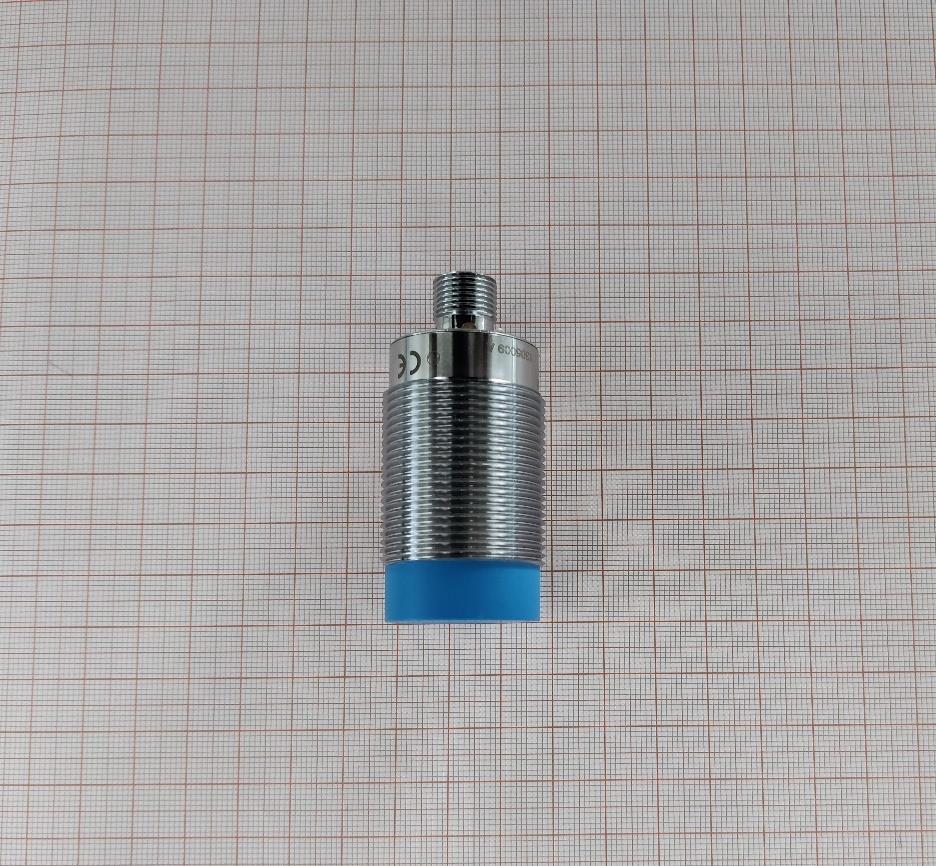

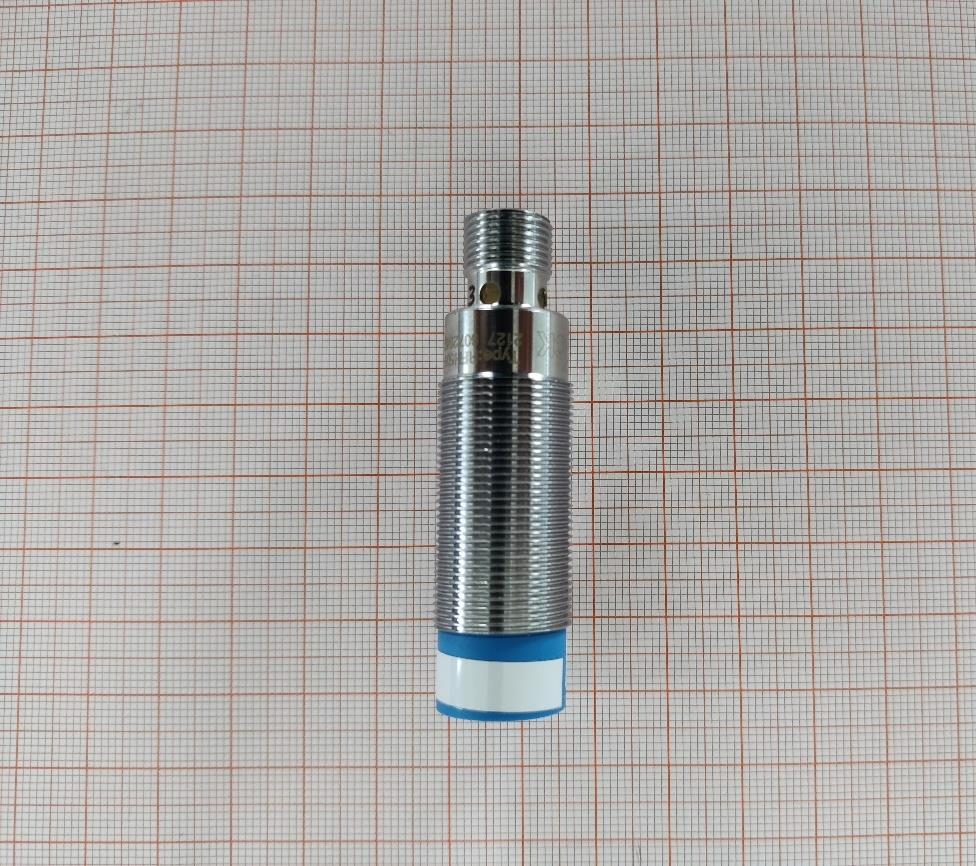

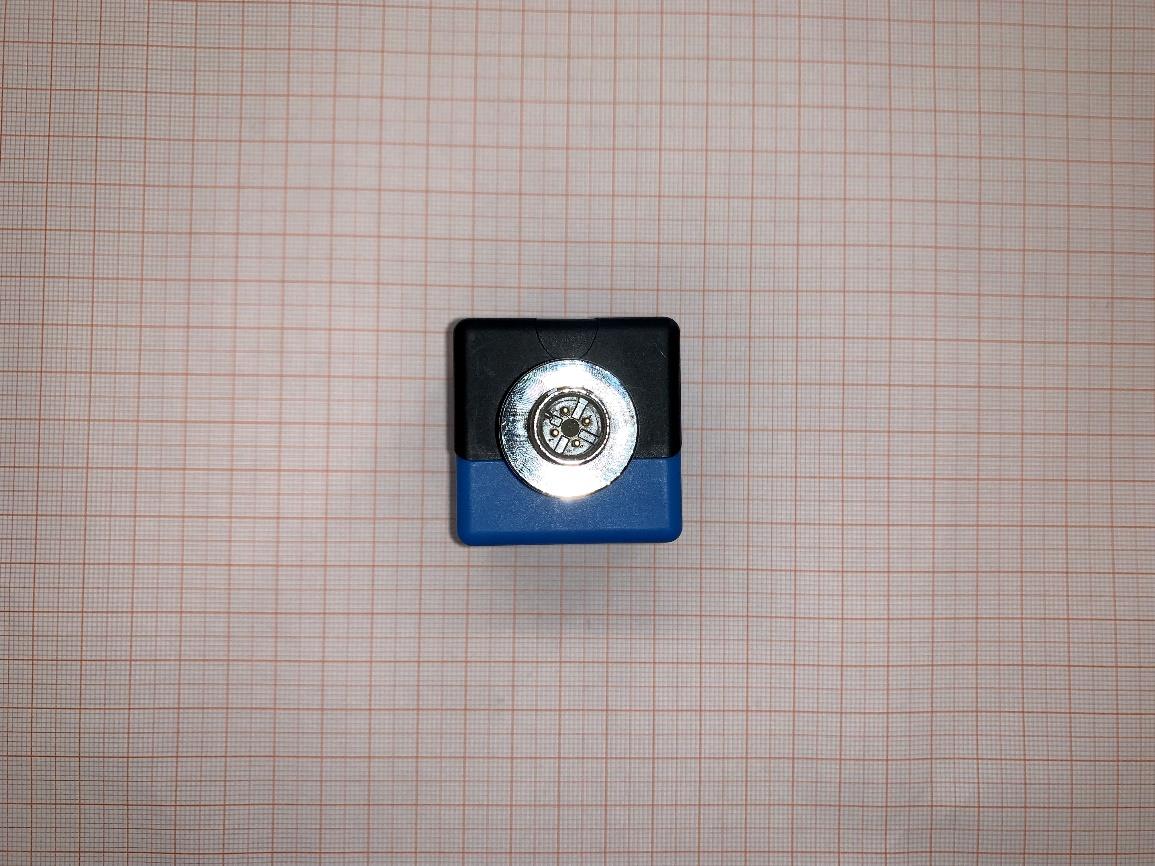

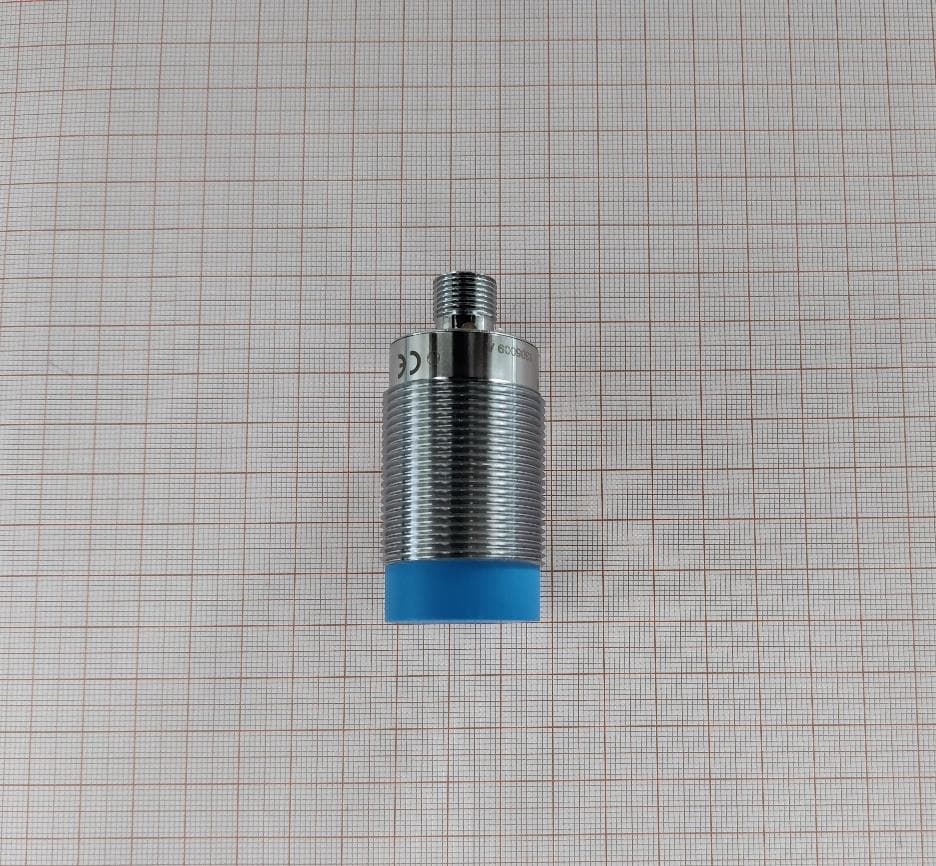

TR no.: 21014975-19634-1 2022-02-23 30 / 33 IBL-Lab GmbH Annex 1 EUT Photographs, external Photo No. 1: Photo No. 2: TR no.: 21014975-25335-1 2022-02-23 31 / 34 IBL-Lab GmbH Annex 1 EUT Photographs, external Photo No. 1: Photo No. 2: TR no.: 21014975-25336-2 2022-03-16 28 / 31 IBL-Lab GmbH Annex 1 EUT Photographs, external Photo No. 1: Photo No. 2:

Germany · IBL-Lab GmbH · Heinrich-Hertz-Allee 7-10 · 66386 Sankt Ingbert · Tel: +49 6894 38938-0 · Fax: +49 6894 38938-99 1 / 20 Company Register: 105151, Amtsgericht Saarbrücken URL: www.ib-lenhardt.de · E-Mail: [email protected] Assessment Report Test report no.: 21014975-25849-1 Date of issue: 2022-06-02 Test result: The test item - passed - and complies with the listed standards. Applicant SICK AG Manufacturer Same as applicant Test Item RFH505-1004301 RFH510-1004301 RFH515-1004301 MPE Assessment according to: FCC 47 CFR Part 15 Radio frequency devices Parts 1.1307, 1.1310, 2.1091, 2.1093 Canada RSS-102 Issue 5 Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) Tested by (name, function, signature) Andreas Bender Deputy Managing Director signature Approved by (name, function, signature) Karsten Geraldy Lab Manager signature TR no.: 21014975-25849-1 2022-06-02 2 / 20 IBL-Lab GmbH Applicant and Test item details Applicant SICK AG Merkurring 20 22143 , Hamburg , Germany Fon: +49 40611680-0 Fax: -- Manufacturer Same as applicant Test item description RFID read/write device with integrated antenna Model/Type reference RFH505-1004301 RFH510-1004301 RFH515-1004301 Standard specific information Model RFH505-1004301 Frequency 13.56 MHz Antenna Integrated antenna Power supply 11 ~ 32 V DC Temperature range -25 °C ~ +80 °C FCC ID WRMRFH5 Company number: 10066A IC (ISED CERTIFICATION NUMBER) 10066A-RFH5 HMN (HOST MARKETING NAME) N/V PMN (PRODUCT MARKETING NAME) RFH5 HVIN (HARDWARE VERSION IDENTIFICATION NO.) RFH505-1004301 FVIN (FIRMWARE VERSION IDENTIFICATION NO.) 2.2.7 Model RFH510-1004301 Frequency 13.56 MHz Antenna Integrated antenna Power supply 11 ~ 32 V DC Temperature range -25 °C ~ +80 °C FCC ID WRMRFH5 Company number: 10066A IC (ISED CERTIFICATION NUMBER) 10066A-RFH5 HMN (HOST MARKETING NAME) N/V PMN (PRODUCT MARKETING NAME) RFH5 HVIN (HARDWARE VERSION IDENTIFICATION NO.) RFH510-1004301 FVIN (FIRMWARE VERSION IDENTIFICATION NO.) 2.2.7 Model RFH515-1004301 TR no.: 21014975-25849-1 2022-06-02 3 / 20 IBL-Lab GmbH Frequency 13.56 MHz Antenna Integrated antenna Power supply 11 ~ 32 V DC Temperature range -25 °C ~ +80 °C FCC ID WRMRFH5 Company number: 10066A IC (ISED CERTIFICATION NUMBER) 10066A-RFH5 HMN (HOST MARKETING NAME) N/V PMN (PRODUCT MARKETING NAME) RFH5 HVIN (HARDWARE VERSION IDENTIFICATION NO.) RFH515-1004301 FVIN (FIRMWARE VERSION IDENTIFICATION NO.) 2.2.7 Disclaimer and Notes The content of this report relates to the mentioned test sample(s) only. Without a written permit of IBL-Lab GmbH, this test report shall not be reproduced, except in full. The last valid version is available at TAMSys  . Copyright ©: All rights reserved by IBL-Lab GmbH Within this test report, a ☒ point / ☐ comma is used as a decimal separator. If otherwise, a detailed note is added adjected to its use. IBL-Lab GmbH does not take samples. The samples used for testing are provided by the applicant. Decision rule: See parent Test Report IBL-Lab GmbH. Decision rule based on simple acceptance without guard bands, binary statement, based on mutually agreed uncertainty tolerances with expansion factor k=2. TR no.: 21014975-25849-1 2022-06-02 4 / 20 IBL-Lab GmbH 1 TABLE OF CONTENTS 1 TABLE OF CONTENTS.......................................................................................................................... 4 2 GENERAL INFORMATION .................................................................................................................... 5 2.1 Administrative details........................................................................................................................... 5 2.2 Possible test case verdicts .................................................................................................................. 5 2.3 Observations ....................................................................................................................................... 6 2.4 Opinions and Interpretations ............................................................................................................... 6 2.5 Revision History ................................................................................................................................... 6 3 ENVIRONMENTAL & TEST CONDITIONS ........................................................................................... 7 3.1 Environmental conditions of test lab.................................................................................................... 7 4 TEST STANDARDS AND REFERENCES ............................................................................................. 7 5 Device Data ............................................................................................................................................ 8 6 MPE Assessment Requirements ............................................................................................................ 9 6.1 FCC 47 CFR Part 1.1310 Radiofrequency radiation exposure limits. ................................................ 9 6.1.1 FCC 47 CFR Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. ............. 10 6.2 ISED RSS-102 Issue 5 - Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) ......................................................................................................................... 11 6.2.1 ISED MPE limits .................................................................................................................................. 11 6.2.2 RSS-102 Section 2.5 - Exemption Limits for Routine Evaluation ....................................................... 12 6.2.3 RSS-102 Section 2.5.2 - Exemption Limits for Routine Evaluation – RF Exposure Evaluation ........ 12 7 MPE Calculation Method .............................................................................................................…

Text truncated - open the document above for the full version.

Company: IBL-Lab GmbH · Heinrich-Hertz-Allee 7-10 · 66386 Sankt Ingbert · Germany · Tel: +49 6894 38938-0 · Fax: +49 6894 38938-99 1 / 33 Company Register: 105151, Amtsgericht Saarbrücken URL: www.ib-lenhardt.de · E-Mail: [email protected] Test Report Test report no.: 21014975-19634-1 Date of issue: 2022-02-23 Test result: The test item - passed - and complies with below listed standards. Applicant SICK AG Manufacturer SICK AG Test Item RFH505-1004301 RF-Spectrum Testing according to: FCC 47 CFR Part 15 Radio Frequency Devices (Subpart C) RSS-210, Issue 10 (2019-12) Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices RSS-Gen, Issue 5 (2018-04) General Requirements for Compliance of Radio Apparatus Tested by (name, function, signature) B.Sc. Piotr Sardyko Deputy Head of Lab Radio signature Approved by (name, function, signature) Andreas Bender Deputy Managing Director signature TR no.: 21014975-19634-1 2022-02-23 2 / 33 IBL-Lab GmbH Applicant and Test item details Applicant SICK AG Merkurring 20 22143, Hamburg, Germany +49 40611680-0 Manufacturer same as applicant Test item description RFID read/write device with integrated antenna Model/Type reference RFH505-1004301 FCC ID WRMRFH5 IC 10066A-RFH5 HMN n/a PMN RFH5 HVIN RFH505-1004301 FVIN 2.2.7 Frequency 13.56 MHz Antenna Integrated antenna Power supply 11 ± 32 V DC Temperature range -25 °C ± +80 °C Disclaimer and Notes The content of this rest report relates to the mentioned test sample(s) only. Without a written permit of IBL-Lab GmbH, this test report shall not be reproduced, except in full. The last valid version is available at TAMSys £ . Copyright ”: All rights reserved by IBL-Lab GmbH Within this test report, a ց point / տ comma is used as a decimal separator. If otherwise, a detailed note is added adjected to its use. IBL-Lab GmbH does not take test samples. The samples used for testing are provided by the applicant. Decision rule: Decision rule based on simple acceptance without guard bands, binary statement, based on mutually agreed uncertainty tolerances with expansion factor k=2 according to ILAC-G8:09/2019 TR no.: 21014975-19634-1 2022-02-23 3 / 33 IBL-Lab GmbH 1 TABLE OF CONTENTS 1 TABLE OF CONTENTS ......................................................................................................................... 3 2 GENERAL INFORMATION ................................................................................................................... 4 2.1 Administrative details .......................................................................................................................... 4 2.2 Possible test case verdicts ................................................................................................................. 4 2.3 Observations ....................................................................................................................................... 5 2.4 Opinions and interpretations ............................................................................................................... 5 2.5 Revision history .................................................................................................................................. 5 2.6 Further documents .............................................................................................................................. 5 3 ENVIRONMENTAL & TEST CONDITIONS........................................................................................... 6 3.1 Environmental conditions ................................................................................................................... 6 3.2 Normal and extreme test conditions ................................................................................................... 6 4 TEST STANDARDS AND REFERENCES ............................................................................................ 6 5 EQUIPMENT UNDER TEST (EUT) ....................................................................................................... 7 5.1 Product description ............................................................................................................................. 7 5.2 Description of test item ....................................................................................................................... 7 5.3 Technical data of test item .................................................................................................................. 7 5.4 Additional information ......................................................................................................................... 7 6 SUMMARY OF TEST RESULTS ........................................................................................................... 8 7 TEST RESULTS .................................................................................................................................... 9 7.1 Field strength of emissions (transmitter spectrum mask) ................................................................... 9 7.2 Field strength of emissions (spurious and harmonics) ..................................................................... 11 7.3 Frequency tolerance ......................................................................................................................... 14 7.4 Conducted emissions ....................................................................................................................... 15 7.5 20 dB bandwidth / occupied bandwidth .........................................…

Text truncated - open the document above for the full version.
