WS2-WG7833B0Wireless Module

Copyright © JORJIN TECHNOLOGIES INC. 2015 http://WWW.JORJIN.COM.TW CONFIDENTIAL a module solution provider WG7833-B0 WLAN/BT Module TI WiLink8 IEEE 802.11a/b/g/n BT/BLE Solution Datasheet Revision 0.3 Doc No: WG7833-B0-DTS-R03 Copyright © JORJIN TECHNOLOGIES INC. 2015 http://WWW.JORJIN.COM.TW CONFIDENTIAL Page 1 Index 1. OVERVIEW ................................................................................................................................... 4 1.1. MODELS FUNCTIONAL BLOCKS ................................................................................................ 4 1.2. GENERAL FEATURES ................................................................................................................. 4 2. FUNCTIONAL FEATURES ............................................................................................................ 5 2.1. MODULE BLOCK DIAGRAM ..................................................................................................... 5 2.2. BLOCK FUNCTIONAL FEATURE .................................................................................................. 5 2.2.1. WLAN Features .......................................................................................................... 5 2.2.2. Bluetooth Features.................................................................................................... 6 2.2.3. BLE Features ................................................................................................................ 6 2.2.4. ANT Features .............................................................................................................. 7 3. MODULE OUTLINE ....................................................................................................................... 8 3.1. SIGNAL LAYOUT (TOP VIEW).................................................................................................... 8 3.2. PIN DESCRIPTION ..................................................................................................................... 9 4. MODULE SPECIFICATION ....................................................................................................... 13 4.1. GENERAL MODULE REQUIREMENTS AND OPERATION ............................................................ 13 4.1.1. Absolute Maximum Ratings (1) ............................................................................. 13 4.1.2. Recommended Operating Conditions ............................................................ 14 4.1.3. External Slow Clock Input (SLOW_CLK) ............................................................ 15 4.1.4. External Fast Clock Requirements (-40 to +85°C) .......................................... 15 4.2. WLAN RF PERFORMANCE .................................................................................................... 17 4.2.1. WLAN 2.4-GHz Receiver Characteristics .......................................................... 17 4.2.2. WLAN 2.4-GHz Transmitter Power ....................................................................... 18 4.2.4. WLAN 5-GHz Transmitter Power (For WG7833/03 Only) ............................... 20 4.3. BLUETOOTH RF PERFORMANCE (FOR WG7833/31 ONLY) .................................................. 21 4.3.1. BT Receiver Characteristics, In-Band Signals .................................................. 21 4.3.2. BT Receiver Characteristics – General Blocking ............................................ 22 4.3.3. BT Receiver Characteristics –BR, EDR Blocking Per Band ............................ 22 4.3.5. BT Transmitter, EDR .................................................................................................. 23 4.3.6. BT Modulation, BR ................................................................................................... 23 4.3.7. BT Modulation, EDR ................................................................................................ 24 4.3.8. BT BR, EDR Transceiver - Emissions ...................................................................... 24 4.3.9. BT BR Transceiver - Spurs........................................................................................ 25 Doc No: WG7833-B0-DTS-R03 Copyright © JORJIN TECHNOLOGIES INC. 2015 http://WWW.JORJIN.COM.TW CONFIDENTIAL Page 2 4.3.10. BT EDR Transceiver - Spurs ..................................................................................... 25 4.4. BT LE RF PERFORMANCE ........................................................................................................... 26 4.4.1. BT LE Receiver Characteristics, In-Band Signals ....................................................... 26 4.4.3. BT LE Transmitter Characteristics .............................................................................. 27 4.4.4. BT LE Modulation Characteristics .............................................................................. 27 4.4.6. BT LE Transceiver - Spurs ........................................................................................... 28 4.5. ANT PERFORMANCE .................................................................................................................. 28 4.5.1. ANT Receiver Characteristics, In-Band Signals .......................................................... 28 4.5.2. ANT Transmitter Characteristics ................................................................................. 28 4.6. POWER CONSUMPTION ....................................................................................................... 29 5. HOST INTERFACE TIMING CHARACTERISTICS .................................................................... 32 5.1. WLAN SDIO TRANSPORT LAYER ................................................................................................. 32 5.2. SDIO TIMING SPECIFICATIONS ..................................................................................................... 33 5.3. HCI UART SHARED TRANSPORT LAYERS F…

Text truncated - open the document above for the full version.

Copyright © JORJIN TECHNOLOGIES INC. 2015 http://WWW.JORJIN.COM.TW CONFIDENTIAL a module solution provider WG 7833BEM2A M.2 Type2226 Module TI WL1833 IEEE 802.11a/b/g/n solution BT/BLE Solution Datasheet Draft 0.2 Jul/28/2015 Prepared By Reviewed By Approved By Doc No: WG7833BEM2A-DTS-D02 Copyright © JORJIN TECHNOLOGIES INC. 2015 http://WWW.JORJIN.COM.TW CONFIDENTIAL Page 1 Index 1. OVERVIEW ................................................................................................................................... 3 1.1. G ENERAL FEATURES ........................................................................................................ 3 2. FUNCTIONAL FEATURES ............................................................................................................ 4 2.1. M ODULE BLOCK DIAGRAM............................................................................................. 4 2.2. BLOCK FUNCTIONAL FEATURE .......................................................................................... 5 2.2.1. WLAN Features ............................................................................................... 5 2.2.2. Bluetooth Features ......................................................................................... 5 2.2.3. BLE Features .................................................................................................... 6 2.2.4. ANT Features ................................................................................................... 6 3. MODULE OUTLINE ....................................................................................................................... 7 3.1. S IGNAL LAYOUT (TOP VIEW) ........................................................................................... 7 3.2. PIN DESCRIPTION ........................................................................................................... 8 4. MODULE SPECIFICATION ....................................................................................................... 11 4.1. GENERAL MODULE REQUIREMENTS AND OPERATION ....................................................... 11 4.1.1. Absolute Maximum Ratings (1) ..................................................................... 11 4.1.2. Recommended Operating Conditions ..................................................... 12 4.1.3. External Slow Clock Input (SLOW_CLK) ...................................................... 13 4.2. WLAN RF PERFORMANCE ........................................................................................... 14 4.2.1. WLAN 2.4-GHz Receiver Characteristics .................................................... 14 4.2.2. WLAN 2.4-GHz Transmitter Power ............................................................... 15 4.2.4. WLAN 5-GHz Transmitter Power .................................................................. 17 4.3. BLUETOOTH RF PERFORMANCE ...................................................................................... 18 4.3.1. BT Receiver Characteristics, In-Band Signals ............................................. 18 4.3.2. BT Receiver Characteristics – General Blocking ....................................... 19 4.3.3. BT Receiver Characteristics –BR, EDR Blocking Per Band ......................... 19 4.3.5. BT Transmitter, EDR ....................................................................................... 20 4.3.6. BT Modulation, BR ........................................................................................ 20 4.3.7. BT Modulation, EDR ...................................................................................... 21 4.3.8. BT BR, EDR Transceiver - Emissions ............................................................... 21 4.3.9. BT BR Transceiver - Spurs .............................................................................. 22 4.3.10. BT EDR Transceiver - Spurs ........................................................................... 22 4.4. BT LE RF PERFORMANCE .................................................................................................. 23 4.4.1. BT LE Receiver Characteristics, In-Band Signals ........................................ 23 Doc No: WG7833BEM2A-DTS-D02 Copyright © JORJIN TECHNOLOGIES INC. 2015 http://WWW.JORJIN.COM.TW CONFIDENTIAL Page 2 4.4.2. BT LE Receiver Characteristics – General Blocking ................................... 23 4.4.3. BT LE Transmitter Characteristics ................................................................. 24 4.4.4. BT LE Modulation Characteristics ............................................................... 24 4.4.5. BT LE Transceiver – Emissions ....................................................................... 25 4.4.6. BT LE Transceiver - Spurs ............................................................................... 25 4.5. ANT PERFORMANCE .................................................................................................... 25 4.5.1. ANT Receiver Characteristics, In-Band Signals.......................................... 25 4.5.2. ANT Transmitter Characteristics .................................................................. 25 4.6. POWER CONSUMPTION .............................................................................................. 26 5. HOST INTERFACE TIMING CHARACTERISTICS .................................................................... 29 5.1. WLAN SDIO TRANSPORT LAYER ......................................................................................... 29 5.2. SDIO TIMING SPECIFICATIONS ............................................................................................ 30 5.3. HCI UART SHARED TRANSPORT LAYERS FOR ALL FUNCTIONAL BLOCKS (EXCEPT WLAN) .................... 32 5.4. UART TIMING SPECIFICATIONS ............................................................................................ 33 5.5. BLUETOOTH CODEC-PCM(AUDIO) TIMING SPECIFICATIONS ........................…

Text truncated - open the document above for the full version.

Copyright © JORJIN TECHNOLOGIES INC. 2014 http://WWW.JORJIN.COM.TW CONFIDENTIAL a module solution provider WG 7833BEM2B M.2 Type2226 Module TI WL1833 IEEE 802.11a/b/g/n solution BT/BLE Solution Datasheet Draft 0.2 Doc No: WG7833BEM2B-DTS-D02 Copyright © JORJIN TECHNOLOGIES INC. 2015 http://WWW.JORJIN.COM.TW CONFIDENTIAL Page 1 Index 1. OVERVIEW ................................................................................................................................... 3 1.1. GENERAL FEATURES ................................................................................................................. 3 2. FUNCTIONAL FEATURES ............................................................................................................ 4 2.1. MODULE BLOCK DIAGRAM ..................................................................................................... 4 2.2. BLOCK FUNCTIONAL FEATURE .................................................................................................. 5 2.2.1. WLAN Features .......................................................................................................... 5 2.2.2. Bluetooth Features.................................................................................................... 5 2.2.3. BLE Features ................................................................................................................ 6 2.2.4. ANT Features .............................................................................................................. 6 3. MODULE OUTLINE ....................................................................................................................... 7 3.1. S IGNAL LAYOUT (TOP VIEW).................................................................................................... 7 3.2. PIN DESCRIPTION ..................................................................................................................... 8 4. MODULE SPECIFICATION ....................................................................................................... 11 4.1. GENERAL MODULE REQUIREMENTS AND OPERATION ............................................................ 11 4.1.1. Absolute Maximum Ratings (1) ............................................................................. 11 4.1.2. Recommended Operating Conditions ............................................................ 12 4.1.3. External Slow Clock Input (SLOW_CLK) ............................................................ 13 4.2. WLAN RF PERFORMANCE .................................................................................................... 14 4.2.1. WLAN 2.4-GHz Receiver Characteristics .......................................................... 14 4.2.2. WLAN 2.4-GHz Transmitter Power ....................................................................... 15 4.2.4. WLAN 5-GHz Transmitter Power .......................................................................... 17 4.3. BLUETOOTH RF PERFORMANCE ............................................................................................. 18 4.3.1. BT Receiver Characteristics, In-Band Signals .................................................. 18 4.3.2. BT Receiver Characteristics – General Blocking ............................................ 19 4.3.3. BT Receiver Characteristics –BR, EDR Blocking Per Band ............................ 19 4.3.5. BT Transmitter, EDR .................................................................................................. 20 4.3.6. BT Modulation, BR ................................................................................................... 20 4.3.7. BT Modulation, EDR ................................................................................................ 21 4.3.8. BT BR, EDR Transceiver - Emissions ...................................................................... 21 4.3.9. BT BR Transceiver - Spurs........................................................................................ 22 4.3.10. BT EDR Transceiver - Spurs ..................................................................................... 22 4.4. BT LE RF PERFORMANCE ........................................................................................................... 23 4.4.1. BT LE Receiver Characteristics, In-Band Signals ....................................................... 23 Doc No: WG7833BEM2B-DTS-D02 Copyright © JORJIN TECHNOLOGIES INC. 2015 http://WWW.JORJIN.COM.TW CONFIDENTIAL Page 2 4.4.3. BT LE Transmitter Characteristics .............................................................................. 23 4.4.4. BT LE Modulation Characteristics ....................................................................... 24 4.4.6. BT LE Transceiver - Spurs ........................................................................................ 24 4.5. ANT PERFORMANCE ............................................................................................................. 25 4.5.1. ANT Receiver Characteristics, In-Band Signals ............................................... 25 4.5.2. ANT Transmitter Characteristics .......................................................................... 25 4.6. POWER CONSUMPTION ....................................................................................................... 26 5. HOST INTERFACE TIMING CHARACTERISTICS .................................................................... 29 5.1. WLAN SDIO TRANSPORT LAYER ................................................................................................. 29 5.2. SDIO TIMING SPECIFICATIONS ..................................................................................................... 30 5.3. HCI UART SHARED TRANSPORT LAYERS FOR ALL FUNCTIONAL BLOCKS (EXCEPT WLAN) ....................... 32 5.4. UART TIMING SPECIFICATIONS .................................................................................................... 33…

Text truncated - open the document above for the full version.

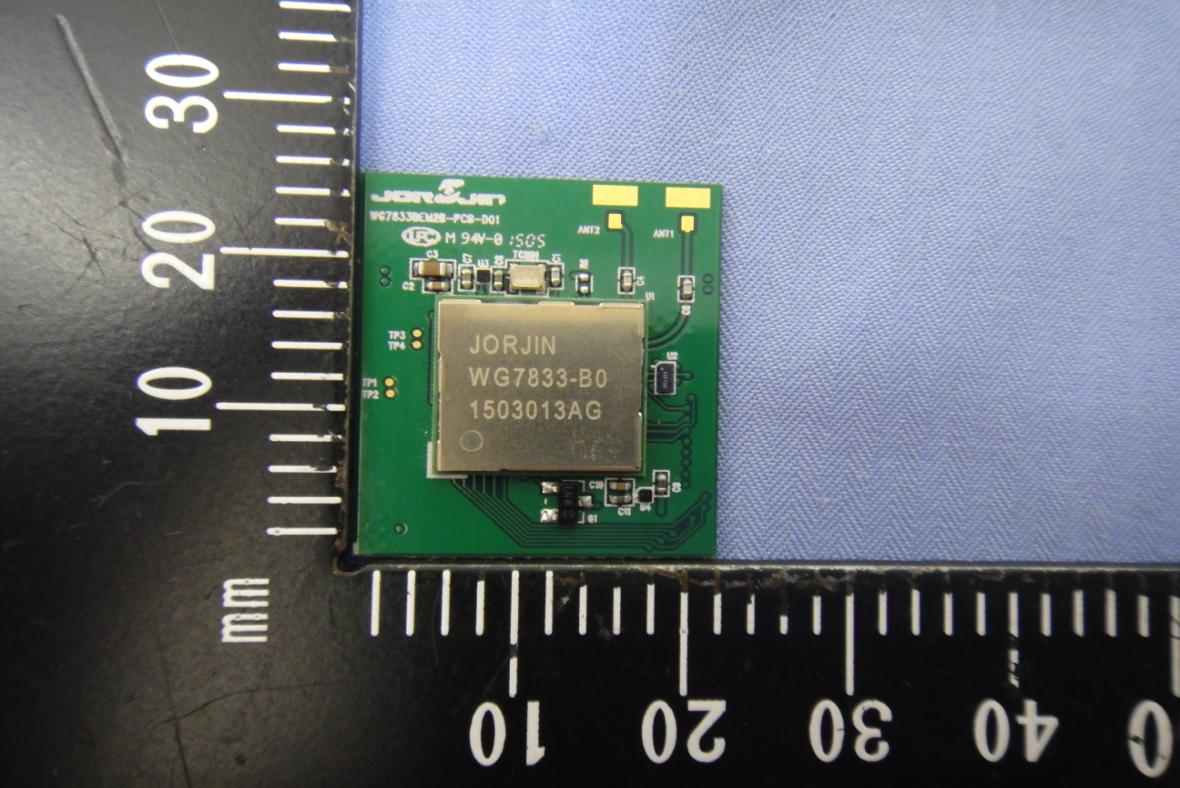

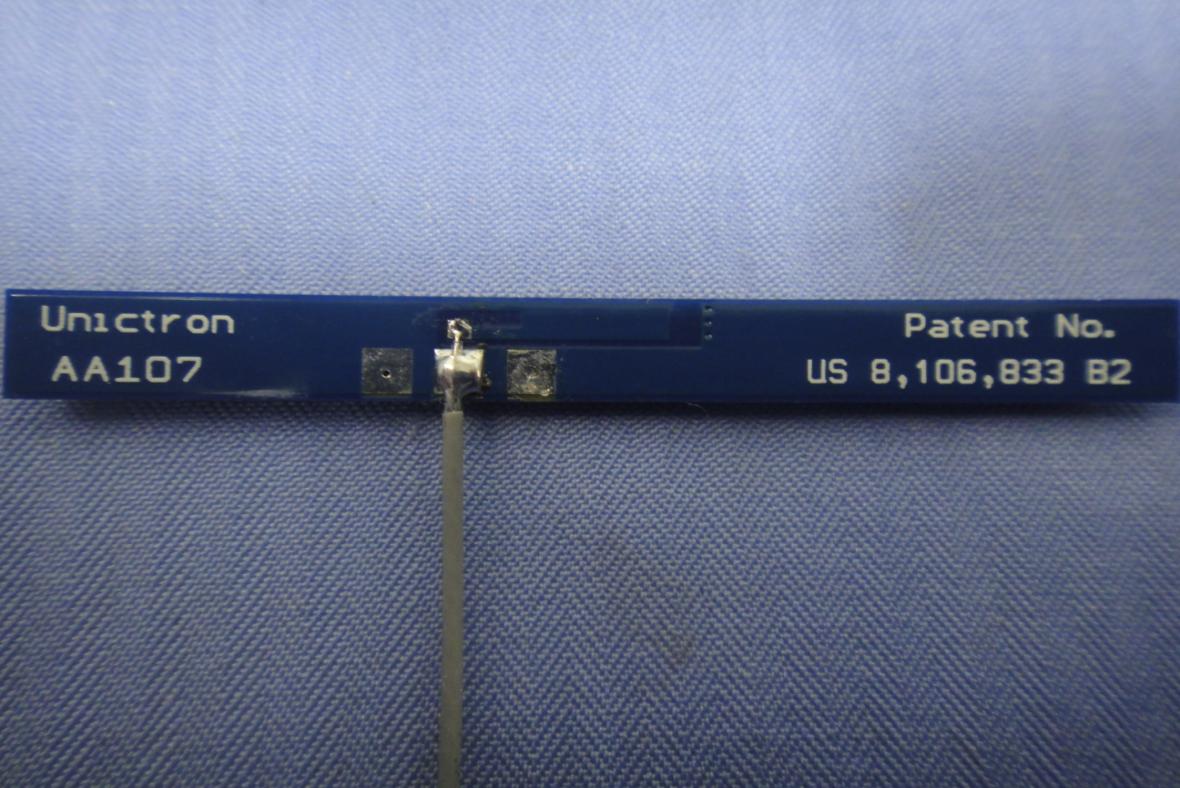

Compliance Certification Services Inc. Report No.: T150417W02 A1 - 1 / 11 Rev. 00 APPENDIX II - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Model no.: WG7833-B0 Compliance Certification Services Inc. Report No.: T150417W02 A1 - 2 / 11 Rev. 00 Compliance Certification Services Inc. Report No.: T150417W02 A1 - 3 / 11 Rev. 00 Model no.: WG7833BEM2A Compliance Certification Services Inc. Report No.: T150417W02 A1 - 4 / 11 Rev. 00 Compliance Certification Services Inc. Report No.: T150417W02 A1 - 5 / 11 Rev. 00 Model no.: WG7833BEM2B Compliance Certification Services Inc. Report No.: T150417W02 A1 - 6 / 11 Rev. 00 Compliance Certification Services Inc. Report No.: T150417W02 A1 - 7 / 11 Rev. 00 2.4G PCB Antenna 5G PCB Antenna Compliance Certification Services Inc. Report No.: T150417W02 A1 - 8 / 11 Rev. 00 Dipole Antenna:

Compliance Certification Services Inc. Report No.: T150417W02 A1 - 9 / 11 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Model no.: WG7833-B0 RF IC: UI / WL1833 Compliance Certification Services Inc. Report No.: T150417W02 A1 - 10 / 11 Rev. 00 Model no.: WG7833BEM2A RF IC: UI / WL1833 Compliance Certification Services Inc. Report No.: T150417W02 A1 - 11 / 11 Rev. 00 Model no.: WG7833BEM2B RF IC: UI / WL1833

Compliance Certification Services Inc. FCC ID: WS2-WG7833B0 Report No.: T150417W02-MF Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE C95.1 KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 RF EXPOSURE REPORT For Wireless module Model: WG7833-B0, WG7833BEM2A, WG7833BEM2B Trade Name: Jorjin Issued to Jorjin Technologies INC 17F,No.239, Sec. 1, Datong Rd., Xizhi Dist., New Taipei City 22161 Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: July 20, 2015 Compliance Certification Services Inc. FCC ID: WS2-WG7833B0 Report No.: T150417W02-MF Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2015/07/20 Initial Issue ALL Becca Chen Compliance Certification Services Inc. FCC ID: WS2-WG7833B0 Report No.: T150417W02-MF Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. LIMIT .................................................................................................................... 4 2. EUT SPECIFICATION .......................................................................................... 4 3. TEST RESULTS................................................................................................... 6 4. MAXIMUM PERMISSIBLE EXPOSURE .............................................................. 7 Compliance Certification Services Inc. FCC ID: WS2-WG7833B0 Report No.: T150417W02-MF Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. 2. EUT SPECIFICATION EUT Wireless module Model WG7833-B0, WG7833BEM2A, WG7833BEM2B RF Module TI Model: WL1833 Frequency band (Operating) Bluetooth 2.1 + EDR / 4.0: 2402 ~ 2480 MHz 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz 802.11a/n HT20: 5.180GHz ~ 5.240GHz / 5.745 ~ 5.825GHz 802.11n HT40: 5.190GHz ~ 5.230GHz / 5.755 ~ 5.795GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 1. PCB Antenna: Unictron / H2B1BE1A1B0200 2.4GHz: Antenna Gain :4.13 dBi (Numeric gain:2.59) PCB Antenna: Unictron / H2B1BB1A1Q0100 5GHz: Antenna Gain :4.59 dBi (Numeric gain:2.88) 2. Dipole Antenna: WIESON / GPOT155-002 2.4GHz: Antenna Gain :1.60 dBi (Numeric gain:1.45) 5GHz: Antenna Gain :2.08 dBi (Numeric gain:1.61) Maximum Average output power Bluetooth 2.0 Mode : 11.31 dBm(13.521 mW) Bluetooth 4.0 Mode : 8.25 dBm(6.683 mW) IEEE 802.11b Mode: 15.63 dBm(36.559 mW) IEEE 802.11g Mode: 13.76 dBm(23.768 mW) IEEE 802.11n HT 20 Mode: 12.51 dBm(17.824 mW) IEEE 802.11n HT 40 Mode: 11.10 dBm(12.882 mW) IEEE 802.11a Mode: 16.29 dBm(42.560 mW) IEEE 802.11n HT 20 Mode: 15.98 dBm(39.628 mW) IEEE 802.11n HT 40 Mode: 14.08 dBm(25.586 mW) Compliance Certification Services Inc. FCC ID: WS2-WG7833B0 Report No.: T150417W02-MF Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Tune up Power Bluetooth 2.0 Mode : 13.00 dBm(19.953 mW) Bluetooth 4.0 Mode : 10.00 dBm(10.000 mW) IEEE 802.11b Mode: 17.50 dBm(56.234 mW) IEEE 802.11g Mode: 15.50 dBm(35.481 mW) IEEE 802.11n HT 20 Mode: 14.50 dBm(28.184 mW) IEEE 802.11n HT 40 Mode: 13.00 dBm(19.953 mW) IEEE 802.11a Mode: 18.00 dBm(63.096 mW) IEEE 802.11n HT 20 Mode: 17.50 dBm(56.234 mW) IEEE 802.11n HT 40 Mode: 16.00 dBm(39.811 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. FCC ID: WS2-WG7833B0 Report No.: T150417W02-MF Page 6 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 3. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. FCC ID: WS2-WG7833B0 Report No.: T150417W02-MF Page 7 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 4. MAXIMUM PERMISSIBLE EXPOSURE Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Bluetooth 2.0 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 40244119.9532.59200.01031 Bluetooth 4.0 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 39248010.0002.59200.00521 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11246256.2342.59200.02901 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: WS2-WG7833B0 Report No.: T150417W02-RP3 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 94 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless module Model: WG7833-B0, WG7833BEM2A, WG7833BEM2B Trade Name: Jorjin Issued to Jorjin Technologies INC 17F,No.239, Sec. 1, Datong Rd., Xizhi Dist., New Taipei City 22161 Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: May 29, 2015 Compliance Certification Services Inc. FCC ID: WS2-WG7833B0 Report No.: T150417W02-RP3 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 May 29, 2015 Initial Issue ALL Becca Chen Compliance Certification Services Inc. FCC ID: WS2-WG7833B0 Report No.: T150417W02-RP3 Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................4 2. EUT DESCRIPTION ........................................................................................................................5 3. TEST METHODOLOGY .................................................................................................................6 3.1 EUT CONFIGURATION ..............................................................................................................6 3.2 EUT EXERCISE ............................................................................................................................6 3.3 GENERAL TEST PROCEDURES ...............................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .................................................7 3.5 DESCRIPTION OF TEST MODES ..............................................................................................8 4. INSTRUMENT CALIBRATION .....................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION .........................................................................9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................9 4.3 MEASUREMENT UNCERTAINTY ..........................................................................................10 5. FACILITIES AND ACCREDITATIONS .....................................................................................11 5.1 FACILITIES ................................................................................................................................11 5.2 EQUIPMENT ..............................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ...................................................................12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................13 6.1 SETUP CONFIGURATION OF EUT .........................................................................................13 6.2 SUPPORT EQUIPMENT ............................................................................................................13 7. FCC PART 15.247 REQUIREMENTS ..........................................................................................14 7.1 20 DB BANDWIDTH .................................................................................................................14 7.2 PEAK POWER ............................................................................................................................21 7.3 AVERAGE POWER ...................................................................................................................22 7.4 BAND EDGES MEASUREMENT .............................................................................................23 7.5 FREQUENCY SEPARATION ....................................................................................................49 7.6 NUMBER OF HOPPING FREQUENCY ...................................................................................54 7.7 TIME OF OCCUPANCY (DWELL TIME) ................................................................................59 7.8 SPURIOUS EMISSIONS ............................................................................................................67 7.9 POWERLINE CONDUCTED EMISSIONS ...........................…

Text truncated - open the document above for the full version.
