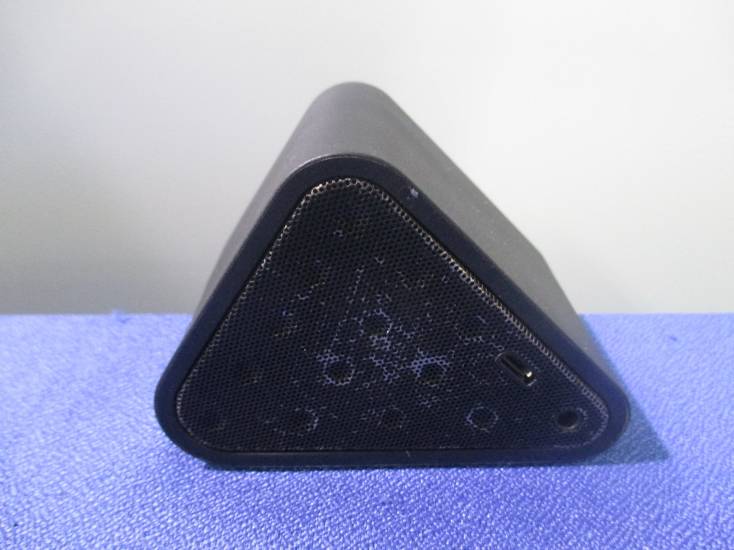

WSN62-019BCheese Cake Mini Mobile Stand Bluetooth Speaker

Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may n ot cause harmful interference, and (2) this device must accept any interference received, includin g interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of t he FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communicatio ns. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or te levision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by Earth Trek(Hong Kong) Limited may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. S uch modifications could void the user’s authority to operate the equipment.

Earth Trek (Hong Kong) Limited Unit 503, 5/F, Silvercord Tower 2, 30 Canton Road, Tsimshatsui, Kln., Hong Kong TEL: (852)3113-7800 FAX: (852)3113-7803 DATE 08-20-2014 FCC ID: WSN62-019B Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen CTL Testing Technology Co., Ltd.(MR. Tracy Qi) at Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Earth Trek (Hong Kong) Limited at Unit 503, 5/F, Silvercord Tower 2, 30 Canton Road, Tsimshatsui, Kln., Hong Kong. Dated this 08-20-2014 Agency agreement expiration date: 08-19-2015 By: Hunter Wang Signature Printed Title: Project Manager On behalf of : Earth Trek (Hong Kong) Limited Telephone: (852)3113-7800

Earth Trek (Hong Kong) Limited Unit 503, 5/F, Silvercord Tower 2, 30 Canton Road, Tsimshatsui, Kln., Hong Kong TEL: (852)3113-7800 FAX: (852)3113-7803 DATE 07-31-2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: WSN62-019B Product Name: Cheese Cake Mini Mobile Stand Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 08-20-2014 By: Hunter Wang Signature Printed Title: Project Manager On behalf of : Earth Trek (Hong Kong) Limited Telephone: (852)3113-7800

Earth Trek (Hong Kong) Limited Unit 503, 5/F, Silvercord Tower 2, 30 Canton Road, Tsimshatsui, Kln., Hong Kong TEL: (852)3113-7800 FAX: (852)3113-7803 USB Port Statement FCC ID: WSN62-019B Date: Aug. 20, 2014 To whom it may concern: We, the undersigned, state that the device's (Model: 62-019B) USB port only used for charge, no any data transfer to PC. Sincerely, Hunter Wang/Project Manager

FCC ID Label Information 1. Label location: 2. FCC ID Label: Earth Trek (Hong Kong) Limited Cheese Cake Mini Mobile Stand Bluetooth Speaker Model: 62-019B FCC ID: WSN62-019B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 72.96dBuV/m @3m Ant gain 0dBi ;so Ant numeric gain=1 So pt={ [10 (72.96 /20) /10 6 x3] 2 /30x1 }x1000 mW = 0.006mW So ( 0.006mW/5mm)x √2.441GHz = 0.002 <3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.249 Report Reference No......................: CTL1408071899-WF Compiled by ( position+printed name+signature)..: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Tracy Qi Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Aug. 18, 2014 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: Earth Trek(Hong Kong)Limited Address.............................................: Unit 503, 5/F, Silvercord Tower 2, 30 Canton Road, Tsimshatsui, Kln., Hong Kong Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Cheese Cake Mini Mobile Stand Bluetooth Speaker Trade Mark .......................................: N/A Models/Type reference.....................: 62-019B Modulation .......................................: 1Mbps(GFSK), 2Mbps(Pi/4 DQPSK), 3Mbps(8DPSK) Bluetooth Version .............................: 3.0 Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID .............................................: WSN62-019B Result................................................: Positive V1.0 Page 2 of 33 Report No.: CTL1408071899-WF T E S T R E P O R T Test Report No. :CTL1408071899-WF Aug. 18, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Cheese Cake Mini Mobile Stand Bluetooth Speaker Model /Type : 62-019B Applicant : Earth Trek(Hong Kong)Limited Address : Unit 503, 5/F, Silvercord Tower 2, 30 Canton Road, Tsimshatsui, Kln., Hong Kong Manufacturer Earth Trek(Hong Kong)Limited Address Unit 503, 5/F, Silvercord Tower 2, 30 Canton Road, Tsimshatsui, Kln., Hong Kong Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 33 Report No.: CTL1408071899-WF Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.Related Submittal(s) / Grant (s) 6 2.7.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2.Radiated Emission Test 13 4.3.Band Edge Measurement 18 4.4.Occupied Bandwidth Measurement 22 5. ANTENNA REQUIREMENT ....................................................... 24 6.TEST SETUP PHOTOS OF THE EUT .......................................... 25 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 28 V1.0 Page 4 of 33 Report No.: CTL1408071899-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 33 Report No.: CTL1408071899-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Aug. 07, 2014 Testing commenced on : Aug. 07, 2014 Testing concluded on : Aug. 18, 2014 2.2.Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.7V from battery 2.3. Short description of the Equipment under Test (EUT) The EUT is a Cheese Cake Mini Mobile Stand Bluetooth Speaker work at 2402~2480 MHz. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 2423 48 2450 75 2477 22 2424 49 2451 76 2478 23 2425 50 2452 77 2479 24 2426 51 2453 78 2480 25 2427 52 2454 26 2428 53 2455 Modulation: 1Mbps(GFSK), 2Mbps(Pi/4 DQPSK), 3Mbps(8DPSK) For more details, refer to the user’s manual of the EUT. Serial number:…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.249 Report Reference No......................: CTL1408071899-WF01 Compiled by ( position+printed name+signature)..: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Tracy Qi Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Aug. 22, 2014 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: Earth Trek(Hong Kong) Limited Address.............................................: Unit 503, 5/F, Silvercord Tower 2, 30 Canton Road, Tsimshatsui, Kln., Hong Kong Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Cheese Cake Mini Mobile Stand Bluetooth Speaker Trade Mark .......................................: N/A Models/Type reference.....................: 62-019B Modulation .......................................: GFSK Bluetooth Version .............................: 4.0 Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID .............................................: WSN62-019B Result................................................: Positive V1.0 Page 2 of 33 Report No.: CTL1408071899-WF01 T E S T R E P O R T Test Report No. :CTL1408071899-WF Aug. 22, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Cheese Cake Mini Mobile Stand Bluetooth Speaker Model /Type : 62-019B Applicant : Earth Trek(Hong Kong) Limited Address : Unit 503, 5/F, Silvercord Tower 2, 30 Canton Road, Tsimshatsui, Kln., Hong Kong Manufacturer Earth Trek(Hong Kong) Limited Address Unit 503, 5/F, Silvercord Tower 2, 30 Canton Road, Tsimshatsui, Kln., Hong Kong Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 33 Report No.: CTL1408071899-WF01 Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.Related Submittal(s) / Grant (s) 6 2.7.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2.Radiated Emission Test 13 4.3.Band Edge Measurement 18 4.4.Occupied Bandwidth Measurement 22 5. ANTENNA REQUIREMENT ....................................................... 24 6.TEST SETUP PHOTOS OF THE EUT .......................................... 25 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 28 V1.0 Page 4 of 33 Report No.: CTL1408071899-WF01 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 33 Report No.: CTL1408071899-WF01 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Aug. 07, 2014 Testing commenced on : Aug. 07, 2014 Testing concluded on : Aug. 22, 2014 2.2.Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.7V from battery 2.3. Short description of the Equipment under Test (EUT) The EUT is a Cheese Cake Mini Mobile Stand Bluetooth Speaker work at 2402~2480 MHz. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 20 2442 01 2404 21 2444 02 2406 22 2446 03 2408 23 2448 04 2410 24 2450 05 2412 25 2452 06 2414 26 2454 07 2416 27 2456 08 2418 28 2458 09 2420 29 2460 10 2422 30 2462 11 2424 31 2464 12 2426 32 2466 13 2428 33 2468 14 2430 34 2470 15 2432 35 2472 16 2434 36 2474 17 2436 37 2476 18 2438 38 2478 19 2440 39 2480 Modulation: GFSK For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 33 Report No.: CTL1408071899-WF01 2.4. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmitting / TM2 Middle Channel Transmitting / TM3 Top Channel Transmitting / TM4 Charging and keeping TX USB power by PC The field strength of radiation emission was measured in the following position: EUT stand-up position (Y axis), lie-down position (X, Z axis).…

Text truncated - open the document above for the full version.
