WSUBFRD1108CFL

User manual 1. Purpose Homelite’s CFL has implemented three phosphors together into one compact fluorescent. It is a new type of light resource of green environment. The product’s applications are practical for supermarkets, shopping centers, retail stores, and gymnasium. 2. Characteristics Homelite’s CFL provides instant start, long-life and high lumen output. The lamp is designed to perform up to the industry standards by using less electricity. Lamp can operate under -18 °C below zero degrees Celsius. From Homelite’s testing results shows the self ballast lamp only uses 20% of the electricity and it is compared and equivalent to a regular incandescent bulb. 3. Directions 1) For Safety purposes, the lamp fixture must be powered off before being installed, changed or being cleaned 2) This self ballast lamp cannot be operated with dimmer device. In order to keep the lamp’s high performance it should be used in defined voltage. 3) This Lamp can be performed under environmental areas in temperature from -18° C to 45° C, it cannot be used in enclosed fixture or wet areas. 4) Please check the power, voltage and contacts of the lamp incase the lamp performs abnormal signs such as the light blinking or the light turns off suddenly 5) Do not hold the tube by the hands while changing or cleaning the lamp. The proper way is to hold the lamp by the plastic housing. 4． Warnning： This device complies with Part 18 of the FCC Rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz. If this occurs, please change outlet or move the lamp far away from other appliance. Homelite limited No.319 Jiugan Rd , Sijing Town ,Songjiang District , Shanghai , China. 201601

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 Homelite limited Date: Nov 9,2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Homelite limited hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Name: CFL Model: HLFD15W;HLFD18W;HLFD23W;HLFDR15W; HLT4S 12/20/26W;HLT4S15/26/40W;HLFR13W;HLGUll W We affirm that between SIEMIC and Homelite limited, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Liu Yunping Manager No. 319 Jiugan Rd , Sijing Town ,Songjiang District, Shanghai, China. 201601 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 Homelit limit d Nov 9~2011 Federal Communications Commission Authorization Evaluation Division Oakland Mills Road Columbia, MD Confidentiality Request application for certification of FCC ID: WSUBFRDI108 We hereby request confidential treatment of information accompanying this application as outlined below: Operation Description above materials contain trade secrets and proprietary information not customarily to pUblic. The public disclosure of these materials may harmful to the applicant and provide unjustified benefits to its competitors. applicant understands that pursuant to Section 0.457 & ofthe Rules, disclosure ofthis application and accompanying documentation will not be made the date of the Grant for this application. Sincerely, Yun Ping )Ir-Yv-r-{ Manager Homelite limited No.319 ]iugan Rd , Sijing tang District, Shanghai, China. 201601 Nov 9,2011 SCS-FI9: Confidentiality Letter 2of2 Rev 2.0

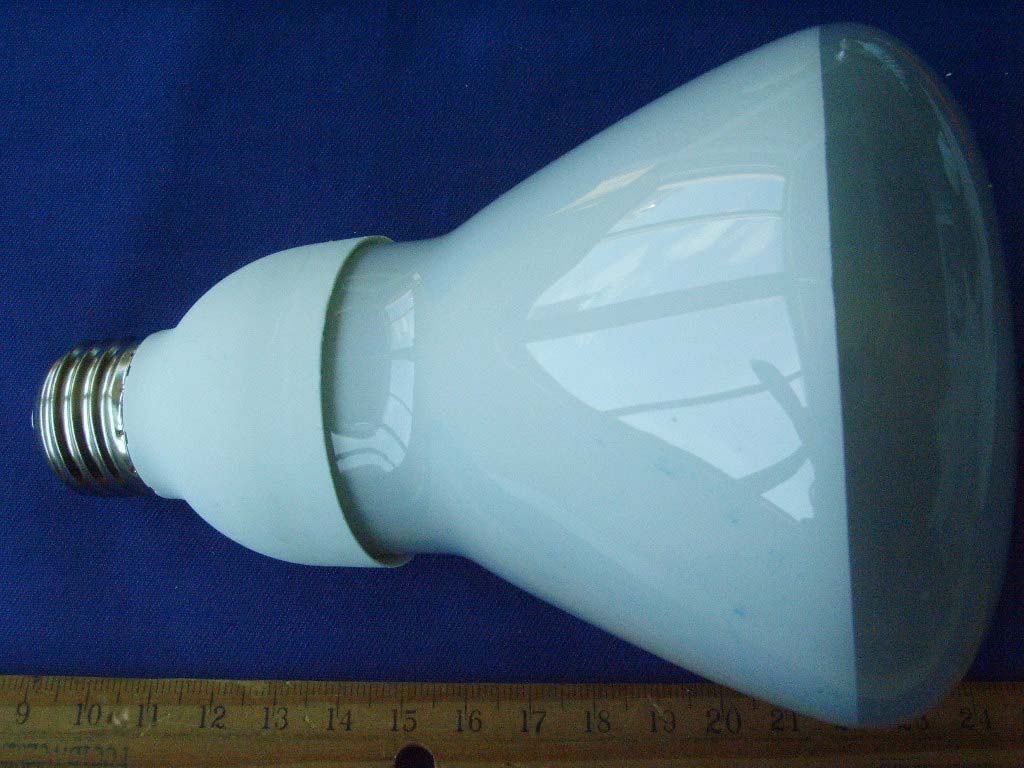

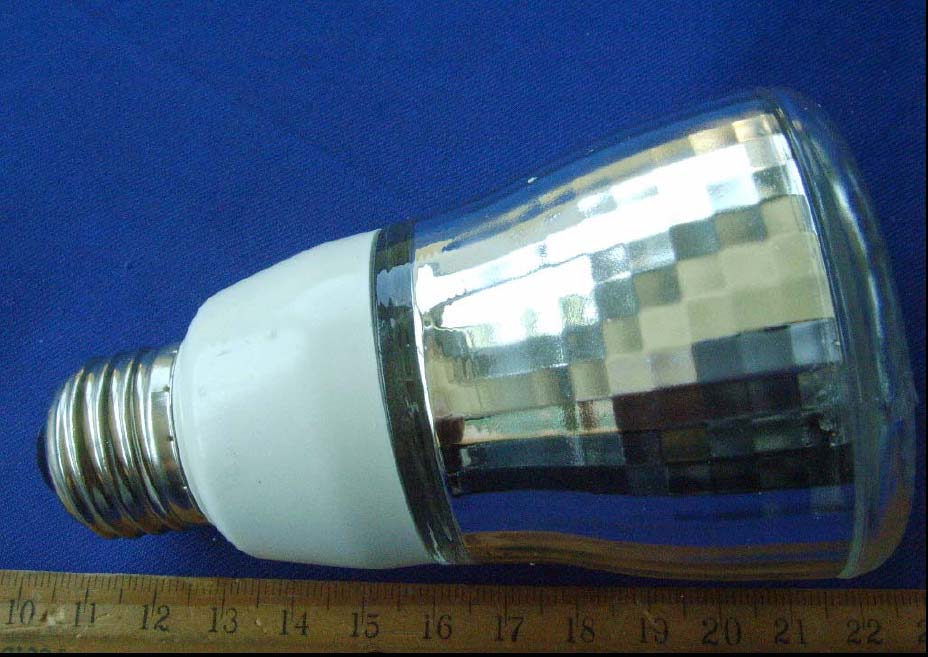

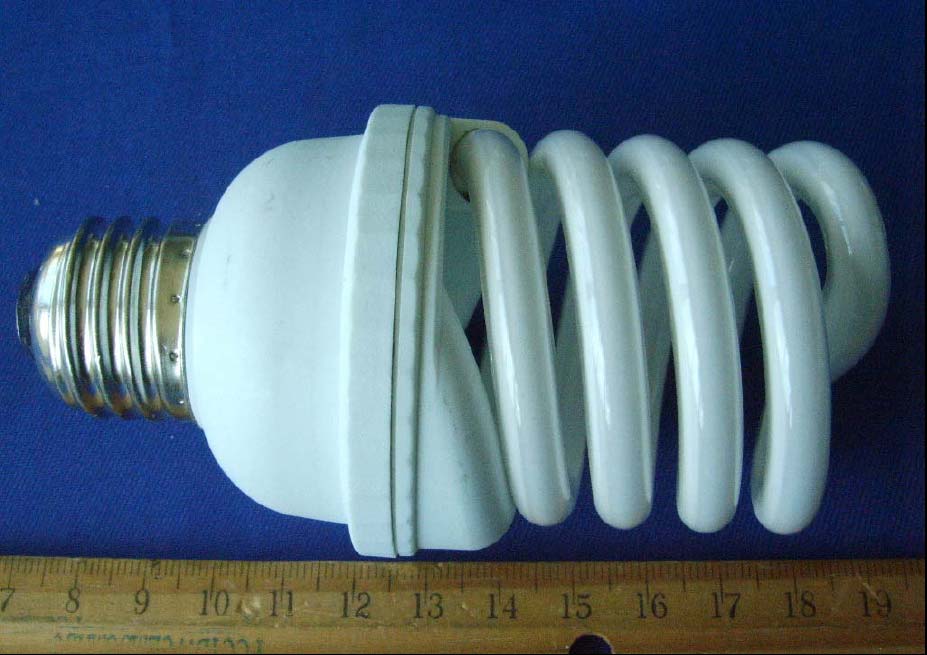

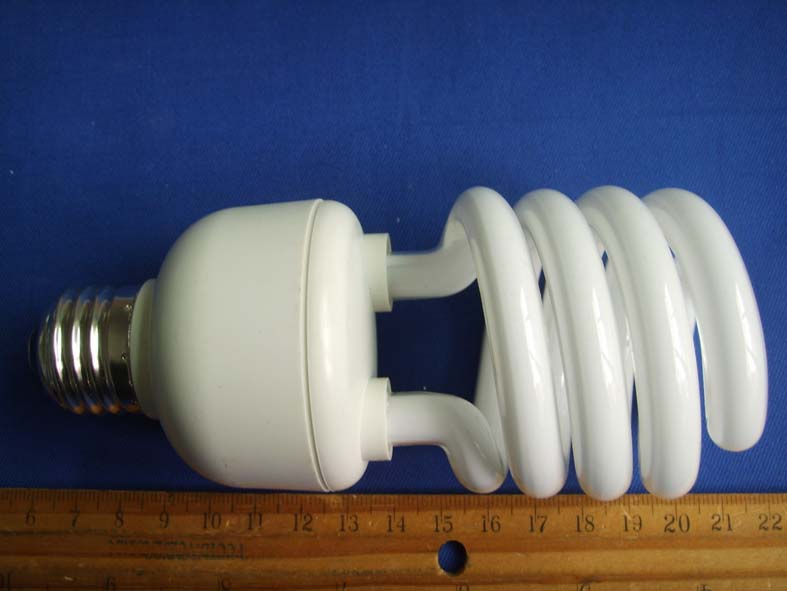

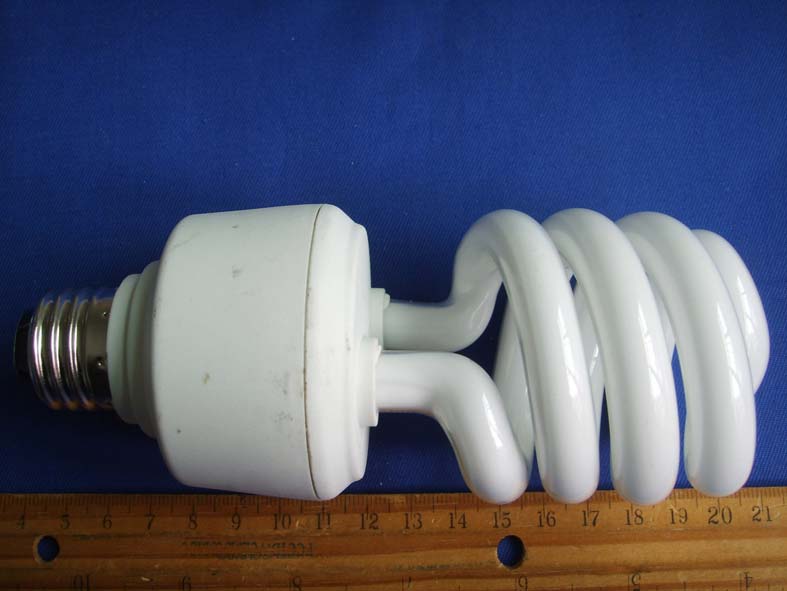

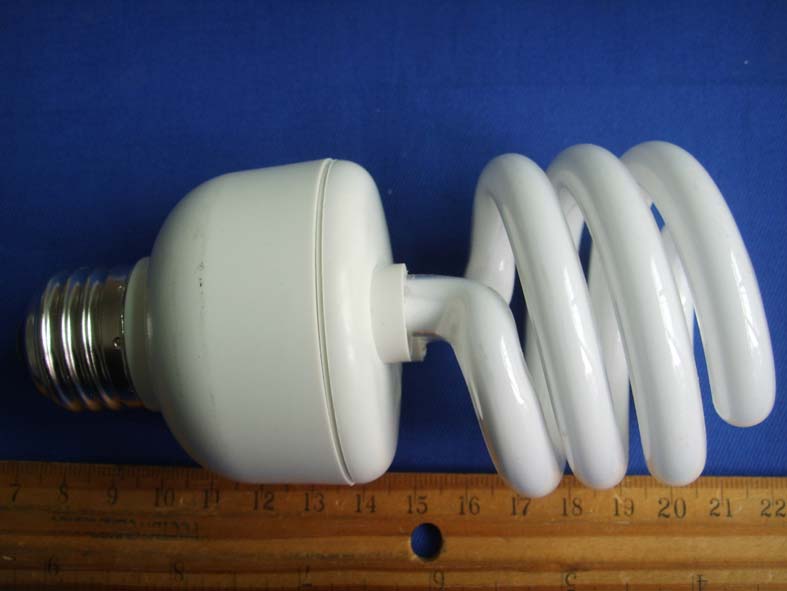

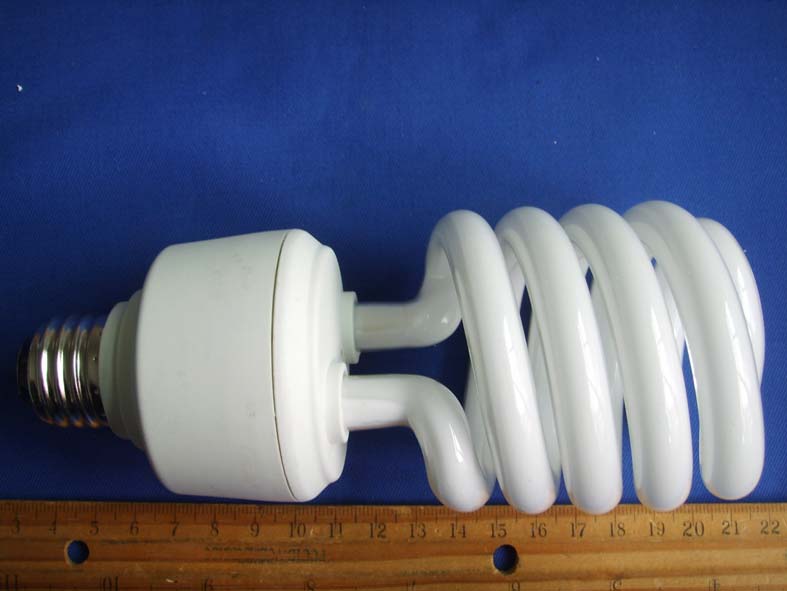

APPENDIX III External Photos EUT - General View (HLFD15W) EUT - General View (HLFD18W) - EUT - General View (HLFD23W) EUT - General View (HLFDR15W) EUT - General View (HLT4S12/20/26W) EUT - General View (15/26/40W) EUT - General View ( HLFR13W) EUT - General View (HLGU11W)

APPENDIX I FCC ID Label FCC ID: WSUBFRD1108

APPENDIX II FCC ID Label Location FCC ID Label Location

APPENDIX IV Internal Photos EUT – Uncovered View (HLFD15W) EUT –Components View (HLFD15W) EUT–Solder View (HLFD15W) EUT – Uncovered View (HLFD18W) EUT –Components View (HLFD18W) EUT–Solder View (HLFD18W) EUT – Uncovered View (HLFD23W) EUT –Components View (HLFD23W) EUT–Solder View ( HLFD23W) EUT – Uncovered View (HLFDR15W) EUT –Components View (HLFDR15W) EUT–Solder View (HLFDR15W) EUT – Uncovered View (HLT4S12/20/26W) EUT –Components View (HLT4S12/20/26W) EUT–Solder View (HLT4S12/20/26W) EUT – Uncovered View (HLT4S15/26/40W) EUT –Components View (HLT4S15/26/40W) EUT–Solder View (HLT4S15/26/40W) EUT – Uncovered View (HLFR13W) EUT –Components View (HLFR13W) EUT–Solder View (HLFR13W) EUT – Uncovered View (HLGU11W) EUT –Components View (HLGU11W) EUT–Solder View (HLGU11W)

FCC PART 18 EMI MEASUREMENT AND TEST REPORT for Homelite Limited Building 1, No 319, Jiugan Rd, Sijing Town, Songjiang District, Shanghai FCC 10: WSUBFR01108 Nov 09,2011 CFL Product Name: HLFD15W; HLFD18W; HLFD23W; HLFDR15W; HLT4S12/20/26W; I ", Model No: HLT4S15/26/40W; HLFR13W;HLGU11W I I I David Zhang ~~~ Test Engineer: <J I BTR66.180.10.030.26 Report No.: I ~ ~/ I Oct 07, 2011 Sample Received Date: Nov 0 1, 2011 to Nov 04, 2011 Test Performed Date: Steven Hsu Reviewed By: c:~> ~ BEST Test service Shenzhen Co., Ltd. 1st Floor, 1 st Building, Weitai Industrial Park, Yingrenshi, Shiyan, Baoan, Shenzhen, China Prepared By: TEL: +86-755-28236006 FAX: +86-755-23467087-811 Email: certification@bestcert. cn [K1'W~£cm® Efficient Lighting Initiative NVlAP LAB CODE 200770'~ Note: The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of BEST's Client and is provided pursuant to the agreement between BEST and its Client. BEST's responsibility and Liability are limited to the terms and conditions of the agreement. BEST assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the BEST name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by BEST. The observations and test results in this report are relevant only to the sample tested. This report by itself does not that the material, product, of service is or has ever been under an BEST certification program. National Voluntary Laboratory Accreditation Program (NVLAP) has accredited this laboratory under IS017025: 2005 for specific laboratory activities as listed in the NVLAP directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Homelite Limited. FCC ID: WSUBFRD1108 Report No.BTR66.180.10.030.26 Page 2 of 38 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION ........................................................................................................................................ 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................................................................................ 3 OBJECTIVE .................................................................................................................................................................. 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................ 3 TEST METHODOLOGY ................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION ........................................................................................................................... 4 JUSTIFICATION............................................................................................................................................................. 4 SCHEMATICS / BLOCK DIAGRAM ................................................................................................................................. 4 EQUIPMENT MODIFICATIONS ...................................................................................................................................... 4 CONFIGURATION OF TEST SYSTEM ............................................................................................................................ 4 TEST SETUP BLOCK DIAGRAM.................................................................................................................................... 4 CONDUCTED EMISSIONS TEST DATA ................................................................................................................. 5 APPLICABLE STANDARD .............................................................................................................................................. 5 MEASUREMENT UNCERTAINTY ................................................................................................................................... 5 EUT SETUP ................................................................................................................................................................. 5 TEST EQUIPMENTS ...................................................................................................................................................... 6 TEST PROCEDURE ...................................................................................................................................................... 6 SUMMARY OF TEST RESULTS ..................................................................................................................................... 6 CONDUCTED EMISSIONS TEST DATA AND PLOTS ...................................................................................................... 7 Homelite Limited. FCC ID: WSUBFRD1108 Report No.BTR66.180.10.030.26 Page 3 of 38 FCC Part 18 Report GENERAL INFORMATION Product Description for Equipment under Test (EUT) The Homelite Limited’s model HLFD15W; HLFD18W; HLFD23W; HLFDR15W; HLT4S12/20/26W; HLT4S15/26/40W; HLFR13W;HLGU11W or the “EUT” as referred to in this report is CFL, rated input voltage: AC 120V/60Hz, operation frequency between 40 KHz to 60 KHz. Model HLFD15W Electrical Power 15W Model HLFD18W Electrical Power 18W Model HLFD23W Electrical Power 23W Model HLFDR15W Electrical Power 15W Model H…

Text truncated - open the document above for the full version.

APPENDIX V Test Setup Photos Test Setup – Front View Test Setup – Side View
