WSYJJ-RC-F8RF remote control

JJ--RC-F8 Remote control Manual 一、 type: remote control 二、 IC：HCS301 三、 Modulation: ASK 四、 The frequency range: 433.92MHz ± 100KHz 五、 The number of channels: 1 六、 Frequency stabilization mode: sound frequency stabilization 七、 Antenna: on-board PCB antenna 0dBi 八、 Operating voltage: 6V 九、 Working current: 10mA 十、 Photo： 十一、 Operation: The remote control uses HCS301 encoder chip, ensuring every launch of the code and the last launch of the code is not repeated, which can prevent the code copied by others, resulting in security issues. When the user presses the button shown in the figure, when shown the LED will light, indicating the success of this launch, when the user stops pressing the key after the LED lights burn out, firing stopped. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC ID: WSYJJ-RC-F8 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

GIANT ALARM SYSTEM CO., LTD ______________________________________________________ SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 GIANT ALARM SYSTEM CO., LTD ______________________________________________________ SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 (July 15, 2011) To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, GIANT ALARM SYSTEM CO., LTD hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description, model name) FCC ID: WSYJJ-RC-F8 Product name: RF remote control Model: JJ-RC-F8 We affirm that between SIEMIC and GIANT ALARM SYSTEM CO., LTD , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Defeng Pan / General Manager Title: General Manager Telephone: +86-595-22499516 Email: [email protected] Date: July 15, 2011

GIANT ALARM SYSTEM CO., LTD SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 GIANT ALARM SYSTEM CO., LTD SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 (July 15, 2011) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: WSYJJ-RC-F8 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram Long-term confidential - Operation description Long-term confidential - Schematic Long-term confidential The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Defeng Pan / General Manager Title: General Manager Telephone: +86-595-22499516 Email: [email protected] Date: July 15, 2011 Company Name: GIANT ALARM SYSTEM CO., LTD Address: No.5 Mansion, Jingpin Park, Huinan Industry Zone,

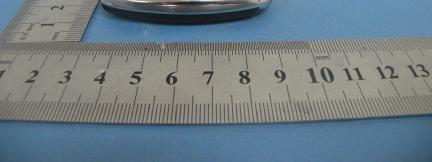

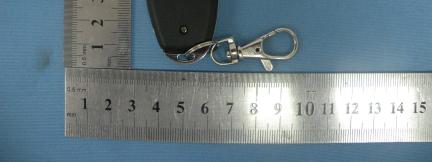

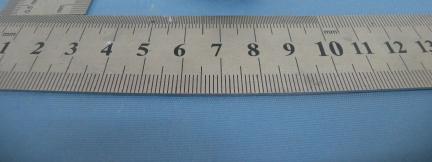

Top View Bottom View Front View Left View Rear View Right View

FCC ID: WSYJJ-RC-F8

Label Location

Top View Bottom View ANTENNA

Shenzhen Certification Technology Service Co., Ltd 3F, Bldg27,Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, ShenZhen, Guang dong, P.R. China. FCCID: WSYJJ-RC-F8 Page 1 of 34 TEST REPORT FCC ID: WSYJJ-RC-F8 Applicant : GIANT ALARM SYSTEM CO., LTD Address : NO.5 MANSION, JINGPIN PARK, HUINAN INDUSTRY ZONE, QUANZHOU CITY Equipment under Test (EUT): Name : RF remote control Model : JJ-RC-F8 Standards : FCC PART 15, SUBPART C : 2010 (Section 15.231) Report No. : STE110707596 Date of Test : July 11-14, 2011 Date of Issue : July 15, 2011 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.:STE110707596 FCCID: WSYJJ-RC-F8 Page 2 of 34 TABLE OF CONTENT Description Page 1 General Information---------------------------------------------------------------------------------------3 1.1 Description of Device (EUT)---------------------------------------------------------------------3 1.2 Description of Test Facility-----------------------------------------------------------------------4 2 EMC Equipment List-----------------------------------------------------------------------------------4 3 Test Procedure---------------------------------------------------------------------------------------------5 4 Summary of Measurement---------------------------------------------------------------------------6 Occupied bandwidth----------------------------------------------------------------------------------------6 5 Radiation Emission------------------------------------------------------------------------------------7 5.1 Duty cycle-------------------------------------------------------------------------------------------7 5.2 Radiation Emission Limits(15.209&231)---------------------------------------------------16 5.3 Test Setup-----------------------------------------------------------------------------------------16 5.4 Test Procedure-----------------------------------------------------------------------------------18 5.5 Test Equipment Setting For emission test.est Result----------------------------------19 5.6 Test Condition------------------------------------------------------------------------------------19 5.7 Test Result----------------------------------------------------------------------------------------19 6 Occupied bandwidth---------------------------------------------------------------------------------23 6.1 Test limit-------------------------------------------------------------------------------------------23 6.2 Method of measurement-----------------------------------------------------------------------23 6.3 Test Setup-----------------------------------------------------------------------------------------23 6.4 Test Results---------------------------------------------------------------------------------------23 7 Transmission time------------------------------------------------------------------------------------25 7.1 Test limit-------------------------------------------------------------------------------------------25 7.2 Method of measurement-----------------------------------------------------------------------25 7.3 Test Setup-----------------------------------------------------------------------------------------25 7.4 Test Results---------------------------------------------------------------------------------------25 8 Band Edge Check-------------------------------------------------------------------------------------27 8.1 Test limit-------------------------------------------------------------------------------------------27 Please refer section15.231 and section 15.205.------------------------------------------------27 8.2 Test Procedure-----------------------------------------------------------------------------------27 8.3 Test Setup-----------------------------------------------------------------------------------------27 8.4 Test Result----------------------------------------------------------------------------------------27 9 Antenna Requirement-------------------------------------------------------------------------------28 9.1 Standard Requirement-------------------------------------------------------------------------28 9.2 Antenna Connected Construction-----------------------------------------------------------28 9.3 Result-----------------------------------------------------------------------------------------------28 10 Photographs of Test Setup------------------------------------------------------------------------29 11 Photographs of EUT---------------------------------------------------------------------------------31 Report No.:STE110707596 FCCID: WSYJJ-RC-F8 Page 3 of 34 1 General Information 1.1 Description of Device (EUT) Trade Name : N/A EUT : RF remote control Model No. : JJ-RC-F8 Type of Antenna : Integral Antenna Operation Frequency : 433.92 MHZ Channel number : 1 Modulation type : ASK Power Supply : DC 6V Supply by battery Rated PF output Power 81.16 dBuV (Peak detector) Applicant : GIANT ALARM SYSTEM CO., LTD Address : NO.5 MANSION, JINGPIN PARK, HUINAN INDUSTRY ZONE, QUANZHOU CITY Manufacturer : GIANT ALARM SYSTEM CO., LTD Address : NO.5 MANSION, JINGPIN PARK, HUINAN INDUSTRY ZONE, QUANZHOU CITY Report No.:STE110707596 FCCID: WSYJJ-RC-F8 Page 4 of 34 1.2 Description of Test Facility Shenzhen Certification …

Text truncated - open the document above for the full version.

Photographs-Radiated Emission Test Setup in Chamber Below 1GHz Above 1GHz
