WTDM3Mono Bluetooth Headset

indicator light ON/OFF multifunction button(MFB) volume down volume up MIC charging port receiver Means of charging: - Power adapter output: DC5V 150mA Battery standard: - High-capability rechargeable lithium polymer battery - Battery voltage: 3.7V (Additional function to protect battery) Product standard: - Bluetooth Version: V4.1 - Class 2 operation - Talk time: about 7 hours - Standby time: about 160 hours Power on-Press and hold "ON/OFF" button for about 3 seconds untill the green indicator light is flashing. Power off-When headset is power on, press and hold "ON/OFF" button for about 3 seconds until the red light indicator flash and goes off. Answering a call-Press the answer key on your phone. Ending a call-Press the end key on your phone. Rejecting a call-Press the end key on your phone. Redialing the last called number-Double press the multifunction button when headset is in standby mode. Voice dialing-Your phone must support this function, when is in standby mode single press the multifunction button for 2 seconds. Playing music-When you are listening to the music, you can short press the MFB button to play and pause. Volume control-Volume will be “up” when short press the “Volume up” and will be “down” when short press the “Volume down”. Previou Next Track Selection-Next song when press the “Volume down” 2 seconds. Previous song when press the “Volume up” 2 seconds. Charging the headset-Your headset uses a rechargeable battery, you must charge the battery fully before using the headset for the first time. Connect the USB charging cable to the USB charge port of the headset. The light indicator will turn into red when charging. The full charge takes about 2-3 hours. The red light indicator goes out and the light indicator turns into green when charging completed. Dear Customer Thank you for using Mono Bluetooth Headset. Please read the user manual carefully for proper instruction to maximize the advantage of our product. Our Bluetooth headset are well designed fashionably, smart and portable, pure acoustic and multi functional. We have patents for the whole series of our Bluetooth headsets.Our Bluetooth headsets are applied with the top advanced electro acoustic technology, providing you the best enjoyment of music any time at home, outdoor or business work, and provide the perfect acoustic with your notebook and any digital audio/visual devices.Lead you to wonderful music,enjoy healthy & happy life. Cautions Please keep or use this product at normal temperature; Do not expose this product in rain or moisture; Do not throw this product to aviod any damage; Do not disassemble, repair or reform this product; Do not clean this product with any chemical solvents; Please use USB power of DC5V for output when needed; Do not throw away or put it in high temperature(higher than 60 C) fire to avoid any danger. The Bluetooth headset can be applied to audio from any Bluetooth devices like mobile phones, notebooks. When being connected to Bluctooth DONGLE on PC, it can play any audio files on the computer. You can use it for voice chat to achieve wireless MSN SKYPE etc. -Press the multifunction button on your headset. -Press the multifunction button on your headset. -Press the multifunction button for 2 seconds on your headset. Voice Prompt When the headset is on, there will be the automatic voice prompt: “power on”. When the headset is off, there will be the automatic voice prompt: “power off ”. When being connected successfully, there will be voice prompt: “your headset is connected”. When the battery is low, there will be voice prompt: “battery low”. When being disconnected,there will be voice prompt: “your headset is disconnected”. Pairing with your Smartphone-Pair the Bluetooth headset for the first time. The distance between the Bluetooth headset and your Bluetooth phone would be better within 1 meter when pairing. Press “ON/OFF” button for 3 seconds, the headset is in pair status. Red light and green light flash alternately. Set the phone to search for Bluetooth device. When phone finds headset, confirm by selecting “ LIGER” from list. Enter pin code “0000” when prompted by phone. Repeat above steps if the pairing was unsuccessful. If pairing is sucessful, green light starts to flash. Retailer information User information Remark Item Retailer name Contact address Product series number Telephone number Date of sales User address E-mail WARRANTY CARD Connect two Bluetooth devices the same time Note: While two mobile phones are connect one Bluetooth headset, some functions of the Bluetooth headset will be restricted. Pair the bluetooth headset to the first smartphone. After pair successfully,turn off the headset,and also disable the bluetooth function of the first smartphone. Pair the bluetooth headset to the second smartphone. After pair successfully,turn on the bluetooth function of the first smartphone. Select the “ LIGER” and click “connect”. Two smartphones will both connect the headset at the same time. User Manual V4.1 This marking shown on the product or its literature indicates that it should not be disposed with other household wastes at the end of its working life. Household user should contact either the retailer where they purchased this product or their local government office, for details of where and how they can take this item for environmentally safe recycling. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. Model:M3 FCC ID:WTDM3 DACOM N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reas…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 9/24/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: WTDM3 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Shenzhen Sande Dacom Electronics Co., Ltd. Contact person: Yang Chao Title: Manager

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 9/24/2015 Request for Confidentiality Company name: Shenzhen Sande Dacom Electronics Co., Ltd. FCC ID: WTDM3 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Shenzhen Sande Dacom Electronics Co., Ltd. hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which Shenzhen Sande Dacom Electronics Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Shenzhen Sande Dacom Electronics Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [Yang Chao] [Manager] Shenzhen Sande Dacom Electronics Co., Ltd. Building E, East District No.8, Shangxue Technolog ShenZhen,China

Sep.24, 2015 Eurofins Product Service GmbH Storkower Str. 38c 15526 Reichenwalde GERMANY Subject: Explanation of differences between product types FCC ID : WTDM3 Model Number: M3, IKHS20B, AngLink M3, BTHXS400, UM3 To Whom It May Concern: We, Shenzhen Sande Dacom Electronics Co., Ltd., hereby declare that the model : IKHS20B, AngLink M3, BTHXS400, UM3 is identical with the model : M3, except the model name. Except for the different above, no other modification is performed. Sincerely, Shenzhen Sande Dacom Electronics Co., Ltd. Signature: Shenzhen Sande Dacom Electronics Co., Ltd. Contact person: Yang Chao Title: Manager

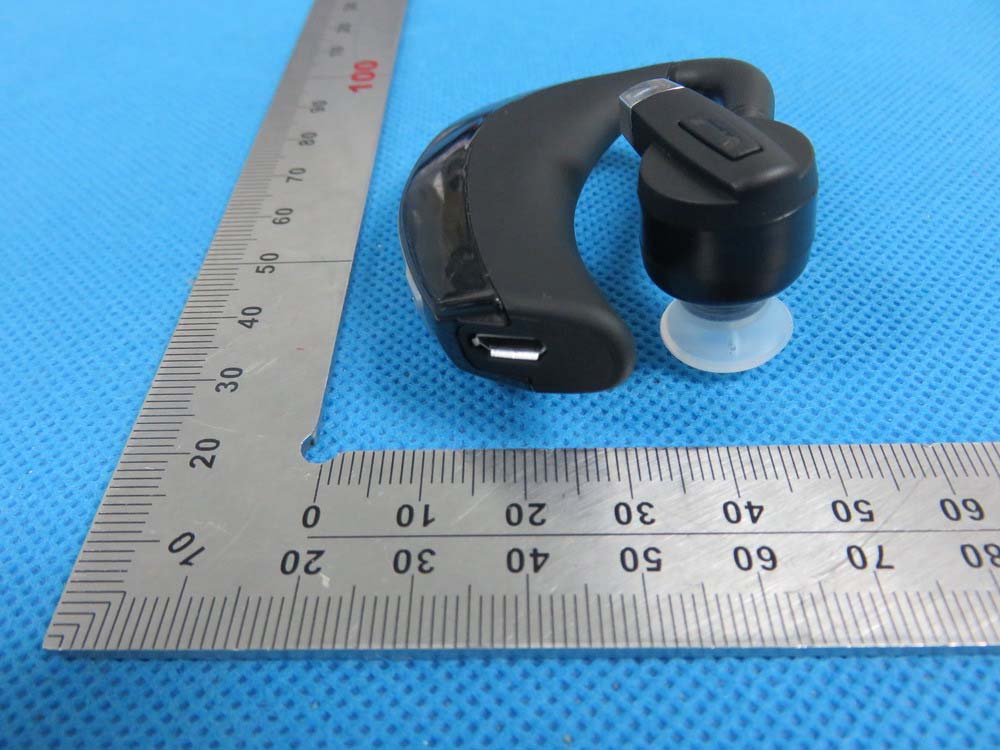

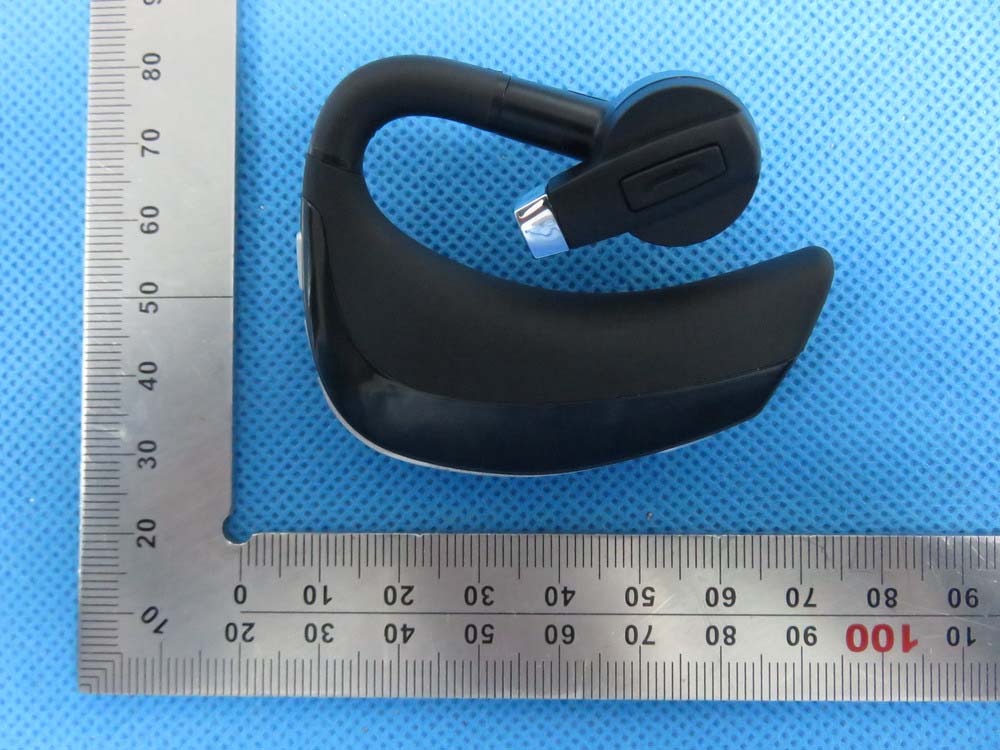

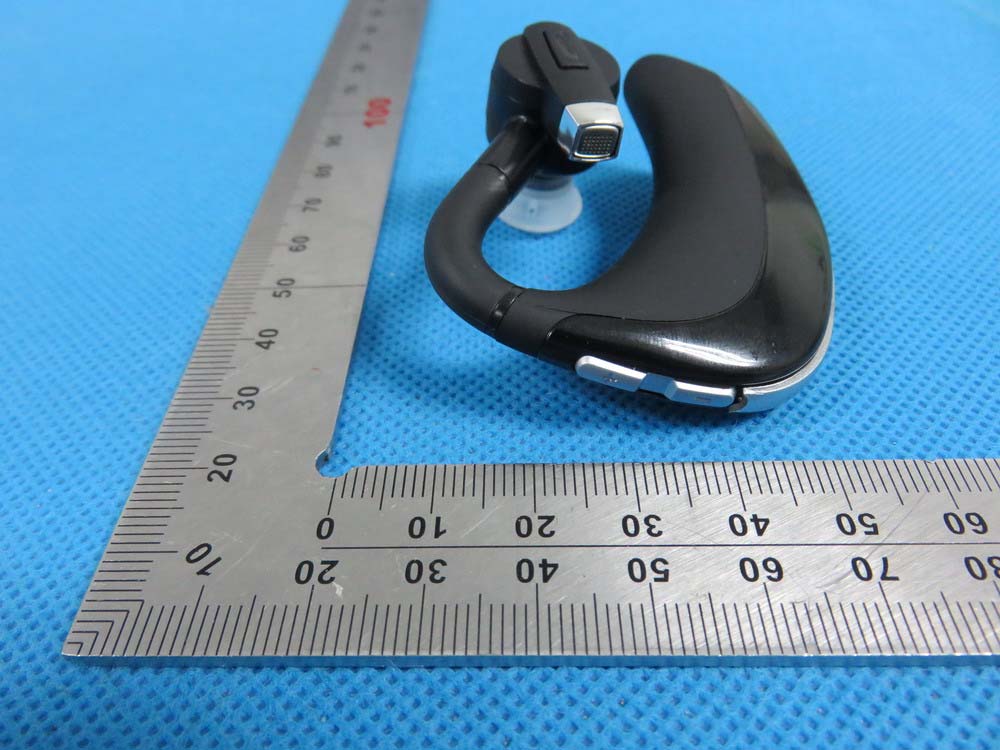

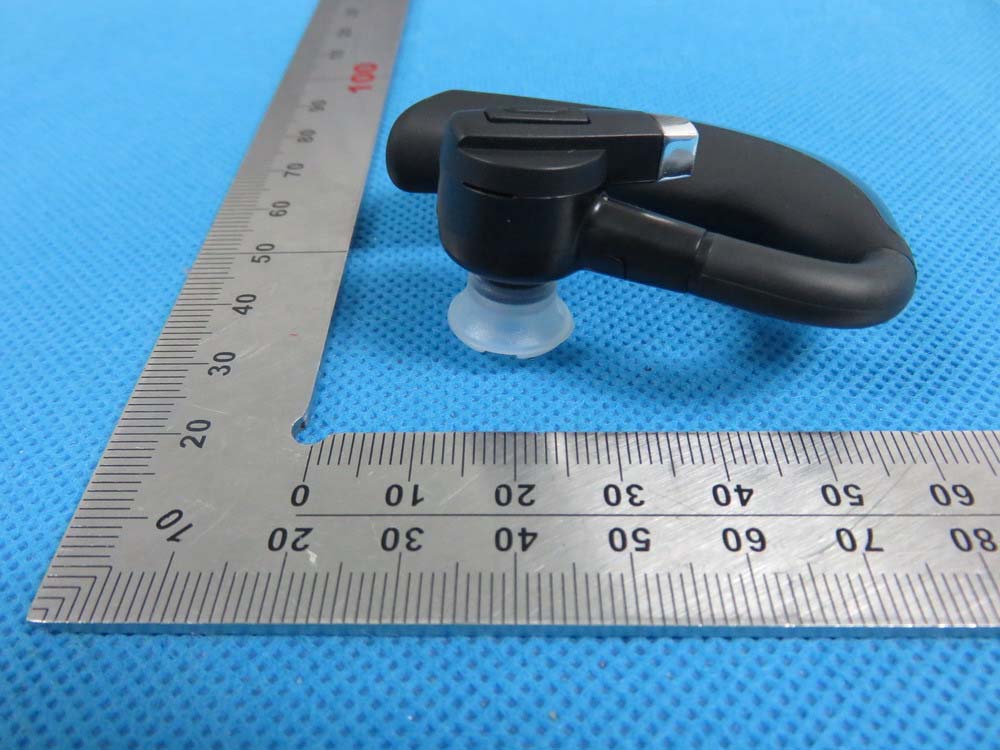

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (Port)

FCC ID Label Location Mono Bluetooth Headset Brand: DACOM Model:M3 FCC ID: WTDM3

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5

Declaration concerning Antenna Specification It is hereby declared that the product Model No.: M3 FCC ID: WTDM3 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: PCBtenna Gain of the antenna: 0.5 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Sande Dacom Electronics Co., Ltd. Address: Building E, East District No.8, Shangxue Technolog ShenZhen,China City: Shenzhen ZIP / Postal code: Country: China Place: Shenzhen Date: Sep.24,2015 Signature:

RF Exposure evaluation Product Description:Mono Bluetooth Headset Model Number: M3 FCC ID: WTDM3 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=92.71dBuv/m=0.043V/m,d=3m,g t =1.12 P t =（E x d） 2 /（30 x g t ）=(0.043x3) 2 /(30x1.12)=0.000495W=0.5mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -0.5mW output power] (0.5mW /5mm) .[√2.480(GHz)]= 0.16<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.
