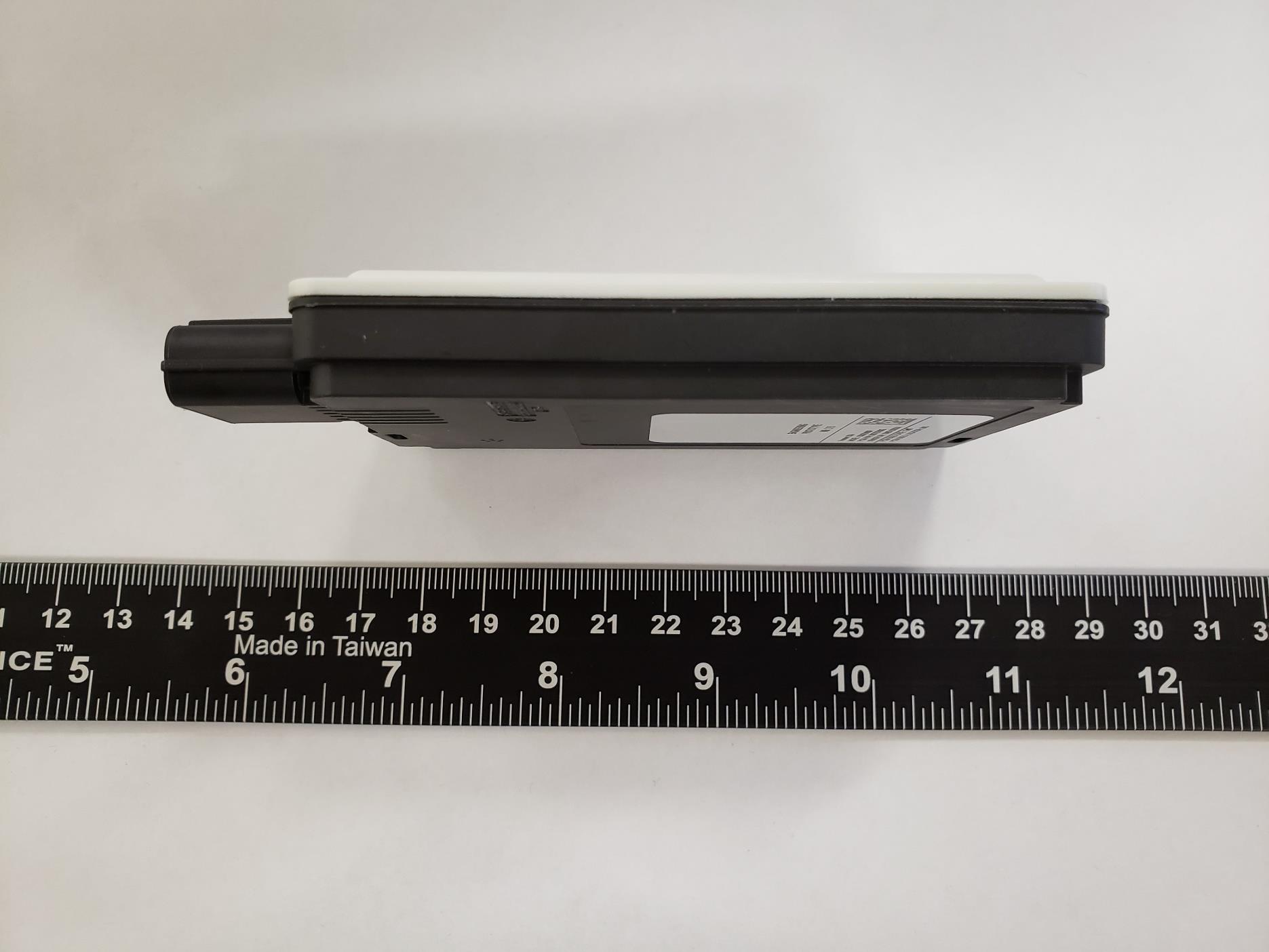

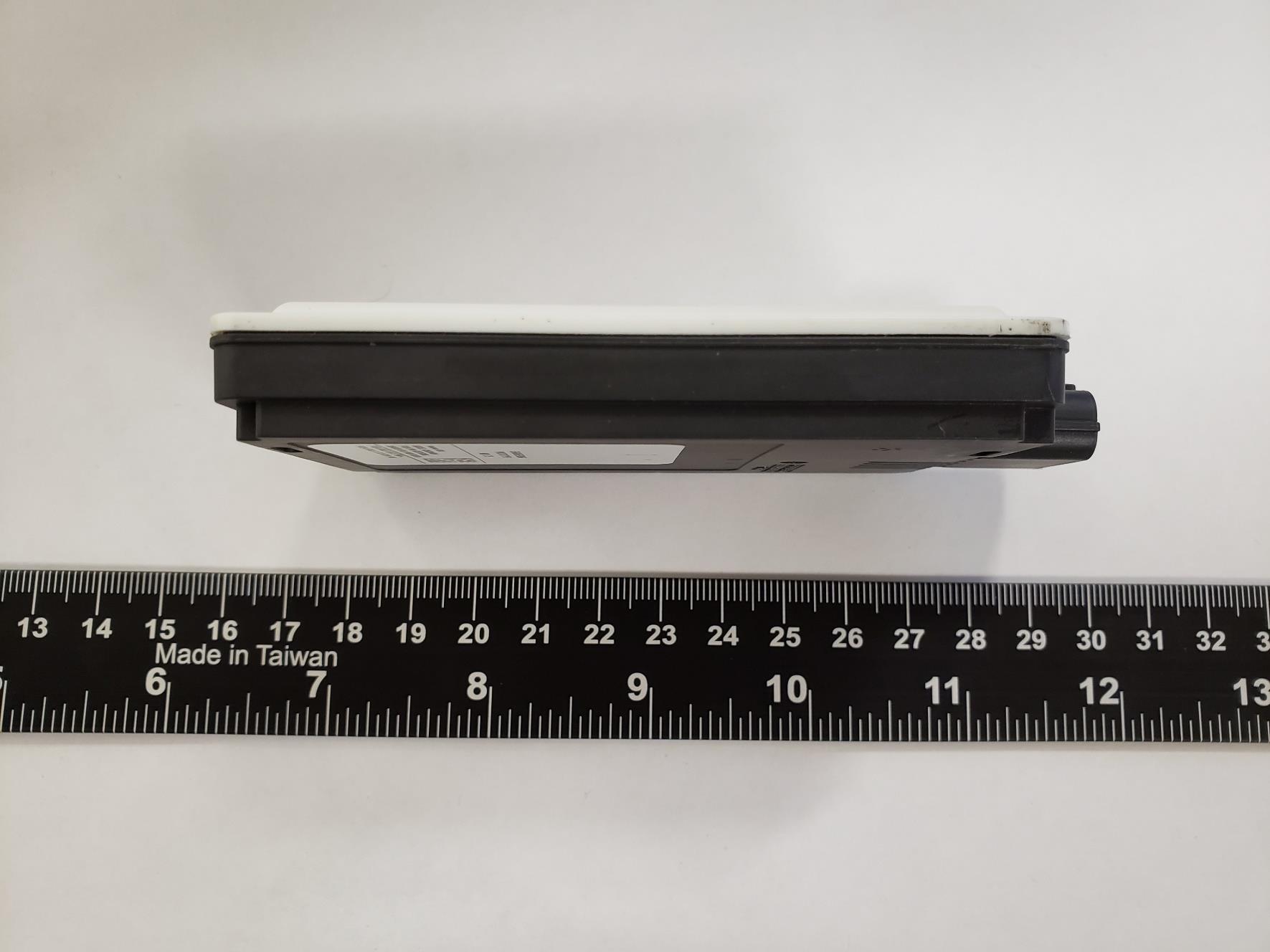

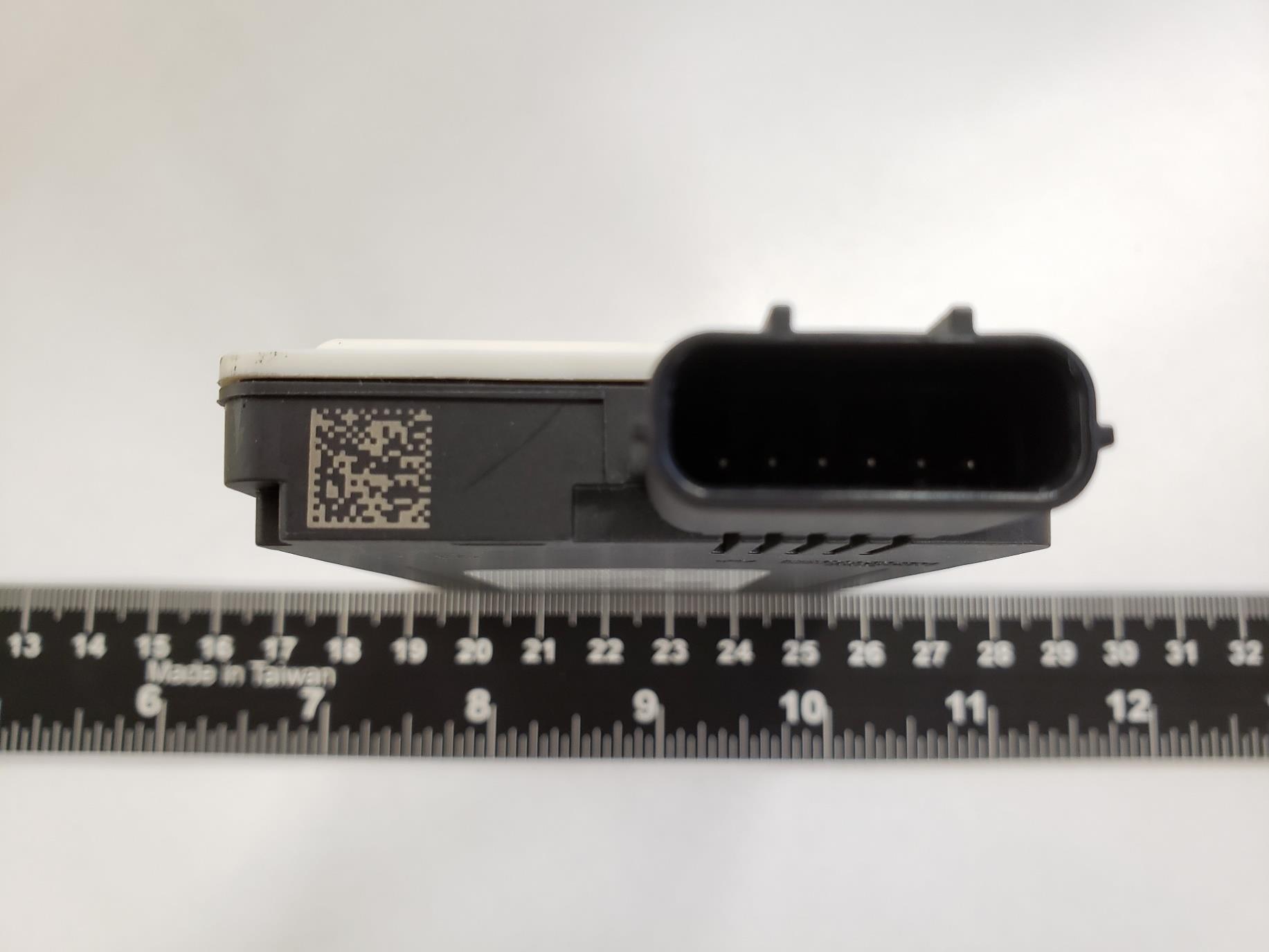

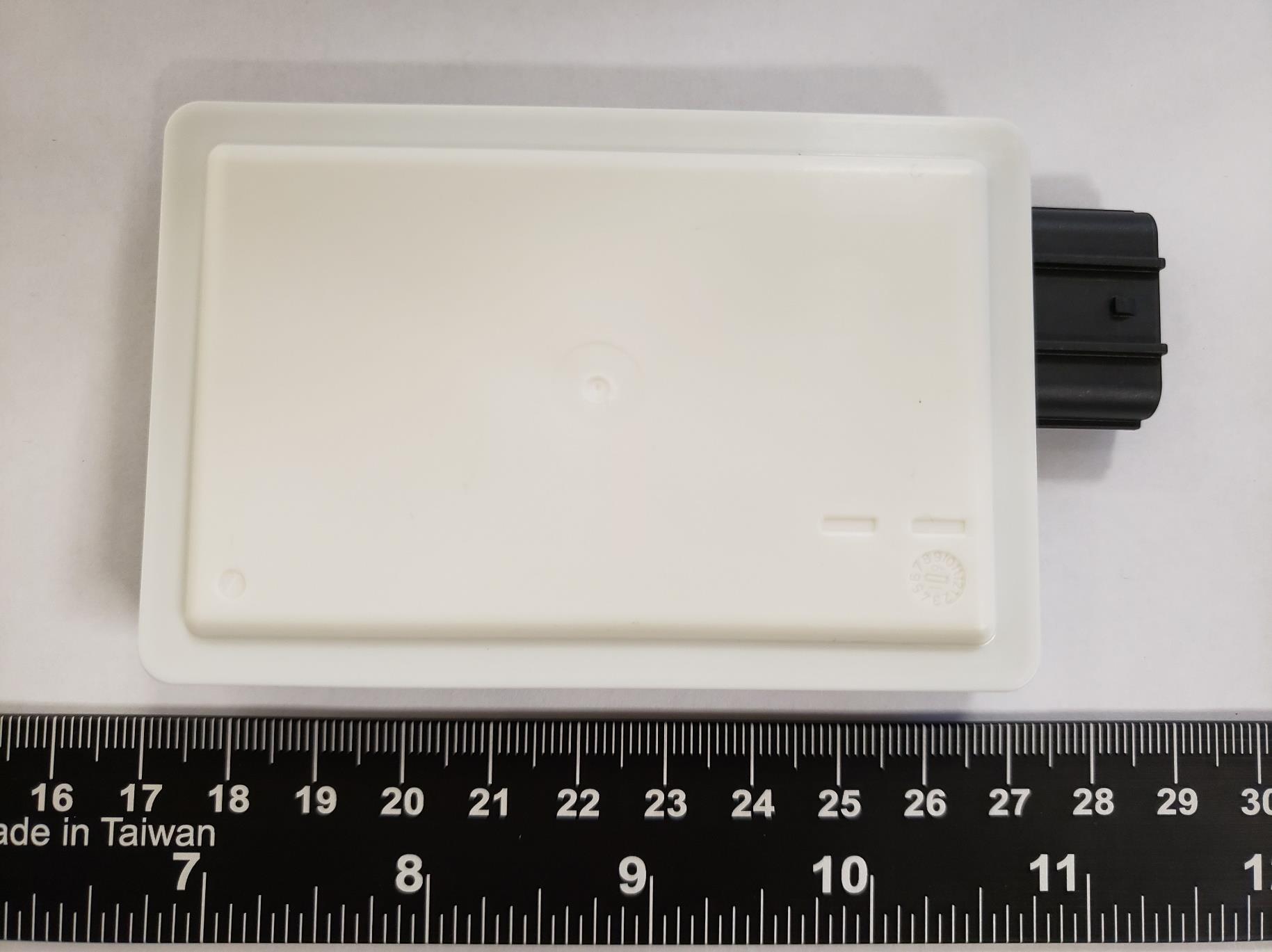

WU8NB24G175V324 GHz SRS Radar Sensor

User Manual for Product Model: NB24G175V3 PUBLIC 24 GHz NB Radar Sensor User Manual Product Model: NB24G175V3 Veoneer US, Inc. 26360 American Drive Southfield, Michigan 48034 USA Phone: +1 248 223 0600 Fax: +1 248 223 8833 User Manual for Product Model: NB24G175V3 Page 2 of 7 Table of Contents 1 ABBREVIATIONS 3 1.1 LIST OF TERMINOLOGY AND ACRONYMS 3 2 PRODUCT OVERVIEW 3 2.1 PRODUCT DESCRIPTION 3 2.2 PRODUCT APPLICATION EXAMPLES 3 3 TYPICAL INSTALLATION 4 4 HARDWARE DESCRIPTION 5 5 SENSOR GENERIC SPECIFICATIONS 6 6 SENSOR FEATURES 6 7 CONFORMANCE STATEMENTS 7 7.1 USA 7 7.2 CANADA 7 7.3 EUROPE 7 8 REVISION HISTORY 7 Table of Figures FIGURE 1: TYPICAL INSTALLATION POSITIONS ........................................................................................................................................... 4 FIGURE 2: GENERIC SENSOR ................................................................................................................................................................. 5 FIGURE 3: SENSOR EXPLODED VIEW ....................................................................................................................................................... 5 User Manual for Product Model: NB24G175V3 Page 3 of 7 1 Abbreviations 1.1 List of Terminology and Acronyms BSD Blind Spot Detection CAN Controller Area Network DSP Digital Signal Processor EMC ElectroMagnetic Compliance (regulatory standards) FM Frequency Modulation GHZ Giga-Hertz (10^ 9 ) HP Host Processor LCA Lane Change Assist MMIC Monolithic Microwave Integrated Circuit MCU MicroController Unit NB Narrow Band PCB Printed Circuit Board RADAR RAdio Detection And Ranging RCTA Rear Cross Traffic Alert RF Radio Frequency (or Microwave) 2 Product Overview 2.1 Product Description The products described here are part of a family of radars offered by Veoneer. They are intended for automotive use, operating in the 24.050 - 24.250GHz band. The radars are integrated into a vehicle to enhance vehicle safety systems. They can be integrated as a standalone sensor or sensors, or as part of more complex system that also may include cameras, lidar, and other type of sensors to provide features like Automatic Cruise Control, Automatic Emergency Break, Free Space Detections and other Autonomous Driving functions. 2.2 Product Application Examples The product can be used, but is not limited to the following applications: • Autonomous drive systems • Automatic braking systems • Collision prevention systems • Cross Traffic Monitor system • Blind Spot Detection system • Lane Change Alert systems User Manual for Product Model: NB24G175V3 Page 4 of 7 3 Typical Installation The radar is typically installed in the positions of the vehicle depicted in Figure 1 often mounted behind a bumper or emblem. Figure 1: Typical Installation Positions User Manual for Product Model: NB24G175V3 Page 5 of 7 4 Hardware Description The NB RADAR is a fully integrated 24GHz radar sensor with both RF and DSP modules on the same PCB. The design supports a combination of pulsed Doppler and chirped FM waveforms that can detect moving or stationary vehicles in a high clutter environment. The sensor’s DSP side controls all signal processing, diagnostics and communications and contains the sensor’s two processors. The RF module generates, transmits, receives and demodulates radar signals using two Veoneer MMICs. Software algorithms calculate target parameters such as range, speed and angle, and make feature decisions that are sent out to the vehicle over the CAN bus. The components are assembled into a plastic housing that is laser welded together. The sensor has no serviceable parts and can’t be opened without permanent damage. Figure 2: Generic Sensor Figure 3: Sensor Exploded View User Manual for Product Model: NB24G175V3 Page 6 of 7 5 Sensor Generic Specifications Sensor Specifications & Functions Value Unit Operating Conditions Frequency Band 24.05 – 24.25 GHz Power Dissipation <5 W Vehicle Network Interface CAN2.0B Operating Temperature -40C to +85 C Input Operating Voltage 8 – 16 V RF Output Power 13.5 dBm peak Operating Life 15 years Waveform Parameters Cycle Time 80 ms Bandwidth <200 MHz Physical Parameters Size 95x63x16.3 mm Weight <150 g Vehicle Physical Interface 6 pin Yazaki connector Performance Parameters Detection Range for RCTA 2 – 60 m Detection Range for BSD .5 – 14 m Detection Range for LCA 4 – 80 m Field of View for RCTA +/-65 degrees 6 Sensor Features The BSD algorithm detects and reports “Objects of Interest" on either side of the vehicle, within a specified “blind spot” zone. The feature generates a signal which is used to drive a visual display placed in the outside view mirror to alert the driver to the presence of objects of interest within the defined SBZA zone. The LCA algorithm detects and reports to the driver that a highway licensable vehicle is rapidly approaching the host vehicle in one of the adjacent lanes. The feature generates a signal which is used to drive a visual display placed in the outside view mirror and/or request a chime or vibrating seat cushion, to alert the driver to the approach of objects of interest within the defined LCA zone. The RCTA algorithm detects and reports “Objects of Interest” behind the host vehicle, within a specified RCTA coverage zone. The feature generates a signal which is used to drive a visual display to alert the driver of the presence of objects of interest that may cause a collision with the host vehicle within the defined RCTA zone. User Manual for Product Model: NB24G175V3 Page 7 of 7 7 Conformance Statements 7.1 USA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION TO USERS Changes or modifications not expressly approved by the party responsible for complian…
