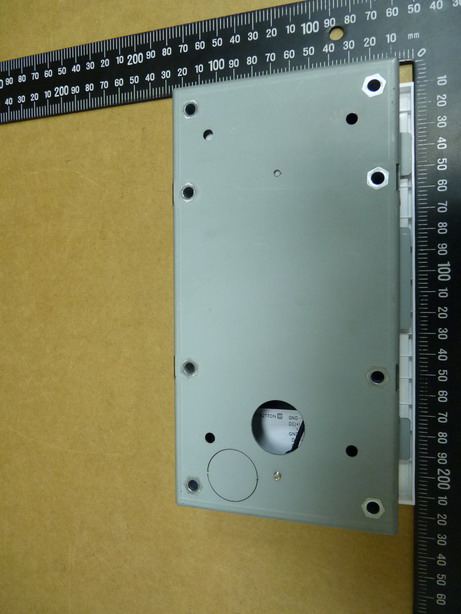

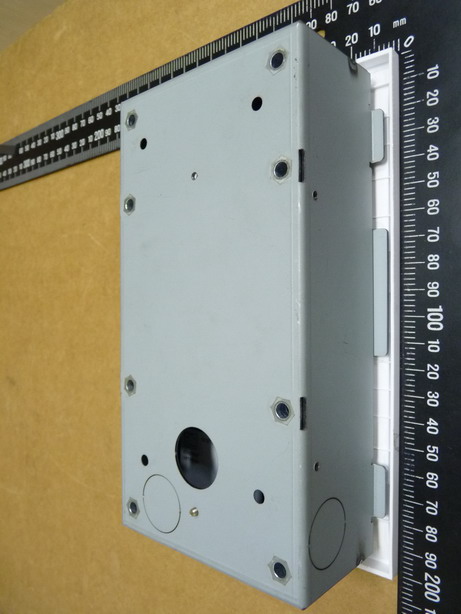

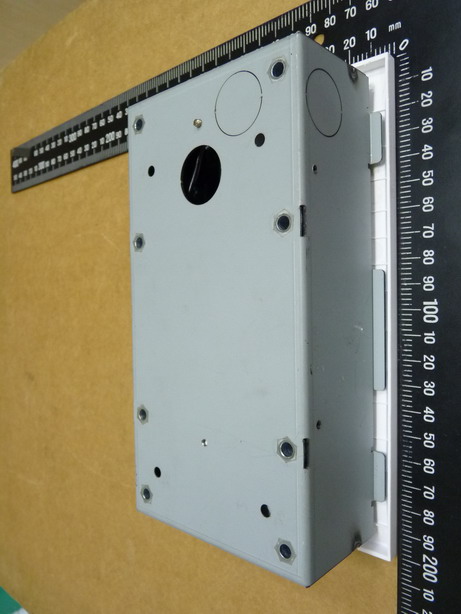

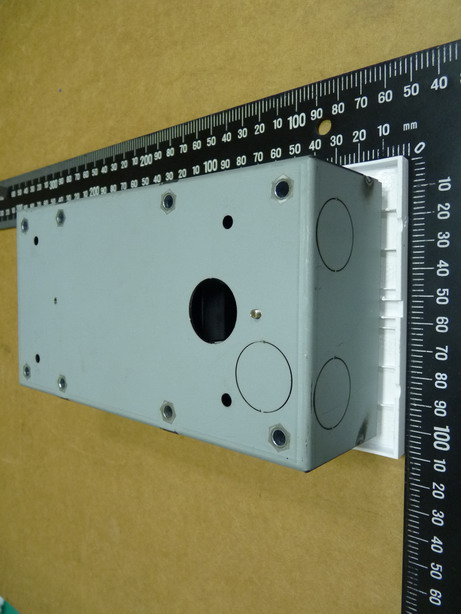

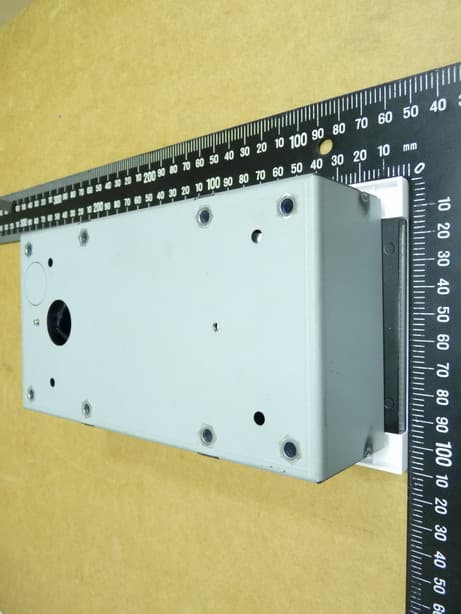

WUGDB3100RVideo door phone

Copyright © 2012 Amroad Technology Inc. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form or by any means without the express written permission of Amroad Technology Inc. To obtain consent, write to the attention of Amroad Technology Inc. Document No. DB3100R 2012-0402 www.amroad.com.tw DISCLAIMER Amroad reserves the right to change product specification without prior notice. Changes may be made to the information in this publication without obligation to notify. Amroad shall not be liable for technical or editorial errors contained herein. TRADE MARKS Amroad logo is copyright of Amroad Technology Inc. All other products, services or trade marks mentioned in this document are the property of their respective owners, companies or organizations. Contents Copyright Chapter 1: Introduction 1 Welcome 1 General Application of Door Entry System 2 Unit in Luxury Apartment Building 2 Use of SIP 3 Chapter 2 : Knowing Video Door Phone 5 Package Contents 5 Front Panel 6 Rear Panel & Side View 7 Dimensions 8 Chapter 3 : Installing Video Door Phone 9 Suggested Installation Position 9 View Angle 9 Installion Procedures 10 1. Prepare Flush-Mounted Box 10 2. Secure Flush-Mounted Box on Steel Frame 11 3. Wire and Cable Connection 12 4. Installing DB3100R Unit 13 Reset Button 14 Connecting to Ground Wire 15 Chapter 4 : Use of the Video Door Phone 17 Making Calls From Video Door Phone 17 Answering Calls on IP Video Phone 17 Open the Door 17 Common Controls 17 DB3100R RFID Card Usage 18 Issue Master RFID Card First Time 18 Issue a New Card with Master RFID Card: 18 Wall Lamp and RFID LED Indicators 19 Status LED 20 Audio Announcement 21 Chapter 5 : Configuring Video Door Phone 23 Finding Video Door Phone on Networks 23 Entering Web User Interface 24 System - Basic Settings 25 System - Networking Settings 26 System Login Name 27 System Reboot 27 Streaming Settings – Video 28 Streaming Settings – Audio 30 SIP Settings 31 Entrance Settings – Extensions 33 Entrance Settings – GPIO 36 Entrance Settings –RFID 38 Upgrade –Upgrade 40 Upgrade –Configuration 41 AR APS 42 Functions Performed by the IP-PBX (Compatible with Amroad IP-PBX) 43 Appendix A : IO Application 45 Electronic Lock 45 Wiring Connection and Web Page Setup 45 Electronic Bolt 45 Electronic Strike 47 Appendix B : Regulatory Information 49 FCC STATEMENT 49 FCC Radiation Exposure Statement 49 CE DECLARATION OF CONFORMITY (EUROPE) 50 Amroad Technology Inc.1 MANUAL FOR SYSTEM INTEGRATOR Chapter 1: Introduction Welcome Thank you for choosing this Video Door Phone. This device is designed to work as Video Door Phone of inside large building to form a SIP-based door entry system. Besides taking advantages of IP technologies, this device links to other SIP devices. It will work with most IP PBX systems supporting audio and video, and it can be configured via a web interface. This product contains following main features: • Talk to visitors with real time video and voice on IP Video Phone or Video Indoor Station • SIP 2.0 (RFC3261) Compliant • Support H.263 video format. • Support G.711 audio formats. • RFID card reader (ISO14443A/13.56MHz (MIFARE Standard) with embedded RFID card database • Support Peer-to-Peer Mode • Build-in wide angle lens • Wall Lamp (White LEDs) • Build-in speaker and microphone. • Scan RFID card to open the door • Support PoE (Power over Ethernet, 802.3af) module (External power supply AC 48V In) • Web user interface for configuration and management. Please read this user guide before installing the device. Please contact your dealers or system integrators if you have questions. Figure 1: DB3100R Amroad Technology Inc. 2 3 DB3100R VIDEO DOOR PHONE General Application of Door Entry System There are two major series of Video Door Phone: community series and single unit series. They are applied on different conditions. DB3100R is designed for Unit in Luxury Apartment Building Application. It can work with IPBX servers to communicate with other SIP-based devices. DB3100R works not only as an intercom system but is also able to integrate RFID card reader and connect to other SIP devices to form a complete door entry system. Figure 2: Unit in Luxury Apartment Building Application Unit in Luxury Apartment Building Unit in Luxury Apartment Building is illus- trated. Please see Figure 2 for reference. • Using a home IP PBX to connect all SIP- based devices. • Communicate with each device simply with extension numbers. • Connect to SIP VoIP services via Inter- net. Amroad Technology Inc.3 MANUAL FOR SYSTEM INTEGRATOR Use of SIP SIP, initial of Session-Initiation-Proto- col, it is an application-layer control (signaling) protocol for creating, modi- fying, and terminating sessions with one or more participants. These ses- sions include Internet telephone calls, multimedia distribution, and multime- dia conferences. In short, SIP is a most commonly used protocol that has been used to interconnect SIP Enabled PBXs and/or SIP User Agents to each other to establish voice and video sessions between SIP based devices over IP Network. There are few typical applications of SIP products, please refer to Figure 4: • Ring the Door Bell from Video Door Phone (DB3100R) to IP Video Phone (VP113/P)/Video Indoor Station (ID5101)/IPC Softphone • Make a DB3100R live-video view phone call from IPC Softphone /IP Video Phone / Video Indoor station. • Make a video phone call from ID5101 Video Indoor Station to VP113 IP video phone. Figure 3: General SIP Application Amroad Technology Inc. 4 5 DB3100R VIDEO DOOR PHONE Amroad Technology Inc.5 MANUAL FOR SYSTEM INTEGRATOR Chapter 2 : Knowing Video Door Phone Package Contents The following items are included in your Video Door Phone package. Check this list before installation to ensure that you have received all items. 1. Video Door Phone Main Unit 2. Front Panel 3. Flush-Mounted Box 4. 2-pin Terminal block 5…
