FCC ID: WUO-WBT1012 IC: 7985A-WBT1012 Sonavox Canada Inc. Bluetooth Module WBT1012 OEM / Integrators Installation Manual 1 This document is designed to provide general information for use of the Bluetooth Audio Module WBT1012. This module is to be used only for OEM installations and limited to mobile or fixed installations. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. EMI/EMC Compliance Guidelines FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. IC Compliance This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. When integrating the WBT1012 module into your own product, you must: 1. Use only the provided Chip antenna. FCC ID: WUO-WBT1012 IC: 7985A-WBT1012 Sonavox Canada Inc. Bluetooth Module WBT1012 OEM / Integrators Installation Manual 2 2. Operate the module according to the specifications listed in this data sheet. 3. Include a label clearly visible on the exterior of the product which states: “Contains FCC ID: WUO-WBT1012 / IC: 7985A-WBT1012”. 4. It is mandatory that you consult all FCC and IC documentation for use of a modular approved product, and comply with all listed guidelines and additional testing that may be required. 5. The OEM integrators is responsible to not provide information to the end user about removal or installation of this module. 6. Separate approval is required for configuring this module in way not covered by the certification tests. 7. The Host manufacturer is responsible to ensure compliance of the final product incorporating this module with FCC part 15B for unintentional radiators. Sonavox will provide guidance for the integration in order to ensure compliance with FCC part 15B. Specifications RF Circuit The module consists of BlueNRG Bluetooth Low Energy SoC, Band-pass filter, antenna / optional connector and matching circuits. RF Performance and Antenna configuration: • Outdoor range: 10m. • Maximum Transmitting RF Power: 8 dBm. • Receiving Sensitivity: -88 dBm. • Frequency: ISM 2.402 - 2.480 GHz. • Operation mode: Bluetooth Energy Compliant. • Antenna: chip antenna. Physical Dimensions (Fig.1) • L x W x H = 1050 x 785 x 200[thou] • Standard 100 th LS connector PCB Material and layout considerations The PCB material for the base PCB should be FR4 glass epoxy. The VCC pin should be connected to 3.3V and have decoupling electrolytic capacitor and ferrite bead positioned as close to the supply pin as possible. No components or traces should be located close to the antenna. Recommended minimum distance is 15[mm] from any metal part in the final assembly or PCB component. Communications FCC ID: WUO-WBT1012 IC: 7985A-WBT1012 Sonavox Canada Inc. Bluetooth Module WBT1012 OEM / Integrators Installation Manual 3 External micro-controller (uC) can control the module by using SPI interface. Firmware Sonavox can provide customized configuration of the module for its customers. Other features The module is RoHS compliant. The module is FCC, IC and CE approved. Pinout: 1. 3.3V - Vcc 2. GND - ground 3. RESET - reset (active low) 4. SPI_CS - SPI chip select 5. SPI_MISO - SPI MISO 6. SPI_MOSI - SPI MOSI 7. SPI_CLK - SPI clock 8. IRQ - interrupt pin

Client Sonavox Canada Inc Product WBT1012 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 1 of 2 Report issue date: 12/22/2014 GEMC File #: GEMC-FCC-22268R1 Illustration 1: EUT external top view Client Sonavox Canada Inc Product WBT1012 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 2 of 2 Report issue date: 12/22/2014 GEMC File #: GEMC-FCC-22268R1 Illustration 2: EUT external bottom view

Filename: LA0236-A.cdr 1 Color: Black on White Background Material: 4 mil white PET, double sided tape on rear Silkscreen P/N: LA0236 Revision: A Model: WBT1012 FCC ID WUO-WBT1012 IC: 7985A-WBT1012 WBT1012

Client Sonavox Canada Inc Product WBT1012 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 1 of 1 Report issue date: 12/22/2014 GEMC File #: GEMC-FCC-22268R1 Label Location

Client Sonavox Canada Inc Product WBT1012 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 1 of 1 Report issue date: 12/22/2014 GEMC File #: GEMC-FCC-22268R1 Maximum Permissible Exposure – 15.247 Purpose The purpose of this test is to ensure that the RF energy intentionally transmitted, in terms of power density emitted from the EUT at a stated operating distance does not exceed the limits listed below as defined in the applicable test standard, as calculated based upon readings obtained during testing. This helps protect human exposure to excessive RF fields. Limit(s) and Method The limits, as defined in FCC 15.247(i) and FCC 1.1310 Table 1 (B) limits for general public exposure was applied. The limit for the frequency range of 1.5 GHz to 100 GHz was applied to the 15.247 device. This is a limit of 1.0 mW/cm 2 . The distance used for calculations was 0.5 cm, as this is the minimum distance an operator will be from the EUT during normal operation, as stated by the manufacturer. Results The EUT passed the requirements. The worst case calculated power density was 0.26 mW/cm 2 , this is under the 1.0 mW/cm 2 requirement. Calculations Method 1 (conducted power) Internal antenna P d = (P t *G) / (4*pi*R 2 ) Where Pt = 4.62 dBm or 2.90 mW as per Peak power conducted output Where G = 0.5 dBi, or numerically 1.12 Where R = 1 cm P d = (2.90 mW * 1.12) / (4 * pi * 1 cm 2 ) P d = 3.25 mW / 12.57 cm 2 P d = 0.26 mW/cm 2

LAB REGISTRATION #6844A-3 Testing Laboratory Certificate #2555.01 FCC REGISTRATION #377448 R-4023, G-506 T-1246, C-4498 Page 1 of 71 Report issue date: 12/22/2014 GEMC File #:GEMC-FCC-22268R1 © Glo bal EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 247 Rev2.” Global EMC Inc. Labs EMC & RF Test Report As per RSS 210 Issue 8:2010 & FCC Part 15 Subpart C:2014 Unlicensed Intentional Radiators on the WBT1012 Min Xie Project Engineer 11 Gordon Collins Dr, Gormley, ON, L0H 1G0 Canada Ph: (905) 883-8189 Testing produced for See Appendix A for full customer & EUT details . Client Sonavox Inc Product WBT1012 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 2 of 71 Report issue date: 12/22/2014 GEMC File #: GEMC-FCC-22268R1 © Glo bal EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 6dB Bandwidth of Digitally Modulated Systems ............................................................ 13 Maximum Peak Envelope Conducted Power .................................................................. 17 Antenna Spurious Conducted Emissions (-20 dBc Requirement) – 15.247 .................... 20 Radiated Emissions – 15.247 ........................................................................................... 24 Power Spectral Density – 15.247 DM ............................................................................. 52 Maximum Permissible Exposure – 15.247 ...................................................................... 55 Power Line Conducted Emissions ................................................................................... 56 Appendix A – EUT Summary .............................................................................................. 62 Appendix B – EUT and Test Setup Photographs................................................................. 65 Client Sonavox Inc Product WBT1012 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 3 of 71 Report issue date: 12/22/2014 GEMC File #: GEMC-FCC-22268R1 © Glo bal EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of Sonavox Inc’s WBT1012 herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was tested for compliance against the following standards: RSS 210 Issue 8:2010 FCC Part 15 Subpart C 15:2014 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Sonavox Inc Product WBT1012 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 4 of 71 Report issue date: 12/22/2014 GEMC File #: GEMC-FCC-22268R1 © Glo bal EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: WUO-WBT1012 EUT Industry Canada Certification #, IC: 7985A-WBT1012 EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Min Xie Client Sonavox Inc Product WBT1012 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 5 of 71 Report issue date: 12/22/2014 GEMC File #: GEMC-FCC-22268R1 © Glo bal EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.203 Antenna Requirement Unique Pass See Justification FCC 15.205 RSS 210 (Table 1) Restricted Bands for intentional operation QuasiPeak Average Pass FCC 15.207 Power line conducted emissions QuasiPeak Average N/A, (See Justifications) FCC 15.209 RSS-210 (Table 2) Spurious Radiated emis…

Text truncated - open the document above for the full version.

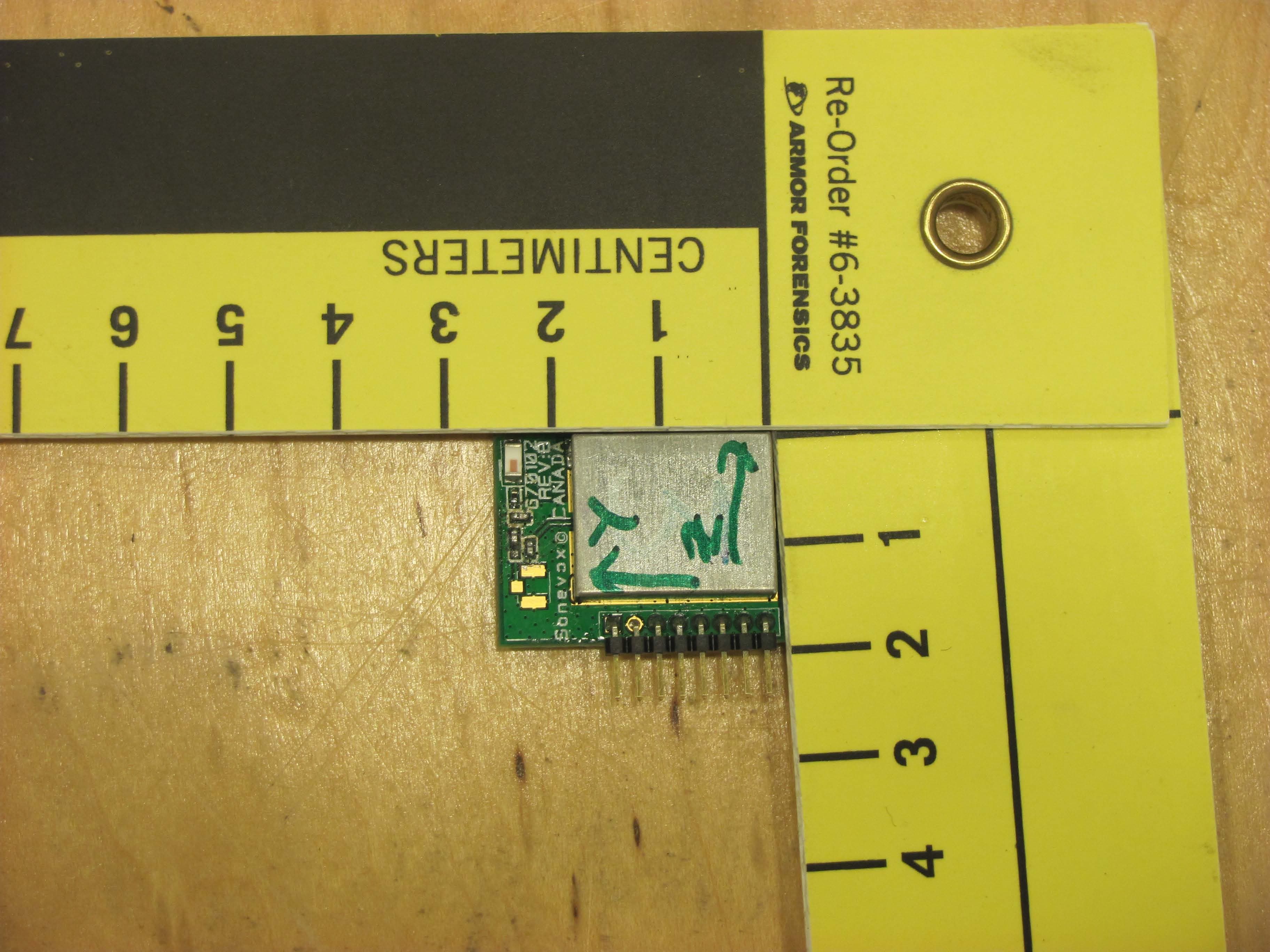

Client Sonovox Canada Inc Product WBT1012 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 1 of 6 Report issue date: 12/22/2014 GEMC File #: GEMC-FCC-22268R1 Illustration 1: Radiated emission setup – photo 1 Client Sonovox Canada Inc Product WBT1012 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 2 of 6 Report issue date: 12/22/2014 GEMC File #: GEMC-FCC-22268R1 Illustration 2: Radiated emission setup - photo 2 Client Sonovox Canada Inc Product WBT1012 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 3 of 6 Report issue date: 12/22/2014 GEMC File #: GEMC-FCC-22268R1 Client Sonovox Canada Inc Product WBT1012 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 4 of 6 Report issue date: 12/22/2014 GEMC File #: GEMC-FCC-22268R1 Illustration 3: Radiated setup - photo 3 Illustration 4: Antenna conducted emission setup Client Sonovox Canada Inc Product WBT1012 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 5 of 6 Report issue date: 12/22/2014 GEMC File #: GEMC-FCC-22268R1 Illustration 5: Power line conducted emission setup – photo 1 Client Sonovox Canada Inc Product WBT1012 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 6 of 6 Report issue date: 12/22/2014 GEMC File #: GEMC-FCC-22268R1 Illustration 6: Power line conducted emission setup – photo 2
