WUR-FZ100Foundation Smart Thermostat and Home Energy Gateway

Foundation Foundation Smart Thermostat & Home Energy Gateway User Guide Programmable Communicating Thermostat & In-Home Energy Use Display AW000718-C Foundation User Guide May 2012 Page 2 Legal Declarations © 2012 Energate Inc. All Rights Reserved. Foundation Smart Thermostat & Home Energy Gateway User Guide Information in this document is subject to change without notice. Energate assumes no responsibility for any errors that may appear in this document. ENERGATE INC. DISCLAIMS ALL WARRANTIES WITH RESPECT TO THIS DOCUMENT, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THOSE OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ENERGATE DEVICE BE LIABLE, WHETHER IN CONTRACT, TORT, WARRANTY, OR UNDER ANY STATUTE OR ON ANY OTHER BASIS FOR SPECIAL, INCIDENTAL, INDIRECT, UNITIVE, MULTIPLE OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH OR ARISING FROM THIS DOCUMENT, INCLUDING BUT NOT LIMITED TO THE USE THEREOF. Notice to Purchaser Foundation Smart Thermostat is covered by one or more of US Patent Number 7737762, Solid-State Switch and corresponding claims in their non-US counterparts, owned by Energate Inc. No right is conveyed expressly, by implication, or by estoppel under any other patent claim. Trademarks Energate is a registered trademark. Foundation and Foundation Smart Thermostat & Home Energy Gateway are trademarks of Energate or its subsidiaries in the U.S. and/or certain other countries. All other trademarks are the sole property of their respective owners. May 2012 Foundation User Guide May 2012 Page 3 Warranty LIMITED WARRANTY OF ENERGATE INC. Energate Inc. Warrants that this product will be free from defects in material and workmanship for a period of one (1) year from the date of the original purchase of this product from Energate Inc. (the “Warranty Period”). THIS WARRANTY DOES NOT INCLUDE DAMAGE TO THE PRODUCT RESULTING FROM ACCIDENT OR MISUSE. ENERGATE INC. DISCLAIMS ALL WARRANTIES AND CONDITIONS. EXPRESS OR IMPLIED, AS TO THIS PRODUCT’S MERCHANTABILITY, PRODUCTIVENESS OR FITNESS FOR ANY PARTICULAR PURPOSE, INCLUDING ANY AND ALL WARRANTIES ARISING BY STATUTE OR OTHERWISE IN LAW OR FROM A COURSE OF DEALING OR USAGE OF TRADE. If this product becomes defective during the Warranty Period, Energate Inc. shall have the option, in its sole discretion, to either repair the product or replace the product. This warranty shall be solely for the benefit of the party that purchases this product directly from Energate Inc. or one of Energate’s recognized distributors and is not assignable without the express written consent of Energate Inc. To obtain warranty service, please contact your electricity service provider. A return authorization is required on all returns relating to a warranty claim. Energate Inc. reserves the right to charge the purchaser of this product for the costs of shipping replacement products or parts. In the event that any part of this product is replaced by Energate Inc. during the Warranty Period, any and every warranty that might be applicable to the replacement part[s) shall expire on the date of the expiry of the Warranty Period. ENERGATE INC.’S ENTIRE AGGREGATE LIABILITY FOR LOSSES AND DAMAGES FOR ANY CAUSE RELATED TO OR ARISING OUT OF THE PURCHASER’S PURCHASE AND/ OR USE OF THE PRODUCT WILL IN NO EVENT EXCEED THE PURCHASE PRICE PAID FOR THE PRODUCT. IN NO EVENT WILL ENERGATE INC. BE LIABLE FOR: (A) ANY INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR PUNITIVE LOSS OR DAMAGE, OR OTHER ECONOMIC LOSS OF ANY KIND, IN ANY CASE, EVEN IF ADVISED OF, OR IF ENERGATE INC. COULD REASONABLY FORESEE, THE POSSIBILITY THEREOF. THE LIMITATIONS, EXCLUSIONS AND DISCLAIMERS IN THIS AGREEMENT SHALL APPLY IRRESPECTIVE OF THE NATURE OF THE CAUSE OF ACTION, DEMAND, OR PROCEEDING INCLUDING BUT NOT LIMITED TO, BREACH OF CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITY OR ANY OTHER LEGAL OR EQUITABLE THEORY. Foundation User Guide May 2012 Page 4 Table of Contents Legal Declarations ......................................................................................................................................... 2 Warranty ....................................................................................................................................................... 3 1 How to use this guide ........................................................................................................................... 6 1.1 Purpose ......................................................................................................................................... 6 1.2 Intended Audience ........................................................................................................................ 6 1.3 Text Conventions .......................................................................................................................... 6 2 About Foundation ................................................................................................................................. 7 2.1 Operating Foundation ................................................................................................................... 8 2.2 Sleep Mode ................................................................................................................................... 8 2.3 LED Indicators ............................................................................................................................... 9 2.4 Thermostat and Energy Modes ................................................................................................... 10 2.5 Switch between Thermostat and Energy Modes ........................................................................ 11 3 Thermostat Mode ............................................................................................................................... 12 3.1 Thermostat Home Screen .........................................................................................................…

Text truncated - open the document above for the full version.

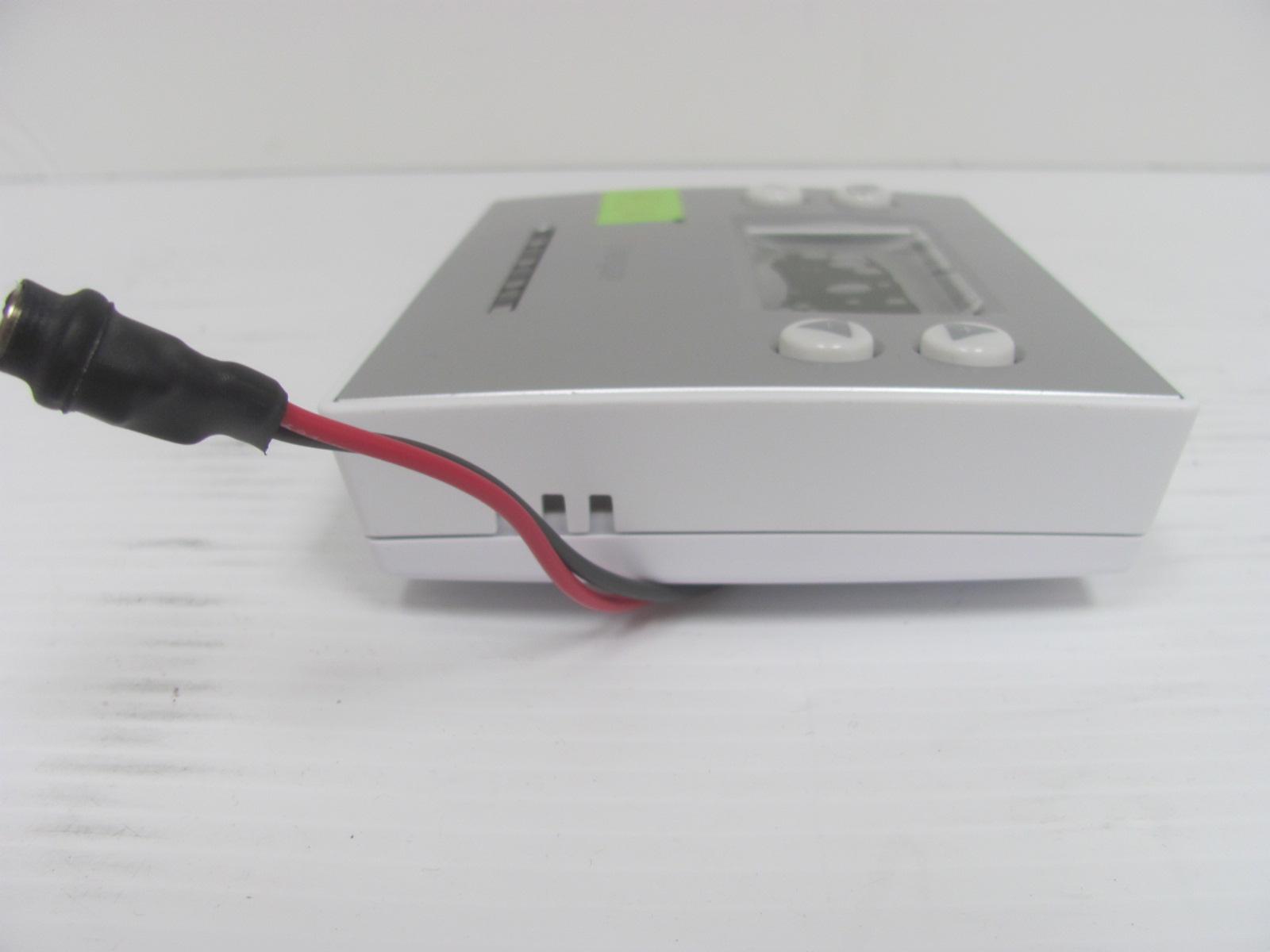

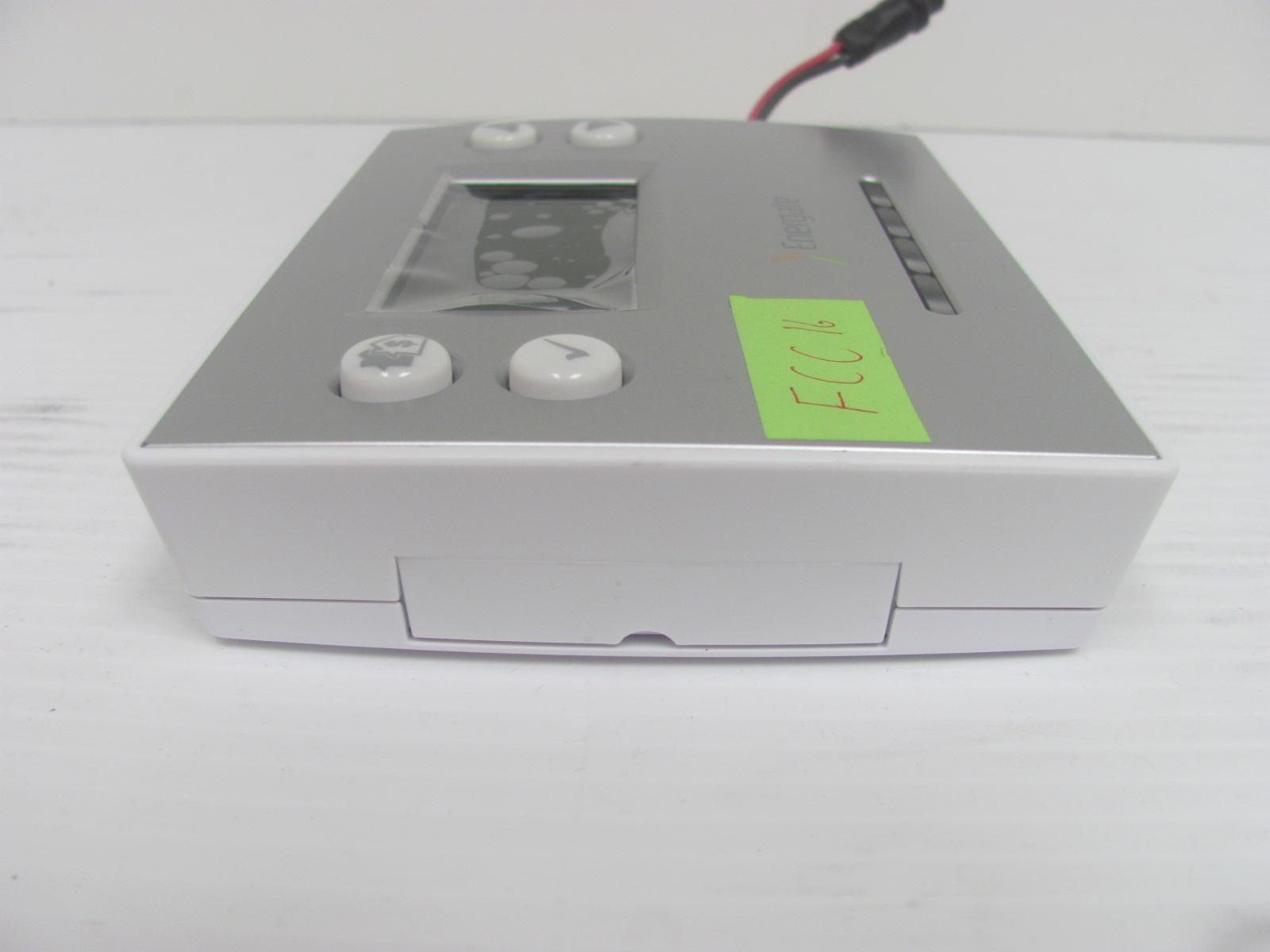

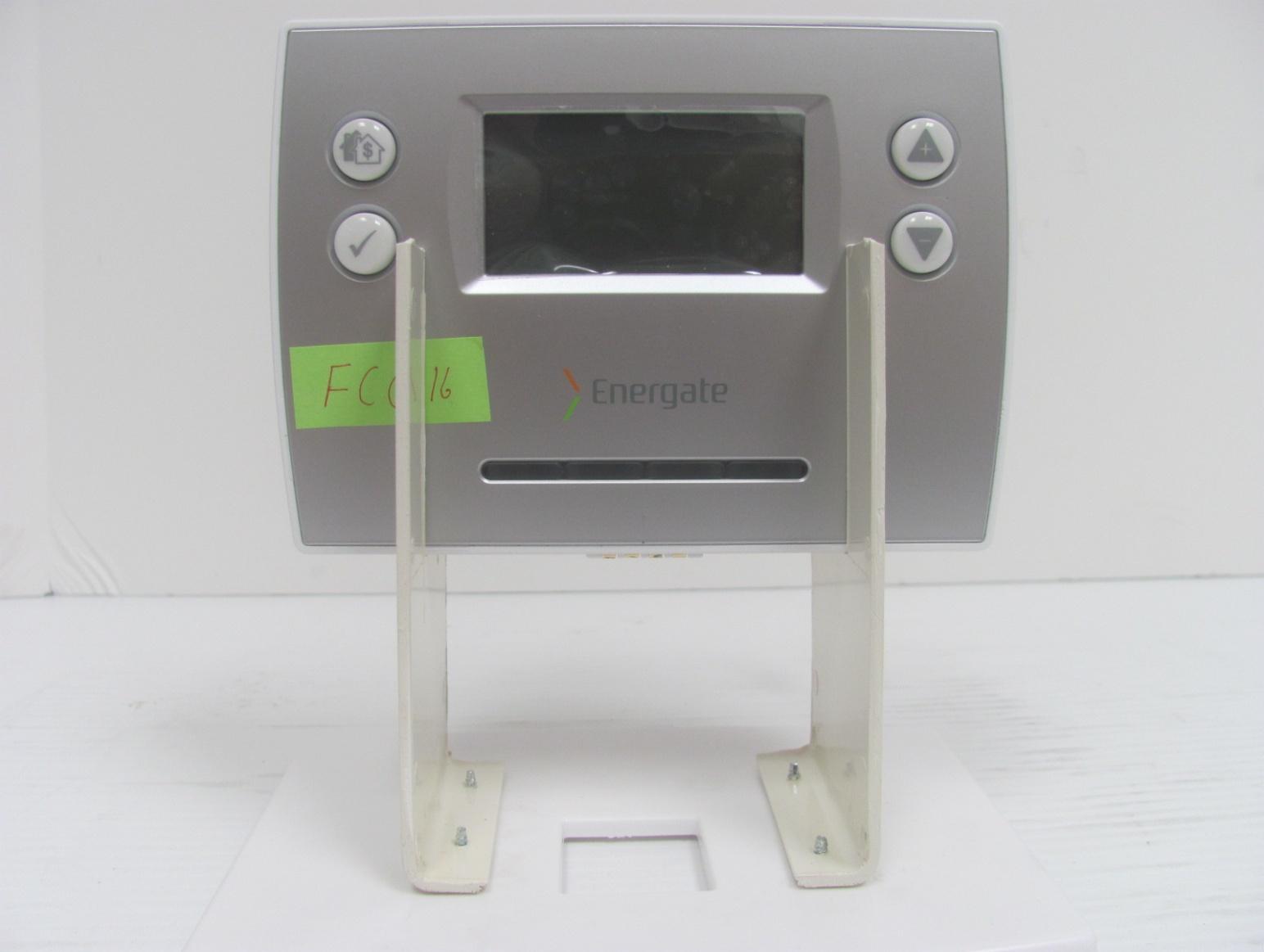

External EUT photos Front view Side view Side view Back view

Note: ‘X’ - uppercase alphanumeric character ‘Y’ - Decimal number from 0 to 9 ‘Z’ - Energate Serial Number ‘H’ & ‘G’ - Hexadecimal number from 0 to 9, A to F PROPRIETARY A ND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS T HE SOLE PROPERTY OF ENERGATE INC. A NY REPRODUCTION IN PART OR A S A WHOLE WITHOUT T HE WRITTEN PERMISSION OF ENERGATE INC. IS PROHIBITED. DESCRIPTIONZONEREV REVISIONS DATEAPPROVED SIZE DWG NO. REV A TITLE 2415 Holly Lane, Suite 210, Ottawa, ON, Canada K1V 7P1 PH: 613.482.7928 FAX: 613.288.0816 Date: Drawn By: 06/08/2012 M.Ramos SCALE: NTS B AINITIAL RELEASE2/1/2012 AW000867 Foundation Label SHEET 1 OF 1 Artwork Requirements: Description: Foundation Label Finished Size: 45 x 35.7 mm Label Material: Brother Continuous Film Tape Dk2212 for printer Ql570 ? ? IC: PN: SN: ICODE:GGGG GGGG GGGG GGGG 8022A-FZ100 YYYYYYYYYY MODEL: Made in Canada FCC ID: MAC: ZZZZZZZZZZ HHHH HHHH HHHH HHHH XXXX-X Foundation FZ100 AW000867-B WUR-FZ100TH OS: RM OS: XXXX-X 3 5 . 7 0 m m 45.00 mm B* Changes in the character definition * Defined the FCC ID and IC information 6/8/2012 IC: PN: SN: ICODE:GGGG GGGG GGGG GGGG 8022A-FZ100 YYYYYYYYYY MODEL: Made in Canada FCC ID: MAC: ZZZZZZZZZZ HHHH HHHH HHHH HHHH XXXX-X Foundation FZ100 AW000867-B WUR-FZ100TH OS: RM OS: XXXX-X

THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO ENERGATE INC. NO PART OF ITS CONTENTS MAY BE DISCLOSED OR CONVEYED TO, USED BY, OR COPIED TO A THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT BY ENERGATE INC. Foundation FZ100 Label Location

Internal EUT photos Main board top view Main board bottom view

Prediction of MPE limit at a given distance S = power density P = power input to the antenna G = antenna gain R = distance Conducted output power:20.00(dBm) 100(mW) 0.10(W) Antenna gain:1.5(dBi) Maximum antenna gain:1.4(numeric) EIRP0.14(W) Distance:20(cm) Duty Cycle:100(%) Frequency:2400(MHz) MPE Limit:1(mW/cm^2) Power density:0.028(mW/cm^2) 0.28(W/m^2) Margin15.5(dB) 2 4R PG S p =

FCC 15.247 and RSS-210 A8.docx - Date: April 2012 www.nemko.com Compliance test report ID 206550-1R3TRFWL Date of issue July 11, 2012 FCC 47 CFR Part 15 Subpart C, §15.247 Operation in the 902–928 MHz, 2400–2483.5 MHz, 5725–5850 MHz and RSS-210, Issue 8 Annex 8 Frequency Hopping and Digital Modulation Systems Operating in the 902–928 MHz, 2400– 2483.5 MHz, and 5725–5850 MHz Bands Applicant Energate Inc. Product Foundation Smart Thermostat and Home Energy Gateway Model Foundation FZ100 FCC ID WUR-FZ100 IC Reg # 8022A-FZ100 Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation SCC Accredited LAB LAB Accrédité CCN TM w w w . n e m k o . c o m Report reference ID:206550-1R3TRFWL Page 2 of 34 Test location Nemko Canada Inc. 303 River Road Ottawa, ON, K1V 1H2 Canada Test site FCC ID: 176392 and IC ID: 2040A-4 (3 m semi anechoic chamber) Telephone +1 613 737 9680 Facsimile +1 613 737 9691 Toll free +1 800 563 6336 Website www.nemko.com Tested by Kevin Rose, Wireless/EMC Specialist Reviewed by July 11, 2012 Andrey Adelberg, Senior Wireless/EMC Specialist Date Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. w w w . n e m k o . c o m Report reference ID:206550-1R3TRFWL Page 3 of 34 Table of Contents Section 1 Report summary .................................................................................................................................................................... 4 1.1 Applicant and manufacturer .............................................................................................................................................................. 4 1.2 Test specifications ............................................................................................................................................................................ 4 1.3 Test guidance ................................................................................................................................................................................... 4 1.4 Statement of compliance ................................................................................................................................................................... 4 1.5 Exclusions......................................................................................................................................................................................... 4 1.6 Test report revision history ................................................................................................................................................................ 4 Section 2 Summary of test results ........................................................................................................................................................ 5 2.1 FCC Part 15 Subpart C – general requirements, test results ............................................................................................................. 5 2.2 FCC Part 15 Subpart C – Intentional Radiators, test results .............................................................................................................. 5 2.3 IC RSS-GEN, Issue 3, test results ..................................................................................................................................................... 5 2.4 IC RSS-210, Issue 8, test results ...................................................................................................................................................... 6 Section 3 Equipment under test (EUT) details ..................................................................................................................................... 7 3.1 Sample information ........................................................................................................................................................................... 7 3.2 EUT information ................................................................................................................................................................................ 7 3.3 Technical information ........................................................................................................................................................................ 7 3.4 Product description and theory of operation ...................................................................................................................................... 7 3.5 EUT exercise details ......................................................................................................................................................................... 7 3.6 EUT setup diagram ........................................................................................................................................................................... 7 3.7 EUT sub assemblies ......................................................................................................................................................................... 7 Section 4 Engineeri…

Text truncated - open the document above for the full version.

Setup photos Radiated emissions setup Radiated emissions setup
