WUR-RM30ZigBee Radio Module

AW000309 RM30 Radio Module User Manual THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO ENERGATE INC. NO PART OF ITS CONTENTS MAY BE DISCLOSED OR CONVEYED TO, USED BY, OR COPIED TO A THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT BY ENERGATE INC. AW000309‐2 RM30 Radio Module User Manual THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO ENERGATE INC. NO PART OF ITS CONTENTS MAY BE DISCLOSED OR CONVEYED TO, USED BY, OR COPIED TO A THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT BY ENERGATE INC. Page 2 Table of Contents 1 Introduction ................................................................................................................................................ 3 Key Features ................................................................................................................................................... 3 2 Mechanical Specifications .......................................................................................................................... 3 Dimensions ..................................................................................................................................................... 3 3 Connector Specifications ............................................................................................................................ 4 3.1 16‐pin Connector Specifications (J1) .................................................................................................. 4 3. 2 10‐pin Connector Specifications (J2) .................................................................................................. 4 3. 3 2‐ pin FM RDS antenna connector (J4) ............................................................................................... 5 3. 4 3‐pin Opt Out connector (J8) .............................................................................................................. 5 3 Power Supply .............................................................................................................................................. 6 4 ZigBee Radio Interface Specifications ......................................................................................................... 6 4.1 Introduction ........................................................................................................................................ 6 4.2 General Specifications ........................................................................................................................ 6 4.3 ZigBee Radio Transmitter Specifications ............................................................................................ 6 4.4 ZigBee Radio Receiver Specifications ................................................................................................. 7 4.5 ZigBee Antenna Specifications ........................................................................................................... 7 5.0 Regulatory Requirements (FCC and IC) .................................................................................................. 8 5.1 RF Exposure Warning .......................................................................................................................... 8 5.2 Labelling Requirements ...................................................................................................................... 8 AW000309‐2 RM30 Radio Module User Manual THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO ENERGATE INC. NO PART OF ITS CONTENTS MAY BE DISCLOSED OR CONVEYED TO, USED BY, OR COPIED TO A THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT BY ENERGATE INC. Page 3 1 Introduction This document is the User Manual for the Energate RM30 Radio Module. This Radio Module can be integrated into any number of products that require wireless connectivity. Key Features • Includes two radio subsystems which can be independently populated: a ZigBee Transceiver and a FM RDS (Radio Data System) Receiver • ZigBee transceiver utilizes Ember EM357 ZigBee System‐on‐a‐Chip (SoC) • ZigBee RF Performance − Frequency: 2405‐2480MHz (ZigBee Ch11 to 26) − Data Rate: 250kb/s − Transmit Power: 100mW (Typical) − Receiver Sensitivity: ‐102dBm (Typical) for PER=1% • Two UART channels (one per RF Subsystem) • Supply Voltage: +3.3 VDC (Typical) • Operating Temperature a. ZigBee transceiver: ‐40 to 85 °C b. FM RDS receiver: ‐10 to 75 °C • ZigBee PCB Mount Chip Antenna: +1.5dBi (Peak Gain) • FM RDS antenna: connector for external 50 ohm antenna or external short wire antenna. 2 Mechanical Specifications Dimensions Parameter Typical dimension UnitsNotes Length 80.0 mm Width 44.0 mm Thickness 13.0 mm Total thickness Including the 10‐pin connector AW000309‐2 RM30 Radio Module User Manual THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO ENERGATE INC. NO PART OF ITS CONTENTS MAY BE DISCLOSED OR CONVEYED TO, USED BY, OR COPIED TO A THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT BY ENERGATE INC. Page 4 3 Connector Specifications 3.1 16-pin Connector Specifications (J1) The Energate RM30 Radio Module has a 16‐pin connector Samtec CLP‐108‐02‐L‐D BE. The mating connector is the Samtec ASP‐146581‐01 Below is the pin‐out of this connector. Pin Signal Comment 1 VSW Unregulated power supply input (not used in the RM30) 2 VSW Unregulated power supply input (not used in the RM30) 3 GND 4 GND 5 VMOD +3.3V supply to the RM30. 6 VMOD +3.3V supply to the RM30. 7 RM_AUX Access to the reset input of RM1 (ZigBee) through an option resistor 8 MASTER RESET Reset input to both radio modules through option resistors 9 RM_RX1 Serial UART input to RM1 (ZigBee) 10 RM1_EN Ember 357 PB5 11 RM_TX1 Serial UART output from RM1 (ZigBee) 12 RM0_EN Interrupt output from RM0 (FM RDS) 13 RM_PRG Ember 357 PA6 14 RM_TX0 Serial UART output from RM0 (FM RDS) 15 RM_RST Reset terminal of RM0 (FM RDS) 16 RM_RX0 Serial UART input to RM0 (FM RDS) 3. 2 10-pin Connector Specifications (J2) The Energate RM30 Radio Module has a 10‐pin connector Harw…

Text truncated - open the document above for the full version.

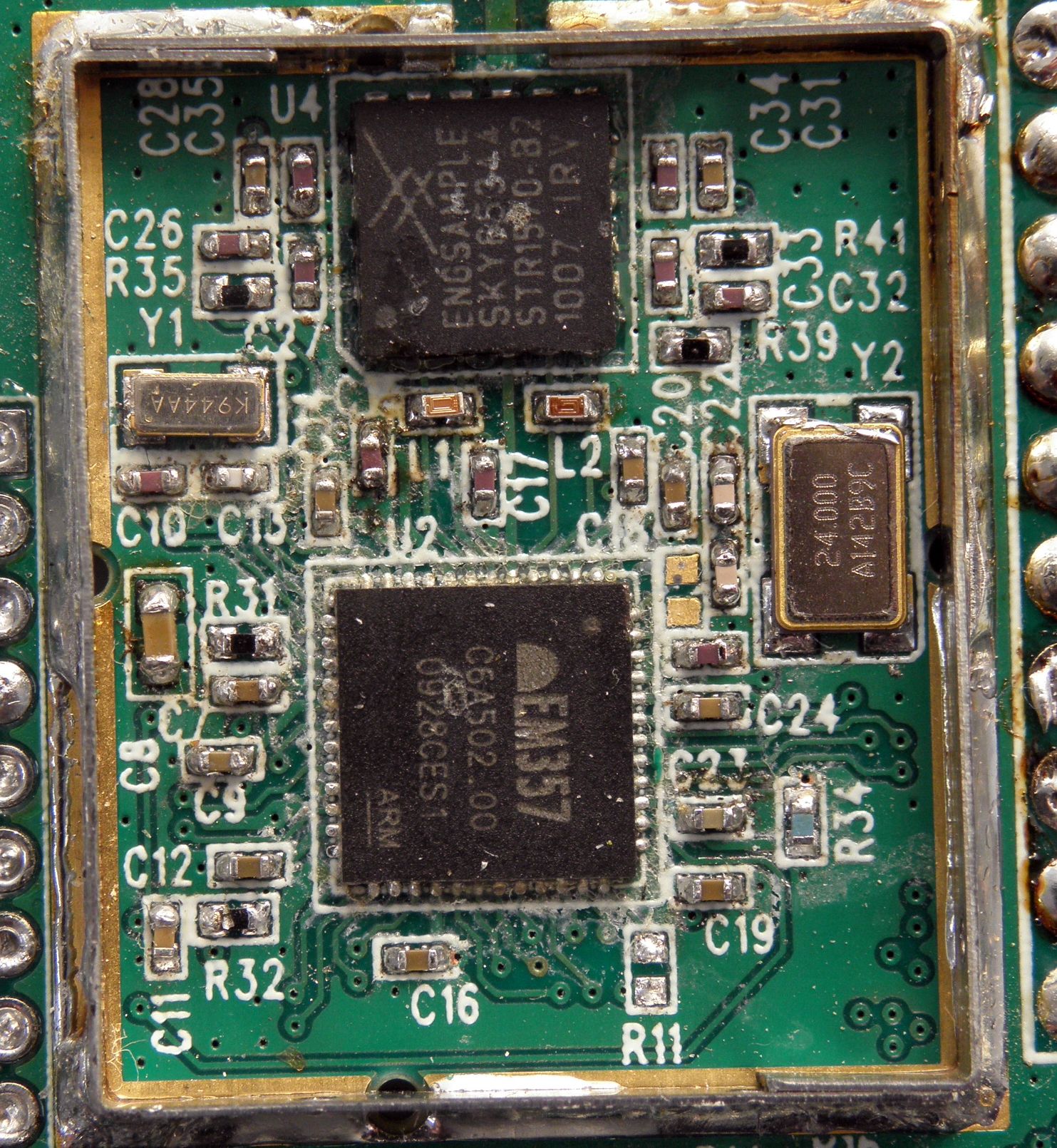

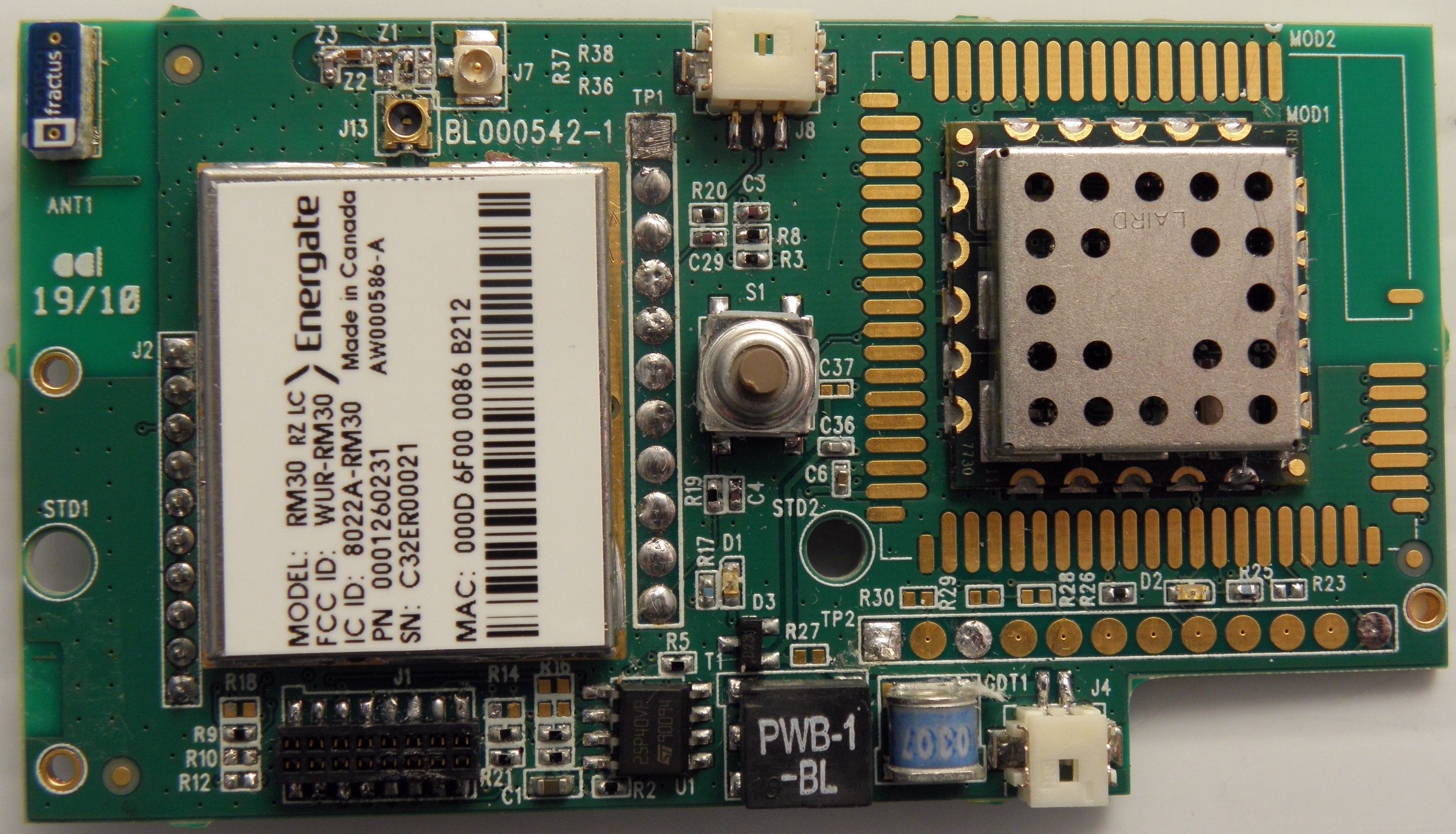

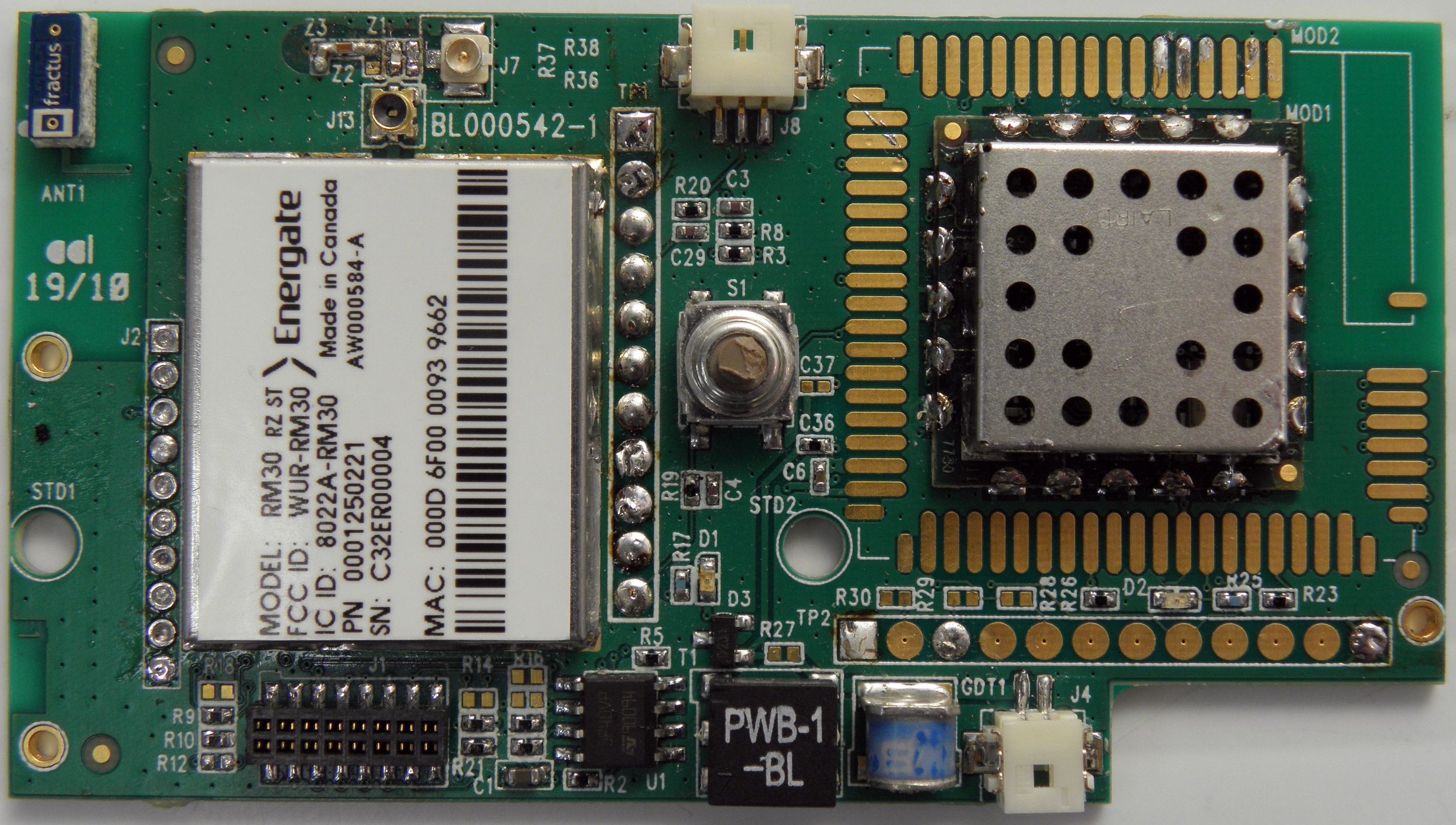

AW000584-X Made in Canada Date: Drawn By: PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ENERGATE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ENERGATE INC. IS PROHIBITED. DESCRIPTIONZONEREV REVISIONS DATEAPPROVED SIZE DWG NO. REV A TITLE 2415 Holly Lane, Suite 210, Ottawa, ON, Canada K1V 7P1 PH: 613.482.7928 FAX: 613.288.0816 14-Jul-2010 M.Ramos SCALE: NTSSHEET 1 OF 1 AW000584 1 RM30 ST Radio Module Label 1ENGINEERING RELEASE14-Jul-2010 25.750 mm 19.840 mm Date: Drawn By: PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ENERGATE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ENERGATE INC. IS PROHIBITED. DESCRIPTIONZONEREV REVISIONS DATEAPPROVED SIZE DWG NO. REV A TITLE 2415 Holly Lane, Suite 210, Ottawa, ON, Canada K1V 7P1 PH: 613.482.7928 FAX: 613.288.0816 14-Jul-2010 M.Ramos SCALE: NTSSHEET 1 OF 1 AW000586 1 RM30 LC Radio Module Label 1ENGINEERING RELEASE14-Jul-2010 AW000586-X Made in Canada 25.750 mm 19.840 mm

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to isotropicR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 20.97 (dBm) Maximum peak output power at antenna input terminal: 125.0 (mW) Antenna gain(typical): 1.5 (dBi) Maximum antenna gain: 1.413 (numeric) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 2400 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.000 (mW/cm^2) Power density at prediction frequency: 0.03513 (mW/cm^2) Power density at prediction frequency: 0.3513 (W/m^2) Margin of Compliance: 14.5 (dB) 2 4 R PG S π =
