WVB-AVVIO511Mobile Phone

1 Contents 1 GENERAL INFORMATION ............................ 5 1.1 INSTRUCTION ....................................... 5 1.2 NOTES FOR SAFE ................................ 5 1.3 APPEARANCE ....................................... 7 1.4 ICONS.................................................. 10 2 GETTING STARTED .................................... 11 2.1 INSTALL AND REMOVE BATTERY...... 11 2.2 HEADSET AND MICROSD CARD ....... 12 2.3 CHARGE THE BATTERY ..................... 12 3 BASIC FUNCTION....................................... 14 3.1 POWER ON AND OFF ......................... 14 3.2 STANDBY MODE ................................. 14 3.3 MAKE A CALL ...................................... 16 3.4 ANSWER / END A CALL ...................... 18 4 WRITE TEXT................................................ 18 4.1 INPUT METHOD .................................. 18 4.2 INPUT SPECIAL CHARACTER............ 19 5 MESSAGES ................................................. 19 5.1 SMS ..................................................... 20 2 5.2 MMS..................................................... 24 6 LOG ............................................................. 27 6.1 ALL CALLS ........................................... 27 6.2 SENT SMS ........................................... 28 6.3 DELETE CALL LOG ............................. 28 6.4 CALL DURATION................................. 29 6.5 MESSAGE LOG ................................... 29 7 CONTACTS.................................................. 29 7.1 CONTACTS.......................................... 30 7.2 SETTINGS ........................................... 30 7.3 GROUPS.............................................. 31 7.4 SPEED DIALS...................................... 31 7.5 DELETE ALL CONTACTS .................... 31 8 SETTINGS ................................................... 32 8.1 PROFILES............................................ 32 8.2 DISPLAY SETTINGS............................ 33 8.3 TIME AND DATE .................................. 34 8.4 CALL SETTINGS.................................. 34 8.5 PHONE SETTINGS.............................. 35 8.6 SECURITY SETTINGS......................... 35 8.7 DOWNLOAD SETTINGS...................... 36 3 8.8 NETWORK SETTINGS ........................ 36 9 MEDIA DATA ............................................... 36 10 ENTERTAINMENT ..................................... 38 10.1 MP3.................................................... 38 10.2 MP4.................................................... 39 10.3 CAMERA ............................................ 39 10.4 ALBUM ............................................... 40 10.5 FM RADIO.......................................... 40 10.6 GAMES .............................................. 41 11 APPLICATION............................................ 41 11.1 ATV ..................................................... 42 11.2 VOICE MEMO .................................... 43 11.3 CALCULATOR .................................... 43 11.4 STOPWATCH ..................................... 43 11.5 ORGANISER ...................................... 44 11.6 SCRATCHPAD ................................... 45 11.7 E-BOOK READER .............................. 45 12 ESURFING................................................. 45 13 SAFETY INFORMATION ........................... 47 14 CARE AND MAINTENANCE ..................... 49 4 15 FCC WARNING STATEMENT.................... 52 5 1 General Information 1.1 Instruction 1.2 Notes for Safe 6 WARNING: Improperly use of the device will result in warranty voided. 7 1.3 Appearance (1) Earpiece (2) LCD Display (3) Left Soft Key (4) WAP Quick Key (5) Send Key (6) Dial Button 8 (7) Microphone (8) Camera (9) Mirror (10) Battery Cover (11) Right Soft Key (12) TV Quick Key (13) End / Power Key (14) Selection Key (15) Scroll Key (16) Speaker (17) UIM Card (no support) (18) Battery (19) T-Flash Card (20) TV Antenna (21) Micro USB (22) Hole for cell phone charm (23) Foot Stand 1 1 2 3 4/5 6 9 10 1.4 Icons IconContent New message Alarm Battery level 11 2 Getting started 2.1 Install and remove battery 12 2.2 Headset and MicroSD card „ „ 2.3 Charge the battery ¾ USB Charging 13 ¾ Charger Charging 14 3 Basic Function 3.1 Power on and off 3.2 Standby mode „ „ „ „ 15 „ „ „ Shortcut setting : 16 3.3 MAKE A CALL „ Using the keypad 17 „ „ „ 18 3.4 Answer / End a call 4 Write text 4.1 Input method 19 4.2 Input special character 5 Messages 20 5.1 SMS ¾ New message ¾ New message „ „ „ „ „ ¾ Inbox 21 Select Menu > Messages > Inbox, options as below „ „ „ „ „ „ „ „ „ „ „ ¾ Sentbox / Outbox / Draft 22 ¾ Archive ¾ Template s ¾ Delete messages ¾ Voice mail 23 ¾ „ • • • • • • „ „ 24 ¾ Memory status „ 5.2 MMS ¾ Create 25 ¾ Inbox „ „ „ „ „ „ „ „ „ 26 ¾ Sentbox / Draftbox / Outbox „ „ „ ¾ Delete all ¾ MMS settings „ • • • • • „ • 27 • • „ „ „ 6 Log 6.1 All calls To view the information on your calls, select Menu > Log > all calls „ „ „ 28 „ „ „ „ „ „ „ „ „ 6.2 Sent SMS 6.3 Delete call log „ „ „ „ „ 29 6.4 Call duration „ „ „ „ 6.5 Message log „ „ 7 Contacts 30 7.1 Contacts „ „ „ „ „ „ „ 7.2 Settings 31 7.3 Groups „ „ „ „ 7.4 Speed dials 7.5 Delete all contacts 32 8 Settings 8.1 Profiles „ „ „ „ „ „ ¾ 33 ¾ „ „ „ „ „ „ „ ¾ 8.2 Display settings „ „ „ „ 34 8.3 Time and date „ „ „ 8.4 Call settings „ „ „ „ „ „ „ „ „ 35 8.5 Phone settings „ „ „ • • „ „ „ „ „ „ „ 8.6 Security settings „ „ „ 36 „ 8.7 Download settings 8.8 Network settings • • 9 Media data 37 „ • • „ • „ „ „ „ „ „ „ „ 38 10 Entertainment 10.1 MP3 39 ff X ee Œ 10.2 MP4 ee ff 10.3 Camera 40 „ „ „ „ „ „ „ „ „ Note: make sure SD card is inserted when you want to take pictures. 10.4 Album 10.5 FM radio 41 10.6 Games „ „ 11 Application 42 11.1 ATV 43 11.2 Voice memo „ „ „ 11.3 Calculator 11.4 Stopwatch 44 11.5 Organizer „ „ „ „ „ „ „ 45 11.6 Scratchpad 11.7 E-book reader 12 eSurfing ¾ 46 „ „ „ „ „ „ „ „ „ „ „ 47 ¾ UTK is operator service. You may get detailed information from your local operator…

Text truncated - open the document above for the full version.

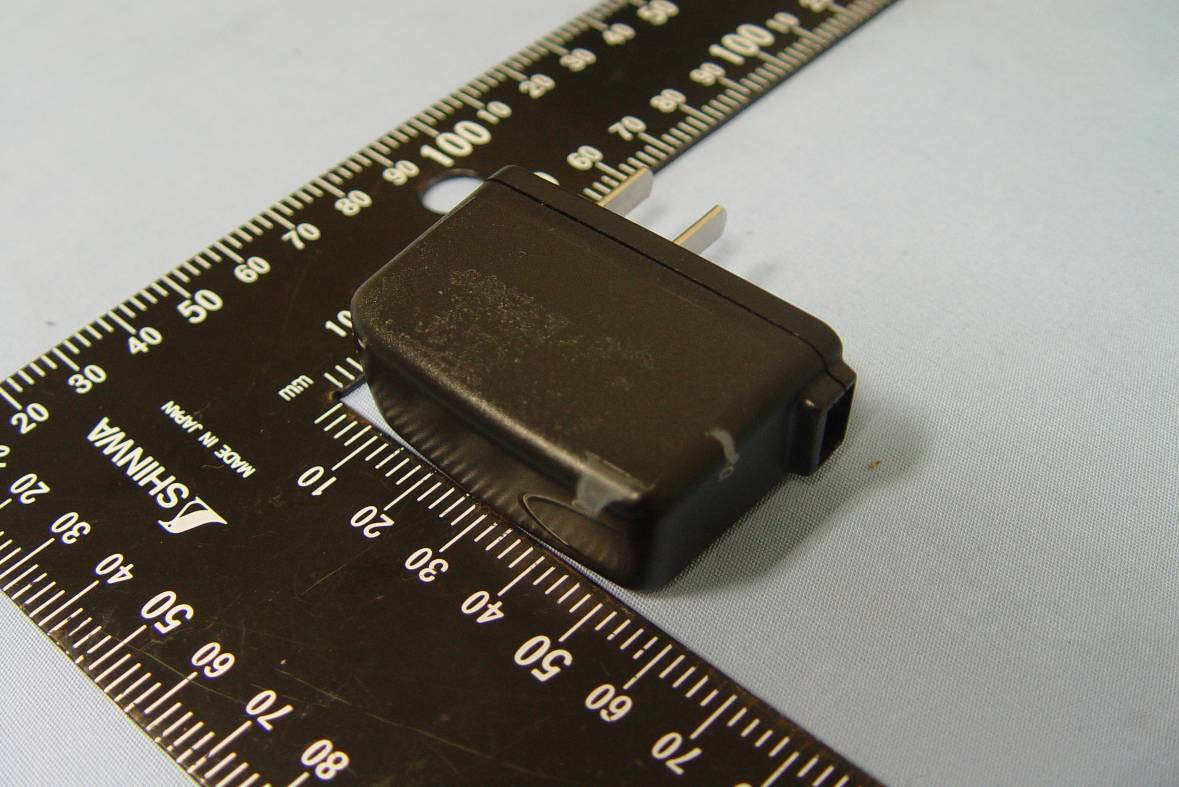

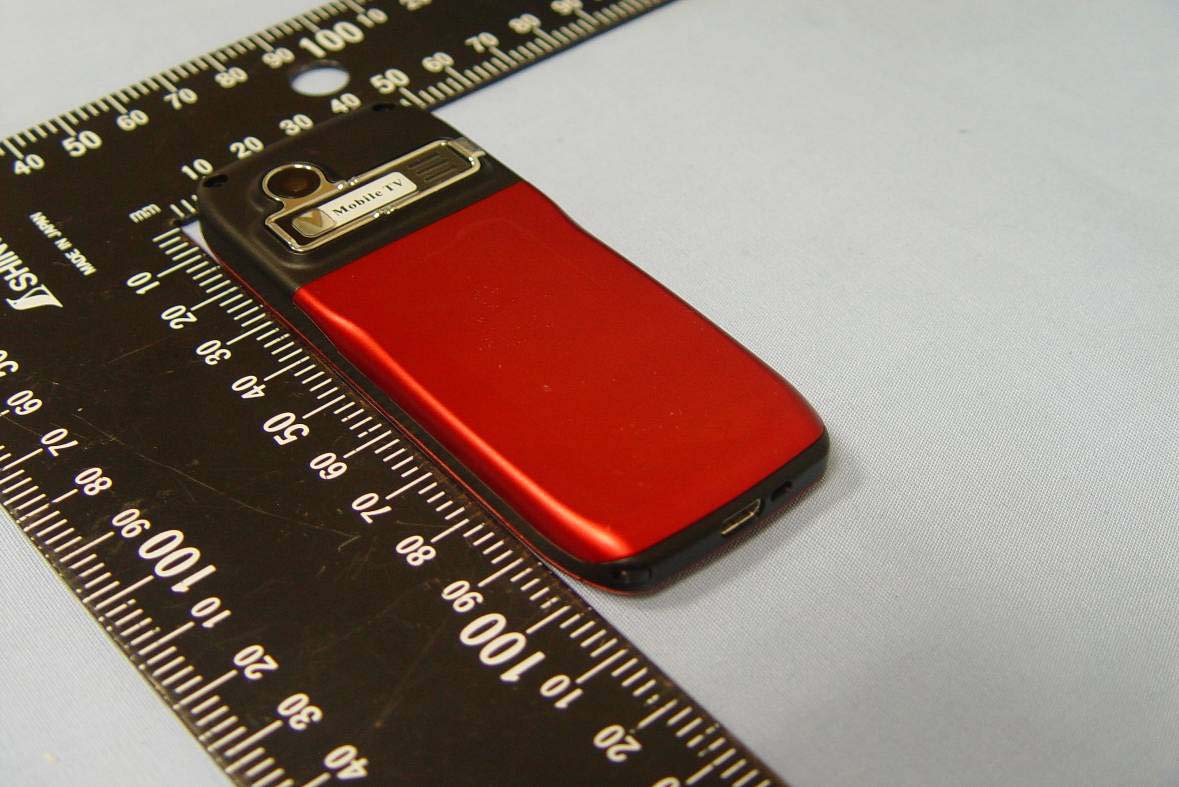

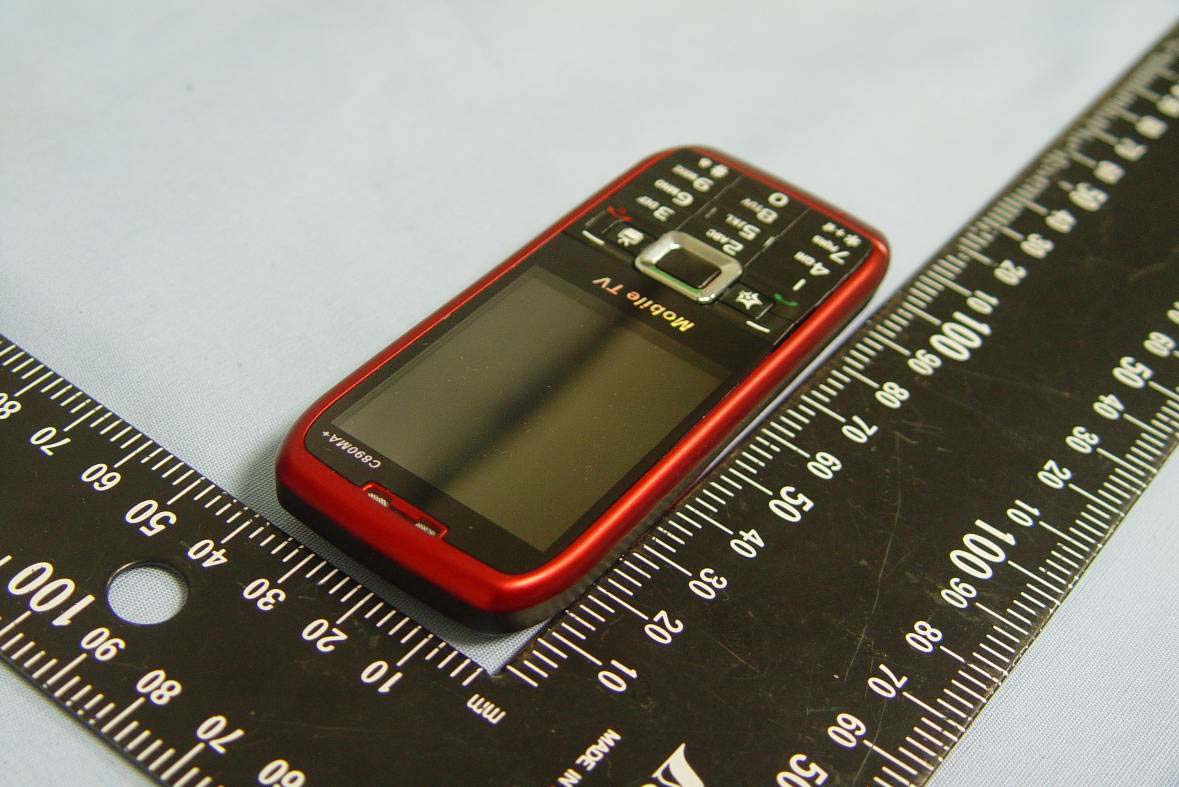

Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 1 Total Page: 17 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 2 Total Page: 17 Rev. 00 Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 5 Rev. 00

Label Location The FCC Label will be visible at the time of purchase.

Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 6 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 15 Rev. 00 Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 16 Rev. 00 Compliance Certification Services Inc. Report No.: T100603301 Date of Issue: June 23, 2010 A1 - 17 Rev. 00

Compliance Certification Services Inc. Report No.: T100603301-SF FCC ID: WVB-AVVIO511 Date of Issue: June 23, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page1 of 29 ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For Mobile Phone Model: 511 Trade Name: Avvio Issued to Brightstar Corporation 9725 NW 117th Ave. Miami City 33178 Issued by Compliance Certification Services Inc. No. 11, Wu-Kung 6 Rd, Wu-Ku Hsiang, Wu-Ku Industrial District, Taipei Hsien, (248) Taiwan. http://www.ccsemc.com.tw service@ ccsrf.com Compliance Certification Services Inc. Report No.: T100603301-SF Date of Issue: June 07,2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION)........................................................3 2. EUT DESCRIPTION .........................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ........................5 4. DOSIMETRIC ASSESSMENT SETUP...........................................................................................5 4.1 MEASUREMENT SYSTEM DIAGRAM.....................................................................................6 4.2 SYSTEM COMPONENTS............................................................................................................7 5. EVALUATION PROCEDURES.......................................................................................................9 6. MEASUREMENT UNCERTAINTY..............................................................................................13 7. EXPOSURE LIMIT .........................................................................................................................14 8. EUT ARRANGEMENT ...................................................................................................................15 8.1 ANTHROPOMORPHIC HEAD PHANTOM.............................................................................15 8.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION ............................................................16 8.3 DEFINITION OF THE “TILTED” POSITION...........................................................................17 9. MEASUREMENT RESULTS .........................................................................................................18 9.1 SYSTEM PERFORMANCE CHECK .........................................................................................18 9.2 TEST LIQUIDS CONFIRMATION............................................................................................18 9.3 EUT TUNE-UP PROCEDURES .................................................................................................23 9.4 SAR MEASUREMENT RESULTS ............................................................................................24 10. EQUIPMENT LIST & CALIBRATION STATUS .......................................................................26 11. FACILITIES .....................................................................................................................................28 12. REFERENCES .................................................................................................................................28 13. ATTACHMENTS .............................................................................................................................29 Compliance Certification Services Inc. Report No.: T100603301-SF Date of Issue: June 07,2010 Page 3 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant Brightstar Corporation 9725 NW 117th Ave. Miami City 33178 Equipment Under Test: Mobile Phone Trade Name: Avvio Model Number: 511 Date of Test: June 04~23, 2010 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C(Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Reviewed by: Tested by Rex Lai Anson Lu Section Manager Test Engineer Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T100603301-SF Date of Issue: June 07,2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product Mobile Phone Trade Name Avvio Model Number 511 Model Discrepancy N/A Frequency Range 1xRTT 850: 824.7 MHz to 848.31 MHz 1xRTT 1900: 1851.25 MHz to1908.75 MHz Transmit Power (Average/dBm) 1xRTT 850: 24.87 dBm 1xRTT 1900: 24.73 dBm Max. SAR (1g): Cellular band: Head: 0.518 W/kg (Left head Cheek position) Body: 0.352 W/kg (Body position) PCS band: Head: 0.278 W/kg (Left head Cheek position) Body: 0.356 W/kg (Body position) Protocol Technique CDMA2000 1xRTT Antenna Specification PIFA antenna Remark: The sample selected for test was production product and was provided by manufacturer. Compliance Certification Services Inc. Report No.: T100603301-SF Date of Issue: June 07,2010 Page 5 Rev. 00 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization …

Text truncated - open the document above for the full version.

'DWH7LPH42430 7HVW/DERUDWRU\&RPSOLDQFH&HUWLILFDWLRQ6HUYLFHV,QF  '961G+HDG '87'LSROH0+]7\SH'96HULDOG &RPPXQLFDWLRQ6\VWHP&:)UHTXHQF\0+]'XW\&\FOH 0HGLXPSDUDPHWHUVXVHG LQWHUSRODWHG I 0+]ı 83PKRPİ U  2.3ȡ NJP    3KDQWRPVHFWLRQ)ODW6HFWLRQ $LU7HPSHUDWXUH4GHJ&/LTXLG7HPSHUDWXUH4GHJ& $UHD6FDQ)LQG6HFRQGDU\0D[LPXP:LWKLQG%DQGZLWKDSHDN6$5YDOXHJUHDWHUWKDQ:NJ '$6<&RQILJXUDWLRQ z3UREH(;'961&RQY)   z6HQVRU6XUIDFHPP 0HFKDQLFDO6XUIDFH'HWHFWLRQ  z(OHFWURQLFV'$(6Q&DOLEUDWHG z3KDQWRPSAM with CRP; Type: SAM; Serial: 1506 z0HDVXUHPHQW6:'$6<9%XLOG3RVWSURFHVVLQJ6:6(0&$'9%XLOG  G PP3LQ P:$UHD6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  G PP3LQ P:=RRP6FDQ [[ &XEH0HDVXUHPHQWJULGG[ PPG\ PPG] PP 5HIHUHQFH9DOXH 9P3RZHU'ULIW G% 3HDN6$5 H[WUDSRODWHG  :NJ 6$5 J  P:J6$5 J  P:J 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  G PP3LQ P:=6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PPG] PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  'DWH7LPH93030 7HVW/DERUDWRU\&RPSOLDQFH&HUWLILFDWLRQ6HUYLFHV,QF  '961G%RG\ '87'LSROH0+]7\SH'96HULDOG &RPPXQLFDWLRQ6\VWHP&:)UHTXHQF\0+]'XW\&\FOH 0HGLXPSDUDPHWHUVXVHG LQWHUSRODWHG I 0+]ı 66PKRPİ U  55.5ȡ NJP    3KDQWRPVHFWLRQ)ODW6HFWLRQ $LU7HPSHUDWXUH24.4 deg C;Liquid Temperature:23.4GHJ& $UHD6FDQ)LQG6HFRQGDU\0D[LPXP:LWKLQG%DQGZLWKDSHDN6$5YDOXHJUHDWHUWKDQ:NJ '$6<&RQILJXUDWLRQ z3UREH(;'961&RQY)   z6HQVRU6XUIDFHPP 0HFKDQLFDO6XUIDFH'HWHFWLRQ  z(OHFWURQLFV'$(6Q&DOLEUDWHG z3KDQWRPSAM with CRP; Type: SAM; Serial: 1506 z0HDVXUHPHQW6:'$6<9%XLOG3RVWSURFHVVLQJ6:6(0&$'9%XLOG  G PP3LQ P:$UHD6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  G PP3LQ P:=RRP6FDQ [[ &XEH0HDVXUHPHQWJULGG[ PPG\ PPG] PP 5HIHUHQFH9DOXH 9P3RZHU'ULIW G% 3HDN6$5 H[WUDSRODWHG  :NJ 6$5 J  P:J6$5 J  P:J 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  G PP3LQ P:=6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PPG] PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J 'DWH7LPH30 7HVW/DERUDWRU\Compliance Certification Services Inc.  '961G+HDG '87'LSROH0+]7\SH'96HULDOG &RPPXQLFDWLRQ6\VWHP&:)UHTXHQF\0+]'XW\&\FOH 0HGLXPSDUDPHWHUVXVHG LQWHUSRODWHG I 0+]ı PKRPİ U  ȡ NJP    3KDQWRPVHFWLRQ)ODW6HFWLRQ $LU7HPSHUDWXUHGHJ&/LTXLG7HPSHUDWXUHGHJ& $UHD6FDQ)LQG6HFRQGDU\0D[LPXP:LWKLQG%DQGZLWKDSHDN6$5YDOXHJUHDWHUWKDQ:NJ '$6<&RQILJXUDWLRQ z3UREH(;'961&RQY)   z6HQVRU6XUIDFHPP 0HFKDQLFDO6XUIDFH'HWHFWLRQ 6HQVRU6XUIDFHPP )L[6XUIDFH  z(OHFWURQLFV'$(6Q&DOLEUDWHG z3KDQWRP6$0ZLWK&537\SH6$06HULDO z0HDVXUHPHQW6:'$6<9%XLOG3RVWSURFHVVLQJ6:6(0&$'9%XLOG  3LQ P:G PP$UHD6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  3LQ P:G PP=RRP6FDQ [[ &XEH0HDVXUHPHQWJULGG[ PPG\ PPG] PP 5HIHUHQFH9DOXH 9P3RZHU'ULIW G% 3HDN6$5 H[WUDSRODWHG  :NJ 6$5 J  P:J6$5 J  P:J 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  3LQ P:G PP=6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PPG] PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  'DWH7LPH110930 7HVW/DERUDWRU\Compliance Certification Services Inc.  '961G%RG\ '87'LSROH0+]7\SH'96HULDOG &RPPXQLFDWLRQ6\VWHP&:)UHTXHQF\0+]'XW\&\FOH 0HGLXPSDUDPHWHUVXVHGI 0+]ı PKRPİ U  ȡ NJP    3KDQWRPVHFWLRQ)ODW6HFWLRQ $LU7HPSHUDWXUHGHJ&/LTXLG7HPSHUDWXUHGHJ& $UHD6FDQ)LQG6HFRQGDU\0D[LPXP:LWKLQG%DQGZLWKDSHDN6$5YDOXHJUHDWHUWKDQ:NJ '$6<&RQILJXUDWLRQ z3UREH(;'961&RQY)   z6HQVRU6XUIDFHPP 0HFKDQLFDO6XUIDFH'HWHFWLRQ 6HQVRU6XUIDFHPP )L[6XUIDFH  z(OHFWURQLFV'$(6Q&DOLEUDWHG z3KDQWRP6$0ZLWK&537\SH6$06HULDO z0HDVXUHPHQW6:'$6<9%XLOG3RVWSURFHVVLQJ6:6(0&$'9%XLOG  3LQ P:G PP$UHD6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  3LQ P:G PP=RRP6FDQ [[ &XEH0HDVXUHPHQWJULGG[ PPG\ PPG] PP 5HIHUHQFH9DOXH 9P3RZHU'ULIW G% 3HDN6$5 H[WUDSRODWHG  :NJ 6$5 J  P:J6$5 J  P:J 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  3LQ P:G PP=6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PPG] PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J   'DWH7LPH0630 7HVW/DERUDWRU\&RPSOLDQFH&HUWLILFDWLRQ6HUYLFHV,QF  &'0$&HOOXODU/HIW+HDG511 '875117\SH0RELOH3KRQH6HULDO1$ &RPPXQLFDWLRQ6\VWHP&'0$&HOOXODU)UHTXHQF\0+]'XW\&\FOH 0HGLXPSDUDPHWHUVXVHG LQWHUSRODWHG I 0+]ı 73PKRPİ U  .5ȡ NJP    3KDQWRPVHFWLRQ/HIW6HFWLRQ $LU7HPSHUDWXUH24.4 deg C;Liquid Temperature:23.4GHJ& $UHD6FDQ)LQG6HFRQGDU\0D[LPXP:LWKLQG%DQGZLWKDSHDN6$5YDOXHJUHDWHUWKDQ:NJ '$6<&RQILJXUDWLRQ …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100603301-RP1 FCC ID: WVB-AVVIO511 Date of Issue: June 22, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 53 Rev. 00 FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E TEST REPORT For Mobile Phone Trade Name: Avvio Model: 511 Issued to Brightstar Corporation 9725 NW 117th Ave. Miami City 33178 Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100603301-RP1 FCC ID: WVB-AVVIO511 Date of Issue: June 22, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 8 4.3 MEASUREMENT UNCERTAINTY .................................................................................... 9 5. FACILITIES AND ACCREDITATIONS ................................................................................. 10 5.1 FACILITIES............................................................................................................................ 10 5.2 EQUIPMENT........................................................................................................................... 10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................... 11 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 12 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 12 6.2 SUPPORT EQUIPMENT..................................................................................................... 12 7. FCC PART 22 & 24 REQUIREMENTS ................................................................................... 13 7.1 TRANSMIT POWER................................................................................................................. 13 7.2 ERP & EIRP MEASUREMENT .......................................................................................... 15 7.3 OCCUPIED BANDWIDTH MEASUREMENT ................................................................. 19 7.4 OUT OF BAND EMISSION AT ANTENNA TERMINALS .............................................. 23 7.5 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ............................. 30 7.6 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT............................ 44 7.7 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT ...................................... 46 7.8 POWERLINE CONDUCTED EMISSIONS.................................................................................... 48 APPENDIX I PHOTOGRAPHS OF TEST SETUP........................................................................ 51 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100603301-RP1 FCC ID: WVB-AVVIO511 Date of Issue: June 22, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Brightstar Corporation 9725 NW 117th Ave. Miami City 33178 Equipment Under Test: Mobile Phone Trade Name: Avvio Model: 511 Date of Test: June 8 ~ 23, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 22 Subpart H & Part 24 Subpart E No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA-603-C: 2004 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rule FCC PART 22 Subpart H and PART 24 Subpart E. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T100603301-RP1 FCC ID: WVB-AVVIO511 Date of Issue: June 22, 2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product Mobile Phone Trade Name Avvio Model Number 511 Model Discrepancy N/A Power Supply 1. Battery: Rating: 3.7V, 900mAh 2. Power Adapter: Model: P-032B-050050 I/P: 100-240V, 50-60Hz, 0.2A O/P: 5.0V,0.5A Frequency Range TX: 824.7 ~ 848.31 MHz / 1851.25 ~ 1908.75 MHz RX: 869.7 ~ 893.31 MHz / 1931.25 ~ 1988.75 MHz Transmit Power (ERP & EIRP Power) CDMA2000 1xRTT 850 MHz: 23.74 dBm 1900 MHz…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100603301-RP1 FCC ID: WVB-AVVIO511 Date of Issue: June 22, 2010 Page 51 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SET UP PHOTO Compliance Certification Services Inc. Report No.: T100603301-RP1 FCC ID: WVB-AVVIO511 Date of Issue: June 22, 2010 Page 52 Rev. 00 RADIATED EMISSION SET UP PHOTOS Compliance Certification Services Inc. Report No.: T100603301-RP1 FCC ID: WVB-AVVIO511 Date of Issue: June 22, 2010 Page 53 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
