WVB-FXC851LCordless Fixed Wireless Phone

User Manual FXC-851L Cordless fixed wireless phone 1 ------------------------------------------------------------------------------------------------------------ USER’S GUIDE This page is intentionally left blank 2 PREFACE WELCOME Congratulations on the purchase of your FXC-851L product! Please retain your original dated sales receipt for your records. For warranty service of your FXC-851L product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Thank you for choosing Motorola product. Please read important safety instructions before use. Read and understand all instructions before use. Please retain this guide for future reference. The information contained in the FXC-851L user guide is believed to be correct at the time of printing. We reserve the right to change or modify any information, product specifications, features or functionality without notice. The contents of the FXC-851L user guide are provided “as is.” Certain features may not be activated by your service provider, and/or their network settings may limit the feature’s functionality. Additionally, certain features may require a subscription. Contact your service provider for details. 3 CONTENTS SAFETY PRECAUTIONS 6 PRECAUTIONS 6 SAFETY INFORMATION 8 PACKAGE CONTENTS 11 ABOUT YOUR PHONES 12 PHONE OVERVIEW 12 INSTALLATION 13 KEY FUNCTION 16 DISPLAY INDICATORS AND ICONS 18 BASIC FUNCTION 19 BASIC OPERATION 19 USING PHONE MENUS 24 ENTER LETTERS AND NUMBERS 25 MAIN MENU 27 OVERVIEW OF MENU TREE 27 THE CONTACTS 30 READ 30 ADD 31 MEMORY STATUS 31 SERVICE DIAL 32 SPEED DIAL 32 FIXED DIAL 32 COPY 33 CLEAR ALL RECORDS 33 GROUP 34 4 MY NUMBER 34 MESSAGE 36 WRITE NEW 36 INBOX 37 OUTBOX 38 DRAFTS 38 VOICEMAIL 39 BROADCAST MESSAGE 39 MESSAGE SETTINGS 39 TEMPLATE 40 MEMORY STATUS 40 DIAL RECORDS 41 INCOMING CALL 41 OUTGOING CALL 41 MISSED CALL 41 CALL OPTIONS 42 CALL DURATION 42 SETTINGS 43 PHONE SETTINGS 43 MELODY 45 DISPLAY 45 CALL SETUP 46 NETWORK SETUP 49 SECURITY SETUP 50 FACTORY DEFAULT 52 APPLICATIONS 53 ALARM 53 CALCULATOR 53 5 CALENDAR 54 TO DO LIST 54 REFERENCE INFORMATION 55 TECHNICAL INFORMATION 55 REGULATORY 56 FCC NOTICE TO USERS 57 TROUBEL SHOOTING 59 6 SAFETY PRECAUTIONS PRECAUTIONS 1. Please do not try to take out the SIM card of this phone. This SIM card is a special encrypt card, it cannot be used in other mobile phones. It’s the warranty of the product, if you try to rip or remove the SIM Card, the warrant will be not valid and your product will not be warranty in any case. 2. Please do not turn around the antenna at will, in order to avoid create the damage of antenna. 3. Keep the phone away from water and damp areas. Water or other liquids may cause overheating, electrical leakage, and failure of the phone. 4. Do not try to disassemble the phone. This can cause electric shock and failure of the phone. Tampering will also void the phone’s warranty. 5. Put the phone in a safe and stable place. 6. Keep away from dust and heat radiation (i.e. microwaves, stoves, etc.) 7. Try to use the phone away from ordinary telephones, television sets, radios, and automated office equipment to avoid interference between the devices. 8. Use clean soft dry cloth to wipe the phone. Do not use any chemical agents. 7 9. Do not put the phone near explosive or inflammable materials. 10. Use the phone only within the temperature range of -20 ~60 and humidity °C °C range of 0%~90%. 11. Keep all accessories or batteries out of the reach of small Children or babies. Please instruct children the proper ways of handling phone during usage. Shock circuit or breakdown may occur and may cause severe danger to user due to improper usage. Shock circuit or breakdown may occur and may cause severe danger to user due to improper usage. 8 SAFETY INFORMATION 1. EXPOSURE TO RADIO FREQUENCY (RF) ENERGY Your phone contains a transmitter and a receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits. Your phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. 2. OPERATIONAL PRECAUTIONS To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards; always adhere to the following procedures. 3. EXTERNAL ANTENNA CARE Use only the supplied Motorola approved antenna. Unauthorized antennas, modifications, or attachments could damage the phone. Do NOT hold the antenna when the phone is IN USE. Holding the antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country. 4. PHONE OPERATION When placing or receiving a phone call, hold your phone as you would use a wireless telephone. To maintain compliance with RF energy exposure guidelines, ensure the phone antenna is at least 10 inches (25centimeters) from your body when transmitting. 5. APPROVED ACCESSORIES Use of accessories not approved by Motorola, including but not limited to batteries and antennas, may cause your phone to exceed RF energy exposure guidelines. 6. RF ENERGY INTERFERENCE / COMPATIBILITIES 9 Nearly every electronic device is susceptible to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference. 7. MEDICAL DEVICES 1) Pacemakers Pacemaker manufacturers recommend that a minimum separation of 10 inches (25centimeters) be maintained between the fixed wireless phone and a pacemaker. Persons with pacemakers should: Always keep the phone more than 10 inches (25 centimeters) from your pacemaker when the phone is turned ON. Turn OFF the phone immediately if you have any reason to s…

Text truncated - open the document above for the full version.

Date: June 22, 2010 To Whom It May Concern: The Brightstar Corporation, the undersigned, declared that the model FXC851L (FCC ID: WVB-FXC851L) support Tri-band GSM bands, but 900MHz and 1800MHz bands cannot be used in American. Thank you for your attention to this matter. Yours Sincerely,

Brightstar Corporation Date: June 22, 2010 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Brightstar Corporation, the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Brightstar Corporation solely in matters relating to the application for an FCC equipment authorization for FCC ID <WVB-FXC851L >including the signing of documents in connection with this Application. Necessary acts carried out by Brightstar Corporation on our behalf of the Brightstar Corporation in connection with the Application shall have the same effect as acts of the Brightstar Corporation. The Brightstar Corporation also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely,

Date: June 22, 2010 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Brightstar Corporation FCC ID: WVB-FXC851L FCC Part 22&24 Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Brightstar Corporation requests that the following documents regarding this submission for FCC ID: WVB-FXC851L be kept confidential: Exhibit Type File Name Block Diagram WVB-FXC851L _Block Diagram.pdf Schematics WVB-FXC851L_Schematics.pdf Operational Description WVB-FXC851L_Operational Description.pdf Part list WVB-FXC851L_BOM.pdf Tune-Up-Procedure WVB-FXC851L_Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which Brightstar Corporation considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Brightstar Corporation considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market.

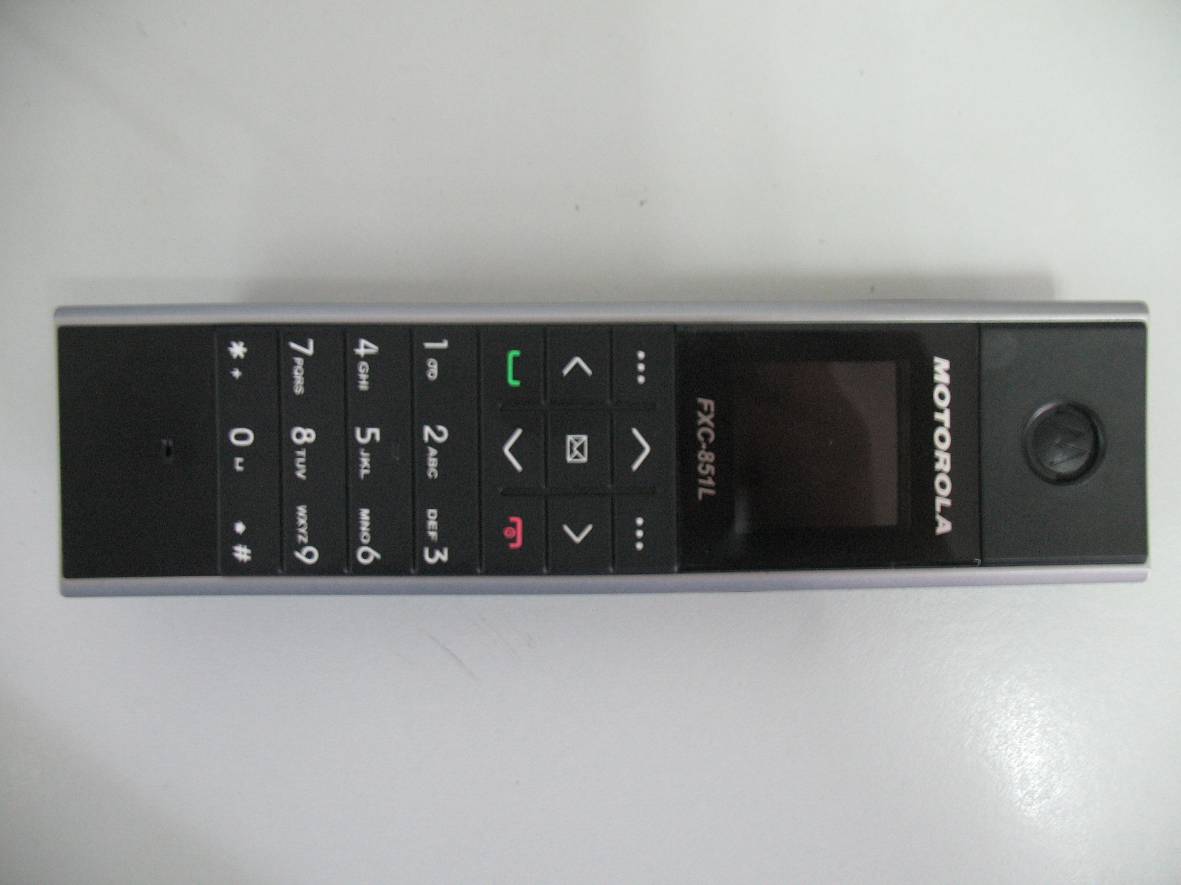

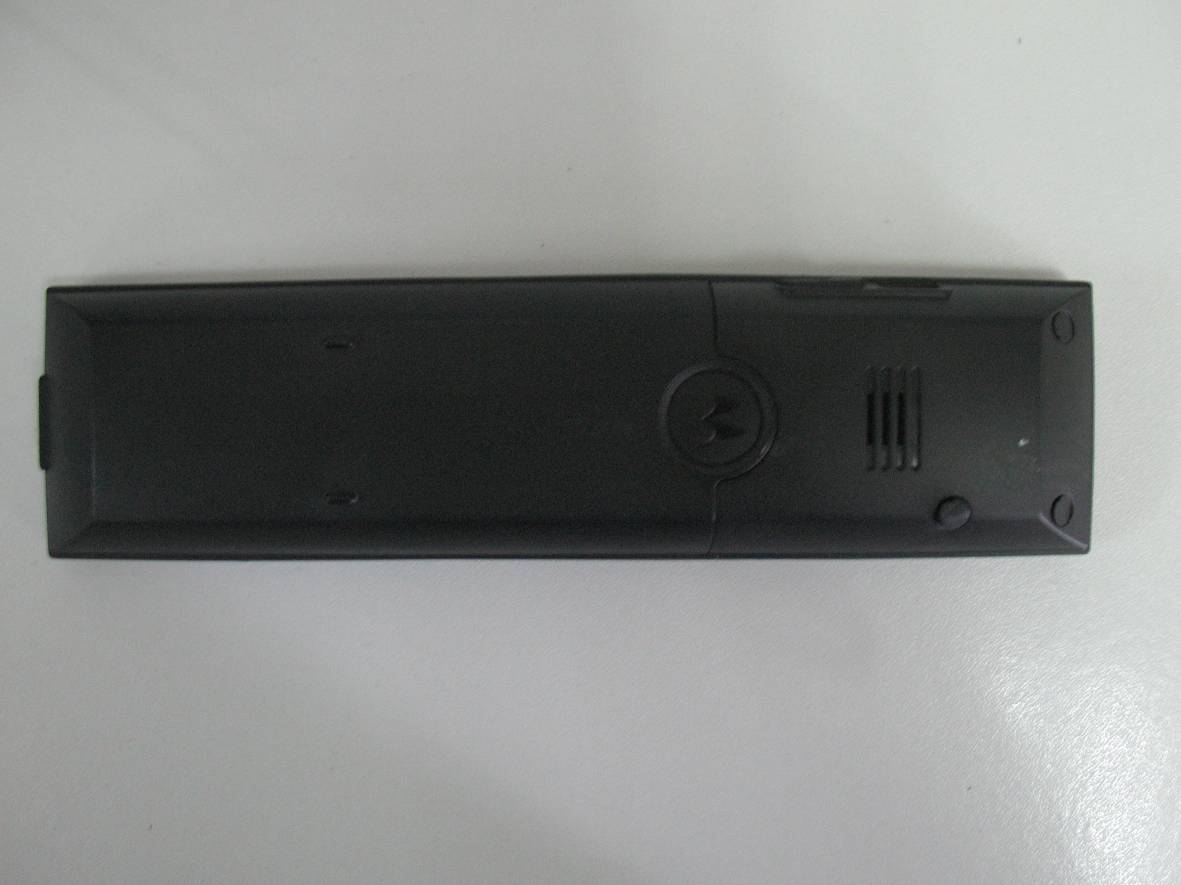

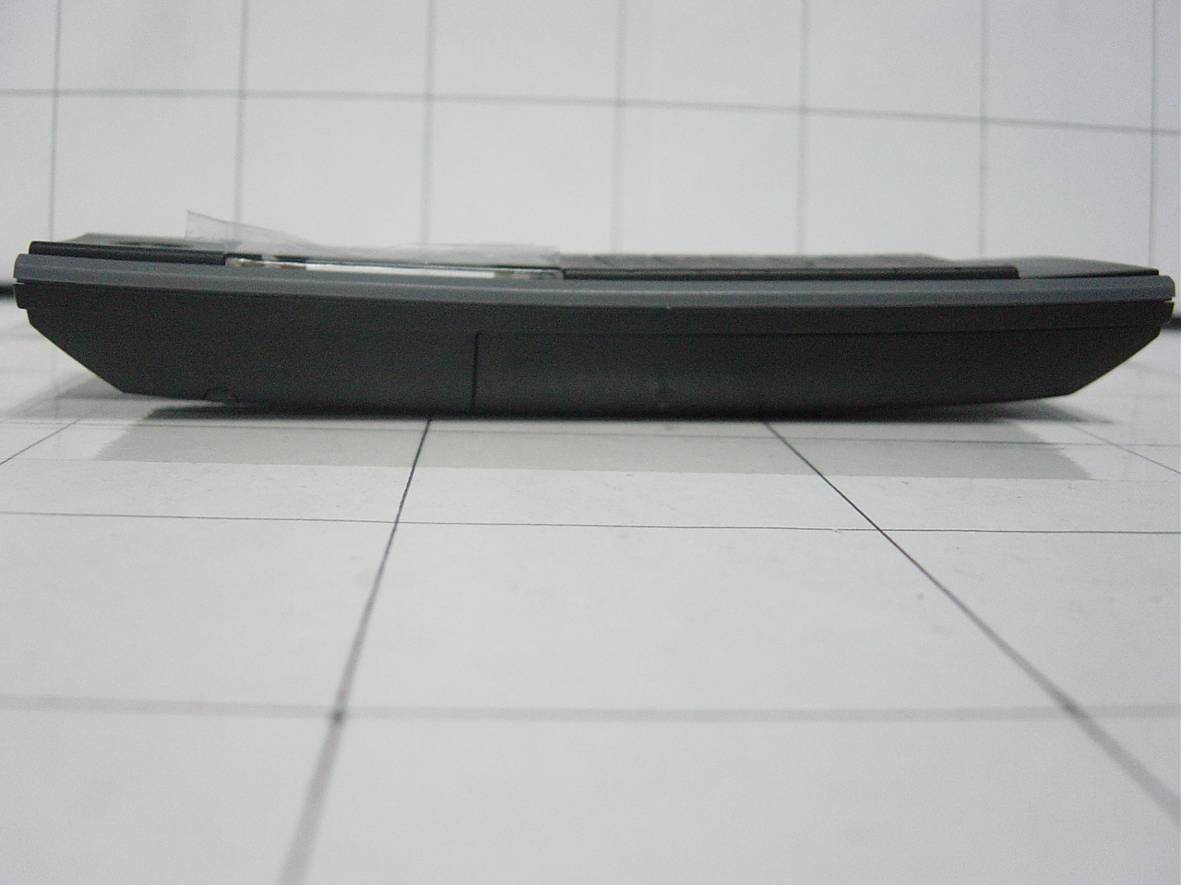

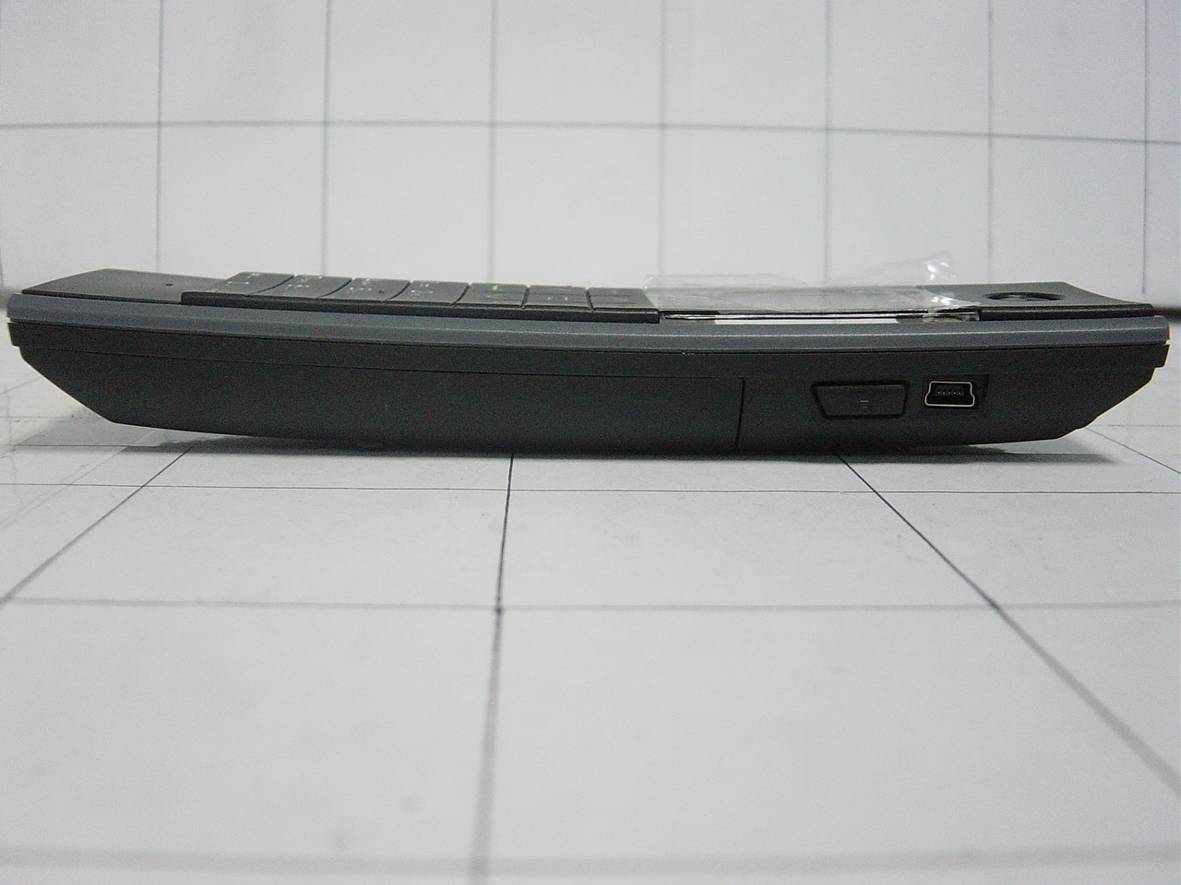

External Photos 1. Front View of EUT 2. Back View of EUT 3. Side View of EUT

Internal Photos

Report No.: SZ10050116S01 Page 2 of 131 Contents 1.ȱGENERAL INFORMATION....................................................................................................3ȱ 1.1.ȱNotes.........................................................................................................................................3ȱ 1.2.ȱOrganization item....................................................................................................................3ȱ 1.3.ȱConclusion................................................................................................................................3ȱ 2.ȱTESTING LABORATORY.......................................................................................................4ȱ 2.1.ȱIdentification of the Responsible Testing Laboratory..........................................................4ȱ 2.2.ȱIdentification of the Responsible Testing Location..............................................................4ȱ 2.3.ȱAccreditation Certificate........................................................................................................4ȱ 2.4.ȱList of Test Equipments..........................................................................................................4ȱ 3.ȱTECHNICAL INFORMATION ...............................................................................................5ȱ 3.1.ȱIdentification of Applicant......................................................................................................5ȱ 3.2.ȱIdentification of Manufacturer..............................................................................................5ȱ 3.3.ȱEquipment Under Test (EUT)................................................................................................5ȱ 3.3.1.ȱPhotographs of the EUT..................................................................................................6ȱ 3.3.2.ȱIdentification of all used EUTs........................................................................................6ȱ 4.ȱTEST RESULTS.........................................................................................................................6ȱ 4.1.ȱApplied Reference Documents...............................................................................................6ȱ 4.2.ȱTest Environment/Conditions................................................................................................7ȱ 4.3.ȱOperational Conditions During Test.....................................................................................7ȱ 4.3.1.ȱInformations On The Testing..........................................................................................8ȱ 4.3.2.ȱThe Measurement System.............................................................................................10ȱ 4.3.3.ȱUncertainty Assessment.................................................................................................12ȱ 4.4.ȱMEASUREMENT PROCEDURES....................................................................................13ȱ 4.4.1.ȱProcedures Used To Establish Test Signal....................................................................14ȱ 4.5.ȱItems used in the Test Results List.......................................................................................15ȱ 4.6.ȱTest Results List.....................................................................................................................16ȱ ANNEX AȱACCREDITATION CERTIFICATE..........................................................................17ȱ ANNEX BȱPHOTOGRAPHS OF THE EUT ................................................................................19ȱ ANNEX CȱGRAPH TEST RESULTS ...........................................................................................22ȱ Report No.: SZ10050116S01 Page 4 of 131 2. Testing Laboratory 2.1. Identification of the Responsible Testing Laboratory Company Name: Shenzhen Electronic Product Quality Testing Center Department: Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China Responsible Test Lab Manager: Mr. Shu Luan Telephone: +86 755 86130268 Facsimile: +86 755 86130218 2.2. Identification of the Responsible Testing Location Name: Shenzhen Electronic Product Quality Testing Center Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China 2.3. Accreditation Certificate Accredited Testing Laboratory: No. CNAS L1659 (see 0) 2.4. List of Test Equipments No.InstrumentType 1 PC Dell (Pentium IV 2.4GHz, SN:X10-23533) 2 Network Emulator Rohde&Schwarz (CMU200, SN:105894) 3 Voltmeter Keithley (2000, SN:1000572) 4 Synthetizer Rohde&Schwarz (SML_03, SN:101868) 5 Amplifier Nucl udes (ALB216, SN:10800) 6 Power Meter Rohde&Schwarz (NRVD, SN:101066) 7 Probe Antennessa (SN:SN_3708_EP80) 8 Phantom Antennessa (SN:SN_36_08_SAM62) 9 Liquid Antennessa (Last Calibration:21 08 04) Report No.: SZ10050116S01 Page 5 of 131 3. Technical Information Note: the following data is based on the information by the applicant. 3.1. Identification of Applicant Company Name: Brightstar Corporation Address: 9725 NW 117th Avenue, #300 Miami, FL 33178 3.2. Identification of Manufacturer Company Name: LAKIA Networks CO., LTD. Address: 2/F,Unit A, Technology Service Building, Software Garden, 1phase, Xiamen, Fujian, China Zip: 361005 3.3. Equipment Under Test (EUT) Brand Name: MOTOROLA Type Name: MOTOROLA Marking Name: FXC-851L Hardware Version: P4 Software Version: LKW_R51.01 Frequency Bands: GSM 850MHz (channel 128:824.20MHz,channel 190:836.59MHz, channel 251:848.29MHz) PCS 1900MHz (channel 512:1850.19MHz,channel 661:1880.00MHz, channel 810:1909.80MHz) Modulation Mode: GMSK Antenna type:Build inside Development Stage: Identical prototype Battery Model: 3 A0850-31 Battery specification: 850mAh 3.7V Development Stage Identical prototype Multislot Class GPRS: (n.a): EDGE:(n.a) Report No.: SZ10050116S01 Pag…

Text truncated - open the document above for the full version.

Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 1/26 Issue: A Date: 2009/10/05 1 COMOSAR E-FIELD PROBE CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 2/26 Issue: A Date: 2009/10/05 2 COMOSAR SEPT ISOTROPIC E-FIELD PROBE CALIBRATION REPORT DATE: 14/11/2008 REFERENCE: SN 37/08 EP80 OBJECT: COMOSAR SEPT ISOTROPIC E-FIELD PROBE MANUFACTURER: SATIMO SERIAL NUMBER: SN 37/08 EP80 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2009 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 3/26 Issue: A Date: 2009/10/05 3 PRODUCT DESCRIPTION Frequency Range 100 MHz - 30 GHz Probe length 330 mm Length of one dipole 4.5 mm Maximum external diameter 8 mm Probe extremity diameter 6.5 mm Distance between dipoles/probe extremity < 2.7 mm Resistance of the three dipole (at the connector) Dipole 1: R1=1.4382 MΩ Dipole 2: R2=1.4894 MΩ Dipole 3: R3=1.4683 MΩ Connector (HIROSE series SR30) 6 wire male (Hirose SR30series) The probe could be checked by measuring the resistance of the three dipoles. CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Calibration bench CALISAR Multimeter Keithley 2000 Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 4/26 Issue: A Date: 2009/10/05 4 MEASUREMENT PROCEDURE Probe calibration is realized, in compliance with CENELEC EN 50361 and IEEE 1528 std, with CALISAR, Antennessa proprietary calibration system. The calibration is performed with the EN 50361 annexe technique using reference guide at the five frequencies. Where : P fw = Forward Power P bw = Backward Power a and b = Waveguide dimensions
= Skin depth Keithley configuration: Rate = Medium; Filter =ON; RDGS=10; FILTER TYPE =MOVING AVERAGE; RANGE AUTO After each calibration, a SAR measurement is performed on a validation dipole and compared with a NPL calibrated probe, to verify it. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 5/26 Issue: A Date: 2009/10/05 5 PROBE UNCERTAINTIES Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 6/26 Issue: A Date: 2009/10/05 6 1. Calibration at 450.00 MHz A. Calibration parameters. Label GSM450 Epsilon 43.33 Sigma 0.84 S/m Temperature 21°C Antenna gain 2.03 dB Antenna S11 -10.50 dB Low limit detection (CW) 0.72 V/m (0.47 mW/kg) Calibration curves ei=f(V) (i=1,2,3) allow to obtain E-field value using the formula: E=(e1*e1+e2*e2+e3*e3)pow(1/2) The following tables represent the calibration curves linearization by curve segment in CW signal. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 7/26 Issue: A Date: 2009/10/05 7 Calibration coefficients for the three dipoles in CW: v1 e1 v2 e2 v3 e3 0.584004 419.557857 -0.696059 435.622023 0.541191 412.830715 0.467833 339.207465 -0.556278 351.381991 0.469757 336.297240 0.376994 276.348283 -0.452232 288.647980 0.378826 274.224190 0.302778 224.954643 -0.359005 232.397390 0.305842 224.365698 0.241038 182.154071 -0.286978 188.889931 0.246562 183.825274 0.192549 148.484090 -0.230386 154.650994 0.195712 148.993075 0.154033 121.674762 -0.185412 127.378480 0.157543 122.783107 0.123397 100.276479 -0.147311 104.193802 0.125866 100.956090 0.099878 83.770361 -0.118637 86.660489 0.101471 84.063863 0.081165 70.553219 -0.095250 72.263937 0.082289 70.694342 0.065166 59.152028 -0.076788 60.795323 0.066427 59.538957 0.051916 49.592416 -0.061280 51.041514 0.053353 50.232492 0.041968 42.297602 -0.048746 43.022565 0.042906 42.675214 0.033724 36.126757 -0.039149 36.748110 0.034686 36.605243 0.021855 26.962568 -0.024798 27.024723 0.022272 27.149463 0.018405 23.975145 -0.020856 24.085809 0.018755 24.141334 0.015467 21.515985 -0.017534 21.515985 0.015767 21.615299 0.013018 19.309065 -0.014750 19.398191 0.013276 19.487731 0.010938 17.408496 -0.012392 17.529166 0.011157 17.569575 0.009022 15.586953 -0.010228 15.658899 0.009215 15.676938 0.007353 13.956010 -0.008328 13.988181 0.007484 14.020428 0.005989 12.466979 -0.006801 12.495719 0.006111 12.567858 0.004890 11.214019 -0.005573 11.265779 0.005003 11.330818 0.004019 10.133541 -0.004570 10.121882 0.004099 10.168601 0.003279 9.094132 -0.003739 9.157170 0.003352 9.125596 0.002660 8.095827 -0.003041 8.293946 0.002769 8.265350 0.002126 7.324219 -0.002453 7.366500 0.002188 7.358024 0.001685 6.565400 -0.001947 6.580536 0.001724 6.542765 0.001300 5.784440 -0.001511 5.718225 0.001334 5.757862 0.001123 5.245191 -0.001307 5.269400 0.001174 5.275471 0.000891 4.701768 -0.001057 4.723470 0.000924 4.728912 0.000704 4.209798 -0.000850 4.226839 0.000736 4.243862 0.000574 3.790376 -0.000689 3.791428 0.000603 3.830551 0.000457 3.396200 -0.000570 3.434303 0.000483 3.421852 0.000365 3.050686 -0.000463 3.078014 0.000389 3.079630 0.000292 2.745766 -0.000369 2.726866 0.000311 2.759206 0.000236 2.486639 -0.000312 2.489933 0.000246 2.46…

Text truncated - open the document above for the full version.

Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 1/6 Issue: B Date: 2009/10/05 1 DIPOLE 835 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 2/6 Issue: B Date: 2009/10/05 2 DIPOLE 835 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPC99 OBJECT: COMOSAR IEEE REFERENCE DIPOLE MANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPC99 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2009 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 3/6 Issue: B Date: 2009/10/05 3 PRODUCT DESCRIPTION Dimension: L=161 mm/ h=89.8mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2009 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 835 MHz head liquid. Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 4/6 Issue: B Date: 2009/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 835 MHz: -24.77 dB. -24,77 -40 -35 -30 -25 -20 -15 -10 -5 0 0,7350,8350,935 Frequency (GHz) S11 (dB) Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 5/6 Issue: B Date: 2009/10/05 5 SAR MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2009 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2008 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2008 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-200 9 Probe SATIMO Bretagne (SN:EP37) CF (30.41,29.18,32.33) Date of calibration: 19-06-2009 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 18 09 08) Head Liquid Values: eps’ : 41,20 sigma : 0,872 Distance between the center of the dipole and the liquid (set with a spacer) 15 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 835 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 6,364 W/Kg + 2,64 % 9,805 W/Kg + 3,21 % Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 6/6 Issue: B Date: 2009/10/05 6 SAR MEASUREMENT PLOTS

Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 1/6 Issue: B Date: 2009/10/05 1 DIPOLE 1800 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 2/6 Issue: B Date: 2009/10/05 2 DIPOLE 1800 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPF101 OBJECT: COMOSAR IEEE REFERENCE DIPOLE MANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPF101 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2009 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 3/6 Issue: B Date: 2009/10/05 3 PRODUCT DESCRIPTION Dimension: L=72 mm/ h=41.7 mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2009 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 1800 MHz head liquid. Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 4/6 Issue: B Date: 2009/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 1800 MHz: -25.09 dB -25,09 -35 -30 -25 -20 -15 -10 -5 0 1,71,81,9 Frequency (GHz) S11 (dB) Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 5/6 Issue: B Date: 2009/10/05 5 SAR MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2009 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2008 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2008 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-2009 Probe SATIMO Bretagne (SN:EP37) CF (35.35,34.93,37.42) Date of calibration: 19-06-2009 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 19 09 08) Head Liquid Values: eps’ : 39,80 sigma : 1,45 Distance between the center of the dipole and the liquid (set with a spacer) 10 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 1800 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 20,05 W/Kg + 1,24 % 39,32 W/Kg + 3,20 % Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 6/6 Issue: B Date: 2009/10/05 6 SAR MEASUREMENT PLOTS

Report No.: SZ10050116E01 Page 2 of 41 TABLE OF CONTENTS 1.TEST CERTIFICATION ........................................................................................................... 3 2.GENERAL INFORMATION .................................................................................................... 4 2.1EUT Description ......................................................................................................................... 4 2.2Test Standards and Results ........................................................................................................ 6 2.3Facilities and Accreditations ...................................................................................................... 7 3.47 CFR PART 2, PART 22H & 24E REQUIREMENTS ........................................................ 8 3.1Frequencies .................................................................................................................................. 8 3.2Conducted RF Output Power .................................................................................................. 12 3.399% Occupied Bandwidth ....................................................................................................... 16 3.4Frequency Stability ................................................................................................................... 20 3.5Conducted Out of Band Emissions ......................................................................................... 22 3.6Band Edge ................................................................................................................................. 26 3.7Transmitter Radiated Power (EIRP/ERP) ............................................................................. 29 3.8Radiated Out of Band Emissions ............................................................................................ 35 Change History Issue Date Reason for change 1.0 June 29, 2010 First edition Report No.: SZ10050116E01 Page 4 of 41 2.GENERAL INFORMATION 2.1EUT Description EUT Type ............................. : Cordless Fixed Wireless Phone Model Name ......................... : FXC-851L Serial No. ...........................…
